GeoMax Zenith06 User manual

GeoMax Zenith06 Smart Antenna
Quick Guide Version 1.0

Quick Guide 5
Quick Guide 19
Guía Rápida 33
Guide abrégé 47
Guida rapida 63
Skrócona instrukcja obsługi 77
퀵가이드 91
en
de
es
fr
it
pl
ko

GeoMax Zenith06 Smart Antenna
Quick Guide Version 1.0
English

1 Important Information about your
Instrument
Read and follow the User Manual on the accompanying data storage device
before using the product.
Keep for future reference!
•Computing with software
•Recording measurements
•Carrying out measurement tasks using various GNSS measuring tech-
niques
•Recording GNSS and point related data
•Remote control of product
•Data communication with external appliances
•Measuring raw data and computing coordinates using carrier phase
and code signal from GNSS satellites (GNSS systems)
☞
Intended use
Important Information about your Instrument 6
en

The product must not be disposed with household waste.
For the AC/DC power supply and the battery charger:
WARNING
Unauthorised opening of the product
Either of the following actions may cause you to receive an electric shock:
•Touching live components
•Using the product after incorrect attempts were made to carry out
repairs.
Precautions:
▶Do not open the product!
▶Only GeoMax authorised service centres are entitled to repair these
products.
Important Information about your Instrument 7
en

•Hereby, GeoMax AG declares that the radio equipment type
Zenith06 smart antenna is in compliance with Directive 2014/53/EU
and other applicable European Directives.
The full text of the EU declaration of conformity is available at the
following Internet address: https://geomax-positioning.com/part-
ner-area.
Class 1 equipment according to European Direc-
tive 2014/53/EU (RED) can be placed on the market and
be put into service without restrictions in any EEA member
state.
•The conformity for countries with other national regulations not
covered by the European Directive 2014/53/EU has to be approved
prior to use and operation.
The products of GeoMax are powered by Lithium batteries.
Lithium batteries can be dangerous under certain conditions and can pose
a safety hazard. In certain conditions, Lithium batteries can overheat and
ignite.
Conformity
to national
regulations
Dangerous
Goods Regula-
tions
Important Information about your Instrument 8
en

☞When carrying or shipping your GeoMax product with Lithium
batteries onboard a commercial aircraft, you must do so in
accordance with the IATA Dangerous Goods Regulations.
☞GeoMax has developed Guidelines on “How to carry GeoMax
products” and “How to ship GeoMax products” with Lithium
batteries. Before any transportation of a GeoMax product, we
ask you to consult these guidelines on our web page (http://
www.geomax-positioning.com/dgr) to ensure that you are in
accordance with the IATA Dangerous Goods Regulations and
that the GeoMax products can be transported correctly.
☞Damaged or defective batteries are prohibited from being car-
ried or transported onboard any aircraft. Therefore, ensure that
the condition of any battery is safe for transportation.
•Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
All other trademarks are the property of their respective owners.
Trademarks
Important Information about your Instrument 9
en

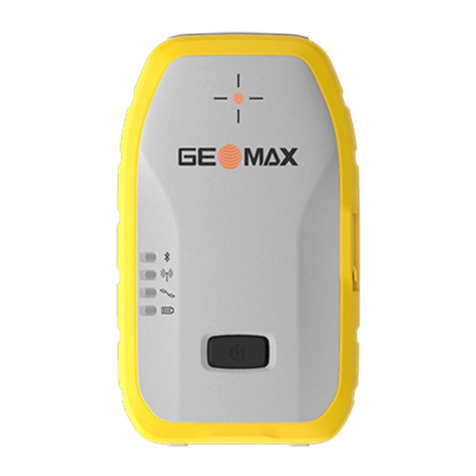

1.1 Instrument Components
21274_001
f
e
g
d
c
b
a
a Bluetooth LED
b RTK LED
c Position LED
d Battery LED
e ON/OFF button
f Holes for the screws to
fix the pole adapter
g USB type-C port
Description
Important Information about your Instrument 10
en

2 Technical Data
Internal battery 3.8 V, 6120 mAh
Type-C charging, supports 1.44 A fast
charge
Input voltage 5 V DC/2 A
Power consumption 1.8 W
Working time > 20 hours
Charge time Typically 4 hours
Type Operating temperature
[°C]
Storage temperature
[°C]
Instrument −40 to +65 −40 to +80
External influences Protection
Water and dust IP67
Power
Environmental
specifications
Technical Data 11
en

External influences Protection
Humidity ISO9022-12-04
Resp. +65 °C 92%, 62 h
Drop 1.2 m once to all surfaces onto hard wood
(50 mm) over concrete floor within the
storage temperature range
Vibration Withstands strong vibration.
ISO9022-36-03-0 (10-150 Hz, 2 g
±0.15 mm/ 20 cycles)
Technical Data 12
en

3 Transport
When transporting the equipment in the field, always make sure that you
•either carry the product in its original container,
•or carry the tripod with its legs splayed across your shoulder, keeping
the attached product upright.
Never carry the product loose in a road vehicle, as it can be affected by
shock and vibration. Always carry the product in its container and secure it.
For products for which no container is available use the original packaging
or its equivalent.
When transporting the product by rail, air or sea, always use the complete
original GeoMax packaging, transport container and cardboard box, or its
equivalent, to protect against shock and vibration.
When transporting or shipping batteries, the person responsible for the
product must ensure that the applicable national and international rules
Transport in the
field
Transport in a
road vehicle
Shipping
Shipping, trans-
port of batteries
Transport 13
en

and regulations are observed. Before transportation or shipping, contact
your local passenger or freight transport company.
Transport 14
en

4 Operation
The battery must be charged before using it for the first time.
22838_001
b
a
a Battery LED
b ON/OFF button
Turn on:
Press and hold the ON/OFF button
until the battery LED is green and the
device beeps.
Turn off:
Press and hold the ON/OFF button
until the battery LED switches off and
the device beeps.
☞
Turning on/off
the instrument
Operation 15
en

4.1 Connect the Zenith06 smart antenna to the Pole
To attach the Zenith06 smart antenna on the top of a pole, the pole mount
adapter is required - Art. 948915.
22839_001
1
2
1. Use a slot screwdriver to fix the pole mount adapter with both
screws to the Zenith06 smart antenna.
☞Make sure to fix the pole mount adapter in the
correct orientation.
2. Screw the pole clockwise into the pole mount adapter.
Setup on a pole
Operation 16
en

GeoMax AG
Espenstrasse 135
9443 Widnau
Switzerland
geomax-positioning.com
948917-1.0.0en
Original text (948917-1.0.0en)
© 2021 GeoMax AG is part of Hexagon AB.
All rights reserved.

GeoMax Zenith06 Smart Antenna
Quick Guide Version 1.0
Deutsch

1 Wichtige Informationen über Ihr
Instrument
Vor der Verwendung des Produkts die Gebrauchsanweisung auf dem
beigefügten Datenträger lesen und befolgen.
Sorgfältig aufbewahren!
•Berechnung mit Software
•Registrierung von Messdaten
•Durchführen von Messaufgaben mit verschiedenen GNSS-
Messtechniken
•Speichern von GNSS- und punktbezogenen Daten
•Fernbedienung des Produkts
•Datenübertragung an externe Geräte
•Messung von Rohdaten und Berechnen von Koordinaten mithilfe von
Trägerphase und Codesignalen von GNSS-Satelliten (GNSS-Systeme)
☞
Bestimmungsge
mäße
Verwendung
Wichtige Informationen über Ihr Instrument 20
de
