GeoMax EZiSYSTEM i Series User manual

EZiSYSTEM
including xf-Series
User Manual
Version 1.1
English

2EZiSYSTEM, Introduction
Introduction
Purchase Congratulations on your purchase of an EZiSYSTEM instrument.
This manual contains important safety directions as well as instructions for setting up the
product and operating it. Refer to "9 Safety Directions" for further information.
Read carefully through the User Manual before you switch on the product.
Product identification The model and the serial number of your product are indicated on the type plate.
Enter the model and serial number in your manual and always refer to this information
when you need to contact your agency or Cable Detection authorised service workshop.
Type: _________________________
Serial No.: _________________________

EZiSYSTEM, Introduction 3
Symbols The symbols used in this manual have the following meanings:
Validity of this manual This manual applies to all EZiSYSTEM instruments, which are the i-Series locators, the t-
Series transmitters and accessories. Differences between the various instruments and
models are marked and described.
Type Description
Danger Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Warning Indicates a potentially hazardous situation or an unintended use which, if
not avoided, could result in death or serious injury.
Caution Indicates a potentially hazardous situation or an unintended use which, if
not avoided, may result in minor or moderate injury.
Important paragraphs which must be adhered to in practice as they enable
the product to be used in a technically correct and efficient manner.

4EZiSYSTEM, Table of Contents
Table of Contents
In this manual Chapter Page
1 General Information 7
1.1 How to Use this Manual 7
1.2 i-Series General Information 8
1.3 i-Series Instruments and Accessories 10
2 How to Use the Locator 11
2.1 General Information 11
2.2 Locator Overview 13
2.3 Locator Setup and Information 16
2.4 Hazard Zone 19
2.5 How to Locate a Service 21
2.6 Wireless Data Communication, where applicable 34
2.7 Memory & Communication 37
2.8 Internal GPS 38
3 How to Use the Transmitter 40
3.1 General information 40
3.2 Transmitter Overview 42
3.3 How to Locate a Service Using the Transmitter 45
4 How to Use the Conductive Rod 49
4.1 General Information 49
4.2 Conductive Rod Overview 49
4.3 How to Locate a Service Using the Conductive Rod 50

EZiSYSTEM, Table of Contents 5
5 How to Use the Signal Clamp 52
5.1 General Information 52
5.2 Signal Clamp Overview 52
5.3 How to Locate a Service Using the Signal Clamp 53
6 How to Use the Property Connection Set 55
6.1 General Information 55
6.2 Property Connection Set Overview 55
6.3 How to Locate a Service Using the Property Connection Set 56
7 How to Use the Sonde 58
7.1 General Information 58
7.2 Sonde Overview 58
7.3 Maxi Sonde Overview 61
7.4 How to Locate a Service Using the Sonde 64
8 Care and Transport 66
8.1 Transport 66
8.2 Storage 66
8.3 Cleaning and Drying 67
9 Safety Directions 68
9.1 General Introduction 68
9.2 Intended Use 68
9.3 Limits of Use 69
9.4 Responsibilities 69
9.5 Hazards of Use 70
9.6 Electromagnetic Compatibility EMC 75
9.7 FCC Statement, Applicable in U.S. 78

6EZiSYSTEM, Table of Contents
10 Technical Data 83
10.1 Locator i-Series Technical Data 83
10.2 Transmitter Technical Data (1 Watt models) 88
10.3 Conductive Rod Technical Data 91
10.4 Sonde Technical Data 93
10.5 Maxi Sonde Technical Data 95
10.6 Property Connection Set Technical Data 97
10.7 Signal Clamp Technical Data 99
10.8 Multi Clamp Technical Data 101
11 International Limited Warranty 103
Appendix A Functional Checks 104
A.1 Locator Functional Check 104
A.2 Transmitter Functional Check 108
A.3 Conductive Rod Functional Check 114
A.4 Sonde Functional Check 116
Appendix B World Frequency Zones 119
Index 123

EZiSYSTEM, General Information 7
1 General Information
1.1 How to Use this Manual
It is recommended to set up the product while reading through this manual.
Naming convention EZiCAT i500, i550, i600, i650, i700, i750 and xf models are hereinafter referred to as Locator.
Differences between the models are marked and described.
EZiTEX t100, t300 and xf models is hereinafter referred to as Transmitter.
EZiROD is hereinafter referred to as Conductive Rod.
Index The index is at the back of the manual.
Instrument label On the Locator and Transmitter you will find a label that shows some important informa-
tion by means of illustrations. You will find some of these illustrations in this manual too.
This should help to get a clear connection between the instrument label and the informa-
tion in this manual.

8EZiSYSTEM, General Information
1.2 i-Series General Information
Description Locators are used to detect buried conductive services emitting an electromagnetic signal
which is generated by a current passing through the service.
Transmitters are used to apply a distinct signal to conductive services, which may not
radiate electromagnetic signals or may need to be traced for a specific purpose.
The Transmitter is required to make a depth or current measurement.
The Locators and Transmitters described within this manual will greatly increase the detec-
tion process and help to reduce the dangers and costs associated with service strikes. But
the very nature of electromagnetic location is dependent on the services being conductive
(metallic) and radiating a signal as current flows through them.
It is important to remember that a Locator on its own will not detect all services and care
should be taken when excavating. It is generally accepted that a safe system of work should
be adopted which would include planning the work in advance, the use of utility maps, the
use of Locators and Transmitters, and the use of safe digging practices.
Caution The absence of a positive indication does not guarantee the non-existence of a service.
Services without a detectable signal may be present.
The Locators can only locate non-metallic services such as plastic pipes, typically used by
the water and gas utilities, with the use of appropriate accessories.
Precautions:
Always excavate with care.

EZiSYSTEM, General Information 9
Accessories Designed to increase the detection of services with no (or little) signals on them. Generally
work in conjunction with the Locator and Transmitter.
Functional Check Designed to demonstrate the equipment is working satisfactorily in between service inter-
vals. Refer to "Appendix A Functional Checks" for more information.

10EZiSYSTEM, General Information

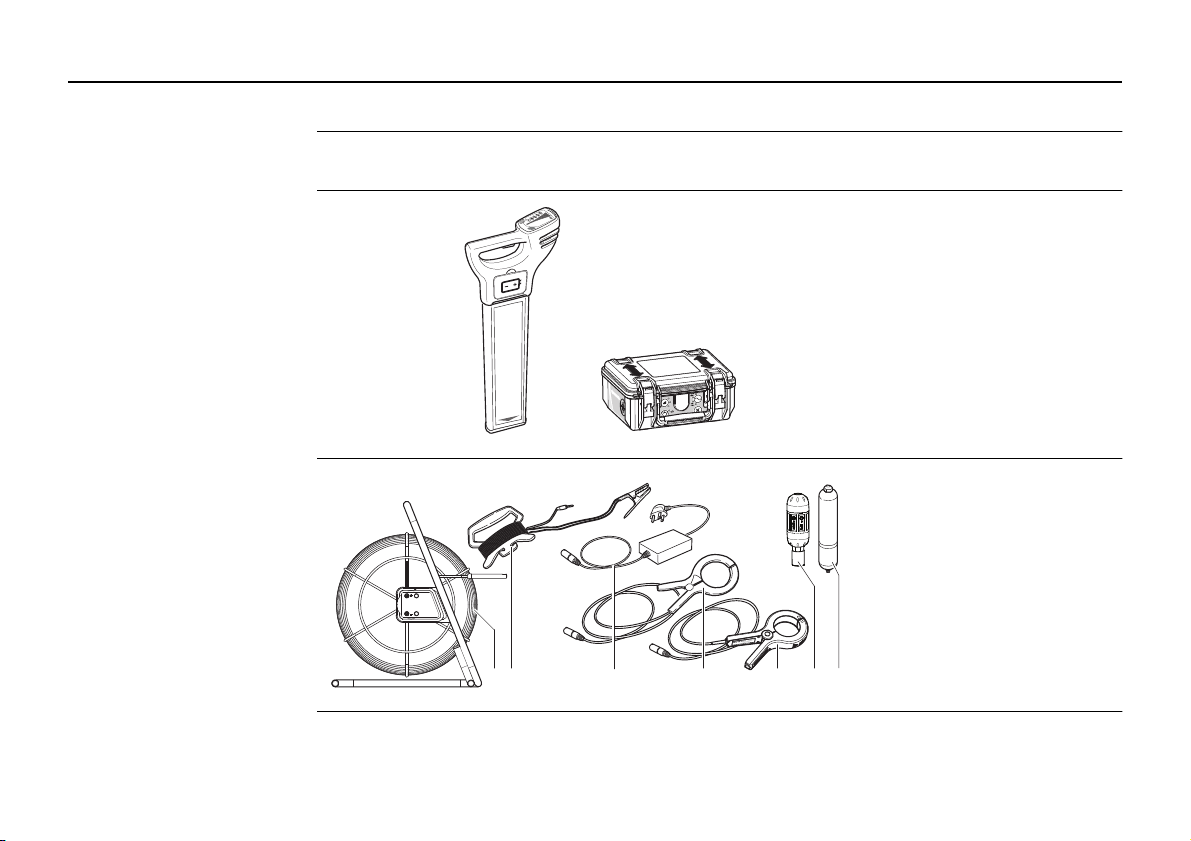

1.3 i-Series Instruments and Accessories
General information The i-Series is a collection of products used to locate buried metallic and nonmetallic
services.
i-Series instruments
overview
i-Series accessories
overview
a) Locator
b) Transmitter
F
i
ab
a) Conductive Rod (non
metallic service tracer)
b) Extension Cable
c) Property Connection
Set
d) Signal Clamp
e) Multi Clamp
f) Sonde
g) Maxi Sonde
ac bdef
g

EZiSYSTEM, How to Use the Locator 11
2 How to Use the Locator
2.1 General Information
Operating modes • Passive modes: Power and Radio
• Active modes: 8 kHz, 33 kHz, additionally 512 Hz and 640 Hz on xf models
• Auto mode: Combined Power and Radio modes
Electromagnetic signals An electromagnetic signal radiates from buried conductive services as an electrical current
flows through them. The Locator processes these signals and displays their presence.
Passive signals Some signals are already present on buried services and can be readily detected by the
Locator. We call these passive signals. These signals are generated by power distribution
systems and radio transmitters.
Active tracing Some conductive services do not emit passive signals. These services may be traced by
applying a signal to the service by using a transmitter.
Depth indication
(i550, i650, i750, i550xf,
i650xf, i750xf)
Depth indication is only available with the i550, i650, i750, i550xf, i650xf, i750xf locators
when used in conjunction with the Transmitter or Sonde. The displayed depth is to the
centre of the service or to the Sonde.
Current Measurement
(i550xf, i650xf & i750xf)
Current measurement is only available on the i550xf, i650xf or i750xf when used in
conjunction with the transmitter. The highest current reading (mA) will be displayed over
the service which has the transmitter connected to it.
Wireless communication
(Bluetooth)
Data can be wirelessly transferred from the Bluetooth enabled Locator to devices which are
designed to accept the information.

12EZiSYSTEM, How to Use the Locator
Hazard zone Provides an additional alarm, indicating the close proximity of a service emitting a Power,
8 kHz, 33 kHz (512 Hz and 640 Hz on xf models) signal.
Peak hold Assists in pinpointing a service by displaying the peak reading for a short period of time.

EZiSYSTEM, How to Use the Locator 13
2.2 Locator Overview
Locator main parts
The case foot can be replaced if it is worn. Contact your agency or Cable Detection author-
ised service workshop.
a) Display Panel
Contains the operational controls.
b) Speakers (mounted internally left and right)
Active at power on and when a signal is detected.
c) On/Off Trigger
Press and hold the trigger to activate the Locator.
Release the trigger to deactivate.
d) Battery Hatch Release
Pressing the release button unlocks the battery
hatch allowing access to the battery compartment.
e) Battery Compartment
6 x LR6 (AA) alkaline batteries are used. Replace all
batteries when indicated.
f) Case Foot
F
i
a
b
c
d
e
f

14EZiSYSTEM, How to Use the Locator
Display panel overview a) Signal Strength Indicator
Indicates the response of the Locator to a signal
(service).
b) Mode Indicators
Displays the selected mode: Power, Radio, 8 kHz,
33 kHz, Auto, (512 Hz and 640 Hz on xf models).
As shown, from bottom to top.
c) Function Button
Selects operating mode.
d) Light Sensor
Automatically switches the displays backlight on
or off to suit light conditions.
e) Battery Indicator
Indicates the battery condition. Segment illumina-
tion decreases as battery condition declines.
Replace the batteries when the battery indicator is
empty.
f) M Indicator
Symbol Static: Memory enabled
GPS índicator (i700, i750, i750xf)
Symbol Flashing: GPS active and recording GPS
coordinates.
Symbol Static: No GPS position.
g) Bluetooth Status Indicator
Symbol Static: Bluetooth is enabled
Symbol Flashing: Bluetooth is paired
No Symbol: Bluetooth is disabled
h) Wrench
Indicates the Locator requires periodic service or unit is faulty.
a
b
c
d
e
f
g
h
ij
k
l
m
n

EZiSYSTEM, How to Use the Locator 15
i) Numeric Signal Strength Indicator (SSI)
Symbol Static: SSI is enabled
No Symbol: SSI is disabled
j) Current Indicator (i550xf, i650xf and i750xf)
Indicates the amount current flowing through a service which is applied by the Transmitter.
This is measured in milliamperes (mA).
k) Measurement Unit (Depth indication with the i550, i650, i550xf, i650xf and i750xf)
Indicates depth indication is in metric or feet and inches.
l) Display Readout
Alpha numeric matrix indicates system set up and depth indication.
m) Depth Mode Indicators
Indicates a depth reading to a service or a Sonde (Depth locators only). Service depth icon
used to indicate Hazard Zone status.
n) i Button
Used to access the user settings and to provide a depth readout for Depth locators.

16EZiSYSTEM, How to Use the Locator
2.3 Locator Setup and Information
Locator settings The i-Series Locators offer a range of settings which the operator can adjust to their own
preference. It also displays additional service and contact information as detailed.
Setting Description
EST Performs a function check on the locators hardware and software,
displaying PAS if the Locator is within predefined tolerance or
ERR if the locator is not.
H.Z Switches hazard zone on or off.
VOL Adjust volume level (0 - 10).
HLD Adjust peak hold duration (0 - 5 seconds).
SSI Displays a numeric signal strength indicator.
CST Adjusts display’s contrast (0 - 15).
M/I Displays unit of measurement.
CAL Displays the next service date DD/MM/YY.
CON Displays supplier/company name.
TEL Displays supplier/company telephone number.
I.D Displays the operator’s name.
PWR Displays the power mode regional setting. Refer to "Appendix B
World Frequency Zones" for more information.
SR# Displays unit serial number.
VER Displays software version.
CLK
(i600, i650, i700, i750,
i600xf, i650xf, i750xf)
Displays the date and time held within the locators memory.
Format DD/MM/YY/HH/MM/SS.

EZiSYSTEM, How to Use the Locator 17
Accessing and adjusting
the settings
1. Switch the Locator on.
2. Ensure the Locator is in Power mode.
If required, press Function Button to select mode.
3. Depress the i Button until the user settings are displayed in the display readout.
4. Press Function Button to toggle through to desired setting.
5. Press i Button to select the setting.
6. Press Function Button to activate/adjust.
7. Press i Button to store and exit.
LOG
(i600, i650, i700, i750,
i600xf, i650xf, i750xf)
Displays the last stored log number 001 to 999.
BT
(i600, i650, i600xf &
i650xf)
Adjusts the Bluetooth output options.
Setting COM
(i700, i750 & i750xf)
Adjusts the locators Bluetooth or GPS settings:
PC: Enables Bluetooth communication to Logicat Software
BT1: Enables Bluetooth option 1 (refer to section 2.6)
BT2: Enables Bluetooth option 2 (refer to section 2.6)
GPS: Switches GPS on following use with BT1 or BT2 settings
LST
(xf models)
Sets the Locators start up mode.
On: The Locator starts in the last mode of operation used.
Off: The Locator starts in Power mode.
Setting Description

18EZiSYSTEM, How to Use the Locator
Danger The Locator may fail to detect electrical services in Power mode if an incorrect power
setting is used.
Precautions:
Before use, verify the Locator is setup to be compatible with mains frequency supply in
your country. Options are 50 or 60 Hz. Refer to "Appendix B World Frequency Zones" for
more information.
Contact your agency or Cable Detection authorised service workshop if your unit is incor-
rectly configured for your region.
Changing the battery 1. Replace or Recharge the batteries when
the battery status indicator is empty.
2. Press the release button to unlock the
Battery Hatch. Remove the battery
holder from the Locator.
3. Replace all batteries with six new
LR6 (AA) type alkaline batteries, or
remove and recharge the battery pack if
rechargeable batteries are fitted.
F
i

EZiSYSTEM, How to Use the Locator 19
2.4 Hazard Zone
Description Provides an additional warning to the close proximity of buried services and functions in
the following modes:
•Power
• 8 kHz
• 33 kHz
• Auto mode (Power mode only)
• 512 Hz & 640 Hz (xf models only)
Hazard zone
status indicators Status indicator Description
Hazard zone is switched on.
Hazard zone on and is alarming.
Hazard zone is switched off.

20EZiSYSTEM, How to Use the Locator
Caution The absence of a positive indication does not guarantee the non-existence of a service.
Services without a detectable signal may be present.
The Locators can only locate non-metallic services such as plastic pipes, typically used by
the water and gas utilities, with the use of appropriate accessories.
Precautions:
Always excavate with care.
