Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use. IRLEDT2-B
User's Manual
GV-IR LED T2

© 2014GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows XP
are registered trademarks of Microsoft Corporation.
February 2014

Contents
Contents .................................................................................................................. 1
Preface..................................................................................................................... 1
1. Introduction....................................................................................................... 2
1.1 Features.................................................................................................... 2
1.2 Packing List ............................................................................................. 3
2. Connecting GV-IR LED T2 to GV-IPCAM ......................................................... 4
3. Installing GV-IR LED T2 .................................................................................... 7
4. Specifications ................................................................................................... 8

1
Preface
Welcome to the GV-IR LED T2 User’s Manual.
The GV-IR LED T2 is an indoor-use infrared illuminator, which is designed to work
with the GV-IPCAM for a better night vision. The table below lists the compatible
models of GV-IPCAM.
Compatible GV-IPCAM models
Model No. Description
GV-BX1300 Series 1.3 MP H.264 WDR D/N Box IP Camera
GV-BX1500 Series 1.3 MP H.264 Super Low Lux WDR D/N Box IP Camera
GV-BX2400 Series 2 MP H.264 WDR Pro D/N Box IP Camera
GV-BX2500 Series 2 MP H.264 Super Low Lux WDR Pro D/N Box IP Camera
GV-BX3400 Series 3 MP H.264 WDR Pro D/N Box IP Camera
GV-BX5300 Series 5 MP H.264 WDR D/N Box IP Camera
GV-BX120D 1.3 MP, H.264, Low Lux WDR D/N Box IP Camera
GV-BX130D Series 1.3 MP, H.264, WDR D/N Box IP Camera
GV-BX140DW 1 MP, H.264, WDR Pro D/N Box IP Camera
GV-BX220D Series 2 MP, H.264, WDR D/N Box IP Camera
GV-BX320D Series 3 MP, H.264, WDR D/N Box IP Camera
GV-BX520D 5 MP, H.264, WDR D/N Box IP Camera

1. Introduction
The GV-IR LED T2 is designed to work perfectly with the GV-IPCAM to improve the image
performance in low-light or night situations. When the GV-IPCAM detects the illumination of
the environment, it would determine it to be Day mode or Night mode. If you set the GV-IR
LED T2 to be triggered by D/N mode, the infrared light of GV-IR LED T2 will be turned on and
the camera images will be switched to monochrome to produce better images in the Night
mode. In the Day mode, the infrared light of GV-IR LED T2 will be turned off and the camera
images will be switched to color. For the On-Off conditions of each compatible GV-IPCAM,
see 4. Specifications.
.Following is the comparison of the GV-IPCAM working with and without the GV-IR LED T2 in
10 lux illuminance.
With GV-IR LED T2 Without GV-IR LED T2
1.1 Features
•Indoor infrared illumination
•850 nm LEDs
•12 IR LEDs for 10-meter illumination distance
•12V DC power supplied from GV-IPCAM. No separate power adapter is required.
2

Introduction
3
1
1.2 Packing List
The GV-IR LED package includes the following items:
•GV-IR LED x 1 (with a power cable and unshielded wires)
•Bracket x 1
•Camera Holder x 1
•Hexagon Head Phillips Screw x 1
•Round Head Phillips Screw x 2
•Round Head Phillips Screw with the Washer x 2

2. Connecting GV-IR LED T2 to GV-IPCAM
To connect the GV-IR LED T2 to a GV-IPCAM, follow the steps below:
1. Fasten the camera holder to the GV-IR LED T2 with the Round Head Phillips Screws with
the washers.
Camera Holder
Round Head Phillips Screw
with the Washer
Figure 1
2. Fasten the bracket onto the camera holder with the Hexagon Head Phillips Screw.
Bracket Hexagon Head Phillips Screw
Figure 2
4

Connecting GV-IR LED T2 to GV-IPCAM
2
3. Fasten the GV-IR LED T2 to the bracket with Round Head Phillips Screws.
GV-IR LED T2
Round Head Phillips Screws
Figure 3
4. Unscrew the power cables of the GV-IPCAM from the supplied 2-pin Terminal Block. Twist
the red wire from the GV-IR LED T2 to the power cable (DC 12 V), which has the gray
stripes on it, and twist the black wire from the GV-IR LED T2 to the power cable (ground),
which has the characters on it.
Figure 4
Note: Ensure to twist the power cables with the wires of the GV-IR LED in the correct way,
or it may cause the GV-IR LED to burn out.
5

6

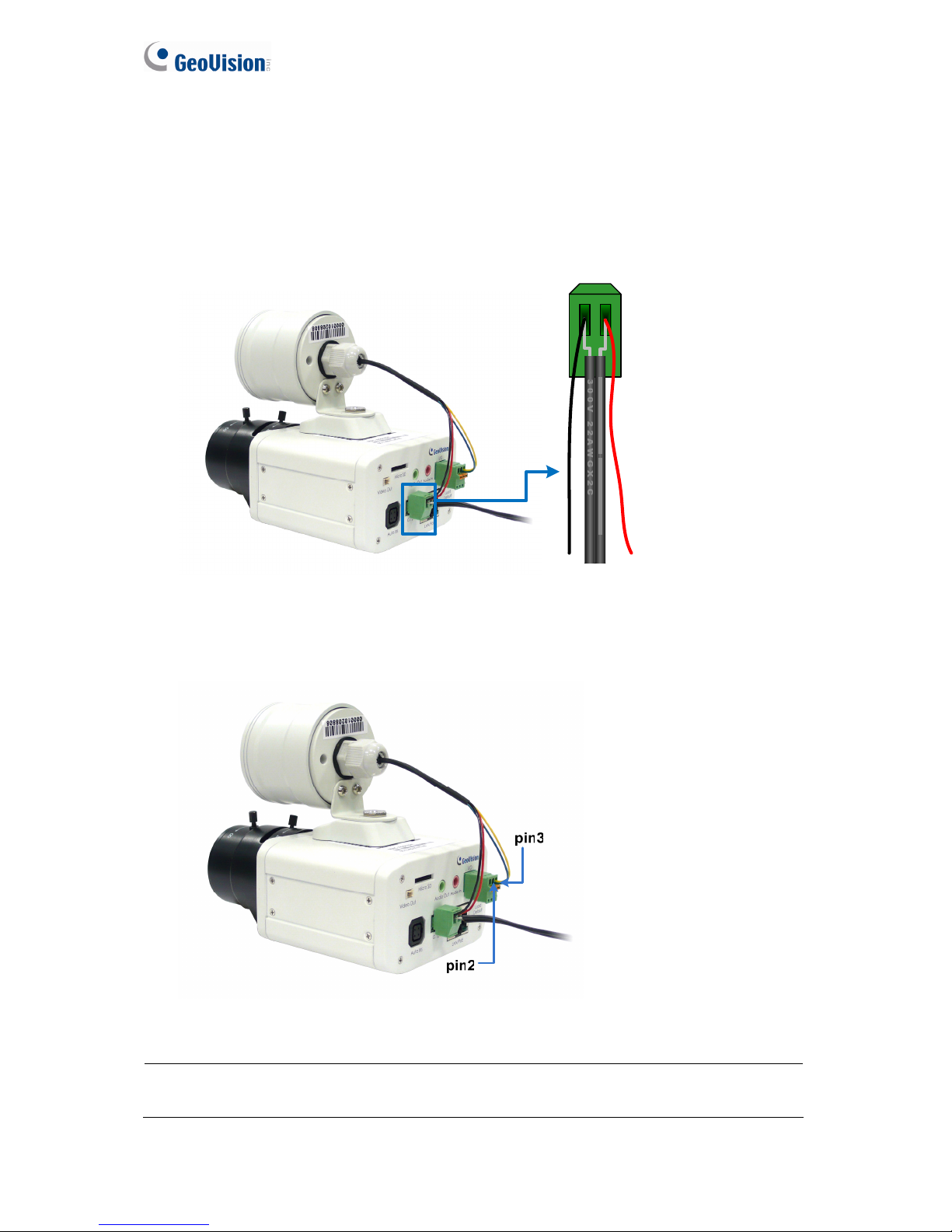

5. Connect the red wire twisted with the power cable (DC 12 V) to the right-side pin of the
Terminal Block, and connect the black wire twisted with the power cable (ground) to the
left-side pin of the Terminal Block. Connect the Terminal Block to the DV 12 V Port of the
GV-IPCAM.
Figure 5
6. Connect the green wire to Pin 2 and the yellow wire to Pin 3 on I/O Terminal Block
connector.
Figure6
Note: Ensure not to connect the yellow wire to pin 1 on the I/O terminal block, or the GV-IR
LED T2 will be always turned on.

Installing GV-IR LED T2
3
3. Installing GV-IR LED T2
After connecting the GV-IR LED T2 to the GV-IPCAM, you need to access the Web interface
of the GV-IPCAM to install the GV-IR LED T2. Follow the steps below:
1. Access the Web interface of the GV-IPCAM.
Figure 5
2. Select Video and Motion, select Video Settings, select Streaming 1, set IR Check
Function from the following options, and then click Apply.
Figure 6
Off: Select this option to leave the GV-IR LED T2 in the ON status continuously.
On: Select this option to leave the GV-IR LED T2 in the OFF status continuously.
Trigger IR by D/N: Select this option to trigger the GV-IR LED T2 to turn on in the
Night mode and turn off in the Day mode.
7

8
4. Specifications
Power 12V DC, 250 mA
IR Wavelength 850 nm
Environment Indoor use only
IR LED Quantity 12 IR LEDs
Illumination View Angle 35°
Illumination Range 10 m / 32.81 ft
Illumination Life 10,000 hrs
Trigger Type Dry Contact
Operating Temperature 0°C ~ 50°C
Weight 140 g / 0.31 lbs
Dimensions (H x W x D) 49 x 47 x 67 (mm) / 1.93 x 1.85 x 2.64 (in)
