German pool KQB-29E User manual

P.1
Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
Online Warranty Registration
Mini Korean Barbecue Grill KQB-29E
USER MANUAL

P.2
請即進行保用登記﹗
有關保用條款細則，請看本說明書最後一頁。
Please register your warranty information now!
For Warranty Terms & Conditions,
please refer to the last page of this user manual.

P.3
Table of Contents
Safety Instructions 04
Product Structure 04
Operation Instructions 05
Care & Maintenance 06
Technical Specications 06
Warranty Terms & Conditions 11

P.4
Safety Instructions
• This product is only suitable for indoor use only.
• Appliance must be placed on a level and sturdy countertop during operation.
• Keep appliance at least 50cm away from walls during operation.
• Use only 3-pin plug socket with reliable earth connection.
• During operation, keep appliance away from ammables or items that may explode.
• During operation, be cautious that areas surrounding the heat-emitting parts of the appliance
may be hot. Take care to prevent from getting burnt.
• During operation, do not leave the appliance unattended.
• The appliance is not intended for use by children or persons with reduced physical, sensory or
mental capabilities, or any individual lacking experience and knowledge, unless they have been
given supervision or instruction by a person responsible for their safety.
• Unplug the power cord and let the appliance cool before cleaning or washing, or when the product
is not in use.
• Do not attempt to repair the appliance yourself. All repairs must be conducted by the manufacturer,
its service agent or similarly qualied persons.
• If power cord is damaged, immediately stop using, and have the cord replaced by the manufacturer,
its service agent or similarly qualied persons.
• Do not submerge, spray or splash the appliance with any liquid.
Product Structure
Control Panel Air Inlet
Base
Built-In Heating Element
Grill Plate
Grease Reservoir

P.5
Operation Instructions
• Place main unit on a level surface and place clean grill plate onto the base.
• Connect power cable to wall socket. Make sure your household power supply is compatible with
that required of the appliance.
• Press HEATING button to select heating mode; press once is‘TOP/BOTTOM’ (halogen+tubular
heating element); press twice is ‘TOP’(halogen heating only); press three times is ‘BOTTOM’(tubular
heating element only). Pressing 4th time returns to ‘TOP/BOTTOM’ and cycle begins again.
• After heating mode is selected, press ‘START/STOP’ button to start the machine. Halogen
and/or tubular heating element will heat up.
• Press ‘TIMER’ button to preset cooking time. Default timer is 20 minutes, each press of
‘TIMER’ button increases timer by 1 minute. Long pressing will make timer increase by
5-minute increments.
• After preheating for 2 minutes, place food onto the grill pan. Adjust heating modes according to need.
• Press ‘START/STOP’ button to stop machine after use. The grill fan will continue to run for
5 minutes to dissipate residual heat.
CAUTION!
• Do not turn off socket power supply until machine has completely cooled down.
• If machine is used frequently, it is not necessary to turn off socket power supply.
TOP
BOTTOM MIN
TIMERHEATING START/STOP
TOP
BOTTOM MIN
TIMERHEATING START/STOP

P.6
Care & Maintenance
Technical Specications
• Before cleaning, unplug machine from power socket, and make sure grill is cooled to room temperature.
• Remove grill from the main body and clean with warm water. Do not use abrasive material to
clean grill, to avoid damaging the non-stick coating.
• Pull out the grease reservoir, empty out the grease and wash with detergent. Use only warm cloth
to wipe the main body, do not use abrasive material to avoid scratching the surface. Afterwards,
wipe with clean dry cloth. Do not wash directly with water.
• Wipe the main body and grill plate with soft warm cloth. For stubborn stains, wipe with neutral
cleansing agent, then use soft warm cloth to wipe off residual stain.
• Do not immerse machine in water or rinse it under tap.
• Regularly clean the product to avoid malfunction.
• May use cotton swabs to clean air inlet and outlet vents to avoid dirt accumulating. To clean off
grease, use soft toothbrush with non-abrasive cleansing agent to gently brush the vents.
• When the product is not in use, please store in a dry and ventilated place.
WARNING!
• Take care that even after machine has been turned off, grill plate may still be hot.
Do not touch with bare hands to avoid getting burnt!
• Do not let children use product unless under adult supervision!
Model No. KQB-29E
Power 900W
Voltage / Frequency 220V / 50Hz
Temperature Range 150°C / 250°C
Timer Range 60 minutes
Product Dimensions (H) 262 (W) 330 (D) 215 mm
Net Weight 2.27kg
Specications are subject to change without prior notice.
If there is any inconsistency or ambiguity between the English version and the Chinese version, the
Chinese version shall prevail.
Refer to www.germanpool.com for the most up-to-date version of the Operating Instructions.

P.7
目錄
安 全 注 意 事 項 0 8
產品結構 08
操作說明 09
清 潔 與 保 養 1 0
規格 10
保用條款 11

P.8
安全注意事項
• 本產品只供室內使用。
• 使用本機時，必須平穩放在工作枱上，嚴禁傾斜。
• 使用本機時，產品至少離牆面50厘米以上。
• 使用本機時，所用的電源插座必須是3孔，有可靠接地線的安全插座。
• 使用本機時，須遠離易燃易爆物品。
• 使用本機時，須注意產品灼熱的表面，以防燙傷。
• 在使用本機的過程中須由專人看管，請勿離開。
• 請勿讓兒童或智力障礙人士使用或操作本機。
• 不使用本機或清潔產品前必須拔掉電源插頭線。
• 請勿自行修理產品的任何部份，必須要由專業的技術人員修理。
• 如果本機電源線損壞，必須停止使用，更換本機專用的電源線後方可使用。
• 嚴禁向本機灑水或將本機浸入水中。
產品結構
操作面板 進風口
底座
加熱器機頭
烤盤
接油盤

P.9
操作說明
• 把主機放在水平的桌面上，將清潔乾淨的烤盤放在主機底座上 。
• 把電源插頭插入固定電源插座內（注意插座的電壓與要求的電壓一致）。
• 輕觸「加熱 」 按鍵，可以選擇加熱模式；檔位順序循環為：上下加熱(光波加熱+發熱管加熱)、
上加熱（光波加熱）、下加熱（發熱管加熱）。
• 選擇完成後，輕觸「啟動/停止」 鍵進入工作模式，這時光波管或發熱管通電發熱，產品開始
加熱工作。
• 輕觸「定時」 按鍵，可以設置烹調時間，默認為20分鐘，每按一下以1分鐘遞增，長按此鍵可
快速遞增。
• 預熱約2分鐘後，把需要烤製的食物放在烤盤上面烹調；過程中可根據需要來調整高低加熱檔位。
• 使用完畢後，輕觸「啟動/停止」 鍵，此時爐頭風機繼續運行5分鐘散熱。
TOP
BOTTOM MIN
TIMERHEATING START/STOP
TOP
BOTTOM MIN
TIMERHEATING START/STOP
警告!
• 必須待機器冷卻後方可關閉總電源。
• 若經常使用本機進行烹調，可以不用關閉總開關。

P.10
清潔保養
• 清潔保養時請先把電源線拔離插座，並確認產品表面的溫度涼至室溫後方可進行。
• 將烤盤從主機上取出，用溫水清潔，切勿用研磨性材料，以免損壞表面不黏塗層。
• 將底座下方的接油盤取出，將盒內的油倒掉，並將其清潔乾淨；機身表面髒污，請用溫布擦
拭，切勿用研磨性材料以免損壞產品表面，再用抹布擦拭，不能直接用水擦拭。
• 機體、烤盤以柔軟的溫布擦拭，不易擦拭之油污，可用中性洗潔劑擦拭後，再以柔軟的溫布擦
拭殘渣。
• 機體切勿直接用水沖洗或浸入水中刷洗。
• 經常保持整個產品清潔，以免導致產品失靈。
• 吸氣及排氣孔表面可用棉花棒將塵埃除去，如有油污，可用牙刷加少許不損器具的清潔劑小心
清除。
• 產品不用時請放置於通風乾燥處。
警告!
• 產品使用後，烤盤表面尚有餘熱，請勿用手觸摸，小心燙傷！
• 請勿讓小孩在沒有大人的監護下使用本產品！
型號 KQB-29E
功率 900W
電壓 / 頻率 220V / 50Hz
溫度控制範圍 150°C / 250°C
時間控制範圍 60分鐘
機身尺寸 (H) 262 (W) 330 (D) 215 mm
淨重 2.27kg
產品規格及設計如有變更，恕不另行通知。
中英文版本如有出入，一概以中文版為準。
本產品使用說明書以 www.germanpool.com 網上版為最新版本。
規格

P.11
保用條款
此保用提供德國寶產品之機件在正常使用下壹年保用
(自購買日起計算)。
Warranty Terms & Conditions
Under normal operations, the product will be guranteed for one year,
with full warranty provided by German Pool (effective from the
date of purchase).
1. Customer who fails to present original purchase invoice will
not be eligible for free warranty service.
2. Customer should always follow the operating
instructions. This warranty does not apply to:
- labour costs for on-site installation, check-up, repair,
replacement of parts and other transportation costs;
- damages caused by accidents of any kind (including
material transfer and others);
- operating failures resulting from applying incorrect voltage,
improper usage, and/or unauthorized installations
or repairs.
3. This warranty is invalid if:
- the purchase invoice is modified by an unauthorized party;
- the product is used for any commercial or industrial purposes;
- the product is repaired or modified by unauthorized
personnel, or unauthorized parts are installed;
- the serial number is modified, damaged or removed from
the product.
4. German Pool will, at its discretion, repair or replace any
defective part.
5. This warranty will be void if there is any transfer of
ownership from the original purchaser.
1. 未能出示購買發票正本者，將不獲免費維修服務。
2. 用戶應依照說明書的指示操作。本保用並不包括﹕
- 上門安裝、檢驗、維修或更換零件之人工以及
一切運輸費用﹔
- 因天然與人為意外造成的損壞 (包括運輸及其他)﹔
- 電源接合不當、不依說明書而錯誤或疏忽使用本
機所引致之損壞。
3. 於下列情況下，用戶之保用資格將被取消﹕
- 購買發票有任何非認可之刪改；
- 產品被用作商業或工業用途；
- 產品經非認可之技術人員改裝或加裝任何配件；
- 機身編號被擅自塗改、破壞或刪除。
4. 總代理有權選擇維修或更換配件或其損壞部份。
5. 產品一經被轉讓，其保用即被視作無效。
機身號碼 Serial No. :
購買商號 Purchased From :
發票號碼 Invoice No. :
購買日期 Purchase Date :
型號 Model No. :
另請填妥以下表格並與正本發票一併保存，以便維修時核對資料。用戶提供之所有資料必須正確無誤，否則免費保用將會無效。
Please fill out the form below. This information and the original purchase invoice will be required for any repairs. Warranty will be
invalid if information provided is found to be inaccurate.
此保用只適用於香港及澳門 This warranty is valid only in Hong Kong and Macau
KQB-29E
客戶服務及維修中心 Customer Service & Repair Centre
Hong Kong
10/F, Kowloon Godown
1-3 Kai Hing Road, Kowloon Bay,
Kowloon, Hong Kong
Tel : [phone]
Fax : [phone]
Email : [email protected]
Macau
3/F, Edificio Industrial Pou Fung,
145 Rua de Francisco Xavier Pereira,
Macau
Tel : [phone]
Fax : [phone]
香港
九龍灣啟興道1-3號
九龍貨倉10樓
電話：[phone]
傳真：[phone]
電郵：[email protected]
澳門
澳門俾利喇街145號
寶豐工業大廈3樓
電話：[phone]
傳真：[phone]
*
貴戶須在購機十天內，以下列其中一種方式向本公司
登記資料，保用手續方正式生效﹕
1)
填妥本公司網頁內之
保用登記表格
www.germanpool.com/
warranty
2)
填妥保用登記卡，
郵寄至本公司。
* This warranty is not valid until customer registration information
is received by our Service Centre within 10 days of purchase
via one of the following means:
1) Visit our website and register
online:
www.germanpool.com/
warranty
2)
Complete all the fields on the
attached Warranty Card and
mail it back to our Customer
Service Centre.

P.12 GPR-T150-M-CN_19(1)

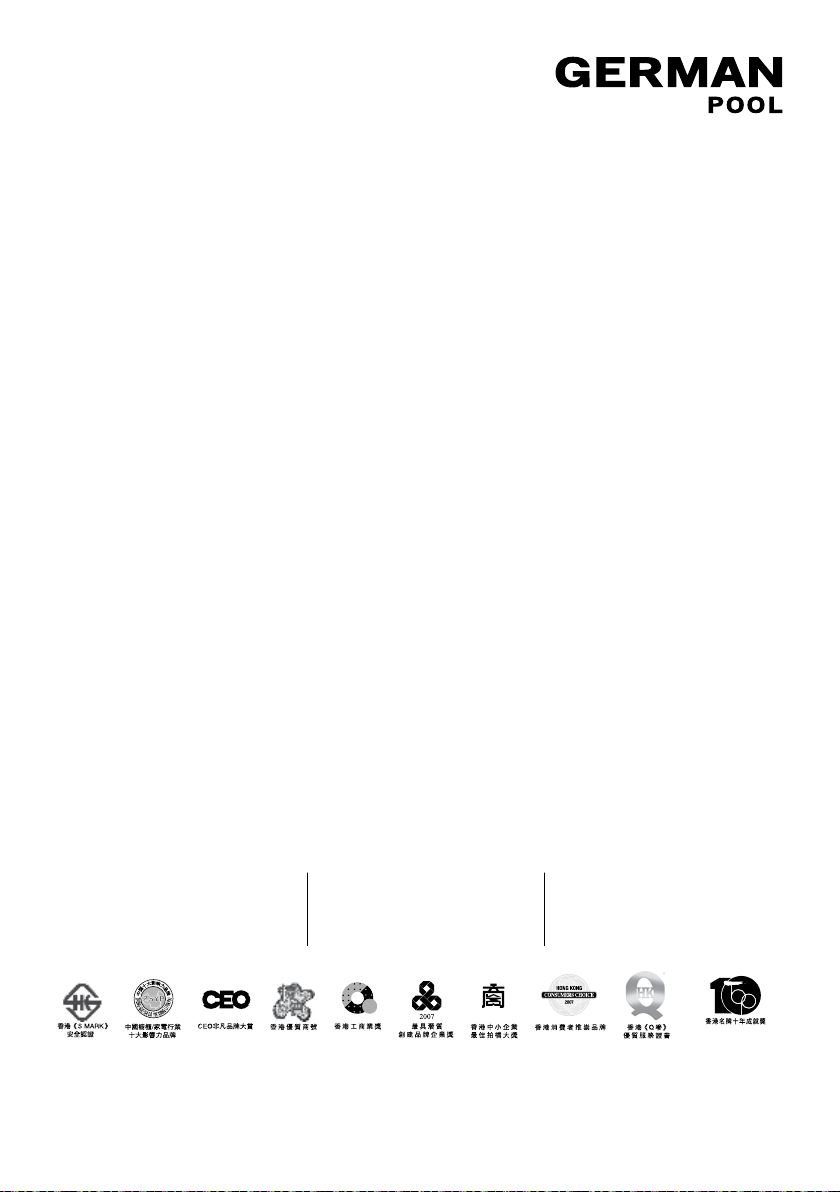

G e rman Pool (Hong Kong) Limi t e d
www.germanpool.com
Hong Kong
Room 113, Newport Centre Phase II, 116 Ma Tau
Kok Road, Tokwawan, Kowloon, Hong Kong
Tel: [phone]
Fax:[phone]
China
Tel:[phone]
Fax:[phone]
8th, Xinxiang Road, Wusha Industrial Park,
Daliang, Shunde, Foshan, Guangdong
3/F, Edificio Industrial Pou Fung,
145 Rua de Francisco Xavier Pereira, Macau
Tel:[phone]
Fax:[phone]
Macau
©All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted.
HONG KONG TOP BRAND TEN YEAR
ACHIEVEMENT AWARD
KOB-29E-M-20(1)
