Instruction Manual
for
Belt Sander Handpiece
Model: BZX
#510-2130
®
Power Hand 2X controllers and handpieces combine to create the most versatile finishing system
in the industry, offering rotary, profiling and belt sanding action.
Power Hand 2X component selection:
•Three controllers
•Six straight (four standard, two slimline)
and two angle rotaries
•Two reciprocating profilers
•One side-to-side profiler
•One belt sander
•One 4:1 reduction gear
•Separate motors and handpiece heads
201 Hancock Ave., Bridgeport, CT 06605, USA
%1-203-366-5400 FAX [phone] Order toll-free 1-800-243-4466
-
#890-1098/0713

Introduction
The Gesswein Power Hand 2X BZX Belt Sander is manufactured to the highest
standards available to provide many years of trouble-free service. Backed by a
limited warranty that covers wear parts for 90 days and overall balance of parts
for six months.
This DC electrically driven handpiece is designed to be used with Gesswein
Power Hand 2X Single, Standard, Dual, Jewelers’ Micromotor, Power Carver II
and Bright-Cutting Controllers. These controllers convert the Alternating Current
(AC) power supply to a variable Direct Current (DC) by means of an I.C. “transis-
torized” automatically controlled circuit.
2 15
Specifications
Speed Range (RPM)
Dual or Single Controller* 0-15,000
Standard Controller 1,500-15,000
Belt Speed (m/sec.)
Dual or Single Controller* 0-12
Standard Controller 3-12
Max. Output 60W/sec.
Max. Stoppage Torque 0.098 N-m**
Net Wt. (without power cord) 16 oz.
*Or Standard Controller with variable-speed foot rheostat
**Foot-pounds/Newton-meters

314
Fig. 1
1. Accessories
Included Accessories
A. Six Abrasive Belts
(one each: 6 and 8mm wide in 120, 180 and 320 grits)
B. One Straight Belt Arm (for 6 and 8mm belts)
C. One 45°-Angle Belt Arm (for 6 and 8mm belts)
D. One Belt Arm Pulley
E. One Belt Arm Support Pad
F. Two Screws (M2.6)
Optional Accessories
A. Small Straight Belt Arm (#510-0494): for 4mm belts
B. Handpiece Extension Cord (#510-1120): adds 6', or almost 2m, to the 1.7m
handpiece cord
C. Handpiece Cradle Rest (#510-1120): provides safe holding place for hand-
piece when not in use
D.Variable-Speed Foot Rheostat (#510-3100)
E. On/Off Foot Switch (#510-3105)
Part# Item# Description
BZX-110 8960208 Motor Housing
BZX-112 8960160 O-Ring
BZX-113 8960161 METAL Spacer
8960163 METAL Spacer
BZX-114 8960162 Wave Washer
8960165 FIBER SPACER
8960209 C TYPE CLIP RING
8960167 Wave Washer
8960210 SPACER
BZX-120 8960002 COUNTER SUNK HEAD SCREW/
PAN HEAD SCREW
BZX-200 5103066 Armature Complete
BZX-201 5103096 Ball Bearing
BZX-203 5103061 Armature
BZX-205 5103092 Ball Bearing
8960213 DUST PROOF COLLAR
8960214 DUST PROOF COLLAR
BZX-301 8960012 O Type Rubber Ring
BZX-302 8960013 TEFLON Spacer
BZX-303 8960014 Rear Lid
BZX-304 8960215 Carbon Brush
BZX-305 8960216 Brush Side Lid
BZX-310 8960217 Pan Head Screw
8960218 MOTOR CORD WITH PLUG COMP.
BZX-401 8960219 Terminal Metal Fitting
BZX-402 8960220 Bind Ring
BZX-403 8960221 Spacer
BZX-404 8960222 Motor Cover
BZX-406 5100165 Strain Relief
BZX-407 8960174 Spiral Cord with 3-Pin Plug
BZX-408 8960223 Friction Tube (red)
BZX-409 8960224 Friction Tube (white)
BZX-410 8960159 COUNTER SUNK HEAD SCREW
Motor Parts List
When ordering spare parts, always specify part# (or item# if applicable) and
description.

134

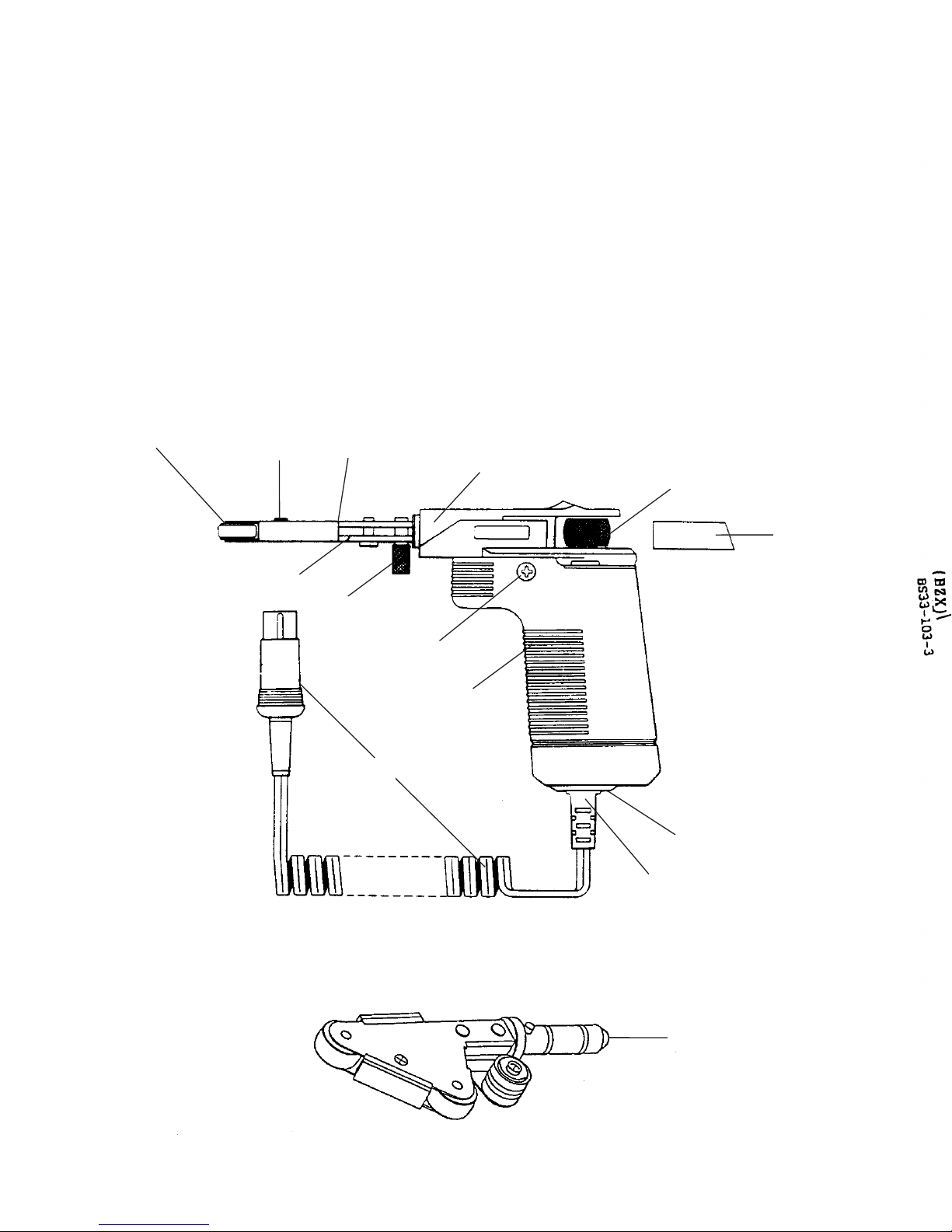

2. Parts Nomenclature
1. Belt Arm Pulley
2. Belt Arm Screw
3. Belt Arm Support Pad
4. Straight Belt Arm
5. Release Knob
6. Belt Holder
7. Drive Pulley
8. Protection Cover
9. Handgrip Fixing Screw
10. Handgrip
11. Handgrip Retaining Nut
12. Strain Relief
13. Spiral Cord with 3-Pin Plug
14. 45°-Angle Belt Arm
Fig. 2
123
4
5
6
7
8
9
10
11
12
14
13

512
3. General Use

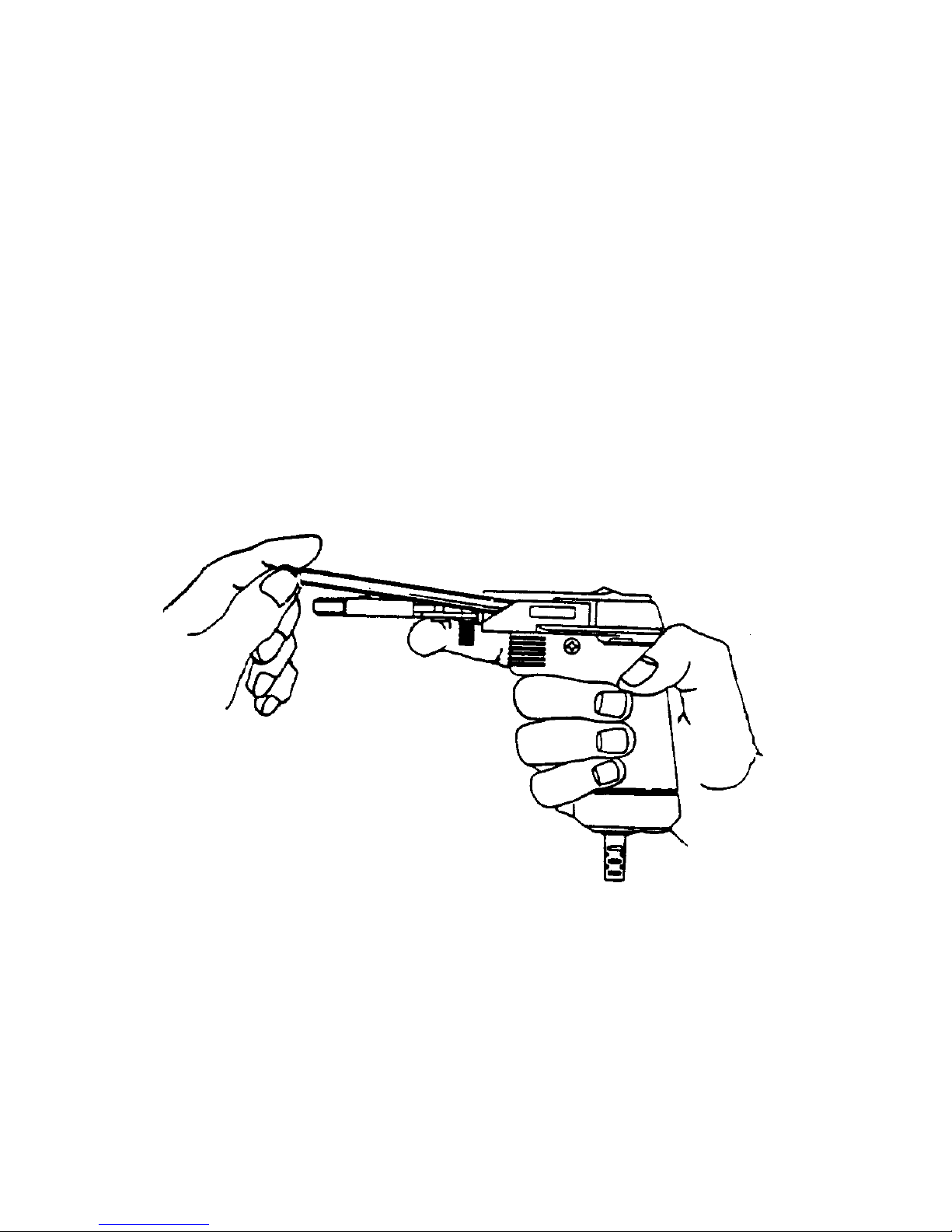

The Gesswein Belt Sander is designed to use sanding belts of 4, 6, and 8mm widths.
Select a 6mm or 8mm wide belt for the Straight Belt Arm supplied with the Belt
Sander. Hold the Belt Sander in your hand with your index finger on the Release
Knob, and pull back the spring-loaded arm.
Place the selected belt over the Drive Pulley and the Belt Arm Pulley (see fig. 3).
Release your index finger from the Release Knob, and allow the spring-loaded
arm to extend fully for proper belt tension.
Fig. 3
Part# Item# Description
BZX-100-3 5100495 Belt 45° Arm Complete (7mm)
BZX-102-2 8960184 Belt Arm Pulley for 7mm Arm
BZX-103-3 8960187 Belt Arm Support Pad
BZX-104 8960188 Dustproof Cushion
BZX-105 8960189 O-Ring
8960190 Pan Head Screw
BZX-106 8960191 Pan Head Screw
BZX-107 8960193 O-Ring
BZX-108 8960194 Guide Pulley Cover
BZX-109 8960195 Countersunk Head Screw
BZX-304 8960192 Guide Pulley Complete
BZX Belt Sander 45°-Angle Arm Parts List
When ordering spare parts, always specify part# (or item# if applicable) and
description.

11
6
4. Operating Procedure with Standard Controller
With your Belt Sander fitted with a selected belt, connect the Gesswein Power
Hand Controller to an electrical supply and the Belt Sander to the Controller.
Set the Slide Rheostat on the Controller to “Low” or the “0” position. Put the
Controller Main Switch to the “ON” position, which lights up a pilot light that indi-
cates your handpiece is ready to use.
To increase the speed of the handpiece, move the Slide Rheostat toward “High”
or “10.” You can then begin working. When work is completed, put the Main
Switch to “OFF.”
To operate your Belt Sander using the optional Variable-Speed Foot Rheostat
or optional On/Off Foot Switch, please refer to the Power Hand 2X Controller
Instruction Manual for proper connection. The handpiece will not rotate until the
foot rheostat/switch is depressed. The rheostat provides infinitely variable speed
control; the switch only turns handpiece on and off (operates at speed selected on
control unit).

7
10
5. Precautions
A. Before operating your Belt Sander, be sure the desired belt is properly
secured around both pulleys.
B. Do not attempt to change belts while the handpiece is operating.
C. During use, avoid pushing too hard on the work tool or exceeding torque
capacity of Belt Sander motor.
D. Always disconnect the Belt Sander from your Gesswein Controller by the
plug, not the cord.
E. Do not use oil or lubricants of any kind. Doing so will cause damage to the
handpiece bearings.
F. Do not subject power cord on handpiece to sharp bending or rough treatment.
Such treatment could cause the cord wires to be broken.
G. Under normal circumstances, the Belt Sander will not overheat. If, howev-
er, your Belt Sander does overheat, please contact the Gesswein Repair
Department.
Part# Part# Item# Description
BZX-100-1 BS1-100-1 5100494 Belt Straight Arm Complete (4mm)
BZX-100-2 BS1-100-2 5100496 Belt Straight Arm Complete (7mm)
BZX-102-1 BS1-130 8960183 Belt Arm Pulley for 4mm Arm
BZX-102-2 BS1-140 8960184 Belt Arm Pulley for 7mm Arm
BZX-103-1 BS1-272 8960185 Belt Arm Support Pad for 4mm Arm
BZX-103-2 BS1-273 8960186 Belt Arm Support Pad for 7mm Arm
BZX-104 BS1-276 8960188 Dustproof Cushion
BZX-105 S-5 8960189 O-Ring
BS33-200 8960196 BELT HOLDER BODY COMPLETE
BZX-200 BS33-200A 8960197 Belt Holder Body
BZX-201 BS1-263 8960200 Spring Base
BZX-202 BS1-264 8960201 Screw Lid
BZX-203 KB-099 8960202 Coil Spring
BZX-204 BS1-277 8960203 Protection Cover
BZX-300 BS33-100 8960204 MOTOR COMPLETE
BZX-301 BS3-260 8960205 Driving Pulley Complete
BZX-302 BS3-265 8960206 Driving Pulley
BZX-303 BS3-266 8960207 Driving Rubber Ring
BZX-400 ETW-2 8960156 E-Ring
BZX-500 BS33-204A 8960225 Handgrip
BZX-501 BS33-113A 8960226 Handgrip Retaining Nut
BZX-502 YSR31-101 8960228 Handgrip Locking Screw

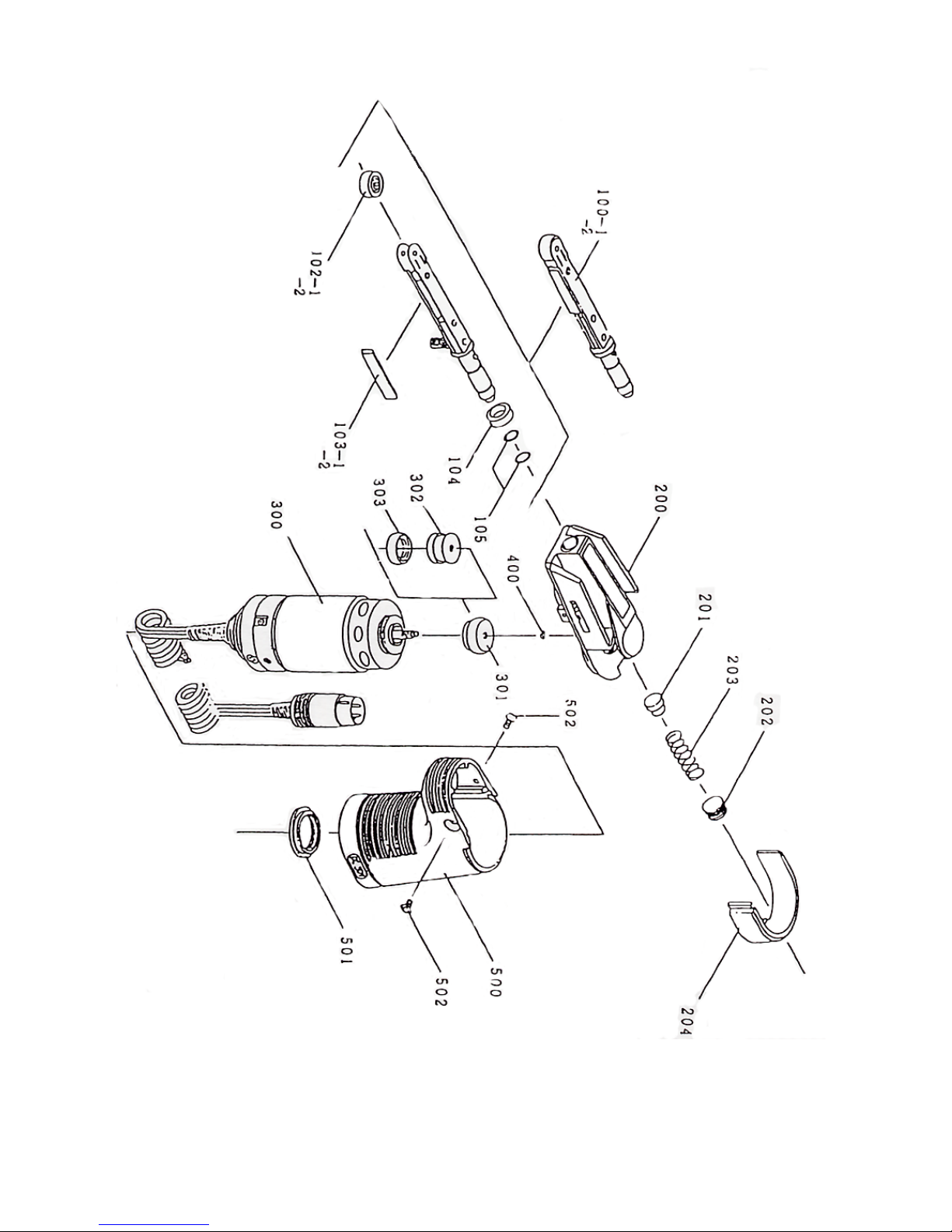

BZX Belt Sander Parts List
When ordering spare parts, always specify part# (or item# if applicable) and
description.

9
8
Belt Arm Screw
Fig. 5
6. Maintenance
Changing the Belt Arm
To change Belt Arms, you must first remove the belt that is in place on the Belt
Arm (see General Use). Once the belt has been removed, pull the Belt Arm out
of the Belt Sander main body (see fig. 4) and replace with selected Belt Arm and
appropriate belt.
Changing Arm Pads
If the Belt Arm Support Pad requires changing, remove the worn pad from the
Belt Arm, and replace with a new Belt Arm Support Pad by removing the self-ad-
hesive backing and placing in the same position.
Changing Belt Arm Pulley
To replace the Belt Arm Pulley, unfasten the Belt Arm Screw (see fig. 5) located on
the top of the Belt Arm. Gently spread the two plates sufficiently apart to remove
the old pulley, and replace with a new one. Securely refasten the Belt Arm Screw.
Lubrication
It is not necessary to lubricate the Gesswein Belt Sander.
Cleaning
It may be necessary on occasion to blow accumulated dirt and grit away from the
area surrounding the Drive Pulley. This can be facilitated by first removing the
Protection Cover (squeeze sides with thumb and forefinger to remove).
When external surfaces of your Belt Sander become dirty, use a cloth slightly
saturated with a neutral cleaning liquid. Do not use volatile liquids such as paint
thinner or alcohol.
Fig. 4

9
8
Belt Arm Screw
Fig. 5
6. Maintenance
Changing the Belt Arm
To change Belt Arms, you must first remove the belt that is in place on the Belt
Arm (see General Use). Once the belt has been removed, pull the Belt Arm out
of the Belt Sander main body (see fig. 4) and replace with selected Belt Arm and
appropriate belt.
Changing Arm Pads
If the Belt Arm Support Pad requires changing, remove the worn pad from the
Belt Arm, and replace with a new Belt Arm Support Pad by removing the self-ad-
hesive backing and placing in the same position.
Changing Belt Arm Pulley
To replace the Belt Arm Pulley, unfasten the Belt Arm Screw (see fig. 5) located on
the top of the Belt Arm. Gently spread the two plates sufficiently apart to remove
the old pulley, and replace with a new one. Securely refasten the Belt Arm Screw.
Lubrication
It is not necessary to lubricate the Gesswein Belt Sander.
Cleaning
It may be necessary on occasion to blow accumulated dirt and grit away from the
area surrounding the Drive Pulley. This can be facilitated by first removing the
Protection Cover (squeeze sides with thumb and forefinger to remove).
When external surfaces of your Belt Sander become dirty, use a cloth slightly
saturated with a neutral cleaning liquid. Do not use volatile liquids such as paint
thinner or alcohol.
Fig. 4

7
10
5. Precautions
A. Before operating your Belt Sander, be sure the desired belt is properly
secured around both pulleys.
B. Do not attempt to change belts while the handpiece is operating.
C. During use, avoid pushing too hard on the work tool or exceeding torque
capacity of Belt Sander motor.
D. Always disconnect the Belt Sander from your Gesswein Controller by the
plug, not the cord.
E. Do not use oil or lubricants of any kind. Doing so will cause damage to the
handpiece bearings.
F. Do not subject power cord on handpiece to sharp bending or rough treatment.
Such treatment could cause the cord wires to be broken.
G. Under normal circumstances, the Belt Sander will not overheat. If, howev-
er, your Belt Sander does overheat, please contact the Gesswein Repair
Department.
Part# Part# Item# Description
BZX-100-1 BS1-100-1 5100494 Belt Straight Arm Complete (4mm)
BZX-100-2 BS1-100-2 5100496 Belt Straight Arm Complete (7mm)
BZX-102-1 BS1-130 8960183 Belt Arm Pulley for 4mm Arm
BZX-102-2 BS1-140 8960184 Belt Arm Pulley for 7mm Arm
BZX-103-1 BS1-272 8960185 Belt Arm Support Pad for 4mm Arm
BZX-103-2 BS1-273 8960186 Belt Arm Support Pad for 7mm Arm
BZX-104 BS1-276 8960188 Dustproof Cushion
BZX-105 S-5 8960189 O-Ring
BS33-200 8960196 BELT HOLDER BODY COMPLETE
BZX-200 BS33-200A 8960197 Belt Holder Body
BZX-201 BS1-263 8960200 Spring Base
BZX-202 BS1-264 8960201 Screw Lid
BZX-203 KB-099 8960202 Coil Spring
BZX-204 BS1-277 8960203 Protection Cover
BZX-300 BS33-100 8960204 MOTOR COMPLETE
BZX-301 BS3-260 8960205 Driving Pulley Complete
BZX-302 BS3-265 8960206 Driving Pulley
BZX-303 BS3-266 8960207 Driving Rubber Ring
BZX-400 ETW-2 8960156 E-Ring
BZX-500 BS33-204A 8960225 Handgrip
BZX-501 BS33-113A 8960226 Handgrip Retaining Nut
BZX-502 YSR31-101 8960228 Handgrip Locking Screw
BZX Belt Sander Parts List
When ordering spare parts, always specify part# (or item# if applicable) and
description.
