Ghost OMEN User manual

WIRELESS MACHINE

CONTENTS
MACHINE BREAKDOWN 3
TECHNICAL DATA 4
RCA CONNECTION 5
MAIN BODY 6
GRIP DETAILS 7
OMEN BUTTON CONTROLS 8
MOTION CONTROL 9
BATTERY CHARGER 10
MAINTENANCE & WARRANTY 11

MACHINE BREAKDOWN
3
Traditional RCA
back connection.
Wireless connection
powered by a
rechargable Li-ion
battery.
Tilt control enables
the user to change
voltage seemlessly.
Updated direct drive motor
encasing a brand new reinforced
oil bearing for seemless rotations.
A ‘middle of the road’ cam stroke
of 3.5mm, suitable for all tattoo
styles and techniques.
Smooth contact
plate for quick
connection changes.
Autoclavable 32-36mm
ergonomic grip. Shape and size
chosen by artists from the Omen’s
predecessing machine.
Made from 6063 graded
aluminium alloy.
Inside ratchet mechanism design
allows for adjustable needle
depth.

TECHNICAL DATA
4
Operang Voltage:
Stroke:
Drive:
Dimensions:
Weight (with baery):
Weight (without baery):
Weight (with RCA back):
5 - 12 V
3.5 mm
Direct Drive
32mm Dia, 135mm H
207.5g
180g
189g
PACKAGING SYMBOLS
Liming the use of disposable baeries &
the greenhouse gases produced from
manufacturing, Li-ion baeries can be
reused to help the environment.
Recyclable packaging.
The WEEE Symbol means that electrical
and electronic items should not be
disposed of in your dustbin or wheelie
bin, but should be recycled.
UKAS is recognised by government, to assess
against internaonally agreed standards,
organisaons that provide cerficaon, tesng,
inspecon and calibraon services.
The CE symbol must be affixed to many products
before they can be sold on the European market.
The Ghost OMEN can be controlled via
moon/lt controls.
USB Connecon required for use of
the OMEN Baery Charger.
Charging speed is faster compared to
other generic chargers.
Charger Connecon: USB Type A

RCA CONNECTION
5

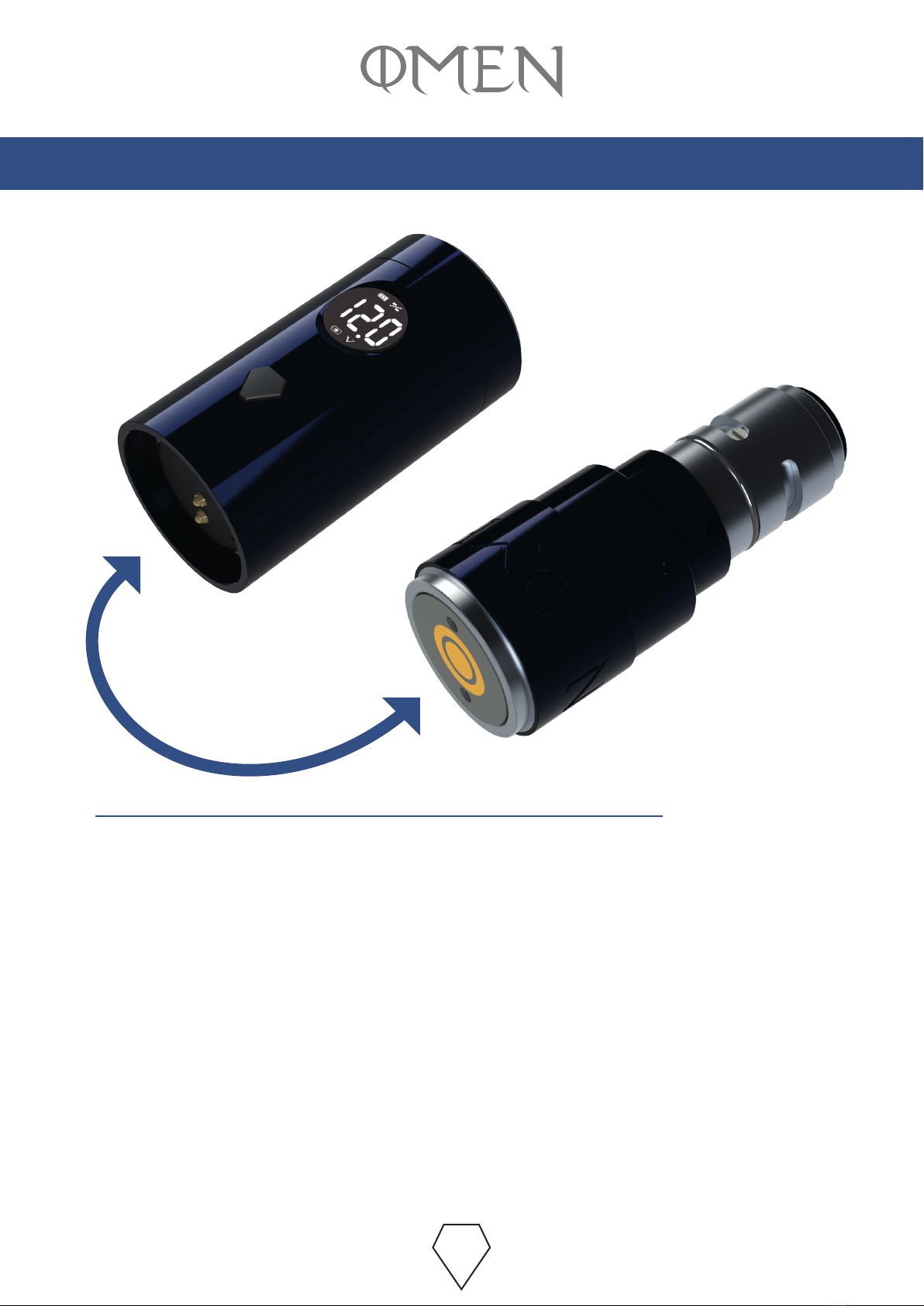

The Ghost OMEN Wireless Machine has a detachable back,
meaning the arst can switch between the RCA connecon
back or the wireless back whenever they need to.
Somemes, tradion just can’t be beaten.

MAIN BODY
6
The main body of the Ghost OMEN is made up of 2 parts, with
the interchangable RCA connecon or wireless back and the
core. The core contains an updated direct drive motor &
reinforced oil bearing combinaon made specifically for the
OMEN. A smooth connecon pad allows the arst to change
from wireless to wired seemlessly.

GRIP DETAILS
7
The inside of the grip has been designed with a needle depth
adjustment ratchet, for accuracy when changing needle depth.
The 6063 graded aluminium alloy grip is completely
autoclavable.*
* For recommended autoclave sengs and warranty cover please refer to page 11.
36mm
32mm
The Ghost OMEN Grip has
kept the favoured shape of its
predecessor, only growing from
25mm to 32mm for a more
hand-filling feel.

BUTTON CONTROLS
8
LED Display
Screen 1 displays the current
machine voltage, which is shown
in 0.2V increments.
Screen 2 displays the current
charge percentage for the
rechargable Li-ion baery.
Baery Screen
Indicator
Voltage Screen
Indicator
Appears when
baery below 20%
Buon Controls
To power on/off the machine, hold down the power
buon for 3 seconds.
To start or stop the machine once it’s on, lightly press
the power buon.
Double click the power buon to bring up the Baery
indicator screen. Aer 5 seconds, the OMEN will
automacally return to the Voltage indicator screen.

MOTION CONTROL
9
Decrease Voltage Increase Voltage
Moon Controls
The voltage of the Ghost OMEN can be increased and decreased by the use of its
one-of-a-kind moon control.
To use the moon controls the machine must be running.
Whilst the machine is running, hold down the power buon and lt the OMEN to
the le or right depending on whether voltage needs to be increased or
decreased.
To decrease the voltage, lt the machine to the le. To increase the voltage, lt
the machine to the right.
The OMEN’s voltage fluctuates in 0.2 volt increments, between 5 - 12 volts.

BATTERY CHARGER
10
Created for the Ghost OMEN Wireless Pen Machine,
this charger is strictly for the use of charging the
OMEN Li-ion rechargable baeries.
With its speed charging trait, the OMEN Baery
Charger will fully charge the baeries 30% quicker
compared to standard baery chargers.
The USB-A charging cable already aached
to the base of the charger makes it
convenient for in studio use and
portability purposes.
Whilst charging, the coloured LED on the front of the
Baery Charger will indicate whether the baery is either
partly or fully charged.
If the LED is red in colour, the baery currently charging is
partly charged,
If the LED is green in colour, the baery currently charging
is fully charged and ready for use.
The OMEN Rechargable Li-ion
Baeries that are included with the
OMEN are strictly only for use with
the Ghost OMEN Pen Machine.
12000 mAh
Minimum 5 hours working me.
3 hours charging me.

WARRANTY & MAINTENANCE
11
Maintenance
We recommend wrapping the Ghost OMEN using protecve pen covers
to eliminate the danger of cross contaminaon.
The outer body & grip can be sanised with cold sterilisaon products.
When cleaning using these products, never spray or apply them directly to
the machine to prevent fluids entering. Do not use lint based wipes.
The Ghost OMEN is pre-lubricated during the manufacturing process. Do
not apply addional lubricaon to the interior unless instructed otherwise.
Whilst charging the OMEN Li-ion baeries, try not to overcharge them for
long periods of me to decrease the chance of the baery life becoming
hindered.
Use only cartridges with a safety membrane to avoid back flow of fluids.
We recommend using HEX Cartridges with the Ghost OMEN.
Warranty
Internal components of the Ghost OMEN are subject to ‘wear and tear’
over me, there is a 1 year warranty on internal parts & repairs from the
date of purchase.
If there are signs of physical damage (machine being dropped etc.), internal
damage due to foreign fluids entering the machine, or the internal parts
showing signs of tampering, warranty will be void.
Autoclave Suggesons
We advise arsts to only use de-ionised water whilst autoclaving the
Ghost OMEN Aluminium Grip.*
If the Ghost OMEN Grip becomes damaged from the use of chemical
based autoclave soluons, it will not be covered by warranty.
Autoclaving will fade colours naturally over me - use at arst’s own risk.
*tested with steam at 250°F (121°C), with pressure up to 15psi.
