Giant CYCLOSMART User manual

1
In the Box
➊CycloSmart with stabilizer
➋Power Adapter
➌11 speed cassee (pre-installed)
➍Spacer for 9/10 speed cassee
➎Hub spacers for 130/135 QR
➏Hub spacers for 142/148 thru axle
➐Disc brake pad spacer
➑Quick release
➒17mm wrench
EN JP KO PL ES
繁中簡中
NL FR DE IT

2
Important noce before riding
• Please check the weight limitaon of your bicycle. Please do not exceed the
limitaon.
• Please use this product on a level surface.
• Before riding please check that your bicycle is fixed on the CycloSmart properly.
• Please use the power adapter from this product only.
• Please don’t put your hands and any arcle on the CycloSmart when it is rotang.
• Keep this product away from water and high temperatures.
• Operang environment temperature range: -10°C~50°C/14°F~122°F.
• Storage environment temperature range: -20°C~70°C/-4°F~158°F.
• Read the safety secon of the owner’s manual from your bicycle.
• Always consult your physician before you begin any training program.
Seng up/storing your CycloSmart
1. Assemble the stabilizer onto the
CycloSmart: ghten the two bolts
using 5mm Allen key
(22Nm/220Kgf-cm).
2. Adjust the ghtness of shoulder
bolt using 5mm Allen key.
Cauon: The telescopic stand should
not hang down loosely.

3
3. Adjust the stabilizer foot bolt to
place the CycloSmart horizontal.
Cauon: Please do not exceed over
the MAX indicaon of the stabilizer
foot bolts to avoid any dangers.
4. Adjust the telescopic stand posion to the correct wheel size
indicated on the stand and lock the posion.
E.g. 700C/26” ② is 700C wheel size and lock posion is No. 2.
①Loosen the telescopic stand lock handle
② Adjust the telescopic stand posion
③ Tighten the telescopic stand lock handle on the correct locking
posion
④⑤Adjust the telescopic stand lock handle locaon parallel with
Telescope Stand

4

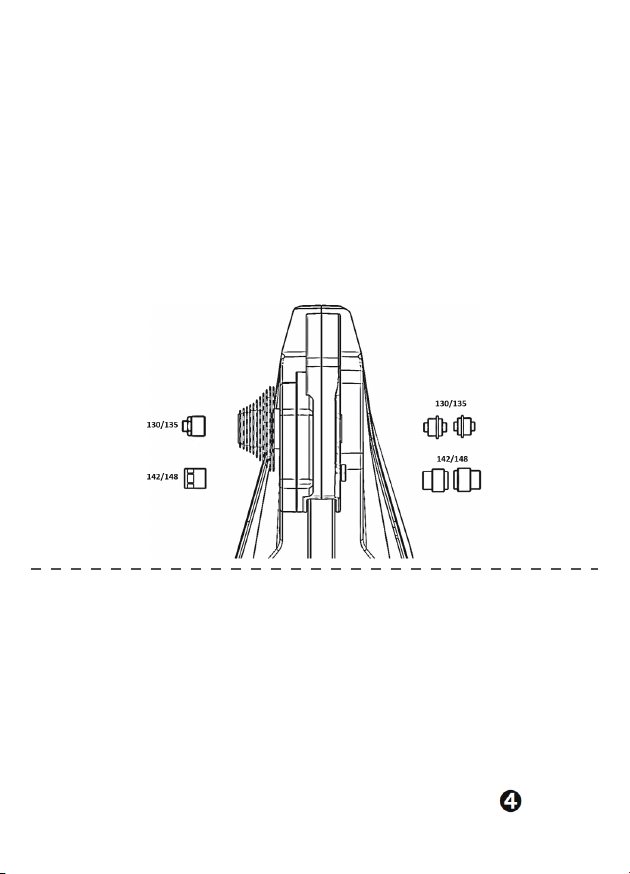

5. Change the hub spacers (If needed)
Note: The standard specificaon of CycloSmart is 130/135 hub spacer
(pre-installed). The alternave hub spacer specificaon is 142/148
which comes with CycloSmart. Please follow the instrucons for
changing spacers, if needed.
a. 130→135：Pull out the right hub spacer. Turn it around and insert it
back in.
b. 130(135)→142(148)：Disassemble the le 130/135 hub spacer by
using the 17mm wrench. Assemble the le 142/148 hub spacer. The
standard torque value is 8Nm. Pull out the right 130/135 hub spacer
and insert in the right 142/148 hub spacer.
6. Change the cassee (if needed)
a. Remove the quick release.
b. Disassemble the le 130/135 hub spacer by using the 17mm
wrench.
c. Remove the cassee lock ring by using a cassee lockring tool and
chain whip/sprocket remover.
d. Remove the original cassee. Assemble the new cassee. Tighten
the lock ring to the torque value recommended by the cassee
manufacturer.
Note：Use the supplied spacer for 9/10 speed cassees ).

5
7. Take out the rear wheel of your bike. Mount your bike on the
CycloSmart. Tighten the quick release appropriately.
8. Connect the Power adapter
Cauon: please use the power adapter from CycloSmart only. Use of
other power adapters will cause the CycloSmart failure and voids your
warranty.
9. Storage of the CycloSmart
Maintenance
Depending on the usage
condions, the chain should be
greased regularly or at least every
3 months to reduce noise and
increase the lifecycle.
Cauon:
Please apply chain lubricant
properly: Too much or not applying
chain lubricant will not benefit the
lifecycle of the chain. Too much
lubricant may cause it to drip on
the belt underneath the chain.
Causing the belt to slip when
rotang which affects the rotaon
performance of the belt. Not
applying chain lubricant may
increase noise of rotaon.
1. Remove the indicated bolts
with a 2.5 mm Allen key.
2. Pull off the cover and apply
chain lubricant properly.

6
Download Giant RideLink App
The Giant RideLink App is available for Apple® iOS and Android
system. Please go to the App Store or Google Play to search Giant
RideLink App and download it.
iOS: hps://itunes.apple.com/tw/app/ridelink/id1361498436?mt=8
iOS system must be version 10.0 or higher version.
Android:
hps://play.google.com/store/apps/details?id=tw.giant.ridelink
Android system must be version 5.0 or higher version.
Firmware informaon
Giant keeps developing and releasing the updated versions of
firmware to provide the latest funcons. The latest firmware for Giant
Power Pro can be updated by using Giant RideLink app. For more
details and informaon about firmware, please visit
hps://www.giant-bicycles.com/support/manuals.
Service and technical support
For the mul-language manuals and more informaon about pairing,
Spindown, firmware update…etc., please visit:
hps://www.giant-bicycles.com/global/support/manuals
If you encounter difficules or are uncertain about anything
menoned in this user manual, please contact your local authorized
Giant retailer.
To find one, or to learn more about Giant,
go to www.giant-bicycles.com

7
Troubleshoong
Q: What is the weight limitaon of CycloSmart?
• Please check the weight limitaon of your bicycle. Please do not exceed the
limitaon.
Q: Why can’t I pair the CycloSmart?
• Check power adapter connecon with CycloSmart.
• Update the firmware.
• Update the RideLink.
• Turn off the RideLink and open it again.
• Check the Bluetooth/ANT+ LED which is blinked or not.
• Check if the Bluetooth funcon of your smartphone is switched on.
• Turn off the Bluetooth of your smartphone and open it again.
• Check the funconality of the ANT+ device that you’re using.
• Check the internet connecon of your smartphone.
Q: When to do the Spindown?
• In order to get a more accurate power value, it is recommended to do a
Spindown before each use or at least once a month.
Q: Does CycloSmart support 3rd party Apps?
• Yes.
Q: Something wrong with Speed/Power reading.
• Please update firmware.
• Please perform Spindown again.
Q: I can hear abnormal noise when pedaling/coasng/shiing.
Pedaling/coasng noise:
• Please check the all components on your bicycle which should be ght properly.
• Please apply chain oil to chain properly.
Shiing noise:
• Please check the adjustment of the drivetrain of your bicycle.
Q: Can I use Compagnolo freehub?
• Yes. Remove the quick release first. Disassemble the le side 130/135 hub
spacer using 17mm wrench. Remove the enre cassee and freehub. Replace for
a compable Campagnolo freehub and cassee. Assemble the le side hub
spacer. The standard torque value is 8Nm.
If the suggesons can’t solve above problems, please contact your local authorized
Giant retailer.

8
Giant limited warranty
Giant warrants its CycloSmart for a period of two (2) years from the date of purchase, this
applies only for the original owner.
This warranty applies only to this product when purchased new from an Authorized Giant
Dealer and assembled by that dealer at the me of purchase.
LIMITED REMEDY
Unless otherwise provided, the sole remedy under the above warranty, or any implied
warranty, is limited to the replacement of defecve parts with those of equal or greater
value at the sole discreon of Giant. This warranty extends from the date of purchase,
applies only to the original owner, and is not transferable. In no event shall Giant be
responsible for any direct, incidental or consequenal damages, including, without
limitaon, damages for personal injury, property damage, or economic losses, whether
based on contract, warranty, negligence, product liability, or any other theory.
EXCLUSIONS
The above warranty, or any implied warranty, does not cover:
•Normal wear and tear on parts in situaons where there are no assembly or material
defects.
•Consumable components including cassee, 16T/36T gear, chain, bearing, axle,
flywheel, belt, small/big belt pulley, Guide wheel set, freehub, quick release, bolts,
handle/lever, telescope Stand, stabilizer Foot Bolt, trainer pad…etc.
•Products serviced by other than an Authorized Giant dealer.
•Modificaons of the product from its original condion.
•Use of this product for abnormal, compeon and/or commercial acvies or for
purposes other than those for which this product was designed.
•Damage caused by failing to follow the User’s Manual.
•Paint, finish and decal damage resulng from taking part in compeons, jumping,
downhill and/or training for such acvies or events or as a result of exposing the
product to, or operang the product in, severe condions or climates.
•Labor charges for part replacement or changeover.
Except as is provided by this warranty and subject to all addional warranes, Giant and
its employees and agents shall not be liable for any loss or damage whatsoever (including
incidental and consequenal loss or damage caused by negligence or default) arising
from or concerning any Giant product.
Giant makes no other warranes, express or implied. All implied warranes, including the
warranes of merchantability and fitness for a parcular purpose are limited in duraon
to that of the express warranes stated above.
Any claim against this warranty must be made through an Authorized Giant Dealer or
distributor. The purchase receipt or other proof of the date of purchase is required before
a warranty claim may be processed.
Claims made outside the country of purchase may be subject to fees and addional
restricons.
Warranty duraon and details may differ by country. This warranty gives you specific legal
rights, and you may also have other rights which may vary from place to place. THIS
WARRANTY DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Technology
Wireless Technology ANT+, ANT+FE-C,& BLE FTMS
Devices iOS / Android / PC (Mac and Windows)
Resistance Unit Type Controllable Eddy Current Brake
Accuracy ± 2%
Firmware Update OTA Yes
Metrics Power /
Distance /Speed (with RideLink App)
Power Sources AC to DC adaptor
Compability
Wheel Size 24",650c,700c,26",27.5",29"
Hub Types 130/135mm QR,142x12mm,148x12mm(with adapter)
Drivetrain(Cassee) 11 Speed (compable with 9 & 10)
Front Wheel Block Not Needed
Specificaons
Total Weight 16.5 kg/ 36.3 lbs
Footprint (D x W) 65cm x 66cm / 26” x 26”
Electrical Connecon Yes
Flywheel Weight 3.5 kg/ 7.7 lbs
Max Power 2300 W(at 130 cadence with gear rao 53:11)
Max Incline 20%
Test Frequency 2.402 – 2.480 GHZ (BLE)
2.457 GHZ(ANT+)
Output Power 4.55 dBm (e.i.r.p.) (BLE)
4.69 dBm (e.i.r.p.) (ANT+)
Manufacturer
Giant MFG. Co. Ltd
19,Shun-Farn Road,Tachia,Taichung,
43774,Taiwan,R.O.C
Distributor in US
Giant Bicycle Inc
3587 Old Conejo Road,Newbury Park,
CA 91320
