VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 1
VPC6600 Series
2-DIN Vehicle PC
Hardware Manual
Hardware Manual
October 2011, Ver. A.2

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 2
Copyright
This document by the original manufacturer is copyrighted © 2011, and all rights are reserved. The original
manufacturer reserves the right to make improvements to the product described in this manual at anytime
without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or
by any means without prior written permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original manufacturer takes no responsibility for
its use, nor for any infringements upon the rights of third parties which may result from such use.
Copyright © 2011 by original manufacturer,
All rights reserved.
October 2011, Ver. A.2
Announcement
This manual is only written for the VPC6600 2DIN Vehicle PC series product with supporting Windows based
operating system use. The appropriate models for this user’s manual are in the following list:
VPC6600 series

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 3
Safety Notice
Please take time to read this hardware manual and any other related documents carefully before start
operating. We make no warranties with respect to this documentation and disclaim any implied warranties of
merchantability and fitness for a particular purpose. We also shall not be liable for any error or for incidental
or consequential damages in connection with the furnishing, performance, or use of this documentation or
the examples herein. The information in this documentation is subject to change without notice.
CAUTIONS
1. Do not operate this unit prior to fully consult this manual.
2. Do not allow any liquids, dusts and/or operating under humid environment. Doing so may damage
the internal circuitry.
3. Do not cover the ventilation point and/or openings. It may cause the overheating to the unit.
4. For all safety reasons, the driver should not watch any video sources and/or operate the controls
while driving. This action is prohibited by law in some countries, also keep the volume to a level at
which external sounds can be heard while driving.
5. Do not place hand, fingers and/or any other objects into this unit. Doing so may cause accident
damages to yourself and/or the unit.
6. Do not place and/or insert any objects to DVD player, SD card reader and/or USB port. This may
cause permanent damages to those mentioned facilities.
7. Do not insert other than the standard 12cm CD, VCD and/or DVD to the player and remember
always eject the disk before turn off the unit.
8. Do not disassemble and/or modify this unit. It may cause an accident, fire or electric shock.
Please contact your local authorized service agent for inspection and/or repair if you felt the unit is
malfunctioning.

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 4
9. Do not continue to operate this unit if you suspect the system is functioning abnormal and/or a
trouble exists under any circumstances. Please power off the unit immediately and consult your
local authorized service agent.
10. Do not use the unit when a problem raise, such as any material has been entered in the unit, the
unit gets wet, or smoke or strange smells come out of the unit. Please consult your local authorized
service agent for professional advice.
11. Do not supplies other than the standard vehicle 12VDC power input source. This product is
specially designed to operate only with a negative grounded 12VDC battery system.
12. Do not attempt to replace any fuses. This can only be done by an authorized service agent. Incorrect
action may result in causing internal smoke and/or fire to the unit with permanent damages.
13. Do not change the back seat monitor/display’s resolution (default setting is 800 x 600) at anytime.
Changes to other than default settings may result in improper operation for Graphic User Interface
(GUI).
WARNINGS
1. For your own quick convenience reference in operational instruction and/or safety notice, please print
out this manual and place where it can be easily access to it.
2. Please take extremely precautions and attention to all cautions and warnings within this manual.
3. Please prevent any person to operate this unit who has not fully consulted this manual before or have
the basic operating knowledge.
4. Please make sure you have installed antivirus software prior to start using this unit. This will help to
keep your PC system protected from any other potential threats.
5. Please make sure the rear seat display shall installed at a place or location where the driver is not able
to see or getting distraction with.
6. Please to comply the local laws and regulations for installing and/or operating an audio/video combo
head unit within vehicle.

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 5
Technical Support Information
Contact your local distributor, sales representative, or customer service center for technical support if you
need additional assistance. Please have the following information ready before you call.
Product name and serial number
Description of your peripheral attachments
Description of your software (e.g. operating system, version, and application software… etc.)
A complete description of the problem
The exact wording of any error messages
Limited Warranty
This product is warranted against manufacturing defects for the period of 1 year. During one-year warranty
period, defective parts will be repaired or replaced. There will be no charge for labor or parts.
This warranty does not cover any failure resulting in loss to software, data, lost profits, lost savings, any
incidental damages or other economic consequential damages due to accident, abuse, misuse, negligence
and acts of God.

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 6
Packing List
Before you begin installing your unit, please make sure that the following materials are included in the
packing:
1 x VPC6600 Vehicle PC main system
1 x CD (User Manual & Driver CD)
External cable kit with multi-lock connectors in 4 pieces (in a inner box)
If any of these items are missed or damaged, contact your distributor or sales representative immediately.

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 7
Table of Content
Copyright 2
Announcement 2
Safety Notice 3
Technical Support Information 5
Limited Warranty 5
Packing List 6
Chapter 1: Introduction 9
1.1 Introduction 9
1.2 VPC6600 Features 9
1.2.1 Vehicle Use 9
1.2.2 Car Stereo 9
1.2.3 Multilock Connection 9
1.2.4 Windows O/S 9
1.2.5 Multimedia Graphic User’s Interface 10
1.2.6 Support GPS System (via External USB device) 10
1.2.7 Wireless Network 10
1.2.8 Bluetooth 10
1.2.9 Smart Power 10
1.3 General Specification 11
1.3.1 CPU Board Layer 11
1.3.2 Panel Control Layer 11
1.3.3 Carrier Board for I/O 12
1.3.4 Operating System 12
1.3.5 User Interface 13
1.3.6 In-Car Entertainment 13
1.4 Front Panel 14

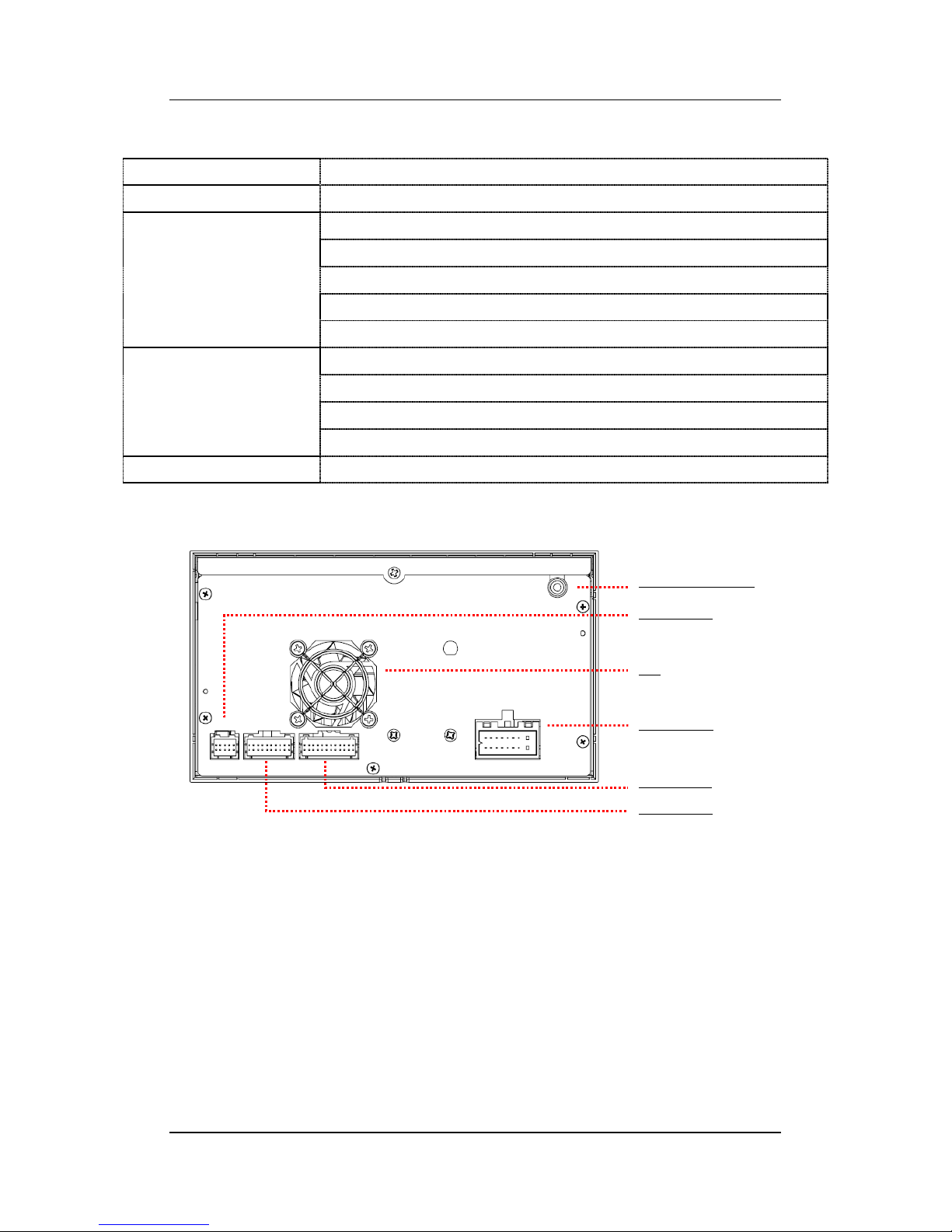

1.5 Rear Panel 15
1.5.1 Connector A 16
1.5.2 Connector B 16
1.5.3 Connector C 17
1.5.4 Connector D 18
1.6 Side View 19
1.7 Model View 19

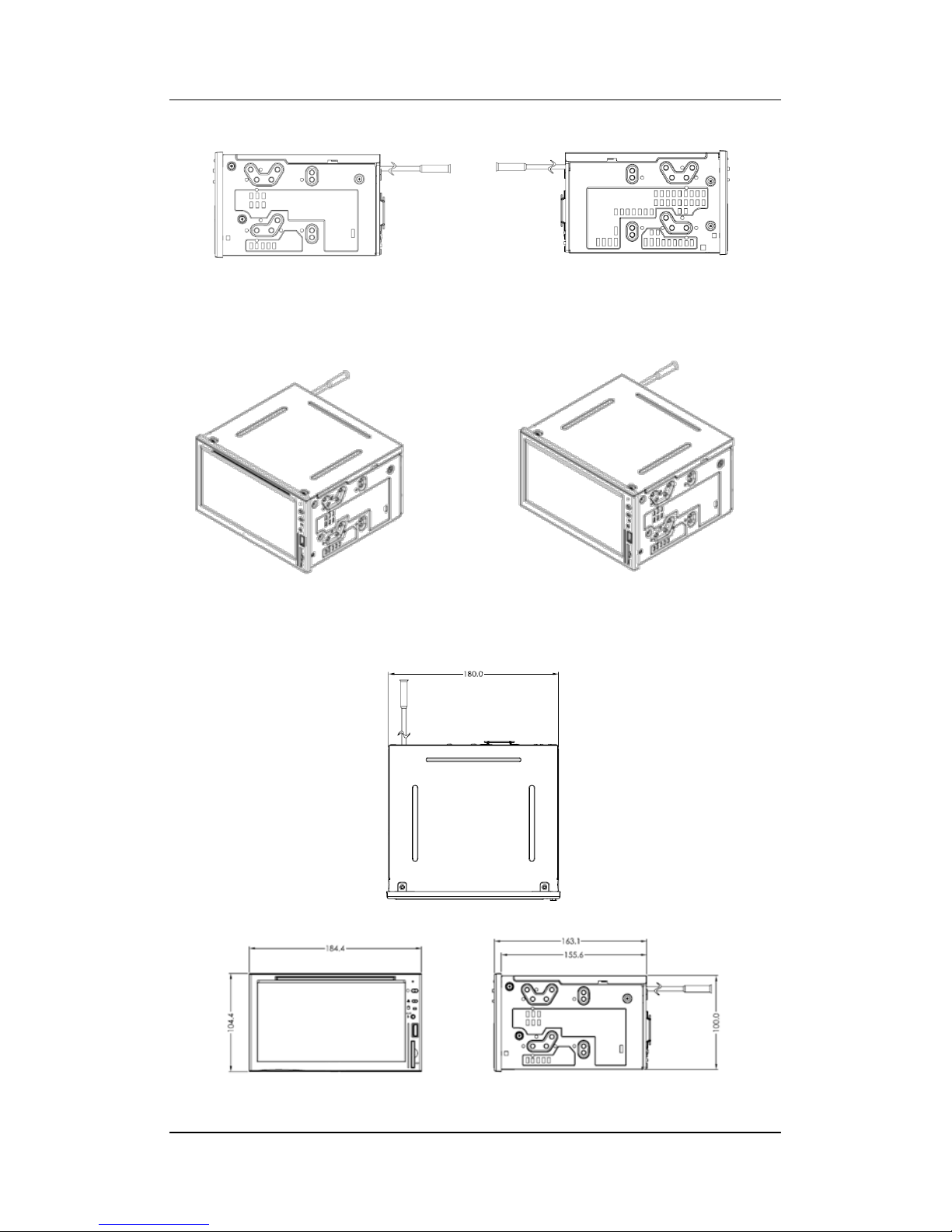

1.8 Dimension View 19
1.9 Environment 20

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 8
Chapter 2: Installation for external device 21
2.1 Introduction 21
2.1.1 USB/SD Card Device 21
2.1.2 Audio Output 22
2.1.3 USB GPS Installation 22
2.1.4 Parking Brake Control 23
2.1.5 AUX Input 24
2.1.6 CCD Rear Vision Camera 24
2.1.7 Illumination Control 25
Appendix A: Pin Definition for MultiLock 26
1. Connector A 26
2. Connector B 26
3. Connector C 27
4. Connector D 27
Appendix B: Hard Disk Assembly Instruction 28
Appendix C: Overall Rear I/O Connection Diagram 32

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 9
Chapter 1: Introduction
1.1 Introduction
VPC6000 series Vehicle PC is the best 2-DIN Car PC solution in the market. The all-new design improved 2-DIN
features to be more friendly and easy-to-use. It’s embedded car radio and built-in 5.1 channels amplifier with
high-end sound stage simulation. The front panel of the 2-DIN Car PC embeds a digital 6.95” LCD touch
screen that provides 800 x 480 high resolution displays that releases driver’s weariness.
Combined with multimedia entertainment system, it allows you using computing features in car such as GPS
navigation, WiFi/Bluetooth communication, Movie/ Music/ Photo playing, EQ control and smart power
control…etc., by simply few touch clicks.
All combination in the unit fulfills car specification and it’s especially designed to meet harsh environment
such as sustaining extreme shock, vibration and high temperature operation. VPC6600 brings you a vehicle
infotainment computing runway whole the driving.
The manual introduces hardware features and its operation instructions. Please read carefully and the
manual will guide you with more hardware description and installation.
1.2 VPC6600 Features
1.2.1 Vehicle Use
Vehicle-specific computer system
12 VDC power ready
Suit to vehicle environment
2-DIN size with user friendly access buttons at front panel
1.2.2 Car Stereo
35W x 4 + Subwoofer output x 1
FM and AM radio tuner embedded
18 AM /27 FM Station Presets
1.2.3 MultiLock Connection
Standard vehicle use
Secure data transferring
Easy to connect and disconnect
1.2.4 Windows O/S
Microsoft Windows XP Embedded
Support Windows bases application

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 10
1.2.5 Multimedia Graphic User's Interface
Support media files playback
Support software programs access
Hands-free phone feature
Music/Movie/Photo playback
Flexible sound stage adjusting(EQ, audio output)
GPS navigation
WiFi/3G/Bluetooth communication
Support digital TV
Support web browser
Intelligent system settings
1.2.6 Support GPS System (Via external USB device)
USB GPS receiver supported (optional)
Support Navigation software
1.2.7 Wireless Network
Internet connection
Web browse
1.2.8 Bluetooth
Input device connectivity
Support hands-free phone features
1.2.9 Smart Power
Intelligent power control system
Automatically power on/off with delayed time function

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 11
1.3 General Specifications
1.3.1 CPU Board Layer
Processors
ATOM N270 1.6GHz/400 Mhz
Chipset
Intel 945GSE and ICH7-M
Graphics
INTEL GMA950 Integrated Graphics engine
Graphic memory controller hub with 224Mb shared memory Dual monitor with secondary
display: VGA output
VGA
18 bits LVDS supported
Memory
DDRII SO-DIMM x 1,1024Mb DDR2, 677Mhz standard (up to 2GB)
Storage Device (Optional)
Support 2.5”SATA II Interface Device
Serial Ports
Support x 4
USB 2.0
USB 2.0 high speed port type A, support 8ports
Smart Power
Programmable delay OFF , Support OS shutdown (ACC ignition power control)
PCI Express
4 channels PCI express (max supported / 2 x using in device)
BIOS
AMI BIOS with ACPI
Operating temp.
-20C ~ 60C
Storage temp.
-40C ~ 85C
Power requirement
Typical 12V, 2A
Board size
95mm x 100mm
1.3.2 Panel Control Layer
Display
6.95" 16:9 LCD Display With LED Back Light
Standard brightness 400 cd/sq m (nits) 4 wire resistive touch screen,
90% light transmittance
Final true brightness (TSP): 280 cd/sq m (nits)
Contrast ratio: 400:1
Maximum operating environment temperature: -20c to +60c
Input methods
Touch screen (4 wire resistance type)
Video Input
1* Video channel input for parking rear camera
1* RGB Input
1* LVDS input
1* Video channel input

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 12
1.3.3 Carry Board for I/O
PC
Mini PCIe
Mini PCIe socket supported
Mini PCIe 2 (Optional)
SIM Card Slot Embedded
VGA
VGA Interface x 1
LVDS
FPC 45pin connector x 1
Audio Codec
High Definition Audio Supports 5.1 channels
Serial Ports
COM port x 6 (max supported / not showing in device)
USB 2.0
USB port x 8 (internal & external use)
Audio
Freq. Response -3dB
20Hz-20kHz
Pre amp Outputs
5.1 Channel (rear/front/center/subwoofer)
Power Amplifier
Class AB Car radio 4 channels Amplifier (35W /4Ω)
Amplifier Output Power
RL = 4 ohm, THD <=0.15%: 4W x 4
RL = 4 ohm Max. power: 35W x 4
THD (Total harmonic distortion
<= 0.1% at 1Watt 1Khz
FM/AM Radio
AM (530 to 1710 KHz)
FM (87 to 108 MHz)
18 AM /27 FM Station Presets
Parking Camera Interface
Support rear video in
Support video format : NTSC / PAL
Day/Night switcher
brightness control by side mark
Screen lock
Activities functions by Parking brake
Ext/PWR control for
AMP./Antenna
power control for external Device
1.3.4 Operating System
Optional OS 1
Windows XP Embedded
Optional OS 2
Linux
Language
Support Multi-Language
Dual Zone Display
Dual Independent display and control (under OS 1)
Welcome Screen
Support customized welcome screen (MOQ Required)

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 13
1.3.5 User Interface
1.3.6 In-Car Entertainment
Music
Support -mp3, wma, cd….
Support devices USB DVD/ SD/USB disk
Movie
Support -mp4, avi, wmv,mpg, flv, vob
Adjustable Aspect Ratio 16:9/ 4:3
Support devices USB DVD/ SD/USB disk
Support -jpg, bmp
Support devices USB DVD/ SD/USB disk
Telephony
Integrated Bluetooth hands free. Build-in microphone with noise & echo cancelation.
Up to 8 cellular phones capability
Support Phonebook reading from CVS file.
Received/Missed/Dialed calls list
Bluetooth
Option : External USB Devices : can play stereo audio from external devices: PDA's, Cellular,
etc.
Support Hands free
Friendly GUI
Icon Base Operation
Support Multi-Language
2~3 levels / one page operation
Draggable operation
Radio
2 AM / 3 FM radio with auto scan, 5 bands / 45 memories
Internet service
(limited by network capability)
Internet radio
Internet TV
Internet traffic information
Internet weather
Internet Youtube
My favorite
Web browser

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 14

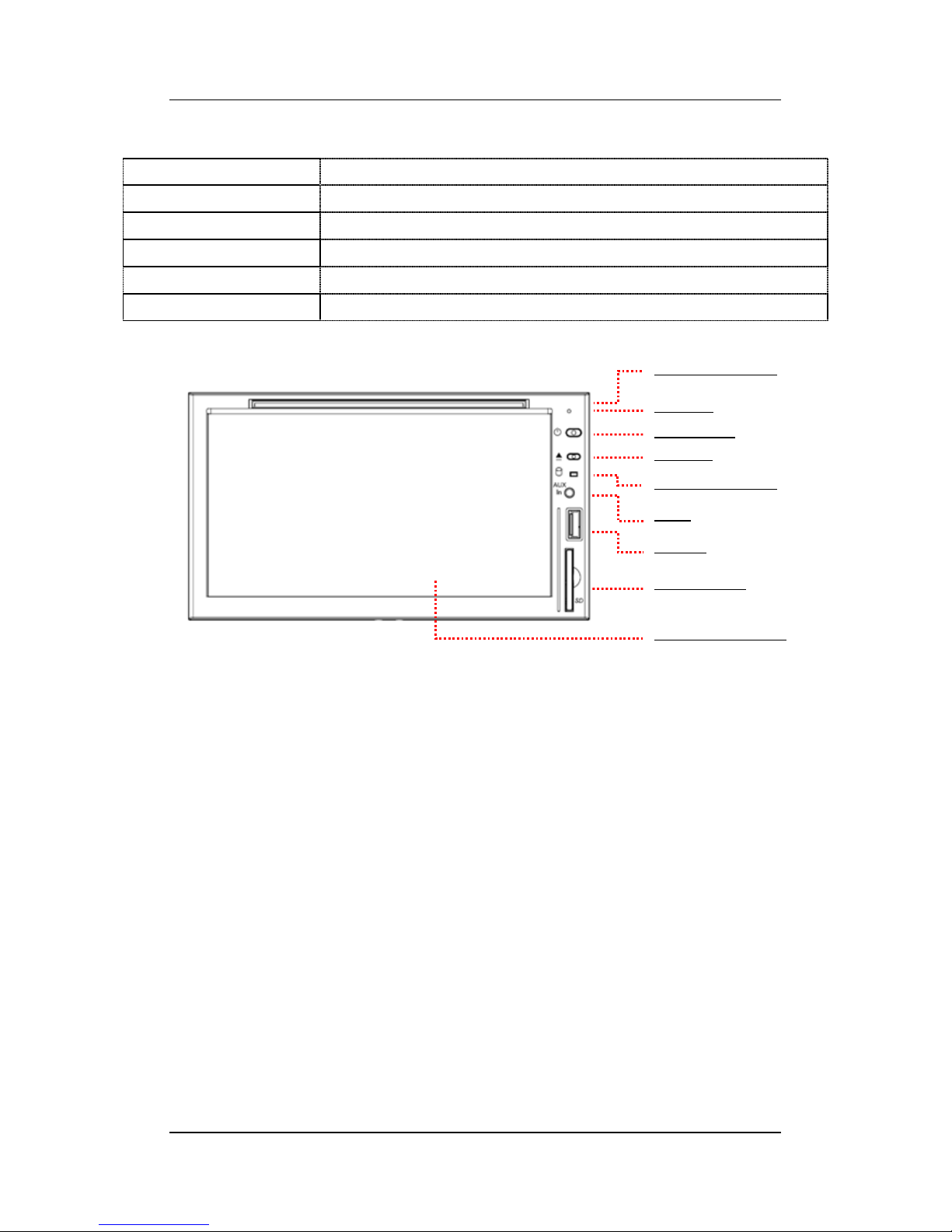

1.4 Front Panel
Power Button:
1* Power Button
USB 2.0 Type A:
1* USB 2.0 Type A in high speed port
SD Card:
1* SD Card slot
DVD Eject:
1* DVD Eject Button (Model with DVD Player)
AUX In:
1* AUX In (Mic In)
Reset Button:
1* Reset Button
In the central area, there’s a digital 6.95” LCD monitor with touch screen, providing high
resolution VGA display. On the right hand side, there is a Power Button to turn On/Off the Car PC.
Below the Eject / Mute Button, there is an LED indicator for HDD. It blinks when you are
accessing DVD/CD/USB or HDD.
Rest Point
DVD ROM (Optional)
Power Button
DVD Eject
HDD Status Indicator
Mic In
USB Port
SD Card Reader
6.95”LCD Touch Panel

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 15
1.5 Rear Panel
Connector A
1* 15 Pin D_Sub for VGA Output
Connector B
4* USB 2.0 Type A high speed port
Connector C
1* 3.5Φ Audio Jack for Mic In
1* CCD Input for rear parking camera
1* Video channel Input
1* RCA for AUX Input (L+R)
1* sets x Preamplifier audio output (5.1 channel)
Connector D
1* sets x Power Input (GND, 12V+, ACC)
1* Head light illumination control
1* Hand brake control Cable
1* sets x Speaker Out (4 channel)
Antenna Connector
1* Radio AM/FM antenna
The rear panel of VPC6600 comes with external I/O connectors for connecting to various external
devices, such as LCD monitor or USB drives. Those connectors work with a cable kit which is provided
for evaluation only. For the best performance and reliable connection, please do use the MultiLock
connector for both ends. The following sections list each of the external I/O connectors with detailed
function.
Antenna Connector
Connector A
Fan
Connector D
Connector C
Connector B

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 16

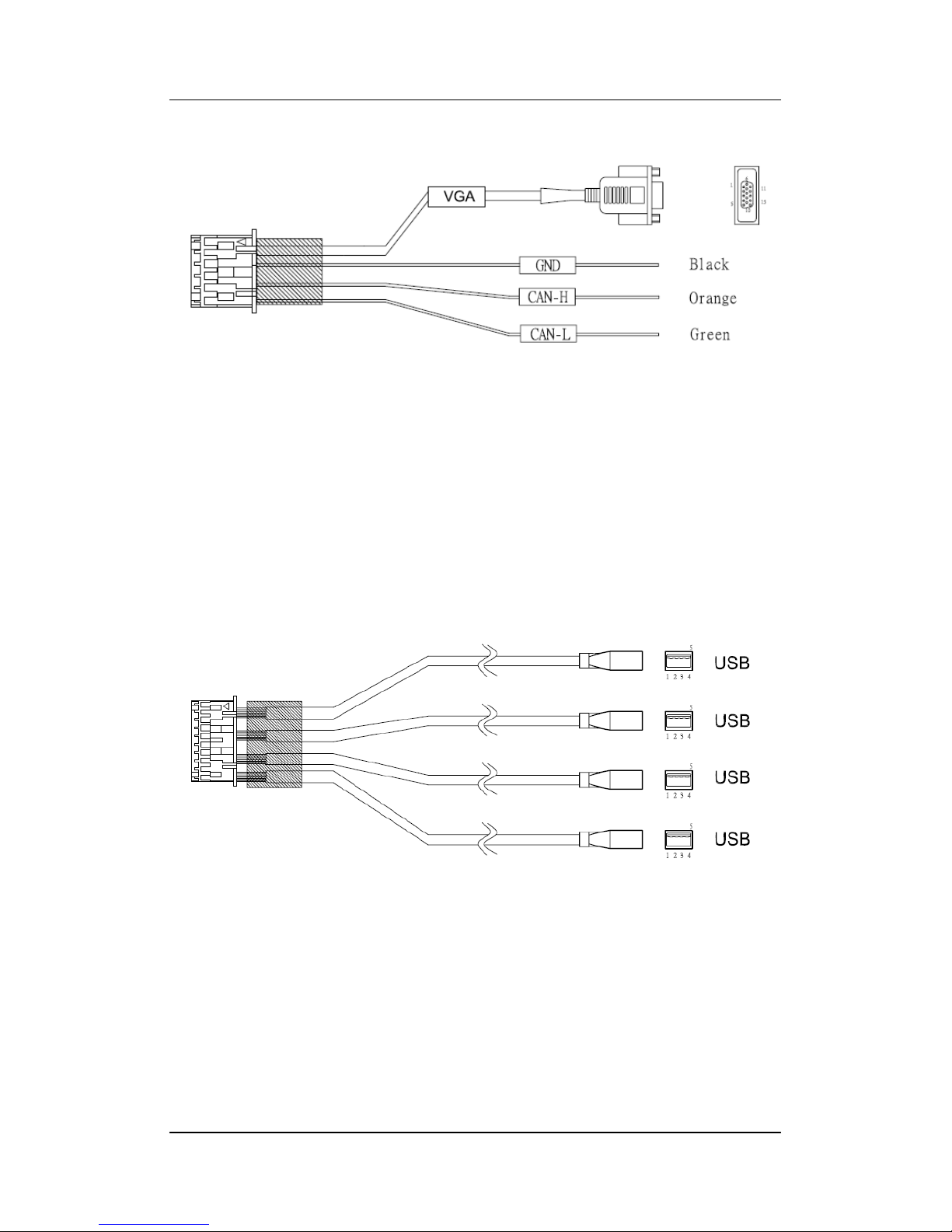

1.5.1 Connector A
The VPC6600 currently uses VGA firmware to fix the resolution of 2nd display at 800 x 600 for perfect
display. We strongly recommend users not to adjust the resolution from windows platform. We
cannot guarantee if user adjust resolution out of 800 x 600. (The CAN Control is only for special
requested option with condition applies)
1.5.2 Connector B
The VPC6600 series provides 1 USB port on front panel and maximum up to 4 more USB ports for
connecting external USB devices with Multi-Lock connector from the rear panel. These USB ports are
USB 2.0 compliant. They can also be disabled from the system BIOS setup.

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 17
1.5.3 Connector C
1.5.3.1 External Microphone Connection
When user needs to use microphone, please find mic-in connector from the rear panel. It can be
extended to the front panel or to the rear seat of a car, so that the driver or passengers may use
it to record or speak with hands-free phone feature.
1.5.3.2 Rear Vision Camera
The CCD Back allows user to connect rear-view CCD camera, follow the CCD connecting label to
connect the CCD cable, so that you can enable the CCD camera with an RCA input.
1.5.3.3 AUX1 _ Video _ In & AUX1 _ Audio _ In (Left & Right)
When the driver and passengers want to listen to music not only from local HDD or attached
DVD, it offers you another choice of connecting your external devices from AUX inputs. With this
function, the VPC6600 can play audio/Video from connected analog devices.
1.5.3.4 Line _ Out _ Center, Subwoofer, RL, RR, FL & FR
VPC6600 provides 5.1 Channel audio outputs with this connection. User can follow the diagram
to connect related cables

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 18

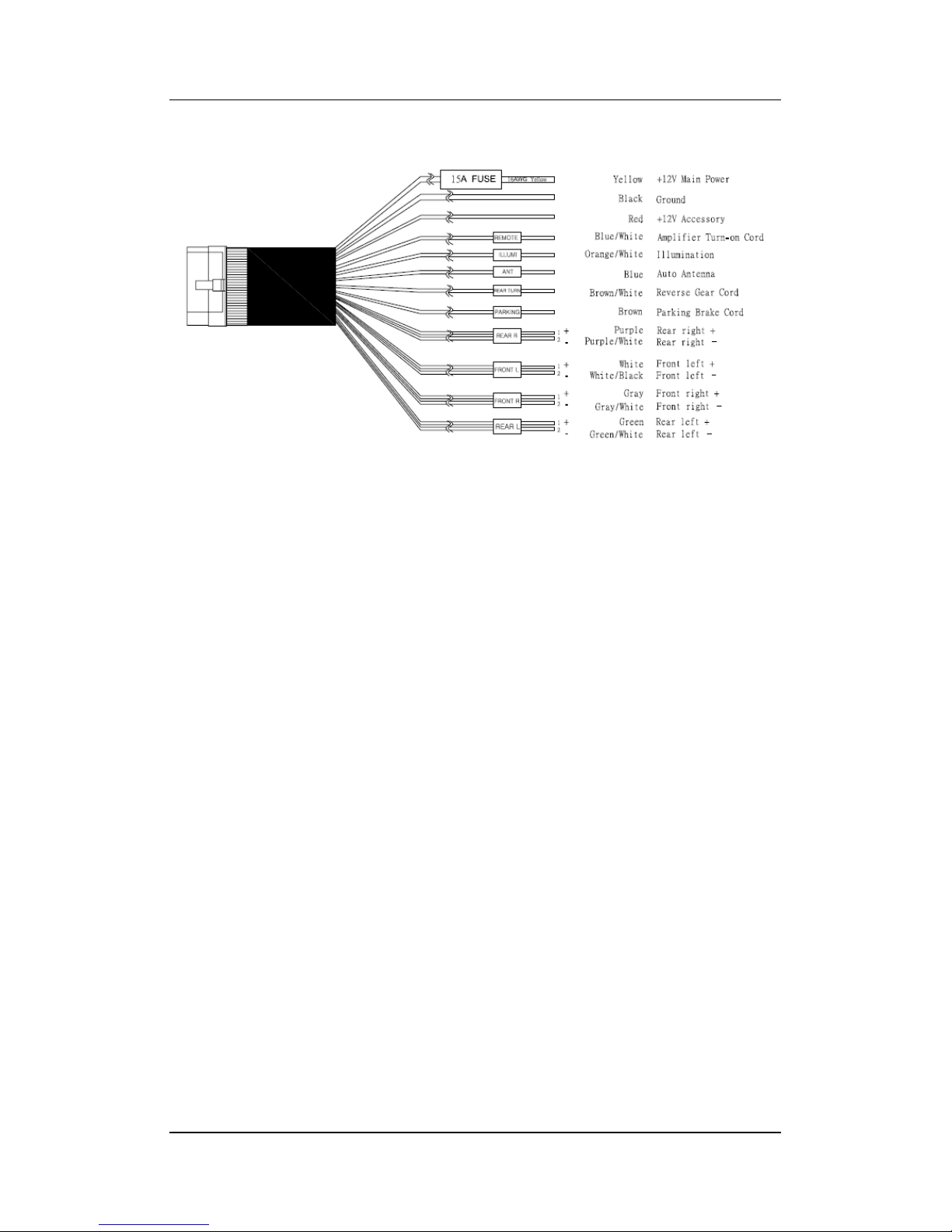

1.5.4 Connector D
1.5.4.1 +12V Main Power, Ground & +12V Accessory
The cables should be connected to vehicle power cable. Users may follow the instructions to
complete the connection. The power input connectors carries out the power input of 9~16 VDC,
with yellow wires to Battery Positive and black wires to Battery Negative. The Red wire is
supposed to be connected to ACC ignition, and the black ground wire needs to be connected to
car body.
1.5.4.2 Amplifier Turn On Cord (12V/0.5A)
This wire acts as remote control for sending signals to any other related devices to notify power
on status from the head unit.
1.5.4.3 Illumination, Auto Antenna & Reverse Gear Cord
Those wires are acting a control signal to head light illumination, power antenna control, and
rear parking gear notification.
1.5.4.4 Parking Brake Cord
According to regulation of international laws, a driver may not use electrical product while
driving. The operation can only be used when the parking hand brake is pulled up. Therefore the
wire has to be connected to the parking hand brake of a car.
1.5.4.5 Rear R, Rear L, Front R & Front L
A standard 4 channel stereo output which is for a non 5.1 channel car stereo connection.

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 19
1.6 Side View
(Right hand side) (Left hand side)
1.7 Model View
(DVD Model) (Non DVD Model)
1.8 Dimension View

VPC6600 Series 2-DIN Vehicle PC Hardware Manual A.2 20
1.9 Environmental
Power Requirement:
10V~16V
Dark Current:
< 3mA
Power Consumption:
3A, 12V Typical
Dimensions:
178mm (w)X 100mm (H)X 168mm (D)
Vibration:
2.0G, 5~500Hz
Shock:
Shock (half-sine wave) 400 G (2ms), 200 G (1ms)
Storage Temperature:
-30°C ~ +85°C
Operating Temperature:
-20°C ~ +60°C
Relative Humidity:
5% ~ 90%
ESD Protection:
IEC 61000-4-2 LEVEL 4 (ESD) Protections. 8KV
Certification:
TBD
