Gigabyte AORUS AD27QD-EK User manual

OSD Sidekick
GAMING MONITOR

- 2 -
OSD Sidekick Installation Guide
Copyright
© 2018 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their
respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the
property of GIGABYTE.
Changes to the specications and features in this manual may be made
by GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated,
transmitted, or published in any form or by any means without
GIGABYTE’s prior written permission.
For more information, check on our website at:
https://www.gigabyte.com

- 3 -
OSD Sidekick Installation Guide
CONTENTS
SOFTWARE INSTALLATION ......................................................................................................4
Preparation..........................................................................................................................4
Installing the Software....................................................................................................5
Uninstalling the Software..............................................................................................7
USING THE SOFTWARE .............................................................................................................8
Launching the Software.................................................................................................8
Conguring the Settings................................................................................................8
DISPLAY SETTING...................................................................................................9
HOT KEY..................................................................................................................18
GENERAL SETTING..............................................................................................20
ANC..........................................................................................................................22
ABOUT.....................................................................................................................23

- 4 -
OSD Sidekick Installation Guide
SOFTWARE INSTALLATION
Preparation
1. Connect one end of a USB (A-Male to B-Male) cable to the USB
port of the LCD monitor and the other end to the USB port of your
computer.
2. Connect any of the following:
• One end of an HDMI cable to the HDMI port of the LCD monitor
and the other end to the HDMI port of your computer.
• One end of a DisplayPort cable to the DP port of the LCD monitor
and the other end to the DP port of your computer.
3. Plug the power cables of your computer and the LCD monitor into a
power outlet.
4. Turn on your computer and the LCD monitor.
HDMI-2DPHDMI-1

- 5 -
OSD Sidekick Installation Guide
Installing the Software
IMPORTANT! If you have installed an older version of the software on your
computer, you have to remove the previously installed software rst before
proceeding with the following installation process. To uninstall the software,
refer to the “Uninstalling the Software”section.
1. Insert the supplied CD into your CD-ROM drive. Then from the
Windows desktop, double-click on Computer and locate the CD
drive.
2. Browse and double-click setup.exe. The setup wizard appears.
3. Click Next to continue.

- 6 -
OSD Sidekick Installation Guide

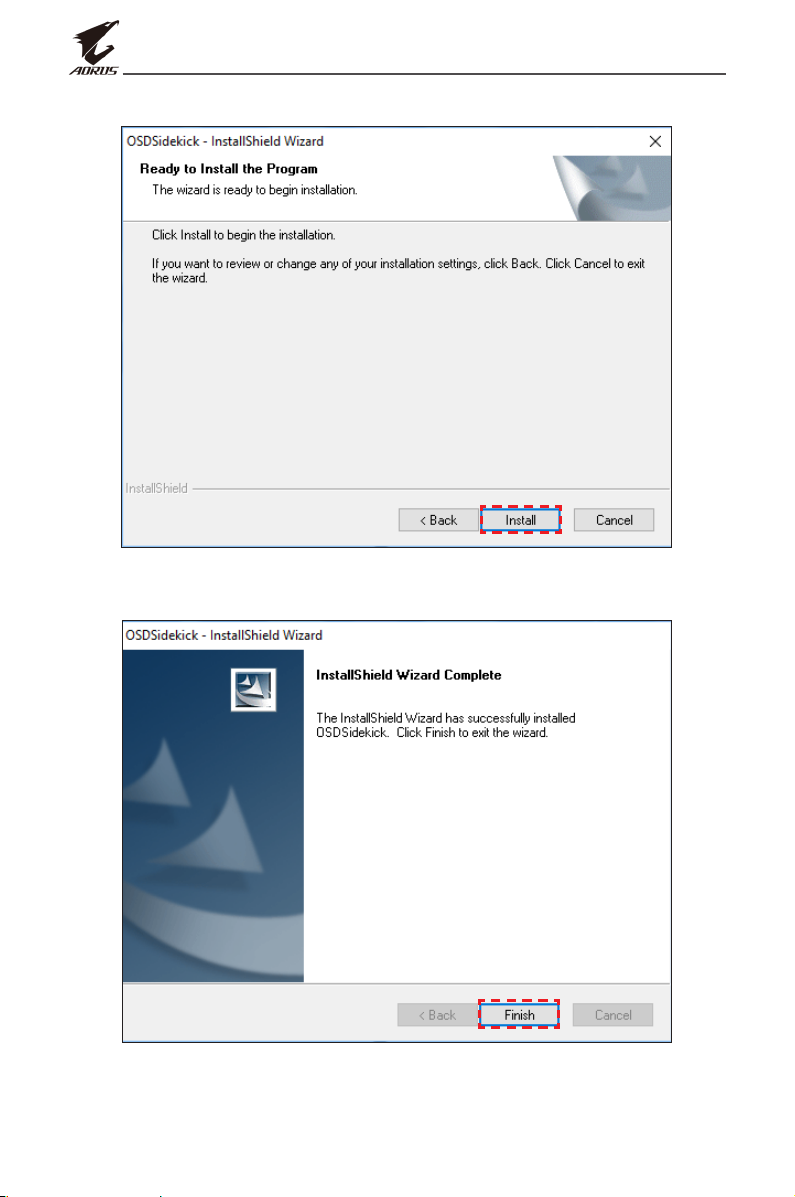

4. Click Install to start the software installation process.
5. The software installation may take a few minutes. When the
installation is complete, click Finish to exit the setup wizard.

- 7 -
OSD Sidekick Installation Guide

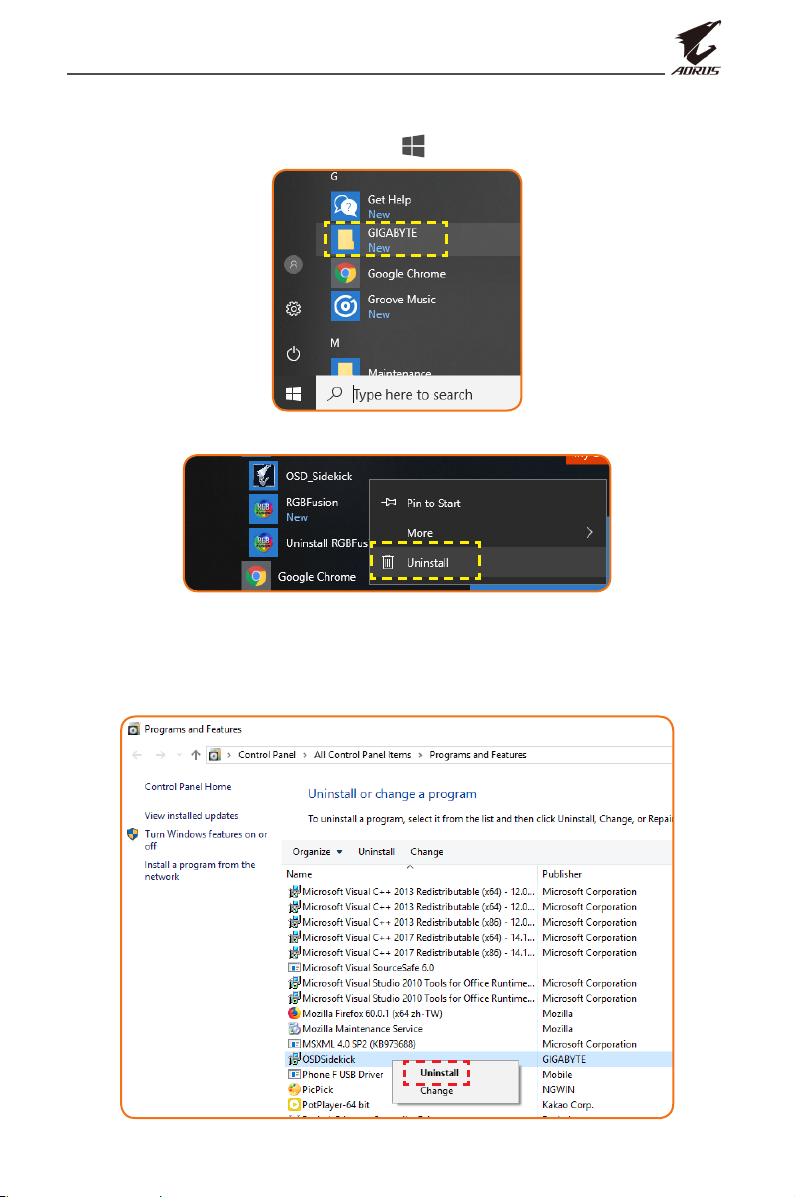

Uninstalling the Software
1. From the Windows desktop, click and select GIGABTYE.
2. Right-click on OSD_Sidekick. Then select Uninstall.
3. The Programs and Features page appears on the screen. Select
OSDSidekick from the list.
4. Right-click on OSD_Sidekick and select Uninstall. Then follow the
on-screen instructions to uninstall the software.

- 8 -
OSD Sidekick Installation Guide
USING THE SOFTWARE
Launching the Software
IMPORTANT! Before launching the software, make sure your computer is
connected to the LCD monitor through a USB cable as described in step 1 in
“Preparation”on page 4.
After the driver installation is complete, the OSD Sidekick software
shortcut icon appears on the desktop.
Double-click the icon to launch the software.
Conguring the Settings
Using the OSD Sidekick software, you can congure the advanced
settings for the monitor.
Note:
• Most of the conguration options are similar with the OSD menu and Quick
menu that you can directly access using the Control button on the monitor.
For more information, refer to the monitor user guide.
• To make the adjustment, generally, you can do one of the following:
DDrag the slider to adjust the setting.

- 9 -
OSD Sidekick Installation Guide
DClick the ON/OFF button to enable or disable the function.
DClick the qicon to select the available option.
• All the changes will be applied directly to the monitor.
DISPLAY SETTING
Congure the game, image, multi-picture, Dashboard, and Game Assist
related settings.
Game AssistPIP/PBPGaming & Picture
Dashboard
Crosshair
Picture Mode
Conguring the Picture Mode Proles
By default, there are 10 preset Picture Mode proles. These proles
cannot be deleted. However, you can still do the following:

- 10 -
OSD Sidekick Installation Guide

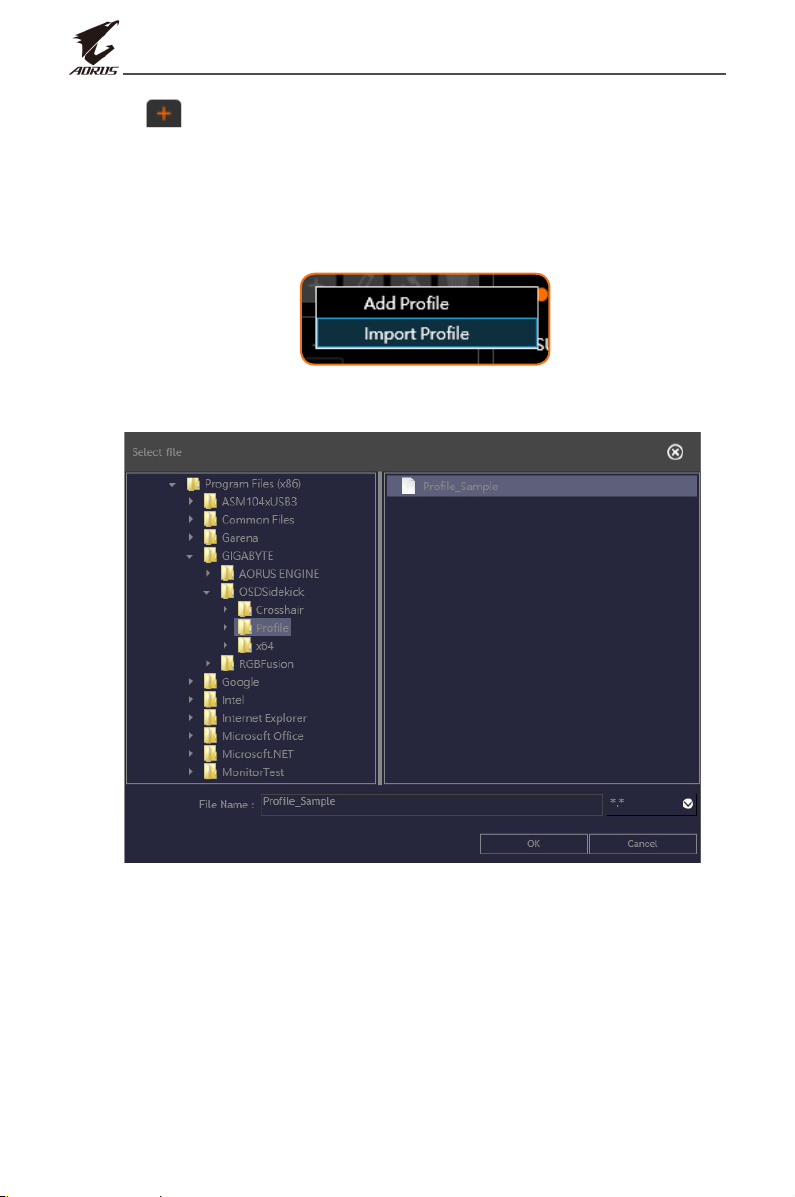

DClick to add an additional prole or import other prole.
√ To add an additional prole, select Add Prole.
Note: Make sure to congure the necessary Gaming & Picture settings
before creating a new prole.
√ To import other prole from the specied folder, select Import
Prole.
Browse the location and select the prole le to import. Then
click OK to import the le.
Note: The default Prole folder is located at the OSDsidekick installation
path.

- 11 -
OSD Sidekick Installation Guide

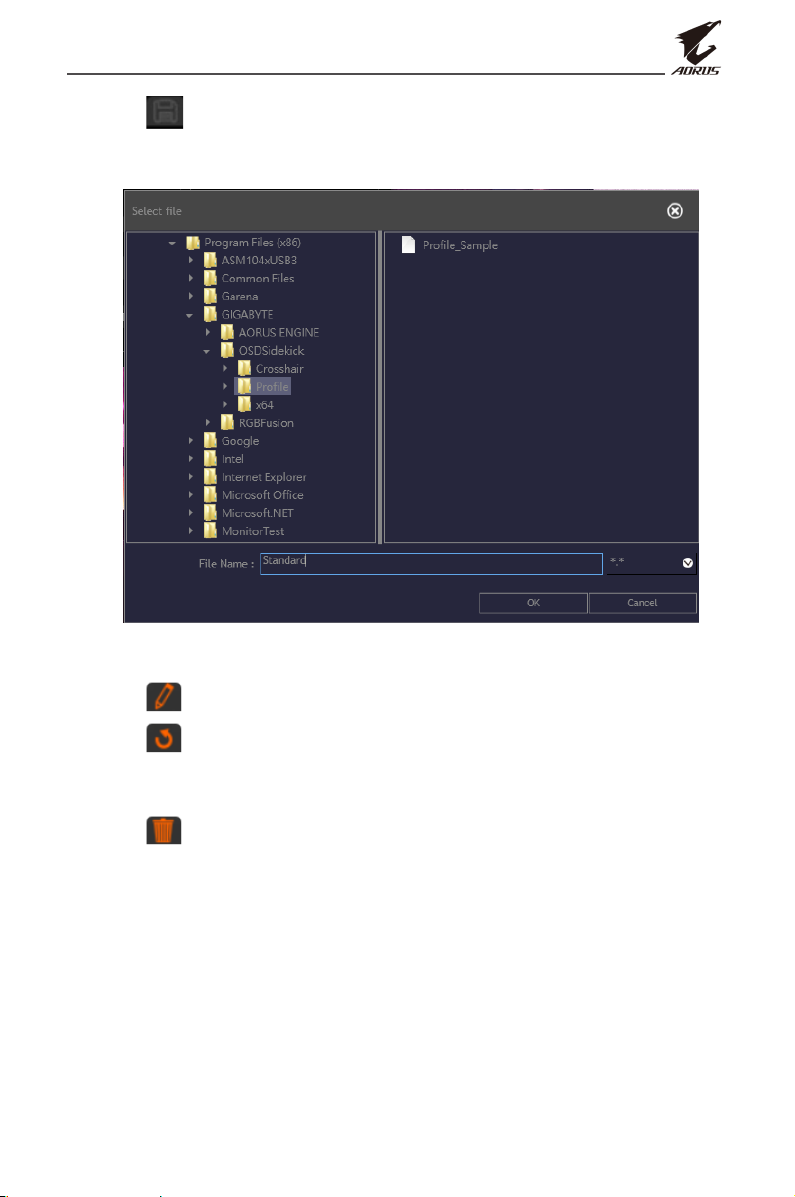

DClick to export a prole to the specied folder.
Browse the location and enter the le name. Then click OK to export
the le.
Note: The default Prole folder is located at the OSDsidekick installation
path.
DClick to rename the prole name.
DClick to reset the preset Picture Mode prole to its default
settings.
Note: The customized prole settings cannot be reset.
DClick to delete the customized prole.
Note: The user dened Picture Mode applies to the monitor Custom 3.

- 12 -
OSD Sidekick Installation Guide

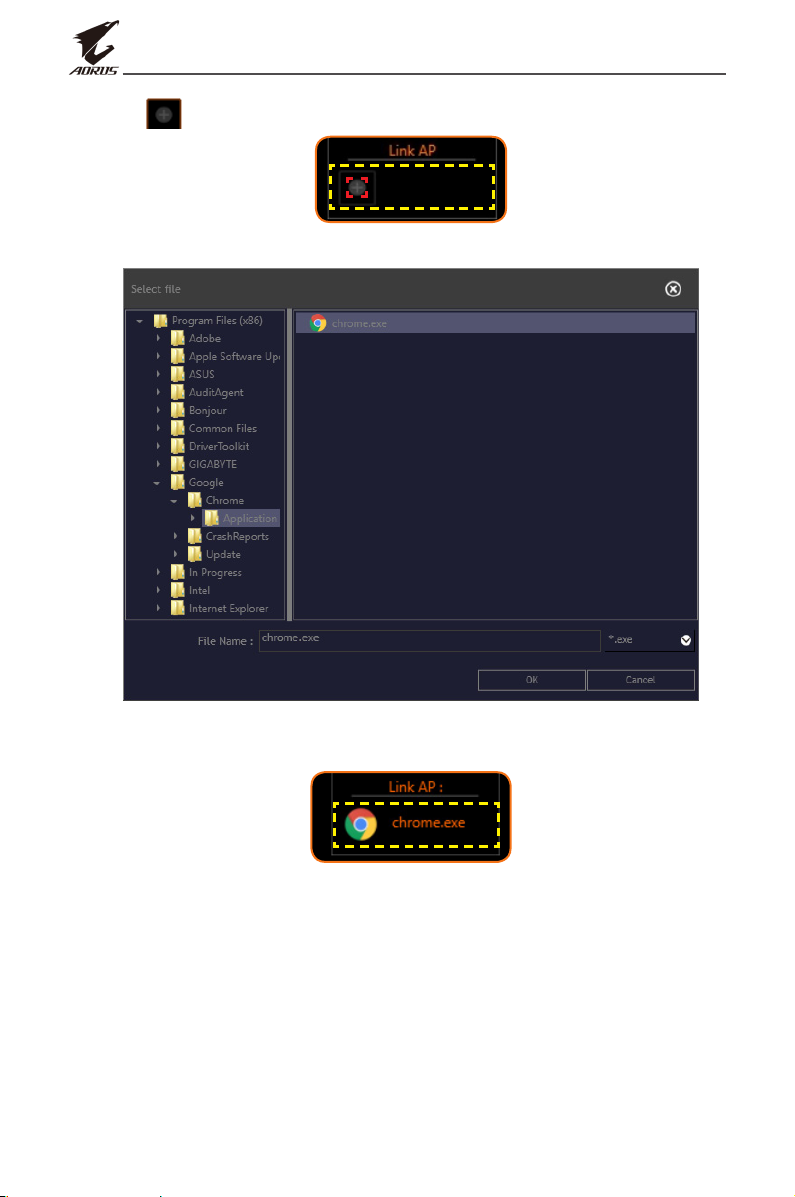

DClick to link the prole with an application.
Select the application (*.exe) you want to link and click OK.
When you open that application, the display setting will
automatically change to the prole you linked.

- 13 -
OSD Sidekick Installation Guide

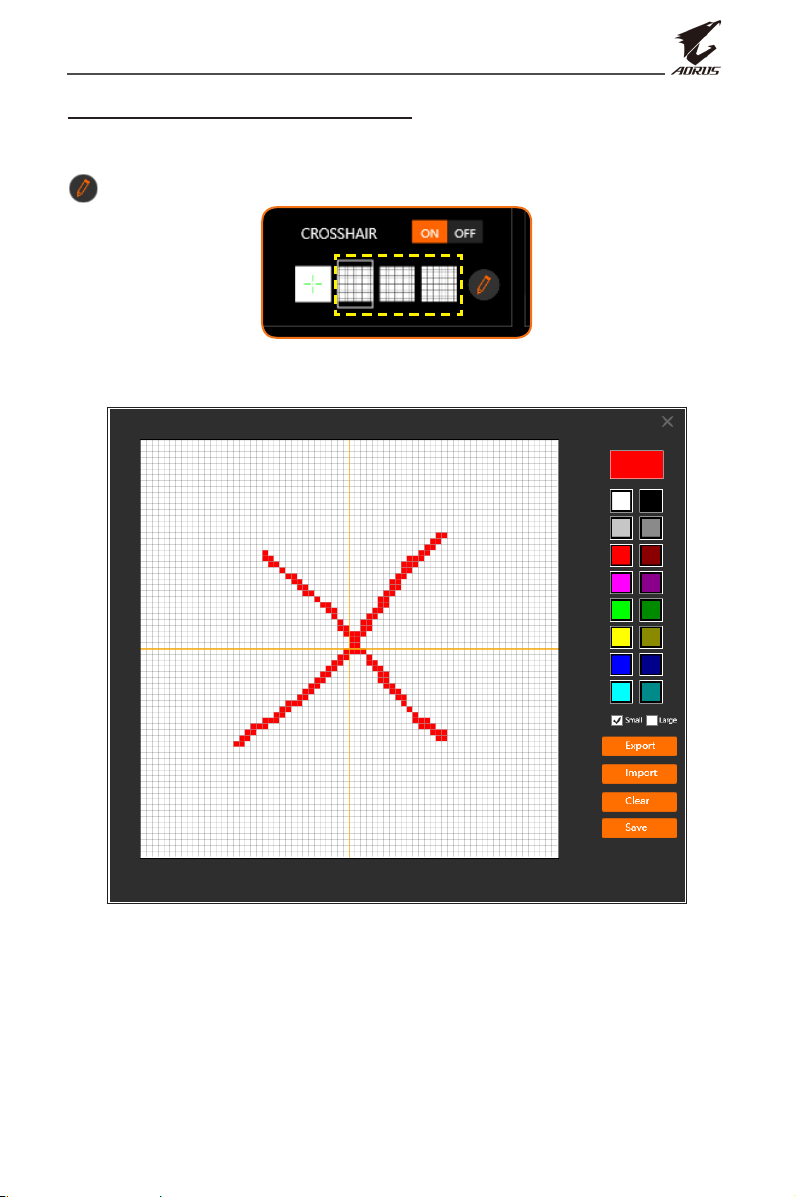

Customizing the Crosshair Cursor
Set the CROSSHAIR setting to ON to activate the function. Then select
one of the rectangular grids (marked in the illustration below) and click
.
Select the desired color and line thinkness. Then draw a new crosshair
cursor.
Once complete, click Save. The new crosshair cursor will appear on the
screen.

- 14 -
OSD Sidekick Installation Guide

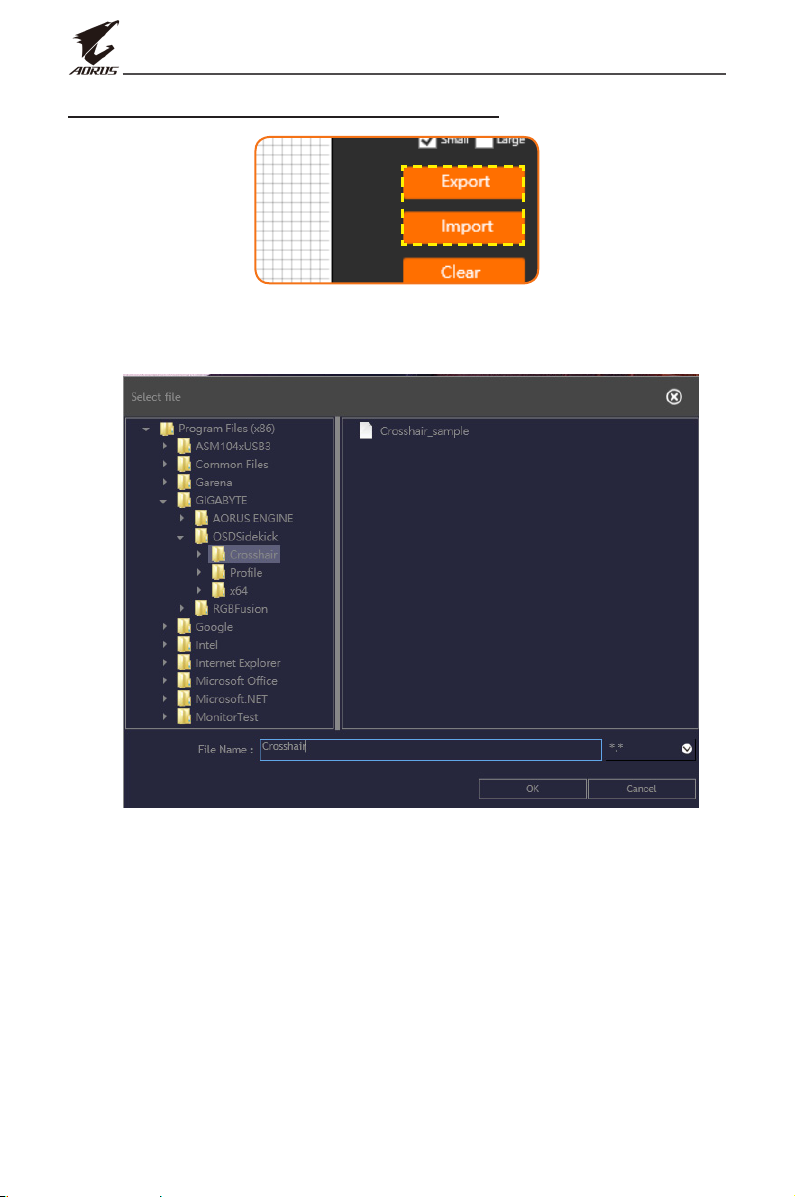

Exporting/Importing the Crosshair Cursor
DClick Export to export the Crosshair le to the specied folder.
Browse the location and enter the le name. Then click OK to export
the le.
Note: The default Crosshair folder is located at the OSDsidekick installation
path.
DClick Import to import the Crosshair le from the specied folder.
Browse the location and select the Crosshair le to import. Then click
OK to import the le.
Note: The default Crosshair folder is located at the OSDsidekick installation
path.

- 15 -
OSD Sidekick Installation Guide

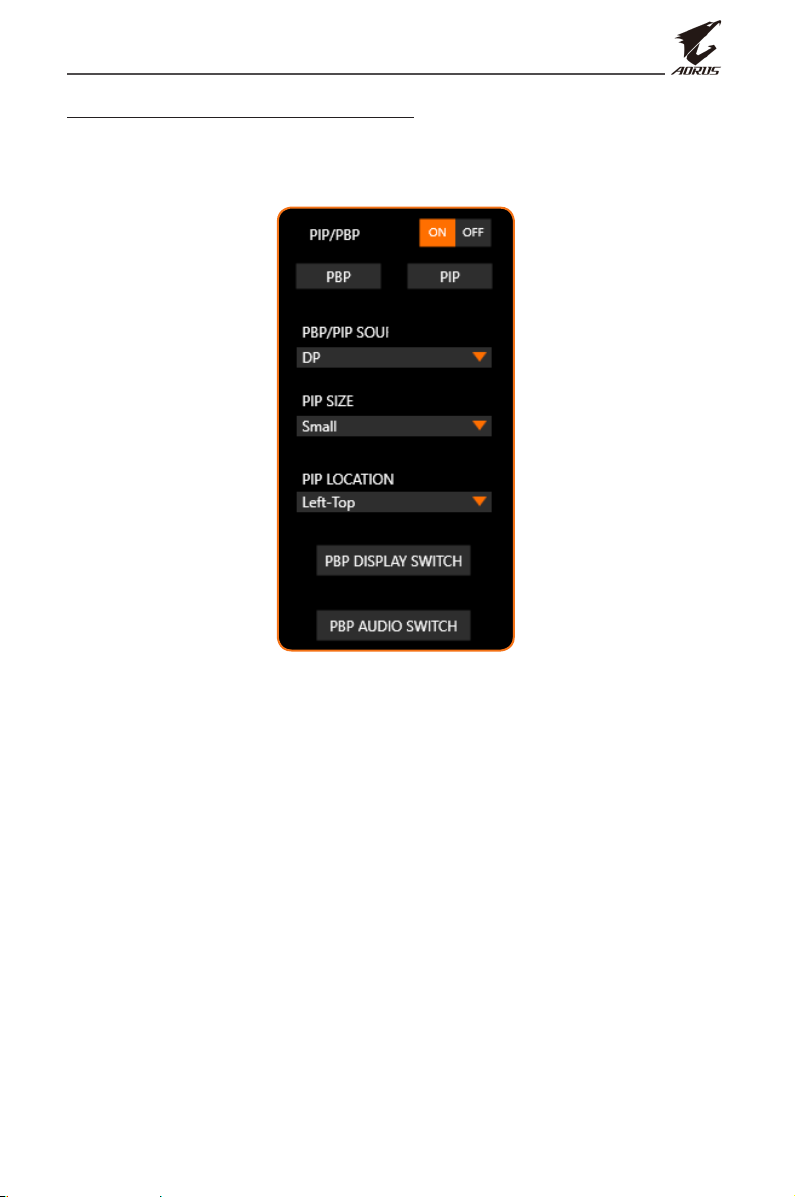

Customizing the PIP/PBP Settings
Set the Picture-in-Picture (PIP)/ Picture-by-Picture (PBP) setting
to ON to activate the function. Select any of the following items to
congure the PIP/PBP settings:
DClick PBP to display the screen image from two sources side by side.
DClick PIP to display the screen image from the main source on the
full screen and the second source in a sub window.
DIn PBP/PIP SOURCE, click the qicon to select the main source.
DIf you have selected the PIP layout, in PIP SIZE, click the qicon to
set the sub window size to Large, Medium, or Small.
DIf you have selected the PIP layout, in PIP LOCATION, click the q
icon to set the sub window location to Left-Top, Right-Top, Left-
Bottom, or Right-Bottom.
DClick PBP DISPLAY SWITCH to switch the main source and sub source,
regardless the screen layout.
DClick PBP AUDIO SWITCH to switch the audio source, regardless the
screen layout.

- 16 -
OSD Sidekick Installation Guide

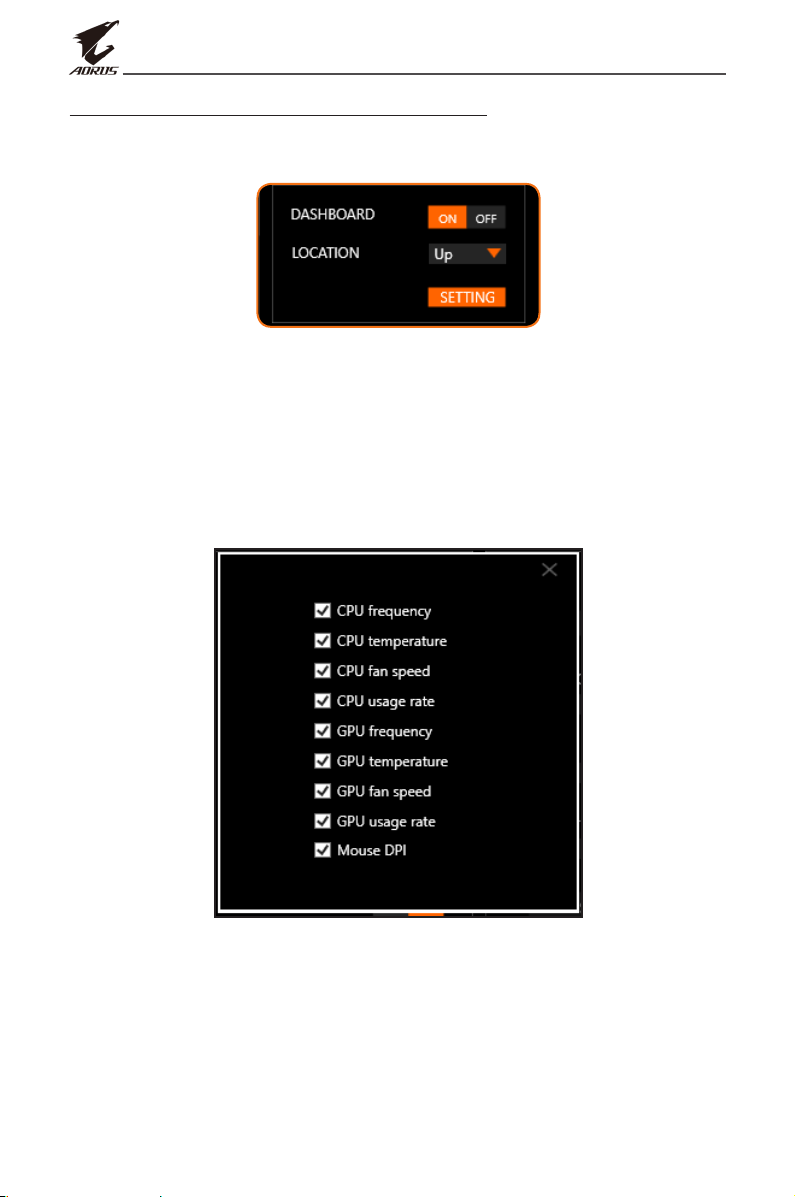

Customizing the Dashboard Information
Set the DASHBOARD setting to ON to activate the function. Then
congure the following settings:
DIn LOCATION, click the qicon to set the location of the options on
the screen to Up or Down.
Note: The DASHBOARD location on the right side or on the left side of the
screen depends on the Game Assist location setting. For example, if the
Game Assist items are on the left side of the screen, then the DASHBOARD
items are on the right side of the screen and vice versa.
DClick SETTINGS and check the desired option(s) to be shown on the
screen.
Note: Uncheck the option to hide it from the screen.

- 17 -
OSD Sidekick Installation Guide
Customizing the Game Assist Settings
Congure the following Game Assist settings:

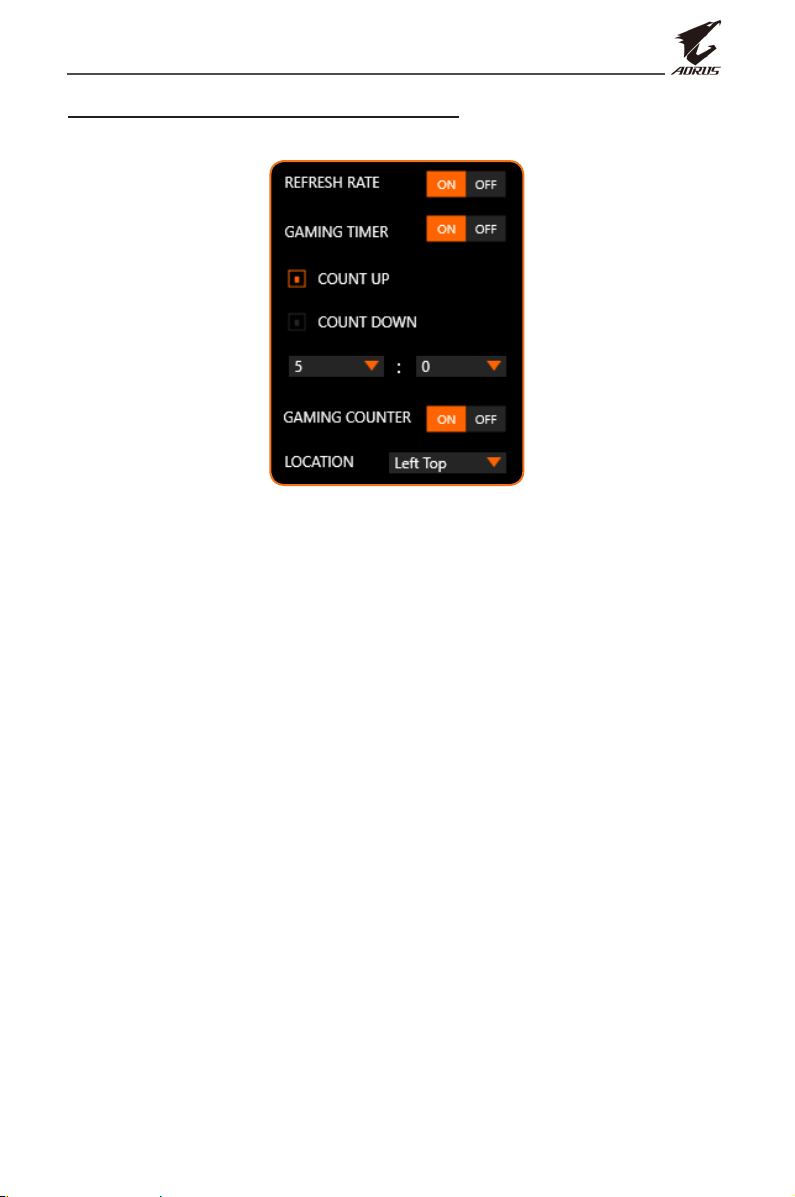

DSet the REFRESH RATE setting to ON to enable displaying the
refresh rate.
DSet the GAMING TIMER setting to ON to enable displaying the
gaming timer.
- Select either COUNT UP or COUNT DOWN the timer.
- Click the qicon to set the countdown time.
DSet the GAMING COUNTER setting to ON to enable displaying the
gaming counter.
DIn LOCATION, click the qicon to set the gaming counter location on
the screen to Left Top, Left Center, Left Bottom, Right Top, Right
Center, or Right Bottom.

- 18 -
OSD Sidekick Installation Guide
HOT KEY
Manage the keyboard shortcut to access a particular function which
you are using frequently.
Note: By default, the assigned hot keys appears on the right panel.
Assigning a Hot Key
On the left panel, scroll down to select the function you want to assign
a hot key to.
Note: A function hot key consists of one or more modier keys (Alt, Shift, Ctrl)
plus a symbol.

- 19 -
OSD Sidekick Installation Guide

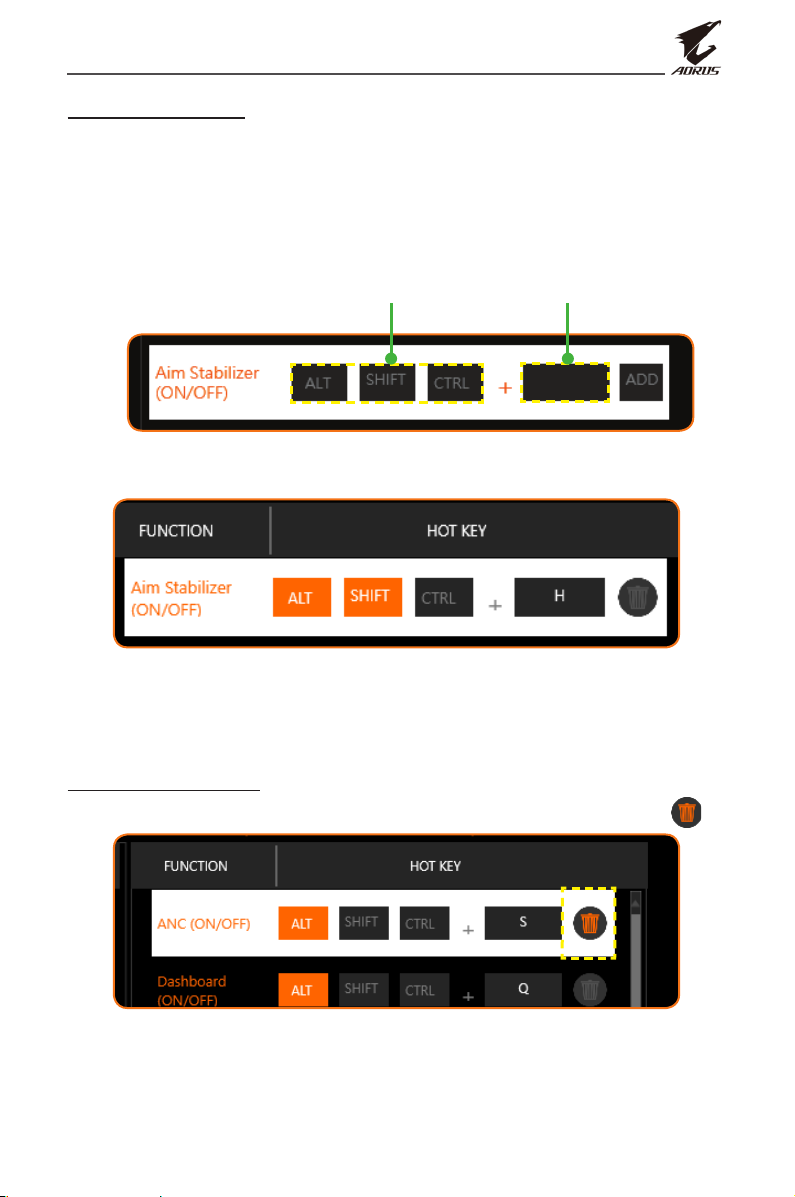

Editing a Hot Key
To edit a hot key, do as follows:
1. Select the function on the left panel and assign a new hot key:
a) Click on one or more modier key(s): ALT, SHIFT, and/or CTRL.
b) Click on the symbol eld and enter any desired symbol.
2. Click ADD.Modier keys Symbol eld
The hot key of the function appears on the right panel as illustrated
below:
Note: If a function has been set to a hot key, the item in the left eld will be
displayed in gray. To reassign the hot key, you have delete rst the current hot
key. To delete, refer to the“Deleting a Hot Key” section below.
Deleting a Hot Key
On the right panel, select the hot key you want to delete and click .

- 20 -
OSD Sidekick Installation Guide
GENERAL SETTING
Congure the display screen, system, and hot keys (for the Control
button) related settings.
Hot Keys for
Control button
Display & System
RGB Controller
Changing the Hot Key for the Control Button

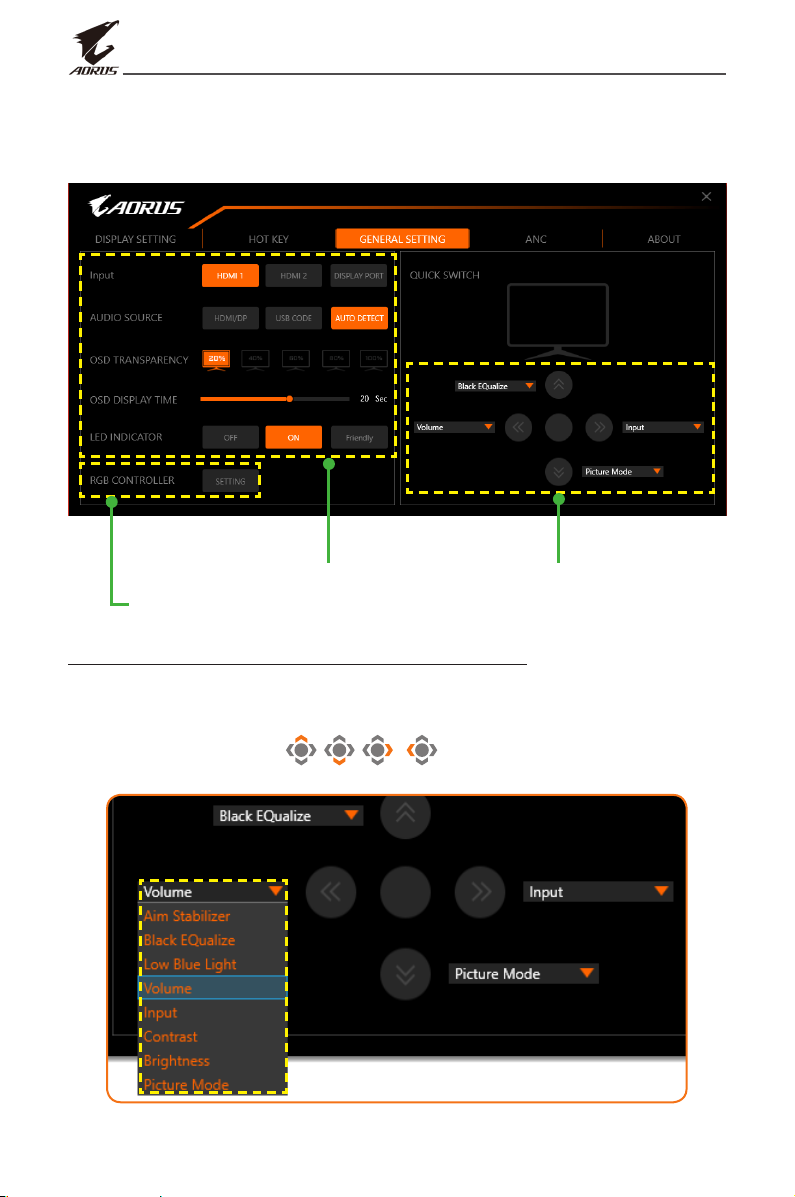

On the right panel (QUICK SWITCH), you can change the preset hot key
function for the Control button.
Select the key position ( / / /( ) and click the qicon. Then
select the desired option.
