Introduction
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6LMM7 motherboard. It is a CeleronTM Socket 370
Processor based PC /AT compatible system with AGP/ PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel CeleronTM Socket 370 Processor based PC / AT compatible
mainboard.
qSocket 370 Pins ZIF white socket on board.
qSupports CeleronTM Socket 370 processor running at 366-566 MHz.
qIntel 440LX chipset, Supports SDRAM / Ultra DMA/33 IDE.
qBuilt-in ATi RAGE PRO 3D graphics acceleration chip.
qBuilt-in PCI YAMAHA audio chip.
qSupports external Modem Ring-On on COM A&B and internal Modem
Ring-On.
qSupports Wake-up on LAN .
qSupports 3xDIMMs using 3.3V EDO or SDRAM DIMM module.
qSupports EDO 16MB ~ 768 MB, SDRAM 16MB~384MB memory on
board.
q3xPCI Bus slots, 1xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports1x Line in, 1x Line Out, 1x Mic in, 2x CD Line in,1x GAME Port,
1x TEL Port.
qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2Mbits FLASH RAM.
q24.3 cm x 21 cm Micro-ATX form factor, 4 layers PCB.

6LMM7
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (The different Hardware &
Software configuration will result in different benchmark testing results.)
•CPU IntelCeleronTM 366MHz Socket 370 processor
•DRAM (128x 1) MB SDRAM (SEC KM48S8030BT-GH)
•CACHE SIZE 128 KB included in CPU
•DISPLAY Onboard ATi AGP 3D graphics acceleration chip (4MB
SDRAM)
•STORAGE Onboard IDE (IBM DHEA 38451)
•O.S. Windows NT™4.0 SPK3
•DRIVER Display Driver at 1024 x 768 x 256 colors x 75Hz.
TRIONES Bus Master IDE Driver 3.70
Processor IntelCeleronTM 366MHz Socket 370
366MHz (66x5.5)
Winbench98
CPU mark32 705
FPU Winmark 1970
Business Disk 1850
Hi-End Disk 4410
Business Graphics 198
Hi-End Graphics 229
Winstone98
Business 33.1
Hi-End 36.7

Introduction
1-3
1.4. BLOCK DIAGRAM
24MHz
3.3V EDO/SDRAM
DIMM Sockets
14.318MHz
33MHz
33MHz
66MHz
PCI Bus
LPT Port
Keyboard
Floppy Port
COM Ports
PS/2 Mouse
USB Bus
Ultra DMA/33
IDE Ports
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
Winbond
83977EF
Host Bus
PAC
82443LX
CHIPSET
PIIX4
82371EB
CHIPSET
66MHz
PGA 370
DRAM Bus
Winbond
W83193R-04
ISA Bus
66MHz
AGP Bus
ATi
RAGE PRO
VIDEO
MEMORY
100MHz
66MHz
VGA
MIC
L-IN
L-OUT
YAMAHA
24.576MHz
Game
Port
AC-2

6LMM7
1-4
1.5. INTRODUCE THE INTEL

CeleronTM Socket 370 Processor
Figure 1: INTELCeleronTM Socket370 Processor
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI
bridge device that supports an AGP port. The main purpose of the AGP port
is to provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-
bits at 33MHz) or as an AGP port which supports 2x data-rate, a read queue,
and side band addressing. When the 2x-data rate is used, the port can
transmit data at 533MB/sec (66.6*2*4). The read-queue can be used to
pipeline reads –removing the effects of the reads-latency. Side band
addressing can be used to transmit the data address on a separate line in
order to speed up the transaction.

Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −CeleronTM Socket 370 processor 366–566 MHz.
−66MHz Socket 370 on board.
•SPEED −66 MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•PROTECTION −Speaker Alarm when detect "CPU FAN Failure" or
“CPU Overheat”.
−Automatically slow down CPU speed when "CPU
Overheat".
−H/W monitor power status (±5V, ±12V,
VGTL,5VSB, CPU voltage & CMOS battery
voltage).(Optional)
•DRAM MEMORY −3 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 /512 MB
−Supports EDO 16MB ~ 768 MB,
SDRAM 16MB~384MB.
−Supports 3.3V SDRAM / EDO type DRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−128KB 2nd cache in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −3 33MHz Master / Slave PCI-BUS.
−1 8MHz 16 bits ISA BUS.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.

6LMM7
2-2
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 LPT port.
−Supports 1 Floppy port.
−Supports 2 USB ports.
−Supports 1 PS/2 Mouse.
−Supports 1 PS/2 Keyboard.
•VGA −Built-in ATi 3D RAGE PRO 3D graphics
acceleration chip.
−Built-in 8M high speed SDRAM.
−For AGP 1.0 Interface compliant.
•SOUND −Built-in YAMAHA PCI audio chip.
−Supports Line Out, Line In, MIC, Joystick and
CD-Line, TEL Port.
•GREEN FUNCTION −Suspend mode support.
−Green switch & Green LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −Micro ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −YAMAHA Sound Driver.
−ATi RAGE PRO Driver.
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWSNT, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

Hardware Installation
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The mainboard package should contain the following:
•The 6LMM7 mainboard.
•The Retention Mechanism & Attach Mount
•USER'S MANUAL for mainboard.
•Cable set for IDE, Floppy devices. (Cable for COMB is optional)
•CDs or diskettes for Mainboard ¡B(Sound and VGA Utility).
The mainboard contains sensitive electric components, which can be easily
damaged by static electricity, so the mainboard should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat.
The operator should be wearing an anti static wristband, grounded at the
same point as the anti-static mat.
Inspect the mainboard carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and
handling damages on the board before proceeding.
After opening the mainboard carton, extract the system board and place it
only on a grounded anti-static surface component side up. Again inspect the
board for damage. Press down on all of the socket IC's to make sure that
they are properly seated. Do this only on with the board placed on a firm flat
surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

6LMM7
3-2
3.2. MAINBOARD LAYOUT
6LMM7
BIOS
YAMAHA
ATi
RAGE PRO
AGP
PIIX4E
CPU
SW
INTEL
82443LX
IDE 1
IDE 2
Floppy
ATX POWER
JP11
SYS
FAN PWR
FAN
IR CASE
OPEN
BZ 1
J10
BAT
BANK 2
BANK 1
BANK 0
COM B
JP1
CPU FAN
PS/2USB
COM AVGA LPT
TEL
JP9
GAME &
Audio
CN6 JP10
WAKE ON
LAN
RING PWR ON
PCI 1
PCI 2
PCI 3
JP3
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
PS/2 For PS/2 Keyboard / Mouse port.
FLOPPY For Floppy port
COMB For Serial port2 (COM B).[Support Modem Ring On]
COMA For Serial port1 (COM A).[Support Modem Ring On]
LPT For LPT port.
VGA For VGA port.
GAME For GAME port.
AUDIO For MIC,LINE-IN,LINE-OUT,TEL port.
tCPU FAN : CPU cooling FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE

Hardware Installation
3-3
tPWR FAN : Power cooling FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE
tSYS PWR : System cooling FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE
tWake on Lan
Pin No. Function
1+5V SB
2GND
3Signal
tJP5 : Release Onboard VGA from occupying IRQ Resource
Pin No. Function
1-2 short Disable Onboard VGA INT.(Default)
2-3 short Enable Onboard VGA INT.
tJP6 : On-Board VGA Function
Pin No. Function
1-2 short Disabled On-Board VGA Function.
2-3 short Enabled On-Board VGA Function.(Default)
tJP9 : Onboard Sound Function Selection
Pin No. Function
1-2 short Onboard Sound Function Enabled.(Default)
2-3 short Onboard Sound Function Disabled.
tJP1 : Keyboard Power On Selection
Pin No. Function
1-2 short Enabled Keyboard power on.
2-3 short Disabled Keyboard power on. (Default)

6LMM7
3-4
tJ10 : Clear COMS Function
Pin No. Function
1-2 short Clear CMOS.
2-3 short Normal Optional.(Default)
tCN6 : CD Audio Line In
Pin No. Function
1GND
2Right
3GND
4Left
tJP10 : CD Audio Line In
Pin No. Function
1Left
2GND
3GND
4Right
tJP13 : CASE OPEN Function
Pin No. Function
1Signal
2GND

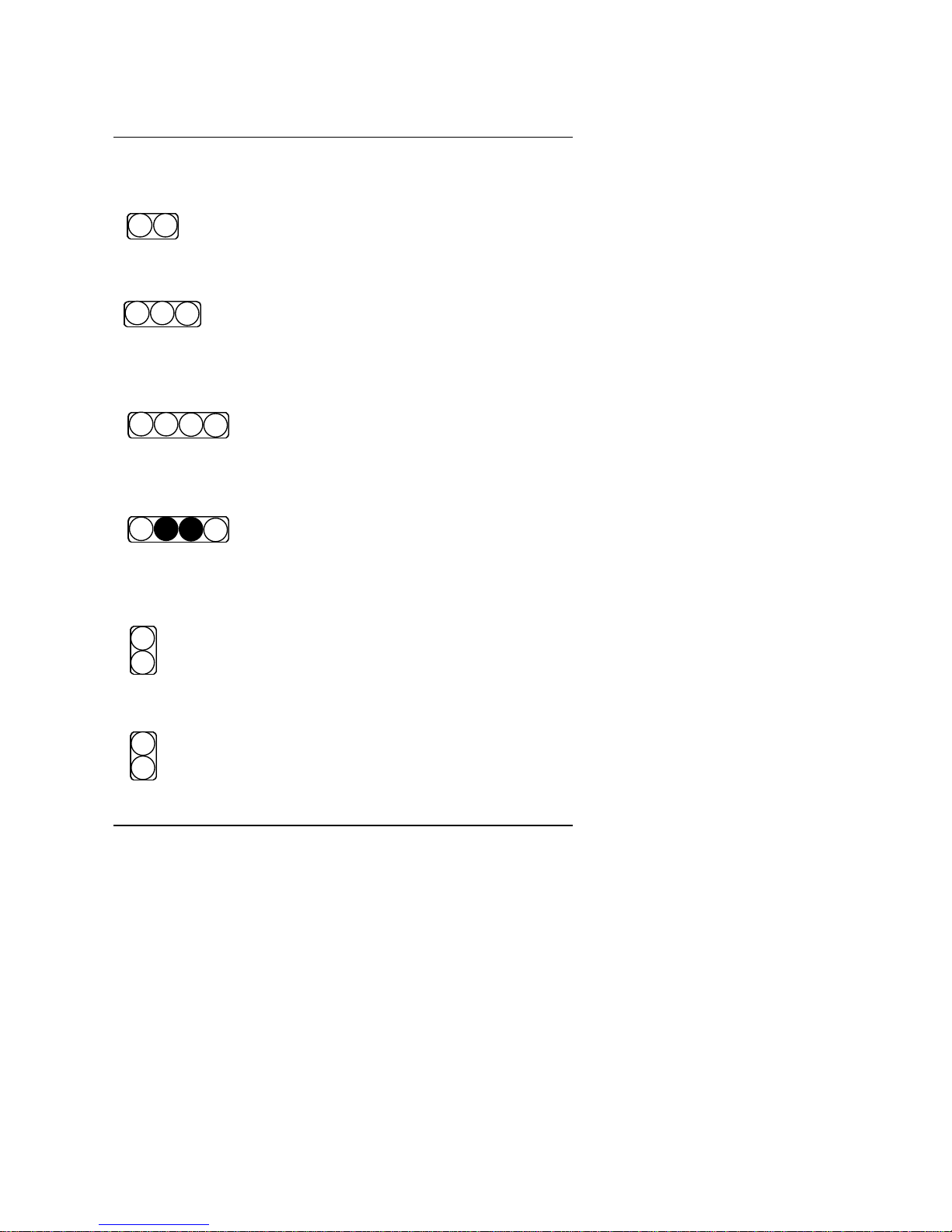

JP11 : For 2X11 PINs Jumper
PW: Soft Power Connector
Open: Normal Operation
Short: Power On/Off
PW LED HD
RES S P K R
GN
GD
JP11 1
1 1
1

Hardware Installation
3-5
RES: Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
LED: Power LED
PIN 1 : anode (+)
PIN 2 : cathode (−)
PIN 3 : cathode (−)
SPKR: Speaker Connector
PIN 1 : VCC
PIN 2 : VCC
PIN 3 : NC
PIN 4 : Data
SPKR : Internal Speaker Connector (Default)
PIN 1 : VCC (+)
PIN 2-PIN3 : Short
PIN 4 : Data (−)
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode ( − )
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
1
1
1
+
−
1+
−

6LMM7
3-6
GD: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode ( − )
3.4. DRAM INSTALLATION
The mainboard can be installed with 16 / 32 / 64 / 128 / 256 MB 168 pins
DIMM module DRAM, and the DRAM speed must be 50 or 60 ns for EDO &
66~100 MHz for SDRAM. The DRAM memory system on mainboard
consists of bank 0, 1 & bank 2.
Since 168 pins DIMM module is 64 bits width, using 1 PCS which can match
a 64 bits system. The total memory size is 16 MB ~ 384MB SDRAM, EDO
DRAM size is 16MB ~ 768MB. The DRAM installation position refer to Figure
3.1, and notice the Pin 1 of DIMM module must match with the Pin 1 of
DIMM socket. Insert the DRAM DIMM module into the DIMM socket at
Vertical angle. If there is a wrong direction of Pin 1, the DRAM DIMM module
couldn't be inserted into socket completely.
3.5. CPU SPEED SETUP
The default system bus speed is 66.6MHz. The user can change the DIP
SWITCH (SW) selection to set up the CPU speed for 366 - 566MHz
processor. The CPU speed must match with the frequency RATIO. It will
cause system hanging up if the frequency RATIO is higher than CPU's.
DIP SWITCH (SW)
1 2 3 4 FREQ.
RATIO EXT.CLK. MHz INT.CLK. MHz
OFF ON OFF ON 4.5 66 300
ON OFF OFF ON 5 66 333
OFF OFF OFF ON 5.5 66 366
ON ON ON OFF 6 66 400
OFF ON ON OFF 6.5 66 433
ON OFF ON OFF 7 66 466
OFF OFF ON OFF 7.5 66 500
ON ON OFF OFF 8 66 533
OFF ON OFF OFF 8.5 66 566
1

Hardware Installation
3-7
MJP2, JP3, JP4 (Select the system speed¡Ð66, 75, 83 MHz )
MAIN CLOCK JP4 JP3 JP2
66MHz 2-3 2-3 2-3
75MHz 2-3 1-2 2-3
83MHz 1-2 2-3 1-2
M The CPU is a sensitive electric component and it can be easily
damaged by static electricity, so users must keep it away from
metal surface when the CPU is installed onto mainboard.
M We don’t recommend you to setup your system speed to 75 or 83
MHz because these frequencies are not the standard specifications
for CPU, Chipset and most of the peripherals. Whether your system
can run under 75 or 83MHz properly will depend on your hardware
configurations: CPU, SDRAM, Cards, etc.
3.6. CMOS RTC & ISA CFG CMOS SRAM
The mainboard contains RTC & CMOS SRAM on board. They have a power
supply from external battery to keep the DATA inviolate & effective. The RTC
is a REAL-TIME CLOCK device, which provides the DATE & TIME to
system. The CMOS SRAM is used for keeping the information of system
configuration, so the system can automatically boot OS every time. Since
the lifetime of internal battery is 5 years, the user can change a new Battery
to replace old one when it has consumed.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 -Pins connector
SPKR is used to connect speaker.
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
The RESET switch on panel provides users with HARDWARE RESET
function. The system will do a cold start after the RESET switch is press and
released by user. The RESET switch is a 2 PINS connector and should be
installed to RES on mainboard.
3.9. POWER LED CONNECTOR INSTALLATION
System has power LED lamp on the panel of case. The power LED will light
on off or flash to indicate which step on the system. The connector should be

6LMM7
3-8
connected to LED of mainboard in correct direction.
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2) on board, which
following ATAPI standard SPEC. Any one IDE port can connected to two
ATAPI devices (IDE Hard Disk, CD-ROM & Tape Driver), so total four ATAPI
devices can exist in a system. The HD is the active LED port for ATAPI
devices.
3.11. PERIPHERAL DEVICE INSTALLATION
After the I/O device installation and jumpers setup, the mainboard can be
mounted into the case and fixed by screw. To complete the mainboard
installation, the peripheral device could be installed now. The basic system
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of three PCI - Bus slots can be used.
3.12.PS/2 KEYBOARD & MOUSE INSTALLATION
The main board supports PS/2 Mouse. The BIOS will auto detect whether the
PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse port if it is
installed. After installing the peripheral device, the user should check
everything again, and prepare to power-on the system.
