Cautions and Warnings
※Please unplug or switch off the power supply when installing it.
※ Make sure that the power source is consistent with the specications labeled on the nameplate
before turning on the power supply.
※Do not pull and/or unplug the power cord when the power supply is in use. Doing so may cause
damage to your components. You should change a new power cord or outlet if there is any bad
connection.
※Do not use the power supply in a high humidity and/or temperature environment.
※High voltages exist in the power supply. Only an authorized service technician or electrician can
open the power supply case. Doing so will void the warranty.
※All warranties and guarantees will be voided in the event of failure to comply with any of the
warnings and cautions covered in this manual.
※If the power supply is not working properly, please contact our Product Service Center.
Components Check
‧Sumo Power Silver power supply
‧Modular cables
‧AC power cord
‧User manual
‧Installation screw kit

3
Sumo Power Silver 900W/ 1200W
Deutsche Français Español России 繁體中文 简体中文 日本語
English
1. Product Introduction
A power supply is the supply center for all power needs. With this component, the system
operation may be supported so that its stability and reliability can be maintained. GIGABYTE
launches the high-performance, 80 Plus Silver certied Sumo Power Silver 900W/1200W power
supply that streamlines the operation of your computer by utilizing the best power source while
enhancing the system liability to prevent power supply abnormalities resulting from surge, etc.
Equipped with the Japanese-made capacitors and solid capacitors, each Sumo Power silver
900W/1200W has the longest lifespan. Furthermore, the 12-cm Blue LED fan comes with the
power supply so that you can enjoy every single moment while using it.
1-3 Model Description
Sumo Power Silver 900W
Sumo Power Silver 1200W
Product Name Model
GE-H900A-D1
GE-HK20A-D1
1-2 Product Highlights
1-1 Introduction
‧ 80 Plus Silver certied - up to 88% efcient
‧ Compliant with the latest power supply design: Intel 12V v2.3/EPS12V v2.91
‧Double anti-EMI design
‧ 5 (900W)/6 (1200W) +12V rails for the best system compatibility
‧High quality Japanese-made capacitors and solid capacitors for a longer lifespan of power
supply
‧Modular connectors for easier cabling management
‧ 12-cm blue LED silent cooling fan with switchable light control
‧Safety protection mechanism: over-current Protection, over-power protection, over-voltage
protection, under-voltage protection, short circuit protection, and over temperature protection
‧ Multiple safety compliance certications: CUL/TUV/CB/CE/FCC/BSMI/C-tick
‧ Compliant with the latest ErP/RoHS/WEEE environmental certication standards
‧Sound and robust enclosure with anti-scratch design

4
Sumo Power Silver 900W/ 1200W
EnglishDeutscheFrançaisEspañolРоссии
繁體中文
简体中文日本語
2. Product Specications
2-1 Power Input Specications
‧ Type: ATX 12V V2.3/SSI EPS 12V V2.91
‧ Voltage: 900W-100~240Vac / 1200W-110~240Vac
‧ Current: 900W-12A@115Vac/6.3A@230Vac, 1200W-15A@115Vac/10A@230Vac
‧Frequency: 60/50Hz
‧ Power good signal: 100ms~500ms
‧Hold up time: > 17ms
‧ Efciency: 88% Typically
‧ Continuous output capacity: 900W/1200W
‧ Maximum output capacity: 950W/1250W

5
Sumo Power Silver 900W/ 1200W
Deutsche Français Español России 繁體中文 简体中文 日本語
English
2-2 Power Output Specications
Sumo Power 900W
Model GE-H900A-D1
AC Input Voltage 100-240Vac, 12-6.3A
Frequency 60/50Hz
Power Factor
Correction type Active PFC
DC Output +5V +3.3V +12V1 +12V2 +12V3 +12V4 +12V5 -12V +5Vsb
Max. Output Current 25A 25A 25A 25A 25A 28A 28A 0.5A 4.0A
Max. Output Power 166W 864W 6W 20W
Total Power 900W
Sumo Power 1200W
Model GE-HK20A-D1
AC Input Voltage 110-240Vac, 15-10A
Frequency 60/50Hz
Power Factor
Correction type Active PFC
DC Output +5V +3.3V +12V1 +12V2 +12V3 +12V4 +12V5 +12V6 -12V +5Vsb
Max. Output Current 25A 25A 25A 25A 25A 30A 30A 30A 0.5A 4.0A
Max. Output Power 190W 1166W 6W 20W
Total Power 1200W
2-3 Features
‧ Dimensions: L 200 x W 150 x H 86 (mm)
‧ Operating Temperature: 0 ~ 40°C
‧MTBF: > 100,000 Hours
‧EMC: CE/FCC/CB
‧ Safety compliance: CUL/TUV/BSMI/C-tick

6
Sumo Power Silver 900W/ 1200W
EnglishDeutscheFrançaisEspañolРоссии
繁體中文
简体中文日本語
3. Description of Power Connectors
3-1 Number of Connectors
24-pin Motherboard
Connector
(4+4)-pin +12V CPU
Connector
8-pin +12V CPU
Connector
(6+2)-pin PCI-E2.0
Connectors
SATA Connectors
4-pin Peripheral
Connectors
4-pin Floppy
Connector
1
1
1
6
12
5
1
1
1
1
6
12
5
1
Connector GE-H900A-D1 GE-HK20A-D1

7
Sumo Power Silver 900W/ 1200W
Deutsche Français Español России 繁體中文 简体中文 日本語
English

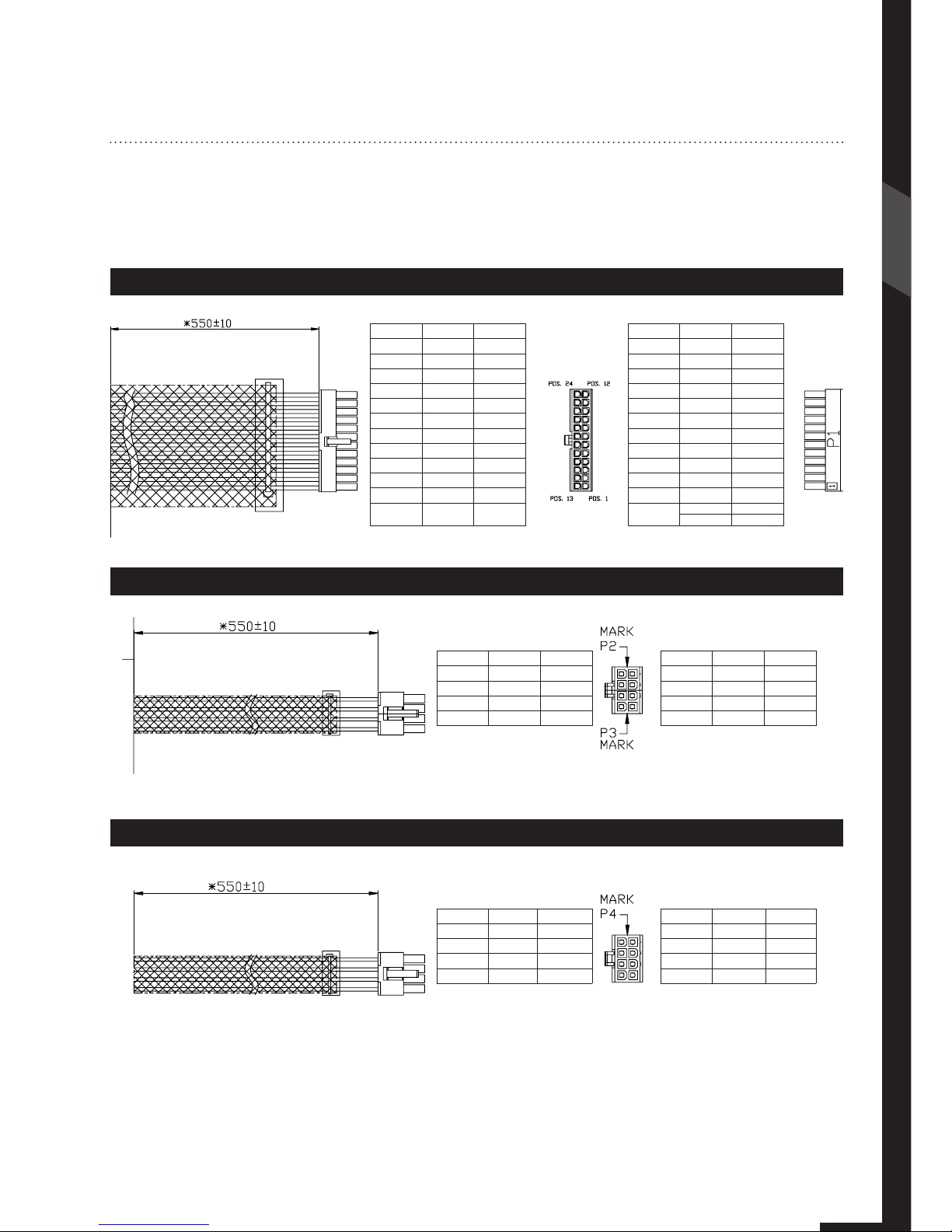

3-2 Description of Standard Cables
24-pin Connector (P1)
4+4-PIN CPU Power Connector (P2, P3)
8-PIN CPU Power Connector
Pin No.
12
11
10
9
8
7
6
5
4
3
2
1
Description
+3.3V
+12V
+12V
+5Vsb
PWR_ok
COM
+5V
COM
+5V
COM
+3.3V
+3.3V
Color
Orange
Yellow
Yellow
Purple
Gray
Black
Red
Black
Red
Black
Orange
Orange
Pin No.
24
23
22
21
20
19
18
17
16
15
14
13
Description
COM
+5V
+5V
+5V
------
COM
COM
COM
PS-ON
COM
-12V
+3.3V
+3.3V
Color
Black
Red
Red
Red
-----
Black
Black
Black
Green
Black
Blue
Orange
Brown
Pin No.
4
3
4
3
Description
+12V2
+12V2
+12V2
+12V2
Color
Yellow
Yellow
Yellow
Yellow
Pin No.
2
1
2
1
Description
COM
COM
COM
COM
Color
Black
Black
Black
Black
Pin No.
8
7
6
5
Description
+12V6
+12V6
+12V6
+12V6
Color
Yellow/White
Yellow/White
Yellow/White
Yellow/White
Pin No.
4
3
2
1
Description
COM
COM
COM
COM
Color
Black
Black
Black
Black

8
Sumo Power Silver 900W/ 1200W
EnglishDeutscheFrançaisEspañolРоссии
繁體中文
简体中文日本語
3-3 Descriptions of Modular Cables
Modular Backplane

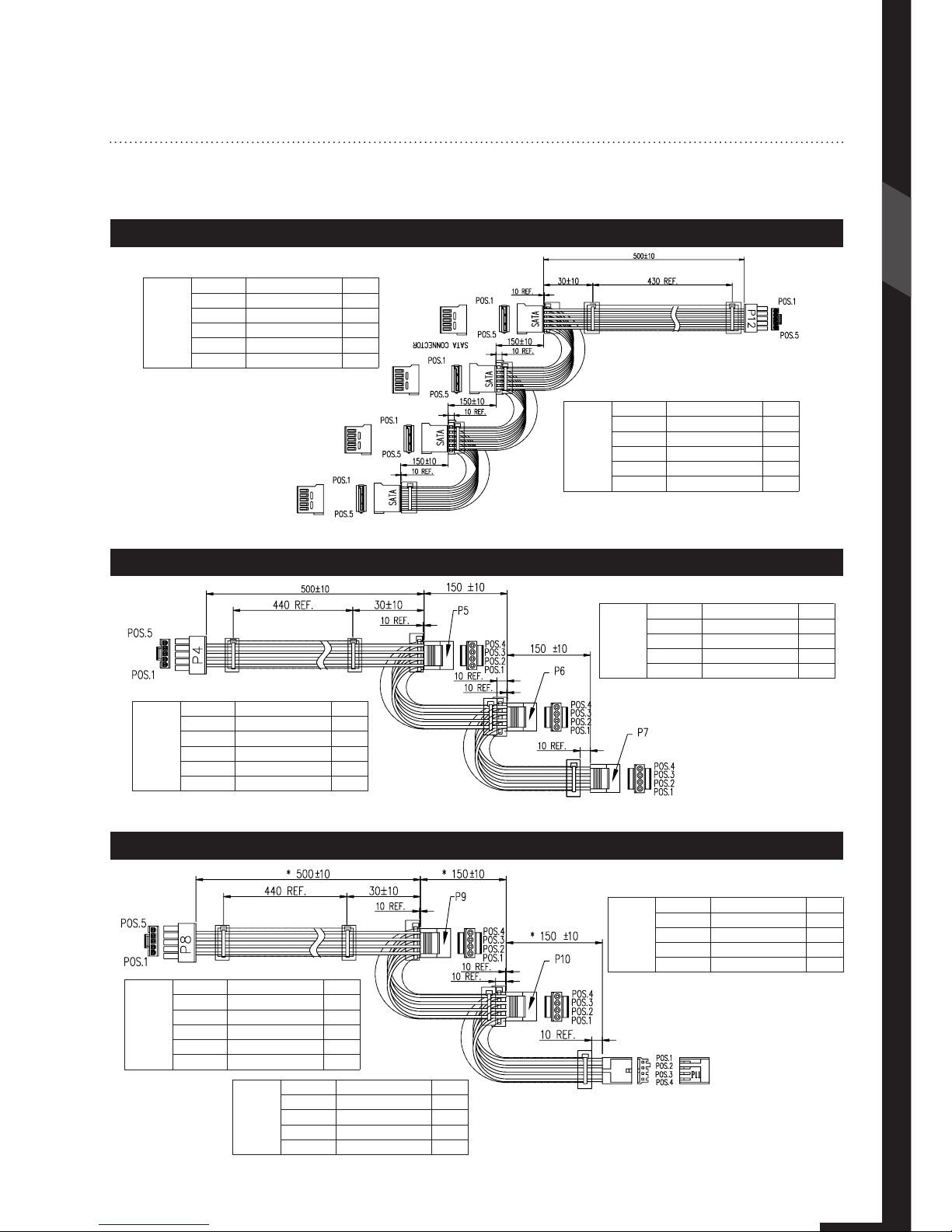

Graphic Card Connectors: 6-pin PCI-E power connector to dual 6+2-pin PCI-E power connectors x 3
Sumo Power Silver 900W
Sumo Power Silver 1200W
Pin No.
1
2
3
4
5
6
P13
Description
+12V3/ +12V4
+12V3/ +12V4
+12V3/ +12V4
COM
COM
COM
COM
COM
Color
Yellow
Yellow
Yellow
Black
Black
Black
Black
Black
Pin No.
1
2
3
4
5
6
7
8
Color
Yellow
Yellow
Yellow
Black
Black
Black
Black
Black
Description
+12V3/ +12V4
+12V3/ +12V4
+12V3/ +12V4
COM
COM
COM
COM
COM
PCI-E
Pin No.
1
2
3
4
5
6
7
8
Color
Yellow
Yellow
Yellow
Black
Black
Black
Black
Black
Description
+12V3/ +12V4
+12V3/ +12V4
+12V3/ +12V4
COM
COM
COM
COM
COM
PCI-E
“PCI-E” printed on
this side
“PCI-E” printed on
this side

9
Sumo Power Silver 900W/ 1200W
Deutsche Français Español России 繁體中文 简体中文 日本語
English
SATA Connectors: 5-pin power connector to quad SATA power connectors x3
4-pin Peripheral Power Connectors: 5-pin power connector to triple 4-pin peripheral power connectors x 1
4-pin Floppy power connector: 5-pin power connector to dual 4-pin peripheral power connecters and single small 4-pin oppy power connector x 1
P12
Pin No.
5
4
3
2
1
Color
Orange
Red
Black
Black
Yellow
Description
3.3V
5V
COM
COM
+12V1
P4
Pin No.
----------
4
3
2
1
Color
----------
Red
Black
Black
Yellow
Description
----------
5V
COM
COM
+12V1
P8
Pin No.
----------
4
3
2
1
Color
----------
Red
Black
Black
Yellow
Description
----------
5V
COM
COM
+12V1
SATA
Pin No.
1
2
3
4
5
Color
Orange
Black
Red
Black
Yellow
Description
3.3V
COM
5V
COM
+12V1
P11
Pin No.
1
2
3
4
Color
Yellow
Black
Black
Red
Description
+12V1
COM
COM
5V
P9
Pin No.
1
2
3
4
Color
Yellow
Black
Black
Red
Description
+12V1
COM
COM
5V
P11
Pin No.
1
2
3
4
Color
Red
Black
Black
Yellow
Description
5V
COM
COM
+12V1

10
Sumo Power Silver 900W/ 1200W
EnglishDeutscheFrançaisEspañolРоссии
繁體中文
简体中文日本語
4. Installation
‧Switch off the main power and unplug the power cord.
‧Unfasten the case screws on the case to open the panel on the side of the housing.
‧Unplug all power connectors from the motherboard and peripherals, such as system fans, hard
disk drives, optical drives, oppy disk drives, etc.
‧Place the power supply in proper location and secure it with screws.
‧ Connect the P1 (24-pin) and P2 (CPU 4+4-pin) connectors to the motherboard.
‧Then connect peripheral system components with proper connectors.
‧Make sure that all connectors have been connected.
‧Close the housing and secure the case screws.
‧Insert the power cord and switch on the main power.

11
Sumo Power Silver 900W/ 1200W
Deutsche Français Español России 繁體中文 简体中文 日本語
English
5. Troubleshooting
If the power supply does not work properly, please follow the troubleshooting steps below:
(1) Is the power cord inserted correctly into both the AC outlet and the AC power socket of the
power supply?
(2) Ensure that the “I/O” switch on the power supply is switched to “I”.
(3) Make sure that all the appropriate power connectors are properly connected to each device.
(4) If the UPS is connected, ensure that it is open and working normally.
If the power supply is not working properly after following the instructions above, please contact
local stores or GIGABYTE ofces for after-sale service. For more information about technical
support, please visit the GIGABYTE website: www.gigabyte.com.

12
Sumo Power Silver 900W/ 1200W
EnglishDeutscheFrançaisEspañolРоссии
繁體中文
简体中文日本語
6. Introduction of Protection Mechanism
◎Over-Power Protection:
◎Short Circuit Protection:
The short circuit placed on +3.3V, +5V, +12V and -12V output shall cause no damage and the
power supply shall shut down or latch.
900W: 110 ~ 150% of Full-Loading
1200W: 110 ~ 130% of Full-Loading
‧
‧
◎ Over-Current Protection:
Voltage
GE-H900A-D1 GE-HK20A-D1
Protection Point Protection Point
Min Max Min Max
+5V 30A 60A 30A 65A
+3.3V 30A 60A 30A 65A
+12V1.2.3.4.5 30A 60A 30A 65A
+12V6 30A 65A
◎ Over-Voltage Protection:
Voltage Protection Point
Min Max
+5V 5.75V 7.0V
+3.3V 3.76V 4.5V
+12V1.2.3.4.5.6 13.50V 16.0V
