Gigabyte ME03-PE0 User manual

ME03-PE0
AMD EPYC™ 8004 UP Server Board
User Manual
Rev. 1.0

Copyright
© 2023 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE
without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentation:
 UserManual:detailedinformation&stepsabouttheinstallation,congurationandusethis
product (e.g. motherboard, server barebones), covering hardware and BIOS.

User Guide: detailed information about the installation & use of an add-on hardware or
  softwarecomponent(e.g.BMCrmware,rail-kit)compatiblewiththisproduct.
Quick Installation Guide: a short guide with visual diagrams that you can reference easily for
installation purposes of this product (e.g. motherboard, server barebones).
Please see the support section of the online product page to check the current availability of these
documents
For More Information
Forrelatedproductspecications,thelatestrmwareandsoftware,andotherinformation,pleasevisit
our website at: http://www.gigabyte.com.
For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our
reseller portal: http://reseller.b2b.gigabyte.com
For further technical assistance, please contact your GIGABYTE representative or visit
http://esupport.gigabyte.com/ to create a new support ticket.
For any general sales or marketing enquires, you may message GIGABYTE server directly by
email: server[email protected].

- 3 -
Table of Contents
ME03-PE0 Motherboard Layout......................................................................................5
Block Diagram .................................................................................................................7
Chapter 1 Hardware Installation .....................................................................................8
1-1 Installation Precautions.................................................................................... 8
1-2 ProductSpecications...................................................................................... 9
1-3 Installing and Removing the CPU and Heat Sink........................................... 12
1-4 Installing and Removing Memory................................................................... 13
1-4-1 6-ChannelMemoryConguration..........................................................................13

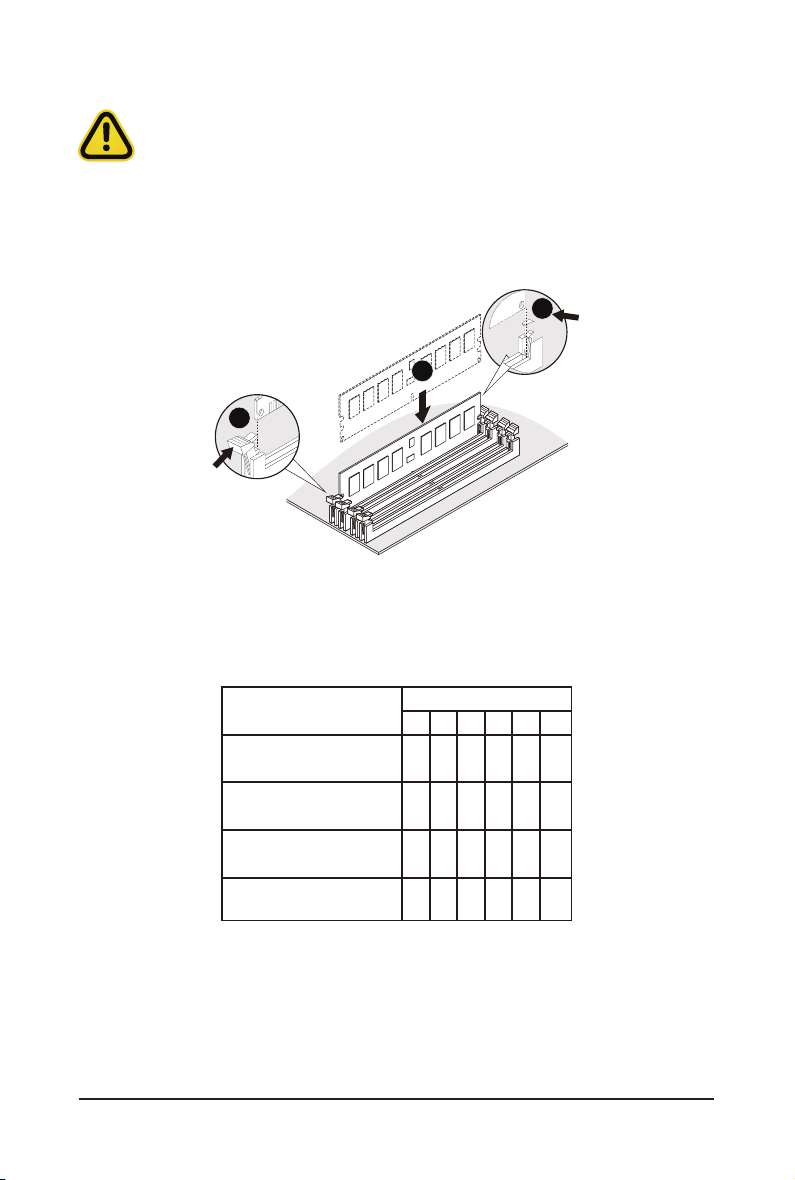

1-4-2 Installing and Removing the Memory Module .......................................................14
1-4-3 Processor and Memory Module Matrix Table .........................................................14
1-4-4 Memory Population Table ......................................................................................15
1-5 Installing the M.2 SSD Module....................................................................... 16

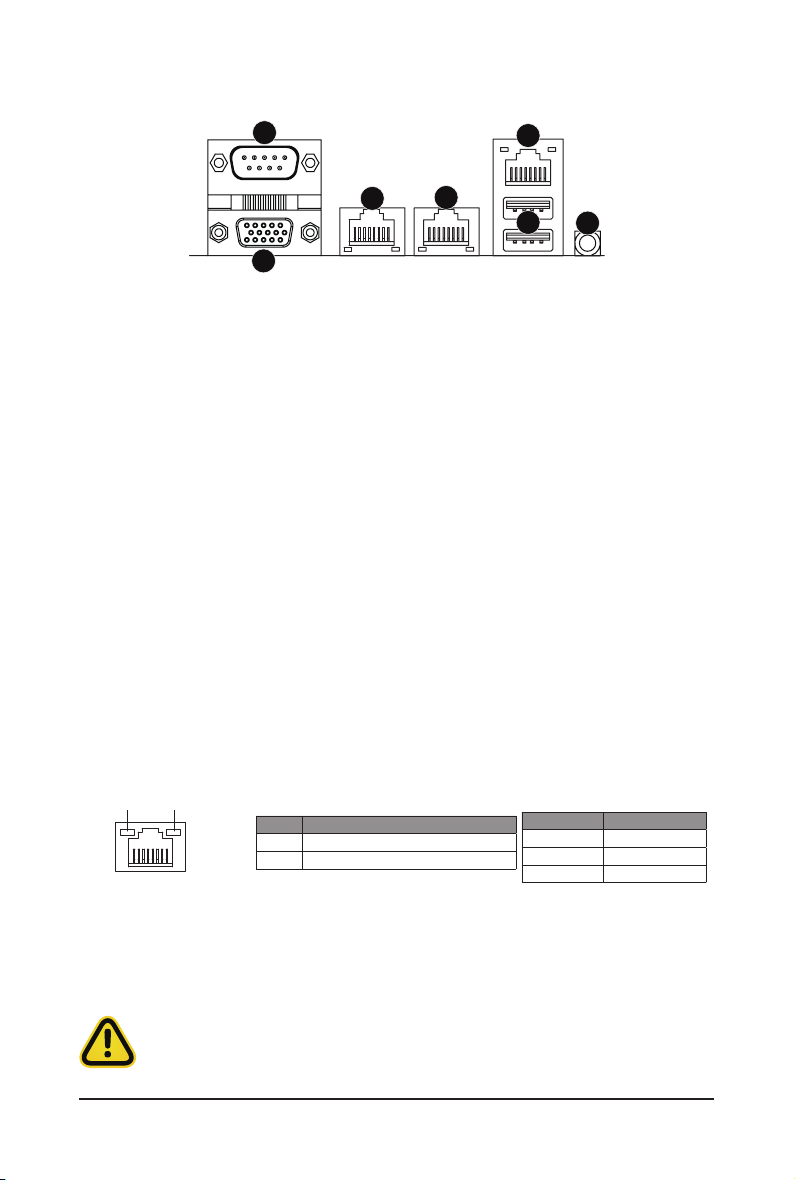

1-6 Back Panel Connectors.................................................................................. 17

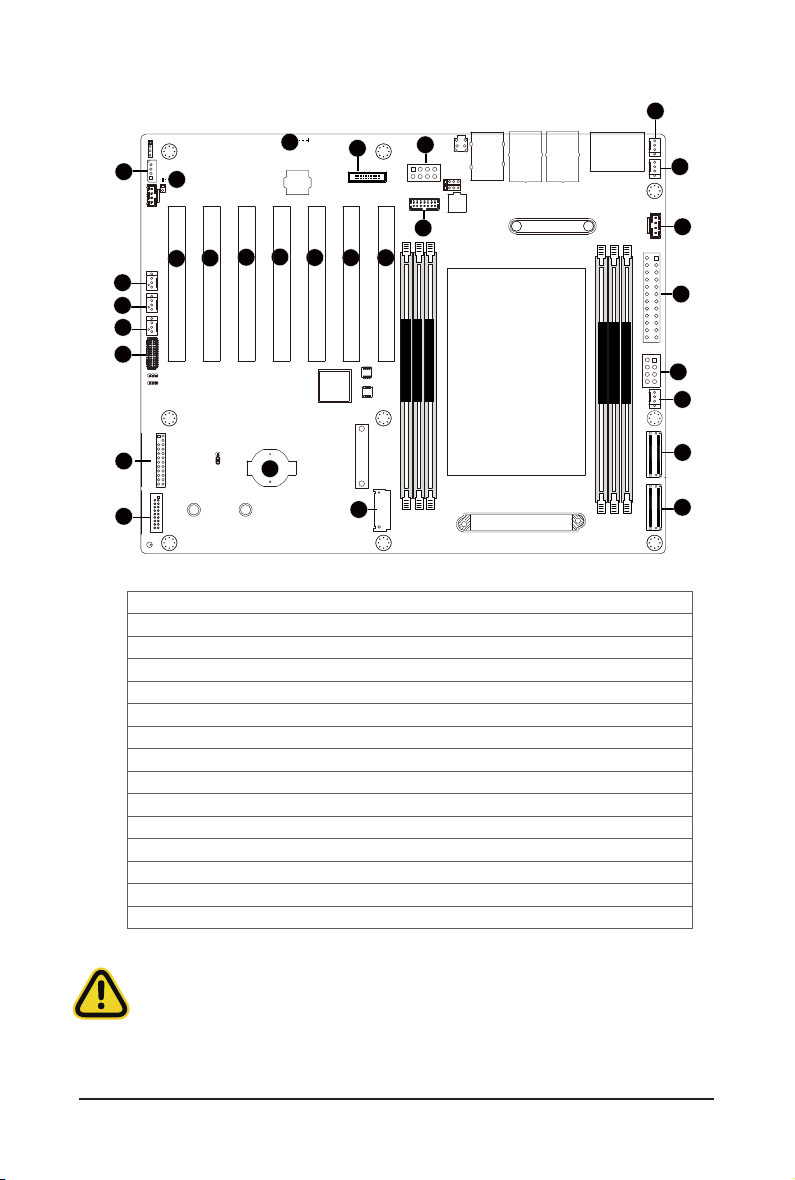

1-7 Internal Connectors........................................................................................ 18
1-8 Jumper Settings ............................................................................................. 26
Chapter 2 BIOS Setup ..................................................................................................27
2-1 The Main Menu .............................................................................................. 29
2-2 Advanced Menu ............................................................................................. 32
2-2-1 Trusted Computing .................................................................................................34
2-2-2 PSP Firmware Versions..........................................................................................35
2-2-3 Legacy Video Select...............................................................................................36
2-2-4 AST2600SuperIOConguration...........................................................................37
2-2-5 S5 RTC Wake Settings...........................................................................................39
2-2-6 UEFI Settings .........................................................................................................40
2-2-7 Serial Port Console Redirection .............................................................................41
2-2-8 CPUConguration..................................................................................................45
2-2-9 SIO .........................................................................................................................46
2-2-10 PCI Subsystem Settings.........................................................................................47
2-2-11 USBConguration..................................................................................................49
2-2-12 NetworkStackConguration..................................................................................51
2-2-13 NVMeConguration ...............................................................................................52
2-2-14 SATAConguration.................................................................................................53
2-2-15 GraphicOutputConguration.................................................................................54
2-2-16 AMDMemCongurationStatus.............................................................................55
2-2-17 TlsAuthConguration ............................................................................................56
2-2-18 RAMDiskConguration .........................................................................................57

- 4 -
2-2-19 iSCSIConguration................................................................................................58
2-3 AMD CBS Menu............................................................................................. 59
2-3-1 CPU Common Options...........................................................................................60
2-3-2 DF Common Options..............................................................................................66
2-3-3 UMC Common Options ..........................................................................................73
2-3-4 NBIO Common Options..........................................................................................94
2-3-5 FCH Common Options .........................................................................................104
2-3-6 Soc Miscellaneous Control...................................................................................113
2-3-7 Workload Tuning...................................................................................................115
2-3-8 CXL Common Options..........................................................................................116
2-4 AMD PBS Menu........................................................................................... 117
2-4-1 RAS ......................................................................................................................118
2-5 Chipset Setup Menu..................................................................................... 120
2-5-1 North Bridge .........................................................................................................121
2-5-2 Fabric Resource ...................................................................................................122
2-6 Server Management Menu........................................................................... 124
2-6-1 System Event Log ................................................................................................126
2-6-2 View FRU Information ..........................................................................................127
2-6-3 BMCNetworkConguration.................................................................................128
2-6-4 IPv6BMCNetworkConguration.........................................................................129
2-7 Security Menu .............................................................................................. 130
2-7-1 Secure Boot .........................................................................................................131
2-8 Boot Menu.................................................................................................... 133
2-9 Save & Exit Menu......................................................................................... 135
2-10 BIOS Recovery ............................................................................................ 136
2-11 BIOS POST Beep code (AMI standard)....................................................... 137
2-11-1 PEI Beep Codes...................................................................................................137
2-11-2 DXE Beep Codes .................................................................................................137

- 5 -

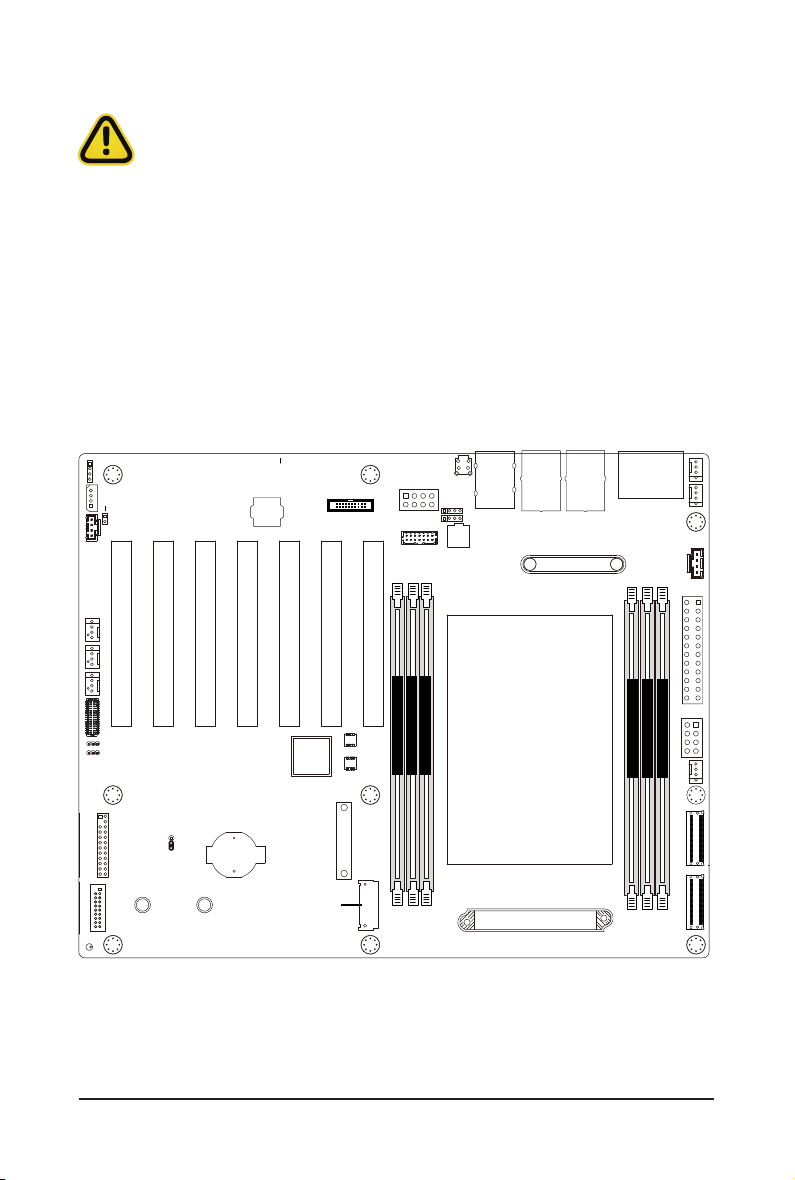

ME03-PE0 Motherboard Layout
5 64321
7
8
9
10
11
12
17 15
16 13
14
20
21
22 23
24 28
27
26
25 29
338
31
30
18
19
34
CPU0
DIMM_P0_B0 DIMM_P0_D0 DIMM_P0_A0
DIMM_P0_E0 DIMM_P0_H0 DIMM_P0_F0
32

- 6 -
Item Code Description
1 SW_ID ID Button with LED
2 USB3_MLAN Sever Management LAN Port (Top)/USB 3.2 Gen1 Ports (Bottom)
3 LAN1 1GbE LAN Port #1
4 LAN2 1GbE LAN Port #2
5 COM1_VGA Serial Port(Top)/VGA Port(Bottom)
6 SYS_FAN1 System Fan Connector #1
7 SYS_FAN3 System Fan Connector #3
8 PMBUS PMBus Connector
9 ATX1 2x12 Pin Main Power Connector
10 P12V_AUX1 2x4 Pin 12V Power Connector
11 CPU_FAN1 CPU Fan Connector #1
12 U2_P0_G3A MCIO Connector (PCIe Gen4)
13 U2_P0_G3B MCIO Connector (PCIe Gen4)
14 M2_0 M.2 Slot(PCIe Gen4 x4, Support NGFF-2280/22110)
15 BAT Battery Socket
16 F_USB3_1 Front Panel USB 3.2 Gen1 Connector #1
17 FP_1 Front Panel Header
18 BP_1 HDD Backplane Board Connector
19 SYS_FAN4 System Fan Connector #4
20 SYS_FAN5 System Fan Connector #5
21 SYS_FAN2 System Fan Connector #2
22 IPMB1 IPMB Connector
23 CASE_OPEN1 Case Open Intrusion Alert Header
24 PCIe_1 PCIe x16 Slot #1(Gen5 x16)
25 PCIe_2 PCIe x16 Slot #2(Gen5 x16)
26 PCIe_3 PCIe x16 Slot #3(Gen5 x16)
27 PCIe_4 PCIe x16 Slot #4(Gen5 x16)
28 PCIe_5 PCIe x16 Slot #5(Gen5 x16)
29 PCIe_6 PCIe x16 Slot #6(Gen5 x16)
30 PCIe_7 PCIe x16 Slot #7(Gen5 x16)
31 CN_NCSI1 NCSI Connector
32 SPI_TPM TPM Connector
33 P12V_AUX2 2x4 Pin 12V Power Connector
34 LED_BMC BMC Firmware Readiness LED

- 7 -

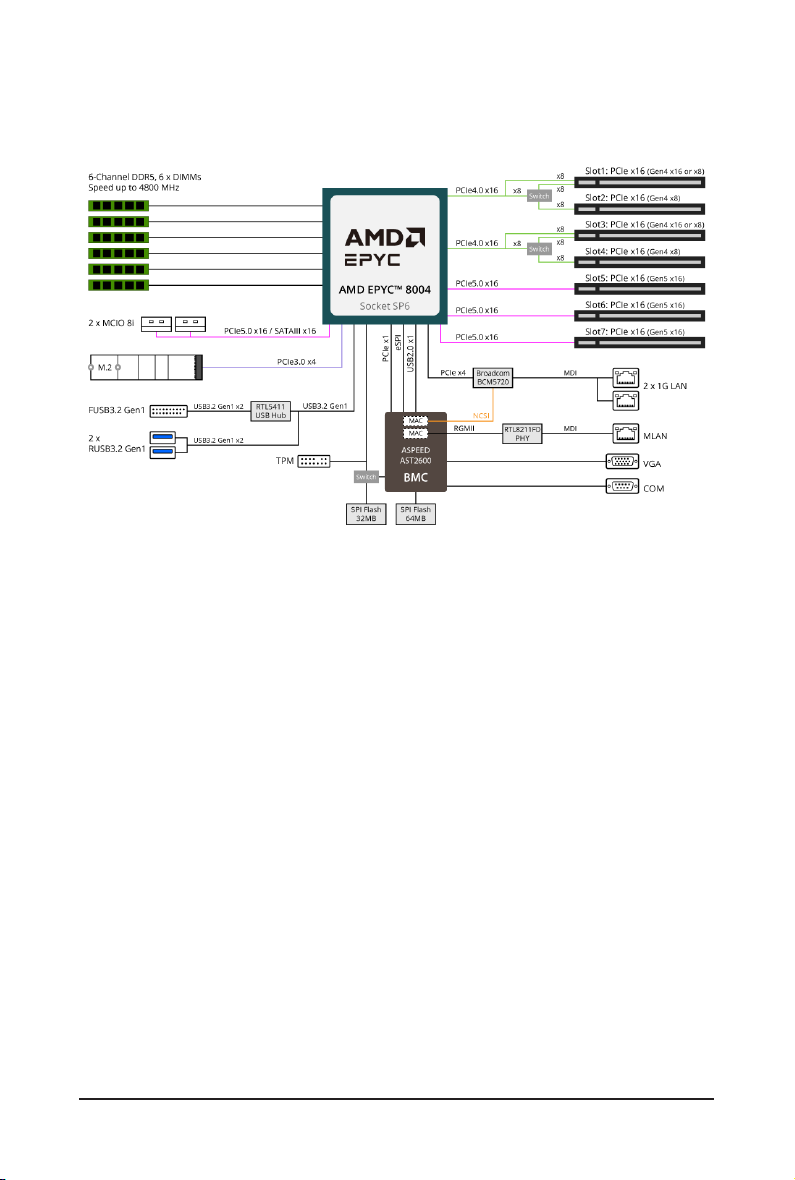

Block Diagram

- 8 -
Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist
strap,keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
• Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power
supply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your
hardware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface .
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to
system components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
Chapter 1 Hardware Installation

- 9 -
Hardware Installation
1-2 Product Specications
NOTE:
We reserve the right to make any changes to the product specications and product-related
information without prior notice.
Socket
Security
Board Size ATX
304.8 x 254mm (W x D)
Socket
Security
Processor
Supported
AMD EPYC™ 8004 Series processors
Single processor, 5nm technology
Up to 64-core, 128 threads per processor
cTDP up to 225W
Socket
Security
Socket 1 x LGA 4844
Socket SP6
Socket
Security
Chipset System on Chip
Socket
Security
Memory 6 x DIMM slots
DDR5 memory supported only
6-Channel memory architecture
RDIMM modules up to 96GB supported
Memory speed: Up to 4800 MHz
Socket
Security
Intergrated
Network
2 x 1Gb/s BASE-T LAN ports (1 x Broadcom® BCM5720)
NCSI function supported
1 x 10/100/1000 management LAN
Socket
Security
Intergrated
Video
Controller
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Socket
Security
Integrated SATA
Controller 2 x MCIO 8i for 16 x SATA
Socket
Security
Expansion Slots Slot_7: 1 x PCIe x16 (Gen5 x16 bus) slot
Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_3: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_4
Slot_2: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen4 x16 or x8 bus) slot, shared with Slot_2
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards
2 x MCIO 8i connectors for 4 x Gen5 NVMe or 16 x SATA

- 10 -
Hardware Installation
Socket
Security
On-Board
Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x MCIO 8i connectors
1 x M.2 slot
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1xClearCMOSjumper
1xBIOSrecoveryjumper
1 x Buzzer
Socket
Security
Rear I/O
Connectors
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Socket
Security
TPM 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
