GIGAIPC SDM-7100L User manual

SDM Series SDM-7100L/ SDM-7300L
1www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
SDM-7100L (MFLP3AL-SI)
SDM-7300L (MFLP5AL-SI)
SDM Series User’s Manual 1st Ed

2
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Copyright Notice
This document is copyrighted, 2018. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translat¬ed, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no respon¬sibility for its use, or for any
in¬fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy, GIGAIPC
assumes no liabilities resulting from errors or omissions in this document,
or from the use of the information contained herein.
GIGAIPC reserves the right to make changes in the product design
without notice to its users.

SDM Series SDM-7100L/ SDM-7300L
3www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Acknowledgement
All other products’ name or trademarks are properties of their respective
owners.
• AMD® is trademark of Advanced Micro Devices.
• Microsoft Windows is a registered trademark of Microsoft Corp.
• Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel
Corporation
• Core, Atom are trademarks of Intel Corporation
• ITE is a trademark of Integrated Technology Express, Inc.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their respective
owners.

4
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Packing List
Before setting up your product, please make sure the following items
have been shipped:
Item Quantity
SDM-7100L or SDM-7300L 1
SATA power cable 1
If any of these items are missing or damaged, please contact your
distributor or sales representative immediately.

SDM Series SDM-7100L/ SDM-7300L
5www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
About this Document
This User’s Manual contains all the essential information, such as detailed
descriptions and explanations on the product’s hardware and software
features (if any), its specifications, dimensions, jumper/connector
settings/definitions, and driver installation instructions (if any), to facilitate
users in setting up their product.
Users may refer to the GIGAIPC.com for the latest version of this
document.

6
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Safety Precautions
Please read the following safety instructions carefully. It is advised that
you keep this manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the
device.
3. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
4. Always completely disconnect the power before working on the
system’s hardware.
5. No connections should be made when the system is powered
as a sudden rush of power may damage sensitive electronic
components.
6. If the device is not to be used for a long time, disconnect it from
the power supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray
detergents.
9. Make sure the device is installed near a power outlet and is easily
accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent
falls
12. Do not cover the openings on the device to ensure optimal heat

SDM Series SDM-7100L/ SDM-7300L
7www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
dissipation.
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is
running
15. Never pour any liquid into the openings. This could cause fire or
electric shock.
16. As most electronic components are sensitive to static electrical
charge, be sure to ground yourself to prevent static charge when
installing the internal components. Use a grounding wrist strap
and contain all electronic components in any static-shielded
containers.
17. If any of the following situations arises, please the contact our
service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described
in this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED
ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S
PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO
PREVENT DAMAGE.

8
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received including interference that
may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions and your local government’s
recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et
les directives gouvernementales de recyclage.

SDM Series SDM-7100L/ SDM-7300L
9www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
GIGAIPC Main Board/ Daughter Board/ Backplane
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯
醚
(PBDE)
印刷电路板
及其电子组件 ○ ○ ○ ○ ○ ○
外部信号
连接器及线材 ○ ○ ○ ○ ○ ○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的
某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：此产品所标示之环保使用期限，系指在一般正常使用状况下。

10
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
GIGAIPC Main Board/ Daughter Board/ Backplane
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers (PBDE)
PCB & Other
Components O O O O O ○
Wires &
Connectors
for External
Connections
O O O O O O
O：The quantity of poisonous or hazardous substances or elements found in each
of the component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least
one of the component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this
product is applicable under normal usage only

SDM Series SDM-7100L/ SDM-7300L
11 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Table Contents
SDM Series User’s Manual 1st Ed 1
Copyright Notice ............................................................................. 2
Acknowledgement .......................................................................... 3
Packing List...................................................................................... 4
About this Document ...................................................................... 5
Safety Precautions .......................................................................... 6
FCC Statement................................................................................. 8
China RoHS Requirements (CN)....................................................... 9
China RoHS Requirement (EN) ...................................................... 10
Chapter1 - Product Specifications 13
1.1 Specifications- SDM-7100L/ SDM-7300L ......................... 15
Chapter 2 – Hardware Information 17
2.1 Jumpers and Connectors ................................................ 18
2.2.1 SODIMM (2 x DDR4/3L SO-DIMM sockets) ..................... 20
2.2.2 CPU FAN (CPU Fan connector) ........................................ 21
2.2.3 BATTERY .......................................................................... 22
Chapter 3 – SDM-L Installation 23
3.1 Dimension ....................................................................... 24
3.2 Installation ....................................................................... 25

12
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

SDM Series SDM-7100L/ SDM-7300L
13 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Chapter 1
Chapter1 - Product Specifications
SDM-7100L (MFLP3AL-SI)/ SDM-7300L (MFLP5AL-SI)

14
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

SDM Series SDM-7100L/ SDM-7300L
15 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
1.1 Specifications- SDM-7100L/ SDM-7300L
Motherboard SDM-7100L
(MFLP3AL-SI)
SDM-7300L
(MFLP5AL-SI)
Form Factor SDM-Large
175W x 100D (mm)
CPU
Intel® Core™ i3-7100U
Processor
14nm, 2 cores, 4 threads 2.40
GHz
TDP 15W
Intel® Core™ i5-7300U
Processor, vPro
14nm, 2 cores, 4 threads 2.60 ~
3.5 GHz
TDP 15W
Socket 1 x FCBGA1356
Chipset —
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Ethernet 1 x GbE LAN port (Intel® i219V) 1 x GbE LAN port (Intel®
i219LM)
Video
Integrated Graphics Processor - Intel® HD Graphics 620 support
1 x HDMI2.0 port (SDM), supporting a maximum resolution of
4096 x 2160@60 Hz
1 x DP port (Rear/SDM), supporting a maximum resolution of
4096 x 2160@60 Hz
Audio Intel integrated Audio
Storage —
Raid —
Expansion Slots
1 x M.2 slot:
- M-key
- SATA 6Gb/s / PCIe X4
- Supports NGFF-2280 cards
1 x M.2 slot:
- E-key
- Supports NGFF-2230 (WiFi/BT)

16
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Motherboard SDM-7100L
(MFLP3AL-SI)
SDM-7300L
(MFLP5AL-SI)
Rear I/O
1 x Display Port _Switch with DP (SDM)
1 x RJ45
4 x USB 3.0
1 x PWR LED
1 x HDD LED
2 x Antenna(WiFi & BT)(Option)
1 x Reset button
1 x Power button
TPM Option
OS Compatibility Windows 10 (x64)
Power
Consumpution Max 52W
Operating
Properties
Operating temperature: 0°C to 55°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -48°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)

17 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
SDM Series SDM-7100L/ SDM-7300L
Chapter 2
Chapter 2 – Hardware Information

18
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

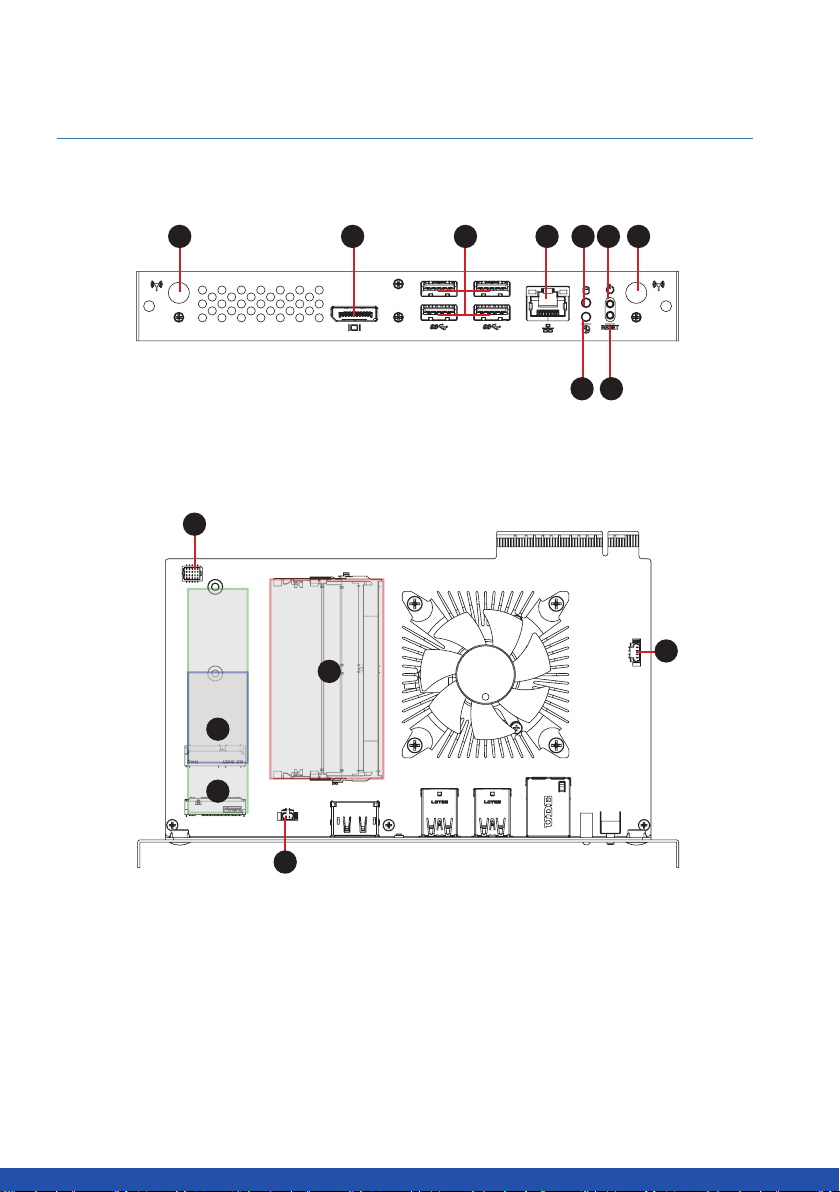

2.1 Jumpers and Connectors
1 132 4 5 7
6 8
9
10
11
13
14
12

19 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
SDM Series SDM-7100L/ SDM-7300L
No Code Description
1Antenna Hole 2 x Antenna(WiFi & BT)(Option)
2DP 1 x Display Port
3USB3.0 4 x USB 3.0 Ports
4RJ45 1 x RJ45
5Power LED 1 x PWR LED
6HDD LED 1 x HDD LED
7 Reset button 1 x Reset button
8Power button 1 x Power button
9SODIMM 2 x DDR4 SO-DIMM sockets
10 M2M1 slot
- M-key
- SATA 6Gb/s
- Supports NGFF-2280 cards
11 M2E1 slot - E-key
- Supports NGFF-2230 (WiFi/BT)
12 80H Debug Port
13 CPU FAN CPU Fan connector
14 BATTERY Battery cable connector

20
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.2.1 SODIMM (2 x DDR4/3L SO-DIMM sockets)
9
12
9
10
11
13
14
