GIGAIPC QBiP-1606A User manual

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
1www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
QBiP-1606A
3.5” SBC Boards- QBiP-1606A User’s Manual
1st Ed

2
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Copyright Notice
This document is copyrighted, 2018. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translat¬ed, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no respon¬sibility for its use, or for any
in¬fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy, GIGAIPC
assumes no liabilities resulting from errors or omissions in this document,
or from the use of the information contained herein.
GIGAIPC reserves the right to make changes in the product design
without notice to its users.

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
3www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Acknowledgement
All other products’ name or trademarks are properties of their respective
owners.
• AMD® is trademark of Advanced Micro Devices.
• Microsoft Windows is a registered trademark of Microsoft Corp.
• Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel
Corporation
• Core, Atom are trademarks of Intel Corporation
• ITE is a trademark of Integrated Technology Express, Inc.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their respective
owners.

4
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Packing List
Before setting up your product, please make sure the following items
have been shipped:
Item Quantity
QBiP-1606A 1
SATA power cable 1
If any of these items are missing or damaged, please contact your
distributor or sales representative immediately.

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
5www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
About this Document
This User’s Manual contains all the essential information, such as detailed
descriptions and explanations on the product’s hardware and software
features (if any), its specifications, dimensions, jumper/connector
settings/definitions, and driver installation instructions (if any), to facilitate
users in setting up their product.
Users may refer to the GIGAIPC.com for the latest version of this
document.

6
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Safety Precautions
Please read the following safety instructions carefully. It is advised that
you keep this manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the
device.
3. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
4. Always completely disconnect the power before working on the
system’s hardware.
5. No connections should be made when the system is powered
as a sudden rush of power may damage sensitive electronic
components.
6. If the device is not to be used for a long time, disconnect it from
the power supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray
detergents.
9. Make sure the device is installed near a power outlet and is easily
accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent
falls
12. Do not cover the openings on the device to ensure optimal heat

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
7www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
dissipation.
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is
running
15. Never pour any liquid into the openings. This could cause fire or
electric shock.
16. As most electronic components are sensitive to static electrical
charge, be sure to ground yourself to prevent static charge when
installing the internal components. Use a grounding wrist strap
and contain all electronic components in any static-shielded
containers.
17. If any of the following situations arises, please the contact our
service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described
in this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED
ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S
PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO
PREVENT DAMAGE.

8
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received including interference that
may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions and your local government’s
recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et
les directives gouvernementales de recyclage.

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
9www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
GIGAIPC Main Board/ Daughter Board/ Backplane
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯
醚
(PBDE)
印刷电路板
及其电子组件 ○ ○ ○ ○ ○ ○
外部信号
连接器及线材 ○ ○ ○ ○ ○ ○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的
某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：此产品所标示之环保使用期限，系指在一般正常使用状况下。

10
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
GIGAIPC Main Board/ Daughter Board/ Backplane
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers (PBDE)
PCB & Other
Components O O O O O ○
Wires &
Connectors
for External
Connections
O O O O O O
O：The quantity of poisonous or hazardous substances or elements found in each
of the component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least
one of the component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this
product is applicable under normal usage only

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
11 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Table Contents
3.5” SBC Boards- QBiP-1606A User’s Manual 1st Ed 1
Copyright Notice ............................................................................. 2
Acknowledgement .......................................................................... 3
Packing List...................................................................................... 4
About this Document ...................................................................... 5
Safety Precautions .......................................................................... 6
FCC Statement................................................................................. 8
China RoHS Requirements (CN)....................................................... 9
China RoHS Requirement (EN) ...................................................... 10
Chapter1 - Product Specifications 13
1.1 Specifications- QBiP-1606A.............................................. 15
Chapter 2 – Hardware Information 17
2.1 Jumpers and Connectors ................................................ 18
2.2.1 BKL_CN (Back light brightness control connector) .......... 21
2.2.2 SPK_OUT (Speaker out connector).................................. 22
2.2.3 F_Audio (Audio line-out port) .................................... ... 23
2.2.4 SODIMM1, SODIMM2 (DDR4 SO-DIMM slot#1/slot#2)
......................................................................................... 24
2.2.5 SATAPW (SATA 6 Gb/s power connector) ................... ... 25
2.2.6 SATA (SATA 6 Gb/s Connector).................................... ... 26
2.2.7 FUSB2_2 (USB 2.0 header)............................................... 27
2.2.8 FUSB2_1 (USB 2.0 header) ............................................... 28

12
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.2.9 GPIO_CNT (General Purpose input/output header) ... ... 29
2.2.10 SYS_PANEL (Front panel header) ..................................... 30
2.2.11 M2E (M.2 E-key for WiFi NGFF) ....................................... 31
2.2.12 M2M (M.2 M-key for NVME/SATA).................................. 32
2.2.13 AT_CN (AT/ATX power mode select jumper) ................... 33
2.2.14 HDMI/eDP_CN (HDMI/eDP mode select jumper) ............ 34
2.2.15 JCOM2 (COM2 RI pin RI/5V/12V Select) .......................... 35
2.2.16 JCOM1 (COM1 RI pin RI/5V/12V Select)........................... 36
2.2.17 COM1 (Serial port header)............................................... 37
2.2.18 COM2 (Serial port header)............................................... 38
2.2.19 COM3 (Serial port header)............................................... 39
2.2.20 COM4 (Serial port header)............................................... 40
2.2.21 MPCIE (Mini PCIE for 3G/4G module) .............................. 41
2.2.22 DC IN (DC IN 1 x 4-pin power connector) ....................... 42
2.2.23 EDP (eDP Connector *The HDMI3’s Function is Disabled,
during eDP Function Enabled) ......................................... 43
2.2.24 CPU_FAN (System FAN Connector) ................................. 44
2.2.25 SYS_FAN (System FAN Connector) .................................. 45
2.2.26 Battery (Battery Connector) ........................................... 46
2.2.27 IO Connector Information ............................................... 47

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
13 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Chapter 1
Chapter1 - Product Specifications
QBiP-1606A

14
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
15 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
1.1 Specifications- QBiP-1606A
Motherboard QBiP-1606A
Form Factor 3.5'' SBC

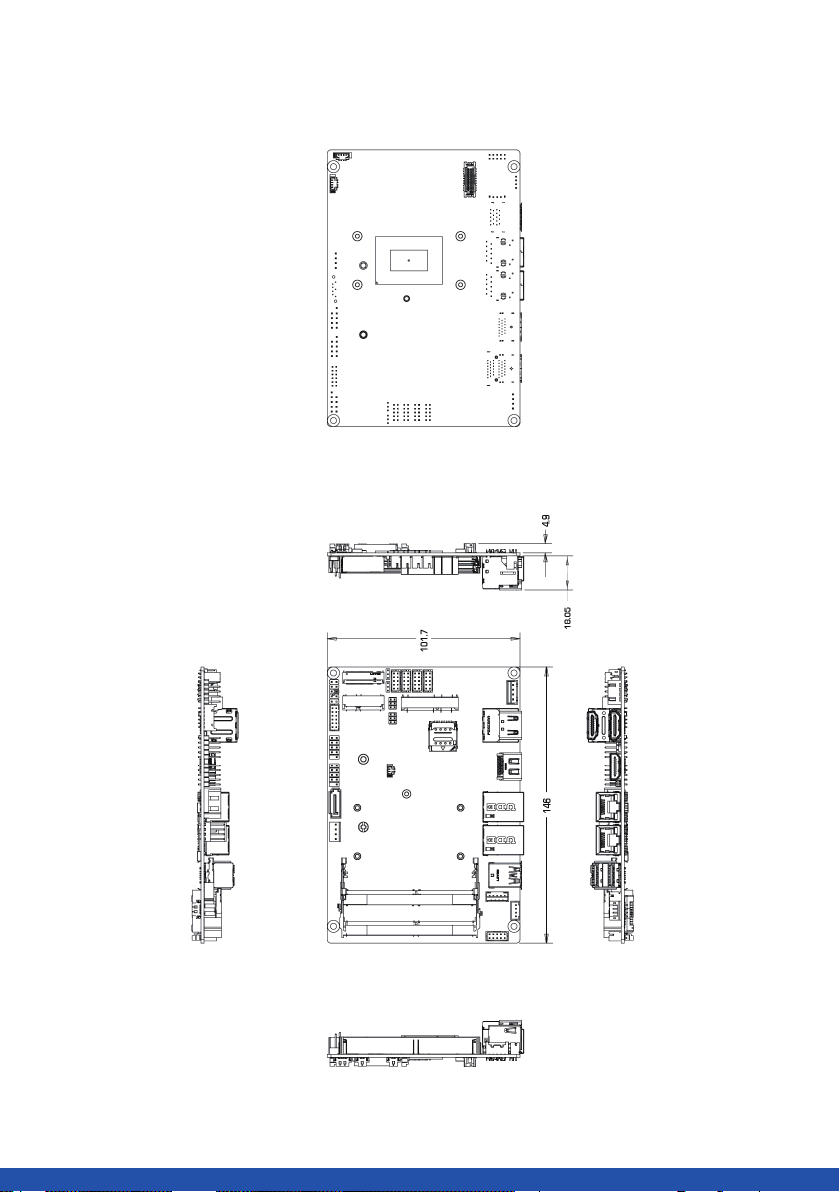

146W x 101.7Dmm
CPU
AMD® RYZEN™ R1606G Embedded Processor
up to 2.6GHz, TDP 25W
1MB L2 cache; 4MB L3 cache
2MB of shared L2 plus 4MB of shared L3 total
Package FP5 Type 1
Chipset —
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Dual channel memory architecture
Support for DDR4 2400 MHz memory modules
V1606B support Memory Max. 2400MHz
Ethernet 2 x Realtek RTL8111HS (10/100/1000 Mbit)
Video
Integrated Graphics Processor - AMD Radeon™ Vega 3
Graphics
3 x HDMI port, supporting a maximum resolution of 4096 x
2160@60Hz
1 x eDP port, supporting a maximum resolution of 1920 x
1080@60Hz
Audio Realtek ALC269
High Definition Audio
Storage 1 x SATA 6Gb/s port
Raid —
Expansion Slots
1 x M.2 slot:
- M-key
- SATA 6Gb/s /PCIeX4
- Supports NGFF-2280 cards
1 x Mini-PCIe slot
1 x M.2 slot:
- E-key
- Supports NGFF-2230 (WiFi/BT)
- Full card size
- Support PCIe X1 + USB2.0
--support 3G module

16
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Motherboard QBiP-1606A
Internal I/O
1 x 4 pin box header (DC in)
1 x SATA 6Gb/s connectors
1 x Buzzer
2 x Fan header
1 x Front panel header
1 x Front panel audio header
1 x Speaker out header
1 x SATA Power header
4 x USB 2.0/1.1 headers
1 x GPIO (4 in / 4 out)
2 x COM headers (RS232)
2 x COM headers (RS422/485/232, RI/5V/12V)
1 x Back Light Switch
1 x AT mode select jumper
1 x 3G Sim Slot.
1 x eDP connector
Rear I/O
4 x HDMI
2 x RJ45
2 x USB3.0
TPM SECURITY TPM SLB9665VQ2.0
OS Compatibility Windows 10 (x64)
PSU Connectors 1 x 4-pin Box header power connector (9~36V Full Range)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Box Packing Capacity: 20pcs
Carton size: 379 x 245 x 197(mm)
Content:
SATA Power cable x 1 (25CRI-200B02-K1R)
Order Information 9MRZNRMSMR-SI

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
17 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Chapter 2
Chapter 2 – Hardware Information

18
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.1 Jumpers and Connectors
1
2
4
5
6
8
9
10
11
12
13
21
3
7
18
16
17
20
19
14
15
23
24
25
26
22
27
28
29
30
31
32

3.5” SBC Boards QBiP-1606A (MRZNRMS-SI)
19 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Code Description
1BKL_CN Back light brightness control connector
2SPKR Speaker out connector
3F_AUDIO Audio line-out port
4SODIMM1,
SODIMM2 DDR4 SO-DIMM slot#1/ slot#2
5SATAPWR SATA 6 Gb/s Power Connector
6SATA SATA 6 Gb/s Connector
7FUSB20_2 USB 2.0 header x 1
8FUSB20_1 USB 2.0 header x 1
9GPIO_CNT General Purpose input/output header
10 SYS_PANEL Front panel header
11 M2E M.2 E-Key for WiFi NGFF
12 M2M M.2 M-Key for NVME/SATA
13 AT_CN AT/ATX power mode select jumper
14 HDMI/eDP_CN HDMI/eDP mode select jumper
15 JCOM2 COM2 RI pin RI/5V/12V Select
16 JCOM1 COM1 RI pin RI/5V/12V Select
17 COM4 RS-232 COM Serial port header
18 COM3 RS-232 COM Serial port header
19 COM2 COM2 RS-232/422/485, and 5V/12V/RI COM
Serial port header
20 COM1 COM1 RS-232/422/485, and 5V/12V/RI COM
Serial port header
21 MPCIE Mini PCIE for 3G/4G module

20
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Code Description
22 DC_IN DC IN 1x4-pin power connector
23 EDP eDP connector (*The HDMI3’s Function is
Disabled, during eDP Function Enabled)
24 CPU_FAN CPU Fan connector
25 SYS_FAN System Fan connector
26 Battery Battery connector
27 HDMI1 HDMI1 connector
28 HDMI2 HDMI2 connector
29 HDMI3 HDMI3 connector (*The HDMI3’s Function is
Disabled, during eDP Function Enabled)
30 LAN2 LAN connector
31 LAN1 LAN connector
32 USB3 USB3.0 Connector x 2
