GIGAIPC uATX-H610A User manual

Micro-ATX Motherboard uATX-H610A (MH610AM)
1www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
uATX-H610A (MH610AM)
Micro-ATX Motherboard
User’s Manual 1st Ed

2
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Copyright Notice
This document is copyrighted, 2023. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products
described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for any
infringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy, GIGAIPC
assumes no liabilities resulting from errors or omissions in this document,
or from the use of the information contained herein.
GIGAIPC reserves the right to make changes in the product design
without notice to its users.

Micro-ATX Motherboard uATX-H610A (MH610AM)
3www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Acknowledgement
All other products’ name or trademarks are properties of their respective
owners.
• Microsoft Windows is a registered trademark of Microsoft Corp.
• Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel
Corporation
• Core, Atom are trademarks of Intel Corporation
• ITE is a trademark of Integrated Technology Express, Inc.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their respective
owners.

4
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Packing List
Before setting up your product, please make sure the following items
have been shipped:
Item Quantity
uATX-H610A (MH610AM) 1
IO Shield 1
SATA cable 2
If any of these items are missing or damaged, please contact your
distributor or sales representative immediately.

Micro-ATX Motherboard uATX-H610A (MH610AM)
5www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
About this Document
This User’s Manual contains all the essential information, such as detailed
descriptions and explanations on the product’s hardware and software
features (if any), its specifications, dimensions, jumper/connector
settings/definitions, and driver installation instructions (if any), to facilitate
users in setting up their product.
Users may refer to the GIGAIPC.com for the latest version of this
document.

6
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Safety Precautions
Please read the following safety instructions carefully. It is advised that
you keep this manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the
device.
3. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
4. Always completely disconnect the power before working on the
system’s hardware.
5. No connections should be made when the system is powered
as a sudden rush of power may damage sensitive electronic
components.
6. If the device is not to be used for a long time, disconnect it from
the power supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray
detergents.
9. Make sure the device is installed near a power outlet and is easily
accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent
falls
12. Do not cover the openings on the device to ensure optimal heat

Micro-ATX Motherboard uATX-H610A (MH610AM)
7www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
dissipation.
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is
running
15. Never pour any liquid into the openings. This could cause fire or
electric shock.
16. As most electronic components are sensitive to static electrical
charge, be sure to ground yourself to prevent static charge when
installing the internal components. Use a grounding wrist strap
and contain all electronic components in any static-shielded
containers.
17. If any of the following situations arises, please the contact our
service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described
in this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED
ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S
PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO
PREVENT DAMAGE.

8
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
FCC Statement
This device complies with Part 15 FCC Rules. Operation is
subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received including interference that
may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions and your local government’s
recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et
les directives gouvernementales de recyclage.

Micro-ATX Motherboard uATX-H610A (MH610AM)
9www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
GIGAIPC Main Board/ Daughter Board/ Backplane
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯
醚
(PBDE)
印刷电路板
及其电子组件 ○ ○ ○ ○ ○ ○
外部信号
连接器及线材 ○ ○ ○ ○ ○ ○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的
某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：此产品所标示之环保使用期限，系指在一般正常使用状况下。

10
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
GIGAIPC Main Board/ Daughter Board/ Backplane
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers (PBDE)
PCB & Other
Components O O O O O ○
Wires &
Connectors
for External
Connections
O O O O O O
O：The quantity of poisonous or hazardous substances or elements found in each
of the component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least
one of the component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this
product is applicable under normal usage only

Micro-ATX Motherboard uATX-H610A (MH610AM)
11 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Table Contents
Micro-ATX Motherboard 1
User’s Manual 1st Ed
Copyright Notice ............................................................................. 2
Acknowledgement .......................................................................... 3
Packing List...................................................................................... 4
About this Document ...................................................................... 5
Safety Precautions .......................................................................... 6
FCC Statement................................................................................. 8
China RoHS Requirements (CN)....................................................... 9
China RoHS Requirement (EN) ...................................................... 10
Chapter1 - Product Specifications 14
1.1 Specifications ................................................................... 16
Chapter 2 – Hardware Information 18

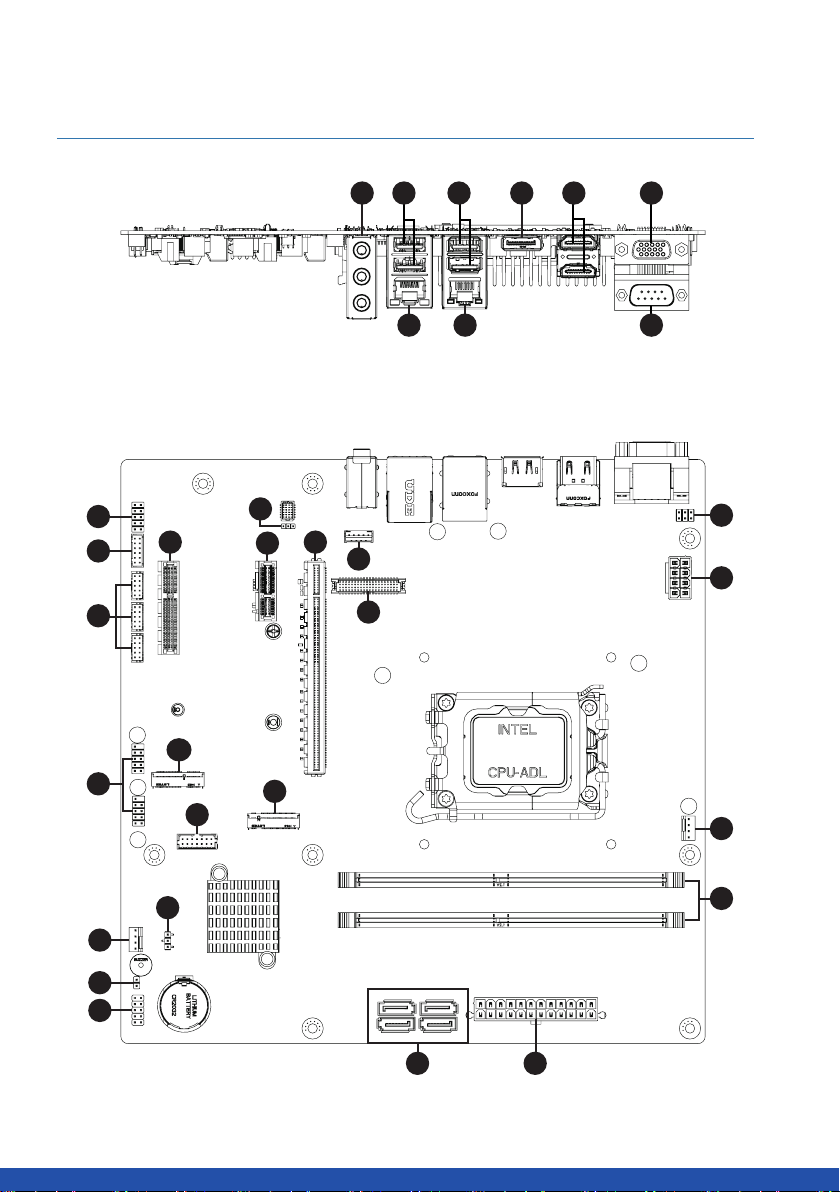

2.1 Jumpers and Connectors ................................................ 19
2.2.1 Rear I/O Connector .......................................................... 22
2.2.2 USB3_LAN2 (USB 3.2 Gen 2x1 + 2.5GbE LAN Connector)
......................................................................................... 23
2.2.3 USB3_LAN1 (USB 3.2 Gen 1 + GbE LAN Connector) ...... ... 24
2.2.4 DP (Display Port Connector) ....................................... ... 25
2.2.5 HDMI_12 (HDMI Connector) ...................................... ... 26
2.2.6 VGA (VGA Port) ........................................................... ... 27
2.2.7 COM1 (COM1 Port (RS-232/422/485 & RI/5V/12V)) ...... ......28
2.2.8 JCOM1 (RI pin RI/5V/12V Select jumper for COM1 Port)..29

12
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.2.9 P12V_CPU (8-pin ATX 12V power connector (for CPU))....30
2.2.10 CPU_FAN (CPU Fan connector) ....................................... 31
2.2.11 DIMM_A1, DIMM_B1 (DDR4 DIMM Sockets) ............ ... 32
2.2.12 ATX (24-pin ATX main power connector) ........................ 33
2.2.13 SATA4, SATA5, SATA6, SATA7 (SATA 6Gb/s Connector) ... 34
2.2.14 F_PANEL (Front panel header) ......................................... 35
2.2.15 CASE_OPEN (Chassis open intrusion alert header) ......... 36
2.2.16 SYS_FAN (CPU Fan connector) ........................................ 37
2.2.17 CLR_CMOS (Clear CMOS jumper) .................................... 38
2.2.18 FUSB2_1, FUSB2_2 (USB 2.0 header).............................. 39
2.2.19 TPM (TPM header)........................................................... 40
2.2.20 M2M (M.2 Slot, 2242/2280 M-Key)................................. 41
2.2.21 M2E (M.2 Slot, 2230 E-Key) ............................................. 42
2.2.22 COM2, COM3, COM4 (Serial Port header (RS-232)) ........ 43
2.2.23 GPIO_CNT (General Purpose input/output header) ........ 44
2.2.24 F_AUDIO (Front panel audio header)............................... 45
2.2.25 PCIEX4 (PCIe x4 (Gen3 x4) Slot) ....................................... 46
2.2.26 PCIEX1 (PCIe x1 (Gen3 x1) Slot)........................................ 47
2.2.27 PCIEX16_A (PCIe x16 (Gen4 x16) Slot)............................. 48
2.2.28 AT_CN (AT/ATX mode select jumper).......................... ... 49
2.2.29 BKL_CN (Backlight Control header)............................. ... 50
2.2.30 LVDS (LVDS connector)................................................ ... 51
Chapter 3 – BIOS 52
3.1 Introduction ..................................................................... 53
3.2 The Main Menu................................................................ 54

Micro-ATX Motherboard uATX-H610A (MH610AM)
13 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
3.3 Advanced ......................................................................... 55
3.3.1 TPM Configuration........................................................... 56
3.3.2 CPU Configuration ........................................................... 58
3.3.3 SATA Configuration .......................................................... 59
3.3.4 IT8786 Super IO Configuration ........................................ 60
3.3.5 Hardware Monitor ........................................................... 61
3.3.6 S5 RTC Wake Settings ...................................................... 62
3.3.7 AMI Graphic Output Protocol Policy................................ 63
3.3.8 Network Stack Configuration........................................... 64
3.3.9 Digital IO Port Configuration ........................................... 65
3.3.10 Tls Auth Configuration ..................................................... 66
3.4 Chipset ............................................................................. 67
3.5 Security ............................................................................ 69
3.6 Boot.................................................................................. 72
3.7 Save & Exit ....................................................................... 73

Micro-ATX Motherboard uATX-H610A (MH610AM)
14 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Chapter 1
Chapter1 - Product Specifications

15
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
157.48 45.72
132.08 72.39
157.48
33.02
6.35 6.35
229.87
22.3
243.84
243.84
35.5
31.6
30.64
100.33 23.0 20.0
23.4
39.15

Micro-ATX Motherboard uATX-H610A (MH610AM)
16 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
1.1 Specifications
Motherboard uATX-H610A (MH610AM)
Form Factor Micro ATX
244W x 244D(mm)
CPU
Support for 13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in
the LGA1700 package
TDP under 125W
Socket 1 x LGA 1700
Chipset Intel® H610 Chipset
Memory 2 x DDR4 DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules
Ethernet 1 x GbE LAN Port (Intel® I219V)
1 x 2.5GbE LAN Port (Intel® I226V)
Video
Integrated Graphics Processor - depends on CPU:
2 x HDMI 2.0 port, supporting a maximum resolution of
4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160
@60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080
@60Hz
1 x LVDS port, supporting a maximum resolution of
1920x1200 @60Hz
(3 independent display outputs)
Audio Realtek® Audio Codec
Storage 4 x SATA 6Gb/s Ports
Expansion Slots
1 x PCIe x16 (Gen 4x16)
1 x PCIe x1 (Gen 3x1)
1 x PCIe x4 (Gen 3x4)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key

17
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Motherboard uATX-H610A (MH610AM)
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x Case open header
4 x USB 2.0 headers
3 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper
Rear I/O
3 x Audio Jacks (Line in, Line out, Mic in)
2 x HDMI
1 x DisplayPort
1 x VGA
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1
TPM 1 x TPM header (SPI)
OS Compatibility Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)

Micro-ATX Motherboard uATX-H610A (MH610AM)
18 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Chapter 2
Chapter 2 – Hardware Information

19
www.gigaipc.com
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
2.1 Jumpers and Connectors
1
10
12
14
6
16
17
19
21
22
23
8
24
2
3
4
5
7
9
13
11
15
18
20
25
26
27 28 29
30
31
32

Micro-ATX Motherboard uATX-H610A (MH610AM)
20 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
No Code Description
1AUDIO 3 x Audio Jacks
(Line in, Line out, Mic in)
2
USB3_LAN2
USB 3.2 Gen 2x1 Connector
3 2.5GbE LAN Port
4
USB3_LAN1
USB 3.2 Gen 1 Connector
5 GbE LAN Port
6DP Display Port Connector
7HDMI_12 HDMI Connector
8VGA VGA Port
9COM1 COM1 Port (RS-232/422/485 & RI/5V/12V)
10 JCOM1 RI pin RI/5V/12V Select jumper for COM1 Port
11 P12V_CPU 8-pin ATX 12V power connector (for CPU)
12 CPU_FAN CPU Fan connector
13 DIMM_A1, DIMM_B1 DDR4 DIMM Sockets x 2
14 ATX 24-pin ATX main power connector
15 SATA4, SATA5
SATA6, SATA7 SATA 6Gb/s Connector x 4
16 F_PANEL Front panel header
17 CASE_OPEN Chassis open intrustion alert header
18 SYS_FAN System Fan connector
19 CLR_CMOS Clear CMOS jumper
20 FUSB2_1, FUSB2_2 USB 2.0 header
21 TPM TPM header
22 M2M M.2 Slot, 2242/2280 M-key
23 M2E M.2 Slot, 2230 E-Key
24 COM2, COM3, COM4 Serial Port header (RS-232)
