GIL Technology LIBRA 5816 BS User manual
GIL Technology
LIBRA 5816
Quick Start
Dec 2008
2 LIBRA5816SeriesUserManual
Contents
Contents .....................................................................................................2
Important Information .............................................................................5
Safety considerations .............................................................................................................. 5
Warning symbols used in this book 5
Notices ........................................................................................................6
Copyright notice ...................................................................................................................... 6
Regulatory notice .................................................................................................................... 6
Other notices ........................................................................................................................... 6
Warranty & repair .................................................................................................................... 7
Customer support contacts ...................................................................................................... 7
Distributor technical support 7
Contacting GIL Technical Support 7
GIL product information 7
Publication history .................................................................................................................. 7
3 LIBRA5816SeriesUserManual
Description ................................................................................................ 8
Overview ..................................................................................................................................8
Hardware & Check list .............................................................................................................9
PackageContents 10
LIBRA5816BScontents 10
LIBRA5816SScontents 11
LIBRA 5816 LSS contents 12

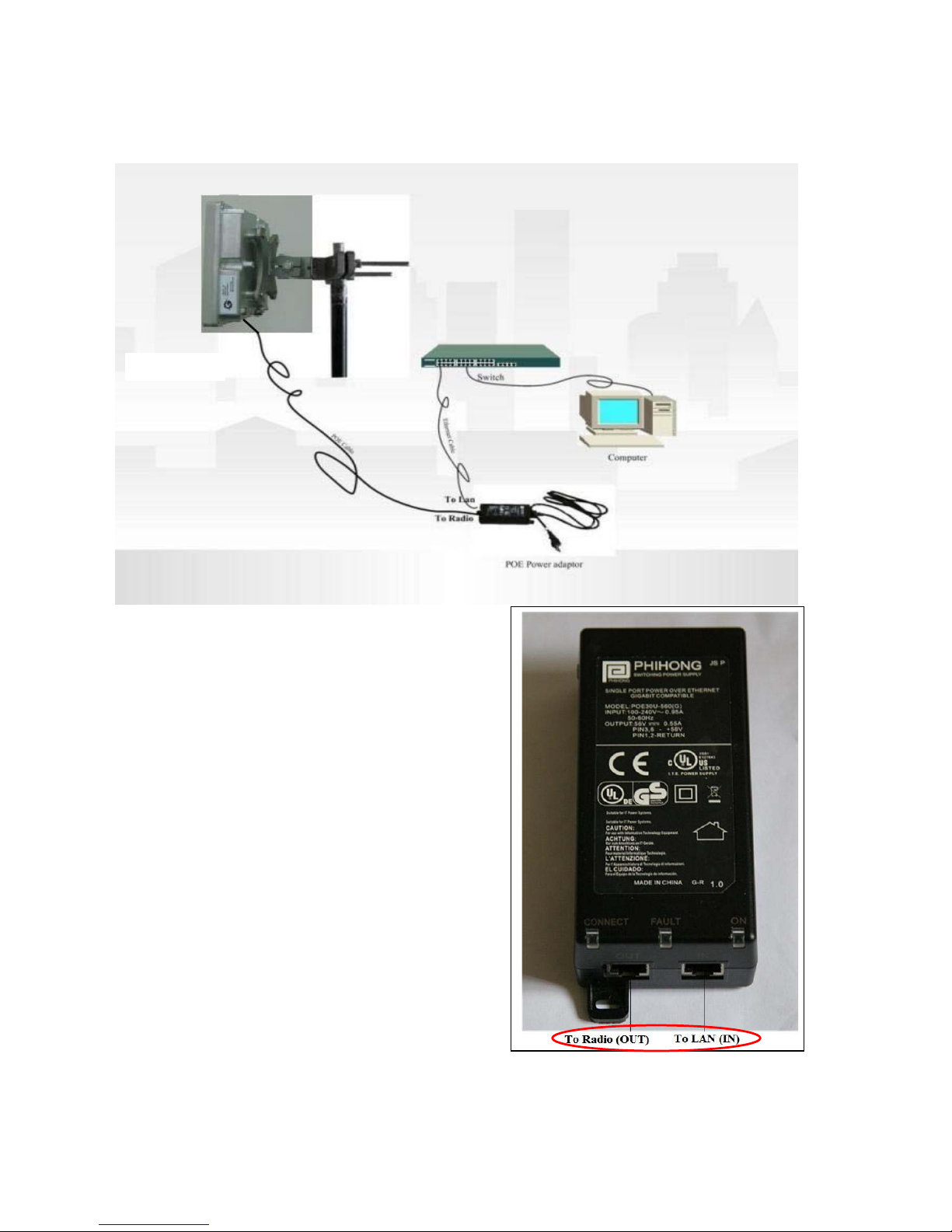

Configuration Diagram—LIBRA 5816 BS 13
Configuration Diagram—LIBRA 5816 SS & LSS 14
Physical Description ........................................................................................................... 16

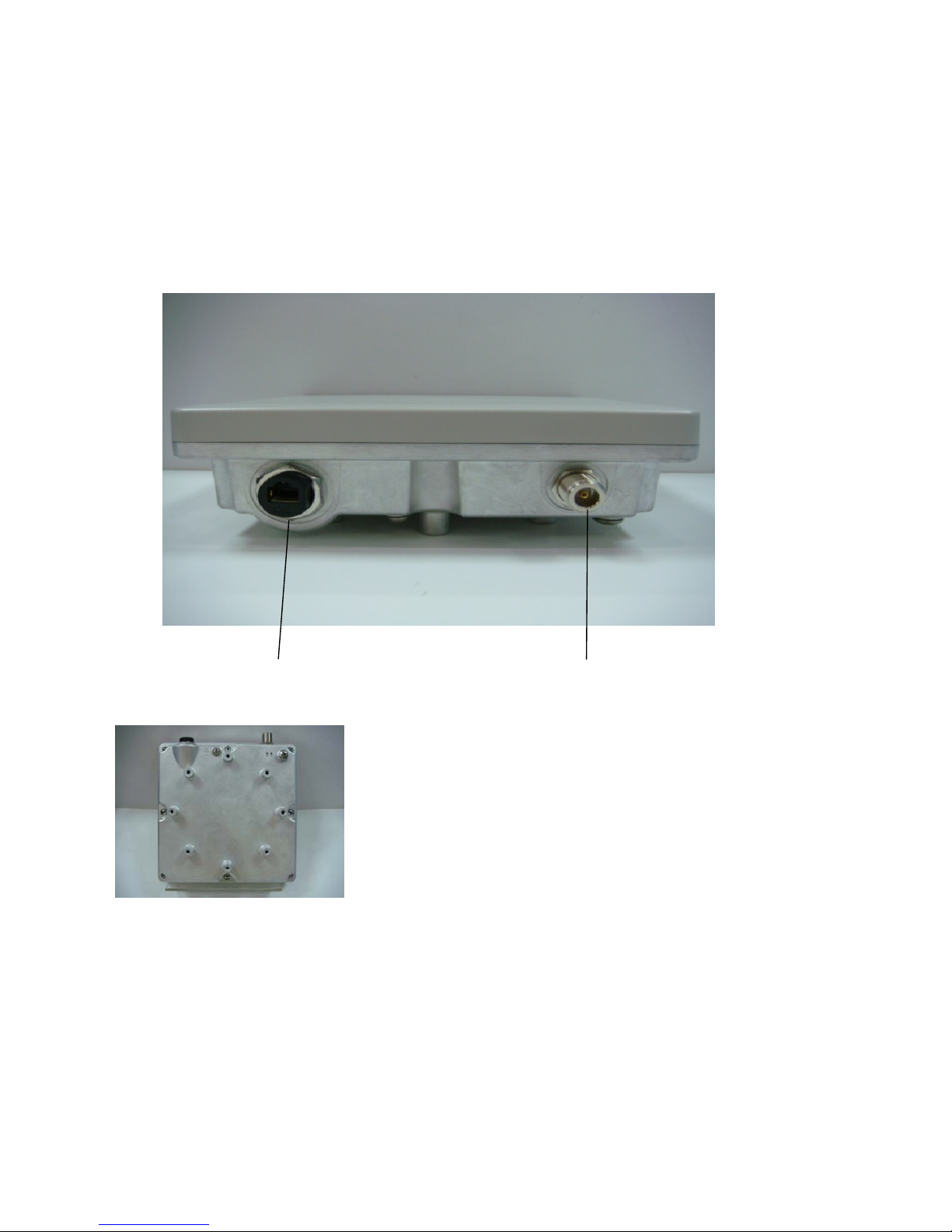

LIBRA5816BS(BaseStation) 16

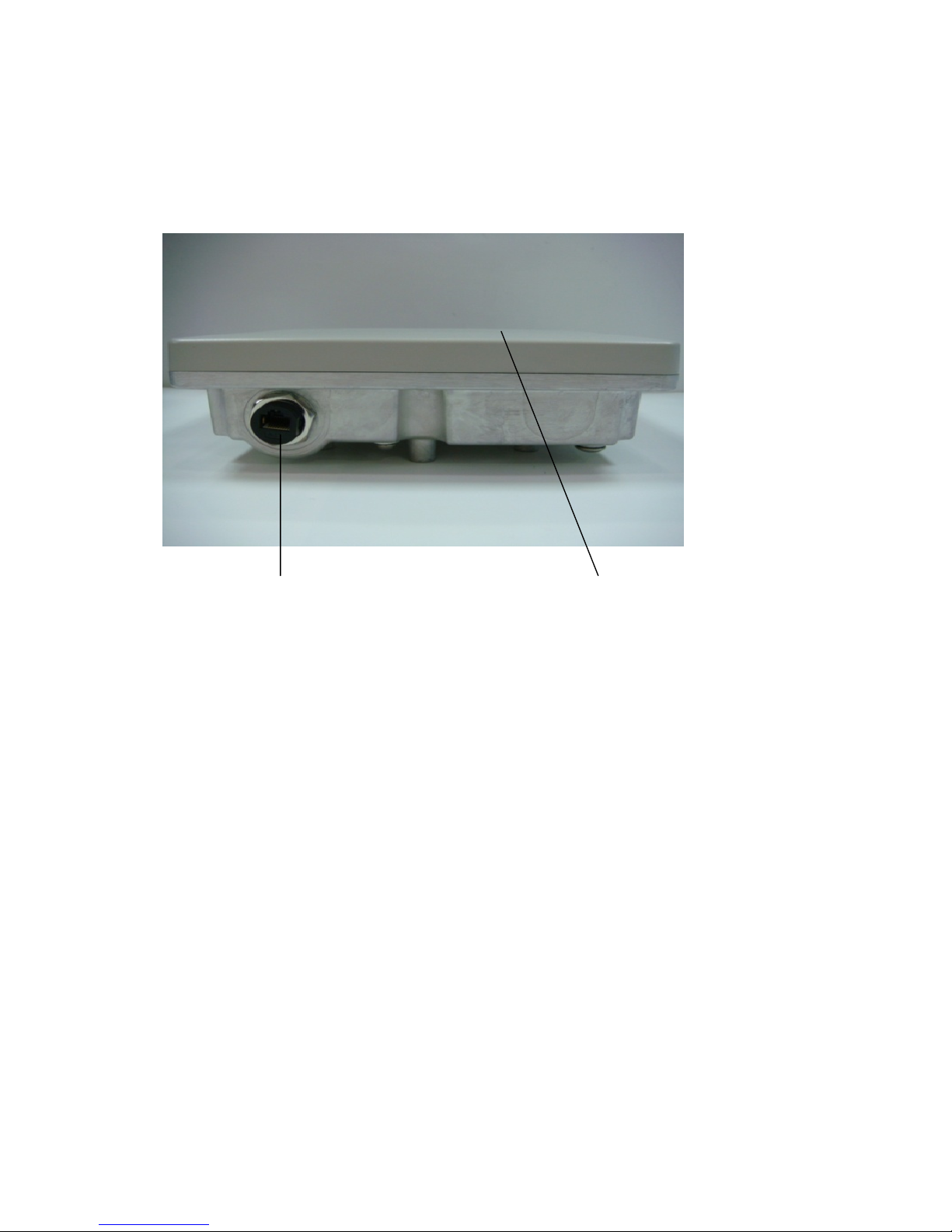

LIBRA5816SS(SubscriberStation) 17
LIBRA 5816 LSS(Long Range Subscriber Station) 18
LIBRA 5816 Series System Features .................................................................................... 19
Base Station (BS) Equipment 20
Subscriber Station (SS) Equipment 21
Long Range Subscriber Station (LSS) Equipment 22
About Point-to-Point (P-P) Systems ..................................................................................... 23
Base Station (BS) Equipment 23
Subscriber Station (SS) Equipment 23
Long Range Subscriber Station (LSS) Equipment 24
Specifications .........................................................................................................................25
Getting Started ...................................................................................26
Introduction ............................................................................................................................26
Field Installation of the LIBRA5816 Device ........................................................................26
Field Preparations 27
Tools and Equipments 27
LIBRA 5816 Installation Procedure ......................................................................................28
Mounting Instruction.........................................................................................................................................28
LIBRA 5816 Quick Start Guide .....................................................33
Initial Configuration ............................................................................................................... 33
ConnectionConfirmation 34
4 LIBRA5816SeriesUserManual
LIBRA 5816 Web Login Access 36
BasicWiMAXConfiguration/LinkStatusCheck 37
BS/SSKeyConfiguration 41
Troubleshooting ..................................................................................53
General Principles ...................................................................................................................53
Considerations on Regular Maintenance and Failure Treatment ............................................53
N
etwork Integrity 53
RF Link Quality 53
Transmission Module 53
Proper Unit Configuration 53
Troubleshooting Table ............................................................................................................54
Appendix A: Specifications for Lightning Protection of GIL ........57
5 LIBRA5816SeriesUserManual
Important Information
Safety considerations
This document must be reviewed for familiarization with the product, instructions, and safety symbols
before operation.
Verify that local safety regulations are adhered to during installation with regard to grounding and
lightning protection.
Verify that the correct AC power source is available for the Power Inserter.
Disconnect the product from operating power before cleaning.
Warning symbols used in this book
WARNING: Injury or death may result from failure to heed a WARNING.
Do not proceed beyond a WARNING until the indicated conditions are fully understood and met.
! CAUTION: Damage to equipment may result from failure to heed a caution.
Do not proceed beyond a ! CAUTION until the indicated conditions are understood and met.
Important: Indicates critical information to be aware of which may affect the completion of a task or
successful operation of equipment.
WARNING
All antennas must be installed by a knowledgeable and professional installer.
! CAUTION
An antenna must be connected to the BS, SS or LSS units before powering up the equipment.
Powering up equipment without an antenna connected can permanently damage the unit or
the RF transmission cable
6 LIBRA5816SeriesUserManual
Professional installation instruction
1. Installation personal
This product is designed for specific application and needs to be installed by a qualified personal
who has RF and related rule knowledge. The general user shall not attempt to install or change
the setting.
2. Installation location
The product shall be installed at a location where the radiating antenna can be kept 50 cm from
nearby person in normal operation condition to meet regulatory RF exposure requirement.
3. Effective power output
According to US Rule, CFR 47 part 15 Section 15.247 “Operation within the bands 902 - 928 MHz,
2400 - 2483.5 MHz, and 5725 - 5850 MHz”, the authorized maximum peak conducted output
power at antenna terminal is 0.319154 watt, 0.511682 watt, respectively for BS and SS, per the
measurement procedure as described in the rule part. Please refer to the related rules for detail.
4. Installation procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure that the final output power does not
exceed the limit set force in US Rule CFR 47 part 15 section 15.247. The violation of the rule
could lead to serious federal penalty.
7 LIBRA5816SeriesUserManual
Notices
Copyright notice
Copyright©Dec 2008 GIL Technology
All rights reserved.
This guide and the application and hardware described herein are furnished under license and are
subject to a confidentiality agreement. The software and hardware can be used only in accordance
with the terms and conditions of this agreement.
No part of this guide may be reproduced or transmitted in any form or by any means – electronic,
mechanical, or otherwise, including photocopying and recording – without the express written
permission of GIL Technology
While every effort has been made to ensure that the information contained in this guide is correct,
GIL Technology does not warrant the information is free of errors or omissions.
Information contained in this guide is subject to change without notice.
Regulatory notice
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 50 cm between the radiator & your body.
8 LIBRA5816SeriesUserManual
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.
Industry Canada statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 50 cm between the radiator & your body.
This device has been designed to operate with an antenna having a maximum gain of 16.5
dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada.
The required antenna impedance is 50 ohms.
! Caution: This product is designed specific for point to point operation, the point to multi
point operation is prohibited.
Other notices
Changes or modifications to the equipment not expressly approved by GIL Technology could void the
user’s authority to operate the equipment.
Appropriately shielded remote I/O serial cable with the metal connector shell and cable shield
properly connected to chassis ground shall be used to reduce the radio frequency interference.
All antenna installation work shall be carried out by a knowledgeable and professional installer. The
parts in some LIBRA5816 versions are Imperial sizes – inches and fractions of an inch. Do not attempt
to mix Imperial nuts, bolts and screws with similar metric hardware. This will strip the threads.
Description
9 LIBRA5816SeriesUserManual
Warranty & Repair
Please contact the party from whom you purchased the product for warranty and repair information. GIL
provides no direct warranty to end users of this product.
Customer support contacts
Users of GIL equipment who require technical assistance must contact their reseller or distributor.
Distributor technical support
Distributors may contact GIL’s Technical Support on GIL’s products.
When requesting support, please have the following information available
"configuration of the system, including models of GIL equipment, versions and serial
numbers
"antenna type and cable lengths
"site information, including possible RF path problems, such as trees, buildings and other RF
equipment in the area
"distance of the RF link
"configuration of unit.
"description of the problem
Contacting GIL Technical Support
By Telephone Call: +886-2-8751-2366 Business hours: 9:00 a.m. to 6:00 p.m. (GMT +8)
GIL product information
To obtain information regarding GIL products, contact the GIL distributor in your region, or call
+886-2-8751-2366 to speak with a GILsales representative or visit our web site at http://www.gil.com.tw.
Publication history
RevisionDateDescription
Rev 1Dec 2008First public release of this manual.
Description
10 LIBRA5816SeriesUserManual
Description
Overview
This information in this guide applies to the "LIBRA 5816" Series products, including the following.
Data Rate Channel Size BWS Model Frequency
(TDD System)
72Mbps
/56Mbps(20MHz) 20 MHz / 15 MHz ;
10 MHz / 5 MHz LIBRA 5816 BS TX&RX:5725-5850
72Mbps
/56Mbps(20MHz) 20 MHz / 15 MHz ;
10 MHz / 5 MHz LIBRA 5816 SS TX&RX:5725-5850
72Mbps
/56Mbps(20MHz) 20 MHz / 15 MHz ;
10 MHz / 5 MHz LIBRA 5816 LSS TX&RX:5725-5850
This chapter presents an overview of the LIBRA 5816 Series product.
Description
11 LIBRA5816SeriesUserManual
Hardware & Check list
There are 3 types of LIBRA5816 radios:
zLIBRA 5816 Base Station (BS)
zLIBRA 5816 Subscriber Station (SS)
zLIBRA 5816 Long Range Subscriber Station (LSS)
Description
12 LIBRA5816SeriesUserManual

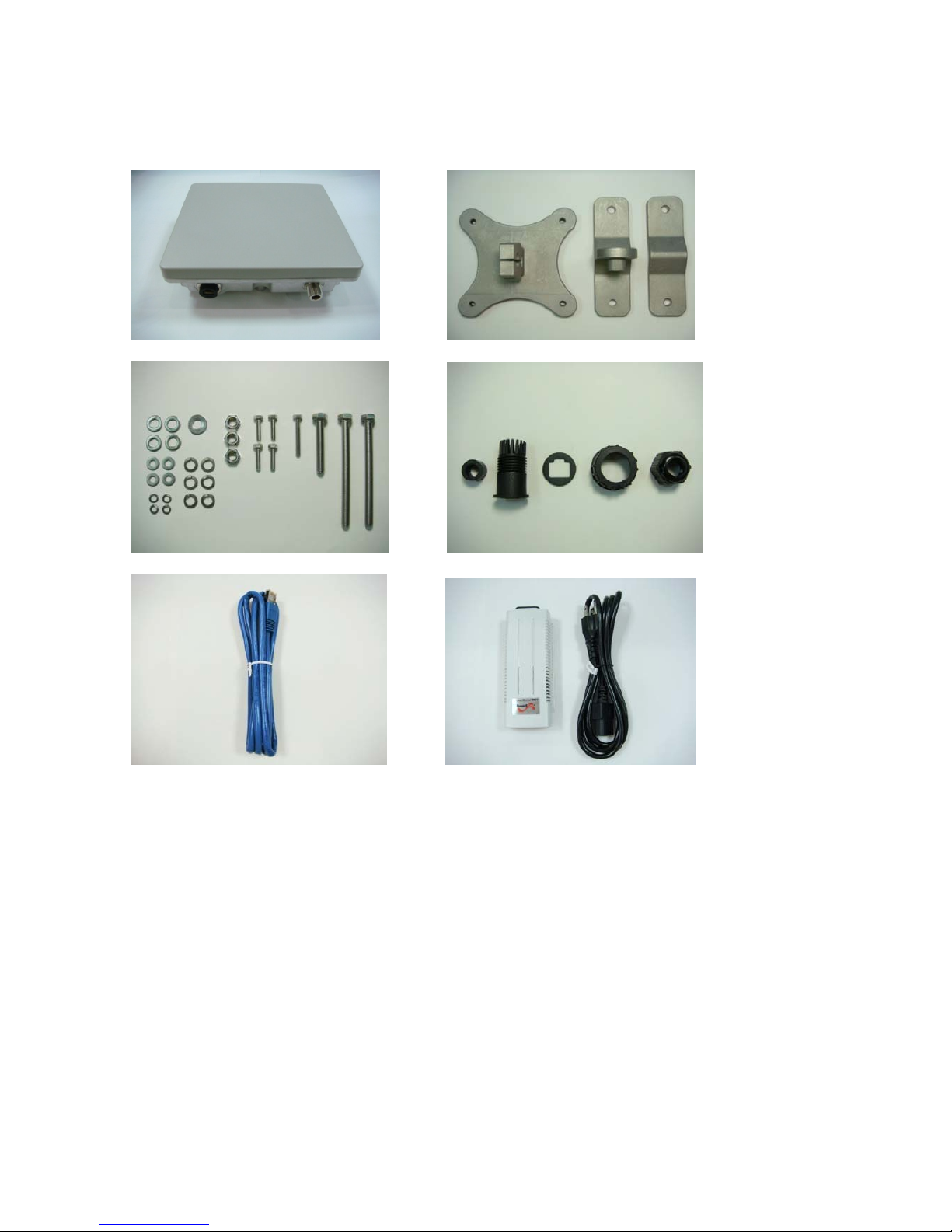

Package Contents
LIBRA 5816 package contains:
1. LIBRA 5816 radio
2. Mounting main frame
3. Mounting nuts and bolts
4. Waterproof cap for PoE Cable
5. Ethernet cable (indoor type)
6. PoE Power adaptor and electrical wire
There might be items of optional order in the package. Please contact your distributor if any of the
above basic items is missing.
zLIBRA 5816 BS contents
1.LIBRA5816BS2. Mounting main frame
3.Mounting nuts and bolts 4. Waterproof cap for PoE Cable
5. Ethernet cable (indoor type) 6. PoE Power adaptor and electrical wire-BS
Description
13 LIBRA5816SeriesUserManual
zLIBRA 5816 SS
Description
14 LIBRA5816SeriesUserManual
zLIBRA 5816 LSS
Description
15 LIBRA5816SeriesUserManual
Configuration Diagram—LIBRA 5816 BS
Item Description Part No. Notes
S1 LIBRA 5816 – BS External 9900-0006 Unit also includes mounting kit &
weatherproof cap, which are not shown
here.
S2 Power Inserter 4000-0025
S3 10m Outdoor Shielded CAT5
Power-over-Ethernet cable 6010-1414
30m Outdoor Shielded CAT5
Power-over-Ethernet cable 6010-1415
100m Outdoor Shielded CAT5
Power-over-Ethernet cable 6010-1416
Item Description Part No. Notes
S4 1.5m Indoor CAT5 Cable 6030-0018 Included in Standard Package
S5 Ethernet Surge Suppressor 1220-0042 Optional (Recommended)
S6 100cm (36inch), LMR400 Ultra-Flex,
Patch, N(M)-N(M) 6010-0019 The given part number is an N type (Male)
to N type (Male), assuming the Surge
Suppressor has an N type (Female).
S7 Surge Suppressor @ 5.8GHz 1220-0025 Optional (Recommended)
S8 30cm (12inch), LMR400 Ultra-Flex,
Patch, N(M)-N(M) 6010-0014 The given part number is an N type (Male)
to N type (Male), assuming the surge
suppressor and selected antenna has an
N type (Female).
S9 5.8GHz 29dBi 8° Grid 1220-0601 Gil Technology certified Grid-Antenna
with mounting Kit
Description
16 LIBRA5816SeriesUserManual
Configuration Diagram—LIBRA 5816 SS & LSS
Item Description Part No. Notes
S1 LIBRA 5816 – SS (Integrated with 18dBi
antenna) 9900-0007 It includes an integrated antenna. Unit
also includes mounting kit & weatherproof
cap, which are not shown here.
S2 Power Inserter 4000-0025
S3 10m Outdoor Shielded CAT5
Power-over-Ethernet cable 6010-1414
30m Outdoor Shielded CAT5
Power-over-Ethernet cable 6010-1415
100m Outdoor Shielded CAT5
Power-over-Ethernet cable 6010-1416
S4 1.5m Indoor CAT5 Cable 6030-0018 Included in Standard Package
S5 Ethernet Surge Suppressor 1220-0042 Optional (Recommended)
S6 LIBRA 5816 - LSS (External antenna
needed) 9900-0008 Unit also includes mounting kit &
weatherproof cap, which are not shown
here.
S7 100cm (36inch), LMR400 Ultra-Flex,
Patch, N(M)-N(M) 6010-0019 The given part number is an N type (Male)
to N type (Male), assuming the Surge
Suppressor has an N type (Female).
S8 Surge Suppressor @ 5.8GHz 1220-0025 Optional (Recommended)
S9 30cm (12inch), LMR400 Ultra-Flex,
Patch, N(M)-N(M) 6010-0014 The given part number is an N type (Male)
to N type (Male), assuming the surge
suppressor and selected antenna has an
N type (Female).
S10 5.8GHz 29dBi 8° Grid 1220-0601 Gil Technology certified Grid-Antenna
with mounting Kit
Description
17 LIBRA5816SeriesUserManual
1. Basic Connection
Important:
LIBRA 5816 is powered by PoE (Power over Ethernet).
There are LAN and WAN port available for connection,
as shown in the picture.
LIBRA5816
Description
18 LIBRA5816SeriesUserManual
Physical Description
This section describes the components of the LIBRA 5816 BS and SS/LSS
"LIBRA 5816 BS(Base Station)
The LIBRA 5816 BS is an outdoor radio with IP67 enclosure providing PoE and data
transmission through RJ45 connector. N type RF connector can be mounted with any outdoor
5.8GHz antenna. The back panel owns 8 holes to mount flexibly on the pole or tower(As shown
in the picture below)
The back panel of LIBRA 5816
The physical dimensions of the LIBRA 5816 is 203mm(Height), 203mm(width)and 65mm(depth) or
8”,8”,2.5”) with the weight is 1.3kg(or 2.8Ib)
RJ45
NtypeRF
connector
Description
19 LIBRA5816SeriesUserManual
LIBRA 5816 SS(Subscriber Station)
The LIBRA 5816 SS is an outdoor radio with IP67 enclosure providing PoE and data transmission
through RJ45 connector. With the integrated 18dBi antenna that provides the convenience for rapid
deployment. The back panel owns 8 holes to mount flexibly on the pole or tower.
RJ45Integrated18dBiantenna
The physical dimensions of the LIBRA 5816 is 203mm(Height), 203mm(width)and 65mm(depth) or
8”,8”,2.5”) with the weight is 1.35kg(or 2.9Ib)
Description
20 LIBRA5816SeriesUserManual
LIBRA 5816 LSS(Long Range Subscriber Station)
The LIBRA 5816 LSS is an outdoor radio with IP67 enclosure providing PoE and data transmission
through RJ45 connector. N type RF connector can be mounted with any outdoor
5.8GHz antenna. The back panel owns 8 holes to mount flexibly on the pole or tower.
RJ45 NtypeRFconnector
The physical dimensions of the LIBRA 5816 is 203mm(Height), 203mm(width)and 65mm(depth) or
8”,8”,2.5”) with the weight is 1.3kg(or 2.8Ib)
This manual suits for next models
2
Table of contents
