GILBARCO VEEDER-ROOT Passport MDE-3839 User manual

MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 1
Introduction
Purpose
This manual provides supplemental information for the following documents:
• MDE-5100 Passport Cashier Workstation Using the RV042 Firewall Router
• MDE-5536 Passport Cashier Workstation Using the SZR or MNSP Firewall Router
• MDE-5537 Passport Combined Cashier/Manager Workstation Using the SZR or MNSP
Firewall Router
• MDE-5539 Passport Enhanced Dispenser Hub 2 (Passport V10 or Later) with SZR and
MNSP Firewall Router
• MDE-5541 Passport Standalone Manager Workstation with SZR or MNSP Firewall
Intended Users
This manual is intended for Authorized Service Contractors (ASCs) who install Passport™
systems.
Table of Contents
Topic Page
Introduction 1
Important Safety Information 3
Federal Communications Commission (FCC) Warning 5
Hazardous Zones 5
UL Approvals, System Requirements, and Component Specifications 5
Before Installing Passport System 6
Parts List 9
Appendix: Procedure to Change POSIFLEX Monitor (LM-3110E) Resolution Setting16
Related Documents
Document
Number Title GOLDSM Library
MDE-2149 Warranty Return Materials Authorization Form • Gilbarco® Forms
• Encore and Eclipse
MDE-3620 Point of Sale Systems Site Preparation Manual Site Prep
MDE-3816 Passport Hardware Start-up and Service Manual • Passport
• Service Manual
MDE-4822 Passport Enhanced Dispenser Hub Installation Instructions • Passport
• Service Manual
MDE-4891 Enhanced Dispenser Hub (Passport V8.02+) Installation Poster Passport
MDE-4910 Passport Enhanced Dispenser Hub Connections Manual Passport
MDE-5083 Passport Hardware Start-up and Service Manual for PX60
Platform
Passport
MDE-5100 Passport Cashier Workstation Using the RV042 Firewall Router Passport
MDE-3839Q
Passport™ System Installation Addendum
December 2020
Introduction
Page 2 MDE-3839Q Passport™ System Installation Addendum · December 2020
Abbreviations and Acronyms
Term Description
ASC Authorized Service Contractor
CAT5 Category 5
CWS Cashier Workstation
D-Box Distribution Box
DEF Diesel Exhaust Fluid
EDH Enhanced Dispenser Hub
EMC™Environmental Management Console
FCC Federal Communications Commission
GOLD Gilbarco Online Documentation
GSM Gilbarco Security Module
ISO International Organization for Standardization
LAN Local Area Network
LCD Liquid Crystal Display
MWS Manager Workstation
NEC®National Electrical Code
NFPA National Fire Protection Association
OSHA Occupational Safety and Health Administration
POS Point of Sale
RAS Remote Access Service
RFID Radio Frequency Identification
STP Submersible Turbine Pump
SZR Secure Zone Router
UL®Underwriters’ Laboratories
UPS Uninterruptible Power Supply
USB Universal Serial Bus
VGA Video Graphics Array
VPN Virtual Private Network
VSAT Very Small Aperture Terminal
MDE-5155 7-Eleven® Standalone Enhanced Dispenser Hub (EDH) Quick
Reference Installation Poster
7-Eleven
MDE-5536 Passport Cashier Workstation Using the SZR or MNSP Firewall
Router
Passport
MDE-5537 Passport Combined Cashier/Manager Workstation Using the SZR
or MNSP Firewall Router
Passport
MDE-5539 Passport Enhanced Dispenser Hub 2 (Passport V10 or Later) with
SZR and MNSP Firewall Router
Passport
MDE-5541 Passport Standalone Manager Workstation with SZR or MNSP
Firewall Router
Passport
Document
Number Title GOLDSM Library
MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 3
Important Safety Information
Important Safety Information
Notes: 1) Save this Important Safety Information section
in a readily accessible location.
2) Although Diesel Exhaust Fluid (DEF) is

non-flammable, Diesel is flammable. Therefore,
for DEF cabinets that are attached to Diesel
dispensers, follow all the notes in this section
that pertain to flammable fuels.
This section introduces the hazards and safety precautions
associated with installing, inspecting, maintaining, or servicing
this product. Before performing any task on this product, read
this safety information and the applicable sections in this
manual, where additional hazards and safety precautions for
your task will be found. Fire, explosion, electrical shock, or
pressure release could occur and cause death or serious injury,
if these safe service procedures are not followed.
Preliminary Precautions
You are working in a potentially dangerous environment of
flammable fuels, vapors, and high voltage or pressures. Only
trained or authorized individuals knowledgeable in the related
procedures should install, inspect, maintain, or service this
equipment.
Emergency Total Electrical Shut-Off
The first and most important information you must know is how
to stop all fuel flow to the pump/dispenser and island. Locate
the switch or circuit breakers that shut off all power to all fueling
equipment, dispensing devices, and Submerged Turbine
Pumps (STPs).
Total Electrical Shut-Off Before Access
Any procedure that requires access to electrical components or
the electronics of the dispenser requires total electrical shut off
of that unit. Understand the function and location of this switch
or circuit breaker before inspecting, installing, maintaining, or
servicing Gilbarco equipment.
Evacuating, Barricading, and Shutting Off
Any procedure that requires access to the pump/dispenser or
STPs requires the following actions:
• An evacuation of all unauthorized persons and vehicles
from the work area
• Use of safety tape, cones, or barricades at the affected
unit(s)
• A total electrical shut-off of the affected unit(s)
Read the Manual
Read, understand, and follow this manual and any other labels
or related materials supplied with this equipment. If you do not
understand a procedure, call the Gilbarco Support Center at 
1-800-800-7498. It is imperative to your safety and the safety 
of others to understand the procedures before beginning work.
Follow the Regulations
Applicable information is available in National Fire Protection
Association (NFPA) 30A; Code for Motor Fuel Dispensing
Facilities and Repair Garages, NFPA 70; National Electrical
Code (NEC), Occupational Safety and Health Administration
(OSHA) regulations and federal, state, and local codes. All
these regulations must be followed. Failure to install, inspect,
maintain, or service this equipment in accordance with these
codes, regulations, and standards may lead to legal citations
with penalties or affect the safe use and operation of the
equipment.
Replacement Parts
Use only genuine Gilbarco replacement parts and retrofit kits
on your pump/dispenser. Using parts other than genuine
Gilbarco replacement parts could create a safety hazard and
violate local regulations.
Safety Symbols and Warning Words
This section provides important information about warning
symbols and boxes.
Alert Symbol
This safety alert symbol is used in this manual and on
warning labels to alert you to a precaution which must be
followed to prevent potential personal safety hazards. Obey
safety directives that follow this symbol to avoid possible injury
or death.
Signal Words
These signal words used in this manual and on warning labels
tell you the seriousness of particular safety hazards. The
precautions below must be followed to prevent death, injury, or
damage to the equipment:
DANGER: Alerts you to a hazard or unsafe practice
which will result in death or serious injury.
WARNING: Alerts you to a hazard or unsafe practice
that could result in death or serious injury.
CAUTION with Alert symbol: Designates a hazard or
unsafe practice which may result in minor injury.
CAUTION without Alert symbol: Designates a hazard or
unsafe practice which may result in property or
equipment damage.
Working With Fuels and Electrical Energy
Prevent Explosions and Fires
Fuels and their vapors will explode or burn, if ignited. Spilled or
leaking fuels cause vapors. Even filling customer tanks will
cause potentially dangerous vapors in the vicinity of the
dispenser or island.
DEF is non-flammable. Therefore, explosion and fire safety
warnings do not apply to DEF lines.
The EMERGENCY STOP, ALL STOP, and
PUMP STOP buttons at the cashier’s station
WILL NOT shut off electrical power to the 
pump/dispenser. This means that even if you
activate these stops, fuel may continue to flow
uncontrolled.
You must use the TOTAL ELECTRICAL 
SHUT-OFF in the case of an emergency and not
the console’s ALL STOP and PUMP STOP or
similar keys.
!
WARNING
!
!
!
!
Important Safety Information
Page 4 MDE-3839Q Passport™ System Installation Addendum · December 2020

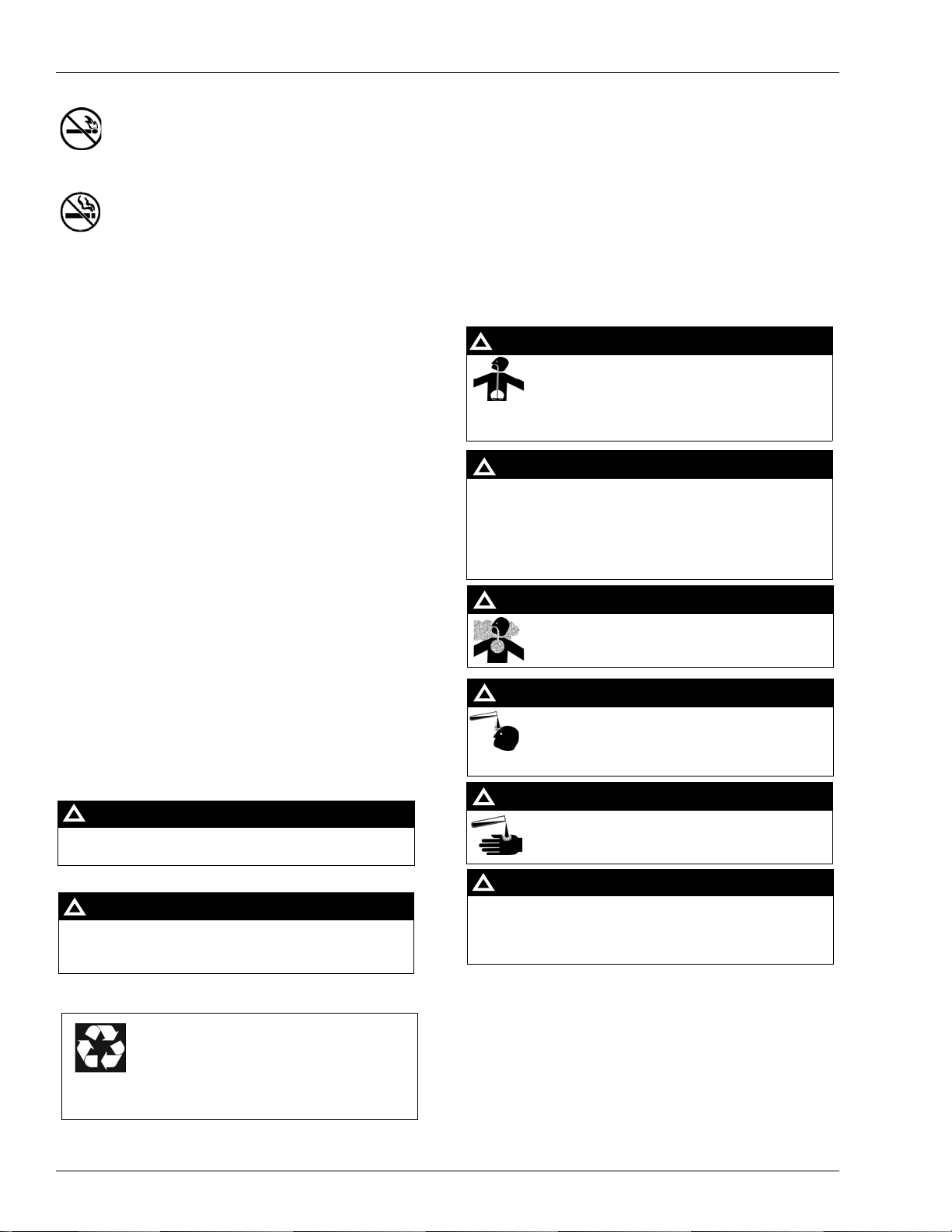

No Open Fire
Open flames from matches, lighters, welding torches,
or other sources can ignite fuels and their vapors.
No Sparks - No Smoking
Sparks from starting vehicles, starting, or using power tools,
burning cigarettes, cigars, or pipes can also ignite fuels and
their vapors. Static electricity, including an electrostatic charge
on your body, can cause a spark sufficient to ignite fuel vapors.
Every time you get out of a vehicle, touch the metal of your
vehicle, to discharge any electrostatic charge before you
approach the dispenser island.
Working Alone
It is highly recommended that someone who is capable of
rendering first aid be present during servicing. Familiarize
yourself with Cardiopulmonary Resuscitation (CPR) methods, if
you work with or around high voltages. This information is
available from the American Red Cross. Always advise the
station personnel about where you will be working, and caution
them not to activate power while you are working on the
equipment. Use the OSHA Lockout/Tagout procedures. If you
are not familiar with this requirement, refer to this information in
the service manual and OSHA documentation.
Working With Electricity Safely
Ensure that you use safe and established practices in working
with electrical devices. Poorly wired devices may cause a fire,
explosion, or electrical shock. Ensure that grounding
connections are properly made. Take care that sealing devices
and compounds are in place. Ensure that you do not pinch
wires when replacing covers. Follow OSHA Lockout/Tagout
requirements. Station employees and service contractors need
to understand and comply with this program completely to
ensure safety while the equipment is down.
Hazardous Materials
Some materials present inside electronic enclosures may
present a health hazard if not handled correctly. Ensure that
you clean hands after handling equipment. Do not place any
equipment in the mouth.
In an Emergency
Inform Emergency Personnel
Compile the following information and inform emergency
personnel:
• Location of accident (for example, address, front/back of
building, and so on)
• Nature of accident (for example, possible heart attack, run
over by car, burns, and so on)
• Age of victim (for example, baby, teenager, middle-age,
elderly)
• Whether or not victim has received first aid (for example,
stopped bleeding by pressure, and so on)
• Whether or not a victim has vomited (for example, if
swallowed or inhaled something, and so on)
IMPORTANT: Oxygen may be needed at scene if gasoline has
been ingested or inhaled. Seek medical advice immediately.
Lockout/Tagout
Lockout/Tagout covers servicing and maintenance of machines
and equipment in which the unexpected energization or 
start-up of the machine(s) or equipment or release of stored
energy could cause injury to employees or personnel. 
Lockout/Tagout applies to all mechanical, hydraulic, chemical,
or other energy, but does not cover electrical hazards. 
Subpart S of 29 CFR Part 1910 - Electrical Hazards, 29 CFR
Part 1910.333 contains specific Lockout/Tagout provision for
electrical hazards
The pump/dispenser contains a chemical known to the
State of California to cause cancer.
WARNING
!
The pump/dispenser contains a chemical known to the
State of California to cause birth defects or other
reproductive harm.
WARNING
!
Gilbarco Veeder-Root encourages the recycling of
our products. Some products contain electronics,
batteries, or other materials that may require special
management practices depending on your location.
Please refer to your local, state, or country
regulations for these requirements.
Gasoline/DEF ingested may cause
unconsciousness and burns to internal organs.
Do not induce vomiting. Keep airway open.
Oxygen may be needed at scene. Seek medical
advice immediately.
WARNING
!
DEF generates ammonia gas at higher temperatures.
When opening enclosed panels, allow the unit to air out to
avoid breathing vapors.
If respiratory difficulties develop, move victim away from
source of exposure and into fresh air. If symptoms persist,
seek medical attention.
WARNING
!
Gasoline inhaled may cause unconsciousness
and burns to lips, mouth, and lungs. Keep airway
open. Seek medical advice immediately.
WARNING
!
!
WARNING
!
Gasoline/DEF spilled in eyes may cause burns to
eye tissue. Irrigate eyes with water for
approximately 15 minutes. Seek medical advice
immediately.
Gasoline/DEF spilled on skin may cause burns.
Wash area thoroughly with clear water.
Seek medical advice immediately.
WARNING
!
DEF is mildly corrosive. Avoid contact with eyes, skin, and
clothing. Ensure that eyewash stations and safety
showers are close to the work location. Seek medical
advice/recommended treatment if DEF spills into eyes.
WARNING
!
!
WARNING
MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 5
Federal Communications Commission (FCC) Warning
Federal Communications Commission (FCC) Warning
This equipment has been tested and found to comply with the limits for a Class A digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense. Changes or modifications not expressly approved by
the manufacturer could void the user’s authority to operate this equipment.
The long term characteristics or the possible physiological effects of radio frequency
electromagnetic fields have not been investigated by Underwriters’ Laboratories (UL) Inc.
IMPORTANT INFORMATION
Hazardous Zones
All Passport system components are NOT for use over hazardous zones with the exception of
the EDH and Distribution Box (D-Box), which can be mounted over hazardous zones.
The Passport minitower contains no user serviceable parts. Due to the high energy
components within the enclosure, service of the minitower must be performed by Gilbarco
ASCs only.
WARNING
UL Approvals, System Requirements, and Component
Specifications
UL Approvals
UL File# Gilbarco International Organization for Standardization (ISO) 9001:2000 Registration
A8120 Gilbarco is an EN ISO 9001:2000, BS EN ISO 9001:2000, ANSI/ASQC Q9001:2000 Registered
Organization.
E165027 The Passport system is listed by UL and meets the requirements of UL Standard 60950 Information
Technology Equipment including Electrical Business Equipment.
Before Installing Passport System
Page 6 MDE-3839Q Passport™ System Installation Addendum · December 2020
System Requirements
This section provides the system requirements of the Passport system.
Electrical Service
System Voltage Requirements Current Requirements
Uninterruptible Power Supply (UPS), Cashier
Workstation [CWS (refer to Note 1)]
120 VAC, 60 Hz 20 A (supplying two isolated
ground receptacles)
UPS, Combined CWS/Manager Workstation
(MWS), or Standalone MWS and Report Printer 
(refer to Note 2)
120 VAC, 60 Hz 20 A branch circuit (supplying four
isolated ground receptacles)
Notes: 1) Power two UPS units for a maximum of two CWS, per 20 A circuit.
2) Power one UPS unit for a maximum of one Combined CWS/MWS or Standalone MWS, and one Report
Printer, per 20 A circuit.
Aspect Limits
Temperature* 50 to 104 °F (10 to 40 °C)
Relative Humidity 10 to 80%
Altitude Sea level to 10,000’
*Thermal printers must use Gilbarco-specified paper.
Operating Environment
Aspect Limits
Temperature -22 to 131 °F (-30 to 55 °C)
Relative Humidity 5 to 95% (non-condensing)
Altitude Sea level to 30,000’
Storage Environment
Before Installing Passport System
This section provides the following information for installing a POS system:
•“Unpacking Equipment”
•“Preliminary Preparation” on page 7
•“Mounting Locations” on page 7
•“Routing Data Cables” on page 8
Read this section thoroughly before installing the system.
Unpacking Equipment
Upon delivery, unpack all system devices and inspect each device for damage. Check device
Model and Serial Numbers with the packing list. You must report all evident shipping damage
to the carrier. Gilbarco warranty does not cover shipping damage.
Note: Damage resulting from improper storage voids the Gilbarco warranty.
After you have inspected the system equipment, store it indoors in its original shipping carton,
until the installation. This protects the equipment from dirt and damage.
MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 7
Before Installing Passport System
Charging UPS
Unpack and connect the UPS to an AC power outlet, and allow the battery to charge when you
are setting up the other Passport System components.
After charging for about 40 minutes, the UPS will be able to provide up to 15 minutes of
backup power. After about two hours, the UPS changes from Fast Charge to Trickle Charge.
The UPS requires approximately four hours to charge completely.
Transporting Equipment
Always transport the equipment to a site in its original packaging, to avoid damage to the
shock sensitive components such as hard disk drives.
Returning Equipment
All equipment or components returned under Gilbarco warranty policy or for repair, must be
packaged properly to avoid shipping damage.
• Return the equipment in its original shipping container. If the original materials are not
available, use a durable reinforced corrugated box and suitable packing material
(polyfoam chips, polyurethane foam chips, or polystyrene foam chips).
• Fill the bottom of the container with at least 2 inches of packing material.
• Ensure that the device is firmly packed.
• Include a description of the malfunction or damage, and return that with shipping
information.
• Prepare a Warranty Return Materials Authorization Form (for more information, refer to
MDE-2149 Warranty Return Materials Authorization) to ship with the device.
Note: Gilbarco recommends that returned equipment be insured. Gilbarco inspects all
returned equipment for any damage caused during return shipment. The customer is
responsible for all repair costs of damage to the equipment caused by improper packing
during return shipment.
Preliminary Preparation
Inspect the site and all system equipment before the equipment installation. Ensure that all the
required materials are present and the site meets all installation criteria, as specified in this
manual and in MDE-3620 Point of Sale Systems Site Preparation Manual.
Mounting Locations
To mount and connect the equipment, refer to the appropriate installation poster (refer to
“Introduction” on page 1). Following guidelines must be followed when installing the
equipment:
• All equipment (except the equipment located in the Manager’s office) must be accessible
to the site operators and service technicians.
• Install all equipment in an enclosed, weatherproof structure. Ambient room temperature
must not exceed 104 °F (40 °C) or fall below 50 °F (10 °C). The maximum ambient
temperature may be allowed only if the equipment is allowed free air flow.
• Do not install the equipment in areas exposed to direct sunlight. Provide shading if direct
sunlight exposure exists.
• Do not expose equipment to high humidity or where liquid spills may occur.
Before Installing Passport System
Page 8 MDE-3839Q Passport™ System Installation Addendum · December 2020
• The Virtual Private Network (VPN) LAN Router (Q13708-07B), LAN Router
(Q13708-05), and/or VPN Firewall Router (Q13078-08B) must be installed in a place
where the Power button cannot be pushed and turned off unintentionally. If power to the
VPN LAN Router, LAN Router, or VPN Firewall Router is lost, then fuel dispensers,
VSAT, Back Office PC, and Passport workstations will be unable to communicate with
each other.
• All Passport System components are NOT for use over hazardous zones with the
exception of the EDH, and D-Box, which can be mounted over hazardous zones.
• The EDH must be installed near the Combined MWS or CWS #1. For more information,
refer to MDE-4822 Passport Enhanced Dispenser Hub Installation Instructions.
CAUTION
PA0421 VeriFone® MX915 PIN Pads must be installed within 90 meters of the LAN switch.
Routing Data Cables
Follow these guidelines when routing data cables:
• Allow sufficient space to route cables between the equipment.
• Do not route data cables in the same conduit as AC wiring or near sources of interference
such as fluorescent lights, compressor wiring, and so on.
• Do not coil, bend, or tie-wrap together surplus lengths of LAN or data cables. Install
shorter cables, if required. Use Velcro®-type cable-ties.
• Do not tie-wrap data cables to AC conduit to avoid surge and spike noise coupling.
• Do not coil or tie-wrap data cable and AC line cords together.
• Long Gilbarco data cables can be routed in plastic slotted raceways or wire mold, if
required.
CAUTION
Devices such as PIN Pads, Car Wash, Tank Monitor™, and Price Sign Controllers will be
connected to the EDH (after Passport V8.02 or later software upgrade) through an RS-232
connection. Gilbarco recommends an RS-232 line booster for these devices if the
Category 5 (CAT5) cable distance (run) is between 50 and 100 feet. If the CAT5 cable
distance (run) is greater than 100 feet, an RS-232 line booster will be required along with
an additional booster for every additional 50 feet.
Assistance
If you have any problems with site installation, contact the Gilbarco Distributor or ASC
responsible for completing the site installation and the system start-up.
Parts List
MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 9
Parts List
Hardware
The following table lists the hardware for Passport PX52:
Item Part Number Description
CWS
Combined
CWS/MWS Standalone MWS
Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O)
Server PA0324PS52A
~ OR ~
PA0324PS52D
6’ Power Cord, RAS Modem and Phone Line
Cord, 6’ included.
0 N/A 1 S 1 S
USB-RS-232
Converter
M01700B103 USB-RS-232 Converter 8-port, 2m USB Cable
included.
1 S 1 S 1 S
LAN Hub/Router Q13708-01A LAN Hub 8-port with 6’ DC Power Supply Cord 0 N/A 1 O 1 O
~ OR ~
Q13708-05(B) LAN Router 8-port with 6’ DC Power ©Supply
Cord and 6’ LAN Patch Cable included
0 N/A 1 S 1 S
~ OR ~
PA04240000 Secure Zone Router (SZR) 0 N/A 1 S 1 S
UPS PA03310004 UPS, 6’ USB Cable, and 6’ Power Cord
included (for V4 and later)
1 O 1 O 1 O
EDH2 PA0419000X Dispenser Hub, Power Supply, and two 6’ LAN
Patch Cords included
0 N/A 1 S 1 S
D-Box PA03060020 D-Box, Power Cable, 6’ included 0 N/A 1 O 1 O
Monitor
(Non-touchscreen)
PA03390800
See Note 4
9.7-inch Color Liquid Crystal Display (LCD)
Monitor with 12 Volt Adapter and Video
Graphics Array (VGA) Cable
0 N/A 0 N/A 1 S
Notes: 1) USB to RS-232 Converter, choose 16-port converter, if Tank Monitor is required for the order.
2) CAT5 cable must be ordered separately. XX = 10, 25, and 50’ (maximum) recommended without line booster. Allow 10’ (maximum) as special; do not order
this, if line booster is chosen.
3) Required for installation of Passport V8.02 and later.
4) For setting the Posiflex monitor resolution, refer “Appendix: Procedure to Change POSIFLEX Monitor (LM-3110E) Resolution Setting” on page 16.
Parts List
Page 10 MDE-3839Q Passport™ System Installation Addendum · December 2020
Report Printer PA03400008 Brother® HL-L2370DW Report Printer 0 N/A 1 S 1 S
Gilbarco Security
Module (GSM)
PA0258XXXXXXX GSM, DC Cable, 6’ to Power Supply, and AC
Cable, 6’ to Wall. The 10’ Q13850-10 CAT5
Cables and Gender Menders are included in
the GSM. The 04B Gender Mender is included
on the Harness.
0 N/A 1 O 1 O
Q13180-20BS Gender Mender at USB Converter, Pack of 5
(included with the Server)
0 N/A 1 S 1 S
Car Wash Interface
Cable parts
N/A Car Wash Controller (Order from 
third-party)
0 N/A 0 N/A 0 N/A
Q13850-XX
(see Note 2)
CAT5 Cable (to USB Converter) 0 N/A 1 O 1 O
Q13241-102 Line Booster Kit, 50’ and 100’ CAT5 Cables,
Gender Menders, and Power Supply included
(order separately, for Cable greater than 50’ or
special 100’)
0 N/A 1 O 1 O
Q13180-17BS Gender Mender, Ryko® Code A Wash 4 and
Unitec®, bag of 5 only (packed in Combined
and Standalone Install Kits)
0 N/A 1
Ref
N/A 1 Ref N/A
Q13180-16BS Gender Mender, Code A Wash 3 bag of 5 only
(packed in Combined and Standalone Install
Kits)
0 N/A 1
Ref
N/A 1 Ref N/A
Q13180-20BS Gender Mender at USB Converter, pack of 5
(included with the server)
0 N/A 1
Ref
N/A 1 Ref N/A
Dial Network
Modem
PA02960009 Modem, MultiTech® 56k v.92 0 N/A 1 O 1 O
Q13240-09 6’ Modem Cable (to USB Converter) 0 N/A 1 O 1 O
Item Part Number Description
CWS
Combined
CWS/MWS Standalone MWS
Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O)
Notes: 1) USB to RS-232 Converter, choose 16-port converter, if Tank Monitor is required for the order.
2) CAT5 cable must be ordered separately. XX = 10, 25, and 50’ (maximum) recommended without line booster. Allow 10’ (maximum) as special; do not order
this, if line booster is chosen.
3) Required for installation of Passport V8.02 and later.
4) For setting the Posiflex monitor resolution, refer “Appendix: Procedure to Change POSIFLEX Monitor (LM-3110E) Resolution Setting” on page 16.
Parts List
MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 11
Satellite Dish
Interface Cable
Parts
Q13850-06 LAN Patch Cable, 6’ (packed in Combined and
Standalone Install Kits)
0 N/A 1
Ref
N/A 1 Ref N/A
Q13850-C06 LAN Crossover Patch Cable, 6’ (may be
required when using Q13708-05 Router)
0 N/A 1 N/A 1 N/A
Client PA0324PC52B
~ OR ~
PA0324PC52D
PC52 Client, Recovery Disk, Keyboard,
Mouse, and 6’ Power Cord included
0-5 O 0 N/A 0 N/A
Cash Drawer PA01570080 5.5-ft fixed RJ12 Passport Black Case Drawer
with Media Slots and 31-Ohm Solenoid
1 S 1 S 0 N/A
Q13174-06 Mounting Brackets 0 O 0 O 0 N/A
Q13174-12 Locking Cover for Insert Tray 1 O 1 O 0 N/A
Thermal Printer PA04270013 Thermal Printer with Power Supply, 
6’ DC Cord, 6’ Power Cord included. Printer
Serial Cable in Install Kits
1 S 1 S 0 N/A
Cashier Scanner PA02710303,
PA02710403,
PA02710513A
Cashier Scanner, 4’ Coiled Serial Cable, DC
Cable, 2m to Wall Power Supply included.
Printer Serial Cable is included in the Cable
Harness Assembly
1 O 1 O 0 N/A
Customer Display PA03270103A
PA03270400
Customer Display, 4’ Serial Cable, and DC
Cable 8’ to 115 VAC Wall Power Supply
included
1 S 1 S 0 N/A
Touchscreen
Monitor with
Speakers
PA03440104 15” LCD Touchscreen, 5’ 6” Video Cable, 5’ 6”
Serial Cable, 6’ Power Cord, and 2m Audio
Cable included
1 S 1 S 0 N/A
PIN Pad with Card
Reader
PA0411000XXX
PA0412000XXX
PA0421100XXX
PIN Pad with Card Reader 1 O 1 O 0 N/A
PIN Pad Pedestal M01627B003 PIN Pad Pedestal 1 O 1 O 0 N/A
PIN Pad RFID
Reader (Mat)
C00016-011PPE RFID Mat Reader 1 O 1 O 0 N/A
Item Part Number Description
CWS
Combined
CWS/MWS Standalone MWS
Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O)
Notes: 1) USB to RS-232 Converter, choose 16-port converter, if Tank Monitor is required for the order.
2) CAT5 cable must be ordered separately. XX = 10, 25, and 50’ (maximum) recommended without line booster. Allow 10’ (maximum) as special; do not order
this, if line booster is chosen.
3) Required for installation of Passport V8.02 and later.
4) For setting the Posiflex monitor resolution, refer “Appendix: Procedure to Change POSIFLEX Monitor (LM-3110E) Resolution Setting” on page 16.
Parts List
Page 12 MDE-3839Q Passport™ System Installation Addendum · December 2020
C-2 D-Box
Conversion Kit
Q13241-118 D-Box (PA0261) Cable Kit for C-2 to Passport
Conversion
0 N/A 1 O 1 O
Item Part Number Description
CWS
Combined
CWS/MWS Standalone MWS
Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O)
Notes: 1) USB to RS-232 Converter, choose 16-port converter, if Tank Monitor is required for the order.
2) CAT5 cable must be ordered separately. XX = 10, 25, and 50’ (maximum) recommended without line booster. Allow 10’ (maximum) as special; do not order
this, if line booster is chosen.
3) Required for installation of Passport V8.02 and later.
4) For setting the Posiflex monitor resolution, refer “Appendix: Procedure to Change POSIFLEX Monitor (LM-3110E) Resolution Setting” on page 16.
Parts List
MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 13
The following table lists the hardware for PX60:
CWS
Combined 
CWS/MWS
Item Part Number Description Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O)
Passport POS
Software
KS7XX-YYY Passport POS Application Software 0 N/A 1 S
Server
PA0324PB60 PS60 Server, Recovery Disk, Keyboard, Mouse,
6’ Power Cord, RAS Modem, and Phone Line
Cord, 6’ included
0 N/A 1 S
PA0324PS65 PS65 EDGE Server 0 N/A 1 O
Combined
Install Kit
M01462K002Q Combined Install Kit 0 N/A 1 S
Cashier Install
Kit
M01462K001Q Cashier Install Kit 1 S 0 N/A
LAN Router Q13708-05B LAN Hub 8-port with 6’ DC Power Supply Cord
(previous part number- Q13708-01)
0 N/A 1 O
SZR PA0424000X SZR with 6-inch DC Power Supply Cord 0 N/A 1 O
QWERTY
Keyboard and
Mouse
Q13181-09 USB QWERTY Keyboard and Mouse 1 S 1 S
UPS PA03310004 UPS, 6’ USB Cable, and 6’ Power Cord included 1 S 1 S
EDH PA0419XXXX PE60 EDH, Power Supply and two 6’ LAN Patch
Cords included
0 N/A 1 S
D-Box
PA03060020 Two-wire D-Box, Power Cable, 6’ included 0 N/A 1 - 4 O
PA03380000 Wayne® D-Box 0 N/A 1 - 2 O
PA03380001 Tokheim® D-Box 0 N/A 1 O
Report Printer PA03400008 Brother HL-L2370DW Report Printer (USB Cable
in Install Kits)
0 N/A 1 S
Clients PA0324PC60 PC60 Client, Recovery Disk, Keyboard, Mouse,
Mouse Pad, and 6’ Power Cord included
0 - 5 S N/A O
Cash Drawer
PA01570080 5.5-ft fixed RJ12 Passport Black Case Drawer
with Media Slots and 31-Ohm Solenoid
1 S 1 S
Q13174-12 Locking Cover for Insert Tray 1 O 1 O
Thermal
Printer
PA04270013 Thermal Printer with Power Supply, 6’ DC Cord,
and 6’ Power Cord
1 S 1 S
Parts List
Page 14 MDE-3839Q Passport™ System Installation Addendum · December 2020
CWS
Combined 
CWS/MWS
Item Part Number Description Qty
Standard (S)
Optional (O) Qty
Standard (S)
Optional (O)
Scanner
PA02710303,
PA02710403,
~ OR ~
PA02710513A
Scanner, Coiled Serial Cable, 4’ and DC Cable, 
2 m to Wall Power Supply Included 1 O 1 O
Customer
Display
PA03270103A
PA03270400
Customer Display, Serial Cable, 4’ and DC
Cable, 8’ to 115 VAC Wall Power Supply
included
1 S 1 S
PIN Pad with
Card Reader
PA0411000XXX
PA0412000XXX
PA0420000XXXX
PIN Pad with Card Reader, 9’ RS-232 Cables
and Power Supply with 6’ DC Cable included 1 S 1 S
PA0421100XXX PIN Pad with Card Reader and Power Supply
PIN Pad
Pedestal
M14572K001 PIN Pad Pedestal, iSC250
1 O 1 O
M14572K003 PIN Pad Pedestal MX915 (New Installation)
M01627B011 PIN Pad Pedestal MX915 (Replacing an iSC250)
USB/Serial
Converter
M01700B104B USB to RS-232 Converter, Single Port 1 - 2 O1 - 2 O
Parts List
MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 15
Components Shipped with Minitowers
The following table contains a complete list of Passport components packed in the minitowers:
Part Number Description CWS
Combined
CWS/MWS
Standalone
MWS
Q11121-07 Power Strips 1 1 1
Q11121-10 Power Strips 0 1 0
Q13180-20B Gender Mender at USB Converter, Bag of 5, Server [Environmental Management Console (EMC), Price Sign, Car Wash,
GSM, and Spare]
0 1 1
Q13850-06 LAN Patch Cable, 6’ [2-PSXX (LAN Wall Outlet and Patch Panel to Router) and 2-Satellite (LAN Wall Outlet and Patch
Panel)]
1 2 2
Q13850-C06 LAN Crossover Patch Cable, 6’ 0 1 1
M02964A001 Label Sheet, Site Peripheral Marking 0 1 1
Appendix: Procedure to Change POSIFLEX Monitor (LM-3110E) Resolution Setting
Page 16 MDE-3839Q Passport™ System Installation Addendum · December 2020
Appendix: Procedure to Change POSIFLEX Monitor 
(LM-3110E) Resolution Setting
To change the resolution setting, proceed as follows:
1Connect the power cable and power up the monitor. From the Control Panel, navigate to the
Display tab (see Figure 1).
Figure 1: Connecting Power Cable and Navigating to Display Tab
2Select Change display settings (see Figure 2).
Figure 2: Selecting Change Display Settings
MDE-3839Q Passport™ System Installation Addendum · December 2020 Page 17
Appendix: Procedure to Change POSIFLEX Monitor (LM-3110E) Resolution Setting
3Select the Advanced tab. A new window with multiple tabs open (see Figure 3).
Figure 3: Selecting Advanced Tab
4Navigate to the Intel® HD Graphics Control Panel tab. Set values as shown in figure and
click Apply (see Figure 4).
Figure 4: Setting Display Values
5Click OK (see Figure 5).
Figure 5: Display Resolution Applied
The resolution setting procedure is now complete.
EMC™, Tank Monitor™, and Passport™are trademarks of Gilbarco Inc. Gilbarco®is a registered trademark of Gilbarco Inc. GOLDSM is a

service mark of Gilbarco Inc.
All product names, logos, and brands are the property of their respective owners and are for identification purposes only. Use of these names,
logos, and brands does not imply endorsement.
© 2020 Gilbarco Inc.
7300 West Friendly Avenue · Post Office Box 22087
Greensboro, North Carolina 27420
Phone (336) 547-5000 · http://www.gilbarco.com · Printed in the USA
MDE-3839Q Passport™ System Installation Addendum · December 2020
