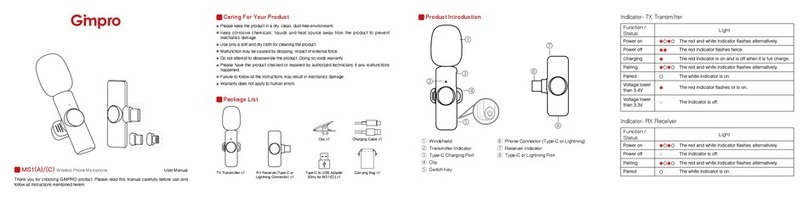

GIMPRO MS1XA User manual

Please keep the product in a dry, clean, dust-free environment.
Keep corrosive chemicals, liquids and heat source away from the product to prevent
mechanics damage.
Use only a soft and dry cloth for cleaning the product.
Malfunction may be caused by dropping, impact of external force.
Do not attempt to disassemble the product. Doing so voids warranty.
Please have the product checked or repaired by authorized technicians if any malfunctions
happened.
Failure to follow all the instructions may result in mechanics damage.
Warranty does not apply to human errors.
Windshield
Transmitter Indicator
Type-C Charging Port
Clip
Switch Key
Phone Connector (Type-C or Lightning)
Receiver Indicator
Type-C or Lightning Port
TX Transmitter x2 Carrying Bag x1
Charging Cable x1Clip x2
Type-C to USB Adapter
[Only for MS1X(C)] x1
RX Receiver(Type-C or
Lightning Connector) x1
Indicator- TX Transmitter
Indicator- RX Receiver
Function /
Status
Function /
Status
Power on
Power on
The red and white indicator flashes alternatively.
The red and white indicator flashes alternatively.
The red indicator is on and is off when it is full charge.
The red and white indicator flashes alternatively.
The white indicator is on.
The red indicator flashes twice.
The indicator is off.
The red and white indicator flashes alternatively.
The white indicator is on.
The red indicator flashes or is on.
The indicator is off.
Power off
Power off
Charging
Pairing
Low battery
alarm (Voltage
lower than 3.4V)
Pairing
Paired
Battery protection
(Voltage lower
than 3.3V)
Paired
Light
Light
1-Trigger-2 Wireless Phone Microphone
MS1X(A)/(C) User Manual
Thank you for choosing GIMPRO product. Please read this manual carefully before use and
follow all instructions mentioned herein.
Caring For Your Product
Package List
Product Introduction

TX Transmitter
RX Receiver
Transmission Frequency
Transmission Distance
Latency
Sensitivity
Frequency Response
Sampling Rate
SNR
Standby Time
Working Temperature
Dimensions
Weight
Transmission Frequency
Frequency Response
Dimensions
Weight
2.4GHz
≥10m
≤20ms
-38dB±3dB
20Hz-20KHz
48KHz
≤90dB
8H
-10℃-50℃
15x57x15mm
7g
2.4GHz
20Hz-20KHz
44x26x8mm
4g
Moman (UK) Limited
Unit 25 Basepoint Business Centre, Aviation Park, West Christchurch,
United Kingdom BH23 6NX
www.momanx.com
@MomanGlobal
https://moman.co/youtube
TX
RX
1. Power On/Off
1. Power On/Off
2. Pairing
2. Connecting
3. Charging
3. Pairing
4. Reset
5. Charging
On: Long press the Switch Key for 3s.
Off: Long press the Switch Key for 3s.
On: Plug in the device
Off: Plug out of the device
With two transmitters ON, plug the receiver into device and the system will pair
automatically.
※If the TX and RX are not connected, you need to restart it and re-pair: Restart the
TX until the red and white indicator flashes alternatively. Plug the RX into device and
make sure its indicator becomes red and white alternatively. When TX and RX are
paired successfully, both white indicators are on. If one of transmitters isn’t working,
restart it.
Connect the receiver to phone.
※Use the Type-C to USB Adapter [Only for MS1X(C)] to connect with computer.
※Realme / XIAOMI / HUAWEI / OPPO / VIVO / IQOO mobile phones can be used
normally only when OTG function ( please search “OTG” on the settings) turns on.
5V/1A;
Please fully charge the TX transmitters with charging cable before use.
After power on, plug the receiver into device and the system will pair automatically.
Plug out of the device and plug it in to restart it.
There is no battery in RX receiver and no need to recharge during live.
※If the phone is low power during live, it can be recharged directly through
Lightning port on the RX receiver. Devices with Type-C port do not support this
function.
Operations Specications
