Giorik 700 Series Instruction manual

Target Top
(Gas and Electric)
INSTALLATION / OPERATION / MAINTENANCE
MANUAL
(READ ALL INSTRUCTIONS BEFORE USE)
700/900
Revision: A - 22/07/2022 - 05
700 Series - Gas:
900 Series - Gas:
Models:
TG720TT / TG720GT
TG740TT / TG740GT / TG740FT
TG74GTLT / TG74GTRT / TG74FTLT / TG74FTRT
TG76GTLT / TG76FTRT / TG76FTLT
TG920TT / TG920GT
TG940TT / TG940GT / TG940FT
700 Series - Electric:
900 Series - Electric:
TE720TT / TE720GT
TE740TT / TE740GT / TE740ET
TE920GT
TE940TT / TE940GT / TE940ET

Page Intentionally Left Blank
Page 1
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz

Page 2
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
1.0 Introduction
1.1 Your New Giorik Product . . . . . . . . . . . . . . . . . .3
1.2 Australia and New Zealand Warranty . . . . . . . . . . . .4
1.2.1 Warranty Period
1.2.2 Warranty Registration
1.3 General Precautions . . . . . . . . . . . . . . . . . . . .5
1.3.1 General Warnings
1.4 Setting Up Information . . . . . . . . . . . . . . . . . . .6
1.4.1 Handling
1.4.2 Unpacking
1.4.3 Disposal
2.0 Specification
2.1 Specification . . . . . . . . . . . . . . . . . . . . . . . .7
2.1.1 Giorik 700 Series
2.0 Specification
2.1.2 Giorik 900 Series
2.1.3 Burner Configuration
2.1.4 Rating Plate - Check Before Installation

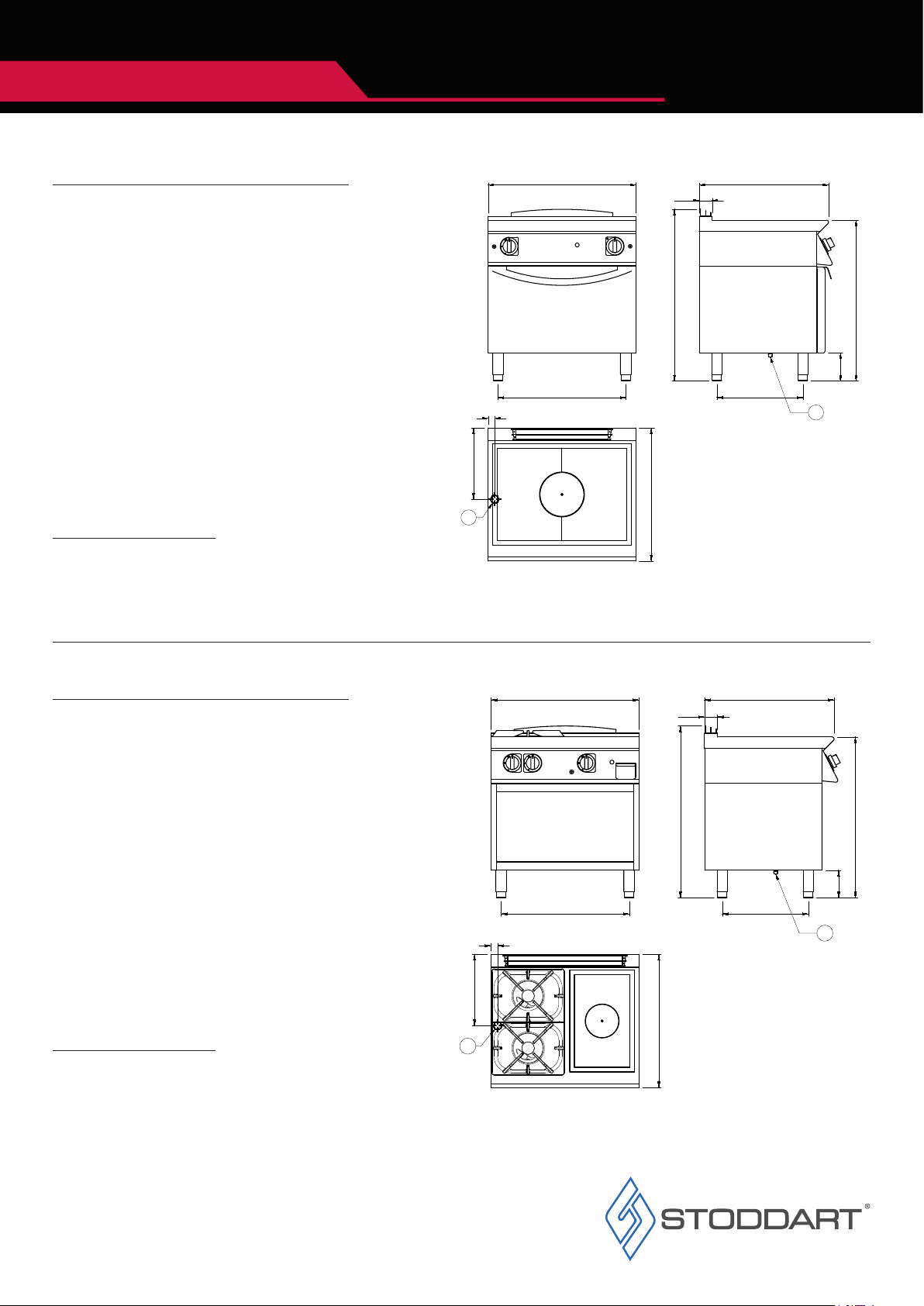

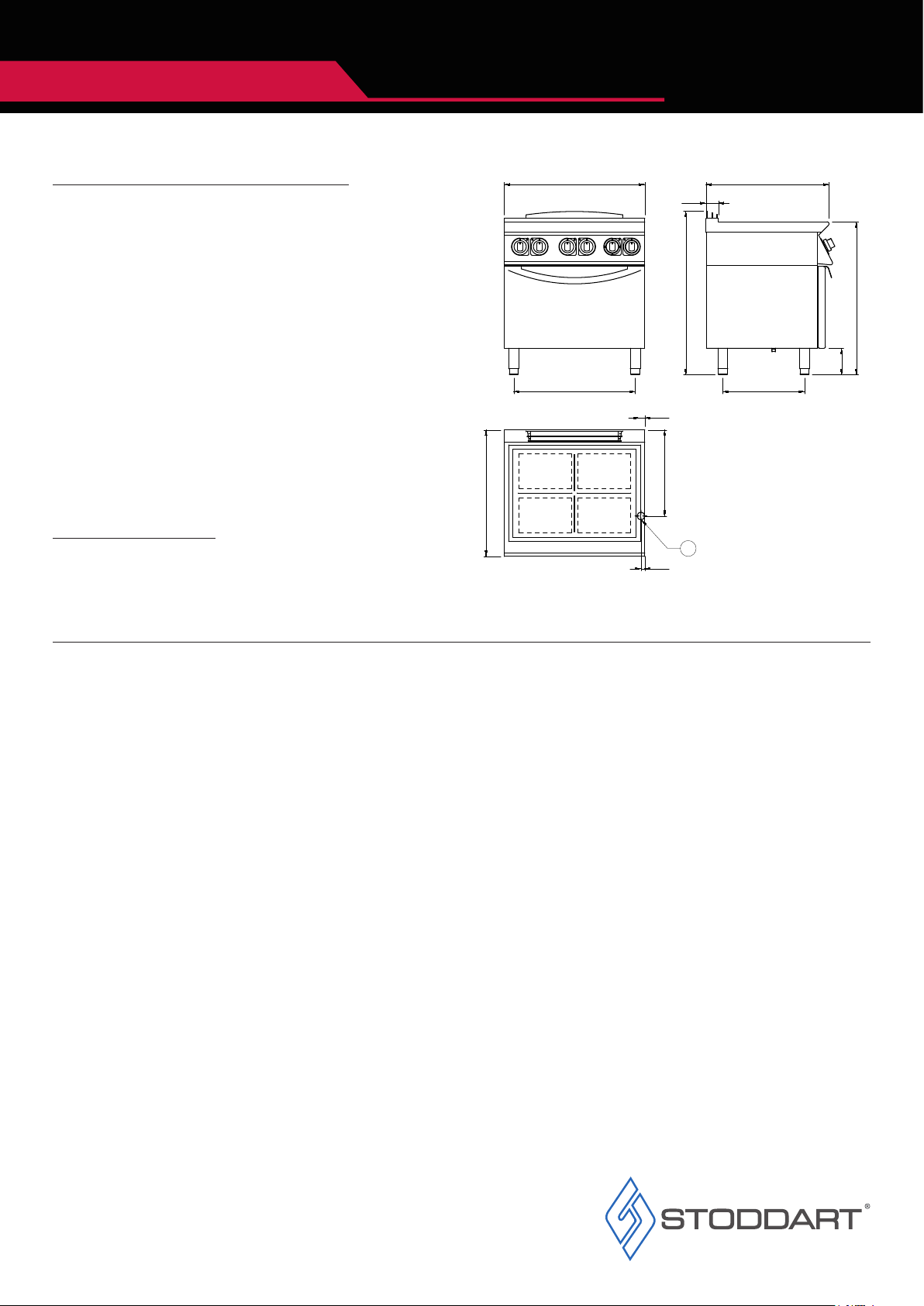

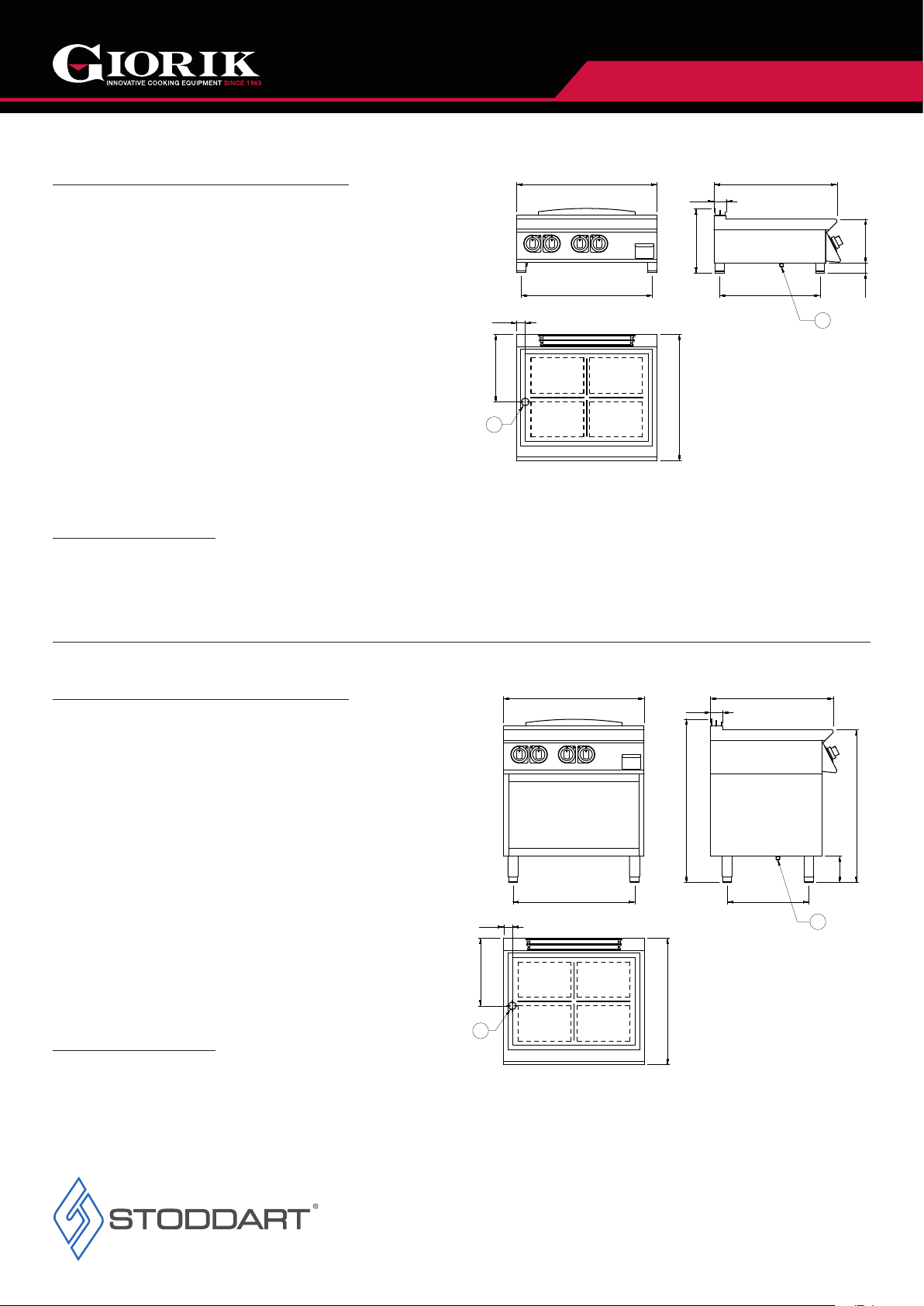

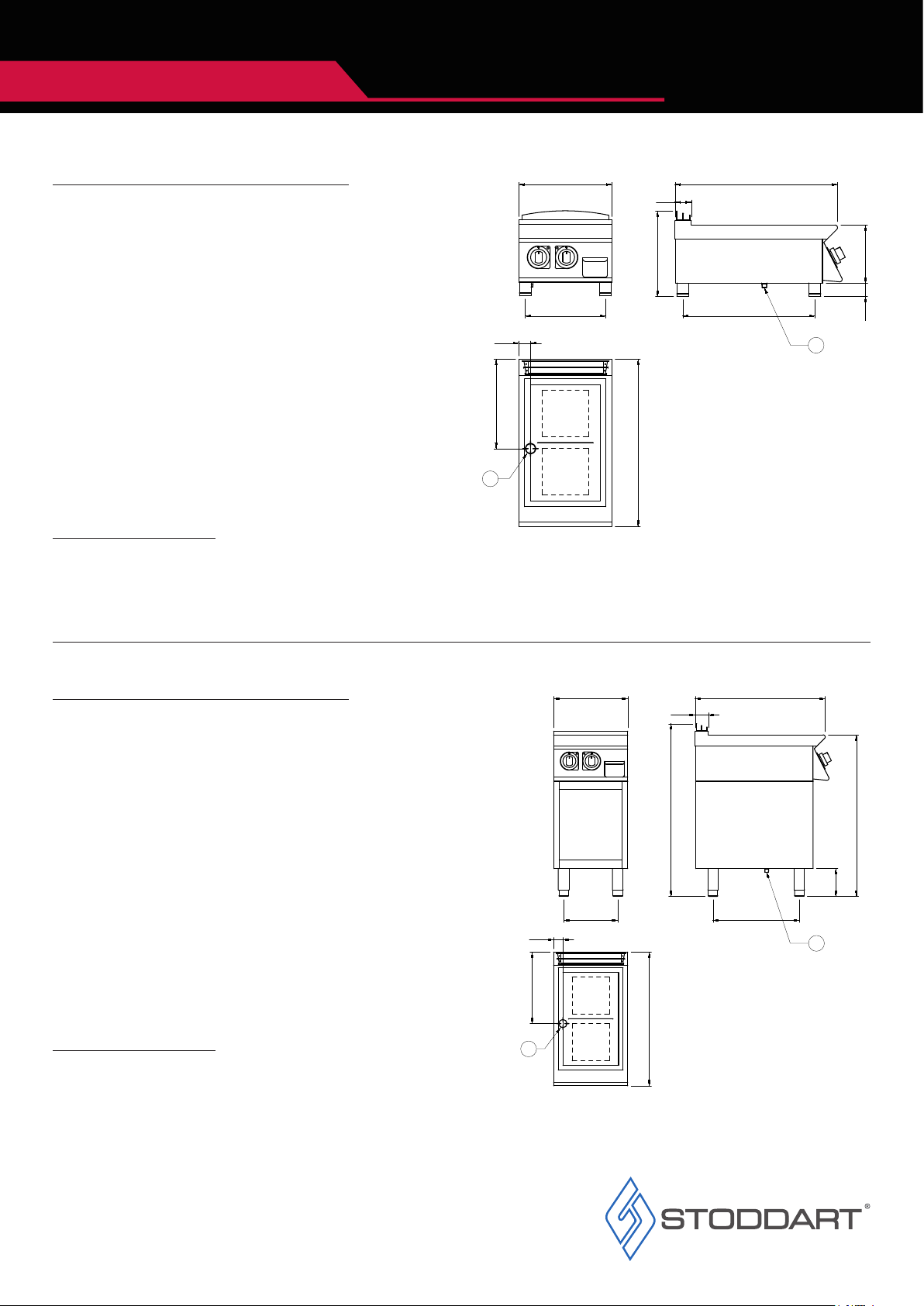

2.2 Technical Drawing . . . . . . . . . . . . . . . . . . . . 10
2.2.1 TG720TT
2.2.2 TG720GT
2.2.3 TG740TT
2.2.4 TG740GT
2.2.5 TG740FT
2.2.6 TG74GTLT
2.2.7 TG74GTRT
2.2.8 TG74FTLT
2.2.9 TG74FTRT
2.2.10 TG76GTLT
2.2.11 TG76FTLT
2.2.12 TG76FTRT
2.2.13 TE720TT
2.2.14 TE720GT
2.2.15 TE740TT
2.2.16 TE740GT
2.2.17 TE740ET
2.2.18 TG920TT
2.2.19 TG920GT
2.2.20 TG940TT
2.2.21 TG940GT
2.2.22 TG940ET
2.2.23 TG940FT
2.2.24 TE920GT
2.2.25 TE940TT
2.2.26 TE940GT
2.2.27 TE940ET
3.0 Installation
3.1 Positioning . . . . . . . . . . . . . . . . . . . . . . . . 24
3.1.1 General Information
3.1.2 Spacing
3.1.3 Ventilation/Extraction
3.2 Line-up Connection. . . . . . . . . . . . . . . . . . . . 25
3.3 Gas Connection. . . . . . . . . . . . . . . . . . . . . . 27
3.3.1 Connecting the gas
3.3.2 Gas Pressure Regulator
3.3.3 Gas Pressure Check
3.3.4 Low Flame Adjustment
3.4 Gas Conversion. . . . . . . . . . . . . . . . . . . . . . 29
3.4.1 Main Burner Nozzle Replacement
3.4.2 Fixed Primary Air Regulation
3.4.3 Pilot Nozzle Replacement
3.4.4 Oven - Replacement - Burner Nozzle
3.4.5 Oven - Replacement - Pilot Burner Nozzle
3.4.6 Fixed Primary Air Regulation
3.4.7 Final Check
3.5 Electrical Connection . . . . . . . . . . . . . . . . . . . 31
3.5.1 Wiring
4.0 Operation
4.1 Gas Target Top Operation . . . . . . . . . . . . . . . . . 32
4.1.1 Controller Configuration
4.1.2 Operation
4.2 Electric Target Top Operation . . . . . . . . . . . . . . . 33
4.2.1 Controller Configuration
4.2.2 Operation
4.3 Gas Oven Operation . . . . . . . . . . . . . . . . . . . 34
4.3.1 Controller Configuration
4.3.2 Operation
4.4 Electric Oven Operation. . . . . . . . . . . . . . . . . . 35
4.4.1 Electric Oven Controls
4.4.2 Electric Oven Operation
4.5 Gas Boiling Top Operation . . . . . . . . . . . . . . . . 36
4.5.1 Open Burner Controls
4.5.2 Open Burner Operation
5.0 Cleaning and Maintenance
5.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.1.1 Cleaning Schedule
5.1.2 Materials Required
5.1.3 General Information
5.1.4 Corrosion Protection
5.1.5 Surface Finish
5.1.6 Cleaning Procedure (Daily)
5.1.7 Cleaning Procedure - External Surfaces
5.1.8 Cleaning Procedure - Oven Cavity
5.1.9 Cleaning Trivets and Burners
5.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . 39
5.2.1 Periodic Maintenance
5.2.3 Troubleshooting

Page 3
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
1.0 Introduction
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this
booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use and must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer/distributor cannot be held responsible or liable for any injuries or damages of any kind that occur to persons, units or
others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of conformity
with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer/distributor are delivered assembled, where possible, and ready to install. Any installation, removal,
servicing, maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in
accordance to this documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer/distributor cannot be held responsible or liable for any unauthorised modifications or repairs. All modifications or
repairs must be approved by the manufacturer/distributor in writing before initiating. All modifications or repairs performed to this unit
must be performed at all times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Giorik product.
All Giorik products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new
Giorik product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and engineered to provide excellent results whilst offering
value-for-money, ease-of-use and reliability.
1.1 Your New Giorik Product
To register your new product, Follow the below Link/QR code.
www.stoddart.com.au/warranty-information
All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum
12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended
warranty. Full terms, conditions and exclusions can be found using the below Link/QR code.
Warranty & Registration

Page 4
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this
booklet on hand in a safe place for future reference by other operators or users.
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use and must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety. Children should be supervised to ensure that they do not play with the product
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
The manufacturer/distributor cannot be held responsible or liable for any injuries or damages of any kind that occur to persons, units or
others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of conformity
with the instructions indicated in this documentation.
Disclaimer
All units made by the manufacturer/distributor are delivered assembled, where possible, and ready to install. Any installation, removal,
servicing, maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in
accordance to this documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY.
The manufacturer/distributor cannot be held responsible or liable for any unauthorised modifications or repairs. All modifications or
repairs must be approved by the manufacturer/distributor in writing before initiating. All modifications or repairs performed to this unit
must be performed at all times by a TRAINED AND AUTHORISED SPECIALIST.
Thank you for choosing this quality Giorik product.
All Giorik products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new
Giorik product in accordance with these instructions, will provide many years of reliable service.
Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for
kitchens, food preparation and presentation. Stoddart products are manufactured and engineered to provide excellent results whilst offering
value-for-money, ease-of-use and reliability.
1.0 Introduction
To register your new product, Follow the below Link/QR code.
www.stoddart.com.au/warranty-information
All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum
12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended
warranty. Full terms, conditions and exclusions can be found using the below Link/QR code.
Warranty & Registration
1.2.2 Warranty Registration
1.2.1 Warranty Period
1.2 Australia and New Zealand Warranty

Page 5
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
1.0 Introduction
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• DO NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
When using any electrical unit, safety precautions must always be observed.
1.3 General Precautions
1.3.1 General Warnings
• DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION
• DO NOT MODIFY THIS APPLIANCE
• DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE
The equipment complies with the essential requirements of the Low Voltage Directive 2006/95/EC and Electromagnetic Compatibility Directive
2004/108/EC
It meets the provisions of the following electrical and Gas standards:
• AS/NZS 60335.1
• AS/NZS 4563, AS/NZS 5601
• AS/NZS 1869

Page 6
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
1.0 Introduction
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• DO NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
When using any electrical unit, safety precautions must always be observed.
1.4.3 Disposal
• At the end of the appliance’s working life, make sure it is scrapped & components recycled properly
• Current environmental protection laws in the state/country of use must be observed
• Doors must be removed before disposal
• Electrical Connection cable must be removed before disposal
• For further information on the recycling of this product, contact the local dealer/agent or the local body responsible for waste disposal
1.4 Setting Up Information
1.4.1 Handling
1.4.2 Unpacking
• Use suitable means to move the unit;
- For smaller items use two people
- For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet)
• Check the unit for damage before and after unpacking. If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt. No claims will be accepted or processed after this period
• Remove all protective plastic film, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death
IMPORTANT
To be installed only by an authorised service person

Page 7
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.1.1 Giorik 700 Series
2.1 Specification
2.0 Specification
700 Series - Gas
Model TG720TT TG720GT TG740TT TG740GT TG740FT
Description Target Top, Countertop Target Top, Open base Target Top, Countertop Target Top, Open base Target Top, Gas Oven
Weight 50kg 60kg 90kg 105kg 150kg
Overall Height 367mm 930mm 367mm 930mm 930mm
Overall Depth 720mm 720mm 720mm 720mm 720mm
Overall Width 400mm 400mm 800mm 800mm 800mm
Plate Dimensions 300 x 500mm 300 x 500mm 700 x 500mm 700 x 500mm 700 x 500mm
Electrical Connection --- --- --- --- ---
Natural Universal LPG Natural Universal LPG Natural Universal LPG Natural Universal LPG Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP
Minimum Normal Test
Gas Pressure 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa
Maximum Normal Test
Gas Pressure 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa
Nominal Test Point
Pressure 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa
Total Nominal Gas
Consumption 23 MJ/h 23 MJ/h 23 MJ/h 23 MJ/h 46 MJ/h 46 MJ/h 46 MJ/h 46 MJ/h 74.8 MJ/h 74.8 MJ/h
700 Series - Gas
Model TG74GTLT TG74GTRT TG74FTLT TG74FTRT
Description Target Top, 2 x LH Burner
Hob, Open Base
Target Top, 2 x RH Burner
Hob, Open Base
Target Top, 2 x LH Burner
Hob, Gas Oven
Target Top, 2 x RH Burner
Hob, Gas Oven
Weight 110kg 110kg 130kg 130kg
Overall Height 930mm 930mm 930mm 930mm
Overall Depth 720mm 720mm 720mm 720mm
Overall Width 800mm 800mm 800mm 800mm
Plate Dimensions 300 x 500mm 300 x 500mm 300 x 500mm 300 x 500mm
Natural Universal LPG Natural Universal LPG Natural Universal LPG Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP
Minimum Normal Test
Gas Pressure 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa
Maximum Normal Test
Gas Pressure 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa
Nominal Test Point
Pressure 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa
Total Nominal Gas
Consumption 80.6 MJ/h 80.6 MJ/h 80.6 MJ/h 80.6 MJ/h 109.4 MJ/h 109.4 MJ/h 109.4 MJ/h 109.4 MJ/h
700 Series - Gas
Model TG76GTLT TG76FTLT TG76FTRT
Description Target Top, 2 x LH Burner
Hob, Open Base
Target Top, 2 x LH Burner
Hob, Gas Oven
Target Top, 2 x RH Burner
Hob, Gas Oven
Weight 200kg 220kg 220kg
Overall Height 367mm 930mm 930mm
Overall Depth 720mm 720mm 720mm
Overall Width 1200mm 1200mm 1200mm
Plate Dimensions 700 x 500mm 700 x 500mm 700 x 500mm
Natural Universal LPG Natural Universal LPG Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP
Minimum Normal Test
Gas Pressure 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa
Maximum Normal Test
Gas Pressure 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa
Nominal Test Point
Pressure 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa
Total Nominal Gas
Consumption 103.6 MJ/h 103.6 MJ/h 132.4 MJ/h 132.4 MJ/h 132.4 MJ/h 132.4 MJ/h

Page 8
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.1.2 Giorik 900 Series
2.0 Specification
700 Series - Electric
Model TE720TT TE720GT TE740TT TE740GT TE740ET
Description Target Top, Countertop Target Top, Open base Target Top, Countertop Target Top, Open base Target Top, Electric Oven
Weight 60kg 70kg 110kg 125kg 190kg
Overall Height 367mm 930mm 367mm 930mm 930mm
Overall Depth 720mm 720mm 720mm 720mm 720mm
Overall Width 400mm 400mm 800mm 800mm 800mm
Plate Dimensions 300 x 500mm 300 x 500mm 700 x 500mm 700 x 500mm 700 x 500mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz /4.2kW
3Ø + N + E
415VAC / 50Hz /4.2kW
3Ø + N + E
415VAC / 50Hz /10.4kW
3Ø + N + E
415VAC / 50Hz /10.4kW
3Ø + N + E
415VAC / 50Hz /16.8kW
900 Series - Electric
Model TE920GT TE940TT TE940GT TE940ET
Description Target Top, Open base Target Top, Countertop Target Top, Open base Target Top, Electric Oven
Weight 90kg 115kg 150kg 190kg
Overall Height 930mm 367mm 930mm 930mm
Overall Depth 920mm 920mm 920mm 920mm
Overall Width 400mm 800mm 800mm 800mm
Plate Dimensions 300 x 700mm 700 x 700mm 700 x 700mm 700 x 700mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz /6.2kW
3Ø + N + E
415VAC / 50Hz /12.5kW
3Ø + N + E
415VAC / 50Hz /12.5kW
3Ø + N + E
415VAC / 50Hz /18.9kW
900 Series
Model TG920TT TG920GT TG940TT TG940GT TG940FT
Description Target Top, Countertop Target Top, Open base Target Top, Countertop Target Top, Open base Target Top, Gas Oven
Weight 60kg 82kg 110kg 145kg 190kg
Overall Height 367mm 930mm 367mm 930mm 930mm
Overall Depth 920mm 920mm 920mm 920mm 920mm
Overall Width 400mm 400mm 800mm 800mm 800mm
Plate Dimensions 300 x 700mm 300 x 700mm 700 x 700mm 700 x 700mm 700 x 700mm
Electrical Connection --- --- --- --- ---
Natural Universal LPG Natural Universal LPG Natural Universal LPG Natural Universal LPG Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP 1/2'' BSP
Minimum Normal Test
Gas Pressure 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa 1.3 kPa 2.75 kPa
Maximum Normal Test
Gas Pressure 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa 3.5 kPa
Nominal Test Point
Pressure 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa 1.0 kPa 2.65 kPa
Total Nominal Gas
Consumption 28 MJ/h 28 MJ/h 28 MJ/h 28 MJ/h 56 MJ/h 56 MJ/h 56 MJ/h 56 MJ/h 84.8 MJ/h 84.8 MJ/h

Page 9
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
Fig.1.
Imported by: STODDART
www.stoddart.com.au
Model No: TG720GT
Serial No: 007894/26/22
Main burner gas injector
(100th of a mm)
215 Natural Gas
140K Universal LPG
Total gas consumption
21.6 MJ/h
Test Point Pressure
1.00 kPa Natural Gas
2.65 kPa Universal LPG
Factory set gas type
Natural Gas
Universal LPG
Description: Giorik; 700 Target Top; Gas; 800mm; On Open Base
ID: GAS-??????-001
2.1.4 Rating Plate - Check Before Installation
2.1.3 Burner Configuration
2.0 Specification
The rating plate contains identification and technical data. See example below.
Confirm that this unit has been tested and approved for the type of gas used at the installation location.
Main Injector
(100th of mm)
Bypass Screw (mm) Total Nominal Gas
Consumption (MJ/h)
Fixed Aeration
Shutter Setting ‘A’
Natural Gas
TG720GT / TG720TT / TG74GTLT / TG74GTRT
TG74FTLT / TG74FTRT 215 ADJ 23 MJ/h ---
TG740GT / TG740TT / TG740FT TG76GTLT
TG76FTRT / TG76FTLT 290 ADJ 46 MJ/h ---
TG920GT / TG920TT 240 ADJ 28 MJ/h ---
TG940GT / TG940TT / TG940FT 370 ADJ 56 MJ/h ---
Oven 250 --- 28.8 MJ/h ---
Open Burner 250 ADJ 28.8 MJ/h ---
Pilot Burner 700/900 27.2 --- --- ---
Pilot Burner Oven 27 --- --- ---
Pilot Burner Open Burner ADJ --- --- ---
Universal LPG
TG720GT / TG720TT / TG74GTLT / TG74GTRT
TG74FTLT / TG74FTRT 140 0.007 23 MJ/h ---
TG740GT / TG740TT / TG740FT TG76GTLT
TG76FTRT / TG76FTLT 190 0.007 46 MJ/h ---
TG920GT / TG920TT 150 --- 28 MJ/h ---
TG940GT / TG940TT / TG940FT 220 --- 56 MJ/h ---
Oven 155 --- 28.8 MJ/h ---
Open Burner 155 --- 28.8 MJ/h ---
Pilot Burner 700/900 22.1 --- --- ---
Pilot Burner Oven 14 --- --- ---
Pilot Burner Open Burner ADJ --- --- ---

Page 10
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.2.1 TG720TT
2.2.2 TG720GT
2.2 Technical Drawing
2.0 Specification
70
700
930
(915 - 960)
465
150
870
(855 - 900)
400
292
385
50
720
A
A
70
367
570
57 250
700400
346
385
50
720
A
A
700 Series - Gas
Model TG720TT
Description Target Top, Countertop
Weight 50kg
Overall Height 367mm
Overall Depth 720mm
Overall Width 400mm
Plate Dimensions 300 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 23 MJ/h 23 MJ/h
700 Series - Gas
Model TG720GT
Description Target Top, Open base
Weight 60kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 400mm
Plate Dimensions 300 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 23 MJ/h 23 MJ/h
Legend:
AGas Connection
Legend:
AGas Connection

Page 11
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.2.3 TG740TT
2.0 Specification
2.2.4 TG740GT
700
70
930
(915 - 960)
465
150
870
(855 - 900)
800
692
385
50
720
A
A
70
900
367
770
57 250
746
800
385
50 A
A
920
Legend:
AGas Connection
Legend:
AGas Connection
700 Series - Gas
Model TG740TT
Description Target Top, Countertop
Weight 90kg
Overall Height 367mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 700 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 46 MJ/h 46 MJ/h
700 Series - Gas
Model TG740GT
Description Target Top, Open base
Weight 105kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 700 x 500mm
Electrical Connection ---
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 46 MJ/h 46 MJ/h

Page 12
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.0 Specification
2.2.6 TG74GTLT
2.2.5 TG740FT
70
700
930
(915 - 960)
870
(855 - 900)
465
800
692
385
36
720
A
A
150
50
70
001
130
170
200
230
140
250
270
003
°C
Legend:
AGas Connection
700 Series - Gas
Model TG740FT
Description Target Top, Gas Oven
Weight 150kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 700 x 500mm
Electrical Connection ---
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 74.8 MJ/h 74.8 MJ/h
70
700
930
(915 - 960)
465
150
870
(855 - 900)
692
800
385
36
720
A
A
Legend:
AGas Connection
700 Series - Gas
Model TG74GTLT
Description Target Top, 2 x LH Burner
Hob, Open Base
Weight 110kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 300 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 80.6 MJ/h 80.6 MJ/h

Page 13
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.0 Specification
2.2.8 TG74FTLT
2.2.7 TG74GTRT
Legend:
AGas Connection
Legend:
AGas Connection
385
36
70
700
870
(855 - 900)
465
930
(915 - 960)
800
692
720
A
A
150
700 Series - Gas
Model TG74GTRT
Description Target Top, 2 x RH Burner
Hob, Open Base
Weight 110kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 300 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 80.6 MJ/h 80.6 MJ/h
700 Series - Gas
Model TG74FTLT
Description Target Top, 2 x LH Burner
Hob, Gas Oven
Weight 130kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 300 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 109.4 MJ/h 109.4 MJ/h
800
692
930
70
700
870
(855 - 900)
465
385
36
414
30
720
150
(915 - 960)
AB

Page 14
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.0 Specification
2.2.10 TG76GTLT
2.2.9 TG74FTRT
Legend:
AGas Connection
700 Series - Gas
Model TG74FTRT
Description Target Top, 2 x RH Burner
Hob, Gas Oven
Weight 130kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 300 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 109.4 MJ/h 109.4 MJ/h
70
700800
692 465
930
(915 - 960)
870
(955 - 900)
150
273
385
27
36
720
B
A
Legend:
AGas Connection
70
700
930
(915 - 960)
465
150
870
(855 - 900)
1200
1092
385
36
720
A
700 Series - Gas
Model TG76GTLT
Description Target Top, 2 x LH Burner
Hob, Open Base
Weight 200kg
Overall Height 367mm
Overall Depth 720mm
Overall Width 1200mm
Plate Dimensions 700 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 103.6 MJ/h 103.6 MJ/h

Page 15
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.0 Specification
2.2.11 TG76FTLT
2.2.12 TG76FTRT
Legend:
AGas Connection
Legend:
AGas Connection
930
(915 - 960)
70
700
870
150
(855 - 900)
465
1200
1092
385
36
720
A
700 Series - Gas
Model TG76FTRT
Description Target Top, 2 x RH Burner
Hob, Gas Oven
Weight 220kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 1200mm
Plate Dimensions 700 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 132.4 MJ/h 132.4 MJ/h
700 Series - Gas
Model TG76FTLT
Description Target Top, 2 x LH Burner
Hob, Gas Oven
Weight 220kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 1200mm
Plate Dimensions 700 x 500mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 132.4 MJ/h 132.4 MJ/h
930
(915 - 960)
70
700
870
150
(855 - 900)
465
1200
1092
385
36
720
A

Page 16
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.0 Specification
2.2.13 TE720TT
2.2.14 TE720GT
Legend:
AElectrical Connection
700 Series - Electric
Model TE720TT
Description Target Top, Countertop
Weight 60kg
Overall Height 367mm
Overall Depth 720mm
Overall Width 400mm
Plate Dimensions 300 x 500mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz /4.2kW
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
400
70
700
346 570
367
25057
50
385
720
A
A
Legend:
AElectrical Connection
700 Series - Electric
Model TE720GT
Description Target Top, Open base
Weight 70kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 400mm
Plate Dimensions 300 x 500mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz /4.2kW
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
400
292 465
150
870
70
700
50
385
720
(855 - 900)
930
(915 - 960)
A
A

Page 17
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.2.15 TE740TT
2.2.16 TE740GT
Legend:
AElectrical Connection
Legend:
AElectrical Connection
700 Series - Electric
Model TE740TT
Description Target Top, Countertop
Weight 110kg
Overall Height 367mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 700 x 500mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz /10.4kW
700 Series - Electric
Model TE740GT
Description Target Top, Open base
Weight 125kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 700 x 500mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz /10.4kW
2.0 Specification
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
70
700
930930
465
870
(855 - 900)
(915 - 960)
800
692
50
385
720
150
A
A
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
25057
570
367
70
700800
746
385
50
720
A
A

Page 18
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
700/900
2.2.17 TE740ET
Legend:
AElectrical Connection
700 Series - Electric
Model TE740ET
Description Target Top, Electric Oven
Weight 190kg
Overall Height 930mm
Overall Depth 720mm
Overall Width 800mm
Plate Dimensions 700 x 500mm
Electrical Connection 3Ø + N + E
415VAC / 50Hz /16.8kW
2.0 Specification
50
70
100
130
170
200
230
140
250
270
003
°C
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
50
100
300
200
400
°C
150
250
350
A
800 700
70
930
692 465
870
(915 - 960)
150
(855 - 900)
30
22
490
720

Page 19
Due to continuous product research and development,
the information contained herein is subject to change without notice.
www.stoddart.com.au
www.stoddart.co.nz
2.2.18 TG920TT
2.2.19 TG920GT
2.0 Specification
Legend:
AGas Connection
Legend:
AGas Connection
70
900
930
(915 - 960)
870
150
(855 - 900)
665292
400
385
50
920
A
A
900 Series - Gas
Model TG920TT
Description Target Top, Countertop
Weight 60kg
Overall Height 367mm
Overall Depth 920mm
Overall Width 400mm
Plate Dimensions 300 x 700mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 28 MJ/h 28 MJ/h
900 Series - Gas
Model TG920GT
Description Target Top, Open base
Weight 82kg
Overall Height 930mm
Overall Depth 920mm
Overall Width 400mm
Plate Dimensions 300 x 700mm
Natural Universal LPG
Gas Connection 1/2'' BSP 1/2'' BSP
Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa
Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa
Nominal Test Point Pressure 1.0 kPa 2.65 kPa
Total Nominal Gas Consumption 28 MJ/h 28 MJ/h
70
900
367
770
25057
400
346
385
50
920
A
A
