Gladen SPL 3000c1 User manual

SPL 3000c1
User s Guide
for amplifiers

- 2 -
Digital class-D linkable mono block amplifier
Dual MOS-FET PWM power supplies
Daisy-chain through output Jack
Stable into 1 ohm and 2 ohms load
24dB/oct variable crossover
Variable 24 dB low pass (LPF) crossover
Variable
Variable phase shift
Variable subsonic filter
Efficiency : 86% @ 4 ohm, at 100Hz
Multi-way protection circuitry
(thermal/over current/speaker short/speaker DC protection)
RCA line input & output
Heavy duty copper layer double sided epoxy PCB
Tested voltage & THD : 14.4V &
Bass Boost
Wired Remote Controller RTC (Optional)
Zero(0) gauge power supply connectors
less than 1% THD
Operating voltage : DC10V~16V
SPL 3000c1
FEATURES

- 3 -
1. Battery disconnection
First, disconnect the power supply of the vehicle by removing the ground cable of the battery.
2. Ground connection
Connect the GND (ground) connection of the amplifier with the car chassis.
Keep this cable as short as possible (not longer than 50 cm) and use a suitable cross section
(AWG size 6 - 4). Make sure, that the connection with the vehicle chassis is free of paint,
dirt and dust.
3. +12 V Power connection
Connect the +12 V contact of the amplifier with the supply cable via a fuse directly to the
vehicle battery. Keep in mind, that the length of the cable from fuseholder to vehicle battery
has to be maximum 30cm..
For the amplifier to function at its best, use a high quality fuse holder and suitable cable
preferably AWG 6-4 cable.
This fuse protects the amplifier and the vehicle against the possibility of a short circuit in
the power cable.
4. Remote connection
Connect the REM-terminal of the amplifier to the remote-output (automatic 12 V
antenna-output) ofthe head unit. Use a 0,5 - 1,5 mm power cable.
a) Take extra care when making the connections. Make sure that no electrical cable,
gas tank, hydraulic brakes or other components get damaged.
b) Allow enough cooling and air circulation and avoid installing the unit in small closed
boxes or close to parts that heats up easily.
c) Keep the amplifier away from liquid, moisture, heat and foreign materials.
d) This amplifier can only be used in vehicles with 12V DC power supply.
e) Never install the power supply cable with other original vehicle wires (gas cables), fan
motors, control modules etc.
f) Install the signal cable (cinch cable) as well as speaker cable far away from the power
cables to avoid interference with music signals.
g) To avoid dangers of cables binding, squeezing or breaking, use the cables supplied with
your amplifier.
Please take the following precautions when installing your amplifier:
Caution
SPL 3000c1
POWER CONNECTION
BATTERY
GROUND
300A (External Type Fuse)
Recommended Ampere
GROUND
POWER
GND
REMB+
Caution
This amplifier is not supplied
with internal fuse in itself.
Make sure you install in-line
fuse holder from
the terminal of battery.

Protect
INPUT
AB
Max 60Hz 12dB 90Hz 250Hz 180Min 10Hz 0dB 30Hz 30Hz 0
SLAVE
SPEAKER OUTPUT
Power
REMOTE
BOOST FREQ. LPF PHASE
SUBSONIC
GAIN
BASS
MASTER
MASTER
OUTPUT
SLAVE
INPUT
Protect
INPUT
AB
Max 60Hz 12dB 90Hz 250Hz 180Min 10Hz 0dB 30Hz 30Hz 0
SLAVE
SPEAKER OUTPUT
Power
REMOTE
BOOST FREQ. LPF PHASE
SUBSONIC
GAIN
BASS
MASTER
MASTER
OUTPUT
SLAVE
INPUT
Protect
INPUT
AB
Max 60Hz 12dB 90Hz 250Hz 180Min 10Hz 0dB 30Hz 30Hz 0
SLAVE
SPEAKER OUTPUT
Power
REMOTE
BOOST FREQ. LPF PHASE
SUBSONIC
GAIN
BASS
MASTER
MASTER
OUTPUT
SLAVE
INPUT
SPL 3000c1
- 4 -
RCA CONNECTION
HEAD UNIT
Wired Remote Control
(optional)
Single Amplifier Application
2 Amplifiers in Parallel Application (MASTER & SLAVE RCA Connection)
"SLAVE UNIT"
"MASTER UNIT"
To “INPUT SLAVE " of "SLAVE UNIT"
*It should be set to "MASTER ( )"
in a parallel operation mode.
(Master & Slave design)
HEAD UNIT
*It should be set to "SLAVE ( )"
in a parallel operation mode.
(Master & Slave design)
*It should be set to
"MASTER ( )"
in a single unit mode.
Wired Remote Control
(optional)

- 5 -
SPL 3000c1

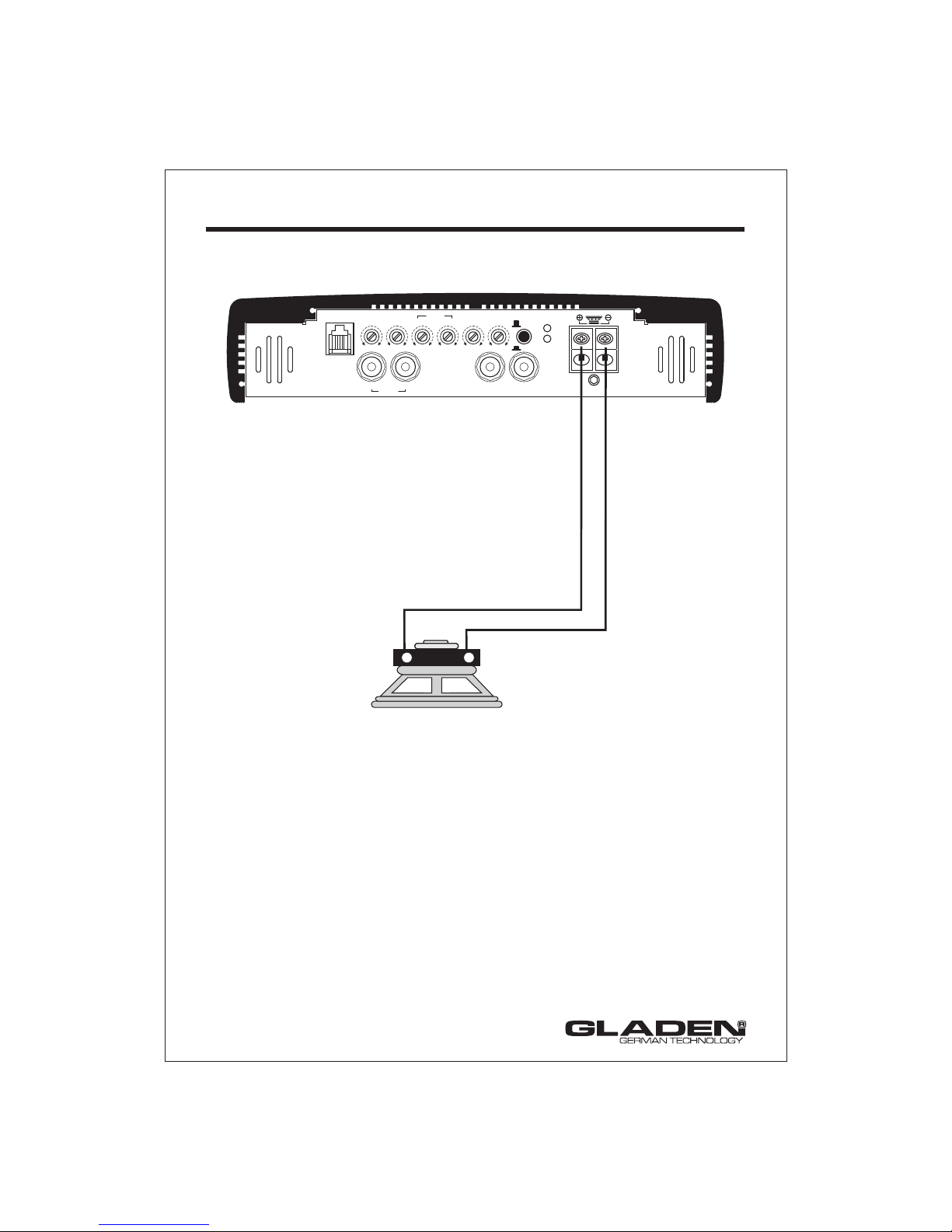

SPEAKER CONNECTION
Please note that this unit is a mono block unit and only has one channel.
+
-
1~4 ohms
Single amp speaker connection
Protect
INPUT
AB
Max 60Hz 12dB 90Hz 250Hz 180Min 10Hz 0dB 30Hz 30Hz 0
SLAVE
SPEAKER OUTPUT
Power
REMOTE
BOOST FREQ. LPF PHASE
SUBSONIC
GAIN
BASS
MASTER
MASTER
OUTPUT
SLAVE
INPUT

Protect
INPUT
AB
Max 60Hz 12dB 90Hz 250Hz 180Min 10Hz 0dB 30Hz 30Hz 0
SLAVE
SPEAKER OUTPUT
Power
REMOTE
BOOST FREQ. LPF PHASE
SUBSONIC
GAIN
BASS
MASTER
MASTER
OUTPUT
SLAVE
INPUT
- 6 -
SPL 3000c1
SPEAKER CONNECTION
Using a dual amplifier configuration, the MASTER amplifier has total control over the SLAVE
amplifier. The positive terminal of the subwoofer's voice coil must be connected to the positive
terminal of the MASTER Amplifier and the negative terminal of the subwoofer'sm voice coil must
be connected to positive terminal of the SLAVE Amplifier. Since the dual amplifier configuration
has tremendous output potential, please ensure that your subwoofers can handle such a large
amount of power.
When utilizing the dual amplifier configuration, it is important to note that the connected
speakers' load cannot be lower than 2 ohms. Connecting a lower impedance load can
damage the amplifier and void your warranty.
Use 8 Gauge(AWG)
wire cable
2~8 ohms
Caution
"MASTER UNIT"
"SLAVE UNIT"
+
-
Protect
INPUT
AB
Max 60Hz 12dB 90Hz 250Hz 180Min 10Hz 0dB 30Hz 30Hz 0
SLAVE
SPEAKER OUTPUT
Power
REMOTE
BOOST FREQ. LPF PHASE
SUBSONIC
GAIN
BASS
MASTER
MASTER
OUTPUT
SLAVE
INPUT
Dual amp speaker connection

- 7 -
SPECIFICATIONS
1000W x 1CH
1850W x 1CH
3100W x 1CH
3500W x 1CH
5700W x 1CH
>90dB
30Hz~250Hz
10Hz~60Hz
0~12dB
30Hz~90Hz
0~180 degree
10Hz~350Hz (+/- 1dB)
<1.0%
86%
300A (external type fuse)
200mV ~ 6V (+/- 5%)
235(W) x 52(H) x 524(L)
SPL 3000c1
Rated power output
-RMS power, 4 ohms mono ------------------------------------
-RMS power, 2 ohms mono -------------------------------------
-RMS power, 1 ohm mono ---------------------------------------
-RMS power, 4 ohms linkable/dual mono -----------------------
-RMS power, 2 ohms linkable/dual mono -----------------------
Signal to noise ratio -------------------------------------------------
Low pass frequency crossover -------------------------------------
Subsonic filter --------------------------------------------------------
Bass boost @ 45Hz -------------------------------------------------
Bass boost Frequency------------------------------------------------
Phase shift control --------------------------------------------------
Frequency response -------------------------------------------------
THD@RMS watts ----------------------------------------------------
Efficiency @ 4 ohm ---------------------------------------------------
Fuse rating ------------------------------------------------------------
Input sensitivity ------------------------------------------------------
Dimensions (mm) ------------------------------------------------------

- Check condition of ground connection
- Check for short-circuits caused by loudspeaker cable
with vehicle chassis (ground)
- Check if cinch cable (RCA) and/or loudspeaker cables
are installed too close to power connection cable
- Check if cinch ground (RCA) of head unit is in good condition
- check condition of ground connection
- check if 12V power cable has been connected properly
- check condition of remote cable connection
- check if fuses have been inserted properly
- check voltage on the amplifier
- check condition of cinch cable
- check condition of loudspeaker connection
- check condition of head unit
- Check if amplifier is too hot
- Check for short-circuit at the loudspeaker output
- Check for short-circuits caused by loudspeaker cable with
vehicle chassis (ground)
- Check if input voltage is too high (Ex:Faulty Lighting Dynamo)
- check impedance
- check for problems on loudspeaker
- check if there is adequate airflow around the amplifier
! CAUTION !
When changing fuses, make sure you use the fuses with
the same values.
- check condition of ground connection
- check if correct loudspeaker impedance has been used
! CAUTION !
When changing fuses, make sure you use the fuses with
the same values.
- check if input level control "Gain" has been set to match
the head unit
- check output level control of the head unit
- check for problems on loudspeaker
- check loudspeaker cables
- check if crossover frequencies have been set properly
(Check head unit, amplifier, DSP, sound processor, equalizer,
frequency bandpassfilter…)
PROTECTION LED LIGHTS
GREEN WHEN AMPLIFIER
IS SOUNDLESS
PROTECTION LED LIGHTS
RED WHEN AMPLIFIER
IS POWERED UP
OVERHEATING
(PROTECTION LED LIGHTS RED
WHEN AMPLIFIER IS POWERED UP)
ERROR IN AMPLIFIER FUSE
SOUND TOO LOW / LOW
DISTORTED SOUND
HIGH HISS-ENGINE NOISE
FROM SPEAKER
This power amplifier features an efficient protection system to prevent damages due to overheating,
overvoltage, short-circuit and DC at the loudspeaker output. If there is an error or problem,
the protection LED will light up red.
To check the problem, first turn down all levels of the head unit and then turn it off.
AMPLIFIER DOESN'T
POWER UP / LED DOESN'T
LIGHT UP
Please contact your authorized dealer if your amplifier still doesn't work even after following
the troubleshooting guides!
For warranty adjustment / repairs, the original invoice has to be attached!
Opening or disassembling the power amplifier will void your warranty!
CAUTION
TROUBLESHOOTING
