Glasdon EcoNexus Duo Manual

EcoNexus Duo
1

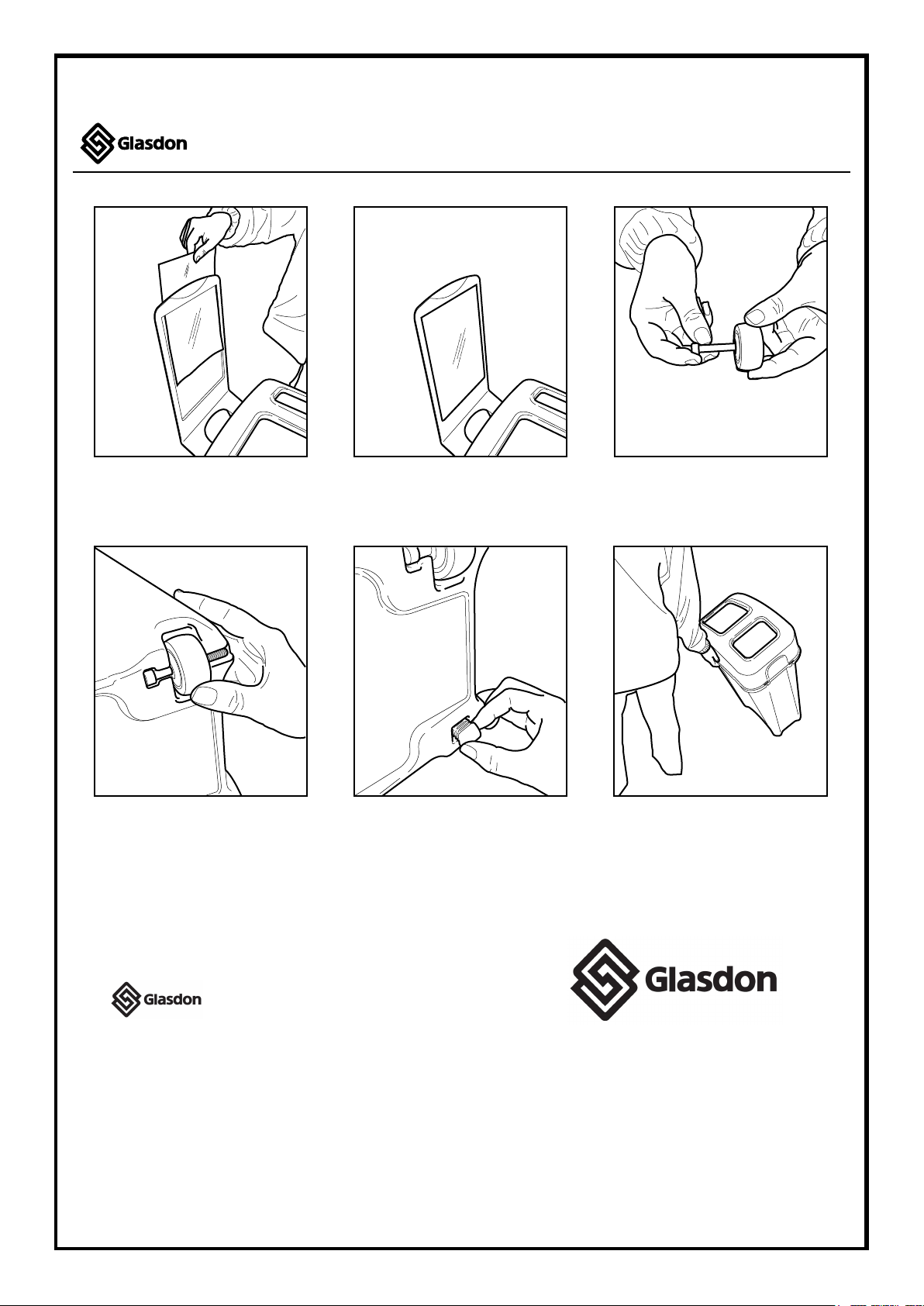

OPENING THE ECONEXUS SECURING SACK IN POSITION
EMPTYING THE ECONEXUS
ATTACHING A SIGN KIT
IMPORTANT NOTE: ENSURE THAT ALL RELEVANT PERSONNEL READ THESE INSTRUCTIONS PRIOR TO USE
1.
central
slot
4.
7.
central
slot
2.
central
slot
5.
8.
central
slot
3.
central
slot
6.
central
slot
9.
central
slot
opposite side to the hinge,
lift the lid upwards until it
stands upright.
Lower lid to replace, ensuring
sacks are neatly secured
underneath.
Align the 2 holes with the threaded
holes in the metal brackets attached to
the bin rear. Notes: Do not place sign
holder into cutout slots on bin rim. Sign
central slots then stretch over the
outer rim of bin.
Raise Lid as in 1. to stand
upright.
Arrange the included
Washer, Locking Washer.
For 50/50 use 2 x 500x1050mm
sacks;
For 70/30 use 1 x 500x1050mm & 1
x 610x1720mm sacks.
Release each sack individually
from the bin rim and lift upwards
out of the bin body.
Using an allen key, fasten
the sign holder to the bin
securely.

EcoNexus Duo
2
10.
13.
11.
14.
12.
Place A4 sign behind clear
polycarbonate sheet and
slide into sign carrier.
Push both socket caps
into the moulded recesses
opposite wheels.
From kit provided, place 1
screw through a wheel.
The lugs locate in the holes
along the bottom of the
carrier to secure the sign.
Using lip on body as a han-
dle, tilt bin onto wheels to
manoeuvre.
With bin body upside down, click
screw and wheel into moulded
slot. Repeat with second wheel.
ATTACHING WHEELSINSERTING A4 SIGN
ECO-NEXUS DUO IS A TRADEMARK OF GLASDON GROUP OR ITS
SUBSIDIARIES IN THE U.K. AND OTHER COUNTRIES
• A planned maintenance schedule of regular inspection is recommended, replacing
components as necessary.
• Replacement components are available direct from GLASDON UK LIMITED.
• GLASDON UK LIMITED cannot be held responsible for claims arising from incorrect
installation, unauthorised modifications or misuse of the product.
Issue 1 February 2017 C000/0457 DWG No. 07B338-53
© Copyright Nov 2014
Glasdon UK Ltd reserve the right to alter specifications without prior notice.
