Glen Chimney hood User manual

Features may vary with individual models. See product brochure for more details.
PDCA
Motor Housing
Thermal
Overload
Protector
(only in BF models)
Next Generation
BAFFLE
FILTER
Powerful
Suction
USERS GUIDE
CHIMNEY HOOD

INSTALLATION
The chimney must be mounted over the center of the cooking area. The
minimum distance between the cooktop and the bottom of the chimney must be
750 mm.
Join the two parts of the spigot (some models may have a single piece)
attach it to the hood using the four screws. In a few models the spigot may
already be mounted.
Fastening the chimney to the wall
Exhaust mode
Universal Spigot
The chimney must be connected by the spigot (supplied as part of the
hood) to a duct to vent all the exhausted air outside the kitchen. Over
horizontal areas, if any, the duct must be slanted about 10° downwards.
The diameter of the Duct pipe should be a minimum of 6” (15cm) for all
3
chimneys with suction of 1000m /h anything smaller than this will result in
vibrations at higher speeds.
The maximum recommended length of ducting is 10 feet with a maximum
of two bends. The suction power of the chimney considerably decreases in
case the length of the duct and number of bends increases further.
Re-circulation mode (Available in select model)
This mode is used when no exhaust duct to the outdoors is available. The
air is purified by an active carbon filter and recycled into the room.
The carbon filter is an optional attachment and must be procured in this
case.
Remove the metal filters. Insert the carbon filters and rotate it to lock at the
side of the hood. For effective functioning the carbon filters need to be
replaced after 3-4 months.
Mark the position of the holes on the wall. Before drilling make sure that no
wiring and tube will be damaged. Drill two fastening holes, drive in the wall
plugs and screw in the screw until their heads are about 6 mm from wall.
Place the chimney to the wall in order to check that it seats properly. Then
mark the position of the two holes. Take it off from the wall now, drill the holes
and fit the plugs. Place the hood once again to the wall, and introduce the
screw from the inside of the appliance.
The product can be used in re circulation or the exhaust mode. It is
however recommended that wherever possible it should be used in exhaust
mode for best results.
Your chimney now comes with a universal spigot for fixing the exhaust
pipe. It has 3 steps, one each suitable for 4’’, 5’ & 6’’ dia. pipe. Based on your
requirement you may cut the unwanted portion with hacksaw blade as
marked in the picture.
The cutting is required for 5’’ & 6’’ dia. Pipe for smooth flow of the air.
750 mm750 mm750 mm
UNIVERSAL SPIGOT
Opening dia. 5’’
Cut at this point
Opening dia. 6’’
Cut at this point
Opening Dia. 4’’Opening Dia. 4’’
No Cutting RequiredNo Cutting Required
Opening Dia. 4’’
No Cutting Required

Installing the duct covers
Fix the bracket with 2 plugs and screw at the required height for the duct cover. Screw the short duct with
2 screws on the bracket. Insert the 2 nuts in the holes on the lower part of the long duct. Put the long
pipe over the short one by pulling apart the laterals of the duct. Insert the nuts supplied, and working
from the inside of the chimney, using the two screws fix the long duct.
In few models the long duct can be fixed by using two screws which must be inserted into the holes at
the bottom of the duct.

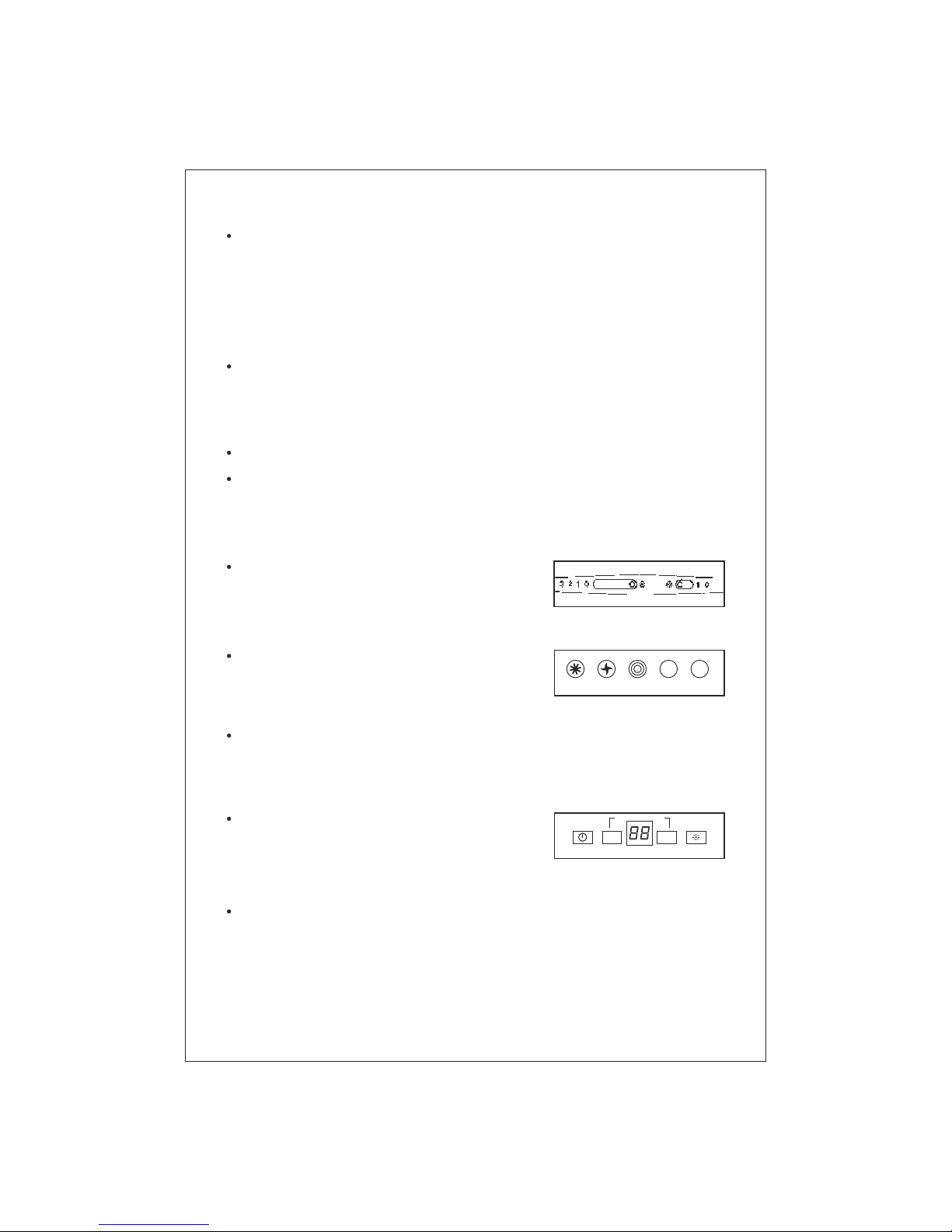

Electric connection
Slider Control
Push Button Control
Soft Touch Electronic Control
Make sure that the supply voltage rating correspond with the specifications provided in the User’s Guide.
It has three speed setting and can be selected as per the
requirement by sliding the speed knob. For hob light, slide the
other knob.
It has four buttons and a light indicator. By pressing the first
button you can switch on the hob light. By pressing the second
button, chimney will start at speed 1 and indicator will start
glowing. Speed second and third can be selected by just
pressing the respective buttons.
To switch off just press the second button which has fan mark
on it. The chimney will be switched off.
It has four soft touch rectangle buttons and a digital display. By
just pressing the button with light indicator hob light will be
switched on. To start the chimney press the button having (+)
mark and to increase the speed press once more. The level of
speed will be displayed in the digital display. To reduce the
speed or to switch off press the button which (-) mark .
It also has an auto off timer and to set this you have to press the button with the clock on it and the
display will show the time it can be set between 1-99 minutes by pressing again and again. Once you
leave the same, the Chimney will switch off automatically at the end of the timer.
Switch on the chimney 5 minutes before you start cooking.
The Soft Touch Electronic push button/slider control have three speed settings. Kindly choose the speed
as per your requirement.
USAGE
II III
POWER
INDICATOR
SPEED 2 SPEED 3FAN ‘ON’
SPEED 1
BULB
TIMER
(1-99 min.)
LIGHTDIGITAL DISPLAY
(Speed / Time)
SPEED SELECTION
+
-

LIFETIME WARRANTY (On select models only)
To avail the lifetime warranty you need to register online within 90 days of your purchase.
To register online you need to do the following:
Log on to glen website www.glenindia.com
Click on lifetime warranty, it will open a window there you need to feed the Lifetime Warranty unique ID,
model number and serial number of the chimney hood.
For LTW unique ID and serial number you need to open the chimneyhood. You will find two labels one for
LTW unique ID and other for serial number. (Never ever remove the labels otherwise the warranty
becomes void).
If all your information is correct and matches with our record another window will open wherein you will
need to fill the personal details like name & address etc.
Once you complete the information and press submit a confirmation number will be given for future
reference. Also one confirmation mail with all the details will be sent to your email id. You are requested to
take a printout of the same and keep it safe. In case of any repair in future you will need to show this mail to
the service engineer to avail the lifetime warranty.
Note : The offer lapses if not registered with in 90 days of date of purchase.
MAINTENANCE
When performing maintenance operations, disconnect the plug from the
socket.
The efficiency of the chimney depends on the condition of the filters.
The filters should be washed as often as possible but at least once in10 to
15 days in normal operating conditions.
The baffle & aluminium filters can be removed easily by unlocking.
Dip the filter for 10-15 minutes into a boiling hot soap solution and then
wash in running water. Dry and reinstall the filter.
The chimney surface should be cleaned with a damp cloth. No abrasive
chemicals should be used.

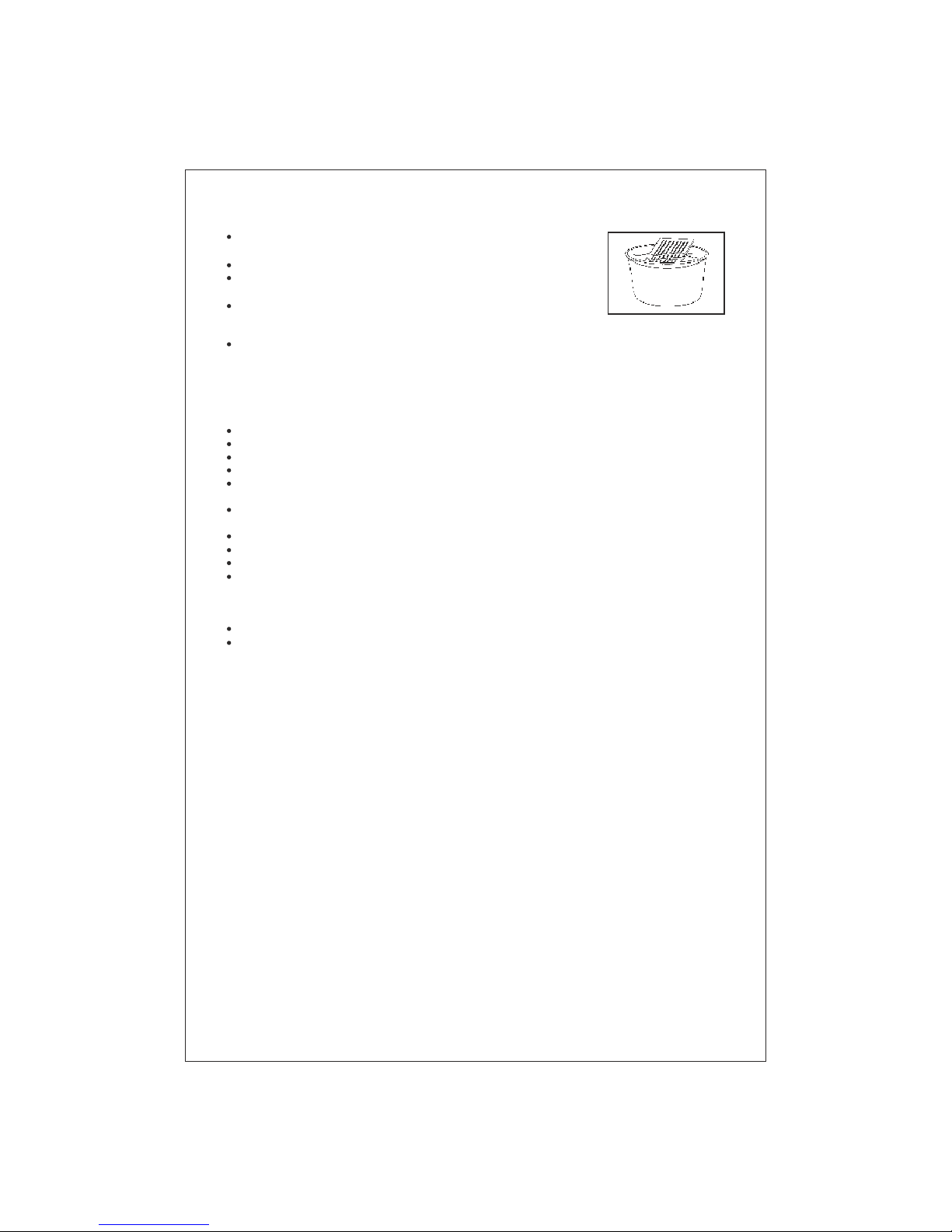

DO’S & DON'T’S
No flame based cooking should be done below the chimney.
While frying do not leave the cooking oil unattended as it may flare up and cause fire.
Clean all the oily residues on surface frequently to avoid fire.
The minimum distance between the cooktop and the bottom of the chimney must be 750 mm.
Make sure that the supply voltage ratings correspond with the specifications provided in the User’s
Guide.
Before using the chimney for the first time please ensure that all plastic films on baffle filter and stainless
body are removed.
Wash the filters as often as possible at least once in 10-15 days in normal operating conditions.
When performing maintenance operations, disconnect the plug from the socket.
No repair work should be carried out by any unauthorised person.
In case the chimney is installed in the under construction Kitchens, it is advisable to install the Chimney,
test it and then again remove the same and pack in the box. As if the Chimney is left unattended the
paints, chemicals, dust & moisture etc if not cleaned timely may result in rust formation which will not be
covered in the warranty.
Chimney should be used as per the directions given in the User’s Guide.
Do not allow children to operate the chimney.

The chimney should be used as per the directions given in the user's guide. Defects caused by improper
or reckless use are not covered.
Any damages due to the use of abrasive chemicals, or usage in extremely adverse atmosphere, i.e.
Abnormally corrosive / alkaline / acidic is not covered under warranty.
The warranty will not cover chimneys used for commercial purposes.
The chimney should have been serviced and cleaned at regular intervals at-least once in two months by
a glen authorised service centre failure to comply with this will render this warranty void. The cost of any
such service will be borne by the customer.
No installation / modification / alteration / service of any nature is made in the chimney by unauthorised
persons. The installation charges are to be borne by the customer.
Only the parts covered under LTW will be replaced free. Under warranty service / repair will be provided
on FOC in the municipality limit of the service centre.
Outside the municipality limit of the service centre, minimum visiting charge of Rs. 500/- will be
applicable or customer may bring it to service centre at his own for free service / repair under warranty.
This chimney has been designed to last a long time and depending on the up-keep & maintenance by the
customer the chimney may last a long time but for the purpose of life time warranty the life of the
chimney will be taken as 7 years from the date of purchase of the chimney.
The warranty is not valid for any damages arising due to erratic power supply.
The warranty is not valid in case chimney is used on inverter or generator.
The warranty doesn't include the regular servicing of the product.
Parts covered under warranty are motor, switch and controls only. Models using Touch Controls or
Electronic Controls the warranty will be restricted to one year only.
Glass or Glass products are not covered under warranty.
The company will not accept any liability for any loss or damages of whatsoever nature on account of
fire, storm, theft, malicious damage, pressure cooker bursting or any other unforeseen acts or incidents.
Any damage done by rats or rodents etc. will not be covered by the warranty.
Glen Appliances Pvt. Ltd. accepts no liability for any consequential loss and / or damages caused to the
user or any third party due to any failure / malfunction of the product. The company's liability is limited to
the repair or replacement of the defective part.
In case of installation beyond the municipal limits of the areas of operation of authorised service centres,
or in areas where there are no service centres, the expenses incurred in transporting the parts / machine
including loading / unloading will be borne by the user and paid in advance.
The warranty will be valid only at the original place of purchase and in case of transfer the Chimney
should have been un-installed and then re-installed only by the authorized technician. No claims would
be entertained in cases of ownership changes.
The decision of Glen Appliances Pvt. Ltd. in respect of all claims in this regard would be final and binding.
All disputes subject to Faridabad jurisdiction.
The Life Time Warranty is offered on the following conditions:

PACKING LIST
Main Unit, Universal Spigot, Plastic Wall Plugs, Screws, User’s Guide
TECHNICAL SPECIFICATIONS
The specifications of this Chimney will be based on the model selected by you identified with various
features as given in the below mentioned table:
Based on the features as mentioned in the model you have selected the specifications will be different.
Please note as improvements are a continuous process specifications are subject to change.
145W 155W
750 M³ 1000 M³
Incandescent
40W
SL (3 Speed Sliding) EL (3 Speed With Timer)
1250 M³
260W
BF Stainless Steel Baffle Filter CF Aluminium Cassette Filter
PB (3 Speed Push Button)
LED
1.5W
Air Flow
Lamps
Speed Controls
Motor Wattage
Wattage (each)
Filters
FRP
Flame Retardant
Plastic
PDCA
Pressure Die-casted
Aluminium
Housing

Glen Appliances Pvt. Ltd. guarantees to get the product or any part thereof repaired free of charge for a
period of one year from the date of purchase, should any defect develop due to faulty or defective
workmanship or material. However, the glass, plastic breakable parts, lamps, push buttons, filter locks,
and items subject to normal wear and tear due to operation are not covered under guarantee.
Terms to Guarantee
The Bill/Cash Memo should be presented.
No repair work should be carried out by any unauthorised person.
Product should be used as per the directions given in the user’s guide.
Any defects caused by improper or reckless use are not covered under guarantee.
The Serial No. has not been tampered with.
No modification/alteration of any nature is made in the Product.
Under warranty service / repair will be provided on FOC in the municipality limit of the service centre.
Outside the municipality limit of the service centre, minimum visiting charges of Rs.500/- will be
applicable or customer may bring it to service centre at his own for free service / repair under warranty .
The company accepts no responsibility for any consequential losses arising out of misuse
or negligence on the part of the user.
GUARANTEE
PRODUCT
SERIAL NO :
BILL NO. & DATE :
NAME OF OWNER :
ADDRESS :
DEALER’S STAMP & SIGNATURE

Manufactured by
Glen Appliances Pvt. Ltd.
EPIP, Phase-II, Thana Baddi, Tehsil Nalagarh, Distt. Solan (H.P.)
Customer Care & H.O.
I-34, DLF Indl. Area, Phase 1, Faridabad (Haryana), INDIA.
Phone : [phone] Fax : [phone]
E-mail : [email protected] Website : www.glenindia.com
Customer Care Toll Free 1800-180-1998
®
