Glensound BEATRICE MIX32 User manual

BEATRICE
MIX32
DANTE
®
/AES67 NETWORK AUDIO
FIXED MIXER SUBRACK WITH 32 x 32 x up
to 4 MIXERS
RODUCT DETAILS

Page 2 of 27
6 BROOKS LACE, MAIDSTONE, KENT, ME14 1HE. ENGLAND. TEL: [phone]
Visit our Website at www.glensound.com

age 3 of 27
Glensound Electronics Ltd
Thank you for choosing a new Glensound product.
All rights reserved.
Information contained in this manual is subject to change without notice if
in doubt please contact us for the latest product information.
If you need any help with the product then we can be contacted at:
Glensound Electronics Ltd
1 – 6 Brooks Place
Maidstone
Kent
ME14 1HE
United Kingdom
Telephone: [phone]
Fax: [phone]
EMAIL ADDRESSES
General enquires: [e-mail]
Technical enquires: [e-mail]
Sales enquires: [e-mail]

age 4 of 27
RODUCT WARRANTY:
All equipment is fully tested before dispatch and carefully designed to pro-
vide you with trouble free use for many years.
We have a policy of supporting products for as long as possible and guar-
antee to be able to support your product for a minimum of 10 years.
For a period of one year after the goods have been despatched the Com-
pany will guarantee the goods against any defect developing after proper
use providing such defects arise solely from faulty materials or workman-
ship and that the Customer shall return the goods to the Company’s works
or their local dealer.
All non-wear parts are guaranteed for 2 years after despatch and any de-
fect developing after proper use from faulty materials or workmanship will
be repaired under this warranty providing the Customer returns the goods
to the Company's works or their local dealer.
SAFETY WARNING
The MIX32 contains no user serviceable parts and must not be
dissasembled in any way.

age 5 of 27
CE
EU DECLARATION OF CONFORMITY FOR:
MIX32
AoIP, Fixed Ratio Mixer
This declaration of conformity is issued under the sole
responsibility of the manufacturer.
This equipment is manufactured by Glensound Electronics Ltd of
Brooks lace Maidstone Kent ME14 1HE is CE marked and
conforms to the following Union harmonisation legislation:
Low Voltage Directive: EN60065 and EN62368-1:2014
Emissions: BS EN55032:2015
Immunity: BS EN55035:2017
Signed for and on behalf of Glensound Electronics Ltd.
Gavin Davis, Managing Director
Maidstone, Kent, England
Date: 21/05/2019

age 6 of 27
RoHS DIRECTIVE
EC directive 2002/95/EC restricts the use of the hazardous substances
listed below in electrical and electronic equipment.
This product conforms to the above directive and for this purposes the
maximum concentration values of the restricted substances by weight in
homogenous materials are:
Lead
0.1%
Mercury
0.1%
Hexavalent Chromium
0.1%
Polybrominated Biphenyls
0.1%
Polybrominated Diphenyl Ethers
0.1%
Cadmium
0.01%

age 7 of 27
WASTE ELECTRICAL AND ELECTRONIC
EQUI MENT REGULATIONS 2006 (WEEE)
Glensound Electronics Ltd is registered for business to business sales of
WEEE in the UK our registration number is:
WEE/JJ0074UR

age 8 of 27
GLENSOUND BEATRICE MIX32
Handbook Contents
Issue 4
Description Page No.
Contents
PRODUCT WARRANTY: ............................................................................................................................... 4
OVERVIEW .................................................................................................................................................... 9
SIMPLIFIED BLOCK DIAGRAM ................................................................................................................. 0
CONNECTING THE BEATRICE MIX32 TO A DANTE® NETWORK .........................................................
Getting Dante Controller ..........................................................................................................................
Connecting Beatrice Mix32 To the Network ..........................................................................................
Audio Over IP Network ............................................................................................................................
Running Dante Controller ........................................................................................................................ 2
Dante Controller Tip................................................................................................................................. 2
MIXER MODES ............................................................................................................................................ 3
PASS THROUGH MODE .............................................................................................................................. 3
FIXED MIXER MODE .................................................................................................................................. 4
CLEAN FEED (Mix-Minus) MODE .............................................................................................................. 5
COMPRESSOR/ LIMITERS ............................................................................................................................ 7

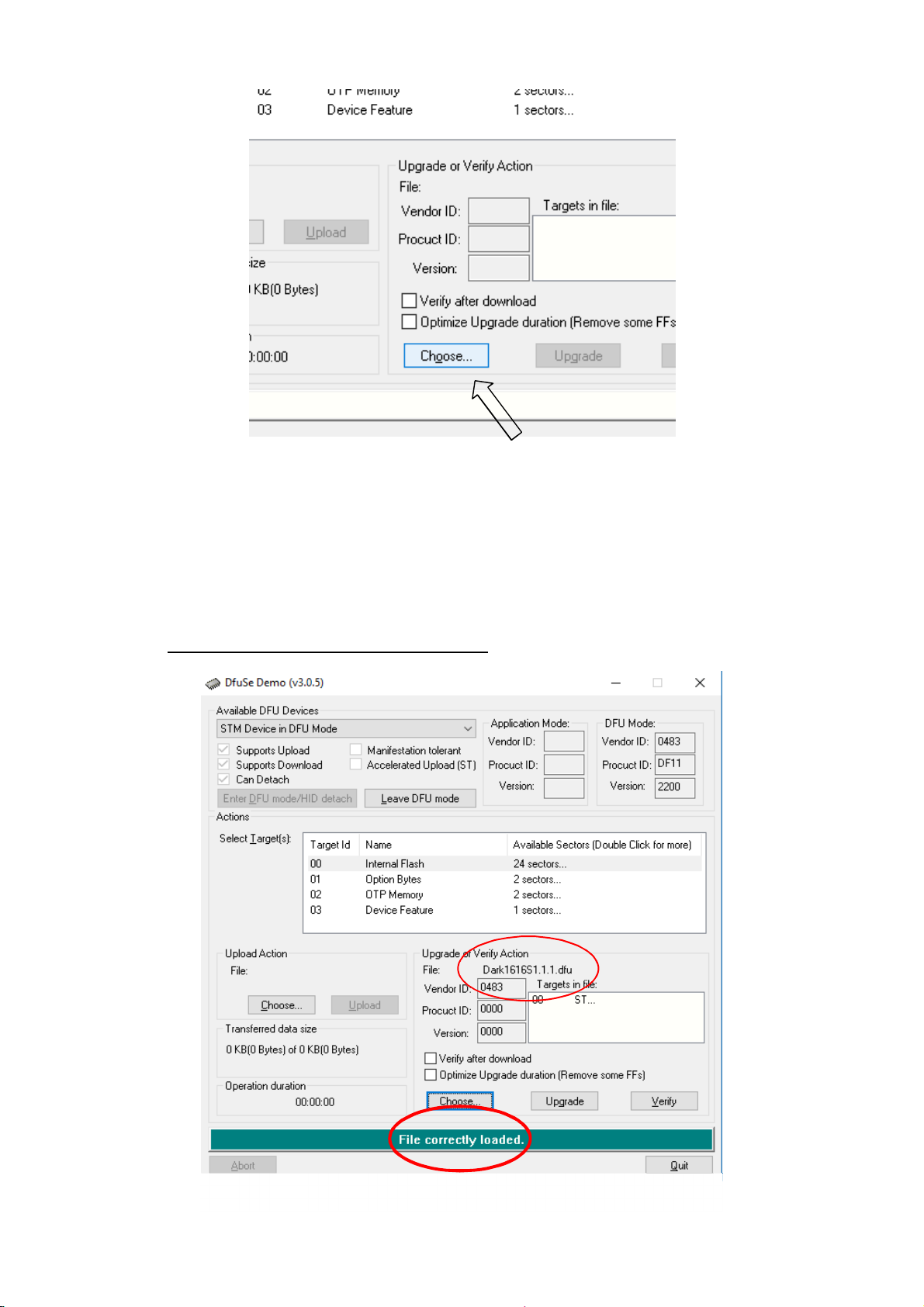

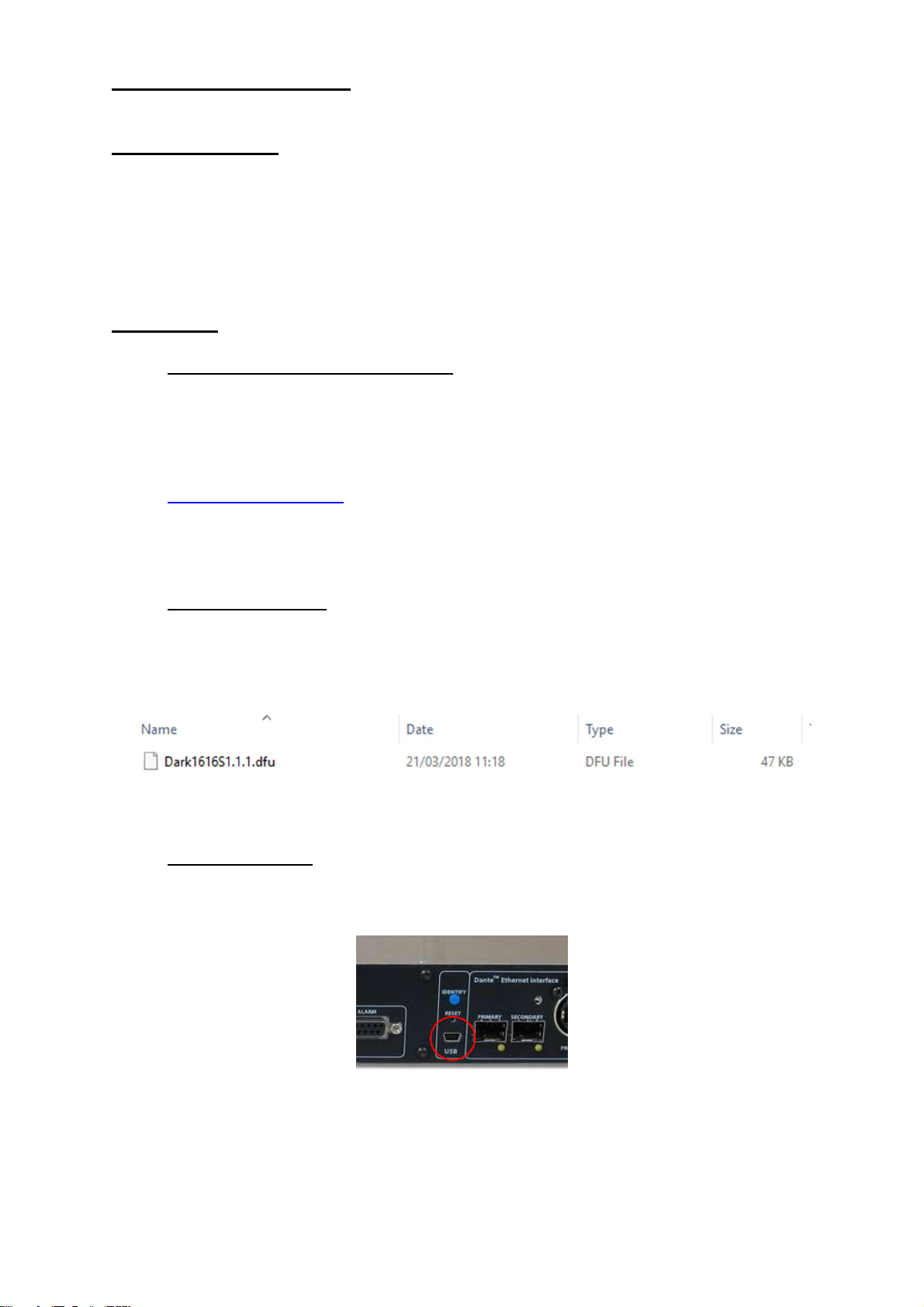

UPDATING FIRMWARE.............................................................................................................................. 8
AES67 MODE ............................................................................................................................................... 24
SPECIFICATION .......................................................................................................................................... 27

age 9 of 27
OVERVIEW
The Glensound BEATRICE MIX32 is a high-density audio mixer for producing fixed
ratio audio mixes from/ to Dante® and AES67 audio networks. It can be fitted with a
maximum of 4 independent mixer cards each with their own redundant network
interface. Each of these mixer cards provides 32 audio inputs and 32 audio outputs
from the network with the 32 outputs being mixes derived from different sets of input
channels.
Audio limiter/ compressor circuits are also provided for each output.
The fixed ratio mixes in the Beatrice MIX32 were originally designed to allow network
audio intercom systems to generate multiple listening circuits however the high-
quality low noise digital mixers can be also be used for many other applications.
The Beatrice MIX32 can also operate in a ‘pass through’ mode where all Dante®
inputs are passed straight through to the equivalent numbered Dante® output.
A clean feed or mix-minus mode is also available. In this mode each mix has
multiple outputs. Each output contains all channels in the mix except its own input.
Being designed for 24/7 broadcast operation the Beatrice MIX32 features both
redundant power supplies and redundant network interfaces.
Dante® network audio is a common protocol for distributing high quality linear audio
over standard IP networks and it is widely used by many audio equipment
manufacturers. The Glensound Beatrice Mix32 Dante® audio interface will be
compatible with any other manufacturers Dante audio interface. Further details of
Dante® network audio can be found at www.audinate.com

age 10 of 27
SIM LIFIED BLOCK DIAGRAM
ETHERNET PHY
COPPER
ETHERNET PHY
FIBRE (SFP)
ETHERNET PHY
COPPER
ETHERNET PHY
FIBRE (SFP)
ETHERNET SWITCH
32 INPUTS & OUTPUTS OF
REDUNDANT
BI-DIRECTIONAL
DANTE/ AES 7 AUDIO
UP TO 9 kHz
DANTE FPGA
M ICROCONTROLLER
AC/DC PSU100 - 240 VAC +48VDC
AC/DC PSU100 - 240 VAC +48VDC
DC/DC
+12V +3.3V
+5V
PSU ON LED PSU ON LED
DIGITAL SIGNAL PROCESSOR
32 OFF OUTPUT COMPRESSORS
FRONT PANEL ROTARY ENCODER
COMPRESSOR/ LIMITER
ON/OFF DATA
1 OFF 4 POSSIBLE MIXER CARDS
DANTE INPUTS
DANTE OUTPUTS
32x32 M ix matrix (Preset)

age 11 of 27
CONNECTING THE BEATRICE MIX32 TO A DANTE® NETWORK
The Beatrice Mix32 is a network audio device utilising the reliable and versatile
Dante® audio over IP protocol. Dante® is a proprietary system (although very widely
used) the originators of which are Audinate.
The information below is only meant as a very basic guide. Full details of the power
of Dante® network audio and instructions for using it can be found at
www.audinate.com
Getting Dante Controller
If you are connecting the inferno to a new Dante network the first thing you will need
to do is to get the free Dante controller software from Audinate.
This can be downloaded by visiting Audinate’s web site at www.audinate.com
Connecting Beatrice Mix32 To the Network
Beatrice Mix32s can be connected to the network that you are going to use for your
audio distribution simply by plugging in either and or any of the network
connections on the front. Once connected to the network it will be possible to see the
Beatrice from within the Dante controller and route its’ audio circuits.
Audio Over I Network
We strongly recommend that you consider your network topology carefully and
would not recommend sharing broadcast audio and general data on the same
network.
For more details of audio over IP network structure please visit www.audinate.com

age 12 of 27
Running Dante Controller
At the time of writing this manual the Dante Controller looks as per the screenshot
below:
The Beatrice Mix32 will have been named at the factory during test to allow them to
be identified by the Dante controller.
The format used for the factory name is:
‘Mix32-10aa16-serial-102’
Where ‘Mix32-10aa16’ refers to the Glensound product i.e. Beatrice Mix32 and its
Dante Brooklyn module MAC address and ‘serial-102’ denotes the hardware racks
serial number.
Dante Controller Tip
If you have never run Dante controller before then make sure that on the bottom left
of the Dante controllers’ screen ‘P’ or ‘S’ is next to a green square as this indicates
that it is connected to a network. By clicking ‘P’ or ‘S’ a pop-up box opens to allow
you to set what network interface the controller is using.

age 13 of 27
MIXER MODES
The mixer mode is selected using the rotary Hex switch on the front panel.
IMPORTANT: The position of the rotary switch is only read by the microprocessor
while the Beatrice Mix32 is turning on. So moving the switch to a different position
while the unit is on will make no difference until the unit is powered down and turned
back on.
Switch position Mode Description
0 Pass through Inputs passed directly to outputs
1 Fixed Mixer Mode 32 fixed mix sums
2 Mix_minus_32 32 channel mix minus
3 Mix_minus_24_8 1x24 and 1x8 channel mix minus
4 Mix_minus_16_16 2x16 channel mix minus
5 Mix_minus_16_8_8 1x16 and 2x8 channel mix minus
6 Mix_minus_16_8_4_4 1x16 1x8 and 2x4 channel mix minus
7 Mix_minus_8_8_8_8 4x8 channel mix minus
8 Mix_minus_8_8_8_4_4 3x8 and 2x4 channel mix minus
9-F Reserved for future use Do not use
ASS THROUGH MODE
General
Pass through mode sets each incoming Dante audio circuit to be routed directly to
the equivalent numbered outgoing Dante audio circuit.
Uses
Pass through mode is very useful in network audio systems that incorporate devices
using a 4-channel chipset from Audinate (the company behind Dante®) called Ultimo.
The Ultimo chipset can provide 4 audio inputs & outputs to a Dante® network.
However the chipset can only receive data streams from 2 locations within the
network meaning that to use all 4 incoming audio circuits these must be sent from
no more than 2 different devices on the network.
If you need a device on your network that contains an Ultimo chipset to receive audio
from 4 different network locations then the pass through mode of the Beatrice Mix 32
will have to be used. The principle of operation is very simple. Route all 4 audio
channels originating from different devices that you want to be received by the
Ultimo chipset via 4 pass through channels of the Beatrice Mix 32 and then the
receiving Ultimo chipset will receive all 4 audio channels from just one network
source (and hence work).

age 14 of 27
FIXED MIXER MODE
Each mixer has 32 audio inputs and 32 audio outputs to/ from the Dante®/ AES67
network. The table below describes what input channels are mixed together to create
each output.
Output Mix of inputs
1 1-32
2 1-24
3 1-16
4 17-32
5 1-8
6 9-16
7 17-24
8 25-32
9 1-4
10 5-8
11 9-12
12 13-16
13 17-20
14 21-24
15 25-28
16 29-32
17 1-2
18 3-4
19 5-6
20 7-8
21 9-10
22 11-12
23 13-14
24 15-16
25 17-18
26 19-20
27 21-22
28 23-24
29 265-26
30 27-28
31 29-30
32 31-32

age 15 of 27
CLEAN FEED (Mix-Minus) MODE
 General
In the clean feed configurations several pre-set configurations are available.
Each mix has multiple outputs with each output configured so that it does not
include its own mix input.
For example switch position 2 provides a 32-channel mix. Output channel 5 is a mix
of channels 1-4 and 6-32 so audio from input channel 5 is not present on the
output. This is useful where you wish to contribute to a mix but do not wish to hear
your own voice back.
See the table below for a full list of available clean feed mixes per switch position.
All of the clean feed mixes feature automatic signal ducking. The highest numbered
input channel of a mix has priority and will cause the level of the other channels in
the mix to be reduced.

age 16 of 27
Switch
position → 2 3 4 5 6 7 8 9
Mix_minus_32 Mix_minus_24_8 Mix_minus_16_16 Mix_minus_16_8_8 Mix_minus_16_8_4_4 Mix_minus_8_8_8_8 Mix_minus_8_8_8_4_4 Mix_minus_8_8_4 4_4_4
Output Mix of inputs Mix of inputs Mix of inputs Mix of inputs Mix of inputs Mix of inputs Mix of inputs Mix of inputs
1 1-32 excluding 1 1-24 excluding 1 1-16 excluding 1 1-16 excluding 1 1-16 excluding 1 1-8 excluding 1 1-8 excluding 1 1-8 excluding 1
2 1-32 excluding 2 1-24 excluding 2 1-16 excluding 2 1-16 excluding 2 1-16 excluding 2 1-8 excluding 2 1-8 excluding 2 1-8 excluding 2
3 1-32 excluding 3 1-24 excluding 3 1-16 excluding 3 1-16 excluding 3 1-16 excluding 3 1-8 excluding 3 1-8 excluding 3 1-8 excluding 3
4 1-32 excluding 4 1-24 excluding 4 1-16 excluding 4 1-16 excluding 4 1-16 excluding 4 1-8 excluding 4 1-8 excluding 4 1-8 excluding 4
5 1-32 excluding 5 1-24 excluding 5 1-16 excluding 5 1-16 excluding 5 1-16 excluding 5 1-8 excluding 5 1-8 excluding 5 1-8 excluding 5
6 1-32 excluding 6 1-24 excluding 6 1-16 excluding 6 1-16 excluding 6 1-16 excluding 6 1-8 excluding 6 1-8 excluding 6 1-8 excluding 6
7 1-32 excluding 7 1-24 excluding 7 1-16 excluding 7 1-16 excluding 7 1-16 excluding 7 1-8 excluding 7 1-8 excluding 7 1-8 excluding 7
8 1-32 excluding 8 1-24 excluding 8 1-16 excluding 8 1-16 excluding 8 1-16 excluding 8 1-8 excluding 8 1-8 excluding 8 1-8 excluding 8
9 1-32 excluding 9 1-24 excluding 9 1-16 excluding 9 1-16 excluding 9 1-16 excluding 9 9-16 excluding 9 9-16 excluding 9 9-16 excluding 9
10 1-32 excluding 10 1-24 excluding 10 1-16 excluding 10 1-16 excluding 10 1-16 excluding 10 9-16 excluding 10 9-16 excluding 10 9-16 excluding 10
11 1-32 excluding 11 1-24 excluding 11 1-16 excluding 11 1-16 excluding 11 1-16 excluding 11 9-16 excluding 11 9-16 excluding 11 9-16 excluding 11
12 1-32 excluding 12 1-24 excluding 12 1-16 excluding 12 1-16 excluding 12 1-16 excluding 12 9-16 excluding 12 9-16 excluding 12 9-16 excluding 12
13 1-32 excluding 13 1-24 excluding 13 1-16 excluding 13 1-16 excluding 13 1-16 excluding 13 9-16 excluding 13 9-16 excluding 13 9-16 excluding 13
14 1-32 excluding 14 1-24 excluding 14 1-16 excluding 14 1-16 excluding 14 1-16 excluding 14 9-16 excluding 14 9-16 excluding 14 9-16 excluding 14
15 1-32 excluding 15 1-24 excluding 15 1-16 excluding 15 1-16 excluding 15 1-16 excluding 15 9-16 excluding 15 9-16 excluding 15 9-16 excluding 15
16 1-32 excluding 16 1-24 excluding 16 1-16 excluding 16 1-16 excluding 16 1-16 excluding 16 9-16 excluding 16 9-16 excluding 16 9-16 excluding 16
17 1-32 excluding 17 1-24 excluding 17 17-32 excluding 17 17-24 excluding 17 17-24 excluding 17 17-24 excluding 17 17-24 excluding 17 17-21 excluding 17
18 1-32 excluding 18 1-24 excluding 18 17-32 excluding 18 17-24 excluding 18 17-24 excluding 18 17-24 excluding 18 17-24 excluding 18 17-21 excluding 18
19 1-32 excluding 19 1-24 excluding 19 17-32 excluding 19 17-24 excluding 19 17-24 excluding 19 17-24 excluding 19 17-24 excluding 19 17-21 excluding 19
20 1-32 excluding 20 1-24 excluding 20 17-32 excluding 20 17-24 excluding 20 17-24 excluding 20 17-24 excluding 20 17-24 excluding 20 17-21 excluding 20
21 1-32 excluding 21 1-24 excluding 21 17-32 excluding 21 17-24 excluding 21 17-24 excluding 21 17-24 excluding 21 17-24 excluding 21 21-24 excluding 21
22 1-32 excluding 22 1-24 excluding 22 17-32 excluding 22 17-24 excluding 22 17-24 excluding 22 17-24 excluding 22 17-24 excluding 22 21-24 excluding 22
23 1-32 excluding 23 1-24 excluding 23 17-32 excluding 23 17-24 excluding 23 17-24 excluding 23 17-24 excluding 23 17-24 excluding 23 21-24 excluding 23
24 1-32 excluding 24 1-24 excluding 24 17-32 excluding 24 17-24 excluding 24 17-24 excluding 24 17-24 excluding 24 17-24 excluding 24 21-24 excluding 24
25 1-32 excluding 25 25-32 excluding 25 17-32 excluding 25 25-32 excluding 25 25-28 excluding 25 25-32 excluding 25 25-28 excluding 25 25-28 excluding 25
26 1-32 excluding 26 25-32 excluding 26 17-32 excluding 26 25-32 excluding 26 25-28 excluding 26 25-32 excluding 26 25-28 excluding 26 25-28 excluding 26
27 1-32 excluding 27 25-32 excluding 27 17-32 excluding 27 25-32 excluding 27 25-28 excluding 27 25-32 excluding 27 25-28 excluding 27 25-28 excluding 27
28 1-32 excluding 28 25-32 excluding 28 17-32 excluding 28 25-32 excluding 28 25-28 excluding 28 25-32 excluding 28 25-28 excluding 28 25-28 excluding 28
29 1-32 excluding 29 25-32 excluding 29 17-32 excluding 29 25-32 excluding 29 29-32 excluding 29 25-32 excluding 29 29-32 excluding 29 29-32 excluding 29
30 1-32 excluding 30 25-32 excluding 30 17-32 excluding 30 25-32 excluding 30 29-32 excluding 30 25-32 excluding 30 29-32 excluding 30 29-32 excluding 30
31 1-32 excluding 31 25-32 excluding 31 17-32 excluding 31 25-32 excluding 31 29-32 excluding 31 25-32 excluding 31 29-32 excluding 31 29-32 excluding 31
32 1-32 excluding 32 25-32 excluding 32 17-32 excluding 32 25-32 excluding 32 29-32 excluding 32 25-32 excluding 32 29-32 excluding 32 29-32 excluding 32

age 17 of 27
COM RESSOR/ LIMITERS
Each mixer card has output compressor / limiter circuits built in.
We call the circuits compressor/ limiters because the design of the circuit means that
they are neither a traditional hard limiter or soft compressor. Initially gentle
compression is introduced and as the input signal increases so does the
compression ratio until eventually it becomes a limiter.
All outputs have a compressor/limiter circuit built in.

age 18 of 27
U DATING FIRMWARE
Equipment needed
 A windows based PC
 USB Type A to Mini B cable
 A copy of ‘DfuSe Demo’ software
 The latest firmware from Glensound
 A STM32 Device and mains power
Instructions
1. Download and install DfuSE Demo
‘DfuSE Demo’ is a firmware updating tool that is required for loading new firm-
ware on to the STM32 Device.
It can be downloaded from the STMicroelectronics website found here:
https://goo.gl/AbzhsA. It is the file named “STSW-STM32080”.
Once you have downloaded this file you will need to extract the .exe
“DfuSe_Demo_V3.0.5_Setup.exe” then run and install it.
2. Download firmware
The latest firmware for the STM32 Device can be found on the Glensound
website under the respective product page. Once you have downloaded the
file place it in a folder or location of your choice.
3. Connect To A PC
Connect the STM32 Device to the PC via the USB cable. The Mini USB
connector is located on a panel of the STM32 Device.
Figure
2 Front panel USB
connector
Figure
1 Example filename

age 19 of 27
4. Firmware update preperation
To prepare the STM32 Device for a firmware update;
1. Power on the unit
2. Press and hold down the reset button
3. Press and hold down the identify button
4. Release the reset button and then release the identify button a second
after
Your PC should make an audible sound when this process is successful as
windows is detecting a new USB device.
5. Loading the firmware
Now open DfuSe Demo.
If the STM32 Device successfully entered DFU mode then it will appear as
‘STM Device in DFU Mode’ under the ‘Available DFU Devices tab’.
Now the .dfu file needs to be selected so that DfuSe Demo knows the correct
firmware to put on to the STM32 Device.
Figure
3 Device successfully recognised

age 20 of 27
Click choose and then select the .dfu file that you downloaded from the
Glensound website. This will be located in your downloads folder by default.
If the file loads successfully then it will read along the bottom ‘File correctly
loaded’.
6. Upgrading the STM32 Device firmware
Figure
4 C oose .dfu file
Figure
5 .dfu successfully loaded
