Glensound Signature Series User manual

PS1
POWER STATION
Back-up Power Supply for Signature Series Audio Racks
User Guide
Glensound
6 Brooks Place, Maidstone
Kent, UK, ME 4 HE
Tel: [phone]
www.glensound.co.uk

Page 2 of 9
Glensound Electronics Ltd
Thank you for choosing a new Glensound product.
All rights reserved.
Information contained in this manual is subject to change without notice, if in
doubt please contact us for the latest product information.
If you need any help with the product then we can be contacted at:
Glensound Electronics Ltd
– 6 Brooks Place
Maidstone
Kent
ME 4 HE
United Kingdom
Telephone: [phone]
Fax: [phone]
EMAIL ADDRESSES
General enquires: [e-mail]
Technical enquires: [e-mail]
Sales enquires: [e-mail]

Page 3 of 9
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions
2) Keep these instructions
3) Heed all warnings
4) Follow all instructions
5) Do not use this apparatus near water
6) Clean only with a dry cloth
7) Do not block any ventilation openings. Install in accordance with manufacturer’s
instructions
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat
9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug
has 2 blades with one wider than the other. A grounding type plug has 2 blades and third
grounding prong. The wider blade or the 3
rd
prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet
10) Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles and the point where they exit from the apparatus
11) Only use attachments/ accessories specified/ supplied by the manufacturer
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when moving
the cart/ apparatus combination to avoid injury from tip over
13) Unplug tis apparatus during lightning storms or when unused for long periods of time
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped
15) Do not attempt to modify this product. Doing so could result in personal injury and/ or
product failure
This symbol is intended to warn that
dangerous voltages within the product are
present and constitute a risk of electric
shock.
This symbol is intended to highlight that
there are important operating &
maintenance instructions in the literature
accompanying this unit.

Page 4 of 9
IMPORTANT: MAINS PLUG WIRING INSTRUCTIONS
This Signature unit is supplied with a moulded mains plug fitted to the AC mains
lead.
Mains wiring colours/ connections:
The Green/ Yellow or Green wire must be connected to the terminal in the plug
marked ‘E’ or with the Earth Symbol.
The Blue or Black wire must be connected to the terminal in the plug marked ‘N’
(Neutral).
The Red or Brown wire must be connected to the terminal in the plug marked ‘L’
(Live).
THIS UNIT MUST BE EARTHED
THIS UNIT IS FITTED WITH AN INTERNAL MAINS FUSE.
The fuse is located internally between the Live terminal of the IEC plug and the
Live input of the power supply. The fuse should only be changed by a qualified
service engineer. If replacing the fuse care should be taken to fit a correctly rated
replacement. The fuse rating can be found in the technical specifications page of
this handbook.

Page 5 of 9
CE
EU DECLARATION OF CONFORMITY FOR:
SIGNATURE PS1
Power Station for Signature Series
This declaration of conformity is issued under the sole responsibility of the
manufacturer
This equipment is manufactured by Glensound Electronics Ltd of Brooks
Place Maidstone Kent ME14 1HE is CE marked and conforms to the
following Union harmonisation legislation:
Low Voltage Directive: EN60065 and EN62368-1:2014
Emissions: BS EN55032:2015
Immunity: BS EN55035:2017
Signed for and on behalf of Glensound Electronics Ltd
Gavin Davis, Managing Director
Maidstone, Kent, England
Date: March 2018

Page 6 of 9
RoHS DIRECTIVE
RoHS 2 Directive 2011/65/EU restricts the use of the hazardous substances
listed below in electrical and electronic equipment
This product conforms to the above directive and for this purposes, the
maximum concentration values of the restricted substances by weight in
homogenous materials are:
Lead 0 1%
Mercury 0 1%
Hexavalent Chromium 0 1%
Polybrominated Biphenyls 0 1%
Polybrominated Diphenyl
Ethers 0 1%
Cadmium 0 01%

Page 7 of 9
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT
REGULATIONS 2006 (WEEE)
Glensound Electronics Ltd is registered for business to business sales of
WEEE in the UK our registration number is:
WEE/ 0074UR

Page 8 of 9
PRODUCT WARRANTY:
All equipment is fully tested before dispatch and carefully designed to provide you
with trouble free use for many years.
We have a policy of supporting products for as long as possible and guarantee to
be able to support your product for a minimum of 0 years.
For a period of one year after the goods have been despatched the Company will
guarantee the goods against any defect developing after proper use providing
such defects arise solely from faulty materials or workmanship and that the
Customer shall return the goods to the Company’s works or their local dealer.
All non-wear parts are guaranteed for 2 years after despatch and any defect
developing after proper use from faulty materials or workmanship will be repaired
under this warranty providing the Customer returns the goods to the Company's
works or their local dealer.

Page 9 of 9
PS1 Po er Station
Handbook Contents
Issue ,
Description Page No.
Contents
IMPORTANT SAFETY INSTRUCTIONS ................................................................................................................... 3
PRODUCT WARRANTY: ................................................................................................................................................ 8
OVERVIEW ................................................................................................................................................................. 10
PHYSICAL INSTALLATION.......................................................................................................................................... 11
EXAMPLES OF USE .................................................................................................................................................... 13
. Master DC Power Supply .............................................................................................................................. 13
2. Redundant DC Power Supply ....................................................................................................................... 14
USER CONTROLS & CONNECTIONS ........................................................................................................................... 15
. PSU ON LEDS ................................................................................................................................................ 15
2. PSU 2 Outputs............................................................................................................................................... 16
3. PSU Outputs............................................................................................................................................... 16
4. Mains Input ................................................................................................................................................... 16
MAXIMUM CURRENT OUTPUT .................................................................................................................................. 17
WIRING INFORMATION ............................................................................................................................................. 18
SPECIFICATIONS ........................................................................................................................................................ 19

Page 0 of 9
OVERVIEW
The Signature PS Power Station provides a fully resilient back up power supply to your
Signature Series units. It contains two switch mode power supplies, each capable of powering
up to three separate Signature Series units. A pair of bright front panel LEDs indicate that
each power supply is on and active. The master AC power input accepts 00 – 240 VAC for
Worldwide compatibility.
As well as providing a backup DC supply for up to six Signature Series units, the PS can also
act as a master DC power distribution to six Signature units.
All outputs are individually fused so a short circuit on one will not affect any others.

Page of 9
PHYSICAL INSTALLATION
The Glensound Signature Series have been designed to be highly versatile for installation and
can be installed in 9” racks with either their front or rear panels facing the front of the rack.
They can also be mounted underneath desks or work tops and can be either permananetly
mounted or stood (using the supplied feet) on top of desks or worktops.

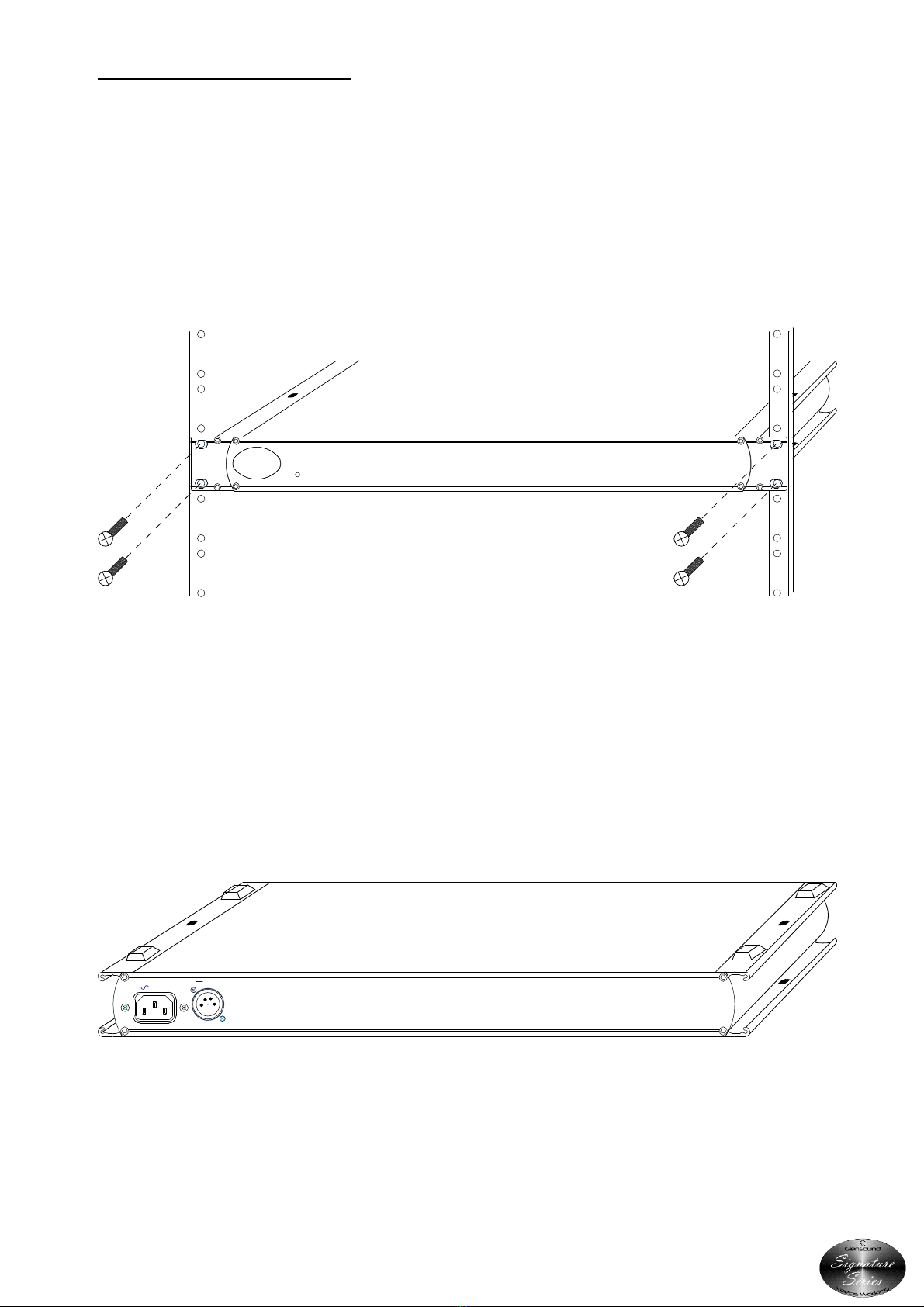

INSTALLING SIGNATURE SERIES IN A 19” RACK
Firmly hold the signature subrack within the 9” rack and locate in RU of space. Use the
supplied 6mm rack screws to securly attach the unit to the rack.
INSTALLING ADHSIVE FEET FOR NON PERMANENT TABLE TOP MOUNTING
Remove the front rack ears (if they are not required), turn the unit upside down and attach
the supplied 4 sticky feet as per the above drawing.
Signature
g
Series
Keeps Working
PWR ON
PART No
CE
W
50/60Hz 2.7 Watts
100-240V
+/-12V - - -
PIN 1 = GND
PIN 3 = -12V (100mA)
PIN 2 = +12V (100mA)
Top

Page 2 of 9
SWAPPING RACK EARS TO ALLOW THE REAR TO BE INSTALLED AT THE FRONT OF A
RACK
First remove the 4 silver button head screws that fix the rack ears onto the front of the unit as
shown in the top picture above.
Remove the rack ears and turn the unit around for access to its back panel.
Re-fit the 2 rack ears using the same 4 silver button head screws that were removed from the
front as per the bottom picture above.
USING THE MOUNTING HOLES FOR PERMANENTLY ATTACHING THE UNIT ABOVE OR
BELOW A WORKTOP/ DESK
Use either the top or bottom mounting holes as indicated above to use suitable screws to
attach the signature unit to a worktop or bench. **PLEASE ENSURE THAT YOU USE SUITABLE
FIXINGS**
Series
Signature
g
Keeps Working
PWR ON
PART No
CE
W
50/60Hz 2.7 Watts
100-240V
+/-12V - - -
PIN 1 = GND
PIN 3 = -12V (100mA)
PIN 2 = +12V (100mA)
Series
Signature
g
Keeps Working
PART No
PWR ON

Page 3 of 9

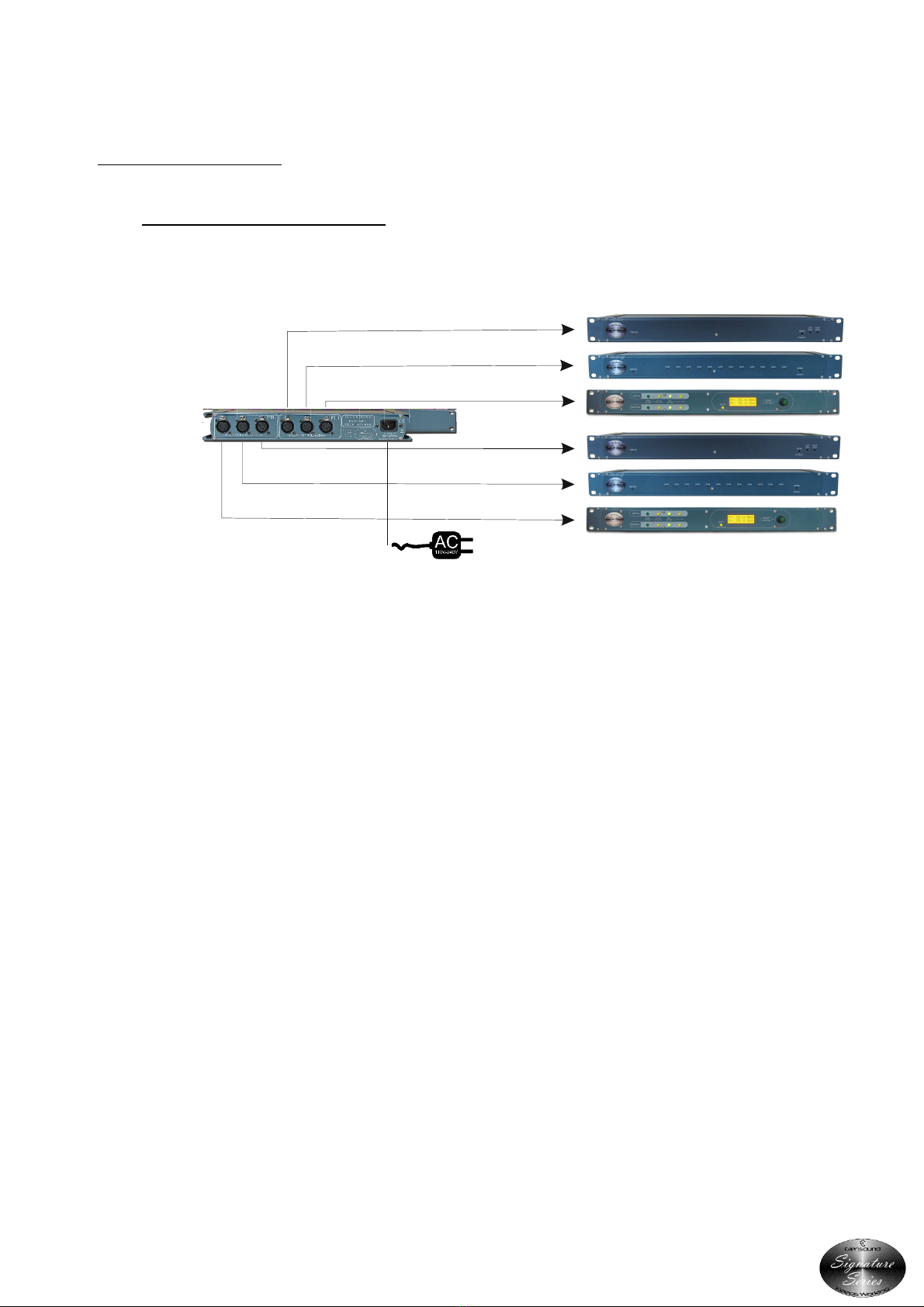

EXAMPLES OF USE
1. Master DC Po er Supply
PS
Rear Panel
Signature
Units
DC 4 Pin XLR
DC 4 Pin XLR
DC 4 Pin XLR
DC 4 Pin XLR
DC 4 Pin XLR
DC 4 Pin XLR
The Signature PS Power Station can be used as the primary power source for Signature
Series units. There are 6 x ± 2VDC outputs. Each of these can connected to any single
Signature Series unit, providing it with the primary power source. The PS must be
connected to a 00-240VAC mains power supply in order to distribute DC power to the other
Signature units.

Page 4 of 9

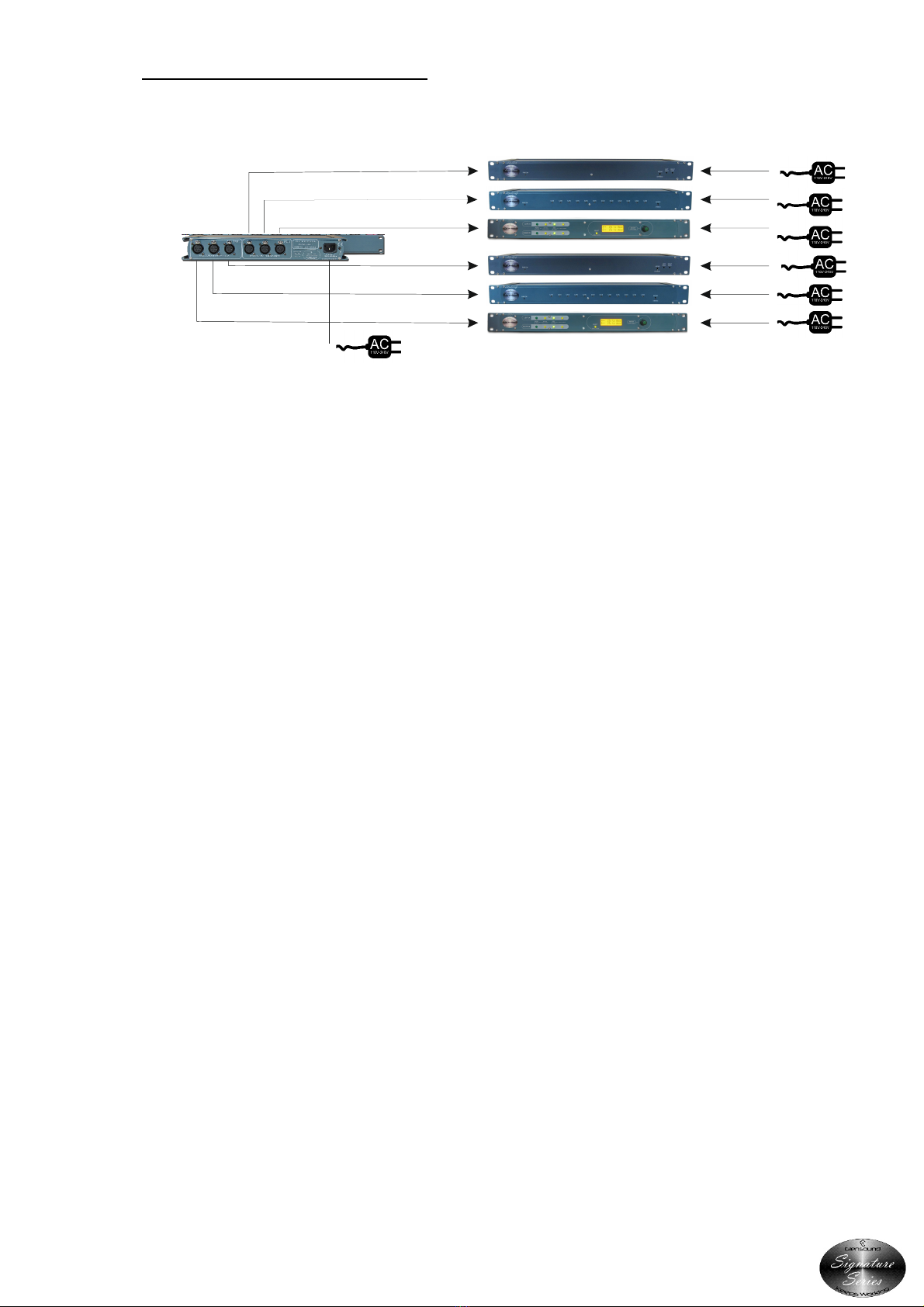

2. Redundant DC Po er Supply
PS
Rear Panel
Signature
Units
DC 4 Pin XLR
DC 4 Pin XLR
DC 4 Pin XLR
DC 4 Pin XLR
DC 4 Pin XLR
DC 4 Pin XLR
The Signature PS Power Station can be used as a redundant power supply for Signature
Series units. This is very useful when the Signature units are being used for an important
function, and the peace of mind of a backup supply is desirable.
Each Signature unit connects to a 00V - 240V AC supply as normal. The PS has 6 x ± 2VDC
outputs. Each of these connects to any single Signature Series unit, providing it with the
redundant power source. In the event of a failure of the AC power supply on the Signature
units, the PS will simply take over and ensure that the unit remains operational.

Page 5 of 9
USER CONTROLS & CONNECTIONS
FRONT PANEL
1. PSU ON LEDS
The two front panel PSU LEDs are each connected to the output of one of the two internal
power supplies.
If these LEDs are on then the unit is functioning correctly.
.
PSU ON LEDS

Page 6 of 9

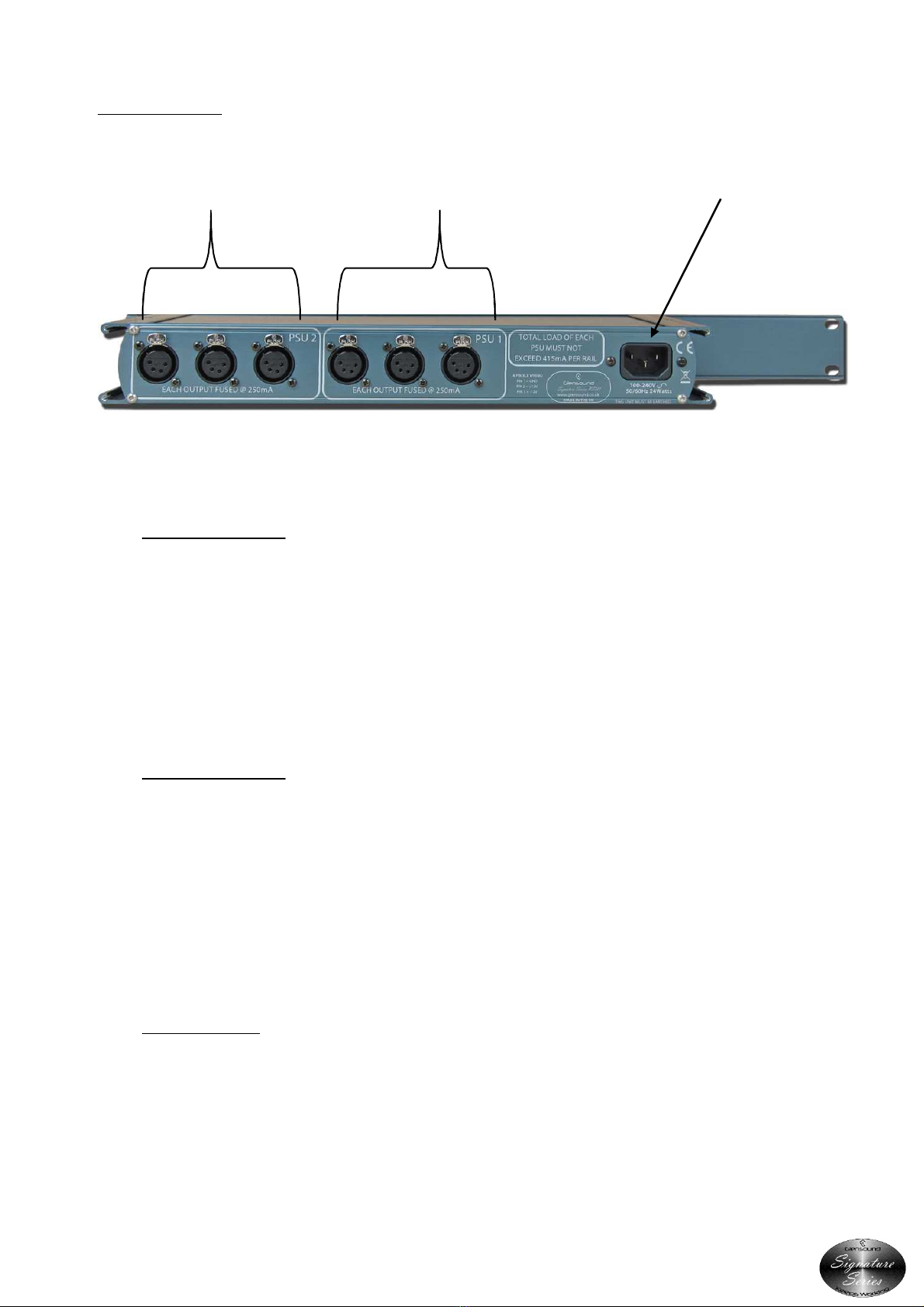

REAR PANEL
2. PSU 2 Outputs
These three DC power outputs are fed from one of the two internal power supplies. Each one
can be connected to an associated input on a Signature Series unit to provide DC power to
that unit.
Each output is individually fused so a short on one output or other external problem on that
output will not affect any other devices connected to the PS .
3. PSU 1 Outputs
These three DC power outputs are fed from one of the two internal power supplies. Each one
can be connected to an associated input on a Signature Series unit to provide DC power to
that unit.
Each output is individually fused so a short on one output or other external problem on that
output will not affect any other devices connected to the PS .
4. Mains Input
This wide range IEC plug accepts mains inputs in the range of 00 – 240VAC (+/- 0%).
4. Mains Input
2.
PSU 2 Outputs
3.
PSU Outputs

Page 7 of 9
MAXIMUM CURRENT OUTPUT
IMPORTANT: MAXIMUM OUTPUT CURRENT
Each Glensound Signature rack has printed on its rear panel near the 4 pin XLR DC input
connector the maximum current consumption of that rack for both its postive and negative
DC input rails.
Each of the 2 internal Power Supplies (PSU and 2) within the PS power station have a
maximum output current of 4 5mA per rail.
It is therefore necessary to make sure that the total current requirements of any devices
attached to the PS when added up do not exceed 4 5mA per rail per PSU output.

Page 8 of 9
WIRING INFORMATION
4 1
23
DC OUT
PUT
S
:
PIN 1: GND
PIN 2: +12V
PIN 3: -12V
4 PIN XLR SOCKET
(
FE
MALE)

Page 9 of 9
SPECIFICATIONS
FEATURES
POWER
ACCESSORIES
PHYSICAL
Mains Input
DC Output Cable
Size
Internal Mains Fuse
Shipping Weight
DC Output Mechanics
AC Consumption Weight
DC Output Fuse
Shipping Carton
Filtered IEC, 00 to 240VAC
47 - 63Hz
6 x 2 metre long cables, 4 pin XLR plug
to 4 pin XLR socket included
336 x 23 x 44mm (LxDxH) no rack ears
482mm ( 9”) RU with rack ears
20mm A Anti Surge
3kg
6 off 4 Pin Neutrik XLR plug 2V±All aluminium construction, anodized and
laser etched
0 Watts @ 230VAC 0.85kg
Internal polyfuse 250mA per rail per output
Rugged export quality cardboard carton
6 0 x 420 x 30mm (LxDxH)l
