Global Industrial 133753 User manual

1
User's manual Manual del usuario Manuel de l'utilisateur
Customer Service
US: 1-800-645-2986
Servicio de atención al Cliente
US: 1-800-645-2986
Service à la clientèle
Canada: 888-645-2986
Models: 133753
Portable Air Electric Compressor, 2.0 HP,
5 Gal,5.0 CFM, Oil-Free
Read and understand all safety and operational instructions. Failure to
follow the safety rules listed below and other basic safety precautions
may result in serious personal injury. Keep this manual, sales receipts
and applicable warranty forms for future reference.
• The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols, and the
explanations with them, deserve your careful attention
and understanding. The symbol warnings do not by
themselves eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident
prevention measures.
• Be sure to read and understand all safety instructions in
this manual, including all safety alert symbols such as
“DANGER”, “WARNING” and “CAUTION”, before using
this compressor. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious
personal injury.
• Keep your work area clean and well lit. Cluttered
workbenches and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases, or
dust. Power tools create sparks which may ignite the dust
or fumes.
• Keep bystanders, children and visitors away while
operating a power tool. Distractions can cause you to
lose control.
• Make your workshop childproof with padlocks and master
switches. Lock tools away when not in use.
• Make sure the work area has ample lighting so you can
see the work and that there are no obstructions that will
interfere with safe operation before using your power tool.
• Know your power tool. Read the operator’s manual
carefully. Learn the power tools applications and
limitations, as well as the specific potential hazards
related to this tool.
• Stay alert, watch what you are doing and use common
sense when operating a power tool.
• Do not use tool while tired or under the influence of drugs,
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
The purpose of safety symbols is to alert you of the potential safety
RISKS. Recognize and understand them. Follow the instructions
provided.
Failure to obey a DANGER safety alert WILL result in serious
personal injury or death to you or to others. Always obey all
messages following this symbol to reduce the risk of serious
personal injury or death.
Failure to obey a WARNING safety alert MAY result in serious
personal injury or death to you or to others. Always obey all
messages following this symbol to reduce the risk of potential
serious personal injury or death.
Failure to obey a CAUTION safety alert MAY result in personal
injury or property damage to you or to others. Always obey all
messages following this symbol to reduce the risk of personal
injury or property damage.
Notice indicates important information, that if not followed,
may cause damage to equipment.
IMPORTANT SAFETY INSTRUCTIONS
WORK AREA SAFETY
SAFETY SYMBOLS
GENERAL SAFETY WARNINGS
SPECIFIC SAFETY INSTRUCTIONS
FOR 5 GAL AIR COMPRESSOR
SAVE THIS MANUAL FOR FUTURE
REFERENCE
SAFETY INSTRUCTIONS
DANGER
WARNING
CAUTION
NOTICE
SYMBOL MEANING

2
User Manual
• Dress properly. Do not wear loose clothing or jewelry.
Pull back long hair. Keep your hair, clothing, and gloves
away from moving parts. Air vents often cover moving
parts and should also be avoided. Loose clothing,
jewelry or long hair can be caught in moving parts.
• Avoid accidental starting. Be sure switch is in “OFF”
position before plugging in. Do not carry tools with your
finger on the switch. Carrying tools with your finger
on the switch or plugging in tools that have the switch
in the “ON” position invites accidents.
• Remove adjusting keys or wrenches before turning
the tool “ON”. A wrench that is left attached to a rotating
part of the tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all
times. Proper footing and balance enables better control
of the tool in unexpected situations.
• Always secure your work. Use clamps or a vise to hold
work when practical. It is safer than using your hand
and frees both hands to operate tool.
• Use safety equipment. Always wear eye protection.
Dust mask, non-skid safety shoes, hard hat or hearing
protection must be used for appropriate conditions.
• Do not use on a ladder or unstable support. Stable
footing on a solid surface enables better control of
the tool in unexpected situations.
• Always use clamps or other practical ways to secure
and support the work piece to a stable platform. Holding
the work by hand or against your body is unstable and
may lead to loss of control.
• Do not force the tool. Use the correct tool and blade for
your application. The correct tool and blade will do the
job better and safer at the rate for which it is designed.
• Do not use the tool if switch does not turn it “ON” or
“OFF”. Any tool that cannot be controlled with the switch
is dangerous and must be repaired
• Disconnect the plug from the power source before
making any adjustments, changing accessories or
storing the tool. Such preventive safety measures reduce
the risk of starting the tool accidentally.
• Never leave the tool running. Always turn it off. Do not
leave the tool until it comes to a complete stop.
• Store idle tools out of the reach of children and other
untrained persons. Tools are dangerous in the hands of
untrained users.
• Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools with sharp cutting
edges are less likely to bind and are easier to control.
• Check for misalignment or binding of moving parts,
breakage of parts, and the tool serviced before using.
Many accidents are caused by poorly maintained tools.
• Use only accessories that are recommended for this tool.
Accessories that may be suitable for one tool may
become hazardous when used on another tool.
• Avoid body contact with grounded surfaces such as
pipes,radiators, ranges, and refrigerators. There is an
increased risk of electric shock if your body is grounded.
• Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
• Do not abuse the cord. Never use the cord to carry
the tool or pull the plug from an outlet. Keep the cord
away from heat, oil, sharp edges, and moving parts.
• Replace damaged cords immediately. Damaged cords
increase the risk of electric shock.
Keep the extension cord clear of the working area. Position the
cord so that it will not get caught on lumber, tools or other
obstructions while you are working with a power tool.
Check extension cords before each use. If damaged replace
immediately. Never use tool with a damaged cord since toughing
the damaged area could cause electrical shock, resulting in
serious injury.
Use a proper extension cord. Only use cords listed by
Underwriters Laboratories (UL). Other extension cords can cause
a drop in line voltage, resulting in a loss of power and overheating
of tool. When operating a power tool outdoors, use an outdoor
extension cord marked “W-A” or “W”. These cords are rated
for outdoor use and reduce the risk of electric shock.
Be sure to read and understand all instruction before
operating this power tool. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious
Personal injury.
WARNING
WARNING
Model No.
Pump
Motor
Voltage/Amps/Hz
Air Tank Capacity
Maximum Pressure
CFM@40 PSI
CFM@90 PSI
Power Cord
133753
Oil free
2 HP
120/15/60
5 Gallon (19 L)
225 PSI
6.5
5.0
SJT14AWG x 12 ft
CAUTION
NOTE
ELECTRICAL SAFETY
EXTENSION CORDS
TOOL USE AND CARE SAFETY
5-Gallon Air Compressor
Grounded
outlet
Grounding Pin
Plug
This compressor should be used
on a nominal 120V grounded
circuit. Use a power cord that is
equipped with a grounding plug.
Verify that the compressor is
plugged into an outlet that has
the same configuration as the plug.
Do not use an adaptor with
this compressor.
MINIMUM GAUGE FOR EXTENSION CORDS
(When using 120 volts only)
Ampere Rating
Not Recommended
More Than< >Less Than 25ft. 50ft. 100ft. 150ft.
0
6
10
12 12
6
10
18
18
16 16
16
16
14
14
16
12
12
14
14
12
16
Total Length Of Cord
PRODUCT SPECIFICATIONS

3
User Manual

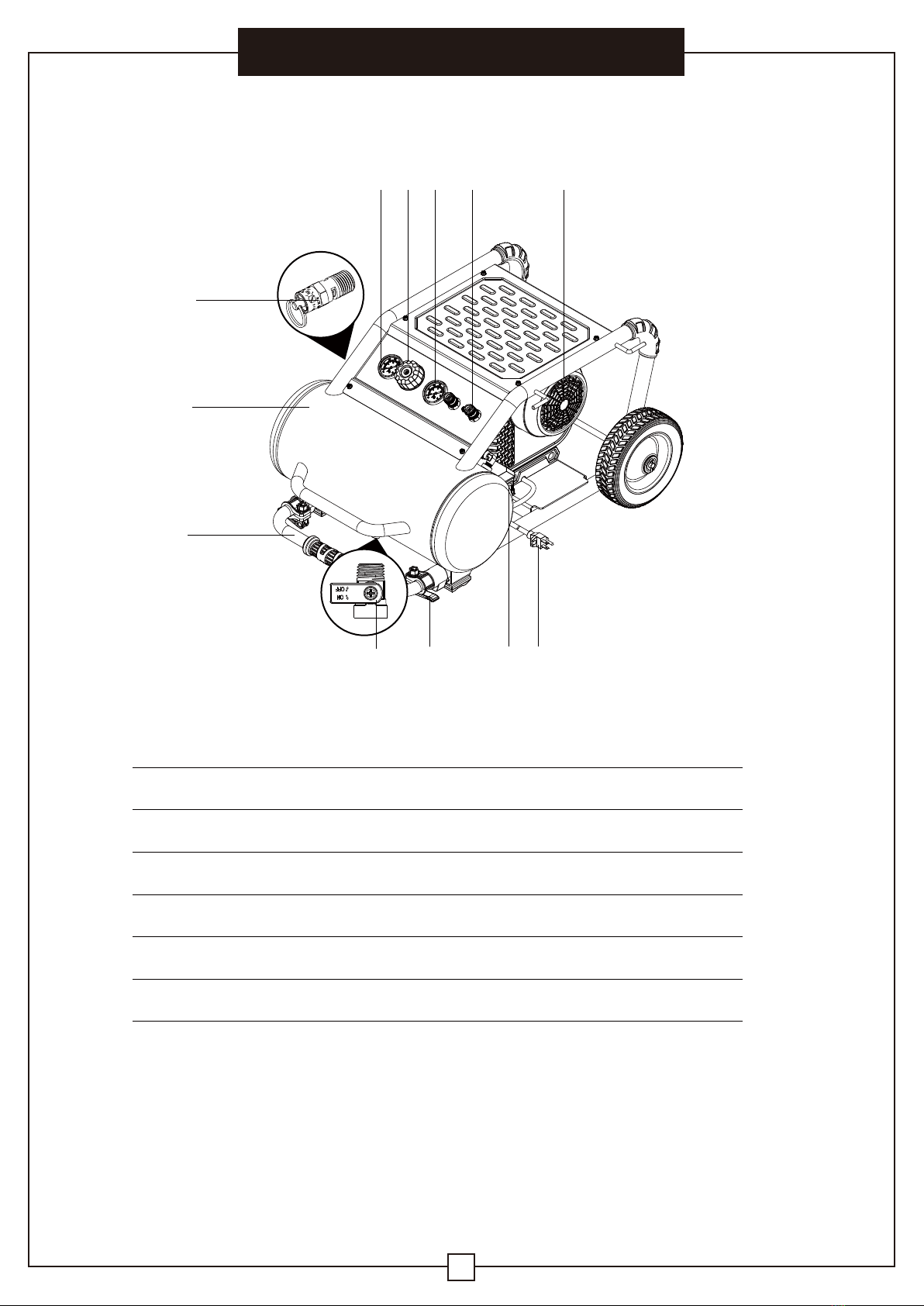

A. Pressure Regulator G. Cam Locks
C. Quick Coupler I. Sliding Handle
OVERVIEW
5-Gallon Air Compressor
AL B C D
E
I
F
G
H
J
K
B. Outlet Pressure Gauge H. Drain Valve
E. Power Cord K. Safety Valve
F. Power Switch L. Tank Pressure Gauge
D. Motor & Pump J. Air Tank

ASSEMBLY
4
User Manual
The motor is used to power the pump. It is equipped with a
thermal overload protector. If the motor overheats for any
reason, the thermal overload protector will shut it down in
order to prevent the motor from being damaged.
Electric Motor
The pump compresses the air and discharges it into the tank
via the piston that moves up and down in the cylinder.
Air Compressor Pump
This valve is used to prevent the compressor from building
too much pressure. If the pressure reaches the preset level
of the motor, it will automatically pop open. You can also
pull the ring on the valve to open manually.
Safety Valve
The Switch turns the compressor on and off manually.
Always set this switch to the OFF position when the
compressor is not being used and before unplugging.
Power Switch
The regulator is used to adjust the pressure inside the line to
the tool that is being used. Turn the knob clockwise to increase
the pressure and counter-clockwise to decrease the pressure.
Pressure Regulator
The gauge measures the pressure level of the air that is stored
in the tank. It cannot be adjusted by the operator and it does
not indicate the pressure inside the line.
Tank Pressure Gauge
The gauge measures the regulated outlet pressure.
Outlet Pressure Gauge
The quick coupler is connected to the 1/4” (6.4 mm) NPT air hose.
Quick Coupler (Universal Coupler)
The drain valve is used to remove moisture from the air tank
after the compressor is shut off.
Drain Valve
The tank is where the compressed air is stored.
Air Tank
This compressor should be used on a nominal 120V grounded
circuit. Use a power cord that is equipped with a grounding plug.
Verify that the compressor is plugged into an outlet that has
the same configuration as the plug. Do not use an adaptor
with this compressor.
• Unpack the air compressor unit. Inspect the unit for damage.
If the unit has been damaged, contact the retailer immediately.
• Check the air compressor’s identification label to ensure
that you have purchased the intended model and that it has
the required pressure rating for its intended use.
OPERATING INSTRUCTIONS
Before starting compressor, pull the ring on the safety valve to
make sure that the safety valve operates freely. If the valve is
stuck or does not operate smoothly, contact a trained service
technician(Fig. C).
Risk of property damage. Do not operate in vertical position!
Vertical position is for storage only!
1. Set the power switch to the OFF position (Fig. D).
2. Turn the air pressure regulator knob counter-clockwise
until it stops(Fig. E).
3. Attach hose and accessories (FIG. F).
The carton should contain:
• Air compressor
• Owner's manual
1. Position the air compressor near an electrical
2.
3. Place the air compressor on the floor or a hard level
surface.
4. Connect the air hose to the compressor’s quick coupler
(universal coupler) with the universal quick plug (FIG. B).
POSITIONING OF THE AIR COMPRESSOR
Power Cord
PRODUCT FEATURES
CHECK SAFETY VALVE
5-Gallon Air Compressor
NOTE
FIG.A
12”/31cm
FIG.B
Attach air hose and accessories (not provided). Apply
plumber’s tape on all the threads to prevent air leakage.
NOTE
1
2outlet (FIG. A).
4
5
C
12
3
4
5
C
The compressor must be at least 12”(31cm) from
any wall 3or obstruction, in a clean, well-ventilated area
to ensure sufficient air flow and cooling (FIG.A).

MAINTENANCE
4. Close the tank ball valve . Plug-in the power cord
(FIG. G).
5. Set the power switch to the ON position and allow the
tank pressure to build. Motor will stop when tank pressure
reaches cut-out pressure (Fig H).
1. Set the power switch to
the OFF position.
2. Unplug the power cord .
3. Reduce the pressure in the
tank through the outlet hose.
Pulling the safety valve
ring and keeping it open
will also reduce the pressure
in the tank (Fig. I).
4. Set tank drain valve to OFF
to ensure tank is drained.
SHUT DOWN
If the pump has been transported or turned upside down (even
partially), allow the pump to sit in a normal, upright position
(FIG. A) for approximately 10 minutes before starting.
NOTICE
1. Set the power switch to the O (OFF) position.
2. Turn air pressure regulator knob counter-clockwise to set
the outlet pressure to zero.
3. Pull and hold ring on safety valve, allowing air to bleed from
the tank until air pressure is minimized.
1. Unlock the two cam locks as shown in the illustration.
2. Slide the handle upward to the desired height.
3. Lock the two cam locks in place.
DRAIN THE TANK
User Manual
5-Gallon Air Compressor
5
High pressure air could result in death or serious
injury. Never operate above maximum operating
pressure of the spray gun or tool.
WARNING
Risk of serious eye injury from moisture and debris.
Always wear ANSI Z87.1 safety goggles when opening
drain valve.
WARNING
High pressure air could result in death or serious
injury. Shut off unit unplug and release air pressure
prior to servicing.
WARNING
High pressure air containning water condensation
could result in minor or moderate injury. Do not
spray at any person.
CAUTION
To avoid personal injury, DO NOT grab only the sliding handle
to lift the whole unit. If you want to lift the unit, please make sure
you grab both the tank and sliding handle .
Use the following instructions to use the sliding handle and
wheels to move the unit.
CAUTION
Hot compressor surfaces could result in serious
injury. Allow compressor to cool before touching.
WARNING
H
E
F
E
K H
H E
I
I
I
G
G
I
E
H
K
F
Unlock
I
G
ITEM DESCRIPTION SERVICE
INTERVAL
Drain the tank
Check the valve
Test for leaks
Storage
Daily
Daily
Monthly
Prior to
storing
Through normal operation of your air
compressor, condensation water will
accumulate in the tank. To prevent
corrosion of the tank from the inside,
condensation must be drained at the end
of every workday. Be sure to wear
protective goggles. Relieve the air
pressure in the system then open
the drain valve on the bottom of the tank
to drain. Under cold conditions it is
especially important to drain the tank
after each use to reduce the chance of
problems resulting from the freezing of
condensation water.
NOTE: Refer to instructions on how to
drain tank.
Pull/actiate the safety valve daily to
ensure that it is operating properly and
to clear the valve of any possible
obstructions.
Check that all connections are tight.
Small leaks in the tank, hoses,
connections or transfer tubes will
substantially reduce the air compressor
and tool performance. Spray a small
amount of soapy water around the area
of suspected leaks with a spray bottle.
If bubbles appear, repair: replace or reseal
the faulty component. Do not over-tighten
any connections.
Before storing the air compressor:
• Drain tank.
• Use an air blow gun to clean all dust
and debris from the compressor.
• Disconnect and wind up the power cord.
• Clean the ventilation openings on the
motor enclosure with a damp cloth.
• Drain all moisture from the tank.
• Pull the pressure safety valve to release
all pressure from the tank.
• Cover the entire unit to protect it from
moisture and dust.
• Store the air compressor in a clean and
dry location.
• In cold weather, store the compressor
in a warm building when it is not in use.
This will reduce problems related to
starting the motor and the freezing of
water condensation.
4. Place a suitable container under the unit to catch any water.
5. Slightly tilt unit and turn drain valve counter-clockwise to open.
6. After the water has been drained,close the drain valve
(clockwise). The air compressor can now be stored.

User Manual
5-Gallon Air Compressor
6
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTIONS
The motor will not run
or start.
The motor runs
continuously when the
power switch is in the ON
position.
The regulator does not
regulate the pressure.
The pressure is low or
there is not enough air.
There is moisture in the
discharge air.
The compressor
overheats.
The ventilation is inadequate. Relocate the compressor to an area with cool, dry and well-circulated air.
Clean all cooling surfaces on the pump and the motor thoroughly.
Replace worn parts and reassemble using new plumber's tape.
Cooling surfaces are dirty.
The valve is leaking.
The power cord is not plugged in. Plug the power cord into a grounded outlet.
Set the power switch to the ON position.
Check extension cord information for the proper wire gauge and cord length.
Turn the air compressor off , unplug the power cord and wait until the motor
has cooled down. Plug in the power cord only after the motor has cooled
down, and wait for at least 15 minutes to make sure the thermal overload
protector has recovered.
Replace the fuse or reset the circuit breaker.
Verify that the fuse has the proper amperage.
Check for low voltage conditions.
Disconnect any other electrical appliances from the circuit or operate
the compressor on a dedicated circuit.
The motor will start automatically when the tank pressure drops below
the cut-in pressure.
Clean or replace the safety valve.
Contact an authorized service center.
Contact an authorized service center.
The power switch is in the O (OFF) position.
The extension cord is the wrong wire gauge or is
too long.
The motor’s thermal overload protection
has tripped.
The air tank pressure exceeds the preset
power switch limit.
The safety valve is stuck open.
Electrical connections are lose.
The motor, capacitor, or safety valve is defective.
The power switch does not shut off the motor
when the air compressor reaches the cut-out
pressure and the safety valve activates.
The compressor’s capacity is not enough.
The regulator or its internal parts are dirty
or damaged.
There is a leak at one of the fittings. Check the fittings with soapy water. Tighten or reseal leaking fittings
(apply plumber’s tape on threads). Do not over tighten.
The drain valve is open.
The air intake is restricted.
Prolonged excessive use of air.
There is a hole in the air hose.
The tank leaks.
The valve is leaking.
There is condensation in the air tank caused by
a high level of atmospheric humidity or because
the air compressor has not been running long
enough.
Check for worn parts and replace them if necessary. Check for worn parts
and replace them if necessary.
Drain the air tank after each use. Drain the air tank more often in humid
weather and use an air-line filter.
Close the drain valve.
Clean or replace the air filter element.
Decrease the amount of air used.
Check the air hose and replace it if necessary.
Replace the tank immediately. Do not attempt to repair it. Replace the tank
Set the power switch to the OFF position. If the motor does not shut off,
unplug the air compressor. If the power switch is defective, replace it.
Check the air requirements of the accessory that is being used. If it is higher
than the CFM (Cubic Feet per Minute ) and pressure supplied by
the compressor, a larger capacity air compressor is needed.
Most accessories are rated at 25% of actual CFM while running continuously.
Replace the regulator.
A fuse has blown or a circuit breaker has been
tripped.

User Manual
5-Gallon Air Compressor
7

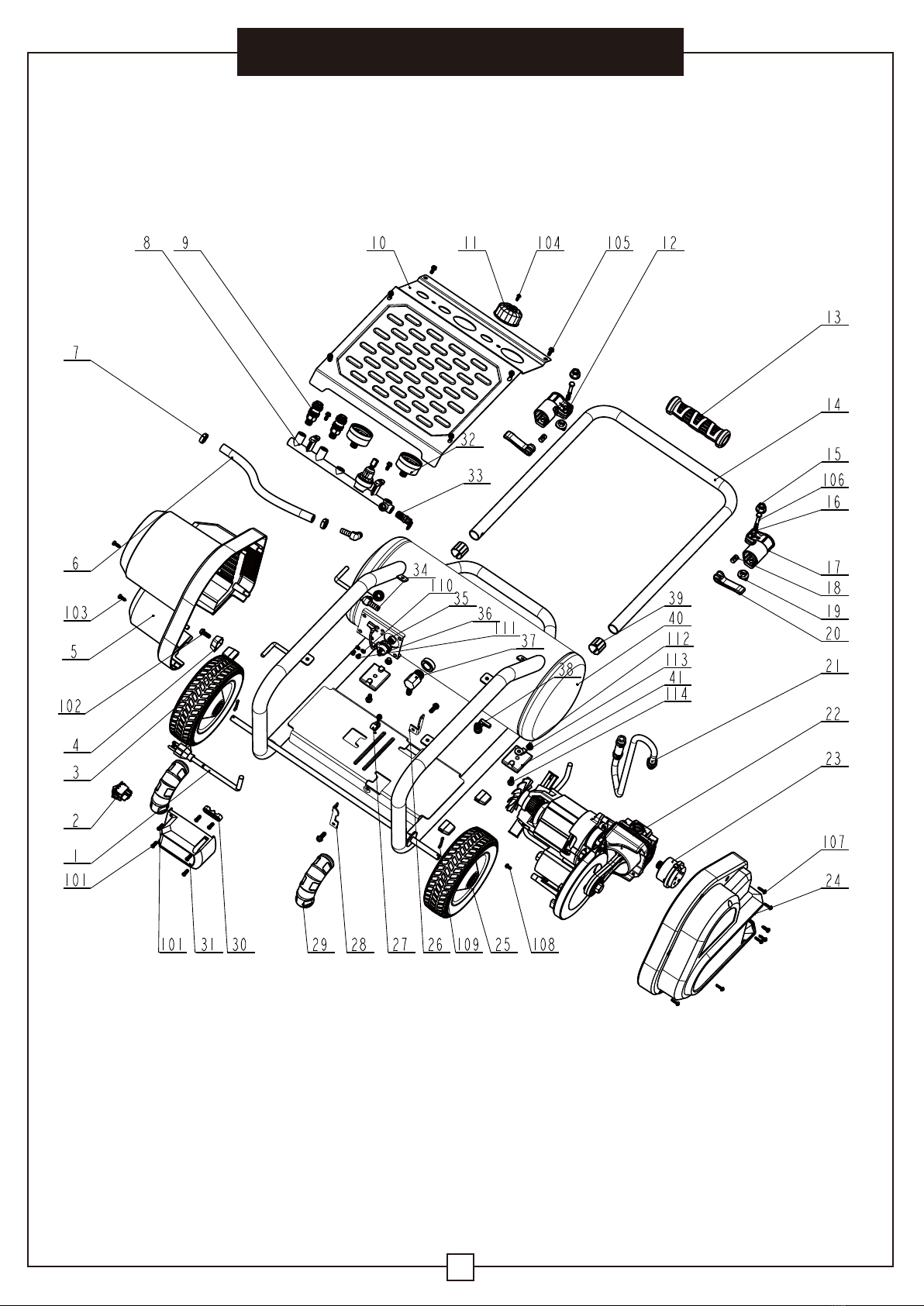

EXPLODED VIEW

User Manual
5-Gallon Air Compressor
8
PARTS LIST
ITEM DESCRIPTION QTY.
1
2
1
1
1
Power Cord
Power Switch
3
4
3Cushion Pad
Retainer
15 Left Shroud
1
1
6 Rubber Hose
27
8
Clamps
Pressure Regulator
29 Quick Coupler
110 Control Panel
111 Pressure Regulator Knob
112 Cam Lock (L)
117 Cam Lock (R)
218 Lock Nut
219 Plastic Washer
220 Lever
121 Rubber Aluminum Tube
1
1
1
Motor Pump Assembly
Air Filter
Right Shroud
2
1
1
13
14
Handgrip
Handle
2
15 Nut
1
Wheel
1
1
Motor Retaining Plate (Rear)
Cable Clip
2
16
24
25
26
27
28
22
23
Spring
ITEM DESCRIPTION QTY.
29
30
2
1
Motor Retaining Plate (Front)
Steel Pipe Sheath
1
2
Clamp
1
Switch Box
2
Pressure Gauge
1
Safety Valve
1
Elbow Fitting
Connection Cable
1
Pressure Switch
1
Check Valve
2
Drain Valve
1Air Tank
2Rubber Foot
6
Screw M5x14
Screw ST3.9x16F
3
Screw 1/4-20x31
3
Screw 10#x15
1
Screw M4x10
2
Screw M5x6 2
2
2
Screw M8x8
9
Bolt M5x12
2
2
Bolt M6x34
Bolt M6x16
6
Screw 8#x9
Cotter Pin
Lock Washer∅5
Large Washer∅6
2
Sliding Sleeve
31
32
33
34
35
36
37
38
39
40
103
104
105
106
107
41
101
102
110
111
112
113
2114
108
109

User Manual
5-Gallon Air Compressor
9
WARRANTY
GLOBAL 5 GAL (19 L) AIR COMPRESSOR
If this compressor fails due to a defect in material or workmanship within 1 years from the date of purchase, return it to store with
the original bill of sale for further analysis. This warranty does not include expendable parts including but not limited to blades,
brushes, belts, light bulbs. This warranty covers defects in material or workmanship only. It does not cover normal wear and tear,
failure due to abuse/misuse, or defects caused by careless or accidental mishandling. If this product is used for commercial or
rental purposes, this warranty does not apply.
