Global Industrial 436981 User manual

1MODEL #
User's manual Manual del usuario Manuel de l'utilisateur
Customer Service
US: 1-800-645-2986
Servicio de atención al Cliente
US: 1-800-645-2986
Service à la clientèle
Canada: 888-645-2986
Converts the power of a DC 13V Lead-Acid Battery to AC 100-120V/60Hz
AC Voltage through an inverter to supply power to electric hardware.
This product has: under-voltage protection, overload protection, power display and low-
voltage prompt
Product Composition
This product is composed of:
Main housing, Lead-acid battery, Charger,
Inverter, Relay, American Standard power
strip, Power display, 12V DC power
supply, Heat dissipation fan
Product Parameters
Overall Size: 17" x 13.5" x 13.5"
Weight: Net: 90lbs, Gross: 105lbs
Charging Input Voltage: 100-240VAC 50/60 Hz, 5A (max)
Load Output Parameters AC: 100-120V, 60Hz, 1000W
USB Output Parameters DC: 5V 2.1A
Charging time: 5hrs Full Charge
Operating Ambient Temperature: 32-104 °F
Power Display: 7 Bar Voltage and Percentage Display
Product Service Life: 1 year (Battery Deep Discharge: 300 Charge Cycles)
Warnings:
• The voltage of each electrical appliance is different. Before using any device with this power
supply, check whether the rated voltage range of the product is compatible with the output of
the power supply. Mis-matched voltage can cause damage and injury to the device, the power
supply, and the user.
• If the battery is discharged to the cut-off voltage, further discharge is called over-discharge.
Over-discharging can easily cause severe loss of battery power and shortens battery life. Avoid
over-discharging the batter when in use by charging it once the cut-off voltage is reached.
• Keep the battery away from re, high temperatures, humid or rainy environments during use
and storage.
• Do not disassemble the power supply. This item has a built-in high voltage power supply.
• Do not throw this power supply in general trash at the end of its life. Please recycle this item
according to local laws and regulations.
• The product's casing should be effectively and rmly grounded before use.
• Disconnect charging power cord before removing the case lid to remove or replace the battery.
• Disconnect the charging power cord before plugging any devices into the power supply.
This product charges the internal lead-acid battery through the charger. After the battery is fully charged,
the battery voltage (DC 13V) is converted to 100-120V AC through the inverter for output. When the battery
is fully charged, the charger will automatically protect the battery by disconnecting the charger plug,
and the relay coil to the inverter is closed. At this time, the inverter can be used with a load. During the
use of this product, the power display shows the corresponding voltage prompt according to the power
consumption proportion of the battery voltage. When the voltage of the lead-acid battery is lower than
10%, a buzzer will start an alarm. When charging, the charger must be connected to an external power
supply to charge the lead-acid battery. During charging, the relay disconnects the lead-acid battery from
the inverter. The inverter cannot supply a load while charging. This product has over-load and over-current
protection, as well as under-voltage protection and charging surge protection.
Model: 436981
100 AH / 1000W Pure Sine Wave
Portable Power Supply

2
Portable Power Supply
Product Features Descriptions
Front View
Back View
Side View
Over-Current Protection Switch
Inverter Output Switch
Power Display
System Settings Button
Voltage Control/ Power Switch
USB Output Output Switch
AC Output Socket
Heat Dissipation Fan
Charging Line input socket
Heat Dissipation Louver
User Manual

3
Portable Power Supply

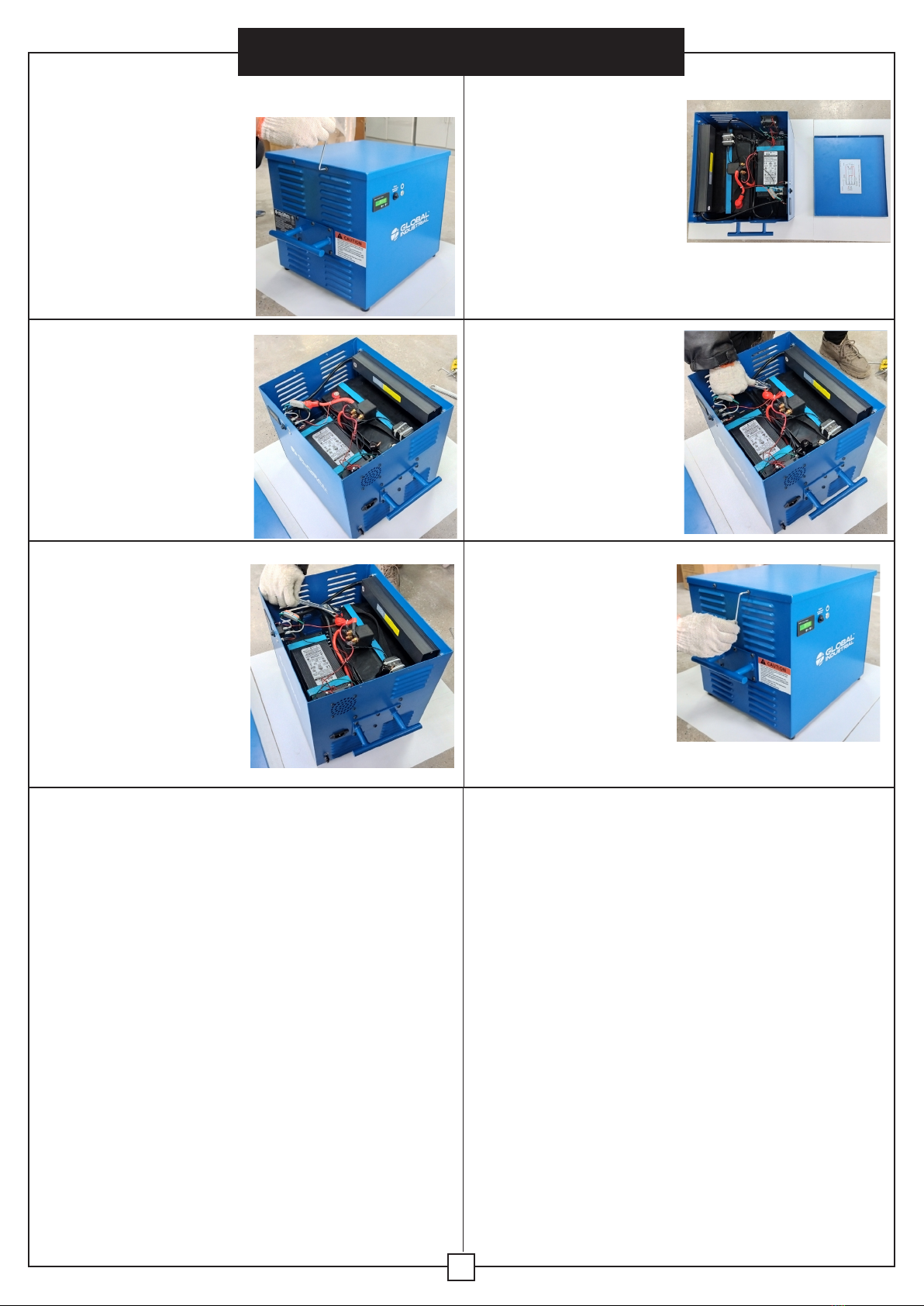

Step 1:
Open Casing by loosening
Hex Screws using included
Allen Key
Step 2:
Remove power cabinet cover.
Step 3:
Identify the battery wire
terminals. Note that RED
terminals correspond to the
Positive (+) battery terminal.
Step 5:
Insert bolt through Black
(-) terminal. Be cautious of
sparks; it is normal to spark
for a first time, connection.
Place the flat washer, lock
washer, then bolt into the
nut and tighten securely with
wrenches.
Step 6:
Place battery cover on and
securely tighten Hex Screws.
Step 4:
Insert bolt through Red (+)
wire terminal. Place the flat
washer, lock washer, then
bolt onto the battery terminal
nut and tighten securely with
wrenches.
First Time Set-up Instructions
Charging Instructions
Insert one end of the input line into the charging socket
of the housing, and the other end into an external energy
source, including wall outlets. Check that the input voltage
is within 100-240VAC 50/60Hz.
Product Operation Steps
1. Connect the device to the Power Strip on the housing.
2. Turn on the power switch located on the front of the
housing and the red button on the power strip IN
THAT ORDER.
User Manual

4
Portable Power Supply
Maintenance Information
• Each time the unit is fully charged, unplug and let the unit cool for approximately 10 min.
• Charge fully before use, especially for rst time use.
• Periodically clean dust and dirt from heat dissipation louvers.
• Keep the housing dry and clean to protect battery from discharging on its own.
• Do not store the battery uncharged. If it is to be stored for a long time, it should be fully
charged, placed in a cool and dry place, and recharged regularly.
• At low temperatures, there can be issues of battery power loss caused by poor charging
acceptance and insufcient charging. Thermal insulation and anti-freezing measures must
be taken at low temperature, especially while charging. The device should be kept in a warm
environment to prevent irreversible sulfation.
• Do NOT expose the product to moisture or water- Do not wash product.
Avertissement :
• Les normes de tension des différents appareils électriques sont différentes. Avant l’utilisation,
vériez soigneusement si la plage de tension nominale du produit est compatible avec la plage
de tension de l’alimentation portable, sinon cela peut être dangereux;
• Une fois que la batterie est déchargée jusqu’à la tension d’arrêt, une décharge plus importante
est appelée surdécharge. Une décharge excessive peut facilement provoquer une grave perte
de puissance de la batterie, ce qui réduit considérablement sa durée de vie. Il convient donc
d’éviter toute décharge profonde lorsque la batterie est utilisée;
• Pendant l’utilisation et le placement, le produit doit être tenu à l’écart du feu, d’un
environnement à haute température, d’un environnement humide et pluvieux, sinon il peut
présenter un danger;
• Ce produit possède une alimentation haute tension intégrée. Les non professionnels ne sont
pas autorisés à le démonter eux-mêmes;
• Veuillez ne pas jeter le produit à volonté après la n de sa durée de vie, et veuillez le recycler
conformément aux lois et réglementations locales;
• Le boîtier du produit doit être efcacement et fermement mis à la terre avant utilisation
User Manual
