Global Sat GB-580 User manual

GPS Cycle Computer Device
GB-580
Quick Start Guide
http://www.gs-sport.com
Power / Light/ Esc
Page/ Enter Down/Lap/Save
Up/ Start/ Stop

What is GPS?
GPS stands for Global Positioning System. For 3D fix, we need at least four satellites.
Normally the accuracy of GPS under open sky which means no tall building and clear sky is
within 10 meters per second. Therefore, if the device shift 10 meter at that second, the device
may shows 36 kilometer per hour instant speed. Nowadays, the GPS consumer product has
built in adjust algorithm and assisted method to extend capability of GPS.
What is Water Resistant IPX7?
Protected against the effects of temporary immersion in water. Under specific conditions of
pressure and duration, water must not enter a temporarily submerged headlamp in quantities
that would cause adverse operational effects.
The IPX7 waterproof standard is for device one meter under water within 30 minutes
protection. Waterproof standards usually measure by the pressure of water. IPX7 standard
provides device protection to be exposed the rain and sprayed over water. However, the
pressure of swimming or diving should exceed IPX7 standard.
Note for Upgrading Firmware
zDo not interrupt during upgrading the firmware
zChoose the right firmware file carefully
zPress UP+PG+PW to enter Boot Loader mode if device dead from fail of firmware
update and then process updating process again to recover device.

CAUTION !
zBefore first time using device, please fully charge the device.
zPlease dry the USB cavity before connection of charging or data transfer.
zBefore start training, please let antenna face to sky to get 3D fix
Symbol Explanations
GPS status indicator
zNone: No signal
zSolid: 3D fix
zSolid with 1 bar: 3D fix with poor signal
zSolid with 2 bar: 3D fix with good signal
zSolid with 3 bar: 3D fix with strong signal
Timer icon
Cadence sensor
Clock alert
Heart rate monitor indication
Battery capacity indication
Button Description
Power/ESC Press 2 seconds to turn on/off GB-580.
When GB-580 is on, quickly press this button will turn
on/off the backlight.
Press and hold this button for 14 seconds to do
hardware reset if the system is halted.
In Menu mode, press ESC button shortly to escape
from the current page and go back to the previous
page.

PG /ENTER Switch between the screens of Speedometer mode.
Press 2 seconds to enter between Main Menu page
Speedometer Page alternatively.
In Main Menu page, press this button shortly as
ENTER function.
Switch between the screens of “Menu mode”,
“Location mode”, “Speedometer mode” and “Map
mode”.
Up /Start/Stop
To press UP to up scrolling as highlighting an item in Main Menu page.
In Speedometer mode, press START button to start
timer to get training.
In Speedometer mode, press STOP button to stop
timer in training.
In Map mode, press for zoom in.
Down/Lap/Save To press Down to down scrolling as highlighting an
item in Main Menu page.
In Speedometer mode, when timer is counting for
training, press Lap button to create a lap.
If timer is stop while in training, press SAVE button to
save training.
The GPS antenna is located in the
lower part of the device. Let it face
to the sky for a better reception.

How to Set Up Custom Page
Set up the custom page and function list before your training.
[MAIN MENU] > [CONFIGURATION] > [SET CUSTOM PAGE ]
1. Press ‘’Page button’’ 2s to enter MAIN
MENU
2. Choose ‘’ CONFIGURATION’’ then
press ‘’Enter button’’.
3. Chose ‘’ PAGE SETTINGE’’ then press
‘’Enter button’’
.
4. Modify the screen field number.

5. There have four types of screen field
could be choose for every page.
6. Select the function coefficient you want
then press ’Enter button’’ to save
setting.
Press ‘’ESC button’’ to exit
How to configure your device
Before getting training, you may configure your device in the best condition to get more
accurate performance.
a. User Profile Setting
1. Please press Page button 2s to enter
Main MENU and then chose USER
PROFILE.
2. To press UP and Down button to select
each item for definition.
3. Press ESC button to exit if finished.

b. Bike setting (GB-580P only)
1. Please press Page button 2s to enter
Main MENU and then chose
ACCESSORIES.
2. To press UP and Down button to select
BIKE SETTING.
3. There are five bicycles for configuration.
Press ESC button to exit if finished.
c. Heart Rate Zone setting (GB-580P only)
1. Please press Page button 2s to enter
Main MENU and then chose
ACCESSORIES.

2. To press UP and Down button to select
BIKE SETTING.
3. You may configure Heart Rate Zone
parameters and press ESC button if
finished.
d. Calories Setting
1. Please press Page button 2s to enter
Main MENU and then chose ACTIVITY.
2. Chose SETTING and then press ENTER
button.
3. Chose CALORIES and press ENTER
button to configure.
4. To define the appropriated parameters
and then press ESC button if finished.
E. Barometer Setting (GB-580P only)
1. Please press Page button 2s to enter
Main MENU and then chose
ACCESSORIES.
2. And then press ENTER button.
3. Chose BARO SETTING and press
ENTER button to configure.

4. To define the appropriated parameters
and then press ESC button if finished.
5. There are some ways to get well
calibration:
A. Go to website to find the local
SEA LEVEL PRESSURE and
then put in;
B. Try to put in the OFFSET base on
current altitude from information
or GPS.
NOTE: The default data recording setting is
upon BAROMETER, it is important to get
calibration to come out accuracy
performance.
F. Power setting (GB-580P only)
1. Please press Page button 2s to enter
Main MENU and then chose
ACCESSORIES
2. And then press ENTER button.
3. Chose POWER SETTING and press
ENTER button to configure.
4. To describe the power scale as W or %
by setting VIEW.
5. To set POWER ZONE by MAX or
custom.
G. E-compass Setting (GB-580P only)
Electronics compass can assist GPS and improve the unreliable problem from stationary. You
have to calibrate before use that. You may follow instruction to calibrate.

1. Please press Page button 2s to enter
Main MENU and then chose ACTIVITY.
2. Chose SETTING and then press ENTER
button.
3. Chose SET COMPASS and press
ENTER button to configure.
4. And then press CALIBRATION button.
5. Follow instruction to calibrate
E-compass.
6. The direction will be getting more reliable
After well calibrated.
How to make device reading easily
GB-580 provides vertical and horizontal setting at display for easier reading while in activity.
There are two ways to set that:
1. Press OK +DOWN key to rotate
2. Go to MENU mode and go for [MAIN MENU] > [CONFIGURATION] > [SET SYSTEM] >
[DISPLAY]> [ORIENTATION]
Vertical Horizontal

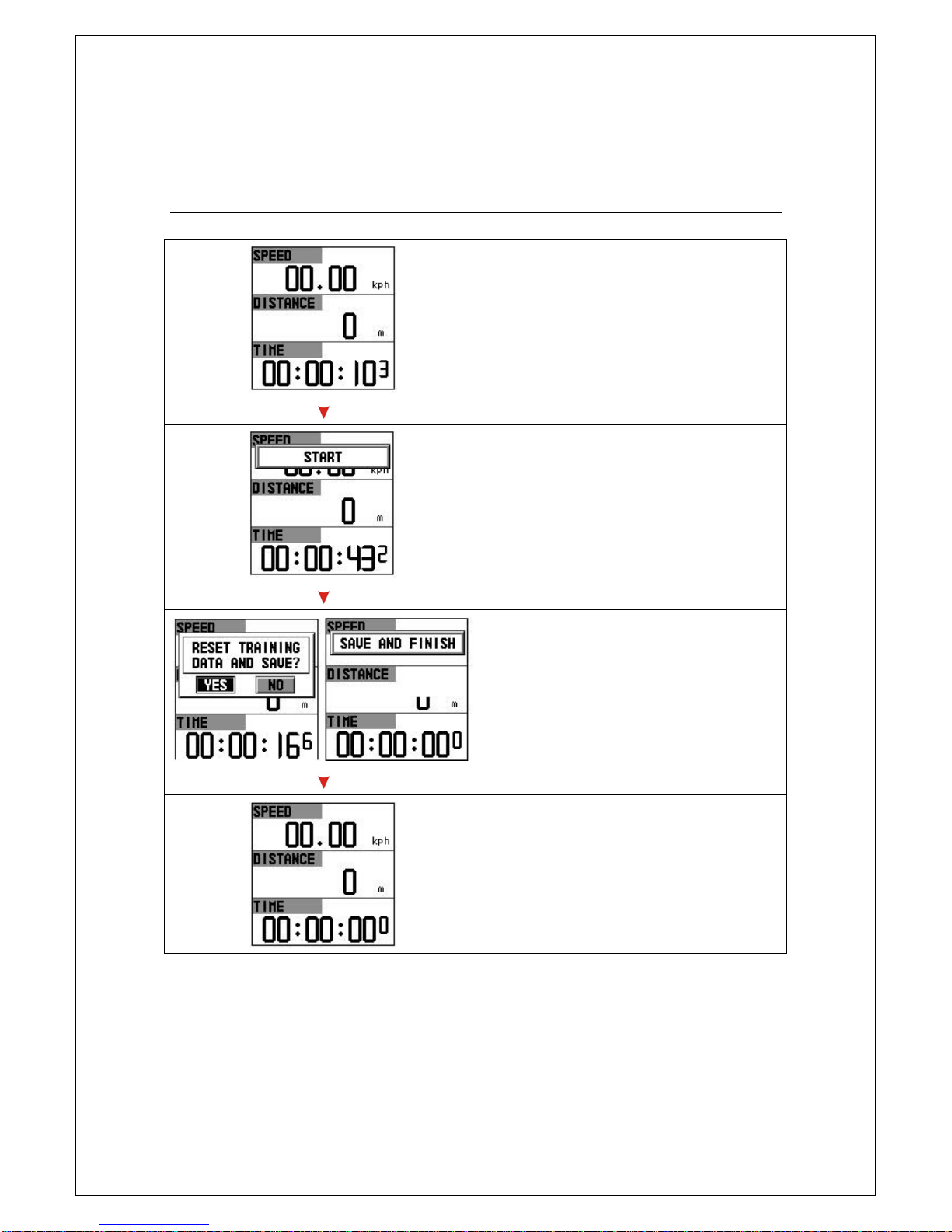

How to Start Your Training and Save Data
1. Please assure you are at training
screen and get 3D fix.
2. When chronometer is running, press
‘’Enter button’’ quickly to pause.
3. To press ‘’Stop button’’ and then the
screen show “RESET TRAINING DATA
and SAVE?”. Select YES and press
“ENTER button” to save training data.
Screen shows ‘’SAVE AND FINSIH’’
means the file be saved successfully.
4. Then chronometer will be reset to zero.

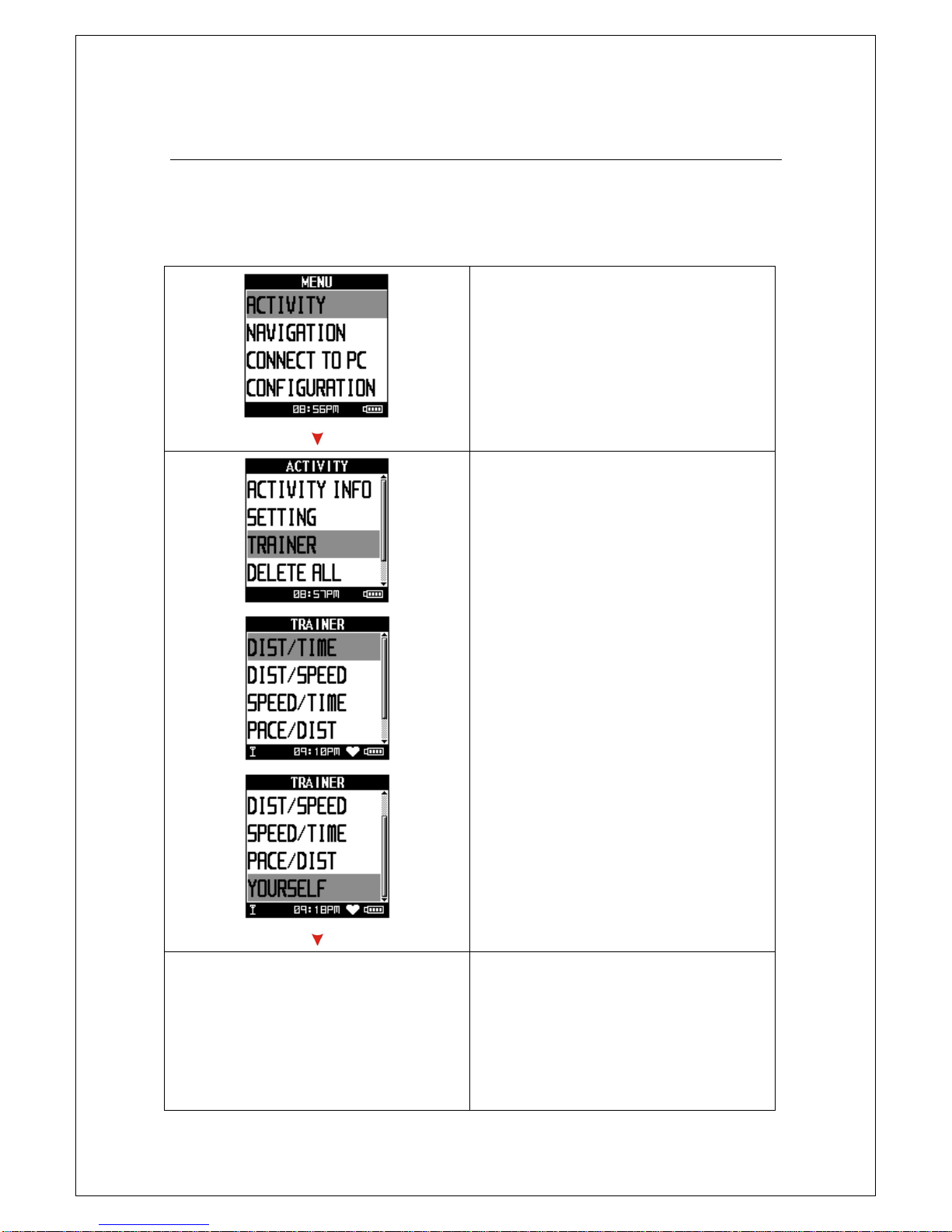

How to Use Virtual Trainer
In order to improve your training performance; GB-580 provides virtual trainer to pretend your
coach to improve your performance through mutual training and reaction.
[MAIN MENU] > [NAVIGATION] > [TRAINER]
Press “Page button” 2s to enter MAIN
MENU.
There are five types to set your training
partner. There are:
DIST/TIME: To define distance to be finished
in the specified time.
DIST/SPEED: To define virtual trainer
SPEED to race with you in defined distance.
SPEED/TIME: To define SPEED for virtual
trainer to compete with you in the duration.
PACE/DIST: To define PACE for virtual
trainer to compete with you on the road.
YOURSELF: To race with your through the
previous record.

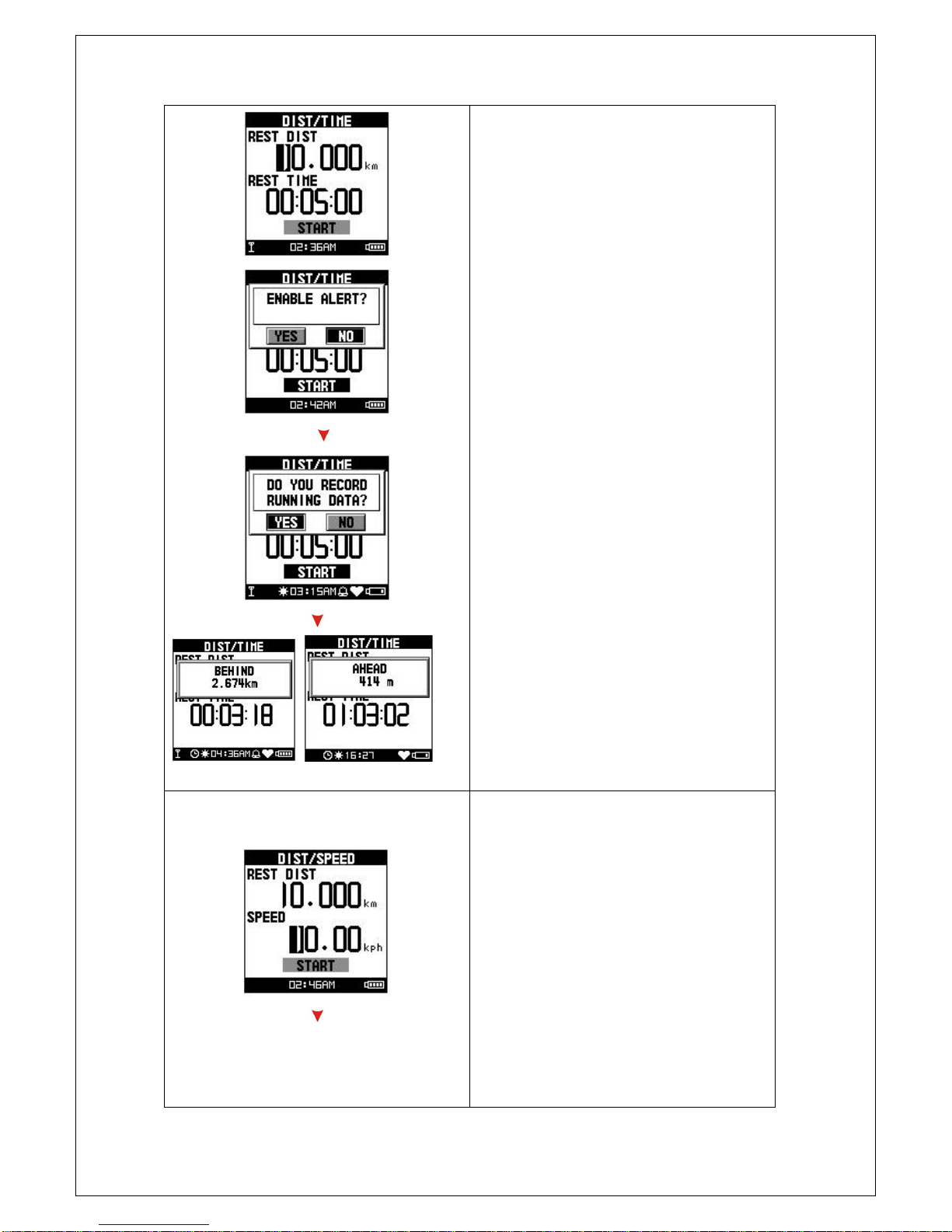

[DISTANCE /TIME] Set distance for 10 km and time for 5
minutes which means the virtual trainer will
finish 10km within 5 minutes to compete with
you.

.
1. You could change DIST / TIME to set
up your goal.
2. Finished setting, press ‘’Up or Down
button’’ to select ‘’Start’’ and then press
‘’Enter button’’ to start.
3. ENABLE ALERT ? you can select YES
or NO to give you a alert.
4. DO YOU RECORD RUNNING DATE ? If
select YES the chronograph will start to
record your training.
5. When you reach your goal or have
superior or poor performance to trainer, it
will show good job / do harder next time
6. If you have superior or poor performance
to trainer, it will show ahead or behind
distance to you.
[DISTANCE /SPEED] Set distance for 10 km and speed for 10
km/hr which means trainer will keep 10km/hr
running for 10km to race with you.
1. You could change DIST / SPEED to set
up your goal.
2. Finished setting, press ‘’Up or Down
button’’ to select ‘’Start’’ and then press
‘’Enter button’’ to start.
3. ENABLE ALERT ? you can select YES

or NO to give you a alert.
4. DO YOU RECORD RUNNING DATE ? If
select YES the chronograph will start to
record your training.
5. When you reach your goal or have
superior or poor performance to trainer, it
will show ahead or behind distance to
you.
[SPEED /TIME] Set speed 10km/hr and time 00:05:00 means
trainer will keep 10km/hr running for 5mins to
race with you.
1. You could change SPEED / TIME to set
up your goal.
2. Finished setting, press ‘’Up or Down
button’’ to select ‘’Start’’ and then press
‘’Enter button’’ to start.
3. ENABLE ALERT ? you can select YES
or NO to give you a alert.
4. DO YOU RECORD RUNNING DATE ? If
select YES the chronograph will start to
record your training.
6. When you reach your goal or have

superior or poor performance to trainer, it
will show ahead or behind distance to
you.
[PACE /DISTANCE] Set dist 10m/hr and pace 00:01:00/km
means trainer will keep the specific pace to
run 10km to race with you.
1. Yu could change PACE/ DIST to set up
your goal.
2. Finished setting, press ‘’Up or Down
button’’ to select ‘’Start’’ and then press
‘’Enter button’’ to start.
5. ENABLE ALERT ? you can select YES
or NO to give you a alert.
6. DO YOU RECORD RUNNING DATE ? If
select YES the chronograph will start to
record your training.
7. When you reach your goal or have
superior or poor performance to trainer, it
will show ahead or behind distance to
you.

How to Create Waypoint
- Create Waypoint
[MAIN MENU] > [NAVIGATION] >[SAVE WAYPOINT]
1. You can save the current position. If the
GPS position is fixed, it shows the
longitude, latitude and elevation on the
screen.
2. Use Up and Down button to scroll to
the item you wish to modify and then
use the ‘’Enter button’’ to select and
confirm.
3. When you finish the modification, input
a “enter sign” character or press the
‘’Esc /Lap button’’ to exit.
4. Move highlight to "CONFIRM?" and
press ‘’Enter button’’ . The location data
will be stored in the memory

How to Use Find Waypoints
If you want to find the place which you have saved the waypoint, you can use this function to
find your waypoint and track it.
[MAIN MENU] > [NAVIGATION] >[FINW WAYPOINT] >[LIST ALL]
1. Use Up and Down button to scroll to
the Waypoint you wish to go to and
press ‘’Enter button’’.
2. Highlight "GOTO?" item and press
‘’Enter button’’.
3. You will see your current position and
destination point on the screen, and
those nearby waypoints are also
displayed.
4. Press ‘’Page button’’ display the
distance and time for you to reach
destination on the right part of screen.
The direction of destination waypoint is
shown by the arrow sign of the
compass.

How to Create Routes
Several waypoints result in a route. You can plan your route by connection of sequent
waypoints.
[MAIN MENU] > [NAVIGATION] >[ROUTES]
,
1. You can add the waypoints to create
your own route. Press OK button to
insert a waypoint.
2. Highlight a waypoint and press OK
button for deleting this waypoint or
insert another waypoint in above.
3. In the first line of the screen, you can
edit the name of this route. When you
are done with editing the route, press
ESC button to save and exit.
4. Select ‘’FOLLOW’’ to get training. It will
guide you automatically. You may
press ’’ENTER’’ or ‘’ESC’’ to go next or
last waypoint

How to Upgrade Firmware
[MAIN MENU] > [CONFIGURATION] >[SYSTEM UPGRADE]
1. Allow you to upgrade the firmware of
GB-580.
2. If you want to cancel the upgrade
process, press Power + ESC button at the
same time.
Heart Rate Sensor Installation Procedure
(Only for GB-580P)
Wear the Heart Rate Monitor
Outer side
Heartratesensor Transmitter
Heart rate sensor
Inner side
Moisten this side to your skin. You can wet the sensor to obtain a better
reception of your pulse.
