Instruction Manual Manual de Instrucciones Manuel d'instruction
Customer Service
US: 1-800-645-2986
Servicio de atención al Cliente
México: 01.800.681.6940
Service à la clientèle
Canada: 888-645-2986
1
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
Models 761221, 761221BK,
761221BL & 761221GN
• All installation work must be performed by authorized
service personnel.
• Two or more people are recommended to lift and
install the unit.
• To avoid the risk of property damage and/or personal
injury, ensure the mounting surface is adequate to support
450 lbs.
• Check local codes for plumbing requirements prior
to installation.
• Refer to Rough-In Guide (page 4) prior to installation.
• Thoroughly flush all water supply lines of all foreign
matter before connecting to the fixture.
• Check for any leaks before use.
• DO NOT attempt to repair or replace any part of this
fountain unless it is specifically recommended in this
manual. All other services should be referred to a
qualified technician.
• For use with clean, clear potable drinking water only.
• Shut-off water supply during installation to reduce the
risk of water damage.
• Freezing Caution: Before freezing temperatures occur,
refer to the Draining and Winterization section of this
manual (page 13) for proper preparation.
• Installation of a trap on the water drain line may be
necessary; remove trap before winterization draining.
• Failure to follow safety warnings and/or
installation instructions will void warranty.
WARNING
Note: This unit is designed to be installed on the surface of an existing or new concrete slab.
Included are the necessary vandal-resistant stainless steel bolts and washers needed
to anchor this unit. Installer must provide a 1-1/2” PVC drain line (if applicable) and water supply
line. All connections are made inside the item through the access doors, as shown in the drawings.
It is recommended to install a shut-off valve (not included) on the water supply.

Instruction Manual
2
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station

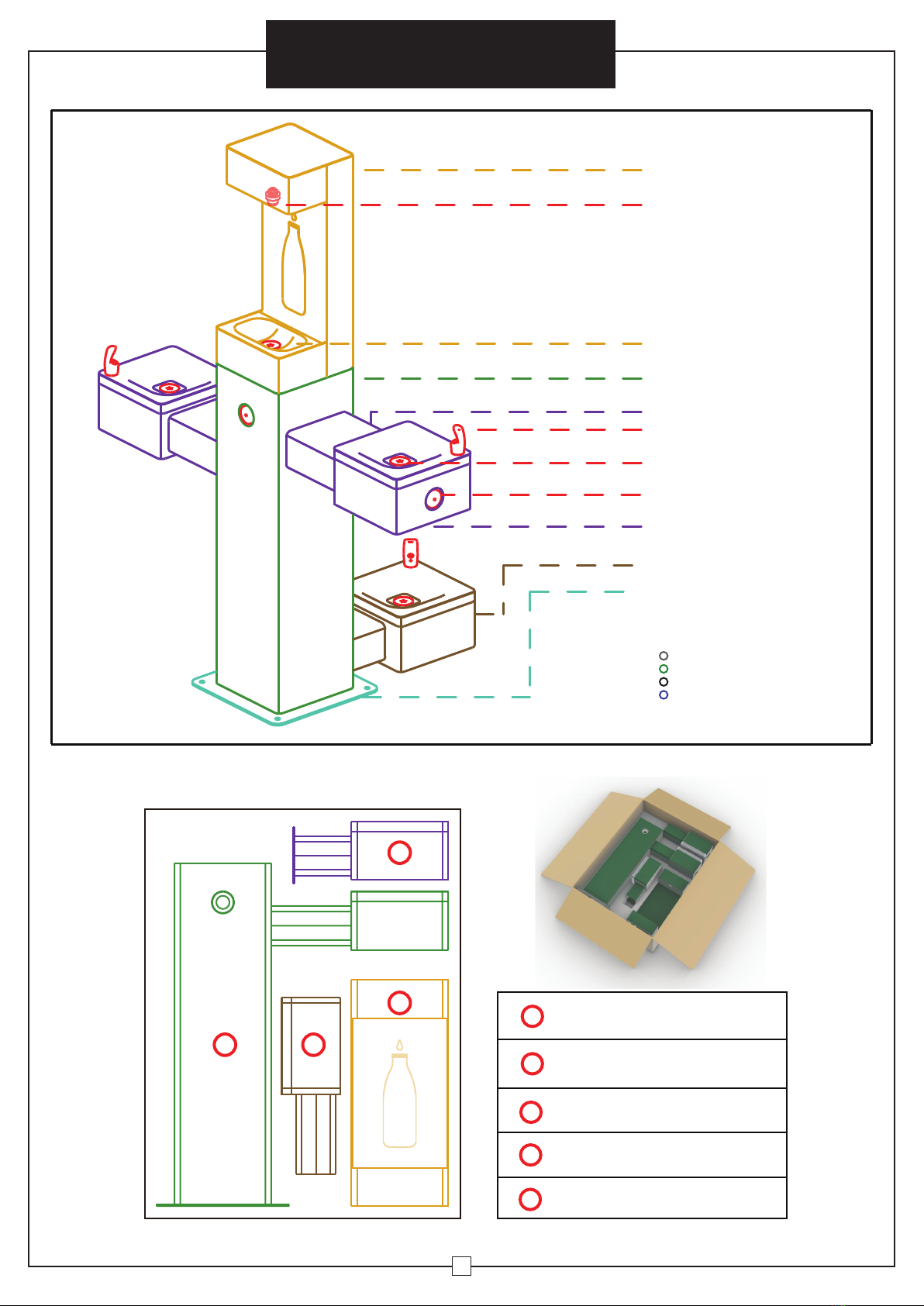

BOTTLE FILLER
PEDESTAL
SPOUT
DRAIN PAN
DRINKING FOUNTAIN
BUBBLER
DRAIN
PUSH BUTTON
PET STATION
PEDESTAL ARM
BASE
COLOR OPTIONS:
WWW.GLOBALINDUSTRIAL .COM
SS316
SS316 GREEN
SS316 BLACK
SS316 BLUE
2
1
4
3
1
2
3
4
BOTTLE FILLER
DRINKING FOUNTAIN
PET STATION
OUTDOOR PEDESTAL
5HARDWARE BAG

SPECIFICATIONS
Features: 316 Stainless, Laminar Flow, Heavy Duty, Vandal Resistant
Finish: SS Finish, Black(BK), Blue(BL), Green(GN)
Power: No Electrical Required
Bubbler Vandal Resistant
Activation Type: Push Button
Mounting Type: Floor Mount/Free Standing
Product Dimensions: 47-3/4"L x 28-1/2"W x 60-1/4"H
Weight: 143 lbs.
Installation Location: Outdoor
No. of Stations: 4
PART BREAKDOWN
Instruction Manual
3

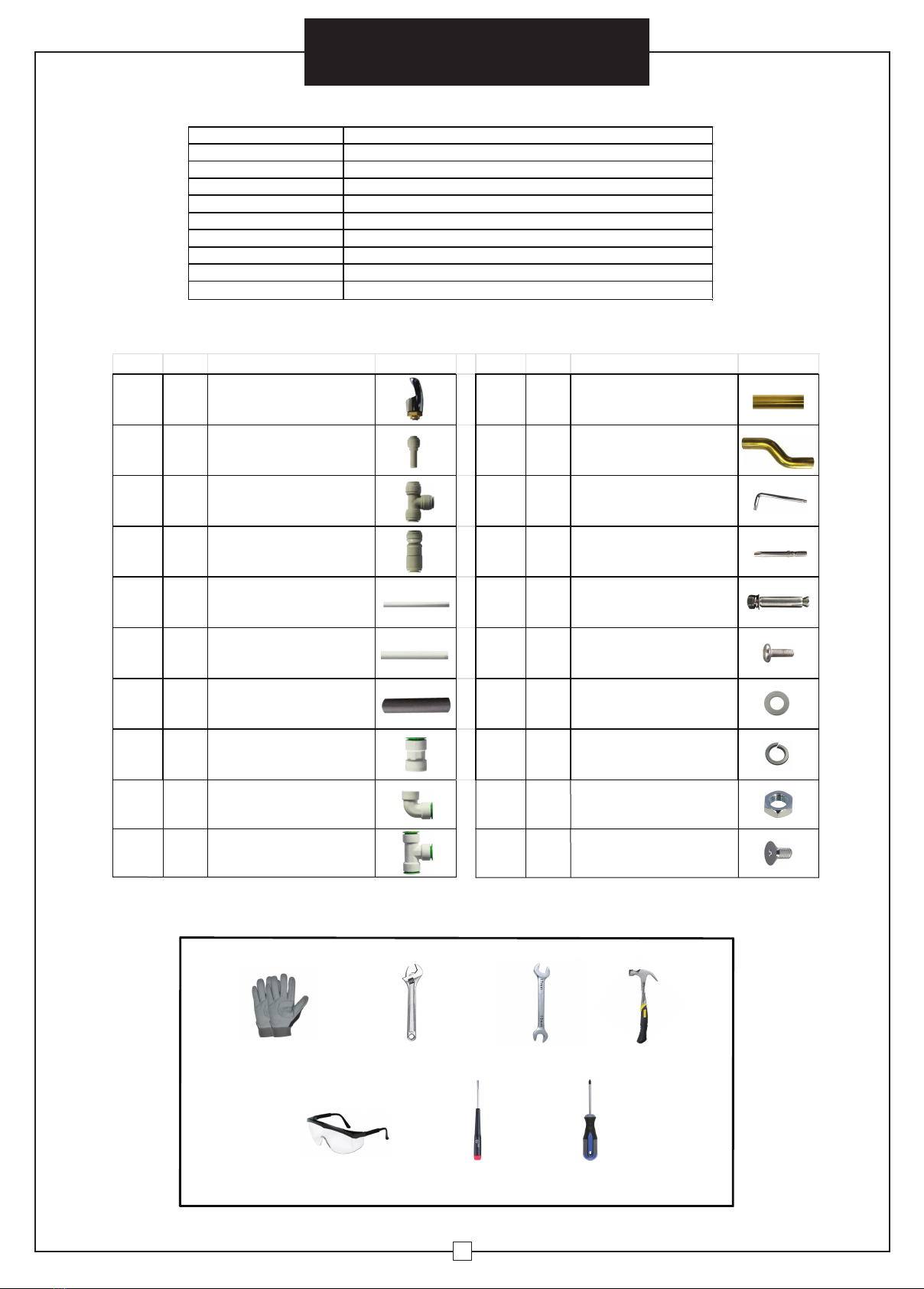

REQUIRED TOOLS:
Safety Gloves 15-17mm
Wrench
Hammer
Safety Glasses
Adjustable Wrench
Phillips-Head
Screwdriver
Ref. Qty. Descrip�on Ref. Qty. Descrip�on
P1 3 Bubbler
P2 4 Inlet Adapter
P3 3 Union T-Connector
P11 6 Drain Tubing
P4 1
Straight Flow Check Valve
P12 1 Offset Drain Tubing
P5 8 1/4" O.D. Water Inlet
H1 1 Torx Key Wrench
P6 4 3/8" O.D. Water Inlet
H2 1 Torx Drill Bit
P7 12 Pipe Insula�on
H3 4 Anchor Kit
P8 1 Straight Drain Connector
H4 8 M6 x 10 Pan Head Screw
(1) 39-1/4”, (2) 25-1/2”, (3) 6-1/4”,
(1) 13”, (1) 51-1/4”
(1) 21-3/4”, (1) 4“, (2) 2”
(2) 16-3/4”, (1) 19”, (1) 3-3/4”
(1) 14-1/4”, 2-1/2”
Small Flathead
Screwdriver
P9 3 Elbow Drain Connector
P10 3 T-Shape Drain Connector
H5
H6
H7
4
4
4
M10 Washer
M10 Lock Washer
M10 Nut
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
H8 M6 Flat Head Screw4

Instruction Manual
4
LEGEND: A = 3/8” O.D. UNPLATED COPPER TUBE CONNECT - SHUT-OFF VALVE BY OTHERS B = ACESS PANEL (7” X 20”) C = REMOVABLE BOTTOM COVER

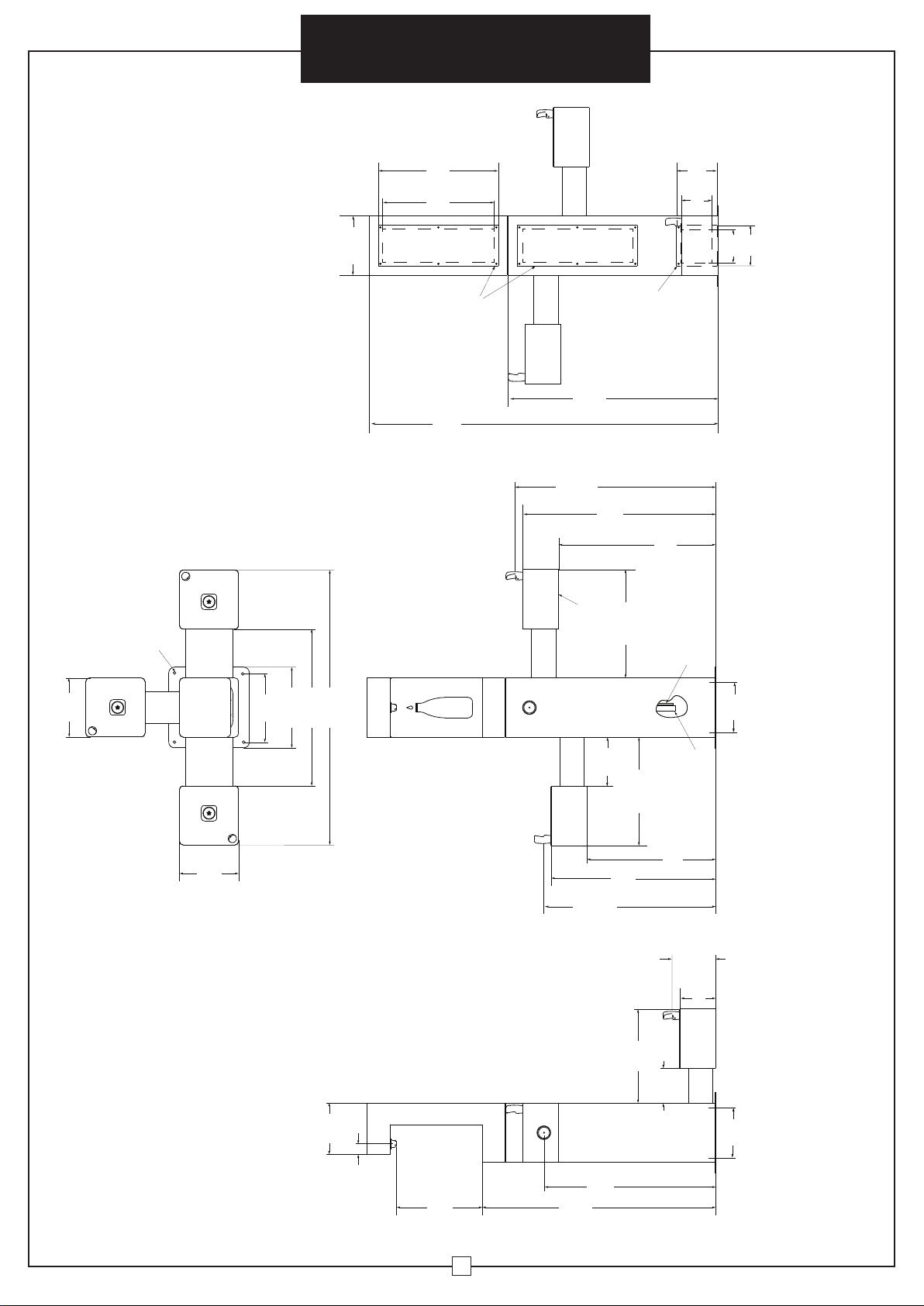

Rough-In Guide
• See Page 13 for Draining and Winterization
• Actual product configuration may vary based on model ordered.
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
9''
225mm
16''
376mm
40''
1023mm
29''
753mm
16''
412mm
6''
152mm
6''
158mm
7-1/2''
191mm ORIFICE
HEIGHT
29''
755mm
ORIFICE
HEIGHT
28-1/2''
723mm 18-1/2''
475mm
8-1/2''
215mm
22''
565mm
60-1/4''
1531mm
36-1/2''
922mm
10-1/4''
260mm
10''
260mm
10''
260mm
14''
355mm
27''
691mm 47-1/2''
1211mm
1.8''
46mm
18-1/2''
475mm
27''
689mm
33-1/4''
847mm
34-1/2'' 880mm
ORIFICE HEIGHT
1/2''
12mm HOLES (4)
FINISHED FLOOR
1-1/2''
WASTE
A
C
11-1/2''
300mm
7''
177mm
5-1/2''
146mm
B
B-2
20''
511mm 20-1/2''
526mm
5-1/2''
133mm
7''
177mm
8-1/4''
210mm
INSIDE OPENING
8-1/4''
210mm
INSIDE OPENING

Instruction Manual
5
INSTALLATION
• It is recommended that 2 or more people install this unit.
• This fountain must be mounted on a solid, flat surface with adequate strength (concrete
pad recommended) capable of supporting 450 lbs.
• Locate and install plumbing through ground as required. Refer to Rough-In Guide (page 4)
for proper location and correct plumbing.
• Install a drainable shut-off valve (not included) if in a freezable environment.
• Installation of a trap on the water drain line may be necessary; check local plumbing codes.
WARNING: The fountain is rated for inlet water pressure of 20-105 PSI. A pressure reducing
regulator should be used if the inlet water supply exceeds 105 PSI. Any damage caused by
reason of connecting this product to supply line pressure higher than 105 PSI will void warranty.

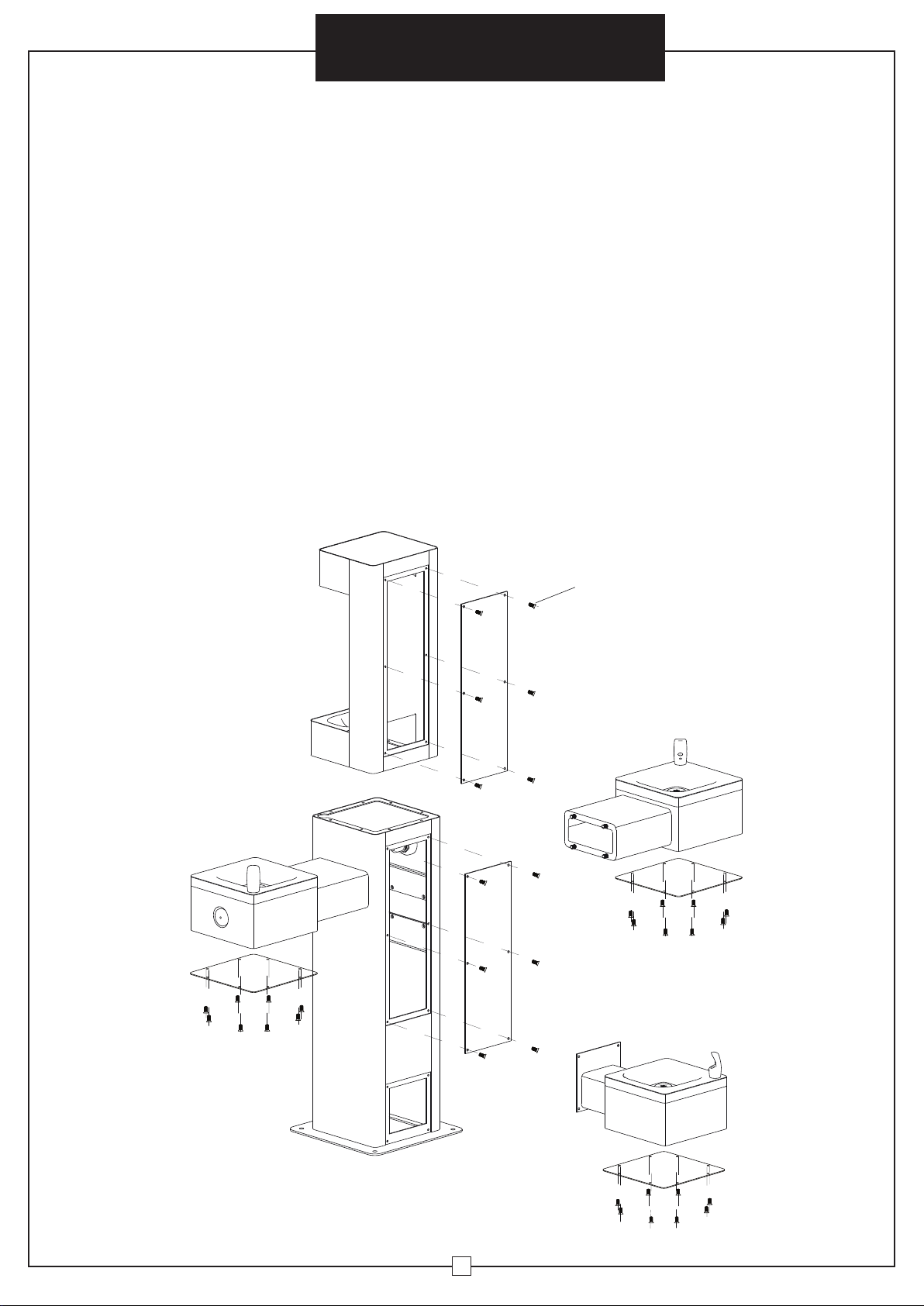

1. REMOVE ACCESS PANELS
To gain access to the drain and water line connections, remove all access panels detailed below
using the provided torx key wrench (H1) or torx drill bit (H2) to remove all (40) M6 x 10
flat-head anti-theft screws on back side of the bottle filler and pedestal, as well as the underside
of the drinking fountain and pet station pans:
Flat-head anti-theft screw
M6 x 10 (qty 40)
REMOVE
REMOVE
REMOVE
REMOVE
REMOVE
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station

Instruction Manual
6
3. MOUNT PEDESTAL TO GROUND
• Locate and install plumbing through ground as required. Refer to Rough-In Guide (page 4)
for proper location and correct plumbing.
• This unit is designed to be installed on the surface of an existing or new concrete slab,
capable of supporting 450 lbs.
Position fountain base over plumbing and
secure to ground using provided anchor
kit (H3) mounting hardware (x4).

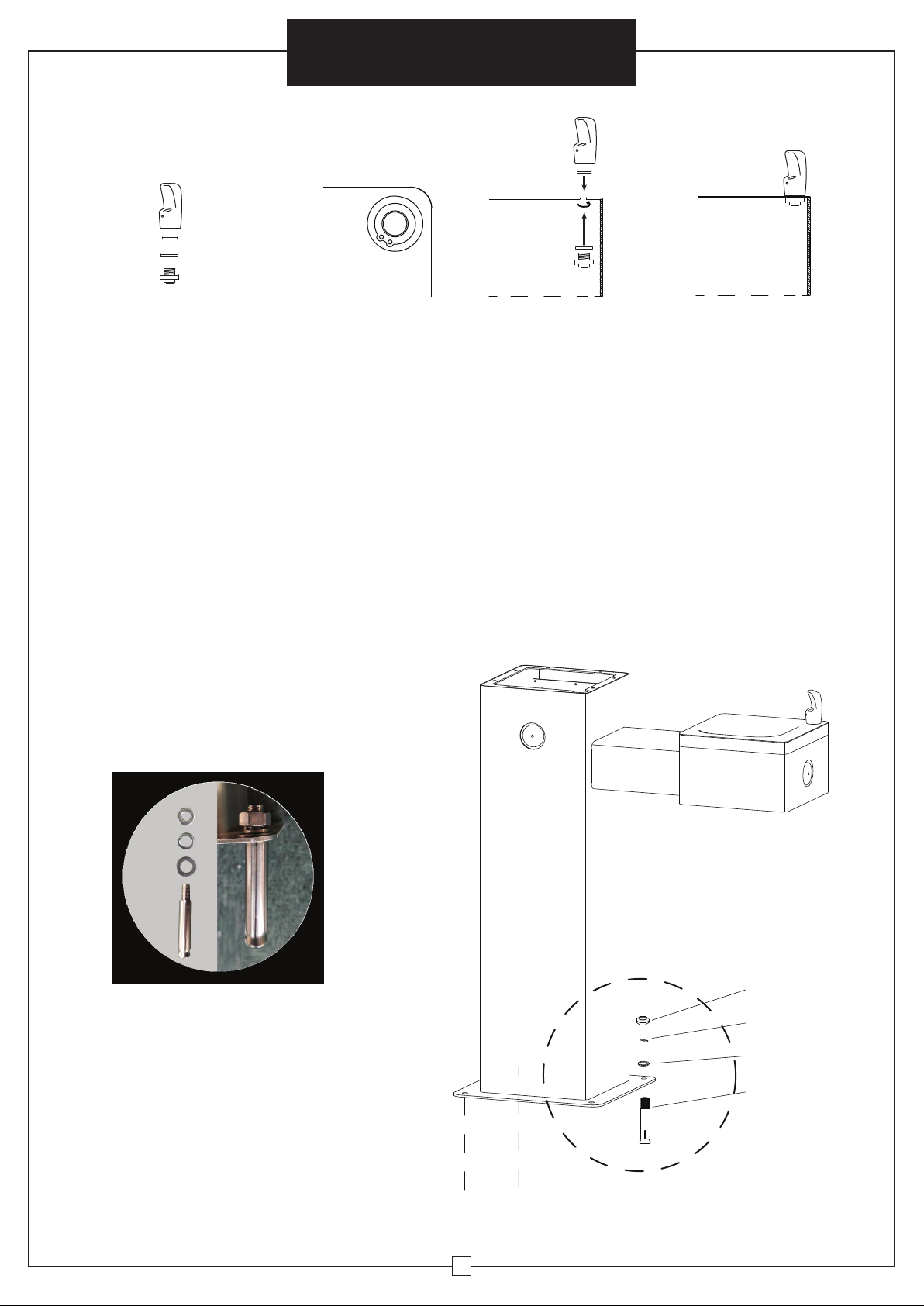

2. INSTALL BUBBLERS
2a. Unscrew and remove
nut and washers from
Bubblers (P1).
2b. Locate the hole on the drinking
fountain pan surfaces. Align and
sanwich with the two washers and
tighten the nut to secure the bubbler.
2c. Bubblers are now
properly installed.
(H3) Anchor kit consists of:
- (4) M10 Nuts
- (4) M10 Lock Washers
- (4) M10 Standard Washers
- (4) M10 Anchors
Nut
Lock Washer
Standard Washer
Anchor
H3
(qty 4)
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station

Instruction Manual
7
4. ATTACH BOTTLE FILLER TO PEDESTAL
Using a phillips-head screwdriver, assemble the bottle filler to the pedestal
using H4 (x8) M6 x 10 pan head screws.
H5
H6
H7
(qty 8)
H4
(qty 4)
(qty 4)
(qty 4)

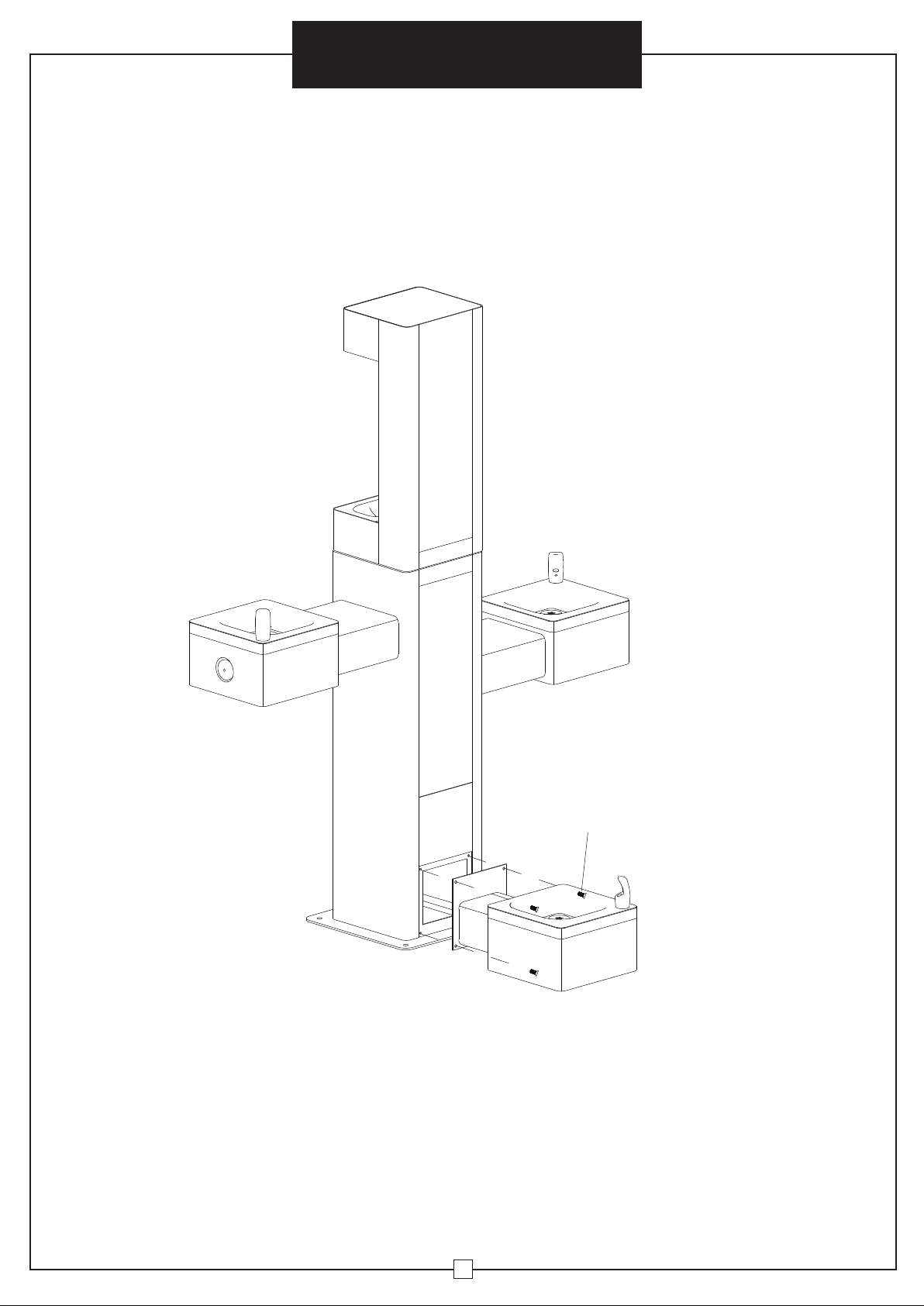

5. ATTACH DRINKING FOUNTAIN TO PEDESTAL
4. ATTACH BOTTLE FILLER TO PEDESTAL
Assemble to the drinking fountain to the
pedestal using H5 (x4), H6 (x4) and H7 (x4)
hardware. Tighten all nuts securely using
an adjustable wrench.
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station

P5
(51-1/4”)
Instruction Manual
8

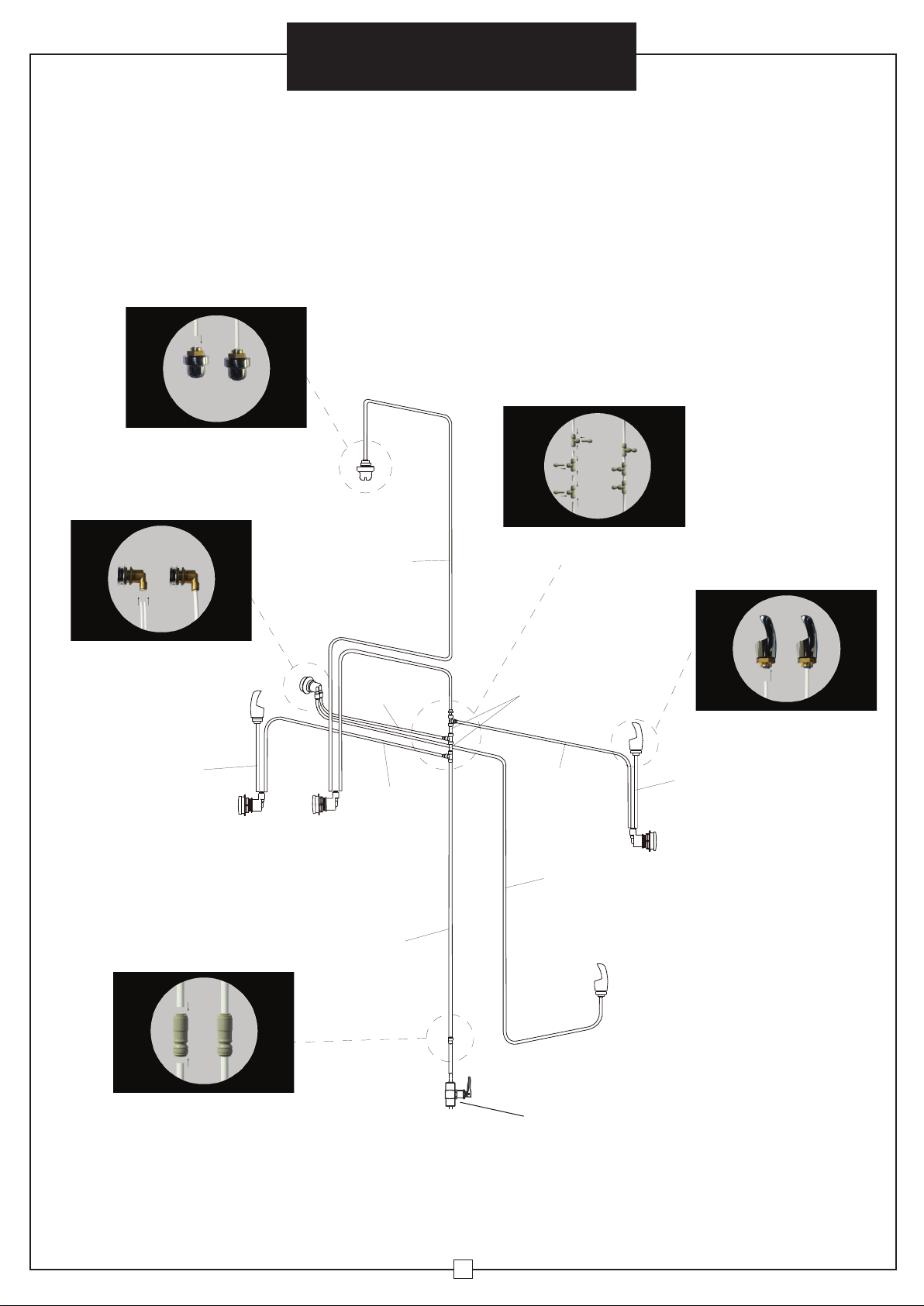

6. CONNECT WATER INLET LINES
• Install a shut-off valve (not included) on the water supply.
• All water connections and drains must comply with local codes.
Though the rear access windows, connect water inlet lines as illustrated below:
Connect (P5) to Spout
Connect Inlet Adapter (P2) to
Union T-Connector (P3)
Connect (P5) to Bubbler
P6
(21-3/4”)
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
Connect (P5) to Push Button
Connect (P6) to Straight
Flow Check Valve (P4)
(See Fig. 1 on next page)
INSTALL SHUT-OFF VALVE
(NOT INCLUDED)
P6
(2”)
P5
(6-1/4”) P5
(6-1/4”)
P5
(39-1/4”)
P5
(25-1/2”)
P5
(6-1/4”)
P5
(25-1/2”)

Instruction Manual
9
FIG. 1
3/8” O.D. TUBE CONNECT
COLD WATER SUPPLY
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
A B C
FIG. 2
WATER INLET LINE CONNECTION BREAKDOWN:
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
NOTE: WATERFLOW DIRECTION
• If drinking fountain is being installed in areas where cold temperatures may occur, wrap
pipe insulation (P7) around all water inlet lines.
• Installation of a trap on the water drain line may be necessary; check local codes.
Always remove trap before winterization draining.
CAUTION: Before freezing temperatures occur, see Draining and Winterization section
of this manual (page 13) for proper preparation.
P4: Straight Flow Check Valve: All Water Inlet Connec�ons:
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
Install Shut-off Valve
(Not Included)
WATER
SOURCE
P5
(39-1/4”)
P2
P3
P6
(2”)
P5
(51-1/4”)
P6
(21-3/4”)
P4
P5
(51-1/4”)
SIDE VIEW FRONT VIEW

Instruction Manual
10
7. CONNECT WATER DRAIN LINES
• All water connections and drains must comply with local codes.
• Through the rear access windows, connect water drain lines as illustrated below.
NOTE: All drain lines attach with quick connect connections.
• Installation of a trap on the water drain line may be necessary; check local codes.
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
P11
(16-3/4'')
Connect (P9) to Drinking
Fountain Drain and insert (P11)
Connect all 3 Drain Tubes
to (P10)
Connect (P8) to Bottle
Filler Drain and insert (P12)
Connect (P9) to Drinking
Fountain Drain and insert (P11)
P11
(3-3/4'')
P11
(16-3/4'')
P11
(19'')
P11
(2-1/2'')
P11
(14-1/4'')
Confirm with local codes for
trap and other drainage requirements

Instruction Manual
11
WATER DRAIN LINE CONNECTION BREAKDOWN:
Note: Turn on water supply and check all connections
for leaks and proper operation.
Reinstall the remaining (4) access panels using the
(32) M6 x 10 flat-head anti-theft screws preciously
removed from the fountain.
WARNING: Flush all water supply lines thoroughly
before initial use.
SIDE VIEW FRONT VIEW
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
Confirm with local codes for
trap and other drainage requirements
P10
P11
Reinstall access panel on the base
of the pet station pan BEFORE
connecting (P11) Drain Tube to
(P10) T-Shape Drain Connector;
using (8) M6 x 10 flat-head anti-
theft screws preciously removed.
P12 P8
P10 P9

Instruction Manual
12
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
START-UP
Initial water flow may have sputter due to air in the water lines; this will be eliminated
once air is purged from all water lines. Press and hold the push button until a steady
water stream is achieved.
H8 (x4)
8. ATTACH PET STATION TO PEDESTAL
Using provided torx key wrench (H1) or torx drill bit (H2), attach the pet station to the
pedestal using H8 (x4) M6 flat head screws.

Instruction Manual
13
CAUTION: The fountain is rated for inlet water pressure of 20-105 PSI. A pressure reducing
regulator should be used if the inlet water supply exceeds 105 PSI. Any damage caused by
reason of connecting this product to supply line pressures lower than 20 PSI or higher than
105 PSI will void warranty.
STREAM HEIGHT ADJUSTMENT
To adjust the water stream height, insert a small flathead screwdriver through the access
hole in the center of the push button and turn the adjustment screw. Turn clockwise to raise
the stream height and counterclockwise to lower the stream height. For best adjustment,
the stream should be approximately 1-1/2" above the top of the bubbler, (see FIG.3).
FIG. 3
1 1/2''
• Before freezing temperatures occur, turn off the water at the shut-off valve, disconnect
the water supply line tubing and blow out lines. Press down on push button to release any
air pressure that may remain in the lines.
• Remove trap before winterization draining.
• DO NOT allow water lines to freeze. Cracked or broken components due to freezing are
not covered by warranty.
DRAINING AND WINTERIZATION
Outdoor Bi-Level Drinking Fountain
w/ Bottle Filler & Pet Station
