Global 761224 User manual

globalindustrial.ca
Distribucion Industrial Globales S DE RL DE CF
Instruction Manual Manual de Instrucciones Manuel d'instruction
Customer Service
US: 1-800-645-2986
Servicio de atención al Cliente
México: 01.800.681.6940
Service à la clientèle
Canada: 888-645-2986
1
Outdoor Wall Mounted Drinking Fountain
Models 761224, 761224BK,
761224BL & 761224GN
• All installation work must be performed
by authorized service personnel.
• Two or more people are recommended
to lift and install the unit.
• To avoid the risk of property damage
and/or personal injury, mount this fountain
to a flat finished wall surface adequate to
support up to 300 lbs.
• Check local codes for plumbing
requirements prior to installation.
• Refer to Rough-In Guide (page 4)
prior to installation.
• Thoroughly flush all water supply lines of all
foreign matter before connecting to the fixture.
• Check for any leaks before use.
WARNING
NOTE: Included are the necessary vandal-resistant stainless steel bolts and washers needed
to anchor this unit to the wall. Installer must provide a 1-1/2” PVC drain line (if applicable) and
water supply line. All connections are made inside the item through the access door, as shown
in the drawings. It is recommended to install a shut-off valve (not included) on the water supply.
• DO NOT attempt to repair or replace any part of this fountain unless it is specifically
recommended in this manual. All other services should be referred to a qualified technician.
• For use with clean, clear potable drinking water only.
• Shut-off water supply during installation to reduce the risk of water damage.
• Freezing Caution: Before freezing temperatures occur, refer to the Draining and
Winterization section of this manual (page 11) for proper preparation.
• Installation of a trap on the water drain line may be necessary; remove trap before
winterization draining.
• Failure to follow safety warnings and/or installation instructions will void warranty.

Instruction Manual
2
Outdoor Wall Mounted Drinking Fountain
COLOR OPTIONS:
WWW.GLOBALINDUSTRIAL.COM
SS316
SS316 GREEN
SS316 BLACK
SS316 BLUE
DRAIN PAN
DRAIN
BUBBLER
PUSH BUTTON
MOUNTING PLATE
DRINKING FOUNTAIN
Package Contents:
- Fountain
- Bubbler
- Hardware Bag

Instruction Manual
3

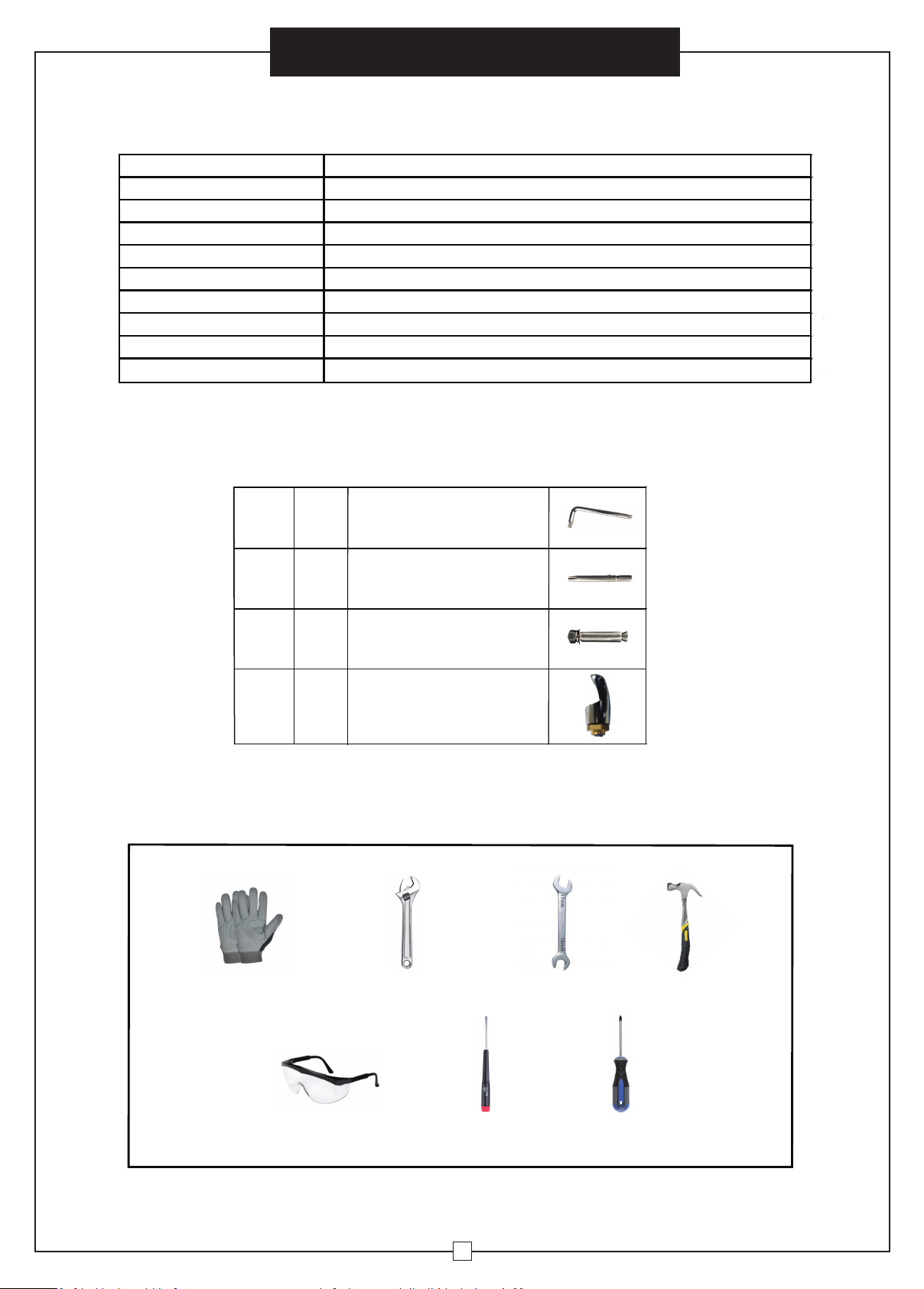

PART BREAKDOWN
Safety Gloves 15-17mm
Wrench
Hammer
Safety Glasses
Adjustable Wrench
Phillips-Head
Screwdriver
Ref. Qty. Descrip�on
H1 1 Torx Key Wrench
H2 1 Torx Drill Bit
H3 4Anchor Kit
Small Flathead
Screwdriver
REQUIRED TOOLS
H4 1 Bubbler
SPECIFICATIONS
Features: 316 Stainless, Laminar Flow, Heavy Duty, Vandal Resistant
Finish: SS Finish, Black(BK), Blue(BL), Green(GN)
Power: No Electrical Required
Bubbler Vandal Resistant
Activation Type: Push Button
Mounting Type: Wall Mount
Product Dimensions: 10-1/4"L x 16-1/4"W x 7-1/4"H
Weight: 21 lbs.
Installation Location: Outdoor
No. of Stations: 1
Outdoor Wall Mounted Drinking Fountain

Instruction Manual
4
LEGEND: A = 3/8” O.D. UNPLATED COPPER TUBE CONNECT - SHUT-OFF VALVE BY OTHERS
Rough-In Guide
• See Page 11 for Draining and Winterization
• Actual product configuration may vary based on model ordered.
1-1/2 '' WASTE
A
10 1/4'' 260mm
7 1/2'' 191mm
6 1/4'' 158mm8''
200mm
12'' 300mm
8 1/2'' 217mm
4'' 100mm
1/2'' 12mm HOLES (4)
ORIFICE HEIGHT
10 1/2'' 274mm
7''
174mm
3''
70mm
7'' 177mm
5'' 127mm
Outdoor Wall Mounted Drinking Fountain

Instruction Manual
5
INSTALLATION
• It is recommended that 2 or more people install this unit.
• To avoid the risk of property damage and/or personal injury, mount this fountain to a flat
finished wall surface adequate to support up to 300 lbs.
• Locate and install plumbing through wall as required. Refer to Rough-In Guide (page 4)
for proper location and correct plumbing.
• Install a drainable shut-off valve (not included) if in a freezable environment.
• Installation of a trap on the water drain line may be necessary; check local plumbing codes.
WARNING: The fountain is rated for inlet water pressure of 20-105 PSI. A pressure reducing
regulator should be used if the inlet water supply exceeds 105 PSI. Any damage caused by
reason of connecting this product to supply line pressure higher than 105 PSI will void warranty.
Flat-head anti-theft screw
M6 x 10 (qty 8)
1. REMOVE ACCESS PANEL
To gain access to the drain and water line connections, remove the access panel detailed
below using the provided torx key wrench (H1) or torx drill bit (H2) to remove all (8) M6 x 10
flat-head anti-theft screws on the underside of the drinking fountain pan:
REMOVE
Outdoor Wall Mounted Drinking Fountain

Instruction Manual
6
3. MOUNT FOUNTAIN TO WALL
• Locate and install plumbing through the wall as required. Refer to Rough-In Guide (page 4)
for proper location and correct plumbing.
• This unit is designed to be installed on a finished wall capable of supporting up to 400 lbs.
Position the mounting plate over plumbing and secure to wall using provided anchor kit (H3)
mounting hardware.
2. INSTALL BUBBLER
2a. Unscrew and remove
nut and washers from
Bubbler (H4).
2b. Locate the hole on the drinking
fountain pan surface. Align and
sandwich with the two washers
and tighten the nut to secure
the bubbler.
2c. Bubbler is now
properly installed.
Anchor kit consists of:
- (4) M10 Nuts
- (4) M10 Lock Washers
- (4) M10 Standard Washers
- (4) M10 Anchors
Nut (x4)
Lock Washer (x4)
Standard Washer (x4)
Anchor (x4)
H3 Anchor Kit
Outdoor Wall Mounted Drinking Fountain

Instruction Manual
7
WATER INLET LINE CONNECTION BREAKDOWN:
• Install a shut-off valve (not included) on the water supply.
• All other internal water lines are preinstalled; see below illustration for reference.
• All water connections and drains must comply with local codes.
FRONT VIEW
SIDE VIEW
3/8" O.D.
Water Inlet
(preinstalled) Water Flow
Check Valve
(preinstalled)
3/8" O.D.
Water Inlet
(preinstalled)
Water Inlet
Adapter
(preinstalled)
Install Shut-off Valve
(Not Included)
Outdoor Wall Mounted Drinking Fountain

Instruction Manual
8
FIG. 1
3/8” O.D. TUBE CONNECT
COLD WATER SUPPLY
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
A B C
FIG. 2
WATER INLET LINE CONNECTION BREAKDOWN:
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
NOTE: WATERFLOW DIRECTION
• If drinking fountain is being installed in areas where cold temperatures may occur, water
inlet lines are preinstalled with pipe insulation to help prevent freezing.
• Installation of a trap on the water drain line may be necessary; check local codes.
Always remove trap before winterization draining.
CAUTION: Before freezing temperatures occur, see Draining and Winterization section
of this manual (page 11) for proper preparation.
P4: Straight Flow Check Valve: All Water Inlet Connec�ons:
Install Shut-off Valve
(Not Included)
Inlet Adapter and
Straight Flow Check Valve
Bubbler
Push Button
Outdoor Wall Mounted Drinking Fountain

Instruction Manual
9
WATER DRAIN LINE CONNECTION BREAKDOWN:
• Install a shut-off valve (not included) on the water supply.
• All other internal drain lines are preinstalled; see below illustration for reference.
• All water connections and drains must comply with local codes.
• Installation of a trap on the water drain line may be necessary; check local codes.
10-5/8”
Drain Tube
(preinstalled)
Confirm with local codes
for trap and other
drainage requirements
Elbow Drain
Connector
(preinstalled)
SIDE VIEW
FRONT VIEW
Outdoor Wall Mounted Drinking Fountain

Instruction Manual
10
10-5/8”
Drain Tube
(preinstalled)
Confirm with local
codes for trap and
other drainage
requirements
The Elbow Drain Connector contains
quick connections that attach the
Drain Tube to the Drinking Fountain Drain
Drain Connector
Drinking Fountain Drain
Note: Turn on water supply and check all connections for leaks and proper operation.
Reinstall the access panel using the (8) M6 x 10 flat-head anti-theft screws preciously
removed from the fountain.
WARNING: Flush all water supply lines thoroughly before initial use.
Outdoor Wall Mounted Drinking Fountain

Instruction Manual
11
CAUTION: The fountain is rated for inlet water pressure of 20-105 PSI. A pressure reducing
regulator should be used if the inlet water supply exceeds 105 PSI. Any damage caused by
reason of connecting this product to supply line pressures lower than 20 PSI or higher than
105 PSI will void warranty.
START-UP
Initial water flow may have sputter due to air in the water lines; this will be eliminated
once air is purged from all water lines. Press and hold the push button until a steady
water stream is achieved.

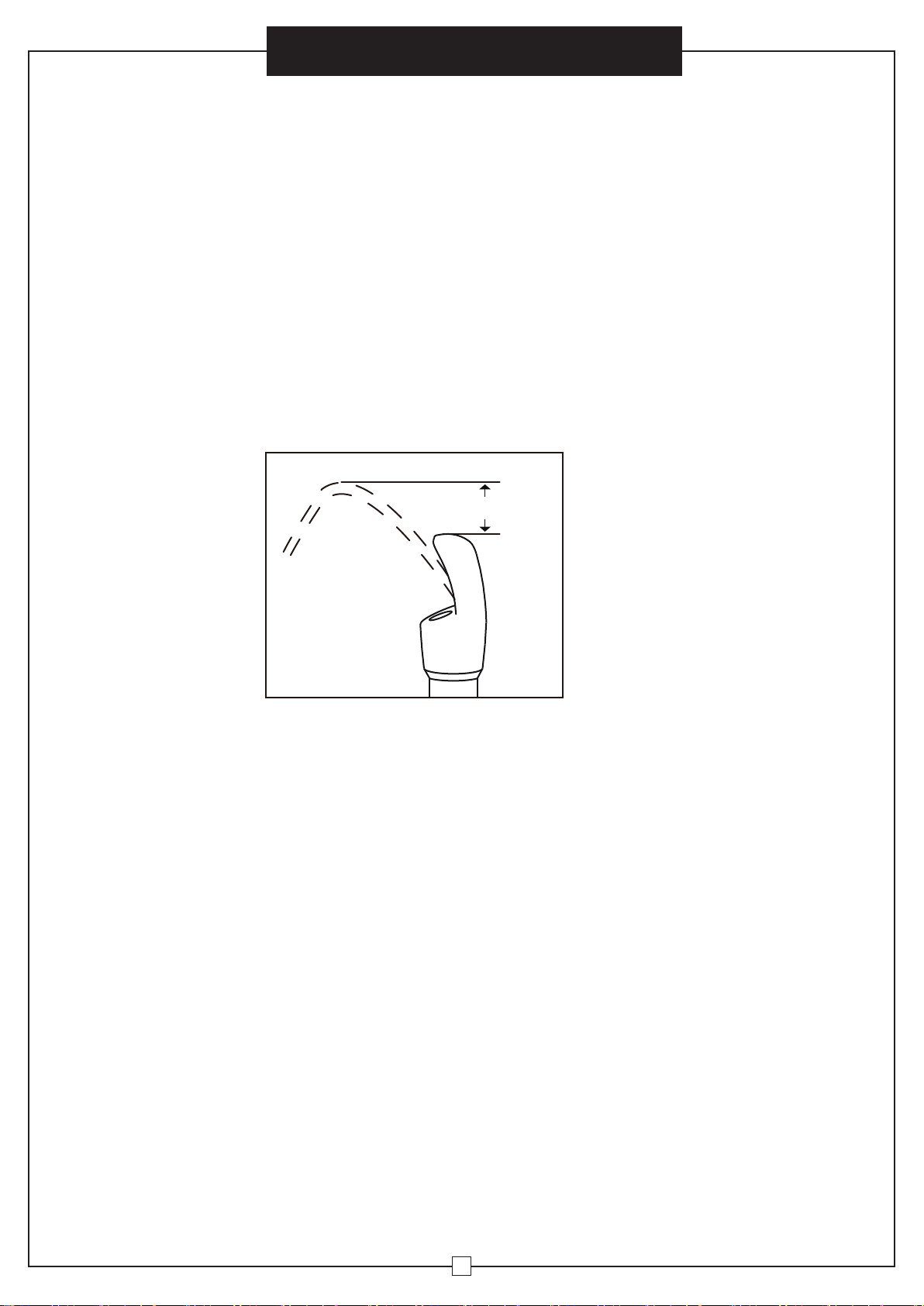

STREAM HEIGHT ADJUSTMENT
To adjust the water stream height, insert a small flathead screwdriver through the access
hole in the center of the push button and turn the adjustment screw. Turn clockwise to raise
the stream height and counterclockwise to lower the stream height. For best adjustment,
the stream should be approximately 1-1/2" above the top of the bubbler, (see FIG.3).
FIG. 3
1 1/2''
• Before freezing temperatures occur, turn off the water at the shut-off valve, disconnect
the water supply line tubing and blow out lines. Press down on push button to release any
air pressure that may remain in the lines.
• Remove trap before winterization draining.
• DO NOT allow water lines to freeze. Cracked or broken components due to freezing are
not covered by warranty.
DRAINING AND WINTERIZATION
Outdoor Wall Mounted Drinking Fountain
