GlobalMedia irez K2r User manual

K2r USB 2.0 from GlobalMedia Group, LLC.
Product Manual
Translations
• Spanish ……………… (pg 2-3)
• German ……………… (pg 4-5)
• Italian ……………… (pg 6-7)
• Portuguese ……………… (pg 8-9)
• Norwegian ……………… (pg 10-11)
Figure Page ……………… (pg 12-13)
• Russian ……………… (pg 14-15)
• French ……………… (pg 16-17)
• Japanese ……………… (pg 18-19)
• Korean ……………… (pg 20-21)
• Chinese (Simplified) …… (pg 22-23)
• Chinese (Traditional) …… (pg 24)
The K2r surpasses regular USB 1.0 cameras in image
quality and video performance. The K2r Camera displays
real-time, uncompressed video on your PC screen,
enabling you to have live, interactive video conferencing
with others over the Internet.
It’s easy to install, consumes little power, views
photographs in 1.6 million colors, and has a versatile,
patented claw. (US Patent #5,855,343) Reasonably priced
and quality-built, the K2r will become your favorite
camera to use for video conferencing!
Thank you for purchasing the K2r USB 2.0 Video Camera.

1. Install drivers from the CD
Minimum System Requirements
• Intel Pentium lll 500MHz processor or faster
• Microsoft Windows XP SP1 or 2000 SP3
• 128MB RAM (256MB Recommended)
• CD-ROM Drive or Internet access
• One Available USB 2.0 Port
• 160MB Free Hard Disk Space (260MB Recommended)
• If lower service packs are installed, your resolution will be limited to 160 x 120.
Check for the latest drivers from our website, http://www.globalmedia.com
Installation for Windows XP
1. Plug the your camera into a USB 2.0 port. If the Add New Hardware Wizard appears,
click Cancel. Otherwise skip the remaining steps.
2. Remove your camera from the USB 2.0 port.
3. Insert the included CD into your CD-drive.
4. Follow the on-screen instructions.
5. Plug your camera into the USB 2.0 port. Your camera is now ready to use.
Installation for Windows 2000
1. Insert the included CD into your drive. A welcome screen should popup, if it
does not, you’ll need to run setup.exe from your CD-drive. You can now follow
the on-screen instructions.
2. Once the installer is finished, remove the CD from your drive.
3. You can now plug your camera into a USB 2.0 port.
4. The "Found New Hardware Wizard" should popup. Click "Next". (Fig 1)
5. If a "Digital Signature not found" window comes up, click on "Continue Anyway". (Fig 2)
6. When informed that the "Wizard has finished installing the software for K2r"
click "Finish". (Fig 3)
7. If another New Hardware Wizard window appears, follow steps 4 through 6 again.
8. Right Click on "My Computer". Click Manage.
9. On the left hand side of the Computer Management console (Fig 4), click on
Device Manager. (Fig 4, D1)
10. On the right side of the Computer Management console, there is an alphabetical list of
devices on your computer (Fig 4). Double-click on the "Sound, video and game
controllers" line item. (Fig 4, D2)
11. Right click on "K2r Audio" or "USB Audio" and choose Disable.
12. Close all open windows.
Your K2r camera is ready for use!
English

2. Equipment Assembly and Set-up
Closing/Opening the K2r
The K2r was designed to fold down for transport and for protection for the lens. (Fig 5)
K2r Mounting Options
The K2r was designed to hang from the top of your laptop or flat screen monitor or be
attached to the optional base and armature assembly. (Fig 6)
Converting the K2r desktop base to laptop legs
The K2r was designed to easily convert from desktop to laptop use by its universal camera
mount. The camera can be unscrewed off of the base and attached onto the camera legs.
(Fig 7)
Cord placement on the desktop base
When the K2r is attached to the desktop base, run the cord inside the slot on the topside of
the armature. (Fig 8)

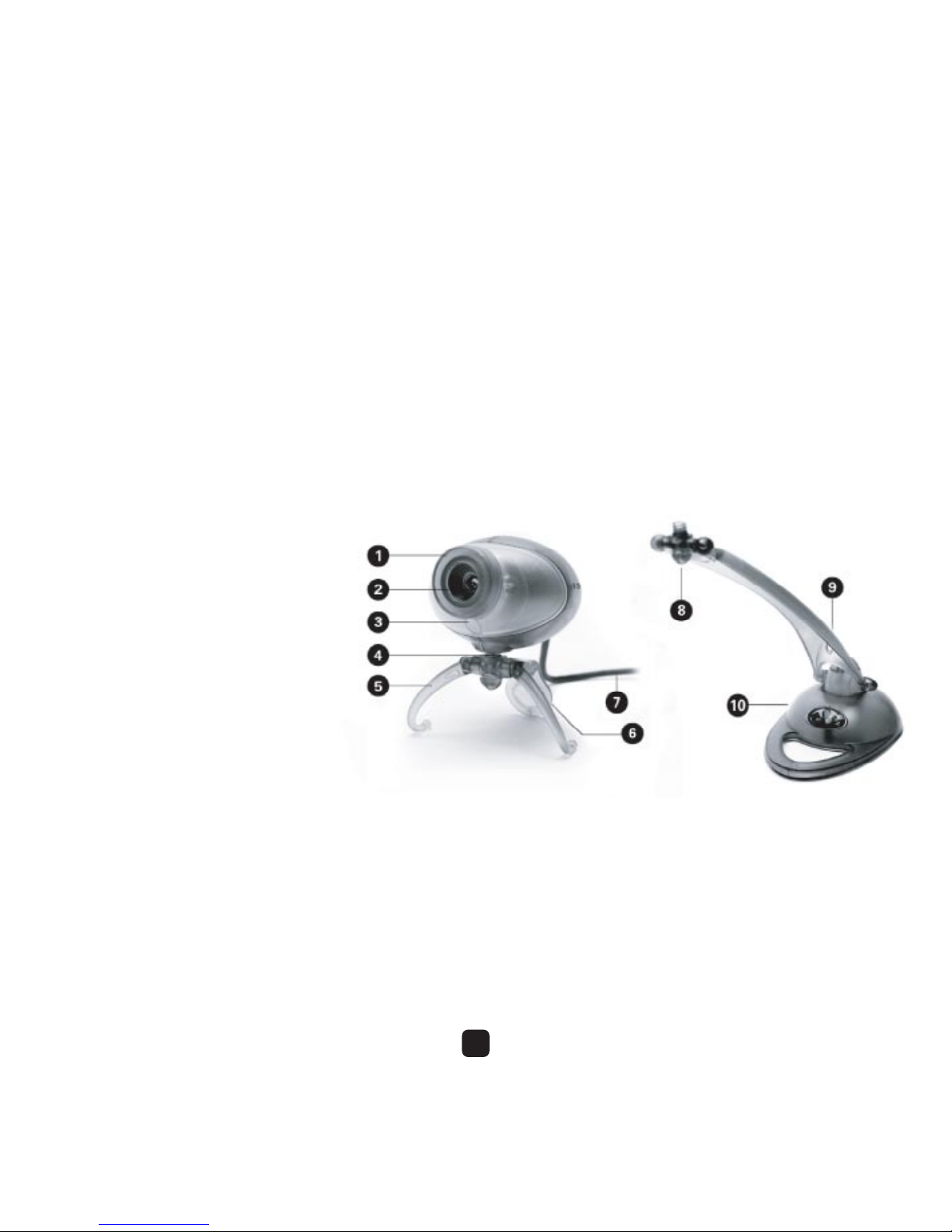

Basic Schematic
1 Focus ring
2 Glass lens; 54º field of vision
3 LED power indicator
4 Universal camera mount
5 Patented removable claw*
6 Lens cover
7 Micro 3.6mm USB 2.0 cable
8 Universal camera mount
9 Cord management slot
10 Weighted base
*US Patent #5,855,343
K2r USB 2.0 Video Camera Specifications
Image Sensor Size: 1/3", 0.35 Megapixels
Resolution: Up to 640x480
Focus Distance: 5cm to ∞
Field of View: 54º
Colors: Up to 32 bits RGB
Frame Rate: Up to 30 fps at 640x480 (VGA)
USB Cable Length: 2 meters
Manual Focus
Auto White Balance
Auto Exposure Control
LED Indicator
90 Day Limited Warranty
English
The K2r camera is electrically safe when connected to the USB port of a
host computer which complies with international safety standards based
upon IEC 60950 (UL1950, EN60950 etc)
