Globalmediapro VCF-002-04R User manual

User Manua l
4in, 4out SD/HD/3G-SDI R e p e at er s
VCF-002-04R
NOTE: The casing design is subject to change without no t ic e
4 in & 4 out SD/HD/3G-SDI Repeaters with Re-clocking function. These devices receive four SDI
inputs at the same time and perfectly duplicates them. Then they re-transmit four channel
SDI outputs for real time multi-viewing. They are reliable video devices splitting four
SD/HD/3G-SDI video source to SD/ HD/3G-SDI display at the same time and takes four inputs
then re-clocks and equalizes the signal and distributes it to four identical outputs.
Features
•SDI Standard: HD-SDI, SD-SDI, 3G-SDI
•Data Rates: 270Mbps/1.485 Gbps/2.97G
•Signal Type: SMPTE 292M, SMPTE 259M
•Two separately buffered outputs
•Cable equalization (Beldon 1694A) retiming and signal
•Re-clocking function capability – unlimited repeater connection
•Dual color LED indication of data link
•Pass all ancillary data
•DC 12V, 1A

2

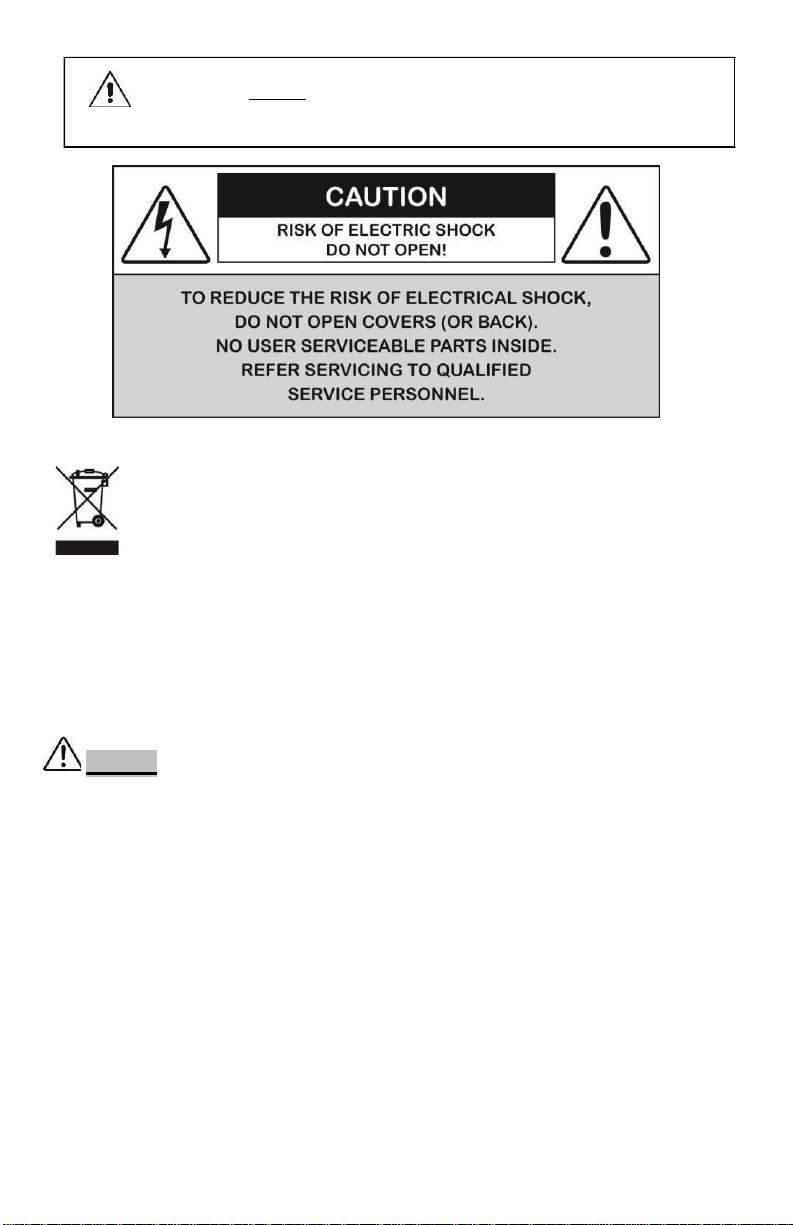

Please read the Manual before attempting to use this product.
Specifications and appearance are subject to change without notice.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union
and other European countries with separate collection systems).
This symbol on the product or on its packaging indicates that this product shall not be treated as household
waste. Instead it shall be handed over to the applicable collection point for
t h e recyc lin g of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling
of this product, please contact your local city office, your household waste disposal service or the shop
where you purchased the product.
Caution
1. Handle this product with care
Avoid any shock or bumping of the product. Improper handling could damage the product. Do not handle
the unit with wet hands. Provide proper ventilation and air circulation and do not use near water.
2. Requires a proper operating environment
This product is not waterproof and is designed for indoor use. The allowable temperature range for
operation of this product is between 0°C~40°C / 32°F~104°F.
3. Check the power source voltage
The power source voltage should be within the specified range. (Product must meet specifications).
4. Objects and liquid entry
Never push objects of any kind into this product as this may touch dangerous voltage points of
short out parts that could result in a fire or electric shock. Never spill any kind of liquid on the
product.
5. Cleaning
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
6. Servicing
Do not attempt to service this product by yourself as opening or removing covers may expose

3
you to dangerous voltage or other hazards. Refer all service to qualified servicing personnel.
Package Contents
1. One (1) SD/HD/3G-SDI Repeater
2. One (1) User Manual
3. One (1) AC Adapter
1. 2. 3.
For any returns, please include all components listed above with original packaging in Resalable
Condition. Absolutely No Returns will be accepted if any component is missing/damaged.
ApplicationDiagram
* The distance depends on the quality of the SDI signal from the HD camera source and also the Coax
Cable & Connector.
Parts&Functions
Left Side View Right Side View

4
Name Color Status Description
ACTIVE Green
ON
SDI signal is active
OFF SDI signal is inactive
POWER Green
ON
Power on
OFF Power off
HardwareInstallation
1. To open the box, then checking the quality, model Number and quantity of the
equipment and accessories according to the picking list, if there were any questions,
just feel free to contact us or the local distributors.
2. To check the power supply configuration, if it were DC input, just connects with the
correct voltage according to the power supply input requirements. To connect AC/DC
adapter to the alternating current power supply socket.
3. Connect four or eight cameras or other devices equipped with HD/SD-SDI/3G-SDI
outputs to the VCF-002-04R (HD/SD-SDI/3G-SDI) input.
4. Connect devices equipped with HD/SD-SDI /3G-SDI inputs (e.g. monitors or video
processors) to the VCF-002-04R (HD/SD-SDI/3G-SDI) outputs.
5. Plug power adapter cable into power jack.
TechnicalSpecifications
Model
4 to 4 SD/HD/3G-SDI repeater VCF-002-04R
Video In
4 x BNC ( 75 Ohm, SDI )
Video Out
4 X BNC (75 Ohm, SDI )
Video Bandwidth
SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI(2.97Gbps)
Input Format
SD-SDI: 480i, 576i
HD-SDI: 720p @ 23.98 /24/25/ 29.97/ 30/50/59.94/60
1080i @ 50/59.97/60
1080p @ 23.98 /24/25/ 29.97/ 30/50/59.94/60
3G-SDI: 1080P @ 50/59.97/60
SDI Signal Range
0.8V p-p
SDI Impedance
75 ohms
Max. Distance
Belden 1694A
SD-SDI 400m / 1300ft ; HD-SDI 200m / 600ft ; 3G-SDI 140m /
450ft
Power Supply
5V~24V DC
Operating Temperature
-10°C ~ 60°C / 14°F ~ 140°F
Storage Temperature
-30°C ~ 70°C / -22°F ~158°F
Dimension
92 x 119 x 36 mm /3.62x 2.56 x 1.10 inches
Weight
220g

5
KeyComponents
Components Made in USA for this product:
Name of Component
Manufacturer
Multi-Rate SDI Adaptive Cable Equalizer
Mindspeed & Gennum
Multi-Rate SDI Automatic Reclocker
Mindspeed & Gennum
Multi-Rate Dual Slew-Rate Cable Driver
Mindspeed & Gennum & National Semiconductor
Data Communication IC
MAXIM
Components Made in C
hina for this product:
Name of Component
Manufacturer
DC/DC Converter
Richtek
*Key components are listed by the manufacturer and are subject to change without notice
EyeDiagram
SD-SDI Mode

6
HD-SDI Mode
3G-SDI Mode

IMPORTANT NOTE: Cable & Connector for SDI HD Camera
In order to achieve the Be s t Quality and Lon g Range coax cable run of up to 200m /
600ft, you will need:
1. Good Quality Cable: We suggest using RG6 Belden 1694A Lo
w Loss Serial
Digital coax cable because RG6 cables have better grounding than RG59 cables.
RG6 is for Digital Signal and RG59 is for Analog Signal.
2. Good Quality BNC Connectors: Contact Plating Gold plated pins provide
exceptional conductivity.
3. Good Quality
Installation : Do not over cut the braid because it will affect the
grounding. The image will have lines and noise.
Bare copper
Jacket Braid Shielding
Conductor Contact Plating
Gold Plated Pin
LimitedWarranty
LIMITEDONE(1)YEARWARRANTYAND EXCLUSIONS
Manufacturer warrants to the original consumer purchaser and not for the benefit of
anyone else that this product at the time of its sale by Manufacturer is free of defects in
materials and workmanship under normal and proper use for one (1) year from the
purchase date. Manufacturer's only obligation is to correct such defects by repair or
replacement, at its option, if within such one (1) year period the product is returned
prepaid, with proof of purchase date, and a description of the problem. This warrant
excludes and there is disclaimed liability for labor for removal of this product or
reinstallation. This warranty is voided if this product is installed improperly or in an
improper environment, overloaded, misused, opened, abused, or altered in any manner,
or is not used under normal operating conditions or not in accordance with any labels or
instructions. There are no other implied warranties of any kind, including merchantability
and fitness or a particular purpose, but if any implied warranty is required by the
applicable jurisdiction, the duration of any such implied warrant, including merchantability
and fitness of or a particular purpose, is limited to one (1) year.
Manufacturer is not liable for incidental, indirect, special, or consequential damages,
including without limitation, damage to, or loss of use of, any equipment, loss sales or
profits or delay or failure to perform this warranty obligation. The remedies, provided
therein are the exclusive remedies under this warranty, whether based on contract, tort
or otherwise.
