Globalstar 9600 User manual

Globalstar 9600
User Guide for Windows

Globalstar 9600 User Guide for Windows
This guide is based on the production version of the Globalstar Sat-Fi and Sat-Fi Apps.
Software changes may have occurred after this printing.
Globalstar reserves the right to make changes in technical and product specifications
without prior notice
Globalstar Inc.
300 Holiday Square Blvd.
Covington, LA 70433
Copyright©2014 Globalstar®Incorporated.
All rights reserved.
Globalstar®is a registered trademark of Globalstar Incorporated.
Globalstar 9600TM is a registered trademark of Globalstar Incorporated.
Sat-FiTM is a registered trademark of Globalstar Incorporated.
Windows®is a registered trademark of Microsoft Incorporated.
All other trademarks and registered trademarks are properties of their respective
owners.
Printed in the United States of America

Globalstar 9600 User Guide for Windows
Table of Contents
1. WELCOME.............................................................................................................................................1
2. INSTALLING THE SAT-FI APP.............................................................................................................5
3. ACTIVATING THE SAT-FI APPS...........................................................................................................6
SAT-FI DATA ACCESS VOUCHERS .............................................................................................................6
NEW SAT-FI ACCOUNT..............................................................................................................................6
EXISTING SAT-FI ACCOUNT.......................................................................................................................8
4. CONNECTING TO THE SAT-FI HOTSPOT........................................................................................10
5. CONFIGURING THE SAT-FI NETWORK CONNECTION SETTINGS...............................................11
6. COMPOSING & SENDING EMAIL......................................................................................................12
7. RECEIVING EMAIL..............................................................................................................................16
8. INCREASING/DECREASING EMAIL LIMIT SIZE...............................................................................17
9. SOCIAL MEDIA....................................................................................................................................19
FACEBOOK .............................................................................................................................................19
Setting Up Your Facebook Post-By-Email Address.......................................................................19
Configuring Sat-Fi for Facebook ....................................................................................................23
Sending a Facebook Post..............................................................................................................24
10. WEB BROWSING WITH COMPRESSION..........................................................................................26
CONFIGURING SAT-FI FOR WEB BROWSING............................................................................................26
WEB BROWSING.....................................................................................................................................28

Globalstar 9600 User Guide for Windows Page 1
1. WELCOME
Today’s wireless devices provide more options for staying in touch with friends and family than ever
before. Unfortunately, they are dependent on wireless networks. Now you can take your computer
beyond wireless the world’s smallest satellite hotspot.
Easily send and receive email via Wi-Fi enabled computer
Conveniently use existing device contacts via the Sat-Fi App
Fastest data speeds in the industry for sending and receiving
email
Designed for both vehicle/vessel-based and fixed locations
Connect up to 8 users to Sat-Fi at one time
Powered by the world’s newest, most modern satellite network
Globalstar 9600 turns your computer into a satellite enabled device.
1. Download and install Sat-Fi for Windows to your computer
2. Connect your computer to the Sat-Fi via a Wi-Fi connection.
3. Sat-Fi links your computer to the Globalstar Satellite Network.
4. Your computer is now a connected for email and data.

Globalstar 9600 User Guide for Windows Page 2
2. HARDWARE INSTALLATION &SETUP
GSP-1700 Hardware Installation/Connection
Perform the following to connect your Globalstar 9600 system:
Step 1 Connect the supplied GDK-1700 Data Cable to the Globalstar GSP1700 to the Globalstar
9600 USB port using the supplied GDK-1700 Data Cable.
Step 2 Connect the GDK-1700 Data Cable to the Globalstar 9600 USB port.
Setup
Perform the following to setup your Globalstar 9600 system:
Step 1 Use your Globalstar GSP-1700 outdoors with a clear view of the sky and horizon (No
obstructions, i.e. buildings, large trees).
Step 2 Place the Globalstar GSP-1700 on its side and fully extend the antenna, pointing towards
the sky.
Step 3 Turn on your Globalstar GSP-1700 by pressing and holding .
Step 4 Wait about 30 seconds and check your screen for service bars and a
Red House . When you see these two icons on the screen your Globalstar GSP-
1700 is registered with the Globalstar Satellite network.
Step 5 On the Globalstar 9600, turn the Power Switch to On.
Step 6 Your Globalstar 9600 is now ready to send/receive email and data.

Globalstar 9600 User Guide for Windows Page 3
Globalstar 9600 LED Indicators
The LED on the top of the Globalstar 9600 provides a visual indicator of the Globalstar 9600 status:
Booting
oFlashing Green LED
oSolid Blue LED
ON
oSolid Green LED
oSolid Blue LED
Transmitting
oQuick Flashing Blue LED –Wi-Fi
Charging
oSolid Red LED
oSolid Blue LED
Low Battery
oFlashing Blue LED
Firmware Update
oFlashing Green LED
oSolid Blue LED
OFF
oNo LED

Globalstar 9600 User Guide for Windows Page 4
Charging the Globalstar 9600
The Globalstar 9600 has an internal rechargeable battery with the following characteristics:
4- hours use
36-hours standby
Use the supplied AC Power Adapter to charge the Globalstar 9600.
Additional Features
Reset
To reset the Globalstar 9600 to factory default perform the following:
Step 1 With the Globalstar 9600 powered on, use a pin to
press and hold the Reset button (about 8 seconds)
unitl the LEDs turn off.
Step 2 Release the button and wait for the Globalstar 9600
to reboot. The Globalstar 9600 will reset to its
factory default settings:
LAN/WAN Port
The LAN/WAN port is used to connect the Globalstar 9600 to a local
PC via Cat-5 (network) cable.

Globalstar 9600 User Guide for Windows Page 5
3. INSTALLING THE SAT-FI APP
You will be able to send and receive email and data via the Sat-Fi App. The Sat-Fi App can be found on
the Globalstar Sat-Fi Support Page.
Perform the following to download and install the Sat-Fi App for Windows:
Step 1 On a Windows computer connected to the Internet, proceed to the Globalstar Sat-Fi
support Page and download the Sat-Fi App for Windows.
Step 2 A Welcome to Wireless Gateway ver 4.1 Setup Wizard screen will be displayed. Click on
Next>.
Step 3 A License Agreement screen will be displayed. Click on I Agree.
Step 4 A Choose Components screen will be displayed. Leave the default settings and click on
Next>.
Step 5 A Choose Install Location screen will be displayed. Leave the default settings and click
on Next>.
Step 6 The Next> button will change to Install. Click on Install.
Step 7 The program will begin installing. When it is finished the Welcome to the Aspell 0.50-3
Setup Wizard will be displayed. Click on Next>.
Step 8 A License Agreement screen will be displayed. Click on I Agree.
Step 9 A Choose Install Location screen will be displayed. Leave the default settings and click
on Install.
Step 10 The program will begin installing. When it is finished a Completing the Aspell 0.50-3
Setup Wizard will be displayed. Click on Finish.
Step 11 A Completing the Wireless Gateway ver 3.86 Setup Wizard will be displayed.
Select Reboot Now
Click on Finish.
Step 12 Your computer will now shutdown and reboot.

Globalstar 9600 User Guide for Windows Page 6
4. ACTIVATING THE SAT-FI APPS
Sat-Fi Data Access Vouchers
You must have a Data Access Voucher to send and receive email & data via the Sat-Fi App.
Your Sat-Fi Data Access Voucher was issued to you at the time of purchase from the dealer
New Sat-Fi Account
You must have a connection to the Internet to activate your Sat-Fi App for Windows. Perform the
following to activate the Sat-Fi App for Windows:
Step 1 After your computer has rebooted, the
Activation Wizard will be displayed. Select New
Account Using Activation Code and click on
Next>.
Step 2 A how do you want to connect to the Internet
screen will be displayed asking you “How do
you want to connect to the Internet?” Perform
the following:
Click on the Connection Method drop-down
arrow and select Network Connection
Click on Next>

Globalstar 9600 User Guide for Windows Page 7
Step 3 A Registration Notice screen will be displayed.
Perform the following:
Click on the I have read and agree to the
license term and conditions checkbox
Click on OK
Step 4 An Activation Form screen will be displayed.
Perform the following:
In the Activation Code field, enter your Sat-Fi
Data Access Voucher Number
In the Name field, enter your first and last
name
In the Contact Email field, enter your contact
email address
In the Preferred User Id field, enter the
username you would like to login with
(username must be between 3 and 16
characters)
In the Alternate User Id field, enter another username just in case your preferred
choice has been taken (username must be between 3 and 16 characters)
In the Account Password field, enter the password you would like to login with
(password must be between 6 and 16 characters)
Click on Activate
Step 5 A Your activation has succeeded message
will be displayed with the following
information:
Your email address (example:
[e-mail])
Your username (example: jsmith)
Your password (example: Gl0bal*)
Additionally, you will receive an email
(delivered to your contact email address)
with this product registration information.
Step 6 Click on OK.

Globalstar 9600 User Guide for Windows Page 8
Step 7 A Registration Complete screen will be
displayed. Click on Finish.
Note: It may take up to 20 minutes to activate in the
system.
Existing Sat-Fi Account
You must have a connection to the Internet to complete the registration of your Sat-Fi App for Windows If
you have an existing Sat-Fi account on a smartphone or other wireless device, you can login using your
account information. Perform the following:
Step 1 After your computer has rebooted, the
Activation Wizard will be displayed. Select
Enter User ID and Password and click on
Next>.
Step 2 A screen will be displayed asking you “How do
you want to connect to the Internet?” Perform
the following:
Click on the Connection Method drop-down
arrow and select Network Connection
Click on Next>

Globalstar 9600 User Guide for Windows Page 9
Step 3 An Account Information screen
will be displayed. Perform the
following:
In the Real Full Name
field, enter your first and
last name
In Assigned User Name
field, enter the user name
you selected when
activating the Sat-Fi App
In the Password field,
enter the password you
selected when activating
the Sat-Fi App
Click the OK button.
Step 4 A Registration Complete screen will be
displayed. Click on Finish.

Globalstar 9600 User Guide for Windows Page 10
5. CONNECTING TO THE SAT-FI HOTSPOT
Perform the following to connect your computer to the Sat-Fi hot spot:
Step 1 Turn on the Sat-Fi unit.
Step 2 On your computer, open the Network Sharing Center and view
the Wi-Fi connections that are available.
Step 3 Select SatFi<XXXXXX> (<XXXXX> is a unique identifier for
that specific Sat-Fi Unit), and click on Connect.
Step 4 The Connect to a Network dialog will be displayed.
Perform the following:
In the Security Key field, enter the following:
satfi1234
Click on OK
Step 5 The Connection dialog will appear displaying your computer is
Connected Sat-Fi hotspot.

Globalstar 9600 User Guide for Windows Page 11
6. CONFIGURING THE SAT-FI NETWORK CONNECTION SETTINGS
Sat-Fi for Windows defaults to a Sat-Fi connection, but you can access your Sat-Fi email either through a
Sat-Fi connection or through a regular Internet connection from your home or office.
Perform the following to change your Sat-Fi network connection settings:
Step 1 On your computer open Sat-Fi
for Windows, and the Sat-Fi
screen will be displayed.
Step 2 On the Main menu, select
Options > Settings…
Step 3 The Settings screen will be
displayed. In the left pane,
click on Connection.
Step 4 In the Connection
Information section, click on
the Type drop-down arrow
and select one of the
following:
SAT-FI –This is the
default setting and is
required to send/receive
email & data over the
Sat-Fi
Network Connection –
Select this setting to
send/receive email & data
over an Internet connection from your home or office
Step 5 When finished, click OK.

Globalstar 9600 User Guide for Windows Page 12
7. COMPOSING &SENDING EMAIL
To maximize the benefits of Sat-Fi, you will create email and read email offline. You can create and send
one email at a time or create multiple emails and send them all at once. Your Sat-Fi for Windows must be
registered and activated to send/receive email.
Perform the following steps to compose and send email:
Step 1 On your computer, ensure you
are connected to the Sat-Fi
hotspot. Default Password:
satfi1234.
Step 2 Open Sat-Fi for Windows and
the Sat-Fi Main Screen will be
displayed.
On the toolbar select .
Step 3 The first time you select Email a Language screen will be displayed.
Select the appropriate language and click OK.

Globalstar 9600 User Guide for Windows Page 13
Step 4 The iScribe window
will be displayed.
Click on New Email
to create and
compose
email.
Step 5 A Mail Message screen will be
displayed. Perform the following:
In the To field, enter a
recipient Email address
In the Subject field, enter the
subject of the message
In the Message field, enter
your message
Click on Attach File to add
attachments (attached files
can be viewed by clicking on
the Attachments tab)
Step 6 When finished click on Send.
Your message will not be sent, but
placed in the Spool folder.
Step 7 Exit out of the iScribe window.

Globalstar 9600 User Guide for Windows Page 14

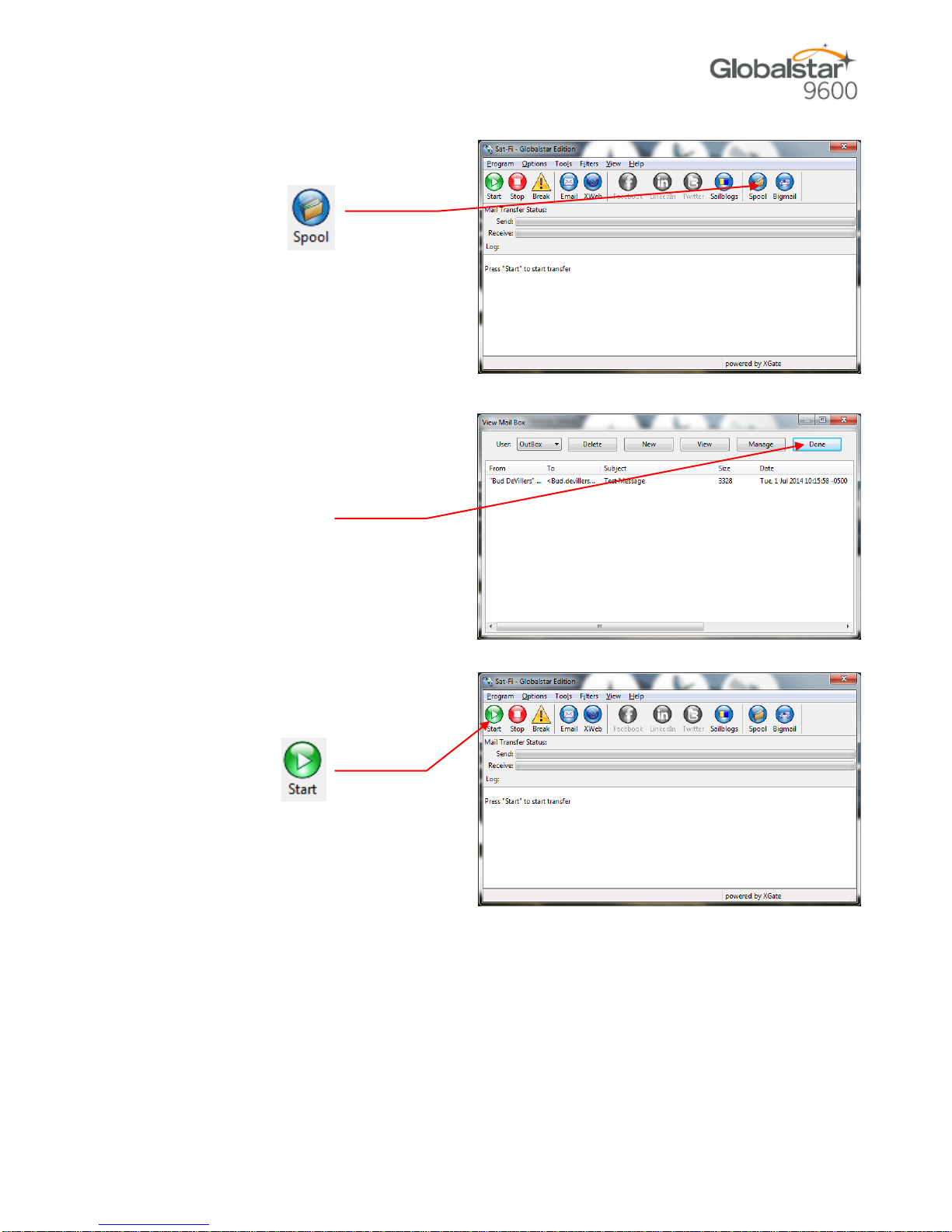

Step 8 The Sat-Fi screen will appear.
Click on .
Step 9 The View Mail Box screen with the
email(s) you created in Step 5 will
be displayed.
Step 10 Click on Done.
Step 11 The Sat-Fi screen will appear. To
send your email(s),
click on .

Globalstar 9600 User Guide for Windows Page 15
Step 12 The LED Status Indicator will start blinking (Slow Blink) indicating that your data session is
being initiated. Within a few seconds your email will be sent and any email waiting to be
received will be delivered.
Step 13 The Mail Transfer Status bar will
also turn green showing the
transfer progress and the
connection information will be
displayed in the Log section.

Globalstar 9600 User Guide for Windows Page 16
8. RECEIVING EMAIL
Perform the following steps to connect to the Sat-Fi mail server and receive email:
Step 1 On your computer, ensure you
are connected to the Sat-Fi
hotspot. Default Password:
satfi1234.
Step 2 The Sat-Fi screen will appear.
To check to see if you have any
email to be received, click on
.
Step 3 The LED Status Indicator will start blinking (Slow Blink) indicating that your data session is
being initiated. Within a few seconds any email waiting to be received will be delivered.
Step 4 The Mail Transfer Status bar
will also turn green showing the
transfer progress and the
connection information will be
displayed in the Log section.

Globalstar 9600 User Guide for Windows Page 17
9. INCREASING/DECREASING EMAIL LIMIT SIZE
The default inbound and email message size is 50kb and outbound email message size is 250kb. With
the default settings, incoming email equal to or less than 50kb will be downloaded to your Inbox whenever
you receive email. Any incoming email greater than 50kb will be held on the server and reported to you in
the Big Mail folder. Any outgoing email greater than 250kb will trigger a rejection email message that will
appear in your Inbox.
Inbound and Outbound email sizes can be increased or decreased by performing the following:
Step 1 On the Sat-Fi screen, select
Filters > Configure…
Step 2 The Server Side Mail Filtering screen will be
displayed.
Click on the Set In Bound E-Mail Cutoff Size To
drop-down arrow and select the message
size limit you wish to send.
