Globus New Media ECO Spot 35FC User manual

ECO Spot 35FC User Manual
Page 4 Copyright © 2010 Globus New Media LLC Page 4
Specifications
Voltage (US Version)
90-130V, 50-60Hz, 0.38A, 41W
Power factor 0.98
International Version
200-240V, 50Hz, 0.2A, 41W
Ambient Operating Temperature
-13 to 104°F (-25 to 40°C)
Dimensions / Weight
Fixture Body: 10in x 5.25in (254mm x
133mm)
Yoke Base: 5.5in x 5.5in (140mm x
140mm)
Yoke Height: 6in (127mm)
Weight: 7lbs (3.1kg)
Gobo Dimensions
Metal or Glass Gobos and Dichroic filters
Outer Diameter (OD): 37.5mm (1.47 in)
Max. Image Diameter (ID): 25mm (1.0 in)
Max Thickness 4mm (0.16 in)
Replacement Lamp
35W HID MR16 Lamp with GU10
socket
Philips MASTERColour CDM-Rm Mini
Elite35W/930 GX10 10D
Other product name: MC CDM-Rm Mini
Elite 35W/930 GX10 10D
ILCOS code: MRS/UB-35/30/1A-H-GX10
Order Code: HID35Eco
Rated bulb life 12,000hrs
Expected bulb life 8,000hrs
Color temperature 3,000K
Luminous Intensity 18,000cd
Socket GX10
CRI 87-90
Lens Options
Standard 20 degree (included)
Narrow 10 degree
Wide 25 degree
ECO Spot 35FC User Manual
Copyright © 2010 Globus New Media LLC Page 1
Thank you for choosing an ECO Spot 35FC™ Gobo projector. This
unit is equipped with a fan cooled 35W discharge light bulb, which
delivers light output and long bulb life.
Please read this manual before installing or operating this fixture,
follow the safety precautions listed below and observe all warnings.
Package Contents

Projector with power cord and integrated gobo holder and rotator

Light Bulb

Test Gobo
Safety Information
Handling Instructions
ECO Spot 35FC™ User Manual
Do not look directly into the lamp, it can result in eye damage.
This product is not for household use, it presents risks of severe injury or death due
to fire and burn hazards, electric shock, lamp explosion and falls.
Light fixtures should be installed and maintained only by qualified personnel with
experience in lighting equipment and general electrical experience.
Always disconnect the unit from power and allow cooling down for 20 minutes
before servicing.
Place your fixture at a suitable place with good air flow and keep flammable materials
away.
Minimum distance to flammable materials = 1ft. (0.3m).
Minimum distance to illuminated surfaces = 3.3ft. (1.0m).
Provide a minimum clearance of 4in. (10cm) around air vents.
Don’t touch the hot surface during operation, use gloves if necessary.
Replace Lamps only with the same type other lamps may cause damage.
Always ground (earth) the fixture electrically.
Use only a power source that complies with local building and electrical codes and
has both, overload and ground-fault protection.
Do not use the fixture if the power cable or power plug is in any way damaged,
defective or wet, or if they show signs of overheating.
When suspending the fixture above ground level, verify that the structure can hold at
least 10 times the weight of all installed devices.
Verify that all external covers and rigging hardware are securely fastened and use
approved means of secondary attachment such as a safety cable.
Please unpack and carefully check for damage caused during transportation.
Make sure there are no flammable materials close to the fixture.
Do not touch the light bulb with bare hands, the oils can damage the bulb and can
cause failure or explosion of the bulb.
After turning off the projector, it may take up to 15 minutes to restart.

Use onl
y
g
enuine s
p
are
p
arts for
p
art re
p
lacement.
ECO Spot 35FC User Manual
Page 2 Copyright © 2010 Globus New Media LLC Page 2
Warranty
One Year from Date of Purchase
Contact
Globus New Media LLC
Tel 1-888-987-1112 or 1-408-416-4444
Fax 1-408-416-4445
www.globusnewmedia.com

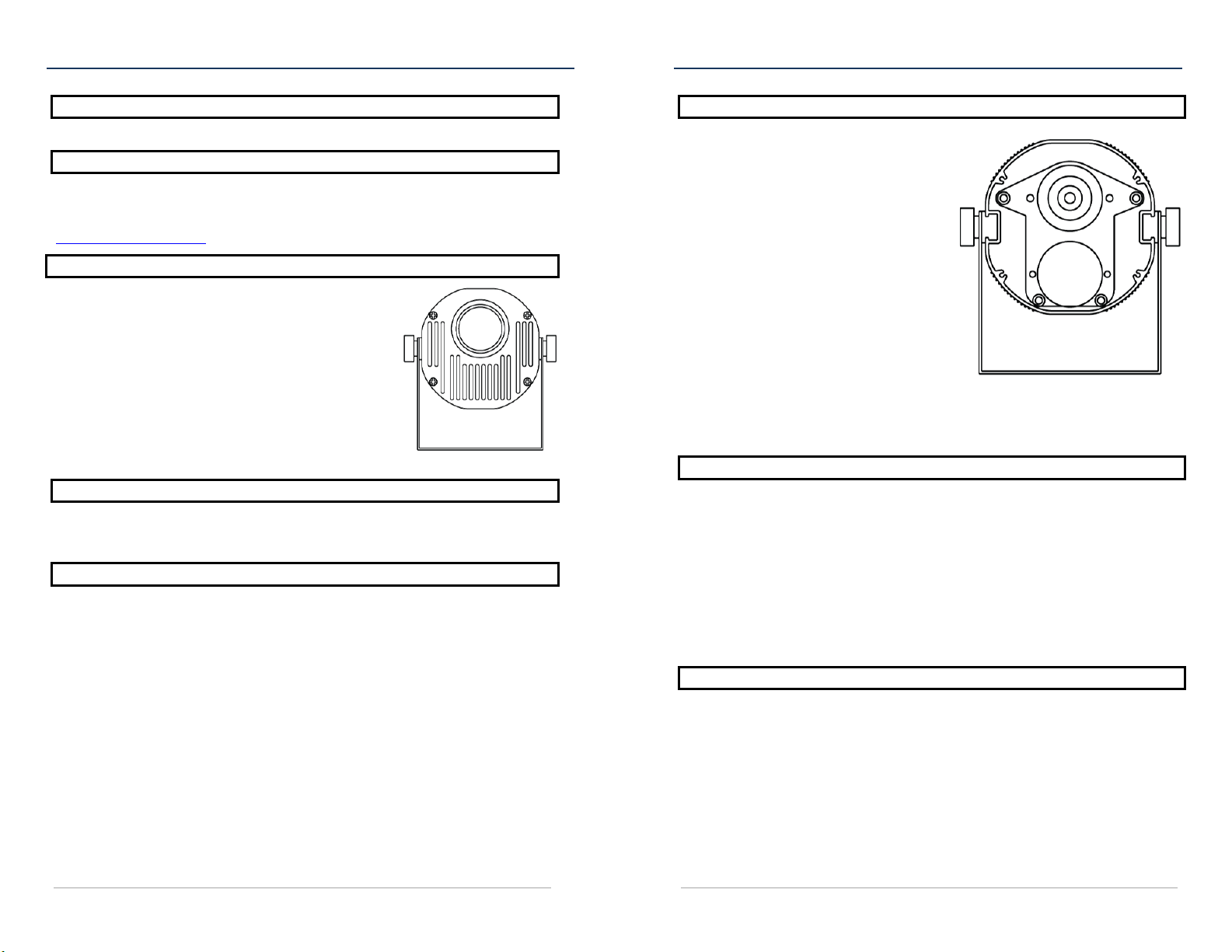

Focusing
Power up the projector by pressing the larger switch in
the back.
Turn on the gobo rotator with the smaller switch in the
back and switch it off when the gobo projects in the
desired position.
Focus the projection by twisting the lens in and out
until the image is well focused. When used for the first
time, the lens will often need to be twisted outwards
many rotations to reach the focusing point.
Gobo Rotator (model ES-35)
Gobo Changer (model ES-LED35-C)
The gobo changer has four gobo slots. A timer continuously switches between the
different gobos. It will always go the full sequence ( slot 1,2,3,4,1,2,…), therefore all slots
need to be populated with gobos. Turn on and off the gobo changer with the small
switch on the back plate.
The interval timer can be set to changing intervals between 3-5-15-30-60-120 seconds.
The interval time is selected by pushing the red button on the projectors back plate. Every
push advances the interval to the next longer interval time (i.e. from 5 to 15 seconds).
Push the button while the changer stands still. Once the longest time has been reached, it
will start over at the shortest time. For showing only a single gobo w/o any changes,
simply turn off the changer power switch on the back plate when the correct gobo shows.
The unit has an additional static slot, which can be used as
Turn on and off the gobo rotator with the small switch on the back plate.
There are no controls for rotating speed or direction.
optional color overlay in conjunction with b/w gobos in the changers gobo wheel.
gobo color changer in conjunction with color filters in the changers gobo wheel.
ECO Spot 35FC User Manual
Copyright © 2010 Globus New Media LLC Page 3
Gobo Replacement
Unplug the lamp before re-lamping the projector. Let the
projector cool down for min. 20min. Use caution, the
housing and light bulb may still be hot.
Unscrew the four thumbscrews to remove the
front cover with the projection lens.
The gobo rotator with the gobo holder is now
exposed.
Push the two pins of the gobo retaining ring
together and pull out the retaining ring.
Carefully remove the old gobo and replace it with
the new gobo.
If you have a glass gobo, place the most reflective
side towards the light bulb.
Replace the retaining ring and make sure it evenly
pushes the gobo all the way back.
Replace the front cover and adjust the focus.
Lamp Replacement
Unplug the lamp before re-lamping the projector. Let the projector cool down for min.
20min. Use caution, the housing and light bulb may still be hot.
Unscrew the four thumbscrews to remove the front cover with the projection lens.
The gobo rotator with the gobo holder is now exposed.
Carefully pull out the gobo holder.
The lamp is now exposed. Remove it by twisting it counter clockwise and then pull it out
of the socket. Reverse this procedure for the new lamp. Do not touch the glass of the
lamp with your fingers.
Replace the gobo rotator and the front cover.
Changing the Projection Lens
Depending on the desired projection distance and size, different projection lenses can be
used. How to change the lens:
Loosen the ring that seals the projection lens on the base of the front plate and remove
it.
Unscrew the projection lens
Screw in the new lens and focus it.
Re-tighten the ring that seals the projection lens on the base of the front plate. Hold the
projection lens steady with your other hand so focus won’t change.
