ECO Spot LED25D User Manual

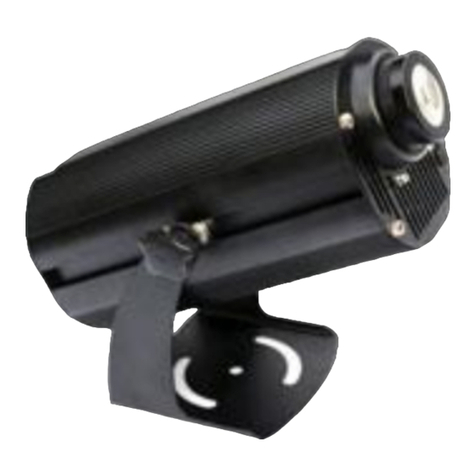

Thank you for choosing an ECO Spot™ Gobo projector. This unit is
equipped with a fan cooled 25W High Power LED.
Please read this manual before installing or operating this fixture,
follow the safety precautions listed below and observe all warnings.
WARNING!
Some models are equipped with a voltage selector switch on the back plate of the
unit. Select the correct Line Voltage before Operating.
Package Contents

Projector with power cord

Test Gobo

Spare gobo retaining ring and spare drive belt

Gobo adapter for D- to E-Size gobos with retaining ring
Safety Information
Electrical Safety
ECO Spot™ LED25D User Manual
•Place your fixture at a suitable place with good air flow.
•Keep flammable materials away from the fixture.
•Minimum distance to flammable material = 1 ft (0.3m).
•Provide a minimum clearance of 4 in (10cm) around air vents.
•Use only genuine spare parts for part replacement.
•Do not look directly into the lamp; it can result in eye damage.
•Always unplug the unit from the power mains before any service is done.
•Light fixtures should be installed and maintained only by qualified personnel with
experience in lighting equipment and general electrical experience.
•Disconnect the fixture from AC power before handling the fixture.
•Always ground (earth) the fixture electrically.
•Use only a power source
that complies with local building and electrical codes and
has both, overload and ground-fault protection.
•Do not use the fixture if the power cable or power plug is in any way damaged,
defective or wet, or if they show signs of overheating.
Copyright © 2014 Globus New Media LLC Page 1

ECO Spot LED25D User Manual
Handling Instructions
Warranty
One Year from Date of Purchase. Keep your receipt for reference and contact your dealer
in case of warranty issues.
Projection Lenses
The projector accommodates interchangeable projection lenses to allow optimizing the
projection size and resulting brightness at varying distances. The more narrow the lens,
the smaller and brighter the image will be at a given distance.
Focusing
Gobo Rotator
The gobo rotator can be turned on/off with the push-button switch on the back plate.
There are no controls for rotating speed or direction.
Multi-functional Yoke
•Before the initial start-up, please unpack and carefully check for damage caused
during transportation.
•Place your fixture at a suitable place with good air flow.
•Make sure there are no flammable materials close to the lamp.
•When suspending the fixture above ground level, verify that the structure
can hold
at least 10 times the weight of all installed devices.
•Verify that all external covers and rigging hardware are securely fastened and use
an approved means of secondary attachment such as a safety cable.
•Power up the projector by pressing the power switch in the back.
•Focus the projection by twisting the lens in and out until
the image is well focused.
When used for the first time, the lens will often need to be twisted outwards many
rotations to reach the focusing point.
•Turn on the gobo rotator with the push-button in the back and switch it off when
the gobo projects in the desired position.
•Re-adjust the focus if necessary.
•The yoke can slide over the whole length of the fixture body to accommodate a
wide range of pointing directions.
•The yoke serves as stand.
•The yoke can be screwed to a wall or ceiling or fastened with a C-clamp
Page 2 Copyright © 2014 Globus New Media LLC

ECO Spot LED25D User Manual
Gobo Placement (see Specifications for Gobo Dimensions)
The ES-LED40 uses D-Size gobos or E-Size gobos with an adapter ring. See the
Specifications for exact dimensions. For max. image size and brightness use the larger
gobos. The recommended gobo image diameter is 32mm. An Image Diameter of up to
40mm is possible with some loss in focusing quality.
For D-Size gobos, remove the E-Size Adapter and leave it out:
•Unscrew the thumbscrews to remove the front cover with the projection lens.
•For E-Size gobos, use the screw-in adapter ring. For larger gobos, remove the
adapter ring and use the larger retaining ring.
•Push the two pins of the gobo retaining ring together and pull out the retaining
ring. Carefully remove the old gobo and replace it with the new gobo.
•If you have a glass gobo, place the more reflective side towards the light bulb.
•Replace the retaining ring and make sure it evenly pushes the gobo all the way
back.
•Replace the front cover and adjust the focus by screwing the projection lens in or
out.
Copyright © 2014 Globus New Media LLC Page 3

ECO Spot LED25D User Manual
Line Voltage
If your model is equipped with a Line
Voltage Selector in the back, select the
correct line voltage:
US Setting (120V)
90-130V, 50/60Hz, 0.4A, 35W
International Setting (220V)
90-240V, 50/50Hz, 0.4A, 35W
If no Line Voltage Selector is present
your model is autosensing:
90-240V, 50/60Hz, 0.4A, 48W
Ambient Operating Temperature
-13 to 104°F (-25 to 40°C)
Dimensions / Weight
Body without yoke:
11 x 7 x 3.75in (L x W x H)
(280 x 178 x 95mm)
The projection lens adds 0.5 to 2in (12 to
50mm) to the length.
Height with yoke: 7.75in (197mm)
Weight 7lbs (3kg)
Gobo Dimensions D-Size
Metal or Glass Gobos and Dichroic filters
The projector takes D-Size gobos:
Outer Diameter (OD): 53mm
Image Diameter (ID): 32mm (max 38mm)
Max Thickness:4mm
Larger ID up to 40mm is possible with
some loss in focusing quality, for optimal
focus stay within 32mm image size. An
adapter for the smaller E-Size gobos is
included.
LED Lamp
Lens Options
The projector can be equipped with
standard ECO Spot projection lenses.
A larger focal length (f) makes a smaller
projection angle and therefore a smaller
but brighter image. Currently these
lenses are available:
•Power: 25W
•Rated Bulb life 50,000h
•Color Temperature 5,500k, +/-
500k
•Rated Luminous flux: 2,000lm
•Effective luminous flux: 1400lm
•Wide f=50mm
35º/25º for D/E-Size gobos
•Medium f=70mm
28º/20º for D/E-Size gobos
•Semi-Narrow f=100mm
21º/15º for D/E-Size gobos
•Narrow f=140mm
14º/10º for D-Size gobos
