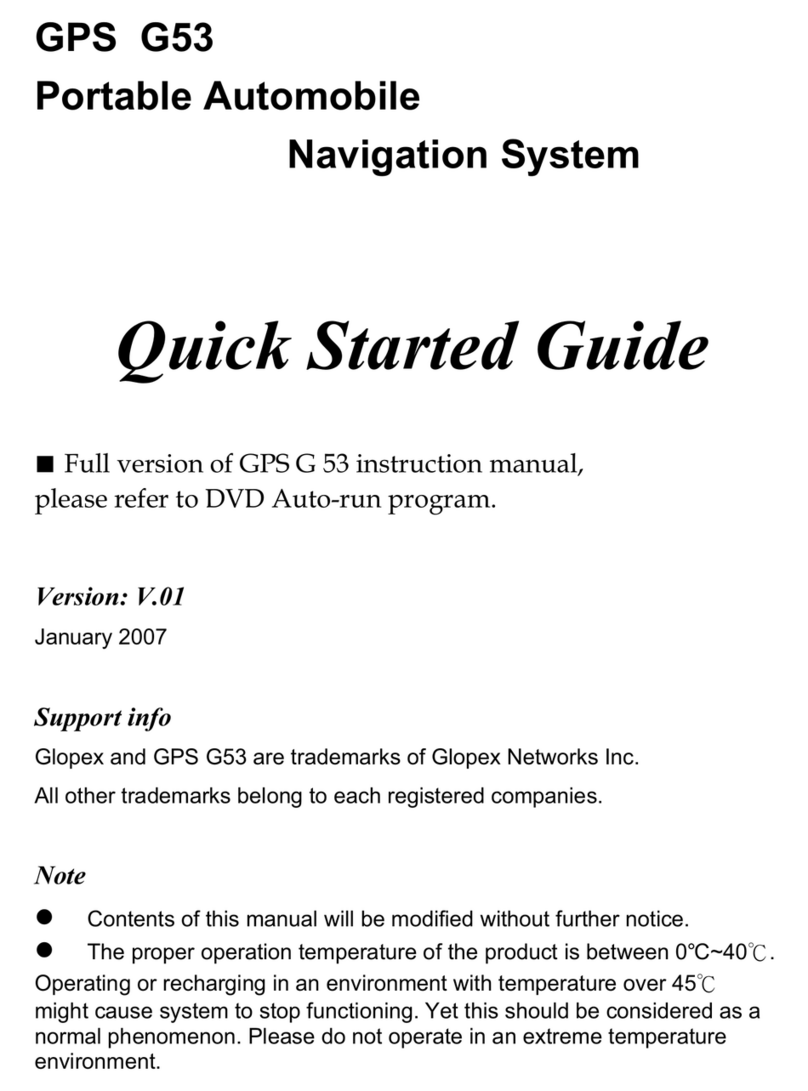

Glopex Networks GPS G53 User manual

GPS G53
GPS G53
Portable Automobile Navigation System
Product User Manual
Version: V1.0
January 2007
Support info
GLOPEX and GPS G53 are trademarks of Glopex Networks Inc.
All other trademarks belong to each registered companies.
Note
zContents of this manual will be modified without further notice.
zThe proper operation temperature of the product is between 0℃~40℃.
Operating or recharging in an environment with temperature over 45℃
might cause system to stop functioning. yet this should be considered as a
normal phenomenon. Please do not operate in an extreme temperature
environment.

GPS G53
Safety Precautions
•Use the power adapter included with the package, using power
adapters other than the one provided will result in malfunction and
could prove dangerous.
•The device should only be used with the supplied batteries.
•About the power adapter
1. Do not use the power adapter in a wet environment. When hands
and feet are wet, do not touch the power adapter.
2. While using the power adaptor ensure that the area is well
ventilated. Do not let paper or other material cover the power
adaptor, as this will interfere with cooling. Do not use the power
adaptor whilst it is in a bag.
3. Do not attempt to repair the device. If device is damaged or is in a
wet environment, replace the device immediately.
•About the battery
1. Use only the original factory approved charger.
2. A Lithium battery is built in to the device. To prevent fire or skin
burns, do not disassemble, pierce, impact, or expose the battery to
fire. The battery will crack, explode, or release dangerous
chemicals if placed in a fire.
•Important instructions
1. Note: Replacing with an incorrect battery may result in an
explosion. When disposing of the battery, follow the instructions.
The replacement battery must be original factory approved.
2. Regulations must be observed when recycling or disposing of
batteries.
3. The battery should only be used in this device.

GPS G53
Warranty Statement
•This warranty applies to parts and services of GPS G53 and sold
through Glopex Networks Inc. The local area covered is Canada; the
warrantee length is one year from date of purchase (counting from the
date on the sales receipt). Under normal user operation, Glopex
Networks Inc. provides free repair services.
The replaced parts after repair are properties of Glopex Networks
Inc. Glopex Networks Inc. is not responsible for providing repairs or
replacements of any software; Glopex Networks Inc. does not
provide any warranty service for third party software/hardware.
•Important instructions
Note: This warranty does not cover damage or malfunction from the
below causes: unauthorized disassembly/modification of unit, abuse or
incorrect usage, accidental and other unpreventable causes, operation
under variables mentioned other than in this product user manual,
using parts not made or sold by Glopex Networks Inc., or repairs done
by anyone other than Glopex Networks Inc. and authorized
retail/service provider.
Expendable parts are not covered in the warranty.
Any program, data, or portable storage media damages or loss are
not responsible. Please contact your local Glopex Networks Inc.
authorized service provider to learn more about geographical
limitations, proof of purchase requests, response time agreements,
and other specific maintenance service requests.

GPS G53
Technical Support
•If there are any questions regarding the use of this product, please
logon to the website http://www.glopex.com/ and see the FAQ.
•If the answer cannot be found on our website, please send us e-mail
a [email protected] or call 1-866-466-4237 for the questions or
reseller location.
Maintenance Service
Glopex Networks Inc.
1- 866 –466 – 4237
Web Site: http://www.glopex.com/
E-mail: [email protected]

GPS G53
Table of Contents
Warranty Statement.........................................................iv
Technical Support.............................................................v
Maintenance Service.........................................................v
Preface...............................................................................1
Symbols.............................................................................1
Important Notice ...............................................................1
Other Functions ................................................................2
First time use.....................................................................3
Copyright .......................................................................3
Important Notice............................................................3
Package Contents.............................................................4
Basic Operation ................................................................5
Introduction ...................................................................5
Front View ......................................................................5
Rear View........................................................................5
Left Side..........................................................................6
Right Side.......................................................................6
Top View.........................................................................6
Getting Started..................................................................7
SD memory card installation........................................7
Using the stylus.............................................................8
I/O interface....................................................................8
Charging.........................................................................9
Using Home / Travel adapter:...........................................9
Using the car charger:.....................................................10
Using the GPS Cradle / Suction Cup Holder............12

GPS G53
GPS Mounting Kit Contents............................................13
Step up GPS Mounting Kit in Your Car..........................14
Adjusting the Suction Cup Holder .................................16
Operating Methods .........................................................17
Startup..........................................................................17
Shutdown.....................................................................17
Using Functions..............................................................18
Function Menu Music Playback Function ................19
Storing MP3 files onto SD memory cards .................19
Starting music playback .............................................19
Image Browsing Function...........................................21
Other ................................................................................22
Video.............................................................................22
eBook ...........................................................................25
Setting..........................................................................27
Time ..................................................................................27
Volume..............................................................................28
Startup Message..............................................................29
Stylus Adjustment...........................................................30
Backlight Setting .............................................................31
Version..............................................................................32
About ................................................................................33
Using the CD ...................................................................34
Troubleshooting..............................................................34
System reset................................................................34
Quick Troubleshooting ...............................................35
Normal Care and Maintenance...................................35
Keep dry .......................................................................35
Do not drop the unit ....................................................35

GPS G53
Avoid sudden temperature changes..........................35
Keep away from strong magnetic fields....................36
Operating temperature................................................36
Avoid exposure to sunlight.........................................36
Using the stylus...........................................................36
Cleaning the screen.....................................................36
Do not disassemble.....................................................36
Storage.........................................................................36
Appendix..........................................................................37
Specifications..............................................................37
Federal regulations.........................................................38

1 GPS G53
Preface
We appreciate your purchase of the GPS G53.
Please read all instructions thoroughly for a full understanding of the
products’ features.
Symbols
For fast reference to the data you wish to find, this manual uses the
following symbols.
9This icon means to take note to messages and to read for while
during use.
0This icon means a warning and should take care not to damage the
unit.
)This icon means useful tips for extra information while using.
Important Notice
•This system only provides a navigational reference. Do not use this
system for any directional, distance, and geographic etc precise
measurements.
•The first GPS positioning should be performed at a single set point,
wide-open area without building shelters. Positioning time length will
depend on the satellite signal strength, cloud levels; possibly taking
up to 10 minutes.
•GPS (Global Positioning System) is the satellite system used by the
United States of America Department of Defense. All maintenance
and operations are also managed by the United States of America
Department of Defense. Should the system be modified and
adjusted, the precision and operation of GPS related systems might
be affected.
•Any wireless communication products (mobile phone, radio, speed
detection unit etc) might affect the GPS signal, resulting in a poor
signal.
•For safety reasons, do not operate this system while driving a
vehicle.

2
GPS G53
•Do not leave this unit under your front windshield after you leave the
vehicle. Exposure to high temperatures might be dangerous and
cause overheating to the battery, resulting in malfunction of the
device.
•Window tinting might interfere with the reception of satellite signals.
We recommend you install a vehicle antenna to strengthen and
stabilize the signal.
•The planned navigational route is for reference only; changes in
roadside conditions (one way streets, no right turns) may happen so
please respond accordingly to the situation and decide whether or
not to follow the planned course.
•When placing this system in the vehicle, please secure with brackets
on the car to ensure safety. The recommended installation location is
illustrated below.
•Differences between manufactured and shipped versions may be
present; this software may be updated frequently. If the descriptions
in this manual are different from your software version, please follow
the software version currently on hand.
Other Functions
•Music playback: plays MP3 music files.
•Image display: displays photographs or image files
•Video play films
•eBook display text file
X Do not block
driver’s view
XDo not secure in
front of airba
g
XDo not secure in
front of airbag
XDo not place on
unstable dashboard

3 GPS G53
First time use
Copyright
Without the written consent of Glopex Networks Inc. this manual including
the product and the software may not be duplicated, transmitted, recorded
or saved on storage devices; nor shall it be translated under any
circumstances into any other languages.
Copyright ©2007 Glopex Networks Inc.. All rights reserved.
.
Important Notice
Please read thoroughly this manual of operating instructions and
explanations. Use only original factory approved batteries and accessories
to prevent unexpected damage. If the correct procedures were not followed
for operation or incompatible accessories were connected, this violates the
warrantee agreement and will automatically void the warrantee; even
causing personal safety issues.

4
GPS G53
Package Contents
Your product should include the following accessories:
GPS-G53 Unit GPS Cradle Suction Cup Holder
Adapter Plate Car Adapter Home / Travel Adapter
SD Memory Card CD-ROM Quick Guide

5 GPS G53
Basic Operation
Introduction
Front View
Rear View
3.5” TFT LCD
with touch
screen
Speaker
System
power switch
I/O interface
Stylus
Charging
indicator LED
Charging:
Red
Full: Green

6
GPS G53
Left Side
Right Side
Top View
Note: The Menu button is only functional during GPS navigation.
USB port
External Antenna port
Stylus
SD card slot
Reset button
Power
button
Menu
button

7 GPS G53
Getting Started
If you are a first-time system user, the following explanations will help you
quickly understand the system operations, and experience the system’s
powerful and convenient functions.
SD memory card installation
This unit is equipped with a SD memory card slot; you can purchase SD
(Secure Digital) Cards to expand the memory capacity.
To insert the memory card:
With the metal contacts of the memory card facing back, insert the card into
the slot on the right side of the unit.
To remove the memory card:
1. Gently press the top of
the memory card, and
the card will eject
automatically.
2. Then pull to remove
the memory card.
9The included memory card contains the digital map files that are
required for the GPS navigational data. Please do not delete.
9When removing the memory card, please make sure the card is not
reading data, or it will cause a system crash.
9Do not set the SD memory card as write protected, or the system will
not operate properly.
0When operating, accidental removal of the memory card will
result in showing an error message. Please reinsert the
memory card and the system may need to be reset before
further use.

8
GPS G53
Using the stylus
This unit can be controlled easily though the touch screen. The stylus is an
assist tool for operating this unit and is concealed in a pen slot at the rear.
Pull out to use.
I/O interface
The I/O interface has five pins, and each pin function is described as below.
Pin Function
1 VCCIN (DC 5.4 ± 0.2 1A)
2 TX
Serial Data output port A (TTL
Level；Voh≧2.4V，
Vol≦0.4V; Ioh=Iol=2mA)
3 RX
Serial Data input port A(TTL
Level；Vih≧0.7*VCC；
Vil≦0.3*VCC)
4 GND
5 Outside device (Reserve of
software program definition.)
Stylus
1 2 3 4 5

9 GPS G53
Charging
Using Home / Travel adapter:
Before using the device for the first time, we strongly suggest you use a
fully charged battery.
1. Insert the USB connector into the unit.
2. Plug the adapter into a power outlet.

10
GPS G53
Using the car charger:
While using the device in a vehicle, use the included car charger for long
periods of usage.
1. Plug in the small plug into the power jack on the rear of the GPS
Cradle.
2. Insert the other end into the cigarette lighter.

11 GPS G53
9This device uses a built-in rechargeable battery, please note the
following:
•Please do not charge in a hot environment, such as on a balcony
or expose to direct sunlight.
•Do not wait until the battery is depleted to recharge.
•When not using the unit for a long time, please turn off the
system switch.
•When charging a completely depleted battery, wait at least one
minute before system startup. This will prevent excessive battery
discharge.
•When charging starts, the charging indicator light will be red,
please wait for the charging to complete (this might take several
hours). After charging is completed the indicator light will be
green.
Charging
indicator LED

12
GPS G53
Using the GPS Cradle / Suction Cup Holder
The included GPS Cradle set can be securely suctioned on the front
windshield, or using the adhesive plate, securing on top of the glove
compartment. This device will effectively secure the GPS G53 unit in the
vehicle. Follow the procedures below to secure the bracket:
1. Follow the arrows and stable the GPS G53 unit into the GPS Cradle
fitting holes to secure.
2. Gently push in the unit until the unit is tightly fixed with the cradle.
Note: Please note the directions of the arrows, when fitted the assembly
should be tight. If these directions are not followed, a loose fit will result,
and components must be reassembled.

13 GPS G53
GPS Mounting Kit Contents:
GPS Cradle Suction Cup Holder Adapter Plate
G53 Cradle
A
dapter Plate Suction Cup Holde
r
