GLOW T180 Parts list manual

Instruction & Installation Manual
Glow T180
Model
ANSI Z21.10.3 CSA 4.3-2015
Tankless Condensing Water Heater
188,000 BTU

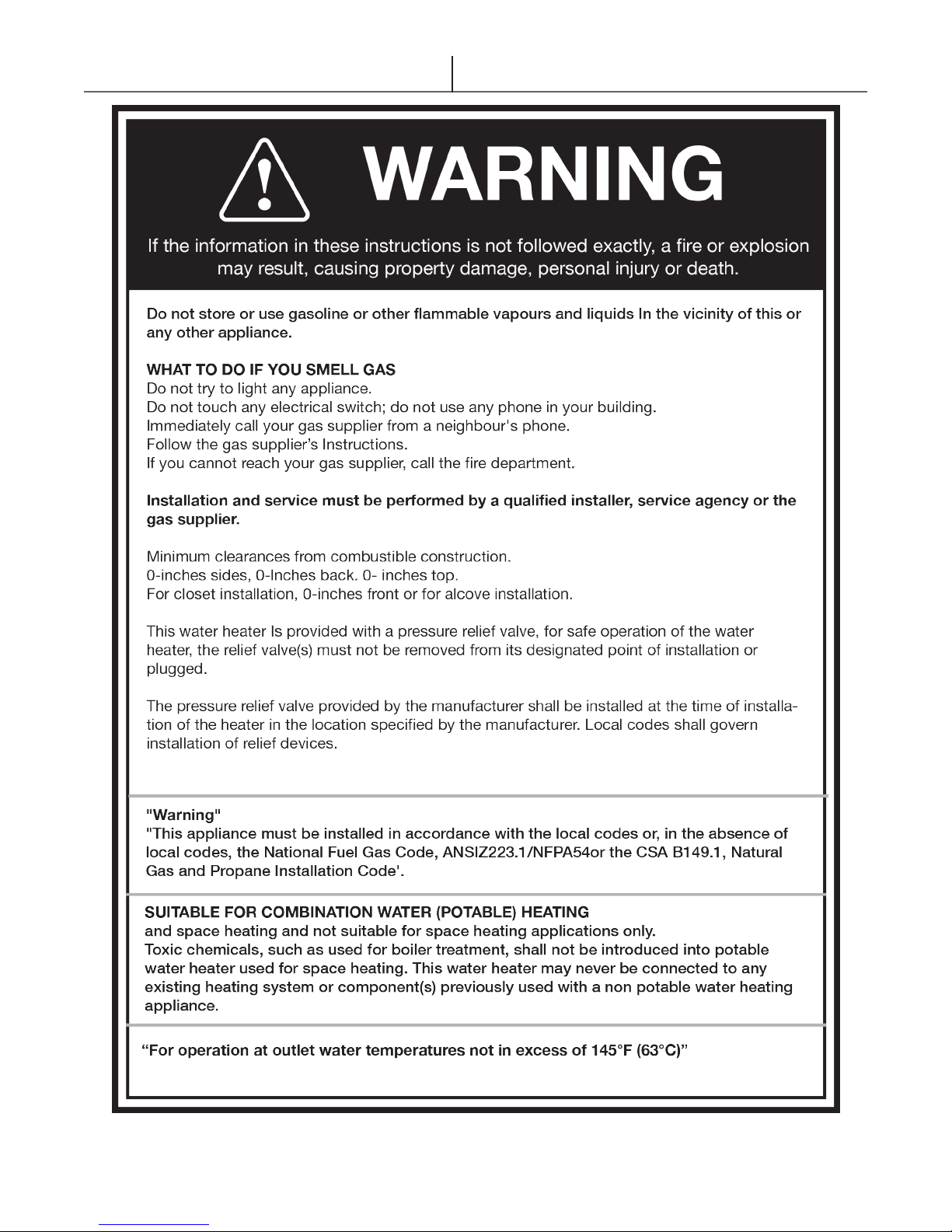

WARNING
If the information in these instructions is not followed exactly, a re or explosion may result, causing property damage, personal injury
or death.
Do not store or use gasoline or other ammable vapours and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbour’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
Installation and service must be performed by a qualied installer, service agency or the gas supplier.
Glow Brand maintains a continuous improvement policy, specications are subject to change without notice. We retain the right to alter
or modify this product at our discretion. V.20171218
To Installer: Afx this manual adjacent to the appliance.
To Consumer: Retain these instructions for future reference

Glow T180 Tankless Condensing Water Heater
2
Table of Contents
1. General Information
1.1 Safety Information 3
1.2 General Warnings 3
1.3 Safety Warnings 5
1.4 Product Conformity 11
2. Technical Characteristics
2.1 Technical Data 12

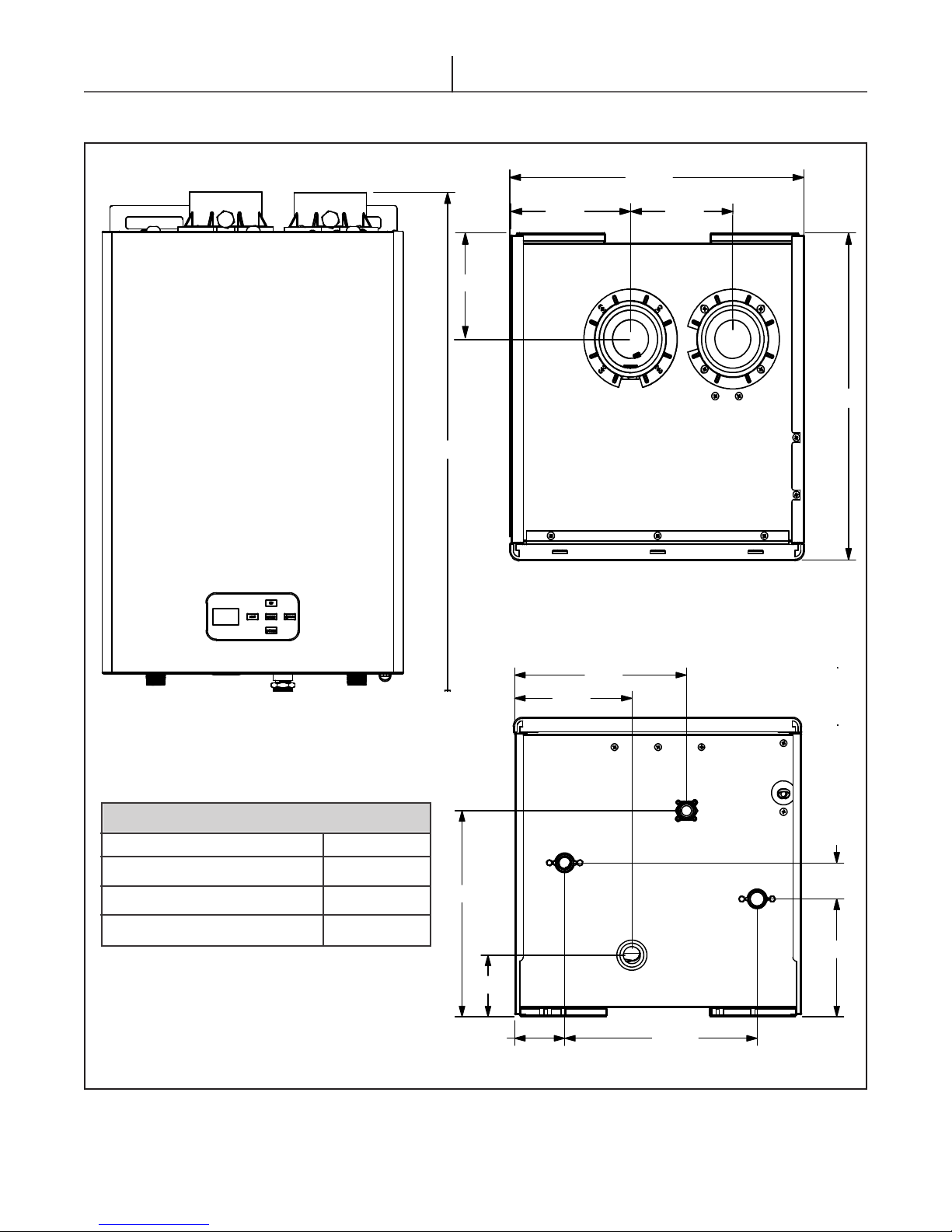

2.2 Dimensions 13
2.3 Unit Performance 14

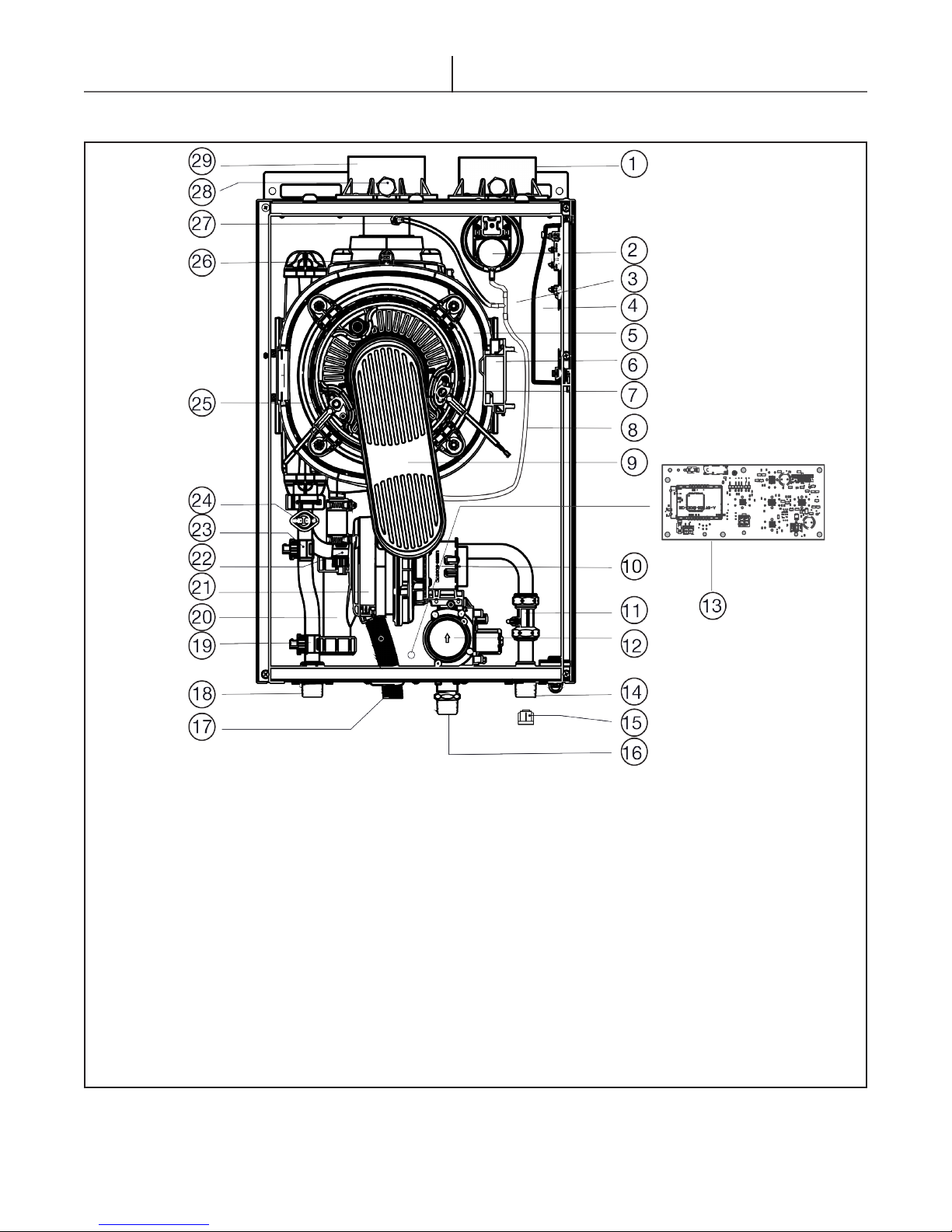

2.4 Internal Parts Of The Water Heater 15

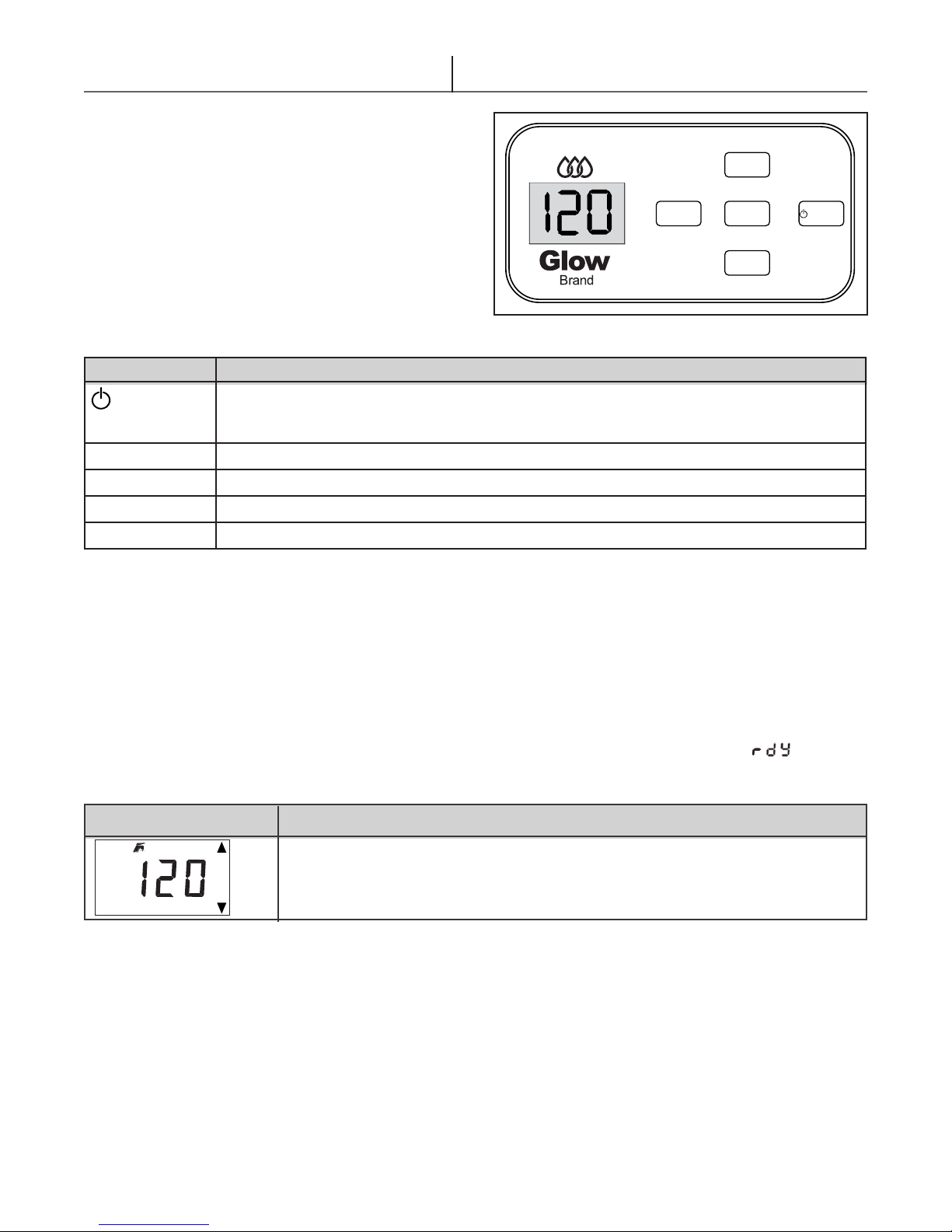

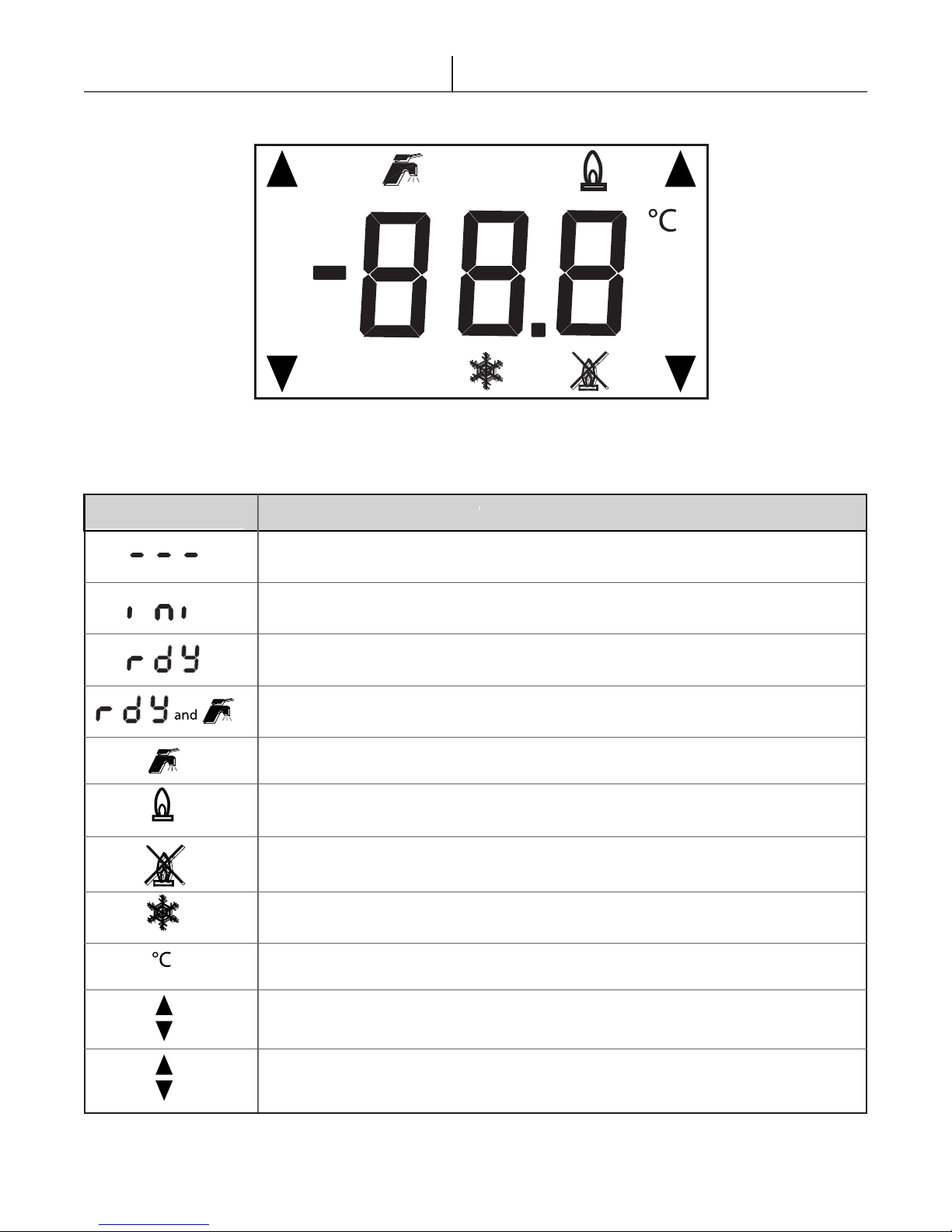

2.5 Display & Control Circuit Board 16
2.6 User Menu 18
2.7 Service Menu 19
2.8 Installer Section 20
3. Installation (Authorized Personnel)
3.1 Reference Standard 22
3.2 Unpacking 22
3.3 Installing The Water Heater 23
3.4 Domestic Hot Water 23
3.5 Recirculation Pump 32
3.6 Water Connections 33
3.7 Gas Connection 36
3.8 Electrical Connections 36
3.9 Venting 38
3.10 Venting Diagrams 40
4. Commissioning The Appliance
4.1 General Warnings 46
4.2 Preliminary Operations 46
4.3 Flushing The System 46
4.4 Priming The Condensate Trap 46
4.5 Starting Up The Water Heater 47
4.6 Gas Valve And Set Up 47
4.7 Adjusting The Gas Throttle 48
4.8 Set Point Temperature 49
5. Maintenance (Authorized Personnel)
5.1 General Warnings 50
5.2 Maintenance 50
5.3 De-scaling and ushing 50
5.4 Water Heater Inspection 51
5.5 Accessing The Water Heater 52
5.6 Maintenance Operations 52
5.7 Gas Supply Connections 55
6. Lock Out And Warnings 56
7. Troubleshooting
7.1 Ignition Lock-Out 58
7.2 High Limit Or Microfuse Open 59
7.3 Flue Gas Temperature Exceeds The Limit
60
7.4 Block Flue Switch Open 61
7.5 DCW Inlet Sensor Failure 62
7.6 Heat Exchanger Outlet Sensor Open 63
7.7 DHW Sensor Open 64
7.8 Flue Sensor Open 65
7.9 No Hot Water 66
7.10 Resistance Value Versus Temperature
67
8. Parts List - Available From Glow Brand
8.1 Cabinet And Interior 68
8.2 Water Connections 70
8.3 Electrical Connections 75
Warranty and Registration
Water Heater Commissioning Sheet

Glow T180 Tankless Condensing Water Heater
3
1. General Information
1.1 Safety Information
The following safety symbols are used in this manual.
Read and follow all instructions in this manual
precisely to avoid unsafe operating conditions, re,
explosion, property damage, personal injury or death.
DANGER
Indicates an imminently hazardous
situation, which, if not avoided, could result
in severe injury or death.
WARNING
Indicates a potentially hazardous situation,
which, if not avoided , could result in severe
injury or death.
CAUTION
Indicates a potentially hazardous situation,
that, if not avoided could result in property
damage.
1.2 General Warnings
1.2.1 Installation
Δ Read all safety warnings in the “Instruction &
Installation Manual”. The additional safety issues
outlined below must also be followed completely
when installing this Glow T180 Tankless Water
Heater.
Δ Failure to remove or maintain the area free
of combustible material, gasoline and other
ammable liquids or vapors can result in severe
personal injury, death or substantial property
damage.
Δ All applicable local, state, national and provincial
codes, ordinances, regulations and laws must be
observed.
Δ For installations in Massachusetts – code requires
the units to be installed by a licensed plumber or
gas tter.
Δ The appliance cannot operate without the correct
amount of air for combustion. Please make sure
there is sufcient inow and outow of air for
ventilation; never obstruct the ow of ventilation
air. Failure to provide the proper amount of
combustion air can result in a re or explosion
and cause death, serious bodily injury or property
damage.
ΔIf an external electrical source is utilized, the
appliance must be electrically grounded in
accordance with local codes or, in the absence
of local codes, with the National Electrical Codes
ANSI/NFPA 70 and or the CSA C22.1 Canadian
Electrical Code.
Δ Follow all local codes and/or the most recent
edition of the National Fuel Gas Code (ANSI
Z223.1/NFPA 54) in the USA or the Natural Gas
and Propane Installation Code in Canada (CAN/
CSA B149.1).
ΔThis unit is designed for indoor installations.
DO NOT operate this unit without the vent
piping connected. Exhausted gases must be
completely expelled out of the building.
Δ DO NOT use this appliance if any part has been
underwater. Immediately call a qualied service
technician to inspect and replace any part of the
control system and gas control which has been
underwater. Be sure not to reverse the water and
gas connections as this may damage the gas
valve.
Δ Water temperatures over 120°F can cause
severe burns instantly or death from scalding.
If the proposed water heater outlet temperature
is above 120°F, a thermostatically controlled
mixing valve (or a temperature limiting valve)
for reducing point of use water temperature is
recommended to reduce the risk of scald injury.
Contact a licensed plumber or the local plumbing
authority for further information.
Δ The appliance should be located in an
area where leakage within the unit or at its
connections will not result in damage to the area
adjacent to the appliance or to lower oors of the
structure. Glow Brand will not be responsible for
any damage resulting from leaking if adequate
drainage is not provided. When such locations
cannot be avoided, it is recommended that
a suitable drain pan, adequately drained, be
installed under the appliance.
Δ DO NOT use this tankless water heater for any
purpose other than water heating and space
heating.
Δ The ow of combustion air and ventilation to
the water heater must not be obstructed. The
water heater area must be kept clear and free
from combustible materials, gasoline and other
ammable vapors and liquids.
Δ If the water quality is known to be highly acidic
and/or extremely hard, water treatments (such as
water softeners and ltration) are recommended
to maintain full warranty. Consult the local water
authority.

Glow T180 Tankless Condensing Water Heater
4
Δ DO NOT over-tighten ttings, as pipe and/or tting
damage may occur causing leakage.
Δ DO NOT install the water heater where it is
subject to vibrations.
Δ Should overheating occur or the gas supply fails
to shut off, turn off the manual gas control valve
to the appliance. Contact a Service Technician
immediately.
Δ Clearance must be in accordance with the local
installation codes and the requirements of the gas
supplier.
Δ Never operate the water heater unless it is vented
to the outdoors and has adequate air supply to
avoid risks of improper operation, re, explosion
or asphyxiation.
Δ DO NOT install this water heater directly on a
carpeted oor. A re hazard may result. The
water heater must be installed and adequately
supported on a metal or wood panel extending
beyond the full width and depth of the water
heater by at least 3 inches (76.2mm) in any
direction.
Δ For safe operation, an ample supply of air
must be provided for proper combustion and
ventilation in accordance with the National Fuel
Gas Code ANSI Z223.1/NFPA 54 National Fuel
Gas Code CSA/B149.1 Natural Gas and Propane
Installation Codes or applicable provisions of the
local building codes. An insufcient supply of air
may result in a yellow, luminous burner ame,
carboning or sooting of the heat exchanger, or
create a risk of asphyxiation. Do not obstruct the
ow of combustion and ventilation air.
Δ This unit is not intended to operate at gas supply
pressures other than those shown on the rating
plate. Exposure to higher gas supply pressure
may cause damage to gas valves, which can
result in re or explosion. If over-pressure has
occurred, such as through improper testing of
gas lines or emergency malfunction of the supply
system, the gas valve must be checked for safe
operation.
A thermostatic mixing valve must be added
to this system to prevent scalding, and as
per local codes and authorities.
1.2.2 Check The Rating Plate
ΔGlow T180 water heaters come from the factory
congured for use with natural gas or propane.
Prior to installation, check the rating plate of
the water heater to ensure the unit matches
gas type, gas pressure, water pressure and
electrical supply. If the unit does not match the
requirements, do not install.
Δ There is a risk in using fuel burning appliances in
rooms or areas where gasoline, other ammable
liquids or gas engine equipment or vehicles
are stored, operate or are repaired. Flammable
vapors are heavy and travel along the oor and
may be ignited by the igniter or main burner
ames causing re or explosion. Some local
codes permit operation of gas appliances if
installed 18 inches or more above the oor.
Flammable items, pressurized containers or any
other potential re hazardous articles must never
be placed on or adjacent to the water heater.
Open containers of ammable materials should
not be stored or used in the same room with the
water heater.
Δ DO NOT install the Glow T180 water heater in
areas with excessive high humidity.
Δ DO NOT install the unit in locations where there
is excessive humidity, such as a bathroom, damp
crawl space and other areas with high levels of
humidity. This may cause the unit to malfunction.
Δ To avoid possible electrical shock, DO NOT touch
the internal components of the water heater or the
power cord with wet hands.
Δ DO NOT splash excessive water on the water
heater when cleaning, as it is water resistant, not
water proof.
Δ Professionally qualied personnel in accordance
with current laws and standards and in line with
the manufacturer’s instructions must install the
appliance.
Δ The commissioning of the water heater and any
subsequent works carried out on the appliance
must be performed by an appropriately qualied
technician.
Δ The appliance must be used solely for the
purpose for which it has been designed and
manufactured: Domestic hot water production
and central heating if applicable (maximum set
point of 63°C/145°F). Any other use is deemed
as improper and as such dangerous. Under no
circumstances will the manufacturer be held
responsible for damage or injury to persons or
animals caused by errors in the installation and/or
use of the appliance, or through non-compliance
with current local and national standards and/or
the manufacturer’s instructions.
Δ The installation, operation and maintenance
manual are an integral and essential part of the
product and must be kept with the appliance
always.
Δ The warnings contained in this chapter have been
written for the appliance user, the installer and the
service technician.

Glow T180 Tankless Condensing Water Heater
5
Do not attempt to interfere with the
appliance in any way.
Δ As dictated by current legislation, this appliance
must be installed exclusively by qualied and
certied personnel. Before starting the water
heater for the rst time, make sure that it is
connected to a water supply and central heating
system (maximum set point of 63°C/145°F)
compatible with its performance characteristics.
Δ Prior to start-up, the water pipes should be
ushed to remove any residues that could
compromise the operation of the appliance.
Δ The electrical supply must be checked by a
qualied electrician to ensure that it can support
the maximum power absorption of the appliance,
as indicated on the appliance rating plate. In
particular, make sure that the wire ratings are
adequate for the power being used.
Δ Do not use adapters, multiple sockets or
extension cords to connect the appliance to the
power supply.
Δ The appliance must be plugged into a 120v wall
receptacle in accordance with the current wiring
regulations.
Δ If the wires are damaged in any way, switch off
the appliance and have the wire replaced by a
qualied technician.
Δ When the appliance is no longer required for use,
unplug the unit from the wall receptacle and draw
water from the unit.
Chapters 3, 4, & 5 of this manual must
be read carefully as they provide information
on the installation, commissioning and
maintenance of the appliance.
Δ After the removal of all the packaging, check that
the appliance has not been damaged. In case
of doubt, do not attempt to use the product but
refer to the supplier. Packing materials (cardboard
box, staples, plastic bags, polystyrene, etc.) must
not be left within reach of children in that these
items represent a potential hazard and must be
disposed of in a responsible manner.
Δ Before carrying out any cleaning or maintenance
operations, disconnect the appliance from the
main electrical supply by unplugging the unit from
the wall.
Δ In the case of a fault and/or malfunction in the
appliance, shut down the system. Do not interfere
with or attempt any repairs. Call for professionally
qualied technical assistance.
Δ Any warranty repairs to the appliance must be
carried out exclusively by the manufacturer’s
authorized trained service dealers using
original parts. Non-compliance with the above
requirements may compromise the safety of the
appliance and invalidate the warranty. In order to
guarantee the efciency of the appliance and its
correct operation, it must be serviced regularly by
professionally qualied personnel in line with the
manufacturer’s instructions.
Δ Only original accessories or optional extras
(including electrical parts) must be used with the
appliance.
Δ Should there be a smell of gas present in the
room where the appliance is installed, DO
NOT attempt to activate any electric switches,
telephones or any other equipment that may
cause sparks. Open doors and windows
immediately to create a current of air and
ventilate the room. Shut-off the main gas supply
valve (at the meter), or on the cylinder in the case
of propane gas, and call an authorized service
contractor.
1.3 Safety Warnings
Carbon Monoxide Detectors
Many jurisdictions require the installation of carbon
monoxide detectors in buildings where a side wall
vented fuel burning appliance is installed. Installers
must abide by local code requirements regarding the
installation of CO detectors. The use of a certied
carbon monoxide detector is recommended but not
required by Glow Brand.

Glow T180 Tankless Condensing Water Heater
6
“In the State of Massachusetts only”
For all horizontally vented gas fueled equipment installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those owned and operated by the Commonwealth and
where the side wall exhaust vent termination is less than seven (7) feet above nished grade in the area of
the venting, including but not limited to decks and porches, the following requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall
horizontal vented gas fueled equipment, the installing plumber or gas tter shall observe that a hard wired
carbon monoxide detector with an alarm and battery back-up is installed on the oor level where the gas
equipment is to be installed and on each additional level of the dwelling, building or structure served by the
equipment. It shall be the responsibility of the property owner to secure the services of qualied licensed
professionals for the installation of hard wired carbon monoxide detectors.
a.In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or
an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on
the next adjacent oor level.
b. In the event that the requirements of this subdivision cannot be met at the time of completion of
installation, the owner shall have a period of 30 days to comply with the above requirements,
provided, however, that during said 30 day period a battery operated carbon monoxide detector with
alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in
accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS
certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the
building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for
the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less
than one-half (1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment
shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide
detectors and signage installed in accordance with the provisions of 248 CMR 5.08(2)(a) 1 through 4.
Notice prior to installation
This appliance must be installed by a licensed professional in accordance with the Massachusetts Plumbing
and Fuel Gas Code 248 CMR Sections 2.00 and 5.00.
If you are not properly training, you must not install this unit.

Glow T180 Tankless Condensing Water Heater
7

Glow T180 Tankless Condensing Water Heater
8

Glow T180 Tankless Condensing Water Heater
9

Glow T180 Tankless Condensing Water Heater
10
DANGER
The temperature at which injury occurs varies with the person's age and time of exposure.
Water temperature over 125°F/52°C can cause severe burns instanly or death from scalding.
The slower response time of disabled persons increases the hazards to them. Never allow small children
to use a hot water tap, or to draw their own bath water. Never leave a child or disabled person unattend-
ed in a bathtub or shower.
The water heater should be located in an area where the general public does not have access to the
temperature control.
Lower water temperatures should be used to avoid the risk of scalding. It is further recommended, in all
cases, that the water temperature be set for the lowest temperature which satisfies the user’s hot water
needs. This will also provide the most energy efficient operation of the water heater and minimize scale
formation in the heat exchanger, thus prolonging the life of the unit.
Setting the water heater temperature at 120°F/49°C will reduce the risk of scalds. Some locations require
settings at specific lower temperatures. The table below shows the approximate time-to-burn relationship
for normal adult skin.
Hot water temperatures required for automatic dishwasher and laundry use can cause scalds and burns
resulting in serious personal injury and/or death.
Temperature
Setting
Over 170°F/77°C
160°F/71°C
150°F/66°C
140°F/60°C
130°F/54°C
120°F/49°C or less
Time to Produce 2nd, 3rd
Degree Burns on Adult Skin
Nearly instantaneous
About 1/2 second
About 1-1/2 seconds
Less than 5 seconds
About 30 seconds
More than 5 minutes
To protect against injury, you must install a tempering valve in the water system. This
valve will reduce point of discharge temperature by mixing cold and hot water in branch
supply lines. Such valves are available from the local plumbing supplier.
Table - Risks of Scalds

Glow T180 Tankless Condensing Water Heater
11
1.4 Product Conformity
All Glow T180 Tankless Water
Heaters are ETL certied and possess
technical and functional characteristics
that comply with the following
standards:
American National Standard/CSA
Standard for Gas Water Heaters
Volume III, Storage Water Heaters
with input Ratings above 75,000
Btu per Hour, Circulating and
Instantaneous. Conforms to ANSI
STD Z21.10.3, certied to CSA STD
4.3-2015.
The materials used, such as copper,
brass, stainless steel, etc. form a
compact, homogeneous, highly
functional unit that is easy to install
and simple to operate. In its simplicity,
the wall-mounted appliance is
equipped with all the appropriate
accessories required to make it
a fully independent water heater
capable of satisfying domestic hot
water production and central heating
(maximum set point of 63°C/145°F)
needs if installed. All water heaters
are fully inspected. This manual must
be kept in a safe place and must
accompany the water heater at all
times.
Glow Brand will not be held
responsible for any misinterpretation
of this manual.
Glow Brand will not be held
responsible for the consequences
in the case of non-observance of
the instructions contained in this
manual or in the case where actions
not specically described herein are
undertaken.
MENU
ENTER
RESET
UP
DOWN

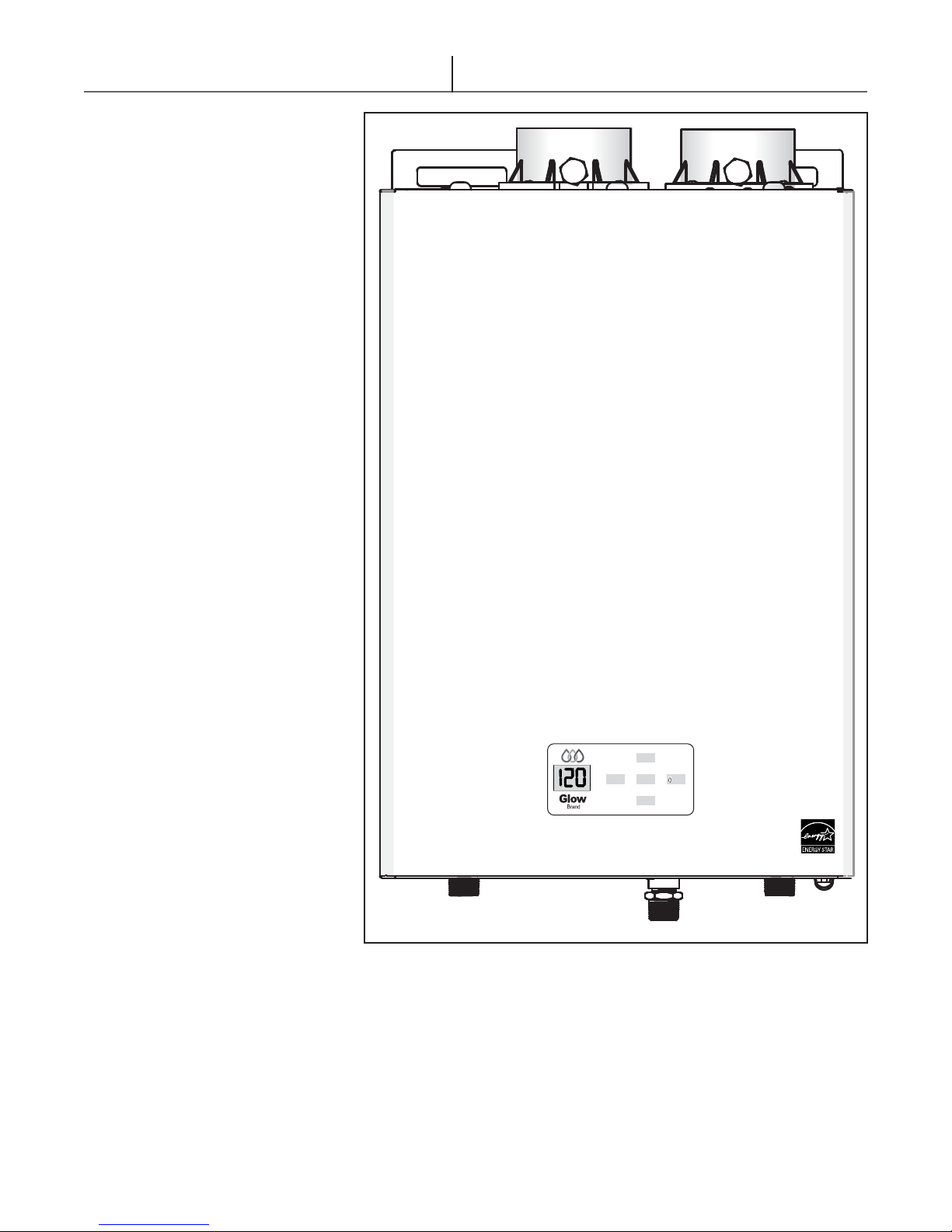

Figure 1.1 - Glow T180

Glow T180 Tankless Condensing Water Heater
12
2. Technical Characteristics
2.1 Technical Data
Table 2.1
Glow T180
Natural Gas Propane
Heat Input (Max) Btuh (kW) 194,000 (56.8) 194,000 (56.8)
Heat Input (Min) Btuh (kW) 20,500 (6.0) 20,500 (6.0)
Energy Factor (EF)
97%
95%
Unified Energy Factor (UEF)
95%
93%
Domestic Hot Water
Heat Output (Max) Btuh (kW) 188,000 (55.1) 188,000 (55.1)
Hot Water Temperature Setting (min-max) °F (°C) 102-145 (39-63)
Maximum Water Pressure Psig (bar) 150 (10.3)
Minimum Water Pressure Psig (bar) 30 (2.1)
DHW Flow at ∆T 35°F usgpm (lpm) 10.7 (40.2)
DHW Flow at ∆T 45°F usgpm (lpm) 8.4 (31.8)
DHW Flow at ∆T 72°F usgpm (lpm) 5.2 (19.7)
DHW Flow at ∆T 77°F usgpm (lpm) 4.9 (18.6)
Minimum Activation Flow Rate usgpm (lpm) 0.6 (2.27)
Dimensions (casing size)
Width In (mm) 16 ¾ (425)
Height In (mm) 24 ⅜ (619)
Depth In (mm) 17 ¼ (438)
Weight (NET) Lbs (Kg) 86 (39)
Weight (GROSS) Lbs (Kg)
90 (41)
Connections
Cold Water In MPT
¾”
Hot Water Out MPT ¾”
Gas Inlet Connection MPT ¾”
Gas Supply
Inlet Pressure (min-max) inch. wc. 3.5-10 8-13
Gas Valve Outlet Pressure inch. wc. -0.03 -0.03
Electrical Specification
Power Supply
V/Hz
120/60
Electrical Power Consumption
W
119
General
Installation Type
Indoor Wall Hung
Venting Type
Forced Draft Direct Vent
Ignition
Electronic Ignition
Venting
Exhaust
inch
2, 2 ½, 3 in PVC, CPVC
Intake
inch
2, 2 ½, 3 in PVC, CPVC, ABS
Vent Clearances
inch
0 in to combustibles
Safety Devices
Ionization Electrode, Ignition Software, Water Temperature
Sensors, Flue Temperature Sensor and Fuse, High Limit
Switch, Blocked Flue Switch & Power Fuse.

Glow T180 Tankless Condensing Water Heater
13
2.2 Dimensions
28.0
INLET
HOT WATER
OUTLET GAS INLET
COLD WATER
CONDENSATE OUTLET
11.1
6.8
2.1
3.5
2.9
9.9
6.8
11.6
AIR EXHAUST
VENT INTAKE
5.7
17.2
16.5
6.7
5.6
Legend
Gas Inlet Ø 3/4” NPT
Cold Water Inlet Ø 3/4” NPT
Hot Water Inlet Ø 3/4” NPT
Condesate Outlet Ø 1”
Figure 2.1 - Glow T180 Dimensions

Glow T180 Tankless Condensing Water Heater
14
2.3 Unit Performance
0
25
50
75
100
125
150
01234567891011
Water Flow (GPM)
Temperature Rise (Delta T)
Temperature Rise Curve (Incoming Water 14°C/58°F)Temperature Rise Curve (Incoming Water 14°C/58°F)Temperature Rise Curve (Incoming Water 14°C/58°F)Temperature Rise Curve (Incoming Water 14°C/58°F)Temperature Rise Curve (Incoming Water 14°C/58°F)Temperature Rise Curve (Incoming Water 14°C/58°F)
-18/
°C / °F
-4 /
19/
33/
38/
52/
66/
0
5
10
15
20
25
30
35
40
45
50
55
60
01234567891011
Pressure loss (PSI)
Water Flow (GPM)
10
20
110
100
90
70
60
50
30
40
80
130
120
Pressure Loss (ft head)
Pressure Drop Curve (Incoming Water 14°C/58°F)
Table 2.2
Table 2.3

Glow T180 Tankless Condensing Water Heater
15
2.4 Internal Parts Of The Water Heater
LEGEND
1. COMBUSTION AIR INLET ADAPTER
2. BLOCKED FLUE SWITCH
3. 3/16” BARBED TEE
4. IGNITION CONTROL BOARD (ICB)
5. STAINLESS STEEL HEAT EXCHANGER
6. IGNITION TRANSFORMER
7. IGNITION ELECTRODE
8. 3/16” DIA. SILICONE HOSE
9. PREMIXED BURNER ASSEMBLY
10. VENTURI ASSEMBLY
11. ELECTRONIC WATER FLOW SENSOR
12. GAS VALVE
13. DISPLAY BOARD
14. COLD WATER INLET
15. INLET WATER SCREEN
16. GAS CONNECTION
17. CONDENSATE HOSE
18. HOT WATER OUTLET
19. HOT WATER SENSOR
20. CONDENSATE TRAP
21. PRE MIX FAN
22. INLET WATER SENSOR
23. HEAT EXCHANGER OUTLET SENSOR
24. HI LIMIT SWITCH
25. IONIZATION ELECTRODE
26. FLUE SENSOR
27. 3/16” NYLON HOSE BARB
28. COMBUSTION ANALYZER PORT
29. EXHAUST FLUE ADAPTER
Figure 2.2- Water Heater internal parts

Glow T180 Tankless Condensing Water Heater
16
2.5 Display & Control Circuit Board
2.5.1 LCD Display
2.5.2 Status Display Symbols
The table below describes the function of each symbol.
Located on the top and bottom corner on the right side of the screen.
Indicates when the up/down buttons should be used to set a parameter.
Located on top and bottom corner on the left side of the screen.
This symbol is shown when scrolling through the User menu.
Temperature in °Celsius, this value is displayed with a comma (e.g. 20,5 °C).
If the value of the temp. is set to °F, the °C- icon will not show
Demand for frost protect is active, the temperature display shows the actual
ow temperature
Alarm condition*: the alarm code is displayed (blinking) on the temp. display:
A xx = Lockout error number E xx = Blocking error number
Indicates appliance burner is ON
Domestic Hot Water demand: the temperature display shows the actual ow
temperature
Preheat Domestic Hot Water
Standby
ini – Initializing software
con – Connecting display with controller and start communication
Figure 2.3- Water Heater display
Status Symbol Description
Table 2.4

Glow T180 Tankless Condensing Water Heater
17
2.5.3 Control Button Layout
5 different buttons are present on the LCD Display for
operating the module. The buttons are positioned to the
right of the display. (see g. 2.4)
With these ve buttons various layouts are possible.
The display layout has the most frequent keys ([UP],
[ENTER] and [DOWN]) placed vertically in the middle,
which combines convenient navigation with a user
friendly look, due to the silicone keypad.
The table below describes the button functions. (Table
2.5)
Button Function Description
RESET *Press and hold for 5 sec. to switch the display board ON or OFF.
* Press to reset the appliance in case of a Lock-out error or Press to cancel an altered
parameter
MENU Press to enter the User menu or Press for 10 sec. to enter the Service menu
ENTER Press to conrm when you have selected a parameter or Press to conrm an altered setting
UP Scroll up or Increase the value (of a parameter)
DOWN Scroll down or Lower the value (of a parameter)
2.5.4 Direct Adjustments of DHW Set point via Main Display Screen
The DHW set point can be directly adjusted in the main screen only when the unit is in standby [ ].
In this case, the following icons are shown, including the set point temperature that is being altered.
Icons Description
DHW set point can be altered by using the [UP] and [Down] buttons
2.5.5 Error Displayed on Screen
In case of a Warning, Error-/Alarm condition, the Blocking (‘E’), Locking (‘A’) or Attenuations (‘n’) error will
continually ash. The User menu is inaccessible and can only be reset by pressing [RESET]. See section 6-
(‘Lock Out & Warnings’)
Figure 2.4- Control panel
MENU
UP
ENTER
DOWN
RESET
Table 2.5
Table 2.6

Glow T180 Tankless Condensing Water Heater
18
2.6 User Menu
Open the User view menu by pressing the [MENU] button once. This menu can be used to look at the values of a
selection of parameters (read-only parameters) or to view the sensor temperatures.
The scheme below shows how to operate the User menu in some simple steps:
* If these buttons are no longer operated for 2 sec. the parameter no. and the current value displayed will show with intervals of 2 sec.
** In case of a non-adjustable parameter, the current value will be displayed continuously.
The following table describes of the parameters in the User menu, which are all read-only.
Parameter Description Value
100 Heat Exchanger outlet sensor °C or °F
101 Outlet water sensor °C or °F
102 Flue gas temperature sensor °C or °F
103 Inlet water sensor °C or °F
108 Ionization current µA
111 DHW pump status Does Not Apply
140 Actual fan speed X 10 RPM *
141 Ignition fan speed X 10 RPM *
142 Minimum fan speed X 10 RPM *
143 Maximum fan speed X 10 RPM *
151 Last Lockout number #
152 Last Blocking error #
153 Number of flame failures #
154 Number of successful ignitions #
155 Number of failed ignitions #
157 Total hours of operation for the DHW X 10 Hrs**
158 Total days of operation of the burner Days
159 Interval between lockout errors Minutes
160 Interval between blocking errors Minutes
1. Enter the
User Menu
2. Scroll though
Parameter List
3. Select parameter
4. Alter value of
parameter
5. Confirm / cancel
alteration
Press [MENU]
button once
Scroll through the
parameter list with the
[UP] / [DOWN]
buttons*
10 seconds of no
action automatically
return to the status
screen.
Select a parameter to
alter/read-out it’s value
by pressing
[ENTER]* *
10 seconds of no
action automatically
return to the status
screen.
Alter a value of the
parameter with the
[UP] / [DOWN] buttons.
When the parameter is
being altered, the value
on the display will blink.
Confirm (save) with
[ENTER] or
Cancel with [RESET]
After saving/cancelling
you automatically return
to the installer selection
(1).
Table 2.7
Table 2.8
* The value of these parameters are given in RPM. Because the display can only show 3 digits, the number on the screen has to be
multiplied times 10. For example, when the display shows the number 20, it means that RPM is 20x10, i.e. RPM is 200.
** The value of this parameter is the number of hours times 10. For example, if the number on the display says 50, it means 50x10, which is
500 hours.

Glow T180 Tankless Condensing Water Heater
19
2.7 Service Menu
The scheme below schematically shows how to operate the Service Menu in some simple steps:
* If these buttons are no longer operated for 2 sec. the parameter no. and the current value displayed will show with intervals of 2 sec.
** In case of a non-adjustable parameter, the current value will be displayed continuously.
Parameter
no.
Description Value
207 Set point (Default 120°F/49°C) Min.102°F - Max 145°F
(Min. 39°C - Max. 63°C).
208 Rest Function ON (default), OFF
210 System test power OFF: Don’t apply
rEg: Don’t apply
FAn: Fan rotates at maximum RPM
(Flow water through heater for following
tests)
Lou: Burner fires at minimum power
Ign: Burner fires at Ignition power
Hig: Burner fires at maximum power
214 Display test (when [UP] button is pushed all
icons and LEDs will
light-on. Press [RESET]
to go back to the settings menu. *
260 Don’t Apply
261 Don’t Apply
280 Service Reminder. Status jumps back. ON, OFF, rSt (Reset)
281 Service Reminder setting Days (in steps of 5)
Table 2.9
Table 2.10
The following table shows the available parameters in the Service menu.
1. Enter the
Service Menu
2. Scroll though
Parameter List
3. Select parameter 4. Alter value of
parameter
5. Confirm / cancel
alteration
Hold [MENU] for 5
seconds.
Display will alternately
flash parameter 207
and its value set point.
Scroll through the
parameter list with
the [UP] / [DOWN]
buttons*
10 seconds of no
action automatically
return to the status
screen.
Select a parameter to
alter/read-out it’s
value by pressing
[ENTER]* *
10 seconds of no
action automatically
return to the status
screen.
Alter a value of the
parameter with the
[UP] / [DOWN] buttons.
When the parameter is
being altered, the value
on the display will
blink.
Confirm (save) with
[ENTER]
or
Cancel with [RESET]
After saving/cancelling
you automatically
return to the installer
selection (1).

Glow T180 Tankless Condensing Water Heater
20
2.8 Installer Section
The Installer section ensures that one control can control several different devices. The scheme below
schematically shows how to operate the installer Section in some simple steps:
* If these buttons are no longer operated for 2 sec. the parameter no. and the current value displayed will show with intervals of 2 sec.
** In case of a non-adjustable parameter, the current value will be displayed continuously.
Parameter
no.
Description
Value
302
Appliance selection model
1
303
Display units
°C/ °F (Stored in the internal memory)
312
DHW mode
Only select the following mode:
08: Tankless water heater
Don’t apply the following modes:
00: N/A
01: N/A
02: N/A
03: N/A
05: N/A
06: N/A
07: N/A
314
DHW mode preheat
dIS = Disabled (no preheat)
EnA = Enabled (preheat) default
317
DHW setpoint Max
160°F(70 °C)
(Stored in the internal memory, default value 70°C)
318
DHW setpoint Min
102°F(39°C)
(Stored in the internal memory, default value 39°C)
319
DHW mode preheat
00: Preheat Off mode
01: Anti freezing mode (Default)
02: Eco mode
03: Comfort mode
324
Temp. Lock Condition
EnA (Enabled) default, dIS (Disabled)

Table 2.11
Table 2.12
The following table shows the available parameters in the Service menu.
1. Enter the
Installer Selection
2. Scroll though
Parameter List
3. Select parameter
4. Alter value of
parameter
5. Confirm / cancel
alteration
Power OFF unit
Remove power cord from
receptacle. Simultaneously
press and hold [MENU] &
[ENTER] while plugging in
the power cord. Continue
to hold [MENU] &
[ENTER] until the display
flashes ini & 300
alternately for 10 seconds.
It will rest at 302.
Scroll through the
parameter list with the
[UP] / [DOWN]
buttons*
10 seconds of no
action automatically
return to the status
screen.
Select a parameter to
alter/read-out it’s
value by pressing
[ENTER]* *
10 seconds of no
action automatically
return to the status
screen.
Alter a value of the
parameter with the
[UP] / [DOWN]
buttons.
When the parameter
is being altered, the
value on the display
will blink.
Confirm (save) with
[ENTER] or
Cancel with [RESET]
After
saving/cancelling you
automatically return
to the installer
selection (1).
