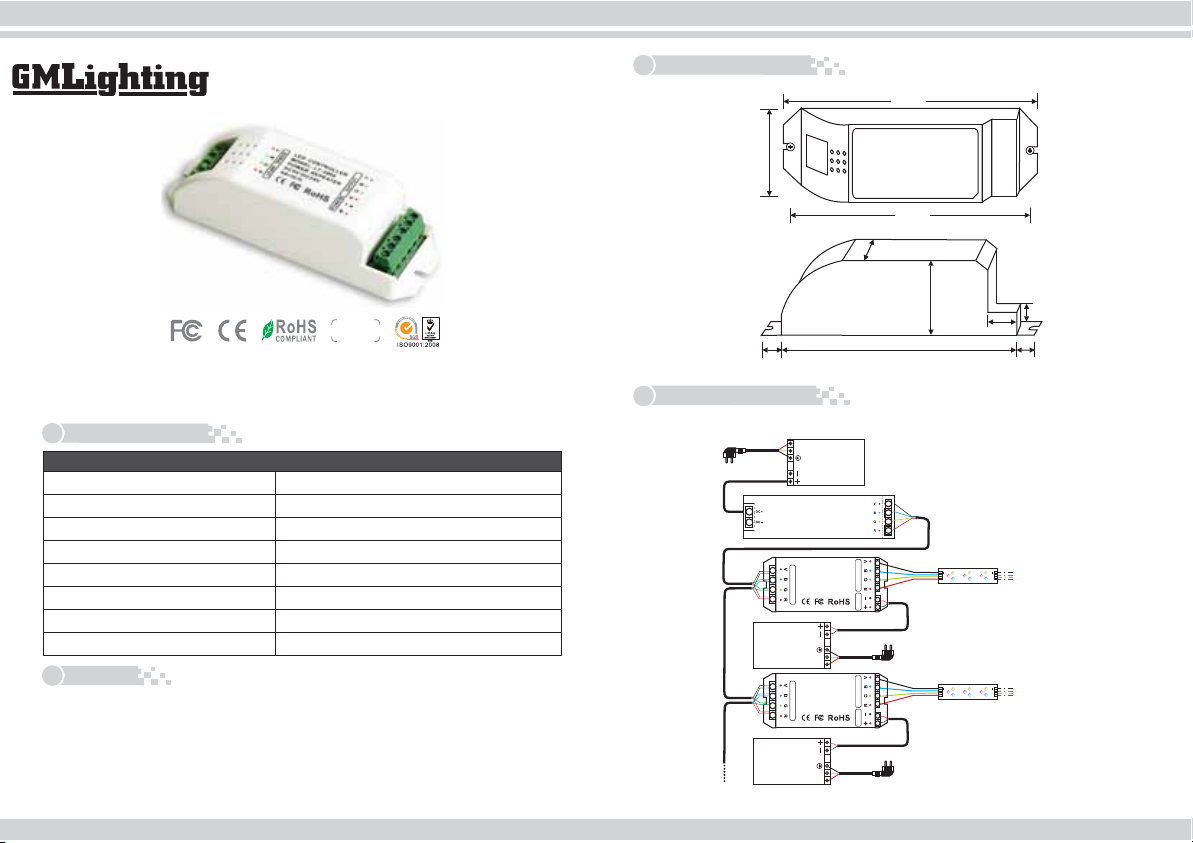

GM Lighting LT-3060 User manual

RGB - AMP
model LT-3060
LED CV Power Repeater
LED Power Repeater is suitable for all of our company's power-output style controllers' power
expansion, it accepts PWM control, the control quantity of LED lights would be twice as much
by adding one more power repeater, unlimited quantity of power repeater to be connected
theoretically.
LT-3060 (Common Anode)
Input Voltage
Max Load Current
Max Output Power
Dimension
Package Size
Weight (G.W.)
DC5V DC24V～
5A/CH×3CH 15A Max
75W(5V) 180W(12V) 360W(24V)
L121×W39×H39(mm)
L123×W42×H42(mm)
100g
1. Product Parameter:
Working Temperature -30 -55
℃℃
Power Supply Chosen DC CV SMPS
LT-3060 LED CV Power Repeater Manual
2. Features:
1. 3 Channels RGB output, 5A/CH, total 15A.
2. Accept PWM control.
3. Unlimited connection quantity theoretically, unlimited power output expansion.
4. The in-phase possibility is not restricted by any numbers of repeaters, a number of
repeaters work together are always synchronous.
5. Maximum length from controller to repeater can be 500meters.
3. Product Dimension:
107mm
39mm
15mm
7mm 7mm
14mm
39mm
39mm
121mm
110mm
4. Conjunction Diagram:
1. Repeaters are All Connected to Controller in Parallel.
POWER OUTPUT
INPUT
SIGNAL
MODEL: LT-3060
DC5V-DC24V
LED CONTROLLER
5A×3CH
POWER REPEATER
POWER OUTPUT
INPUT
SIGNAL
MODEL: LT-3060
DC5V-DC24V
LED CONTROLLER
5A×3CH
POWER REPEATER
H H HH
H H HH
H H
LED CONTROLLER
HHHH
HH
LN
AC DC
AC220V/110V
LN
AC DC
AC220V/110V
POWER
SUPPLY
POWER
SUPPLY
DC12V
DC12V
In-phase Cable
LED MODULE
R
G
B
R
G
B
H H HH
H H HH
H H
LN
AC DC
AC220V/110V
POWER
SUPPLY
DC12V
LED MODULE
R
G
B
R
G
B
warranty
5 years
www.gmlighting.net e-mail: [email protected] GM Lighting, LLC •
9830 W. 190th St. • Unit F • Mokena, IL 60448 Toll-Free: [phone] FAX: [phone]

POWER OUTPUT
INPUT
SIGNAL
MODEL: LT-3060
DC5V-DC24V
LED CONTROLLER
5A×3CH
POWER REPEATER
POWER OUTPUT
INPUT
SIGNAL
MODEL: LT-3060
DC5V-DC24V
LED CONTROLLER
5A×3CH
POWER REPEATER
H H HH
H H HH
HH
LN
AC DC
AC220V/110V
POWER
SUPPLY
DC12V
In-phase Cable
12345678910
ON
DMX512 OUT
DMX512 IN
700mAX3CH
DMX512 DECODER
MODEL:LT-8090-350
DC12V DC48V
CH1
CH2
CH3
V+
Output
Input
DMX
Signal
POWER SUPPLY
AC90-250V
DC12V
LED MODULE
R
G
B
R
G
B
HHHH
H H HH
H H
LN
AC DC
AC220V/110V
POWER
SUPPLY
DC12V
LED MODULE
R
G
B
R
G
B
2. DMX Decoder Connected to CV Power Repeater as Follows:
3. Power Repeater Connected to LED Dimmer as Follows:
POWER
OUTPUT
INPUT
SIGNAL
MODEL: LT-3060
DC5V-DC24V
LED CONTROLLER
5A×3CH
POWER REPEATER
POWER
OUTPUT
INPUT
SIGNAL
MODEL: LT-3060
DC5V-DC24V
LED CONTROLLER
5A×3CH
POWER REPEATER
RUN
E2
LED
R2
R4
RX
IN=DC12V-DC48V
DIMMER
DC+ DC ABGND
GND
PWM
R3
OUT
H H HH
H H HH
H H
LN
AC DC
AC220V/110V
POWER
SUPPLY
DC12V-24V
In-phase Cable
AC90-250V
DC12-48V
LT-3200-6A
+
DC12-48V
H H HH
H H HH
H H
LN
AC DC
AC220V/110V
POWER
SUPPLY
DC12V-24V
+
6. Warranty Agreement:
5. Attention:
1. Weprovide lifelong technical assistance with this product:
★This manual only applies to this model. GM Lighting reserves the right to make changes without
prior notice.
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors
please ensure it is mounted in a water proof enclosure.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good
ventilation.
4. Please check if the output voltage of any LED power supplies used comply with the working
voltage of the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to
carry the current. Please also ensure that the cable is secured tightly in the connector.
6. Ensure all wire connections and polarities are correct before applying power to avoid any
damages to the LED lights.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix or
repair this product.
A 5-years warranty is given from the date of purchase. The warranty is for free repair or
replacement and covers manufacturing faults only.
The product appears to have excessive physical damage.
Damage due to natural disasters and force majeure.
Warranty label, fragile label and unique barcode label have been damaged.
The product has been replaced by a brand new product.
3. Repair or replacement as provided under this warranty is the exclusive remedy to
the customer. GM Lighting shall not be liable for any incidental or consequential damages
for breach of any stipulation in this warranty.
4. Any amendment or adjustment to this warranty must be approved in writing by GM
Lighting only.
For faults beyond the 5-years warranty we reserve the right to charge for time and parts.
2. Warranty exclusions below:
Any man-made damages caused from improper operation, or connecting to excess
voltage and overloading.
Update Time: 2014.01.01
