2023 - Colorado Electrical Body Builder Manual

BLANK
2023 - Colorado Electrical Body Builder Manual

Table of Contents 1-1
Section 1
General Information
General Information ........................... 1-3
Introduction .......................................1-3
Vehicle, Engine and Transmission ID and VIN
Location, Derivative and Usage . . . . . . . . . . . . . . . . 1-3
Vehicle Certification, Tire Placard, and Anti-Theft
Label ............................................ 1-5
RPO Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
2023 - Colorado Electrical Body Builder Manual

1-2 Table of Contents
BLANK
2023 - Colorado Electrical Body Builder Manual

General Information 1-3
General Information
Introduction
Vehicle, Engine and Transmission ID
and VIN Location, Derivative and
Usage
5028742
The VIN plate is the legal identifier of the vehicle. The
VIN plate is located on the upper left corner of the
instrument panel (I/P) and can be seen through the
windshield from the outside of the vehicle:
Vehicle Identification Number (VIN) System
Position Definition Character Description
1 Country of Origin 1 United States
2 Manufacturer G General Motors
3 Vehicle Brand/Type C Chevrolet Truck
4 GVWR/Brake System/Body Style
G 5001–6000/Hydraulic –Crew Cab
H 5001–6000/Hydraulic –Extended Cab
P 6001–7000/Hydraulic –CrewCab
R 6001–7000/Hydraulic –Extended Cab
2023 - Colorado Electrical Body Builder Manual

1-4 General Information
Vehicle Identification Number (VIN) System (cont'd)
Position Definition Character Description
5–6 Chassis/Series
S/B Chevrolet Colorado, Work Truck 2WD
S/C Chevrolet Colorado, LT 2WD
S/D Chevrolet Colorado, Z71 2WD
S/9 Chevrolet Colorado 2WD, (Non-US, Non-Canada)
T/B Chevrolet Colorado, Work Truck 4WD
T/C Chevrolet Colorado, LT 4WD
T/D Chevrolet Colorado, Z71 4WD
T/E Chevrolet Colorado, Trail Boss 4WD
T/F Chevrolet Colorado, ZR2 4WD
T/9 Chevrolet Colorado 4WD, (Non-US, Non-Canada)
7 Restraint System E
AYH - Active Manual Belts, Airbags-Driver &
Passenger-Front (1st 1: United States row), Front Seat
Side (1st row), Roof Side (all seating rows)
8 Engine Type K L3B - ENGINE GAS, 4CYL, L4, 2.7L, SIDI, VVT,
TURBO, DOHC, ALUM
9 Check Digit —Check Digit
10 Model Year P 2023
11 Plant Location 1 Wentzville, MO
12–17 Plant Sequence Number —Plant Sequence Number
2.7L Engine ID and VIN Derivative Location
Engine Identification
8L45/8L90 Transmission ID and VIN Derivative
Location
Transmission Identification Information
2023 - Colorado Electrical Body Builder Manual

General Information 1-5
Vehicle Certification, Tire Placard,
and Anti-Theft Label
4992823
Vehicle Certification Label
Callout Description
A vehicle-specific Certification label is attached to the vehicle's center pillar (B-pillar) and displays the following assessments:
1 Logo
2
Final Date of Manufacture (Month and Year MM/YY)
Date of manufacture is to reflect the date that the vehicle is counted as built. In those cases where a replacement
label is needed, the replacement label should reflect the actual build date not the date of replacement.
3 Name of Manufacturer
4 Maximum Gross Vehicle Weight Rating (GVWR)
5 Maximum Gross Axle Weight Rating (GAWR) - Front
6 Maximum Gross Axle Weight Rating (GAWR) - Rear
7 Certification Statement
8 Vehicle Identification Number (VIN)
9 Engineering Model Number
10 Vehicle Class Type (Pass Car, etc.)
11 Original Equipment Rim Size
12 Original Equipment Tire Size
13 Paint Code
14
QR Code
Once the QR code is scanned, the information will appear in this order on your smartphone or laptop: VIN, Model
Year, Model, Build Month, Year, Engineering Book, Vehicle Order Number, 3 Digit RPO Codes sorted
alphanumerically and the Paint Code (same code appears the lower left of the QR code)
2023 - Colorado Electrical Body Builder Manual

1-6 General Information
4962282
Tire Placard
Callout Description
A vehicle-specific Tire and Loading Information label is attached to the vehicle's center pillar (B-pillar) and displays the following
assessments:
1 Specified Occupant Seating Positions
2 Maximum Vehicle Capacity Weight
3 Original Equipment Tire Size
4 Tire Pressure, Front, Rear, and Spare (Cold)
2023 - Colorado Electrical Body Builder Manual

General Information 1-7
4962289
Anti-Theft Label
Callout Description
This legal identifier is in the front corner of the instrument panel, on the driver side of the vehicle. It can be seen through the
windshield from outside. The Vehicle Identification Number (VIN) also appears on the Vehicle Certification and certificates of title
and registration.
1 Vehicle Identification Number (VIN)
RPO Code List
The following table provides the description of the
Regular Production Option (RPO) codes that are
available on the vehicle. The vehicle's RPO list is
printed on the Service Parts Identification Label.
RPO Description
060 IDENTIFICATION-NOT EQUIPPED WITH
FRONT AND/OR REAR PARK ASSIST
0TR PACKAGE-TRAIL BOSS
2LT PACKAGE-LT OPTION 2
2WT PACKAGE-WT OPTION 2
3F9 SEAT BELT COLOR-RED (01)
3M9 SEAT BELT COLOR-YELLOW
4AA INTERIOR TRIM-JET BLACK
4G2 INTERIOR TRIM-JET BLACK /
ADRENALINE RED
4KW INTERIOR TRIM-JET BLACK / ARTEMIS
4LT PACKAGE-LT OPTION 4
4WT PACKAGE-WT OPTION 4
4Z7 PACKAGE-Z71 OPTION 2
4ZR PACKAGE-ZR OPTION 4
5BO ACCESSORY-LAMP KIT - OFF ROAD
5GD CALIBRATION-TURN ON TOW/
HAUL MODE
5K2 ACCESSORY-DECAL PACKAGE - BODY
SIDE, DESIGN 1
5K5 ACCESSORY-DECAL PACKAGE -
BODYSIDE - DESIGN 3
RPO Description
5VI ACCESSORY-TIE DOWN RINGS -
CARGO AREA
5VQ ACCESSORY-PUBX BEDLINER - W/
INTEGRAL STORAGE COMPARTMENTS
5W7 ACCESSORY-AIR FILTER -
PERFORMANCE
5XC ACCESSORY-SNORKEL - AIR INTAKE
65C LABEL, WARNING-CALIFORNIA, PROP 65
COMPLIANT
6K5 SALES PACKAGE-CONVENIENCE II
719 SEAT BELT COLOR-BLACK (10)
A28 WINDOW RR-FULL WIDTH, SLIDING,
MANUAL
A2V
ADJUSTER DRIVER SEAT-6WAY,
DISCONT MAN RECLINE, MAN FORE/AFT,
MAN HEIGHT
A2X
ADJUSTER DRIVER SEAT-8WAY, PWR
RECLINE, PWR FORE/AFT, PWR HEIGHT,
PWR TILT
A45 MEMORY-SEAT ADJUSTER, MIRROR,
POWER, DRIVER, PERSONALIZATION
A50 SEAT-FRT BKT
A7E ADJUSTER PASS ST-4WAY, DISCONT
MAN RECLINE, MAN FORE/AFT
A91 LOCK CONTROL RR CMPT-TAILGATE,
REM CONT ELEC OPEN/CLOSE
ACH RESTRAINT PROVISIONS-RETRACTOR,
AUTOMATIC LOCKING
AEC WINDOW REG DRVR DR-POWER
OPERATED,EXPRESS DOWN
2023 - Colorado Electrical Body Builder Manual

1-8 General Information
RPO Description
AED WINDOW REG PASS DR-POWER
OPERATED,EXPRESS DOWN
AEO RESTRAINT-SEAT BELT 2ND
TENSIONER, FRT
AEQ WINDOW REG REAR DR-POWER
OPERATED, EXPRESS DOWN
AGJ WINDOW SIDE FRT-TEMPERED, SOLAR
GLAZING
AKO WINDOW TYPE-PRIVACY
AKX WINDSHIELD TYPE-SOLAR ABSORBING
AL0
SENSOR INDICATOR-INFLATABLE
RESTRAINT, FRT PASS/CHILD PRESENCE
DETECTOR
AL9 LUMBAR DRIVER-SEAT, POWER, 2 WAY
AQP RESTRAINT-HEAD, RR SEAT, CENTER
ARU WINDOW SIDE RR-TEMPERED, PRIVACY
GLAZING
AT7 RESTRAINT SYSTEM RR-SEAT, SHLDR,
RETR, 3 POINT, 3 SHLDR
ATG LOCK CONTROL, ENTRY-REMOTE
ENTRY, STANDARD RANGE
AUW SEAT REAR-FOLDING, CUSHION 60/40,
STORAGE BOX
AVJ
LOCK CONTROL, ENTRY-REMOTE
ENTRY, EXTENDED RANGE, PASSIVE
ENTRY, FRONT DOORS
AVN RESTRAINT-HEAD, RR SEAT
AXG WINDOW REG DRVR DR-POWER
OPERATED, EXPRESS UP/DOWN
AXK VEHICLE TYPE-TRUCK
AYH
RESTRAINT SYSTEM-DRVR (SINGLE,
ADAPTIVE) & PASS (DUAL) FRT, SEAT
SIDE, ROOF SIDE
B26 SALES PACKAGE-SAFETY PACKAGE
VAR. 1
B30 COVERING FLOOR-CARPET
B34 COVERING FRT-FLOOR MATS,
CARPETED INSERT
B35 COVERING REAR-FLOOR MATS,
CARPETED INSERT
B38 COVERING FLOOR-VINYL, FRT & RR,
FULL WIDTH
B96 MOLDING WHL OPENING-
BCP COVER ENGINE-APPEARANCE
BDR LOCK CYLINDER-RR COMPT
BIH INSULATION-ACOUSTICAL PKG, HOOD
BPC COMPARTMENT-STOWAGE TAILGATE
BS2 INSULATION-ACOUSTICAL PKG, ADDED
MATERIAL
BS5 INSULATION-FLR, ACOUSTICAL PKG,
VAR. 2
BTM SWITCH-START, KEYLESS
BTV REMOTE START-VEHICLE
BW5 MOLDING B/S (OPEL)-EXTR, MLDG, SIDE
WINDOW REVEAL, BLACK
RPO Description
BW7 ORNAMENTATION-EXTR, PLR APLQ
BWN STEPS-CORNER ASSIST, BUMPER
BZT STEPS, RUNNINGBOARD-PROTECTOR,
ROCKER PANEL, BLACK
C49 DEFOGGER-RR WINDOW, ELECTRIC
C59 VENT-AIR, CONSOLE, RR
C67 HVAC SYSTEM-AIR CONDITIONER FRT,
ELECTRONIC CONTROLS
C75 LAMP-INTR, FRT HEADER, COURTESY &
DUAL READING
C7C HEATER-AIR CONDITIONER DUCT,
RR PASS
C91 LAMP-INTR, ROOF, COURTESY
CAC ROOF-SUN, SINGLE GLASS, INR SLIDING,
MAN SUNSHADE
CGN LINER-PUBX, SPRAY ON
CJ2 HVAC SYSTEM-AIR CONDITIONER FRT,
AUTO TEMP CONT, AUX TEMP CONT
CTT HITCH ASSIST-GUIDELINES
CWM SALES PACKAGE-TECHNOLOGY
D07 CONSOLE-FRT COMPT, FLOOR, CUSTOM
D31 MIRROR I/S R/V-TILT
D54 CONSOLE-FRT COMPT, FLOOR, W/O LID
D72 HANDLE O/S DOOR-BLACK
D75 HANDLE O/S DOOR-BODY COLOR
D87 HANDLE, REAR CLOSURE-O/S, L/GATE,
R/CMPT, BLACK
DA5 ARM REST-RR SEAT, CENTER
DD8 MIRROR I/S R/V-LT SENSITIVE
DEG
SUNSHADE-DRIVER, MIRROR, COVER,
ILLUM, SLIDING, PASS, MIRROR, COVER,
ILLUM, SLIDING
DIL LENS INFOT DISPLAY-FULL GLASS
DLF MIRROR O/S-LH & RH, RC, ELEC, HEAT,
MAN FOLD, FLAT/DRVR, CNVXPASS
DLV MIRROR I/S FRT VAN-SUNSHADE,
DRIVER & PASS, W/MIRROR & COVER
DNS EQUIPMENT-SUPPLIER INSTALLED
DP5 MIRROR PROVISIONS-HOUSING,
MOLDED W/COLOR
DP6 MIRROR PROVISIONS-HOUSING,
PAINTED
DSA DECAL PACKAGE-BODY SIDE ACCENT
DWV MIRROR O/S-LH & RH, RC, ELEC,
MANFOLD, FLAT/DRVR, CNVX/PASS
E33 HANDLE-I/S, DR, GLOSSY CHROME
E49 HANDLE-I/S, DR, JET BLACK
E63 BODY EQUIPMENT-FLEETSIDE PICK-
UP BOX
E90 POCKET-FRONT SEAT BACK, DRIVER
E91 POCKET-FRONT SEAT BACK, PASS
2023 - Colorado Electrical Body Builder Manual

General Information 1-9
RPO Description
EF7 COUNTRY-UNITED STATES OF
AMERICA (USA)
ENL ENG CONTROL DISABLE-STOP/START,
NON-LATCHING
F46 CHASSIS DRIVE LINE-ALL WHEEL DRIVE
(AWD)/FOUR WHEEL DRIVE(4WD)
FE9 CERTIFICATION-EMISSION, FEDERAL
FJW VEHICLE FUEL-GASOLINE E15
G80 AXLE POSITRACTION-LIMITED SLIP
G93 AXLE-FRT ELECTRONIC LOCKING
DIFFERENTIAL, DRIVER SELECT
G94 AXLE-RR ELECTRONIC LOCKING
DIFFERENTIAL, DRIVER SELECT
GAZ PRIMARY COLOR-EXTERIOR, SUMMIT
WHITE (G) 8624
GBA PRIMARY COLOR-EXTERIOR, BLACK
(G) 8555
GCP PRIMARY COLOR-EXTERIOR, TRIPP MET-
1 (628G)
GLT PRIMARY COLOR-EXTERIOR, POW
ZINGA MET-1 (327E)
GNT PRIMARY COLOR-EXTERIOR, RADIANT
RED TINT MET-1 (170H)
GTL PRIMARY COLOR-EXTERIOR, SAND
DUNE MET-1 (661G)
GU6 AXLE REAR-3.42 RATIO
GXD PRIMARY COLOR-EXTERIOR,
SHARKSKIN MET-1 (130H)
GXN PRIMARY COLOR-EXTERIOR,
RETROGRADE MET-1 (135H)
H1T INTERIOR TRIM CONFIG-CLOTH, LEVEL
1, JET BLACK
H2G INTERIOR TRIM CONFIG-VINYL, LEVEL 1,
JET BLACK
H2Z INTERIOR TRIM CONFIG-CLOTH, LEVEL
2, VAR1, JET BLACK
HFD INTERIOR TRIM CONFIG-LEATHER,
LEVEL 1, JET BLACK / ARTEMIS
HUQ
INTERIOR TRIM CONFIG-LEATHER,
LEVEL 1.0, JET BLACK /
ADRENALINE RED
HV3 INTERIOR TRIM CONFIG-CLOTH/VINYL,
LEVEL 1, JET BLACK / ARTEMIS
HXR INTERIOR TRIM CONFIG-VINYL, LEVEL 2,
JET BLACK
HZY INTERIOR TRIM CONFIG-CLOTH/VINYL,
LEVEL 1, JET BLACK / ADRENALINE RED
IKP VEH CONTENT BASIS-US
IVD INFOTAINMENT-VIRTUAL COCKPIT SYS
- MID
J23 ENGINEERING YEAR-2023
JCF BRAKE ROTOR-FNC
JGU BRAKE SYSTEM-17" FRT FIXED CALIPER
DISC, 17" RR SLIDING CALIPER DISC
JHE CONTROL-HILL DESCENT
CONTROL (HDC)
RPO Description
JL1 BRK APL CTRL FEATURE-INTEGRATED
TRAILER BRAKE
K05 HEATER ENG-BLOCK
K1O FILTER MONITOR-ENGINE AIR
K34 CRUISE CONTROL-AUTOMATIC,
ELECTRONIC
K4C CHARGER-INDUCTIVE PORTABLE
WIRELESS DEVICE
K4F BATTERY-LN4, AGM, 12V, 80AH, 800
ENCCA
KA1 HEATER SEAT FRT-DRVR & PASS
KC9 RECEPTACLE PUBX-ELECTRICAL,
110 VOLT
KI3 STEERING WHEEL HEAT-AUTOMATIC
KI6 RECEPTCL FRT CNSL RR-ELECTRICAL,
110 VOLT
KL9
ENG CONTROL-STOP/START SYS,
CONVENTIONAL AT, CONVENTIONAL MT
OR BRAKE RELEASE LATE RESTART
KPA RECEPTACLE-ELECTRICAL, FRT
CONSOLE RR, 12 VOLT
KQX CAP-FUEL FILL, CAPLESS SYSTEM
KRV REFRIGERANT-LOW GWP
KSG CRUISE CONTROL-AUTOMATIC,
ADAPTIVE, WITH STOP/GO
KU9 VENTILATED SEAT FRT-DRVR & PASS
KW5 GENERATOR-220 AMP
KW7 GENERATOR-170 AMP
L2R ENGINE-GAS, 4 CYL, L4, 2.7L, DI, TURBO,
DOHC, ALUM
L3B ENGINE-GAS, 4 CYL, L4, 2.7L, SIDI, VVT,
TURBO, DOHC, ALUM
LHD VEHICLE DRIVE-LEFTHAND DRIVE
MFC TRANSMISSION-AUTO 8 SPD, 8L80, GEN
2, ATSS, CPA
N33 STEERING COLUMN-TILT TYPE
N37 STEERING COLUMN-TILT, TELESCOPING
N5G STEERING WHEEL-SYNTHETIC, 4
SPOKE, SPORT, ROUND
N8R TRANSMISSION-AUTO 8 SPD, 8L45, GEN
2, CPA, ATSS
NAM NAVIGATION-APPS
NCH LOCK-MANUAL CHILD LOCK SYSTEM
(REAR DOOR LATCH)
NE1
CERTIFICATION-EMISSION,
GEOGRAPHICALLY RESTRICTED
REGISTRATION
NE8 EVAPORATIVE SYSTEM-LEVEL 3
EMISSIONS
NK5 STEERING WHEEL-STANDARD
NKD NOISE CONTROL-ENGINE SOUND
ENHANCEMENT, ADDED
NP0 TRANSFER CASE-ACTIVE, SINGLE
SPEED,SWITCH ACTIVATED,ALUM
2023 - Colorado Electrical Body Builder Manual

1-10 General Information
RPO Description
NQH TRANSFER CASE-ACTIVE, TWO SPEED,
SWITCH ACTIVATED, ALUM
NTB EMISSION SYSTEM-FEDERAL, TIER 3
NUG EMISSION SYSTEM-CALIFORNIA,
SULEV30
NZS WHEEL-20 X 9.0, J, ALUMINUM,
DESIGN 17
NZT WHEEL-20 X 9.0, J, ALUMINUM,
DESIGN 18
PAN PHONE PROJ TECH-VAR 1
PAP PHONE PROJ TECH-VAR 2
PPA EQUIPMENT-ASSIST, OPEN & CLOSE,
TAILGATE
PPW PHONE PROJECTION-PHONE
PROJECTION WIRELESS
PZ8 IMAGE ADJUSTMENT-HITCH VIEW
PZI WHEEL-18 X 8.5, J, ALUMINUM, DESIGN 9
PZX WHEEL-18 X 8.5, J, ALUMINUM, DESIGN 2
Q2P TIRE ALL-265/65R18 SL 114T AT VAR 2
Q5W WHEEL-17 X 8.0, J, ALUMINUM, DESIGN 1
QAE TIRE ALL-275/60R20 SL 115S BW AT
QAF TIRE ALL-LT285/70R17 C 116/113Q
BW OOR
QDC TIRE SPARE-T175/90D18 LL 111M BW SPR
QHR TIRE ALL-255/65R17 SL 110T BW ALS
QIA TIRE ALL-265/60R18 SL 110T BW AL2
QKF ACCESSORY TIRE-TIRE ALL-255/65R17
SL 110T BW ALS
QXP TIRE ALL-255/55R20 SL 107S BW AT
R1U WHEEL-17 X 8.0, J, ALUMINUM, DESIGN 3
R3O TIRE ALL-LT275/65R18 C 113/110Q BW
OOR, VAR1
R5C TIRE BRAND ALL-BRIDGESTONE
R88 ACCESSORY-ILLUMINATED EMBLEM -
EXTERIOR - DESIGN 2
RD6 WHEEL-17 X 8.0, J, STEEL, DESIGN 2
RDI ACCESSORY-KEYLESS ENTRY
RIA ACCESSORY-FLOOR LINER -
CONTOURED
RIK ACCESSORY-BADGE - EXTERIOR,
PACKAGE, DESIGN 1
RM7 WHEEL SPARE-17 X 8.0, J, STEEL,
DESIGN 1
RMR TIRE SPARE-LT285/70R17 C 116/113Q
BW OOR
RPP WHEEL-17 X 8.0, J, STEEL, DESIGN 4
RPS WHEEL-20 X 9.0, J, ALUMINUM,
DESIGN 13
RSR OCCUPANT DETECT SYS-REAR SEAT,
DOOR ACTIVATED
RTI WHEEL SPARE-18 X 4.5, B, STEEL,
DESIGN 1
RPO Description
RVP ACCESSORY-ASSIST STEPS -
REMOVABLE
RW2 ACCESSORY-BED RAILS - BLACK
RWL CHASSIS DRIVE LINE-REAR WHEEL
DRIVE (RWD)
RWQ ACCESSORY-CALIBRATIONS -
POWERTRAIN
RX9 ACCESSORY TIRE-255/55R20 SL 107S
BW AT
RXC ACCESSORY-AIR, POLLUTANT, ODOR,
FINE DUST, ALLERGEN
RXH ACCESSORY-CENTER CAP - WHEEL -
DESIGN 1
RXJ ACCESSORY-CENTER CAP - WHEEL -
DESIGN 2
RYT ACCESSORY-FIRST AID KIT
RZU ACCESSORY-LAMPS-AUX OFF ROAD
RZW ACCESSORY-HARNESS - TRAILER HITCH
RZY ACCESSORY-HARNESS - WIRING
S08 ACCESSORY-HIGHWAY SAFETY KIT
S0Y ACCESSORY-LAMPS - CARGO AREA
S1H ACCESSORY-OFF-ROAD RECOVERY KIT
S3W ACCESSORY-LAMPS - FRONT GRILLE
MOUNTED - OFF-ROAD
S3X ACCESSORY-LAMPS - FRONT ROOF
MOUNTED - OFF-ROAD
S47 ACCESSORY-LUG NUTS
S6L ACCESSORY-PROTECTOR - ROCKER
PANEL
S6P ACCESSORY-REMOTE START KIT
SA5 ACCESSORY-SHIELD - UNDERBODY
SAX ACCESSORY-SPEAKER KIT - LEVEL 1
SB1 ACCESSORY-SPLASH GUARDS - FLAT
SB7 ACCESSORY-DECAL PACKAGE -
DESIGN 1
SBY ACCESSORY-SPORT BAR - BED
MOUNTED - DESIGN 1
SD0 ACCESSORY-OFF ROAD FRONT BUMPER
FASCIA
SD5 ACCESSORY-TIRE PRESSURE MONITOR
SDE ACCESSORY-TRAILER HITCH -
REMOVABLE
SFE ACCESSORY-WHEEL LOCKS
SFZ ACCESSORY-EMBLEM - EXTERIOR -
DESIGN 1
SIQ ACCESSORY-SKID PLATES - FRONT
DESIGN 1
SIR ACCESSORY-SKID PLATES - REAR
DESIGN 1
SJ8 ACCESSORY-ILLUMINATION PACKAGE -
INTERIOR AMBIENT
SMY ACCESSORY-WHEEL - 17 X 8.0 - J -
ALUMINUM - DESIGN 1
2023 - Colorado Electrical Body Builder Manual

General Information 1-11
RPO Description
SMZ ACCESSORY-OFF ROAD DRIVE SHAFT
SNU ACCESSORY-WHEEL - 20 X 9 - J -
ALUMINUM - DESIGN 4
SNX ACCESSORY-WHEEL - 20 X 9 - J -
ALUMINUM - DESIGN 1
SPY ACCESSORY-LUG NUTS - ALT FINISH
SPZ ACCESSORY-WHEEL LOCKS - ALT FINISH
SQI ACCESSORY-SUSPENSION LIFT KIT
SRH ACCESSORY-WHEEL - 17 X 8.0 - J -
ALUMINUM - DESIGN 3
T3V LAMP-CHMSL - CENTER HIGH MOUNT
STOP LIGHT (SEE BFO BEFORE USING)
T40 LAMP FRT FOG-FRT FOG, LED
T4A HEADLAMPS-HALOGEN
T4L HEADLAMPS-LED
T4Z
SEAT BELT SAFETY SYS-SHIFTER
INTERLOCK, GEN 1, NON-
CUSTOMIZABLE
T7E LAMP SYSTEM-DAYTIME RUNNING, LED
T7Q LAMP SYSTEM-DAYTIME RUNNING,
HALOGEN
T83 CONTROL, HEADLAMPS-AUTOMATIC
ON-OFF
T8Z
SEAT BELT SAFETY SYS-SHIFTER
INTERLOCK, GEN 3, INFOTAINMENT
CUSTOMIZABLE
T93 LAMP-TAIL & STOP, SPECIAL
TCA LAMP-DOME, CENTER
TCK DEFLECTOR-RR TIRE, AIR
TDM MODE DRIVER SETTINGS-TEEN DRIVER,
INFOTAINMENT
TGZ ACCESSORY-TAILGATE ORGANIZER
DESIGN 3
TQ5 HEADLAMP HIGH BEAM-AUTO CONTROL
U1D INDICATOR-TRAILER INFORMATION
U2K DIGITAL AUDIO SYSTEM-S-BAND
U91 ANTENNA-SHORT, ROOF, RADIO
UBD RECPT USB FLR CNSL F-DUAL,
CHARGE, DATA
UBI RECPT USB FLR CNSL R-DUAL, CHARGE
UBP RECPT USB FLR CNSL R-SINGLE,
CHARGE
UD7 PARK ASSIST-REAR
UE1 COMMUNICATION SYSTEM-VEHICLE,
ONSTAR
UE4 SENSOR INDICATOR-FOLLOWING
DISTANCE
UEU SENSOR INDICATOR-FORWARD
COLLISION ALERT
UF2 LAMP-CARGO
UFB REAR CROSS TRAFFIC-ALERT, BRAKING
UGA HOOK-TOW, RED
UHX LANE ACTIVE SAFETY-KEEP ASSIST
RPO Description
UHY
COLL IMMINENT BRK-LOW SPEED, VEH
FWD MOVEMENT, BRAKE PREFILL,
INTEGRATED BRAKE ASSIST
UIT ALERT DISPLAY-REFLECTED, SINGLE
COLOR
UJN TIRE PRESS INDICATOR-AUTO LEARN
UKI
SIDE ACTIVE SAFETY-OBSTACLE
DETECTION ENHANCED, STEERING
ASSIST
UKK SENSOR INDICATOR-PEDESTRIAN
DETECTION - REAR
UKT PED DETECTION FRT-ENHANCED,
PEDESTRIANS AND BICYLISTS
ULK ACCESSORY-TOW HOOKS - RED
UMN SPEEDOMETER-INST, MILES & KILO,
MILES ODOMETER
UQ3 SPEAKER SYSTEM-ENHANCED AUDIO
UQA SPEAKER SYSTEM-PREMIUM AUDIO,
BRANDED AMPLIFIER
URC SWITCH-FLEXRIDE MODE SYSTEM
URF DISPLAY INSTRUMENT-DRIVER INFO,
DISPLAY ONLY, FAMILY C, 11", 2000 X 810
URL INFOTAINMENT DISPLAY-FAMILY C, 11"+,
2000X970
URO DISPLAY INSTRUMENT-DRIVER INFO,
DISPLAY ONLY, FAMILY C, 8", 1350 X 810
UTJ THEFT DETERENT-ELECTRICAL,
UNAUTHORIZED ENTRY
UUT ALARM, HORN-TIRE FILL ALERT
UV2 VISION-360 VIEW, MONO, HD DIGITAL
UVB VISION-REAR VIEW, MONO, HD DIGITAL
UXA VISION UNDERBODY-FORWARD AND
REARWARD FACING
V8D VEHICLE STATEMENT-VEHICLE LABEL
CONTENT - U.S. FMVSS
VAV ACCESSORY-FLOOR MATS - ALL
WEATHER
VBP ACCESSORY-POWER
DISTRIBUTION BOX
VBR ACCESSORY-PUBX RUBBER MAT
VHM PROGNOSTIC SYSTEM-VEHICLE HEALTH
MANAGEMENT
VJQ HOOK-TOW, FRT
VK3 LICENSE PLATE FRONT-FRT
MOUNTING PKG
VOZ ACCESSORY-TONNEAU - RR COMPT -
HARD FOLDING - ALT DESIGN
VPB
ACCESSORY-TONNEAU - RR COMPT -
VINYL W/ INTEGRAL CROSSBOW
SUPPORTS
VQK ACCESSORY-SPLASH GUARDS -
CUSTOM MOLDED
VQM ACCESSORY-ASSIST STEPS - CHROME
VQO ACCESSORY-ASSIST STEPS - BLACK
VQZ ACCESSORY-EXHAUST TIP - DESIGN 1
2023 - Colorado Electrical Body Builder Manual

1-12 General Information
RPO Description
VST ACCESSORY-SILL PLATES - ALTERNATE
DESIGN 1
VTA ACCESSORY-EXHAUST TIP - DESIGN 2
VV4 COMMUNICATION EQUIP-MOBILE
INTERNET CONNECTIVITY
VW1 ACCESSORY-WINCH
VW9 ACCESSORY-CENTER CAP - WHEEL -
DESIGN 3
VWD ACCESSORY-CENTER CAP - WHEEL -
DESIGN 4
VZJ ACCESSORY-SWITCH PLATE - INTERIOR
VZT ACCESSORY-ASSIST STEPS - OFF ROAD
W0H ACCESSORY-TOW HOOKS - ALT FINISH
W1Y CONTROL-STEERING WHEEL, RADIO,
REDUNDANT CONTROLS
W7X PERFORMANCE PACKAGE-INCREASED
ENGINE HORSE POWER
WEN PLANT CODE-WENTZVILLE, MO, USA
WLD WINDOW CONTROL-REMOTE EXPRESS
DOWN, ALL WINDOWS
WMI SHUTTERS-FRONT GRILLE, ACTIVE, UPR
AND LWR
WMX VIN MODEL YEAR-2023
XCQ TIRE SPARE-265/70R17 SL 115S BW
SPR VAR1
YF5 CERTIFICATION-EMISSION, CALIFORNIA
Z2I CHASSIS PACKAGE-2 INCH LIFT
Z82 TRAILER PROVISIONS-SPECIAL
EQUIPMENT, H.D.
ZAO TIRE SPARE-255/65R17 SL 110T BW
ALS VAR1
ZDB SALES PACKAGE-DESERT BOSS
ZL3 SALES PACKAGE-CONVENIENCE
ZL4 SALES PACKAGE-CONVENIENCE III
ZL6 SALES PACKAGE-TRAILER INTEGRATION
ZR2 CHASSIS PACKAGE-HIGH WIDER
PERFORMANCE, 4 X 4 SPORT
2023 - Colorado Electrical Body Builder Manual

Table of Contents 2-1
Section 2
Body Systems
Fixed and Moveable Windows ................ 2-3
Description and Operation .......................2-3
Power Windows Description and Operation . . . . . . 2-3
Rear Window Defogger Description and
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Horns and Pedestrian Alerts . . . . . . . . . . . .. . . . . . 2-4
Schematic and Routing Diagrams ...............2-4

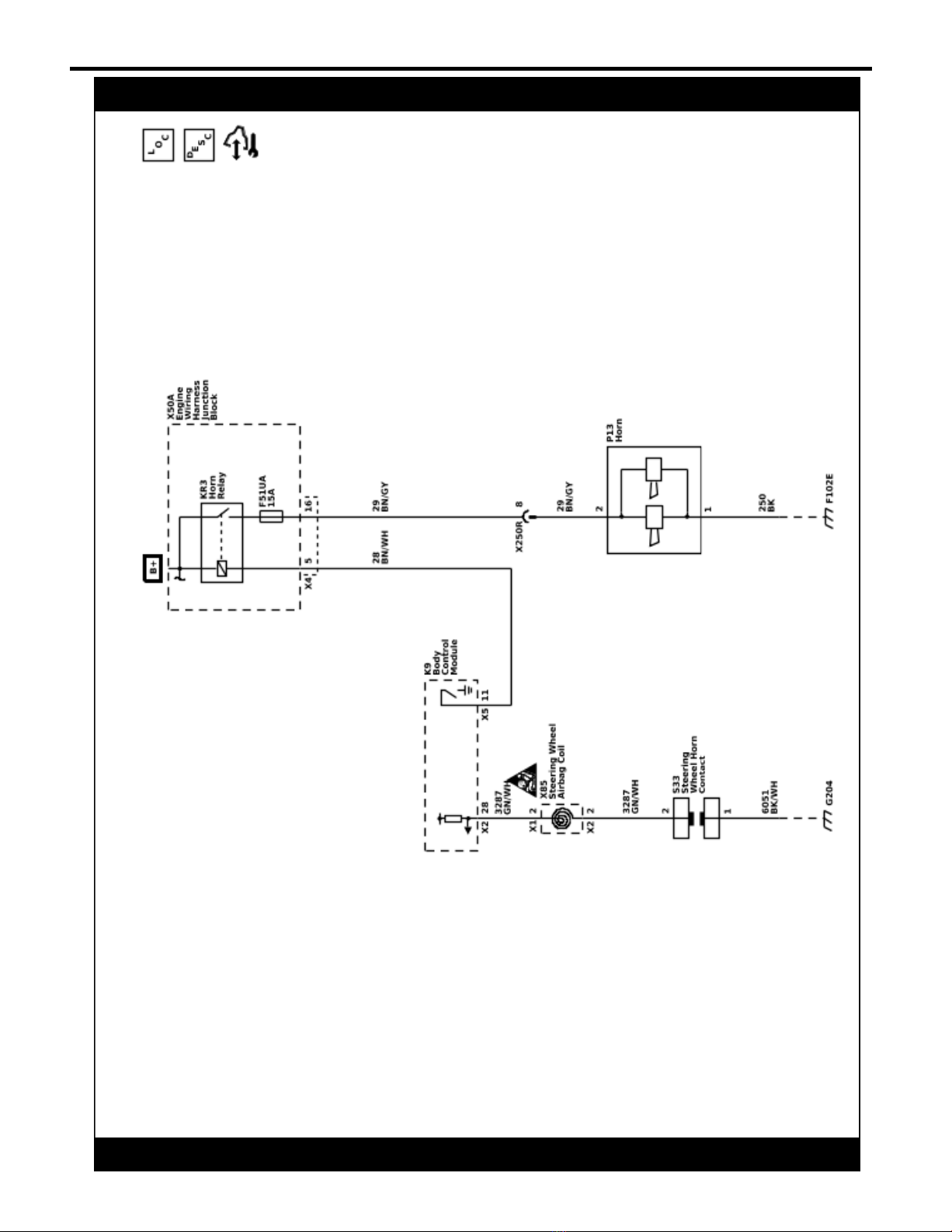

HornSchematics ................................. 2-5
Description and Operation .......................2-6
Horns System Description and Operation . . . . . . . . 2-6
Lighting ......................................... 2-7
Schematic and Routing Diagrams ...............2-7
Headlights/Daytime Running Lights (DRL)
Schematics ..................................... 2-8
Fog Lights Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Exterior Lights Schematics . . . . . . . . . . . . . . . . . . . . . 2-12
Interior Lights Schematics . . . . . . . . . . . . . . . . . . . . . . 2-21
Interior Lights Dimming Schematics . . . . . . . . . . . . 2-23
Description and Operation ......................2-26
Exterior Lighting Systems Description and
Operation ...................................... 2-26
Interior Lighting Systems Description and
Operation ...................................... 2-28
Mirrors ......................................... 2-30
Schematic and Routing Diagrams ..............2-30
Inside Rearview Mirror Schematics . . . . . . . . . . . . . 2-31
Outside Rearview Mirror Schematics . . . . . . . . . . . 2-32
Description and Operation ......................2-35
Automatic Day-Night Mirror Description and
Operation ...................................... 2-35
Outside Mirror Description and Operation . . . . . . 2-35
Trailering Systems ........................... 2-37
Schematic and Routing Diagrams ..............2-37
Trailering Systems Schematics . . . . . . . . . . . . . . . . . 2-38
Description and Operation ......................2-42
Trailering Description and Operation . . . . . . . . . . . 2-42
Vehicle Access ............................... 2-48
Schematic and Routing Diagrams ..............2-48
Door Lock/Indicator Schematics . . . . . . . . . . . . . . . . 2-49
Hood Latch Schematics . . . . . . . . . . . . . . . . . . . . . . . . 2-54
Description and Operation ......................2-55
Endgate Description and Operation . . . . . . . . . . . . 2-55
Hood Ajar Indicator Description and
Operation ...................................... 2-55
Power Door Locks Description and
Operation ...................................... 2-55
Wipers and Washers ......................... 2-56
Schematic and Routing Diagrams ..............2-56
Wiper/Washer Schematics . . . . . . . . . . . . . . . . . . . . . . 2-57
Description and Operation ......................2-60
Wiper/Washer System Description and
Operation ...................................... 2-60
2023 - Colorado Electrical Body Builder Manual

2-2 Table of Contents
BLANK
2023 - Colorado Electrical Body Builder Manual

Fixed and Moveable Windows 2-3
Fixed and Moveable Windows
Description and Operation
Power Windows Description and
Operation
Power Windows System Components
The power window system consists of the following
components:
•Driver front side door window control switch
•Passenger front side door window control switch
•Left rear side door window switch
•Right rear side door window switch
•Global window down switch
•Window motors in each of the doors
•Body control module (BCM)
Driver Express Up and Express Down
Power Window Motors
The driver door contains a smart window motor that will
detect excessive resistance while performing the
express up function and automatically reverse direction
to prevent injury to any occupants that may become
trapped between the closing window and the door
frame. The automatic reverse safety feature can be
overridden by pulling and holding the window switch.
The logic circuit within the window motor monitors the
up, down and express signal circuits which are
normally equal to B+ voltage. When a switch is used on
the front side door window control switch, the contacts
close causing a voltage drop within the appropriate
signal circuit. The window motor will detect the voltage
drop and will command the window to move in the
direction requested.
The driver front side door window control switch
communicates to the BCM by a serial data circuit.
When the driver wishes to control the passenger
windows, the driver will use the appropriate switch on
the driver front side door window control switch. When
this switch is used, a serial data message is sent to the
BCM requesting the passenger window motor
command, the BCM will then send a serial data
message to the passenger window motor which will
then move in the direction requested.
Passenger, Left Rear, Right Rear
Express Down Window Motors
For the passenger, and rear doors, when their window
switch is pressed in the down position, battery positive
voltage is applied to their respective window motor
control circuit and ground to the other window motor
control circuit causing that window to open. When the
individual window switch is pulled in the up position,
voltage and ground is applied to the window motor in
the opposite direction causing that window to close.
The return path to ground is supplied through the
inactive control circuit being normally grounded through
the window switch.
Each of the passenger window switches communicates
to the BCM by a serial data circuit. When the driver
wishes to control the left rear or right rear window, the
driver will use the appropriate switch on the driver front
side door window control switch. When this switch is
used, a serial data message is sent to the BCM
requesting a window motor command, the BCM will
then send a serial data message to the appropriate rear
side door window switch which will then command that
window to move in the direction requested.
Lockout Switch Feature
The driver front side door window control switch
contains a window lockout switch, when the driver
presses the window lockout switch, a serial data
message is sent to the BCM which will send a disable
command to the rear side door window switches,
deactivating them. The rear windows will still function
normally from the switches on the driver front side door
window control switch.
Rear Window Defogger Description
and Operation
Rear Window Defogger System
Components
The rear window defogger system consists of the
following components:
•Body Control Module
•Front Heater and Air Conditioning User Interface
Control
•Engine Wiring Harness Junction Block (Contains
PCB Rear Defogger Relay)
•Rear Defogger Grid
•40A Fuse
Rear Window Defogger Operation
The rear defog control system utilizes a single zone
backlight design, driven with a single relay
configuration. A switch for the customer to control the
system is provided within the front heater and air
conditioning user interface control. Also included in the
front heater and air conditioning user interface control
is an indicator to inform the customer with the current
state of the system. The system is only operational
when engine is running or during remote start.
Pressing the heated rear window switch causes the
front heater and air conditioning user interface control
to send a serial data message to the body control
module requesting rear window defog operation. The
body control module upon receipt of the serial data
message will provide voltage to the coil side of the rear
defogger relay, this will energize the relay causing the
relay switch contacts to close allowing B+ voltage to
flow through the rear defogger grid control circuit to the
rear defogger grid.
When the rear heated rear window switch is pressed
and the engine is running, the rear window defogger
grid will activate and will turn off automatically
depending upon the vehicle speed (refer to owner’s
manual for rear window defogger operation cycles)
2023 - Colorado Electrical Body Builder Manual

2-4 Horns and Pedestrian Alerts
Horns and Pedestrian Alerts
Schematic and Routing Diagrams
2023 - Colorado Electrical Body Builder Manual

Horns and Pedestrian Alerts 2-5
Horn Schematics (Horns)
6175351
2023 - Colorado Electrical Body Builder Manual

2-6 Horns and Pedestrian Alerts
Description and Operation
Horns System Description and
Operation
System Description
The horn system consists of the following components:
•HORN fuse
•Engine wiring harness junction block (contains
horn PCB relay
•Steering wheel horn contact
•Horn
•Body control module (BCM)
System Operation
The vehicle horn system is activated under the
following conditions:
•When the horn switch is depressed
•The BCM commands the horns ON under any of
the following conditions:
–When the content theft deterrent system detects
a vehicle intrusion—For further information refer
to Theft Systems Description and Operation.
–When the panic button is depressed on the
remote control door lock transmitter—For further
information refer to Keyless Entry System
Description and Operation.
–When the keyless entry system is used to lock
the vehicle, a horn chirp may sound to notify the
driver that the vehicle has been locked. The
notification feature may be enabled or disabled
through personalization. For further information
refer to Keyless Entry System Description and
Operation.
–When the OnStar
®
system is used to sound the
horns if equipped—For further information, refer
to OnStar Description and Operation.
Circuit Operation
Battery positive voltage is applied at all times to the
horn relay coil and the horn relay switch. Pressing
either of the horn switches applies ground to the horn
relay control circuit. The BCM may also apply ground to
the horn relay control circuit as described above. When
the horn relay control circuit is grounded, the horn relay
is energized and battery positive voltage is applied to
the horns through the horn control circuit. The horns
sound as long as ground is applied to the horn relay
control circuit.
2023 - Colorado Electrical Body Builder Manual
