GMC CD30 BT Reference manual

Vauxhall Movano
Infotainment System

Introduction .................................... 4
Radio ........................................... 22
CD Player .................................... 29
AUX input ..................................... 34
USB port ...................................... 36
Bluetooth music ........................... 38
Navigation .................................... 41
Voice recognition ......................... 58
Phone .......................................... 60
Index ............................................ 72
Contents

4Introduction
Introduction
General information ....................... 4
Control elements overview ............ 6
Theft-deterrent feature ................. 16
Usage .......................................... 16
Tone settings ............................... 18
Volume settings ........................... 21
General information
The Infotainment system provides
state-of-the-art in-car information and
entertainment.
The radio is equipped with assignable
channel presets for FM, MW and LW
wavebands.
The audio player (not with R10) plays
audio CDs, MP3 CDs and also WMA
CDs (CD30 BT only).
External data storage devices, e.g.
iPod, MP3 player or USB stick
(CD30 BT only), or a portable player
can be connected to the Infotainment
system. External audio sources can
also be connected via Bluetooth
(CD30 BT only).
The digital sound processor provides
several modes for sound
optimisation.
The navigation system's dynamic
route planning (CD30 BT only) will
reliably guide you to your destination
and can help avoid traffic jams and
other traffic problems.
The Infotainment system can also
come equipped with controls on the
steering column (except R10) and a
handsfree phone system (CD30 BT
only).
The well-thought-out design of the
controls and the clear displays enable
you to control the system easily and
intuitively.
Important information on
operation and traffic safety
9Warning
Drive safely at all times when
using the Infotainment system.
If in doubt, stop the vehicle before
operating the Infotainment
system.
Using this manual
■ This manual describes the options
and features available. Certain
controls and descriptions, including
symbols, displays and menu
functions may not apply to your

Introduction 5
vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The table of contents at the
beginning of this manual and within
each section shows where the
information is located.
■ The index will enable you to search
for specific information.
■ The vehicle display screens may
not support your specific language.
■ Display messages and interior
labelling are written in bold letters.
■ The operations given within this
manual refer to Infotainment
system controls. For equivalent
steering column controls, refer to
the control elements overview
3 6.
Warnings and Cautions
9Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".

6Introduction
Control elements overview
Instrument panel CD30 BT

Introduction 7
1m - Turn: Adjust volume ....... 16
Press: Switch on/off ............. 16
2A - Display radio text
information ........................... 26
Display CD text information . 30
3RADIO/CD - Change
audio source ........................ 22
4⊲ / ⊳ - Move left/right within
display text, move around
the display screen ................ 23
5Central rotary knob .............. 16
Press: Confirm an action ...... 16
Turn: Search radio station
or waveband ........................ 22
Turn: Change CD track ........ 30
6TEL - Telephone menu ........ 60
72 / 3 - Radio frequency:
Search backwards/
forwards ............................... 23
Audio/MP3/WMA CD:
Skip track backwards/
forwards ............................... 30
8CD ejection .......................... 30
90 - Settings menu ............... 16
10 Station buttons 1...6 ............. 25
Short press: Select station ... 25
Long press: Save station ..... 25
11 MEM - Access the stored
radio station list .................... 23
12 j - Display CD additional
text information .................... 30

8Introduction
Instrument panel CD20

Introduction 9
1CD ejection .......................... 30
2m - Switch on/off .................. 16
3RADIO/CD - Change
audio source, waveband ...... 22
4H - Traffic and news
information ........................... 26
5_ / 6 - Move left/right
within display text ................. 23
61 / 4 - Radio/waveband:
Search backwards/
forwards ............................... 23
Select system settings ......... 22
Short press: Change CD/
MP3 track ............................. 30
Long press: Skip CD
track(s) backwards/
forwards ............................... 30
7t - Settings menu ................ 21
8j/OK - Confirm an action .... 23
Display additional CD text
information ........................... 30
9< - Increase volume ............ 16
10 ] - Decrease volume ........... 16
11 Station buttons 1...6 ............. 25
Short press: Recall a radio
station .................................. 23
Long press: Save a radio
station .................................. 23
12 MEM - Access the stored
radio station list .................... 23

10 Introduction
Instrument panel CD10

Introduction 11
1m - Turn: Adjust volume ....... 16
Short press: Switch on,
mute/unmute ........................ 16
Long press: Switch off ......... 16
2CD ejection .......................... 30
3Station buttons 1...6 -
Short press: Select station ... 25
Long press: Save station ..... 25
4MIX - Audio/MP3 CD
tracks: Activate random
playback ............................... 30
5AUX - Auxiliary input ............ 34
6MENU - AF-RDS menu ........ 26
Settings menu for MP3 CD
display .................................. 30
7AUD - Tone settings ............ 18
8_ / 6 - Search forwards/
backwards ............................ 30
Short press: Audio/MP3
CD - Skip track forwards/
backwards ............................ 30
Long press: Access menu
options, Audio/MP3 CD -
Select track .......................... 30
9BND ..................................... 22
Short press: Activate radio
or change waveband ........... 22
Long press: Automatic
station storing ....................... 22
10 ALBUM+ - MP3 CD:
Select next album ................ 30
11 SRC - Change audio
source .................................. 22
12 ALBUM- - MP3 CD: Select
previous album ..................... 30

12 Introduction
Instrument panel R10

Introduction 13
1m - Turn: Adjust volume ....... 16
Short press: Switch on,
mute/unmute ........................ 16
Long press: Switch off ......... 16
2Station buttons 1...6 -
Short press: Select station ... 25
Long press: Save station ..... 25
3AUX - Auxiliary input ............ 34
4MENU - AF-RDS menu ........ 26
5AUD - Tone settings ............ 18
6_ / 6 - Search forwards/
backwards, access menu
options ................................. 30
7BND ..................................... 22
Short press: Activate radio
or change waveband ........... 22
Long press: Automatic
station storing ....................... 22
8SRC - Change audio
source .................................. 22

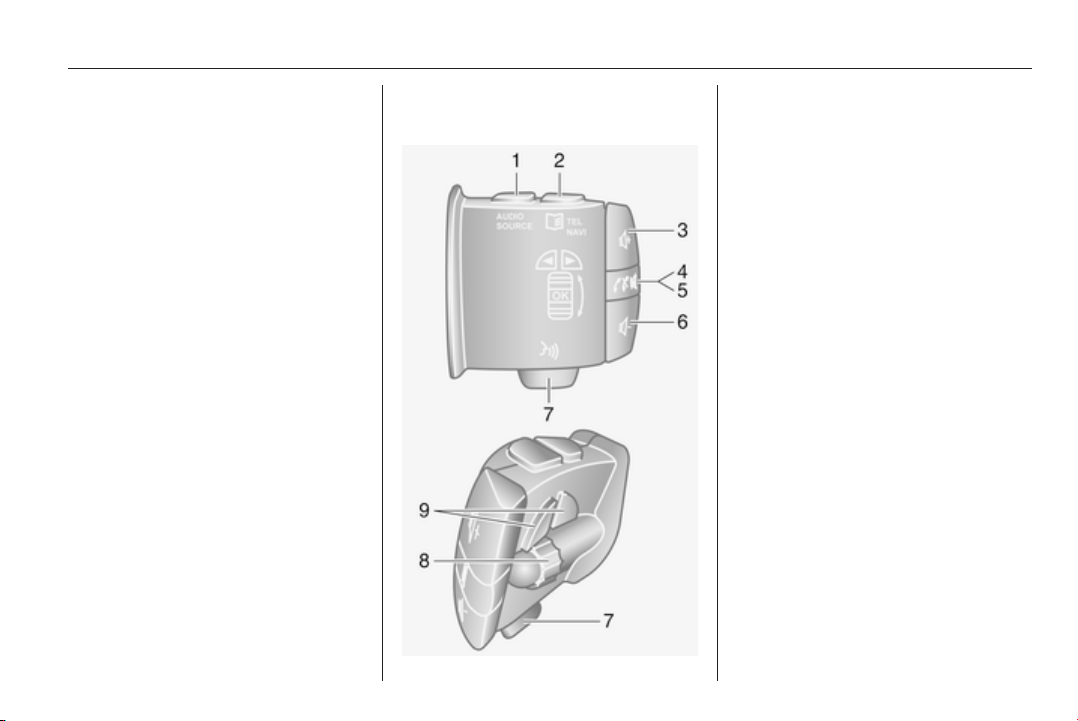

Steering column controls -
Type A
1AUDIO/SOURCE -
Change audio source ........... 16
26TEL - Telephone menu ..... 60
NAVI - Navigation menu ...... 44
3! - Increase volume ............ 16
4@ - Mute/unmute .................. 16
578 - Take/end phone call ...65
6# - Decrease volume ........... 16
75 - Voice recognition ............ 58
8OK - Confirm actions ............ 22
Rotate: Move up/down in
display menus, select
next/previous radio
preset / radio frequency /
audio track ........................... 23
9_ / 6 - Move left/right
within display text, move
around display screen .......... 30

14 Introduction

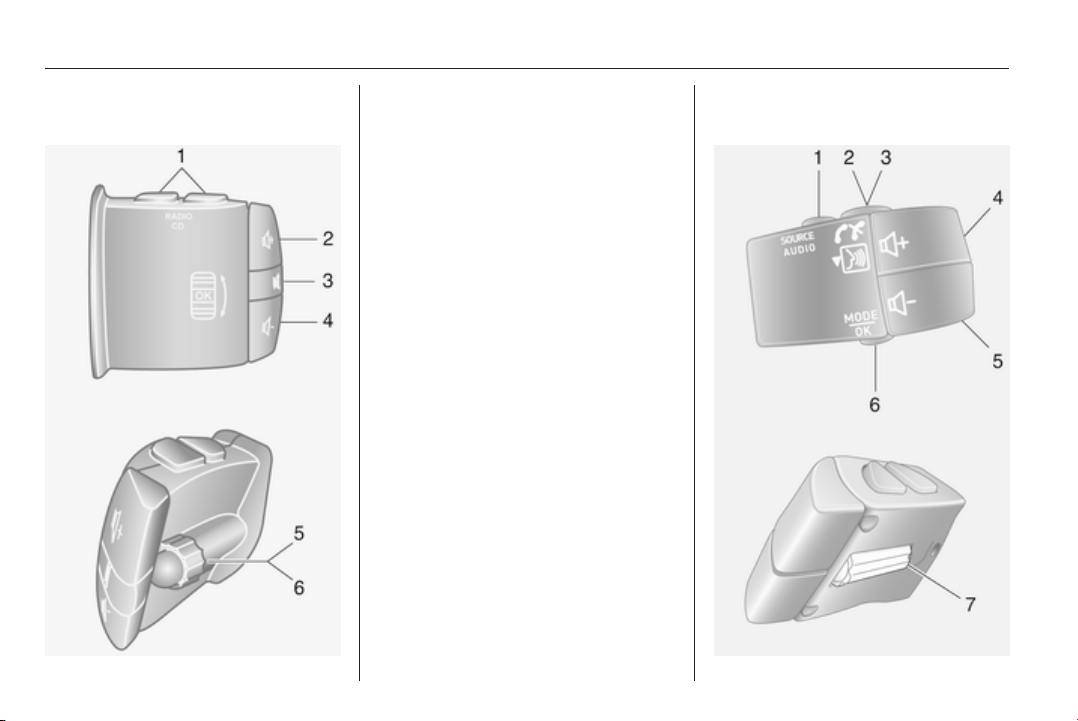

Steering column controls -
Type B
1RADIO/CD - Change
audio source ........................ 22
2! - Increase volume ............ 16
3@ - Mute/unmute .................. 16
4# - Decrease volume ........... 16
5Short press: Change radio
source/waveband ................. 22
Long press: Automatic
station storing ....................... 25
6Rotate: Change radio
frequency ............................. 23
Short press: Select audio
track (CD player mode) ........ 30
Long press: Fast forward/
rewind an audio track (CD
player mode) ........................ 30
Steering column controls -
Type C

Introduction 15
1SOURCE/AUDIO -
Change audio source ........... 16
27 8 ...................................... 60
Take/end phone call ............ 65
35 - Activate voice
recognition ........................... 58
4! - Increase volume,
mute/unmute ........................ 16
5# - Decrease volume,
mute/unmute ........................ 16
6MODE/OK - Confirm
actions, change audio
mode .................................... 22
Take/end phone call ............ 65
7Rotate: Access display
menu options, next/
previous radio preset /
radio frequency / audio
track ..................................... 22
Steering column controls -
Type D
1v - Change audio
source .................................. 22
2! - Increase volume,
mute/unmute ........................ 16
3# - Decrease volume,
mute/unmute ........................ 16
4w ..................................... 22
Short press: Change radio
source/waveband ................. 22
Long press: Automatic
station storing ....................... 25
5Rotate: Change radio
frequency ............................. 23

16 Introduction
Theft-deterrent feature
An electronic security system is
included for the purpose of theft
deterrence. The Infotainment system
functions only in your vehicle and is
therefore worthless to a thief.
The security code (supplied
separately) must be entered upon
first use of the system and after
prolonged interruptions to the power
supply.
Entering the security code
When first switching on the
Infotainment system, the message
RADIO CODE then 0000 appears in
the display.
To enter first digit of security code,
press numbered button 1 on the unit
repeatedly until desired number is
displayed. Enter second, third and
fourth digits using buttons 2, 3 and 4
in the same way.
When the full code is displayed, press
and hold button 6 until an audible
signal sounds. The system is
unlocked when the correct code has
been entered.
Incorrect code entered
When an incorrect code has been
entered, ERROR CODE then WAIT
100 is displayed.
Wait until the countdown has expired,
then enter the correct code. Each
time the code is entered incorrectly,
the countdown time is doubled.
Changing the geographical area
When the security code is entered,
you may be prompted to choose a
geographical area, e.g.:
■ Europe
■ Asia
■ Arabia
■ America
Switch off the Infotainment system,
then simultaneously press button 1
and 5 and the m rotary knob. Then
press button _ or 6 until desired area
is highlighted on display and set with
button 6.
Usage
Infotainment controls
The Infotainment system is operated
via buttons, rotary knobs and display
menus.
Inputs are made via:
■ the central control unit in the
instrument panel, or
■ the controls on the steering column
(except R10)
Switching the Infotainment
system on or off
Press the X knob.
After switching on the system, the
previously used audio source is
active.
Automatic switch-off
With the ignition off, if the
Infotainment system is switched on
with the X knob, it will switch-off
automatically a short period after the
last user input. Depending on type
fitted, this may occur after approx.
5 minutes.

Introduction 17
Setting the volume
Turn the X knob or press button <
or ].
Alternatively, press button ! or # on
the steering column controls.
When the Infotainment system is
switched off, the current volume is
stored.
CD20, CD30 BT: If the volume was
greater than 15 when the system was
switched off, it will automatically be
reduced to 15 when switched on
again.
Speed dependent volume
When speed dependent volume
(3 21) is activated (not with R10 /
CD10), the volume is adapted
automatically to compensate for road
and wind noise.
Mute / unmute
To mute the current audio source
(with the steering column controls):
Press the @ button or press ! and
# simultaneously.
With R10 / CD10: Press X knob
briefly.
To unmute: Press @ again or
press ! and # simultaneously again.
With R10 / CD10: Briefly press (or
turn) X again.
Display screen operation
R10 / CD10
Refer to the detailed descriptions for
the available modes of operation
(radio, audio players).
CD20
■ To move up/down in the display:
Press button 1 or 4.
■ To move left/right in the display:
Press button _ or 6.
■ To confirm actions:
Press the j/OK button
CD30 BT
■ To move up/down in the display:
Turn the rotary knob.
■ To move left/right in the display:
Press button ⊲ or ⊳.
■ To confirm actions (and to move
right only in the display):
Press the rotary knob.
System settings
CD30 BT
Press the 0 button and select the
System settings menu.
When system setting adjustments
have been made, press 0 to exit the
menu and save changes. The system
also saves and exits automatically
after a delay.
Set the clock
To set the time, access the Clock
menu. Press button ⊲ or ⊳ to select
the time menu items, then turn the
rotary knob to adjust the time. Press
button ⊲ or ⊳ to select the minutes,
then turn rotary knob to adjust the
time.
Change system language
Change the text and voice recognition
language by accessing the
Language menu. Select a language
from the list. The voice recognition
and phone functions are not available
when the language is being changed.

18 Introduction
Restore default system settings
To restore system settings to their
default values, select Default
settings by turning and pressing the
rotary knob. Confirm modification with
the display option when prompted.
Modes of operation
Radio
To change the audio source to radio:
Press the RADIO/CD or AUDIO/
SOURCE button.
With R10 / CD10: Press the SRC
button.
Detailed description of the radio
functions 3 22.
Audio players
To change the audio source to CD,
USB or AUX: Press the RADIO/CD or
AUDIO/SOURCE button.
With R10 / CD10: Press the SRC
button.
R10
Detailed descriptions of:
■ AUX input functions 3 34
CD10
Detailed descriptions of:
■ CD player functions 3 30
■ AUX input functions 3 34
CD20
Detailed descriptions of:
■ CD player functions 3 30
■ AUX input functions 3 34
CD30 BT
Detailed descriptions of:
■ CD player functions 3 30
■ AUX input functions 3 34
■ USB port functions 3 36
Navigation system
CD30 BT
Detailed description of the Navigation
system 3 41.
Phone
CD30 BT
To open the Phone menu: Press the
6 or TEL button.
To access the phone settings menu:
Press the 0 button and select Phone
settings.
Use the display options in these
menus to connect mobile phones,
make telephone calls, create contacts
lists and adjust various settings.
Detailed description of the handsfree
phone system functions 3 60.
Tone settings
R10 / CD10
In the audio settings menu, the tone
characteristics can be set.
Press the AUD button to open the
Audio settings menu.
Press AUD repeatedly until the
desired setting is selected from:
■ BASS (bass)
■ TREBLE (treble)
■ BALANCE (left/right balance)
■ FADER (front/rear balance)
■ LOUDNESS (Iow volume sound
enhancement ON/OFF)
The display indicates the type of
setting followed by the adjustment
value.

Introduction 19
Set the desired value by pressing the
_ or 6 button.
To exit the audio settings menu, press
the AUD or MENU button.
If there is no activity, the system will
exit the audio settings menu
automatically.
Setting bass and treble
Select Bass or Treble.
Set the desired value by pressing
_ or 6.
Value ranges from -7 to +7.
Setting the volume distribution
between right - left
Select Balance.
Set the desired value by pressing
_ or 6.
Value ranges from L9 to R9.
Setting the volume distribution
between front - rear
Select Fader.
Set the desired value by pressing
_ or 6.
Value ranges from R9 to F9.
Setting Loudness
Select Loudness.
Select ON/OFF by pressing _ or 6.
CD20
In the audio settings menu, the tone
characteristics can be set.
Press the t button to open the Audio
settings menu.
Press button 1 or 4 repeatedly until
the desired setting is selected from:
■ BASS (bass)
■ TREBLE (treble)
■ BALANCE (left/right balance)
■ FADER (front/rear balance)
■ LOUDNESS (Iow volume sound
enhancement ON/OFF)
The display indicates the type of
setting followed by the adjustment
value.
Set the desired value by pressing
button _ or 6.
To exit the audio settings menu,
press t.
If there is no activity, the system will
exit the audio settings menu
automatically.
Setting bass and treble
Select Bass or Treble.
Set the desired value by pressing
_ or 6.
Setting the volume distribution
between right - left
Select Balance.
Set the desired value by pressing
_ or 6.
Setting the volume distribution
between front - rear
Select Fader.
Set the desired value by pressing
_ or 6.
Setting Loudness
Select Loudness.
Select ON/OFF by pressing _ or 6
CD30 BT
In the audio settings menu, the tone
characteristics can be set.

20 Introduction
To move around the menu and select
the various headings, turn the rotary
knob to move up/down and press
button ⊲ or ⊳ to move left/right.
Alternatively, press the rotary knob to
move right only.
Press the 0 button to open the
settings menu.
Select Audio settings and use ⊲ or ⊳
and/or the rotary knob until the
desired setting is selected.
The display indicates the type of
setting followed by the adjustment
value.
A value of 0 means the function is
deactivated.
To exit the settings mode, press 0.
If there is no activity, the system will
exit the settings mode automatically.
Optimising the tone for the style of
music
Select the Musical atmosphere menu.
Turn the rotary knob to select from:
■Voice
■Classical
■Jazz
■Neutral
■Pop
■Rock
The displayed options offer optimised
bass, middle and treble settings for
the relevant style of music.
Set the style of music by pressing the
rotary knob.
Setting bass and treble
Select the Musical atmosphere menu.
Turn the rotary knob to select Bass /
Treble.
Press ⊲ or ⊳ to access Bass or Treble.
Set the desired value for the selected
option by turning the rotary knob.
Optimising the sound distribution
Select the Sound optimisation menu.
To optimise the sound distribution for
the entire vehicle or just the driver,
turn the rotary knob to select from:
Vehicle or Driver.
Set by pressing the rotary knob.
Setting the volume distribution
between right - left
Select the Sound optimisation or
Balance / Fader menu.
Turn the rotary knob to select
Balance.
Press rotary knob or button ⊲ or ⊳ to
display current setting and turn rotary
knob to adjust.
Press rotary knob to set the desired
value and display the Fader setting.
Setting the volume distribution
between front - rear
The Fader setting is displayed after
Balance has been set.
Turn the rotary knob to adjust the
fader between front/rear.
Moderate volume in the front
To suppress the volume in the rear
and moderate only the volume in the
front of the vehicle:
Select the Sound optimisation menu.
Turn the rotary knob to select Rear
OFF and press rotary knob to set.
