GN Espace OceanChef XL G1007 Operating instructions

1
GN Espace OceanChef XL
Model G1007
LPG Marine Cooker
User and Installation Instructions
GN Espace Galley Solutions Limited
3A Millbrook Business Park
Hoe Lane
Nazeing
Essex
EN9 2RJ
UK
Tel: [phone]
Email: [e-mail]
Web: www.gn-espace.com

2
Contents
Introduction.................................................................................................3
General Description......................................................................................3
Product Overview.........................................................................................4
Introduction .............................................................................................5
Rating Plate..............................................................................................5
Using the appliance ..................................................................................5
For your safety......................................................................................5
Using the appliance......................................................................................6
Lighting the appliance ...............................................................................6
Hob, grill and oven ignition ....................................................................6
Replacing the Battery ............................................................................6
Using the hob .......................................................................................6
Hob ......................................................................................................6
Using and adjusting the pan fiddles ........................................................7
Using the grill........................................................................................7
Grill ......................................................................................................7
Using the oven......................................................................................7
Oven ....................................................................................................8
Cooking ...................................................................................................8
Care and cleaning .....................................................................................9
General.................................................................................................9
Cleaning the hob ...................................................................................9
Installing the appliance ..............................................................................10
Electric 1.5v connection for ignition .........................................................11
Positioning the cooker.............................................................................11
Installation for Gimballing .......................................................................11
Fixed Installation (Boats, Recreational Vehicles and Caravan) ....................12
Gas connection (Recreational Vehicles, Caravans).....................................12
Before first use ..........................................................................................13
Spare parts................................................................................................13
Technical Specification ...............................................................................13
Product Dimensions ...................................................................................14
ANNEX A Emergency procedures................................................................15
ANNEX B Safe usage : Changing a cylinder...............................................15

3
Introduction
Thank you for choosing to buy the GN Espace gimballed marine cooker.
Please spend the time to read this instruction booklet thoroughly. It will help you get the most
from the many features that this cooker has to offer. When installed and used correctly we are
confident that you will benefit from many years of trouble-free use from this cooker.
Tip: Keep this instruction booklet in a safe place so that anyone using the appliance can read it.
Write the name, model and serial number, which are shown on the back of the appliance, into
the instruction booklet. This will help if you need to contact us about your cooker in the future.
Warning. LP gas is heavier than air and any leakage will collect in low level unventilated
areas. Gas bottles shall be sited in a well ventilated store.
Warning: If a gas leak is suspected due to the smell of gas, switch off the gas cylinder
IMMEDIATELY. Extinguish all naked lights including cigarettes. Do not operate electrical
switches. Open all doors and windows. Propane and butane gases are heavier than air and
will therefore collect at a low level. Check for leaks using a leak detector spray or a soap and
water solution. Never check for leaks with a naked flame.
General Description
The GN Espace marine cooker is a single cavity gas oven with grill and a 5-burner hob. Each
burner has an individual gas safety thermocouple. It is designed to operate using an external
LPG, Propane or Butane gas supply (subject to appropriate injectors and gas pressure).
petroleum gas (LPG) systems.
The cooker is manufactured using stainless steel and other technical materials which are
designed for long life in a rugged marine environment.
The cooker is gimbaled with a fixed width of 660mm. A fixed position harbour lock is fitted.
This cooker is also suitable for a fixed installation on boats, recreational vehicles and caravans.
The oven and hob are designed around the dimensions of the Gastronorm professional catering
equipment (EN631). This allows an extensive range of interchangeable Gastronorm cookware
to be used with the cooker.
This appliance shall be installed in accordance with the regulations in force and in a well
ventilated area. Failure to install the appliance correctly could invalidate any warranty or liability
claims and lead to prosecution.
Read these instructions before installing and using the appliance.
IMPORTANT : This cooker is suitable for use with both propane and butane gas with the
appropriate regulator fitted. Please note that the two gasses have different burning
characteristics and are affected by the ambient temperatures. There will be a performance
variation for the cooker depending on the gas type used and ambient temperature ie. Butane is
not recommended for use in colder climates.

4
Camping Gaz (Butane) –The restricted orifice size on a CampingGaz container (R907,
R904) limits the gas flow reaching the cooker (especially in cold weather) resulting is
longer heat-up and cooking times.
Gas types
The appliance is suitable for use with LPG. Both propane and butane. No
other gas must be used. The following gas details and pressures must be
applied:
CAT I3+ (28-30/37) CAT I3B/P
Butane (G30) 28-30mbar Butane (G30) 30mbar
Propane (G31) 37mbar Propane (G31) 30mbar

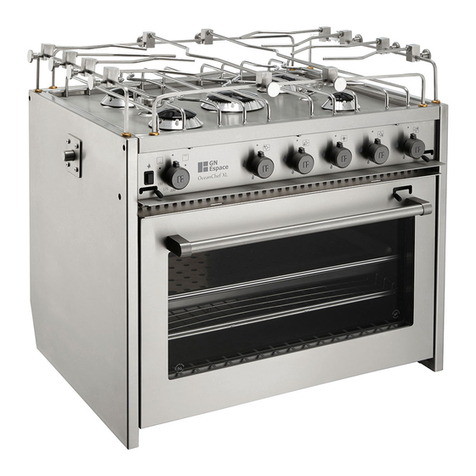

Product Overview
150
200 225
MAX OceanChef XL
1. Burner / Thermocouple/ Spark ignition
2. Pan support lock
3. Pan support
4. Sea Rail
5. Harbour lock bolt (gimbaled version
only)
6. Harbour lock bracket (gimbaled version
only)
7. Pan clamps
8. Door lock
9. Gimbal pivot (gimbaled version only)
10. Gimbal pivot bracket (gimbaled version
only)
11. Gimbal bracket retaining plate
(gimbaled version only)
12. Gas connection point (rear right)
13. Battery housing cover (front base)
14. Counterweight (on base) (gimbaled
version only)
15. Rating plate (rear panel)

5
Control panel
Oven/Grill controller Hob Controls
Ignition
OceanChef XL
200 225
MAX
150
Operating and Installation Instructions
Introduction
This marine cooker has been designed and manufactured to meet the required CE approvals.
It is important that you understand how to use and care for the appliance properly before you use it
for the first time.
This booklet is written with your safety in mind. Keep the booklet in a safe place so that anyone
who uses the appliance can read it. Pass the booklet on with the appliance to any future owners.
For detailed Emergency and Safe usage procedures, refer to Annex A and Annex B at the end of
these instructions.
Rating Plate
This is situated at the back of the appliance. Do not remove the rating plate from the appliance as
this may invalidate the guarantee.
Using the appliance
CAUTION: The use of a gas cooking appliance results in the production of heat, moisture and
products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated
especially when the appliance is in use: keep natural ventilation holes open or install a mechanical
ventilation device (mechanical extractor hood).
Prolonged intensive use of the appliance may call for additional ventilation, for example opening of
a window, or more effective ventilation, for example increasing the level of mechanical ventilation
where present.
CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for
example room heating.
For your safety
The appliance shall not be operated when refueling the boat or other appliances.
The appliance must be sited in an area free from draughts which could effect
combustion and in a manner which will allow a build up of unburned gas.
All air vents must be open and well maintained.
Whenever operating the appliance ensure that the gas cylinder is correctly connected
to the appliance gas supply
When lighting any burner check that it has lit before you leave the appliance.
When turning off a burner, do not leave the appliance until the flame has gone out.

6
Using the appliance
Lighting the appliance
Warning : All hob and burner flames should be prominently blue and without yellow tips.
Hob, grill and oven ignition
Replacing the Battery
The battery for the ignition will usually last for many months. If the ignition system doesn't work you
probably need to replace the battery.
The battery (1.5V AA size) is at the bottom front of the appliance. When you need to replace the
battery unscrew the battery cover by hand, change the battery and replace the lid.
You can light the burners with a match if needed.
Using the hob
Heat control
The hotplate control knobs turn anticlockwise from 'OFF' to 'HIGH' and then to 'LOW'. You can
adjust the heat by turning the control between the highest and lowest settings.
Burner sizes
Depending on the model the hotplate has two burner sizes to suit different types of cooking:
Rapid (Large) –large pots
Semi Rapid (Normal) - use for everyday cooking.
Auxiliary (small) burner - use for simmering food such as soups and stews.
If you have any trouble lighting a hotplate burner turn all hotplate control knobs off and make sure
the hotplate burner parts have been replaced correctly.
Hob
To light hob
1. Push in the control knob and turn it to the maximum setting. Keep the control knob pushed in
and press the ignition button immediately.
2. When the burner has lit, release the ignition button, but keep holding in the control knob for 15
seconds (to heat the thermocouple).
3. Release the control knob and then turn it to the required setting.
Warning: Press the ignition button immediately. If not pressed immediately then a build up
of gas may cause the flame to spread. The ignition button should not be operated for more
than 15s. If after 15s the burner has not lit, stop operating the device and wait at least
1min before attempting further ignition of the burner.

7
Using and adjusting the pan fiddles
The cooker is fitted with a sea rail onto which the adjustable pan
fiddles (2 per burner) are fitted.
To attach the pan fiddle, open the thumbscrew on the clamp and
place the saddle onto the sea rail. When the fiddle is in the correct
position, tighten the thumb screw to hold the fiddle firmly in
position
Using the grill
WARNING : Accessible parts may get very hot when the grill is in use. Children should be kept
away.
Grill Heat control
The grill control has one heat settings. The control knob turns to the right from 'OFF' to
If the burner flame is accidentally extinguished during cooking, turn off the gas and wait at least
one minute before attempting to reignite.
Grill
To light grill:
1. Open the oven door
2. Push in the control knob and turn it to the grill
setting. Keep the control knob pushed in and
press the ignition button immediately.
3. When the burner has lit, release the ignition
button, but keep holding in the control knob for
15 seconds (to heat the thermocouple).
4. Leave the grill door partially open when you are
using the grill.
WARNING : Press the ignition button immediately. If not pressed immediately then a build up
of gas may cause the flame to spread.
If the burner flame is accidentally extinguished during cooking, turn off the gas and wait at least
one minute before attempting to reignite.
Fitting the grill deflector.
Using the oven
Shelf positions The oven has three shelf positions - top (for grilling), middle and lower.

8
The oven is supplied with two removable oven shelf pan holder designed to accommodate a
Gastronorm GN 1/1 container as standard. Additional oven shelf pan holders are available as
optional accessories.
1. To remove the oven shelf pull it out until it reaches the safety stop.
2. Slightly press the arms of the shelf inwards to disengage from the cavity runners.
Heat zones
When using the oven you will find that the top shelf of the oven cavity is hotter that the lower shelf.
The oven temperature that you have chosen will be on the middle shelf.
You may therefore have to adjust the temperature or cooking time depending on which shelf level
you are using in the oven.
Preheating
Important, when you need to preheat the oven, we recommend you do so for at least 15 minutes
(20 minutes when cooking large amounts of food). Placing cold food in an oven that has not
been pre-heated considerably reduces the cooking performance.
Oven thermostat
Immediately initiate repair or replacement of the thermostat if an abnormal drift of oven
temperature occurs during cooking.
Oven
To light oven:
WARNING : Press the ignition button immediately. If not pressed immediately then a build up
of gas may cause the flame to spread.
If the burner flame is accidentally extinguished during cooking, turn off the gas and wait at least
one minute before attempting to re-ignite.
To turn off any burner (hob, grill and oven)
1. Push in the control knob and turn it to the off position. This is shown by a large dot.
Cooking
The oven is designed to accept standard and Gastronorm cooking trays which are available in a
number of sizes and depths. There are 3 shelf positions.
Always pre-heat the oven before placing cold food in the oven. The oven is capable of reaching
full cooking temperature from cold, in approximately 20 minutes.
When using the hotplate, care must be taken to ensure that pans do not overlap the edges of the
hotplate. When circular pans are used the minimum diameter shall not be less than 120mm and
the maximum shall be 180mm, on all the burners.
1. Open the oven door.
2. Push in the control knob and turn it to the
maximum oven setting. Keep the control
knob pushed in and press the ignition button
immediately.
3. When the burner has lit, release the ignition
button, but keep holding in the control knob
for 15 seconds (to heat the thermocouple)
4. Release the control knob and then turn it to
the required setting.
5. Wait until the burner is showing large flames.
6. Close the oven door.

9
Care and cleaning
General
Clean your appliance regularly using a cloth that has been wrung out in hot soapy water (ie. hot
water with dishwashing liquid). Rinse and polish it dry using a soft cloth.
Do not use any polishes, caustic cleaners, abrasives, washing soda or soap except those
recommended. When you remove parts of your appliance for cleaning do not plunge them into
water whilst they are very hot as this may damage the finish of the parts.
Cleaning the hob
You can remove the pan support, burner caps and burner rings to clean them. Take care not
to damage the spark electrodes and thermocouples.
For hygiene and safety reasons you must keep this gas appliance clean. A build up of fat or
other foodstuff could cause a fire.
Try to clean up spills and splashes as soon as possible. But be careful as parts of the cooker
will be hot.
You can wash the removable parts in very hot soapy water.
Make sure that the electrode and the hole and slots in the ring are not blocked with food or
cleaning materials.
Clean the burner rings by soaking them in very hot soapy water.
You can remove any stubborn stains by scouring with a soap-filled scrubbing pad.
If you look after the burner rings in this way they will stay reasonably clean. However the
surface will dull with time.
Aluminium-based saucepans can leave shiny metal marks on the pan supports.
Clean the pan supports regularly.
After cleaning the appliance parts, dry them thoroughly before you put them back.
Pan support - removal and replacement
1. Undo the holding 2 nuts in the centre of
the hob.
2. Lift off pan support.
Hob burners - removal and replacement
Cleaning the grill and oven
1. Remove the pan support
2. Grip the burner cap and rotate it
anticlockwise through ¼ turn and lift off.
3. Lift off the burner cap and burner ring.
4. Reverse procedure to replace. Make sure
that the holes on the ring align with the
thermocouple and spark electrode.
5. Do not try to force the ring on to the body
Check for ignition.
6. If a burner will not light then you need to
check the ring and cap positions.

10
General
Regularly clean the oven cavity and door while they are still slightly warm. This way you can easily
remove any splashes and spills. Wipe with a cloth that has been wrung out in hot soapy water.
Do not clean the grill burner or oven burner itself. The burners are designed to be self cleaning.
Cleaning the burners may cause the holes in the burner to become blocked preventing them from
operating correctly.
Maintenance and servicing
In addition to regular cleaning of the appliance, it is recommended that servicing is carried out once
a year by a suitably qualified engineer.
The manufacturer shall make servicing instructions available, on request, to competent persons to
enable the appliance to be maintained in a safe working condition.
Warning. Any servicing or maintenance work carried out by an unauthorised person will
invalidate the manufacturers warranty and could result in a dangerous situation.
Installing the appliance
It is a legal requirement that all gas appliances are installed by competent persons qualified in
accordance wit the local and national regulations (GasSafe registered in the UK). Failure to
install the appliance correctly could invalidate any warranty or liability claims and lead to
prosecution.
The appliance shall be installed in accordance with the local and national/European standards in
force. Particular attention shall be given to the requirements regarding ventilation.
This appliance may not be installed in a room containing a bath or a shower.
Read these instructions before installing or using the appliance.
Ventilation
This appliance is suitable for installation into boats, recreational vehicles and caravans. The
national standards regarding ventilation must be adhered to.
The use of this cooker results in the production of heat and moisture in the area in which it is
installed. Ensure that the galley is well ventilated. Keep natural ventilation passages open or
install a mechanical ventilation device.
Loose items supplied with cooker (Qty / Description)
1 Instruction book
1 Oven wire shelf
2 Oven frames
1 Grill deflector
1 GN1/1 pan
1 GN 1/1 wire trivet
10 Pan fiddle clamps
4 Sea Rails (1 front rail (low height), 3
side and back rails)
1 1.5V Battery size AA
2 Gimbal pivot brackets
1 Harbour lock brackets
1 Counterweight (if not supplied fitted)
