Go Power! Electric GP-Smart Charger User manual

Go Power! Manual
GP-Smart Charger
Go Power! Electric Inc.
PO Box 6033
Victoria, BC V8P 5L4
Toll Free Tel: [phone]
Toll Free Fax: [phone]
Email: [email protected]

Go Power! Smart Charger
Owner’s Manual
2
Table of Contents
1. IMPORTANT SAFETY INSTRUCTIONS........................................................ 3
2. FEATURES ...................................................................................................... 4
3. INTRODUCTION.............................................................................................. 7
4. LED STATUSTROUBLESHOOTING............................................................... 8
5. WARRANTY..................................................................................................... 8
Go Power! Electric Inc.
PO Box 6033
Victoria, BC V8P 5L4
Toll Free Tel: [phone]
Toll Free Fax: [phone]
Email: [email protected]
Rev1.2
GPBatteryChargerInstallGuide.doc

Go Power! Smart Charger
Owner’s Manual
3
1. Important Safety Instructions
To get the most out of your battery charger, it must be installed and used properly.
Please read the instructions in this manual before installing and using your battery
charger.
1.1 General Safety Precautions
1. Do not expose the GP Battery Charger to rain, snow, spray, bilge or dust. To
reduce risk of hazard do not cover or obstruct the ventilation openings.
2. Do not install the GP Battery Charger in a zero-clearance compartment.
Overheating may result.
3. To avoid a risk of fire and electronic shock. Make sure that existing wiring is in
good electrical condition; and that wire size is not undersized. Do not operate the
GP Battery Charger with damaged or substandard wiring.
4. The battery terminal not connected to the chassis has to be connected first. The
other connection is to be made to the chassis, remote from the battery and fuel
line. The battery charger is then to be connected to the supply mains.
5. After charging, disconnect the battery charger from supply mains. Then remove
the chassis connection and battery connection, in this order.
6. Do not charge non-rechargeable batteries.
7. During charging the battery must be placed in a well-ventilated area.
8. The battery charger must only be plugged-in to a grounded outlet.
9. If the power supply cord is damaged, the manufacturer or its service agent or a
similar qualified person must replace it in order to avoid a hazard.
1.2 Precautions When Working with Batteries
1. If battery acid contacts skin or clothing, wash immediately with soap and water. If
acid enters eye, immediately flood eye with running cold water for at least 20
minutes and get medical attention immediately.
2. Never smoke or allow a spark or flame in vicinity of battery or engine.
3. Do not drop a metal tool on the battery. The resulting spark or short-circuit on the
battery or other electrical part may cause an explosion.
4. Remove personal metal items such as rings, bracelets, necklaces, and watches
when working with a lead-acid battery. A lead-acid battery produces a short-circuit
current high enough to weld a ring, or the like, to metal, causing a severe burn.
Warning!
Before you
install and
use your GP
Battery
Charger, be
sure to read
these safety
instructions

Go Power! Smart Charger
Owner’s Manual
4
2. Features
This GP Battery Charger series is a high frequency switching mode 3-stage battery
charger and equipped with a micro controller and PFC circuit. This allows the GP Battery
Charger to perform intelligent battery management and to provide highly reliable
operation. Before using the GP Battery Smart Charger, read all instructions and
cautionary marking on this manual. High-performance 3-stage charging effect
• Advanced 8-bit microprocessor control circuit reverse battery protected by fuse
• Ignition protection
• Output short circuit protection over power protection
• Switch mode technology
• Easy to read LED for system status
• Compact size, light weight
2.1 Battery Charging Curve
IU Charging Characteristic

Go Power! Smart Charger
Owner’s Manual
5
2.2 Electrical Performance
Specification Technical Data
Model No GPSC-12-10A
Power Watt 160 W
Input Voltage 100-240 VAC / 50~60 Hz
Power Factor PF: 0.98
Output Voltage 12 V DC
Output Current 10 A Max.
Safety UL 1236, CE, TUV, Pending
EMC FCC Class A EN55022: 1994/A1: 1995/A5: 1997
EN61000-3-2: 2000, EN61000-3-3: 1995 and EN55024: 1998
Dimensions 210 (L) x 85 (W) x 50 (H) mm / 8.26 (L) x 3.34 (W) x 1.96 (H) Inch
Weight 0.9 kgs. / 1.8 lbs

Go Power! Smart Charger
Owner’s Manual
6
2.3 Mechanical Drawings
Front view:
Power ON/OFF switch, leave in the OFF position during the installation.
Back view:
2.4 LED status
Charging status LED indication
Fast Charge Blinking green fast
Slow Charge Blinking green slow
Floating Charge Solid green
Charging Fault Blinking red
Bad battery or wire distribution Blinking red

Go Power! Smart Charger
Owner’s Manual
7

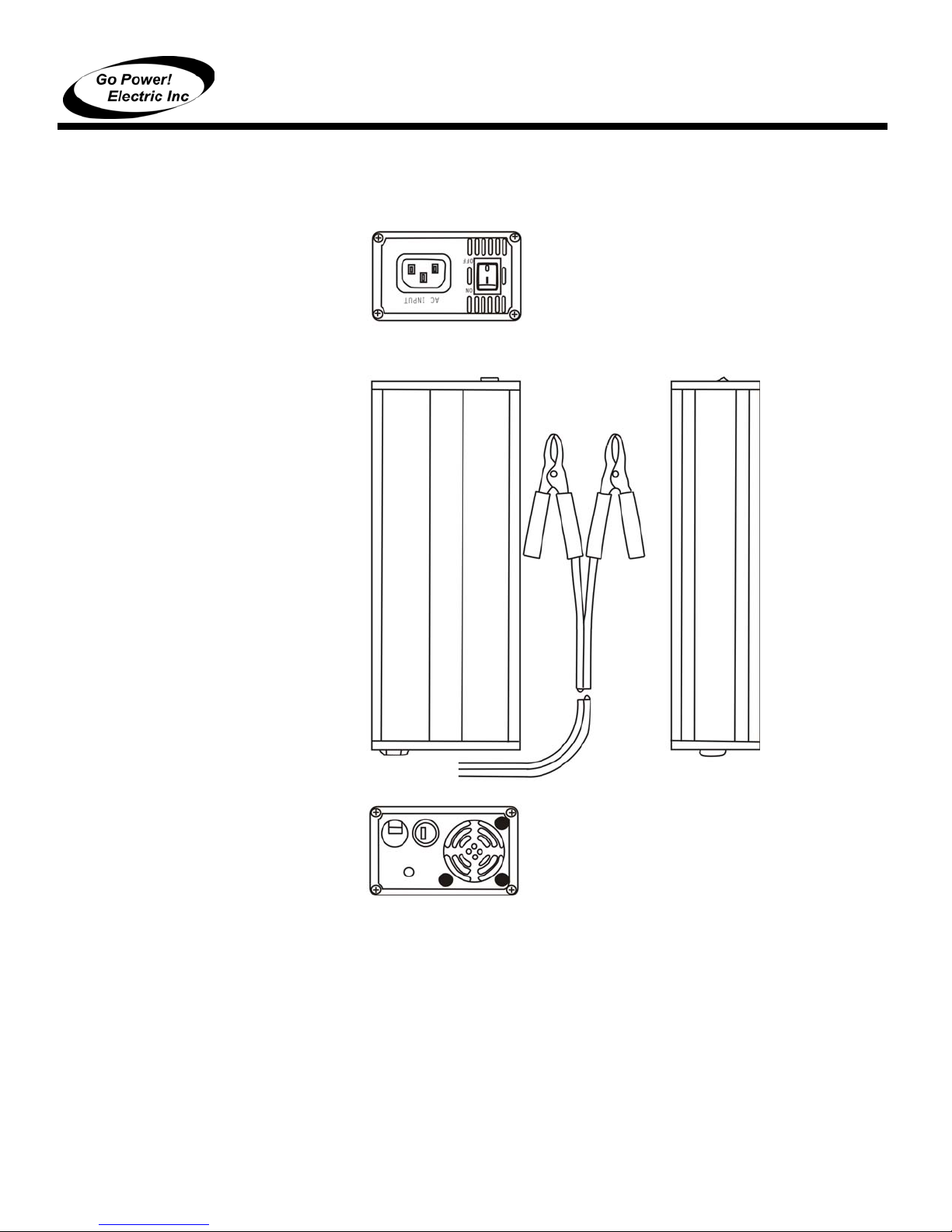

2.5 Mechanical Drawings
3. Introduction
4.1 Front Panel Operations:
Front
To
p
Side
Back

Go Power! Smart Charger
Owner’s Manual
8
4. LED Status Troubleshooting
Problem and
Symptoms
Possible Cause Solution
“Red” LED Blinking Battery is disconnected Check the battery
connection
Battery fault Change battery
LED light off No AC power delivering Check input power
connection
Polarity reverse Change cables to the
correct polarity.
- Check DC fuse, if broken
replace the fuse.
Thermal Shutdown Make sure ventilation is not
obstructed.
Improve ventilation.
Reduce ambient
temperature.
4.1 Selection of battery types:
Sealed lead acid and open lead acid battery shall be used.
Model No Battery Capacity (Min.) Battery Capacity (Max.)
GP-1210 12V / 30 Ah 12V / 100 Ah
5. Warranty
We warrant this product against defects in materials and workmanship for a period of 12
months from the date of purchase and will repair or replace any defective Go Power!
Battery Charger when directly returned, postage prepaid, to the manufacturer. This
warranty will be considered void if the unit has suffered any obvious physical damage or
alteration either internally or externally, and does not cover damage arising from
improper use such as plugging the unit into unsuitable power sources, attempting to
operate products with excessive power consumption requirements, reverse polarity, or
use in unsuitable climates.
This is the only warranty and the company makes no other warranties, express or
implied, including warranties of merchantability and fitness for a particular purpose.
Repair or replacement are your sole remedies and shall not be liable for damages,
whether direct, incidental, special or consequential, even though caused by negligence
or other fault.
