Sibata BC-100B User manual

CODE 080800-042
Battery Charger BC-100B
Operation Manual
■Before Use
Read this operation manual before use, and use the product safely and correctly. After reading this operation
manual and the warranty, keep them handy for future reference.
< Check the package for the following items before using the product. >
□Battery Charger BC-100B…1 □Power cable (with plug adapter)…1 □Midget Fuse 2A…1
□Operation Manual (this manual)…1 □Warranty…1 □Certification…1 □User card…1
●If any of the items are damaged or missing, contact your Sibata representative or the distributor where you
purchased the product.
■Precautions for Handling the BU-24B/BU-24L While Charging
Prohibited
When charging two or three units at the same time, avoid charging the
BU-24B and BU-24L in combination.
The BC-100B is the exclusive charger for the BU-24B/BU-24L battery units. Up to three BU-24B
battery units can be charged at the same time. Similarly, up to three BU-24L battery units can
be charged at the same time. However, the BU-24B uses a lead storage battery, and the BU-
24L uses a lithium ion battery. The types of batteries used are different, so if these battery units
are charged in combination, there is a risk of battery degradation or an accident. When charging
multiple batteries, first be sure to check that they are all either BU-24B units or BU-24L units.
■Safety Precautions
The precautionary information that appears in this manual is for ensuring that the product is used safely
and for preventing injury to you and other people and damage to equipment. It is all important for
ensuring safety and so be sure to read it thoroughly before using the product and observe it during use.
Warning Indications Impending danger is expected that might result in death or serious injury.
There is an expected risk that might result in death or serious injury.
There is an expected risk of serious injury or property damage.

Misuse might cause electric shock, generation of heat, fire, or rupturing, which will
result in burns, serious injury or blindness.
zThe BC-100B is a special battery charger for the BU-24B/BU-24L battery unit.
Only use this product with the BU-24B/BU-24L.
zDo not leave this product inside cars in the hot sun, or use or store it in strong direct
sunlight, in front of heating equipment or next to fires.
zDo not put this product into fires, or install it in closed spaces or near naked flames.
zNever connect by methods other than those described in this manual, for example, by
connecting to connectors using wire or other metal objects.
zDo not solder the BC-100B connections directly.
zDo not place this product in a microwave oven or a high-pressure container.
zDo not allow infants, pets, or other animals to touch this product. It is dangerous to lick this
product, place it in the mouth, or chew it.
zDo not allow it to be wetted by or submerged in water or seawater.
zNever dismantle or modify this product.

Misuse might cause electric shock, generation of heat, fire, or rupturing, which will
result in burns, injury or blindness.
zDo not subject this product to strong impact or drop it.
zIf an abnormality occurs during charging, immediately stop operation and remove the cause
of the abnormality. If the abnormality is judged to be caused by this product, contact your
Sibata distributor. Do not use this product in an abnormal state or allow it to be dismantled
for repair by non-service personnel.
zDo not run this product wrapped in a cloth or bedding, or enclosed in a box.
zAvoid using it in environments subject to flammable gases, sea air, or other corrosive gases.
zDo not wash this product with water.
zDo not clean this product by a dry cloth or duster. Doing so might cause static electricity and
result in an explosion. Clean with a moist cloth or similar item.
zDo not use paint thinner, alcohol, or other organic solvents for cleaning this product.
zThis product is made for indoor use. Do not use it in environments that may be exposed to
wind and rain.
zWhen connecting this product to the BU-24B/BU-24L, do not force the connection if it is not
connected well. It may result in reversed connection between positive and negative sides,
which can cause malfunctions and accidents.
zUse a 100 to 240 V AC single-phase power supply. However, if the power supply voltage
exceeds 100 V, provide a power supply cable that complies with the laws, regulations, and
safety standards of the country or region where it is being used. Also, do not connect the
power adapter to a multi-plug power strip. Doing so might cause electric shock or fire.
zDo not use this product when the power cable is damaged or the plug inlet on the power
outlet is loose. Use in this state might cause fire or electric shock.
zDo not touch the power cable or power outlet with wet hands. Doing so might cause electric
shock.
zDo not use the BC-100B for other than the BU-24B/BU-24L. Charging other battery might
cause battery leakage, generation of heat, or explosion.
zDo not use a non-specified fuse. Doing so might cause malfunction or accidents.
zBe sure to ground this product. Failure to do so might cause malfunction or electric shock.
Also, never ground the product to a gas tube. Doing so might cause explosion or fire.
Misuse might cause moderate injury or physical damage.
zInstall this product on a horizontal, stable site.
zWhen not using this product for a long time, store in as cool and dry a location as possible
out of the direct sunlight.
zDo not place heavy objects or get on this product. Doing so might cause the product to tip
over or deform the product, resulting in accident or malfunction.
zTake care not to nip your fingers when assembling the product, for example, when installing
the BU-24B/BU-24L.
zWhen not using this product, disconnect the power plug from the outlet. Failure to do so
might cause fire or malfunction.
zWhen disconnecting the power plug, be sure to hold the power cable by the power plug.
Pulling the cable might damage it and cause electric shock or fire.
zDo not place heavy objects or step on the power cable. Doing so might cause electric shock
or fire.
zWhen inserting the ground lead of the power cable into the ground terminal, disconnect the
power plug from the outlet. Failure to do so might cause electric shock.
zWhen cleaning this product, disconnect the power plug from the outlet. Failure to do so
might cause fire or malfunction.
zThe operating temperature range of the BC-100B is 10 to 40 °C. Use of this product outside
of this range might impair the BC-100B's performance and service life, resulting in damage
or deformation of the BU-24B/BU-24L.

■Product Overview
This charger is exclusively for the BU-24B/BU-24L.
Up to three BU-24B battery units can be charged at the same time. Similarly, up to three BU-24L battery units can
be charged at the same time.

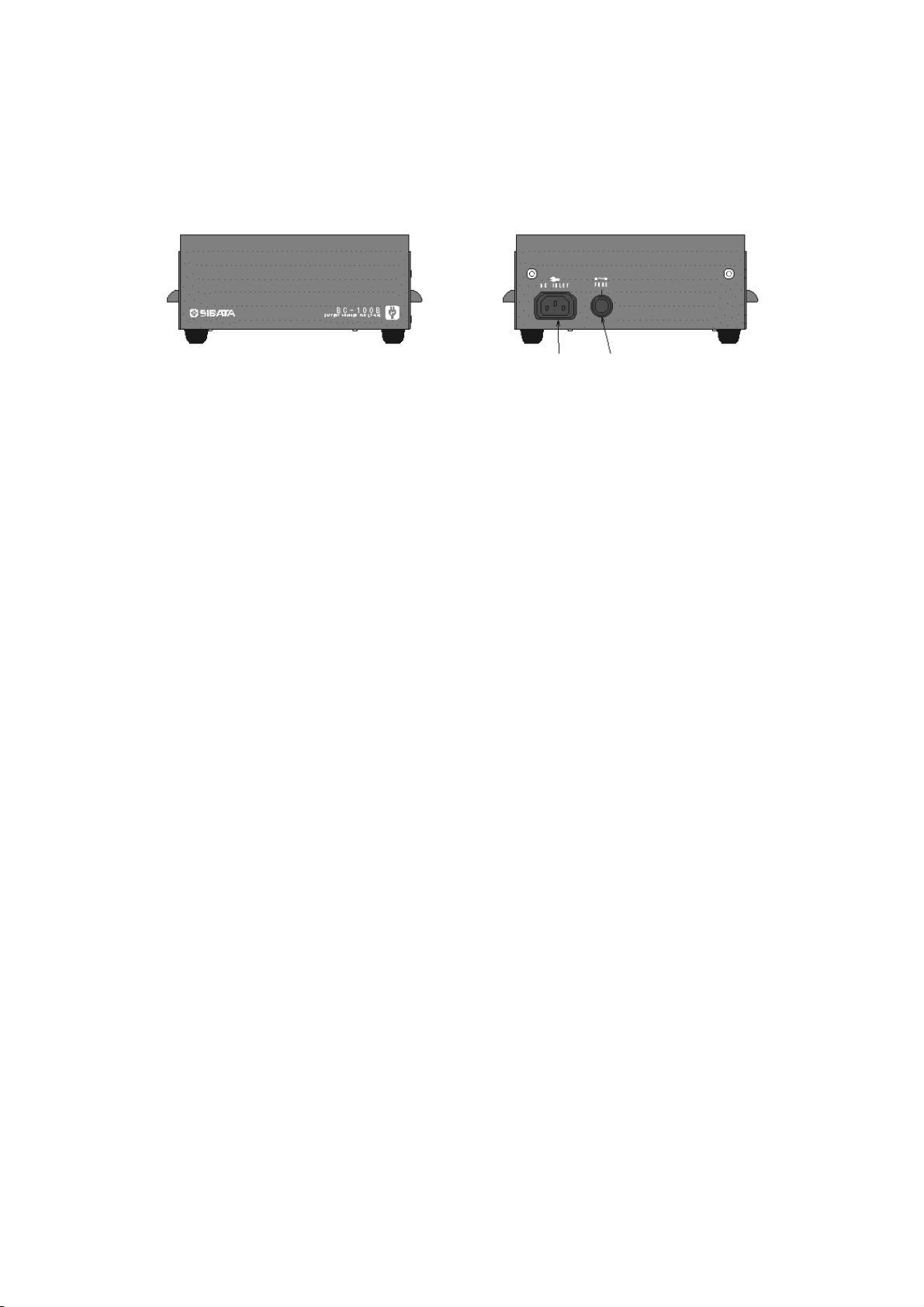

■Names of Parts
■Using Methods
(1) Place the BU-24B/BU-24L on top of the exclusive BC-100B Battery Charger.
(2) Connect the power cable (provided) to the AC INLET on the rear panel of the BC-100B, and connect the
other end to the AC power outlet.
(3) During charging, the [CHARGE] lamp on the BU-24B/BU-24L lights (red). When the lamp changes color
to green, this indicates that charging is completed. It takes about 15 hours* to charge the BU-24B/BU-
24L.
*This is the reference charging time when the battery is fully charged at 20 °C. This charging time
may differ considerably depending on the remaining battery power and ambient temperature. The
charging time is the same for one or three BU-24B/BU-24L units.
●Use a 100 to 240 V AC single-phase power supply. However, if the power supply voltage exceeds
100 V, provide a power supply cable that complies with the laws, regulations, and safety standards of
the country or region where it is being used.
●Do not charge the BU-24B and BU-24L in combination.
●If the [CHARGE] lamp does not change color to green even considerably after 15 hours of charging, a
probable cause is a malfunctioning battery. Immediately disconnect the power cable, and contact
your Sibata distributor.
●For details, see the LV-40BR / LV-40BW operation manual.
■Preferred Procedures for Requesting Repairs to Products Used
in Environments Exposed to Asbestos
To prevent harm to users and Sibata service engineers from exposure to asbestos, please refer to and comply with the
procedures below when requesting repairs to products used in environments exposed to asbestos.
(1) Fully remove all asbestos from the product before requesting repairs. After removing the asbestos, seal the product
and its accessories in two layers of a transparent, waterproof material (such as sturdy plastic bags), and then pack
it in a box. When sealing it, take care that the serial number of the product and the number of accessories can be
checked from the exterior of the bags.
(2) Be sure to enter "AS" in the "Fault and Request Details" field in the "Repair Request Slip." If this is not entered for
this product, you may be asked by a sales representative to confirm whether or not it was exposed to asbestos.
(3) If you are delivering the product to Sibata via courier, in addition to the product model number, enter "AS" in the
"Details" and "Name of Goods" fields on the invoice. This is to prevent the staff from damaging the sealed bags
with a box cutter when unpacking the delivery.
●The above mentioned request is noted for all similar products involved in asbestos measurement.
Power cable inlet Fuse
Back View

■Specifications
Item Code 080800-042
Rated Output 24 VDC, 100 W
Operating Temperature Range 10 to 40 °C
Power Supply 100 to 240 VAC *, 50/60 Hz, 1.5 A (2 A fuse)
Dimensions 200 W ×200 D ×95 H mm (excluding protrusions)
Weight Approx. 1.5 kg
*A 100 to 240 V AC single-phase power supply is specified, but if the power supply voltage exceeds 100 V,
provide a power cable that complies with the laws, regulations, and safety standards of the country or
region where it is being used.
■Warranty
If a Sibata product fails within 1 year from date of purchase, it will be repaired free of charge.
To request repairs, contact your Sibata representative.
Be sure to provide the item code, product name, model number, serial number, a description of the
problem, and other relevant information.
Consumable parts included with Sibata products are not covered by the warranty.
The warranty excludes any problems resulting from any of the following causes. Such repairs are subject to
normal service fees.
(1) Faults due to improper usage
(2) Faults or damage resulting from repairs or modifications implemented by parties other than Sibata
(3) Faults or damage resulting from fires or natural disasters, such as earthquakes
(4) Faults or damage occurring after purchase due to relocation, movement, falling, or vibration
(5) Faults or damage resulting from the use of consumable items not specified by Sibata
(6) Sales date or seal either revised or not affixed by the sales outlet
(7) [Modifications and Repairs Are Prohibited] Never disassemble or modify this product, as doing so will void
the warranty with Sibata. Doing so may also result in unforeseen faults and accidents.
19.12.19 K (07)
Note) Shape, dimensions, specifications, and other product information are subject to change without notice
in the interest of product improvement to the extent that product functions and applications will not be
impaired.
