Go-Rock GR-WSK60 User manual

ALTAVOZ INALÁMBRICO PORTÁTIL
MANUAL DE INSTRUCCIONES
GR-WSK60
Leer atentamente este manual antes de usar este aparato por primera vez.
Guarde el manual para futuras consultas

Estimado Cliente:
Agradecemos la confianza depositada en nosotros al adquirir este producto GOROCK® .
Nuestro principal empeño es ofrecer artículos excelentes, manteniendo los más estrictos controles
de calidad y cumpliendo todas las normativas vigentes de seguridad, con el objetivo de presentar un
producto perfecto y seguro para el uso doméstico.
CARACTERISTICAS.
-20KHz
-108.0Mhz
TF: 32 GB
.
Accesorios Incluidos:
Instrucciones de batería.
- Cargar la batería al completo (durante 2 horas) antes de utilizar por primera vez.
- La carga debe hacerse con un adaptador de 5V y mínimo 1A.
- Durante la carga se encenderá un piloto de color rojo.
- Cargar siempre la batería con el altavoz apagado.
- Nunca utilizar el altavoz mientras está cargando.
- Nunca interrumpir la carga hasta carga completa.
- Si no utiliza el altavoz por un tiempo debe mantener la batería siempre con carga.
Para ello, cargar la batería una vez al mes.
- Si la batería llega a quedarse sin carga y tarda en cargarla, puede averiarse.
NOTA.
Las baterías no entran en garantía por considerarse pieza consumible por desgaste del uso.

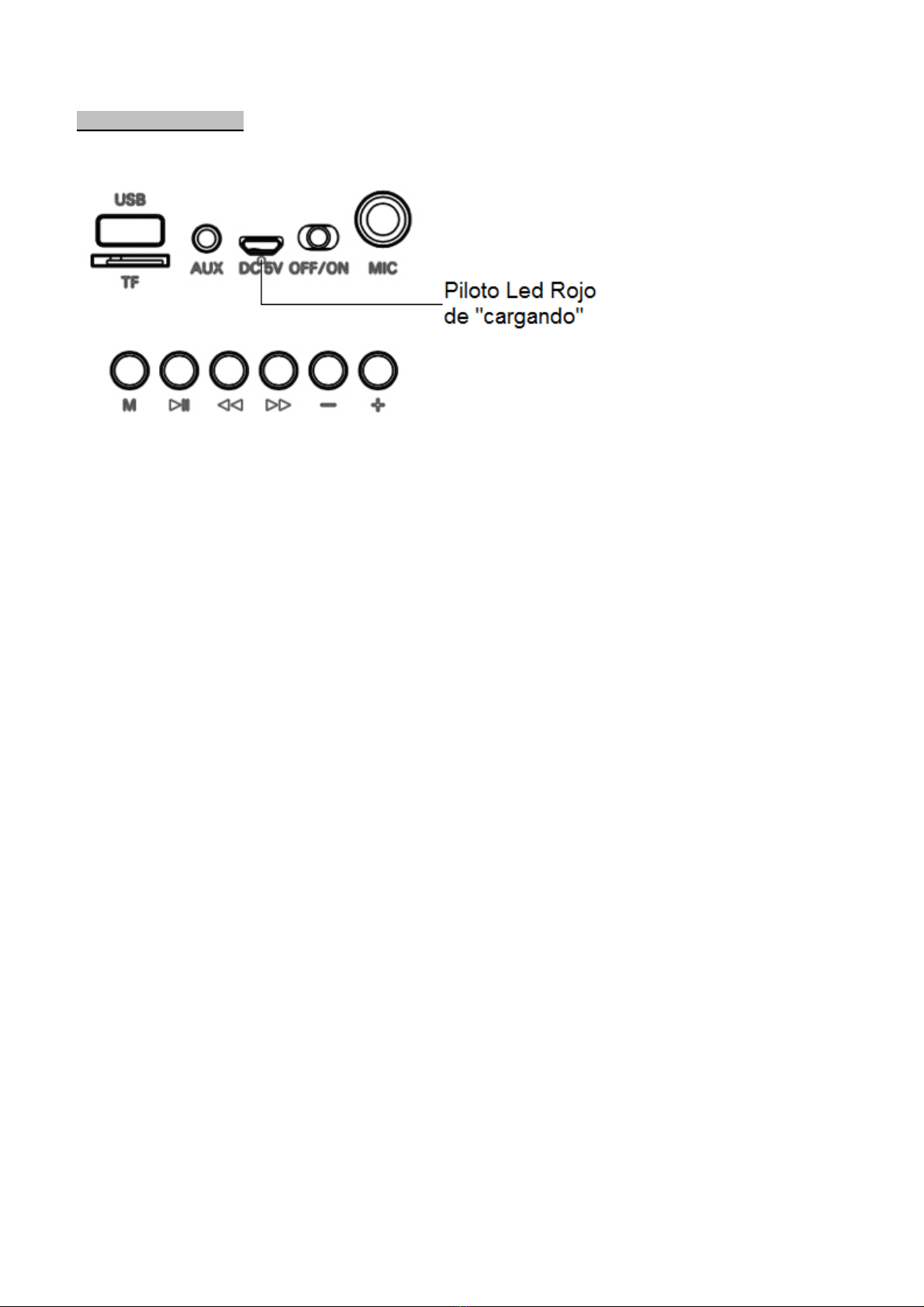

Paneles De Control.
OFF / ON: Para encender / apagar el altavoz.
AUX (Line In): Conector para conectar dispositivo externo mediante un cable tipo jack.
DC 5V: Conector MicroUsb para cargar la batería.
Ranura USB: Se utiliza para leer los archivos MP3 en formato FAT32 desde un Pendrive.
Ranura TF: Se utiliza para leer los archivos MP3 en formato FAT32 desde tarjeta de memoria TF.
Mic: Conector para conectar el micrófono para la función Karaoke.
"M" (Mode). Pulsación corta para cambiar de dispositivo entre bluetooth, Aux(Line In), Usb/TF y FM.
"►ll " (Reproducir/Pausa). Pulsación corta para reproducir y pausar en los modos bluetooth,
Usb y TF.
"◄◄"(ANTERIOR). Pulsación corta para pasar a la pista anterior en los modos bluetooth,
Usb, TF y FM.
"►►"(SIGUIENTE). Pulsación corta para pasar a la siguiente pista en los modos bluetooth,
Usb, TF y FM.
"-": (Signo menos). Presione para bajar el volumen.
"+": (Signo más). Presione para subir el volumen.

Conexión a dispositivo Bluetooth.
- Encienda el altavoz y active el bluetooth del dispositivo externo a vincular.
- Busque en el dispositivo externo el modelo del altavoz "GR-WSK60" y seleccionar.
- Una vez emparejado el dispositivo, ya puede escuchar música en el altavoz.
- Cada vez que encienda el altavoz se conectará al dispositivo automáticamente siempre y
cuando el dispositivo tenga activado el bluetooth.
- Para vincular un nuevo dispositivo, tiene que desactivar el bluetooth del dispositivo anterior
y activar el bluetooth del nuevo dispositivo a vincular.
- Para cambiar canciones, pausar, subir o bajar volumen, ver "Paneles de control" (apartado anterior).
Nota.
Cuando enciende el altavoz, entra directamente en modo Bluetooth, siempre y cuando no haya
metida ninguna tarjeta TF y tampoco ningún Pendrive puesto.
Puerto Usb / Tarjeta TF.
- Encienda el altavoz y por defecto entrará en modo bluetooth.
- Si ya tiene puesta tarjeta TF ó Pendrive, entrará en reproducción de la música de éstos.
- Inserte un pendrive ó una tarjeta TF (MicroSD), con música Mp3 y formato Fat32.
- El altavoz empezará a reproducir la música automáticamente.
- Para cambiar canciones, pausar, subir o bajar volumen, ver "Paneles de control" (apartado anterior).
Radio FM.
- Encienda el altavoz y por defecto entrará en modo bluetooth.
- Si tiene puesta tarjeta TF ó Pendrive, entrará en reproducción de la música de éstos.
- Pulsar el botón "M" pausadamente hasta seleccionar el modo FM.
- Para cambiar canciones, pausar, subir o bajar volumen, ver "Paneles de control" (apartado anterior).
NOTA:
Si la recepcin de la emisora no es buena, conecte un cable Micro USB y deje suelto el otro extremo.
Este cable hará la función de antena.
Aux (Line In).
- Encienda el altavoz y por defecto entrará en modo bluetooth.
- Si tiene puesta tarjeta TF ó Pendrive, entrará en reproducción de la música de éstos.
- Conectar en este conector la clavija jack que viene del dispositivo externo.
- Pulsar el botón "M" pausadamente hasta seleccionar el modo Aux (Line In).
- La intensidad del volumen dependerá del nivel de volumen del dispositivo externo.
- Se aconseja poner el dispositivo externo a un volumen medio para que el altavoz no distorsione.

CONDICIONES DE GARANTIA
1. Este aparato estcubierto contra cualquier defecto de fbrica.
2. El aparato se cambiarsiempre y cuando estdentro del plazo de cambio y se devuelva
con todos sus accesorios y embalaje.
3. La garanta servlida siempre y cuando el aparato vaya acompaado de su factura o ticket de
compra donde salga reflejado el aparato o también su tarjeta de garanta debidamente
cumplimentada y sellada.
4. El aparato estarexento de garanta (no cubierto) cuando:
a) El aparato tenga señales de golpes y/o caídas.
b) El aparato presente signos de mal uso.
c) El aparato tenga signos de uso excesivo.
d) El aparato estmanipulado inadecuadamente.
e) No tiene documento acreditativo (tarjeta, ticket o factura compra).
f) El aparato no se ha usado segn las instrucciones de uso.
NORMAS DE PROTECCIO N DEL MEDIO AMBIENTE
Este aparato no se debe desechar con los residuos domsticos cuando finalice su durabilidad,
sino que se debe ofrecer a un centro de reciclaje de aparatos elctricos y electrnicos
domsticos. Este smbolo en el aparato, manual de instrucciones y embalaje le avisa de esta
precaución muy importante para el medio ambiente.
Los materiales utilizados en este aparato se pueden reciclar. Mediante el reciclaje de electrodomsticos,
usted contribuye a fomentar la proteccin del medioambiente.
Consulte a sus autoridades locales para obtener informacin acerca del punto de recogida.

WIRELESS SPEAKER PORTABLE
INSTRUCTIONS MANUAL
GR-WSK60
Read this manual carefully before using the device for the first time.
Save the manual for future reference.

Dear Customer:
We thank you very much for having purchased this GOROCK® product.
Our main commitment is to provide excellent articles, maintaining the strictest quality controls
and compliance with all applicable safety regulations, with the aim of presenting a perfect and safe
product for home use.
SPECIFICATIONS
-20KHz
-108.0Mhz
TF: 32GB
ours.
nction.
Accessories:
Charging cable.
Audio cable.
Microphone.
Battery Instructions.
- Charge the battery completely (for 2 hours) before using for the first time.
- Charging must be done with a 5V adapter and minimum 1A.
- A red light will light up during charging.
- Always charge the battery with the speaker off.
- Never use the speaker while charging.
- Never interrupt charging until full charge.
- If you do not use the speaker for a while, you should always keep the battery charged.
To do this, charge the battery once a month.
- If the battery runs out of charge and takes a long time to charge, it may break down.
NOTE.
The batteries do not come under warranty because they are considered a consumable part due to
wear and tear.

Control Panels.
OFF / ON: To turn on / off the speaker.
AUX (Line In): Connector to connect external device using a jack type cable.
DC 5V: MicroUsb connector to charge the battery.
USB slot: Used to read MP3 files in FAT32 format from a Pendrive.
TF slot: Used to read MP3 files in FAT32 format from TF memory card.
Mic: Connector to connect the microphone for the Karaoke function.
"M" (Mode). Short press to switch between Bluetooth, Aux (Line In), Usb / TF and FM.
"►ll " (Play/Pause). Short press to play and pause in bluetooth modes, Usb and TF.
"◄◄"(Previous). Short press to go to the previous track in bluetooth modes, Usb, TF and FM.
"►►"(Next). Short press to go to the next track in bluetooth modes, Usb, TF and FM.
"-": (Minus sign). Press to decrease the volume.
"+": (Plus sign). Press to increase the volume.

Bluetooth device connection.
- Turn on the speaker and activate the bluetooth of the external device to pair.
- Search in the external device for the speaker model "GR-WSK60" and select.
- Once the device is paired, you can now listen to music on the speaker.
- Each time you turn on the speaker it will connect to the device automatically as long as
The device has Bluetooth enabled.
- To pair a new device, you have to deactivate the bluetooth of the previous device
and activate the bluetooth of the new device to pair.
- To change songs, pause, increase or decrease volume, see "Control Panels" (previous section).
Note.
When you turn on the speaker, it goes directly into Bluetooth mode, as long as there is no
no TF card and no Pendrive put.
Usb Port / TF Card.
- Turn on the speaker and by default it will enter bluetooth mode.
- If you already have a TF or Pendrive card, you will be able to play their music.
- Insert a pendrive or TF card (MicroSD), with Mp3 music and Fat32 format.
- The speaker will start playing music automatically.
- To change songs, pause, increase or decrease volume, see "Control Panels" (previous section).
FM Radio.
- Turn on the speaker and by default it will enter bluetooth mode.
- If you have a TF or Pendrive card, you will be able to play their music.
- Press the "M" button slowly until the FM mode is selected.
- To change songs, pause, increase or decrease volume, see "Control Panels" (previous section).
NOTE:
If the reception of the station is not good, connect a Micro USB cable and leave the other end loose.
This cable will do the antenna function.
Aux (Line In).
- Turn on the speaker and by default it will enter bluetooth mode.
- If you have a TF or Pendrive card, you will be able to play their music.
- Connect the jack plug from the external device to this connector.
- Press the "M" button slowly until selecting the Aux (Line In) mode.
- The intensity of the volume will depend on the volume level of the external device.
- It is advisable to set the external device to a medium volume so that the speaker does not distort.

WARRANTY CONDITIONS
1. This appliance is covered against any factory defects.
2. The device is changed for a new one as long as it is within the change period and is returned with all
accessories and packaging in good condition.
3. The guarantee will be valid as long as the appliance is accompanied by your invoice or purchase ticket
where the exact device and model, or your warranty card duly completed and sealed, is reflected.
4. The appliance will be exempt from warranty when:
a) The appliance has signs of knocks and / or falls.
b) The appliance shows signs of misuse.
c) The appliance has signs of overuse.
d) The appliance is improperly handled.
e) No supporting document. (Card, ticket or invoice).
f) The appliance has not been used in accordance with the instructions for use.
GUIDELINES FOR PROTECTION OF THE ENVIRONMENT
This appliance should not be put in to the domestic garbage at the end of its durability, but
must be offered at a central point for their cycling of electric and electronic domestic
appliances. This symbol on the appliance, instruction manual and pack again put your attention
to this import an tissue.
The materials used in this appliance can be recycled. By recycling of used domestic appliances, you
contribute important push to the protection of our environment. Ask your local authorities for
information regarding the point of recollection.
