Goat Story Arco HGADSV01S01B120V User manual

The instructions in this manual apply to the GOAT STORY ARCO 2-in-1 coffee grinder.
Please read this manual carefully before using the grinder. LEARN MORE
2-in-1 Modular Coffee Grinder
USER MANUAL

1
Product name: ARCO 2-in-1 coffee grinder
Version: V01S01
This manual applies to models:
HGADSV01S01B120V
HGADSV01S01A100V
HGADSV01S01F230V
HGADSV01S01G230V
HGADSV01S01I230V
HGADSV01S01J230V
ARCO 1-year limited warranty
EQUA d.o.o. (with its trade mark GOAT
STORY) issues a warranty for the product and
accessories against defects in materials and
manufacturing for one year from the date of
purchase. The warranty does not cover wear
and tear or damage caused by accident or
abuse. If you submit a valid claim under this
warranty, EQUA d.o.o. will either repair, replace
or refund your ARCO 2-in-1 coffee grinder at its
own discretion. The benets of this warranty
are in addition to laws provided under local
consumer laws.
You may require to present proof of purchase
when making a claim under this warranty.

2 3
HELLO&WELCOME
Thank you for choosing ARCO 2-in-1 modular
coffee grinder!
ARCO makes it easy to grind coffee manually or
with electric assistance for any brewing method,
from ibrik to cold brew, with spectacular
laboratory tested grind precision. All this can
only lead to one result – a stellar cup of coffee.
Before you start, take a few moments and read
this brochure. It will help you get familiar with
ARCO’s handling and functions.
Now let’s change the way you grind coffee. Forever.
IMPORTANT INFORMATION
- Read the user manual carefully before you use the appliance for the rst time. Keep it safe for
later reference.
- EQUA d.o.o. (GOAT STORY) refuses all liability for loss or damage which arises as a result of
failure to follow the instructions in this user manual.
- This appliance is intended to be used in household and similar applications such as staff kitchen
areas in shops, oces, and other working environments, farm houses and similar and for the
purposes described in the user manual. Commercial or industrial use will void the warranty.
CONTACT
web: www.goat-story.com
email: [e-mail]
EQUA d.o.o. / GOAT STORY
Koprska 106d,
1000 Ljubljana
Slovenia, EU
US distributor: ZIVIO LLC,
16192 Coastal Hwy,
Lewes, DE 19958, USA
Designed in EU / Made in China

45
SAFETY WARNINGS
- This device has a grounding plug. To ensure
the protection against electrical shock or/
and re hazard, use it with properly grounded
outlets only.
- Always mount the hand grinder to the electric
dock before you turn on the power switch. Not
doing so results in exposure of dangerous
moving parts.
- Make sure that the hand grinder is perfectly
tted on the dock before turning the power
switch on.
- Do not try to modify or in any way change the
plug or your socket.
- Do not plug this appliance to a socket with the
voltage or frequency other than specied on the
bottom of this appliance.
- Before plugging in the appliance, check the
voltage and frequency information on the
bottom of the appliance.
- Do not use any type of adapter with this
appliance.
- Only use approved extension cords with greater
electrical ratings than this appliance.
- Unauthorized use and technical modications
to the appliance can result in electric shock or
injury.
- This appliance is not water or splash proof.
- Always disconnect the appliance from the
supply if it is left unattended and before
assembling, disassembling, or cleaning.
- Switch off the appliance and disconnect from
the supply before changing accessories or
approaching moving parts.
- The appliance must be switched off before
mounting/unmounting the hand grinder from/to
the electrical dock.
- Always unplug the appliance from the electrical
outlet before maintenance or cleaning.
- If you notice a problem or issue with the
appliance, unplug the appliance from the
electrical outlet.
- Never use this appliance if the power cord or
power plug is damaged as it can result in electric
shock or injury.
- If the power cord or plug is damaged it must be
replaced by the manufacturer or by a qualied
expert.
- Do not use damaged extension cords.
- Any repairs may only be done by authorized
service personnel. For this reason, please
contact our customer service at info@goat-
story.com.
- Never unplug this appliance by pulling the
cable. Always grasp the plug and pull gently.
- This appliance can be used by people aged 18
or above.
- This appliance can be used by persons with
reduced physical, sensory, or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved.
- This appliance shall not be used by children.
Keep the appliance and its cord out of reach of
children.
- Children shall not play with the appliance.
- Cleaning and device maintenance shall not be
made by children without supervision.

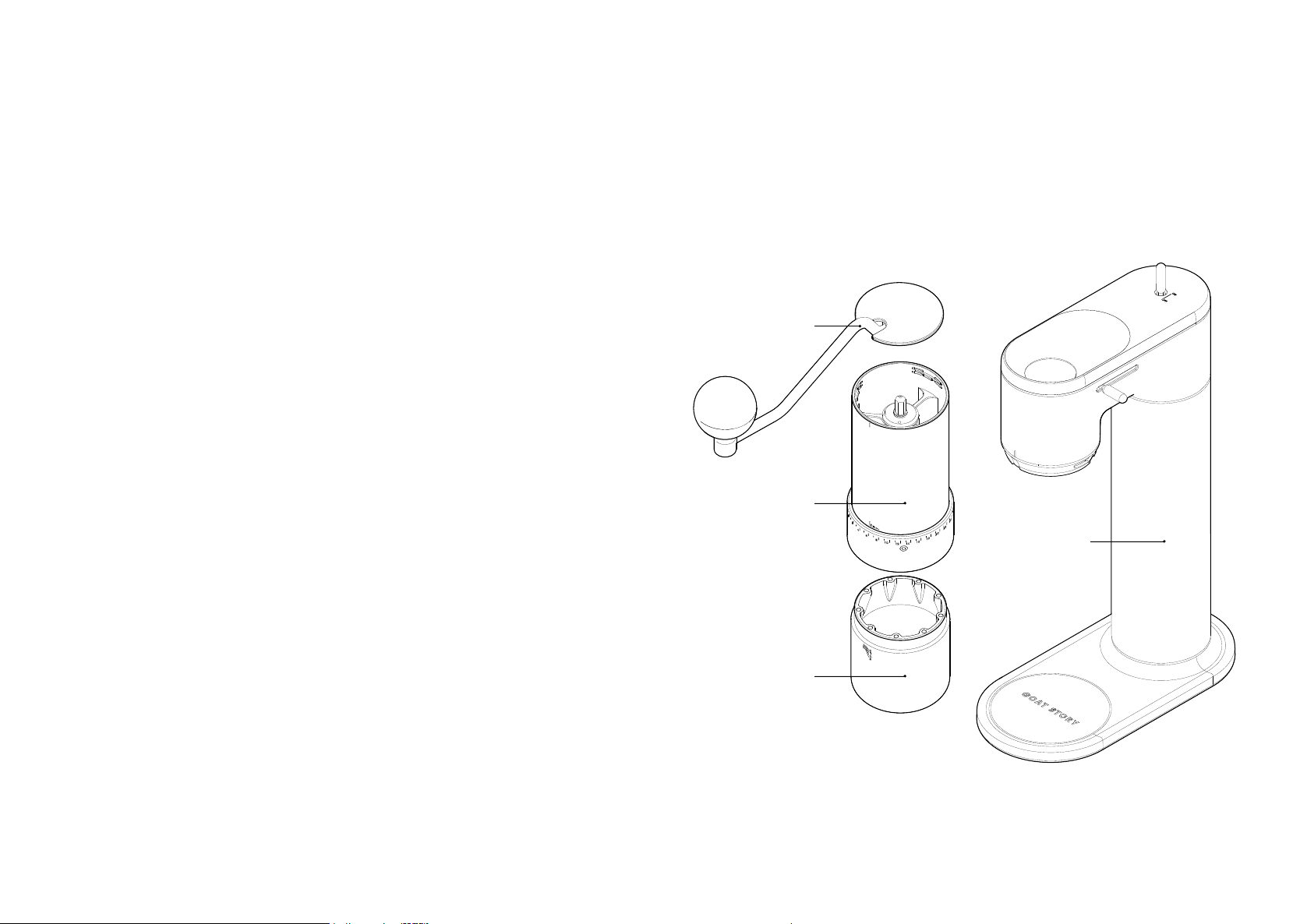

WHAT’S IN THE BOX?
HAND CRANK
HAND GRINDER
ELECTRIC DOCK
MAGNETIC CUP

67
ARCO HAND GRINDER

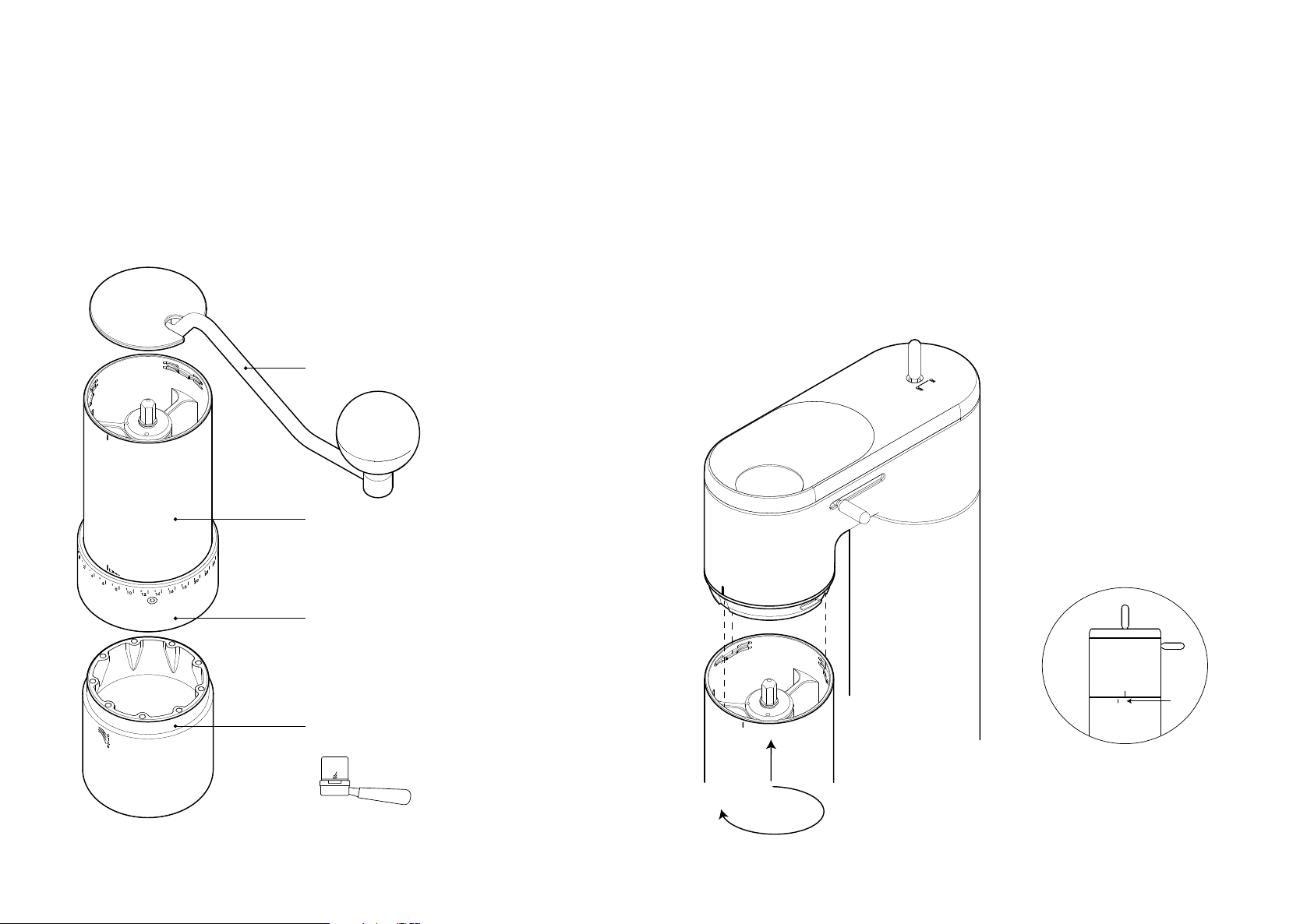

The ARCO hand grinder is a versatile high precision coffee grinder with 240 easy to adjust grind
settings. It can be used as a standalone hand grinder or attached to the ARCO electric dock.
How to grind coffee with the ARCO hand grinder:
1. Add coffee into the opening.
2. Attach the hand crank.
3. Attach the catcher/doser cup.
4. Grind by turning clockwise.
HAND CRANK
ALUMINIUM BODY (CAPACITY 50G)
SETTING RING (240 SETTINGS)
MAGNETIC CATCHER/DOSER CUP (CAPACITY 50G)
FITS 58MM ESPRESSO PORTAFILTERS
ONLY USE THE MAGNETIC CATCHER/DOSER CUP TO MINIMIZE STATIC
CONNECTING THE HAND GRINDER TO THE
ELECTRIC DOCK
The ARCO 2-in-1 coffee grinder has a simple bayonet mechanism to attach the hand grinder to the
electric dock. This type of attachment is simple to use, durable and secure.
How to attach/detach the hand grinder:
1. Fit the hexagon shaft on the hand grinder into the opening in the electric dock.
2. Push and turn the hand grinder clockwise (to the left).
3. Turn until the marks on the hand grinder and electric dock align.
(The mark on the hand grinder can also be to the left of the mark on the electric dock)
5. To remove the hand grinder, rotate it counterclockwise (to the right).
MARK ON THE HAND GRINDER MUST BE ALIGNED OR TO THE
LEFT SIDE FROM THE MARK ON THE ELECTRIC DOCK.
1. PUSH UP
2.TWIST CLOCKWISE

8 9
ARCO 2-IN-1 COFFEE GRINDER
How to grind:
The ARCO 2-in-1 coffee grinder uses an electric motor with a powerful gearbox to transfer the torque
to the hand grinder. The grinder was tested using several types of coffee beans from ultra light
roasts to darker espresso roasts.
How to grind with ARCO 2-in-1
1. Attach the hand grinder to the electric dock (see instructions on previous page).
2. Open the bean loader cover.
3. Add coffee (capacity 50g).
4. Attach the magnetic cup.
5. Turn on the grinder using the ON/OFF switch.
6. When the coffee is ground, switch the grinder OFF.
ON-OFF SWITCH
SINGLE DOSE BEAN LOADER
BEAN LOADER COVER SWITCH
DOCK ATTACHMENT MARK
MOTOR
WARNING!
Do not overheat the grinder!
After 3 minutes of continuous grinding you should not use the
grinder for 20-30 minutes. This enables the internal dynamic
components to cool down.
(3 min = appr. 6 x 20g grind batches at espresso grind setting)
ONLY USE THE MAGNETIC CATCHER/DOSER CUP TO
MINIMIZE STATIC !
GRIND ADJUSTMENT
The ARCO grind adjustment system has a total of 240 grind settings that range from very ne (e.g.
for ibrik) to very coarse (e.g. for cold brew).
The setting system has a setting ring on the outer body of the grinder that allows for quick and
accurate grind adjustment. The setting ring can be rotated by 4 full rounds with 60 settings (clicks)
in each round.

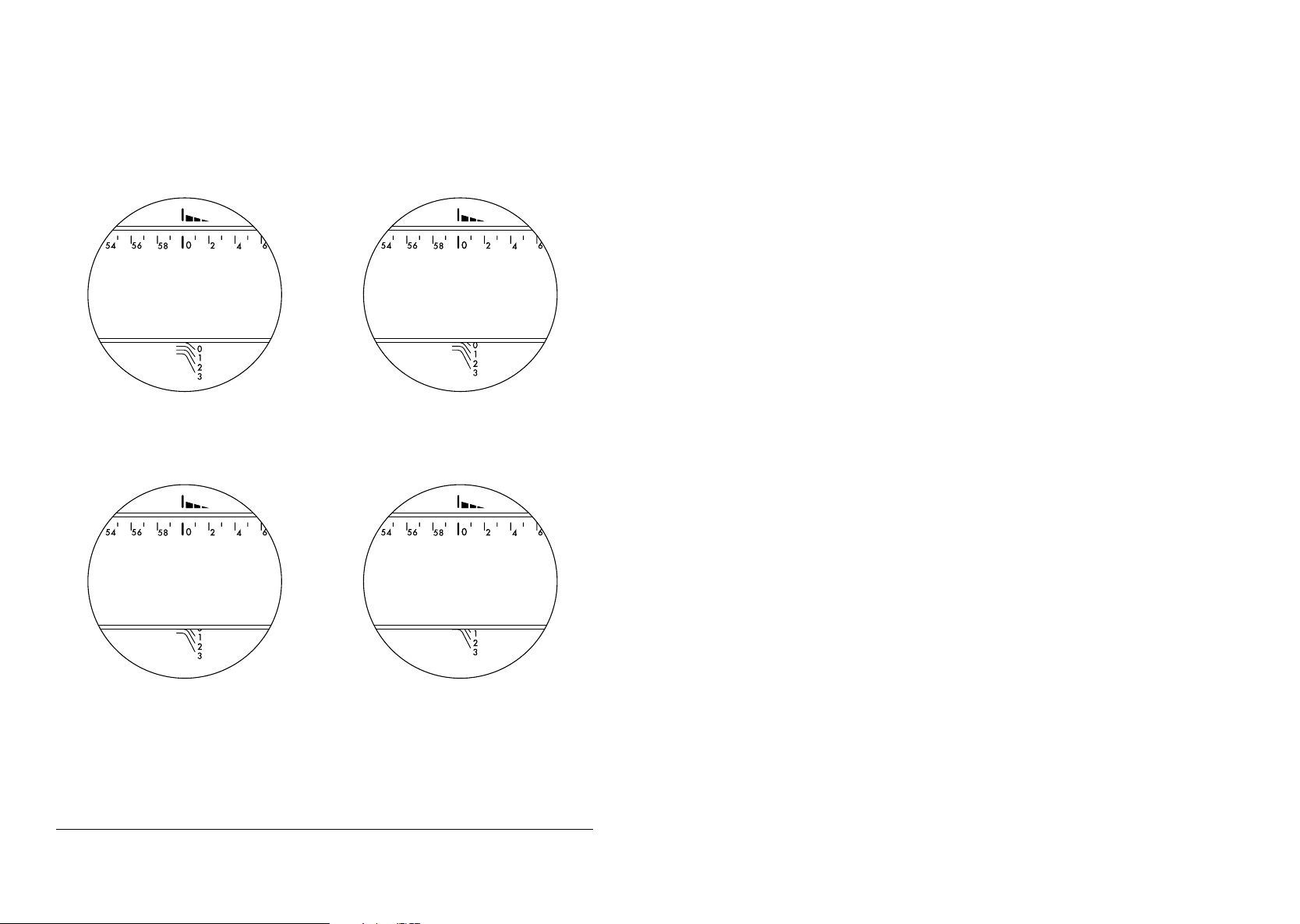

The grinder has two grind marks:
- Horizontal circular scale (indicates the number of clicks in one rotation).
- Vertical scale (indicates how many full rounds the setting ring has made).
To check the grind setting, rst check the vertical scale (indicating rounds 0, 1, 2 and 3) and then the
horizontal circular scale.
ZERO POINT MARK
CIRCULAR SCALE
(INDICATES THE GRIND SETTING WITH 60 CLICKS PER
ROTATION)
VERTICAL SCALE
(ROUND INDICATOR)

10 11
GRIND SIZE CHART
Recommended grind settings:
ZERO POINT
120 CLICKS
60 CLICKS
180 CLICKS
CARE &MAINTENANCE
Prior to any maintenance and/or cleaning,
switch off and unplug the grinder from the
power outlet.
- Do not use chemicals or cleaning substances
to clean the grinder.
- Clean external surfaces with a damp cloth and
dry well.
- Clean the burrs gently with a dry soft brush.
Disassembly is needed to clean the burrs.
Please see pages 12 to 13 for instructions.
- Do NOT immerse the grinder in water. Do NOT
wash the burrs with water.
- Wash the catcher/doser cup with warm soapy
water and dry completely before use.
IBRIK
0/0-35
ESPRESSO
0/30-60
MOKA POT
1/0-40
FILTER
1/20-60
FRENCH PRESS
2/0-60
COLD BREW
3/0-60

12 13
Step 1
Insert the burr axe locker into the disassembly
hole in the nut and align with the hole in the
grinder body. The burr axe locker should sit at
the bottom of the grinder body opening.
(example A)
REMOVING THE BURRS
To clean the burrs, you need to disassemble the grinder and remove the inner burr from the grinder.
A special tool is needed and is included in the box.
BURR AXE LOCKER
EXAMPLE A
EXAMPLE B
Step 2
Attach the hand crank and turn counterclockwise (to the left) until the shaft is released from the
grinder body.
Step 3
To assemble the grinder, insert the shaft with
all parts in the correct order. Turn the handle
clockwise until you feel resistance. Do not
overtighten!
IMPORTANT: Remove the burr axe locker after
cleaning to avoid damage to the grinder!!!
HAND CRANK
TURN RIGHT (ASSEMBLY)TURN LEFT (DISASSEMBLY)
NUT
CENTRAL SHAFT
DANISH SPRING
SPACER
INNER BURR
BURR LOCK PIN

14 15
DISPOSAL
The European directive 2012 / 19 /
CE on Waste Electrical and Electronic
equipment (WEEE), requires that old
household electrical appliances must
not be disposed in the normal unsorted
municipal waste stream. Old appliances
must be collected separately in order to
optimize the recovery and recycling of
the materials they contain and reduce
the impact on human health and the
environment.
PRODUCT SPECIFICATIONS -DOCK 2 IN 1
PRODUCT SPECIFICATIONS - HAND GRINDER
Unit dimensions / mm
Unit dimensions / Inch
Weight
Motor / 230V / EU
Motor / 120V / US
Motor / 100V / JP
Speed
(H × W × D) 280 × 92 × 190 mm
(H × W × D) 11” × 3.6” × 7.5”
3000g / 6.6 Lbs
AC 220-240V 50-60Hz 200W
AC 110-130V 50-60Hz 200W
AC 90-110V 50-60Hz 200W
~ 360 Rpm
Unit dimensions / mm
Unit dimensions / Inch
Weight
Unibody capacity
Catch capacity
Unibody material
Catch material
Crank material
Conical burr
Catch/Doser
(H × W × D) 200 × 62 × 190 mm
(H × W × D) 7.9” × 2.4” × 7.5”
800g / 1.76 Lbs
50g
50g
Aluminum 6000 alloy/powder coating finish
Aluminum with plastic interior
Steel with plastic knob
Nitrided steel 47/32mm
Compatible with 58mm portafilter

Change the way you grind coffee. Forever.

Designed in EU / Made in China
