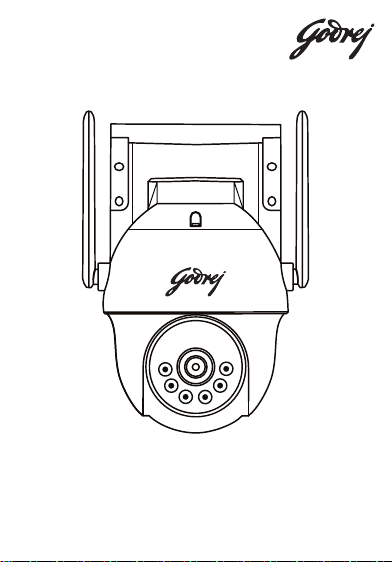

ACE PRO 4G MINI PT
USER MANUAL

BLANK

Do’s
While inserng/removing the memory card, ensure camera
is in power OFF condion
Only use a Class 10 and above micro-SD card
Always recycle your product in an environment friendly way
Always use Micro 4G SIM to make camera online.
Godrej ACE Pro 4G Mini PT support all 4G SIM in india
Place-install your camera on a steady or firm base surface
Switch off the camera if not in use
Godrej Godrej ACE Pro 4G Mini PT camera can be use
in indoor as well as outdoor environment
Don't’s
In case of dust accumulaon on lens protecon glass,
use a dry cloth to clean the surface
Do not rotate PT camera joints manually. Always use
the mobile app to adjust camera angles
Do not install camera in front of a bright light
Safety Instructions
Do not install the camera upside down

Package Content
Mounng Screws Hoops - 1 no
Quick Start Guide
Quick Start Guide
Dome Camera - 1 no
Know your product
Buon Operaons
Press the reset buon and hold for 10-15 sec in the power-on state: Reset
(*Note: Please open the speaker cover when using the reset button / SD cardslot.)
Power output
Lens
Infrared & Spot Light
Speaker
4G Card Slot - SD Card Slot
3
10
6
2
1
MIC
Antenna
8
4
9
Base
7
5
Human Infrared
Sensor (PIR)
Photosensivity
Sensor

•3MP Pan/Tilt Smart ACE Pro 4G Mini PT
•Horizontal rotaon of 263 degrees, vercal rotaon of 105 degrees
•Built-in high-sensivity Mic and Speaker, Supports two-way audio
•With white light and infrared light, Supports 2 Night Vision modes:
1) B/W mode, 2) Full color mode
•Supports Human Detecon - The device can turn on white light when
someone is spoed in the monitoring area. And the real-me alarm
push informaon is sent on Godrej ACE mobile app
•Moon Tracking - When a human figure is detected camera will start
tracking automacally
•Built-in Siren - Siren will be trigger when human movement is
detected. The sound/voice of the siren can be customized.
•Unique All-Time-Color vision
•Supports Micro SD Card Up to 256GB (Micro SD card is not part of
package)
•4G connecon - Scan the QR code to easily connect the camera
•Supports Monitoring - PC Client to view via Godrej ACE CMS/Mobile
client to via Godrej ACE app
•IP66 Waterproof Rang - 4000 Lightning Protecon
Note: Company reserves the right to change the features/specificaons of
product without noce.
Features & Functions

Image Sensor
Resoluon
Lens
IR LED
IR Distance
White LED
White LED Distance
Video Encode Stream
Audio input\Output
WDR
4G Frequency Band
Alarm
Power Input
Power Consumpon
Working Temp
Housing Type
Dimension
Net Weight
Gross Weight
Product Specifications
1/3” CMOS Sensor
3MP: 2304 x1296
4mm @ F1.6, View Angle: 53°
(Horizontal), 81° (Diagonal)
6 LED
30 Meter
6 LED
20 Meter
2304 x1296\15FPS; Substream: 640 x 360\15FPS
Supports Two-Way Audio, Built-In Microphone
and Speaker
Supports DWDR
FDD-LTE : B1/B3/B5/B8;
TDD-LTE : B34/B38/B39/B40/B41
1. Moon Detecon, Alarm Picture Push
2. Human Detecon
DC12V/1A
≤6W
0~500C RH Less Than 95% (No Condensaon)
Plasc [IP 66]
132 x191x170mm (WxHxL)
523gm
600gm
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:

A] APP Download and Installaon
Users can search for “Godrej ACE” on App store or Google Play.
You can also install the App by scanning the QR code.
B] Account Login
Account login: On the login
interface, enter the account/
phone number/ email, and the
corresponding password, click
"Confirm” buon to log in.
Note: The app requires iOS version 9.0 or Android version 5.0 or above.
C] 4G SIM Card Installaon
When the device is powered off,
insert a 4G card that can access
the Internet into the device.
Software Installation
Android App iOS App

Device Mall Me
6:00 PM 77%
Device Group
Learn video
Add Smart Device
6:00 PM 77%
Other ways to add
After power on, scan the QR code on the
device or displayed on the monitor.
Live Chat
2. Connect the device to the power
supply. Wait for the successful
connecon voice prompt.
3. Scan the Q R code on the
device.
6:00 PM 77%
Continue
Set device name
Give the device xxxxxxxx a name
Device
The following can be directly selected
Living room Bedroom
Office
Study room
Confirm
4. In the search device interface,
click "Add"
5. Aer seng the name &
password for the device, it will be
added successfully.
ID: xxxxxxxxxx
(*The picture is only for reference, please
refer to the actual product)
Add
WLA N
6:00 PM 77%
Search device
Search code is successful, please click “Add”

When the QR code scanning fails (or the scan code is unsuccessful)
WLA N
6:00 PM
Add by ID
77%
Cloud ID
Device name Device
User name admin
Password Input device password
IP/DDNS add
WLA N
6:00 PM
Other ways to add
77%
Standalone camera
Most configured
Kit
Configure all packages
LAN scan
Add by ID/IP
Battery camera
scan code to add devices
Live Chat
1. Select "Add by ID/IP" under
"Other Adding Methods”
2. Enter the device ID and password.
Click Finish on the upper right corner
to add successfully.
Camera installaon - For a smooth camera installaon process, refer to
our camera screw mount guide to accurately posion the holes on your
wall. When working with cement walls, ulize our sturdy plasc plugs to
securely fasten the camera in place.
Note:
- It is crucial to avoid installing the camera in areas with turbulent airflow. Examples include air
condioner outlets, equipment heat dissipaon ports, fan sides, or near curtains. Addionally,
please refrain from placing the camera directly in front of glass or mirrors.
- The height of the camera installaon should be 2.5M-3M.
- Mounng using the provided mounng screws are recommended, the hoop is for addional
support.
Mounting

To avail warranty, please call our customer care number: 1800-209-5511
and produce the invoice details.
Note
We advise buying our products from authorized sellers. Warranty will be
void and service will not be provided for products purchased through
unauthorized sellers.
Customer shall adhere to all safety norms while installing and operang the
product. The company shall not be liable for any damage, personal injury or
death caused to the customer or any third party due to the negligence on the
part of the customer or such third party, commied by way of improper
installaon, usage or handling of the product, which is not in accordance
with the instrucons provided by the company.
Not covered in warranty
Any damage resulng from mishandling or improper usage or lack of
maintenance. Gas leakage, fire, burglary, accident, dropping, excessive
shock, acts of nature, loss of components or accessories, replacement/
repair by anyone other than authorized personnel, consumable parts like
lights, baeries, plasc parts and accessories.
Under any circumstances company will not be liable for any damage caused
due to power fluctuaons / surges, excessive power supply voltage or
improper earthing.
To setup your camera's, download the Godrej ACE applicaon and signup.
The app will guide you thought the rest. You can view the camera feed
using Godrej ACE Mobile applicaon or by login into Godrej ACE CMS via
your windows desktop.
Godrej ACE Pro App and Website
Warranty

Important Instrucons
Since the product is an IP based CCTV equipment, the use of the product
shall be wholly at your own risk. Godrej & Boyce Mfg Co Ltd will take all
reasonable security pracces to prevent unauthorised access, damage,
misuse or modificaon of the data stored in the servers in India. Godrej &
Boyce Mfg Co Ltd shall not take any responsibility for abnormal operaon,
privacy leakage or other damages resulng from cyber-aack, hacker
aack, virus aack or other internet security risks. However, Godrej &
Boyce Mfg Co Ltd will provide mely technical support if required and asked
for. In no event will Godrej & Boyce Mfg Co Ltd, its directors officers,
employees or agents are liable to you for any consequenal , incidental or
indirect damages, including among others , damages for loss of business
profits , business interrupon or loss, damage corrupon, recovery of data
or documentaon, in connecon with the use of this product, even if
Godrej & Boyce Mfg Co Ltd has been advised of the possibility of such
damages.
Godrej & Boyce Mfg Co Ltd disclaims all liabilies connected with and
damages arising out of situaons wherein the suggested default Passwords
or Usernames of all devices like Wi-Fi router to which camera is connected,
Camera default password etc, are not changed from their factory default
values.
Godrej & Boyce Mfg Co Ltd disclaims camera funconality when android or
iOS upgrade their versions. Customer need to upgrade or buy a new
camera hardware for availing new features of android / iOS. Under no
circumstances Godrej & Boyce Mfg Co Ltd will replace the camera.
Under no circumstances Godrej will take onus to retrieve camera video
recordings on cloud or on SD card. Godrej disclaims onus to retrieve cloud
or SD card recording.
It is advised to power off the camera when not in use to ensure
complete privacy. Godrej & Boyce will not be responsible for any
unintended recording captured if the camera is powered on.
All passwords associated directly and indirectly with the funconing
of the Wi-Fi Camera system like Wi-Fi router password, Mobile
Phone password, Godrej ACE app account password etc must be
changed regularly and kept private.
Do not share your Godrej ACE app account password with anyone.
Disclaimer

Dear Customer,
The Ministry of Environment and Forests have published the E-waste
(Management and Handling)Rules 2010, which comes in effect from 1st
May 2012. E-waste is defined as any electrical or electronic component of
products in whole or in part, or rejects from their manufacturing or repair
process, which are intended to be discarded. These rules apply to every
producer, consumer or bulk consumer involved in the manufacture, sale,
and purchase and processing of electrical and electronic equipment or
components as specified in Schedule 1 (please refer to our website
www.godrej.com in the 'Good & Green' secon of CSR module for more
details). Under these rules, specific roles and responsibilies are defined for
producers, consumers and recyclers handling and managing e-waste.
E-waste is to be managed in an environmentally sound manner, which
means taking steps to ensure that health and environment are protected
from adverse effects of hazardous substance contained in such wastes.
Rule 6 of the E-waste (Management and Handling) Rules 2010 states that
bulk consumers of electrical and electronic equipment shall be responsible
for recycling of the e-waste generated by them. Bulk consumer means bulk
users of electronic and electrical equipment such as Central Government or
State Government Departments, public sector undertakings, banks,
educaonal instuons, mulnaonal organizaons, and internaonal
agencies, private companies that are registered under the Factories Act,
1948 and Companies Act,1956. The bulk consumers have to ensure that the
e-waste generated by them is channelized to authorized collecon centre
or is taken back by the producers. They shall maintain records of e-
wastegenerated by them in Form 2 and make such records available for
scruny by the State Polluon Control or the Polluon Control Commiee
concerned.
All consumers of electrical and electronic equipment, irrespecve of their
status as bulk consumers or not, shall ensure that e-waste generated by
them is channelized to authorizedcollecon Centre(s) or registered
dismantler(s), or recycler(s) or is returned to the pick-up/take back services
provided by the producers. (Please refer to our website www.godrej.com in
the 'Good & Green' secon of CSR module for more details).
All our products, intended to be recycled under the category of e-waste (as
defined above), carry alabel or stamp of the WEEE symbol (A wheelie bin
with a cross) , which states that it falls under thehazardous waste category
and is not to be disposed along with normal garbage. We seek your support
in ensuring environmentally sound management of e-waste and aid us in
sustaining our earth's natural resources and maintaining the earth's green
cover intact for the benefit of our future generaons.
INFORMATION ON E-WASTE HANDLING
AND MANAGEMENT

NOTE

NOTE

NOTE

Toll Free: 1800 209 9955 (Sales & Service) [phone] (Service)
Email: [e-mail] (Sales), [e-mail] (Service)
www.godrejsecure.com
godrejsecure
GodrejSecure
Follow us:
GSS/B2C/IMC/ACE PRO 4G MINI PIT USERMANUAL/JULY-2023/V1
Please fill your details below for future reference:
Date of Purchase:
Product Model:
Name & Address of Distributor/Dealer:
Distributor Phone Number:
FOR SAFETY, PLEASE READ THIS MANUAL PRIOR TO USE.
Record of Purchase
