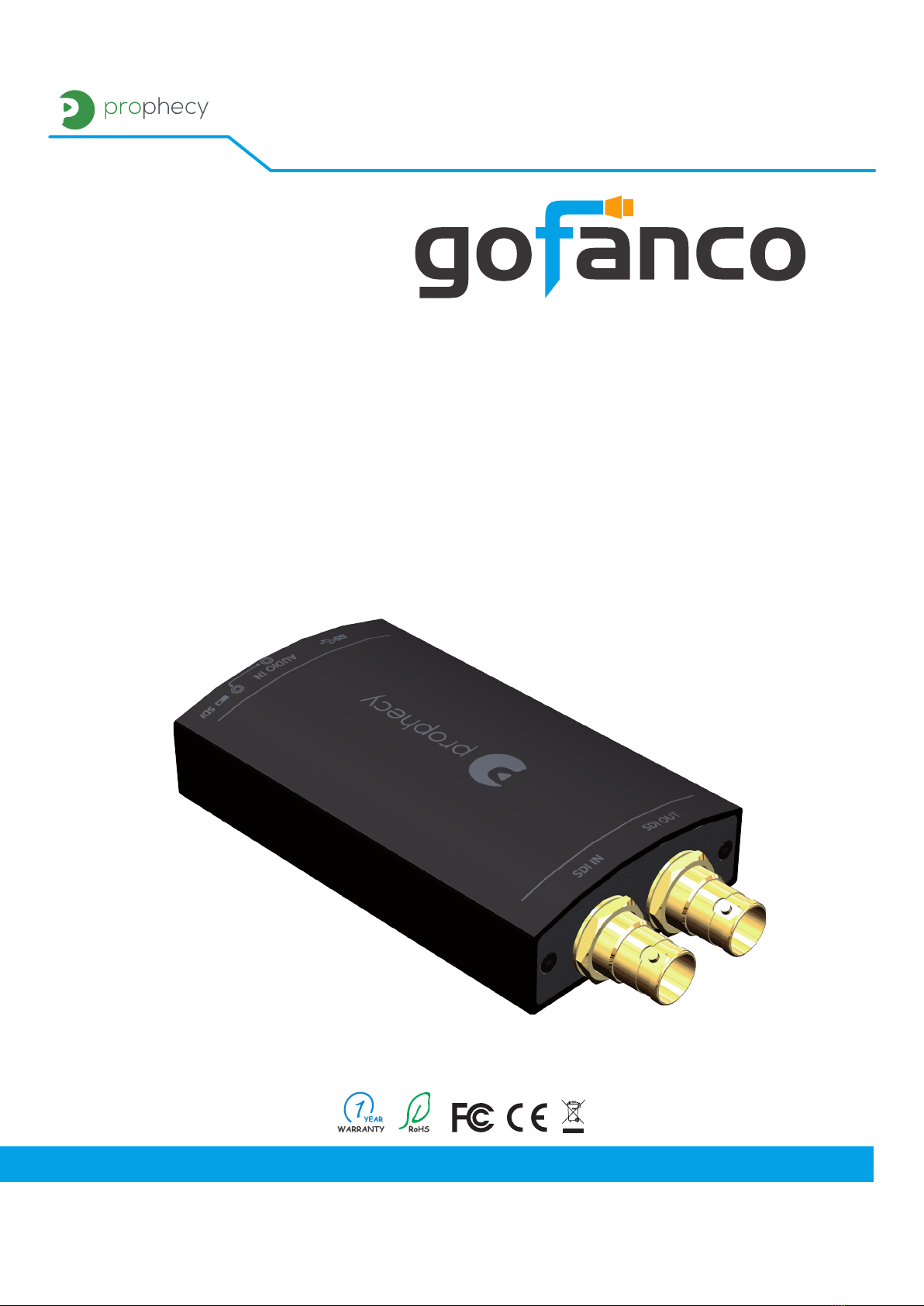

gofanco Prophecy PRO-CaptureSDI User manual

PRO-CaptureSDI
USB 3.0 3G-SDI Capture Device with Audio in
®
Made in Taiwan
User‘s Guide

®
PRO-CaptureSDI
Congratulaons for owning a gofanco product. Our products
aim to meet all your connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit
www.gofanco.com.
For technical support, please email us at
[e-mail].
For drivers/manuals download, please go to
hp://www.gofanco.com/download.

®
PRO-CaptureSDI
• SDIvideoandaudiostreamsoverUSB3.0
• SupportsUVC1.0
• Supportsvideoresolutionupto1080p60Hz
• SupportsSDIloopthrough
• Supportsstereolinein
• Auto-detectiononvideoformattoensureplug-playope-
rations
• RecordingVideoFormat:H.264(SoftwareCompression)
• Worksonmultipleoperationsystemplatforms(Windows
7/8.1/10,MacandLinuxOS)
• Compatiblewithmost3partysoftwaresuchasOBS
StudioandAMCap
2. Features
1. Introduction
3
The PRO-CaptureSDI USB 3.0 3G-SDI Capture Device with
Audioinprovidesaprofessionalwaytocapture3G/HD/SD-
SDIsignals.ItadoptsUSB3.0interface, which can realize
high-speedtransmission.Userscancapture3G/HD/SD-SDI
signalsbythiscapturedevice.Besides,PRO-CaptureSDIcan
captureanddisplayoriginaluncompressed3G/HD/SD-SDI
with more realistic color rendition. PRO-CaptureSDI also
uses large volume image buer technology which eec-
tivelyavoidsthevideotearing.Thehighsamplingrateand
highsamplingaccuracyassureimageswithhighsharpness,
richdetails,andlesscoloredges.
rd

®
PRO-CaptureSDI
• 1xPRO-CaptureSDI
• 1xUSB3.0AtoACable(hosttodevice)
• 1xUserManual
3. Package Contents
• SupportsUSB3.0(MJPG/YUY2)andUSB2.0(MJPG)
• LowLatency
• SystemRequirements(Recommended)
!
4
Windows®7(SP1)/Windows8.1/Windows10
PC:Intel®CoreTMi5-44403.10GHz+NVIDIA®GeForce®GTX
660orhigher
Laptop:Intel®Corei7-4810MQ+NVIDIAGeForceGTX870Mor
higher
4GBRAMorhigher
-
-
-
-
1. Videoqualityisinuencedbythesystem’scapabilityandsoft-
waresettings.
2. PleaseusetheincludedUSB3.0cabletoprotectthedeviceand
avoidcompatibilityissues.

®
PRO-CaptureSDI
4. Specications
Item Description
Roleofusage VideoCaptureDevice
SDIstandards SD-SDI,HD-SDI&3G-SDI
InputVideobandwidth 2.970Gbit/s,2.970/1.001Gbit/s
OutputVideobandwidth
Upto350MBps(USB3.0)
Videosupport Upto1080p60
AudioInput SDIEmbeddedAudio/3.5mmAnalogStereoAudio
AudioFormat 2CH16bitPCM
RecordingMode SoftwareCompression
RecordingVideoFormat YUV2(USB3.0),MJPG(USB2.0/3.0)
ESDprotection
Humanbodymodel—±15kV[air-gapdischarge]&
±8kV[contactdischarge]
PCBstack-up
6-layerboard[impedancecontrol—dierential100Ω;
single50Ω]
Firmwareupdate FeasibleviaUSBport
Input 1xSDI+1x3.5mmstereo
Output 1xUSB+1xSDI(Loopout)
BNCconnector 3G75Ωinter-lockedsocket
USBconnector USB3.0TypeA(SuperSpeedUSB)
Softwarecompatibility
(notcompletelist)
OBSStudio(Windows,Linux),AMCap(Windows),Potplayer
(Windows)¸VLC (OSX,Linux),XSplitBoardcast(Windows),
Skype (Windows, OS X), Zoom (Windows), Hangout (Win-
dows),TeamViewer(Windows)
OSSupport Windows7/8.1/10,MacandLinuxOS
Mechanical
Housing Metalenclosure
Dimensions
[LxDxH]
Model 103x58x20mm[4“x2.3“x0.8“]
Package 165x111x42mm[6.4“x4.4“x1.7“]
Carton 490x426x352mm[1‘6“x1‘4“x13.8“]
Weight Model 128g[4.5oz]
Package 221g[7.8oz]
Powersupply ViaUSB
Powerconsumption 3.24Watts[max]
Operationtemperature 0~40°C[32~104°F]
Storagetemperature -20~60°C[-4~140°F]
Relativehumidity 20~90%RH[nocondensation]
5

®
PRO-CaptureSDI
5. Connection Diagram
6

®
PRO-CaptureSDI
6. Panel Description
1.USB OUT: ConnecttoaUSBhost(PC,NB,MAC…)andFirmware
update
2.Line IN: Connecttoanalogstereoaudiosource
3.Slide Switch: SelecttheaudiosourcefromSDIembedded
audiooranalogstereoaudio


4.SDI IN: Connecttoa3G/HD/SD-SDIsource
5.SDI LOOPOUT:Connecttoa3G/HD/SD-SDIdisplay
7
23 4 5 1
[Left]AnalogStereoAudio
[Right]SDIEmbeddedAudio

®
PRO-CaptureSDI
7. USB Pin Denition
P1
VBUS 1
D- 2
D+ 3
GND 4
StdA_SSRX- 5
StdA_SSRX+ 6
GND 7
StdA_SSTX- 8
StdA_SSRX+ 9
Shield SHELL
8
P2
1
2
3
4
5
6
7
8
9
SHELL

®
PRO-CaptureSDI
9
8. Limited Warranty
TheSELLERwarrantsthePRO-CaptureSDIUSB 3.0 3G-SDI Capture Device with Audio intobefreefromdefects
inthematerialandworkmanshipfor1yearfromthedateofpurchasefromtheSELLERoranauthorizeddealer.
Shouldthisproductfailtobeingoodworkingorderwithin1yearwarrantyperiod,TheSELLER,atitsoption,repair
orreplacetheunit,providedthattheunithasnotbeensubjectedtoaccident,disaster,abuseoranyunauthorized
modicationsincludingstaticdischargeandpowersurges.
Unitthatfailsunderconditionsotherthanthosecoveredwillberepairedatthecurrentpriceofpartsandlaborin
eectatthetimeofrepair.Suchrepairsarewarrantedfor90daysfromthedayofreshipmenttotheBUYER.Ifthe
unitisdeliveredbymail,customersagreetoinsuretheunitorassumetheriskoflossordamageintransit.Under
nocircumstanceswillaunitbeacceptedwithoutareturnauthorizationnumber.
Thewarrantyisinlieuofallotherwarrantiesexpressedorimplied,includingwithoutlimitations,anyotherim-
pliedwarrantyortnessormerchantabilityforanyparticularpurpose,allofwhichareexpresslydisclaimed.
Proofofsalemayberequiredinordertoclaimwarranty.CustomersoutsideTaiwanareresponsibleforshipping
chargestoandfromtheSELLER.Cablesarelimitedtoa30daywarrantyandcablemustbefreefromanymarkings,
scratches,andneatlycoiled.
Thecontentofthismanualhasbeencarefullycheckedandisbelievedtobeaccurate.However,TheSELLERassu-
mesnoresponsibilityforanyinaccuraciesthatmaybecontainedinthismanual.TheSELLERwillNOTbeliablefor
direct,indirect,incidental,special,orconsequentialdamagesresultingfromanydefectoromissioninthismanual,
evenifadvisedofthepossibilityofsuchdamages.Also,thetechnicalinformationcontainedhereinregardingthe
PRO-CaptureSDIfeaturesandspecicationsissubjecttochangewithoutfurthernotice.

®
PRO-CaptureSDI
10

®
PRO-CaptureSDI
11
The product name and brand name may be registered trademarks of related manufacturers. TM and ®
may be omied on the user‘s guide. The pictures on the user‘s guide are just for reference, and there
may be some slight dierences with the actual products.
We reserve the rights to make changes without prior noce to a product or system described herein to
improve reliability, funcon, or design.
