GOLDENSEA UV UVL150 User manual

UVL150
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

www.goldenseauv.com
1
Thank you for purchasing a GOLDENSEA UV product. You have acquired a
powerful and versatile device. We are confident that you will be satisfied with
our excellent products and service. For your own safety, please read this
user manual carefully before installing and operating the device.
Contents
1. Safety Instructions 2
2. Features 5
3. Product Overview 7
4. Dimensional Drawings 8
5. Installation Instructions 9
6. Operation Guide 11
7. Replacing The UV Tube 14
8. Troubleshooting Tips 15
9. Cleaning and Maintenance 16
10.Service 16

www.goldenseauv.com
2
1. Safety Instructions
ATTENTION!
Please read this statement carefully before use.
GOLDENSEA UV products manufactured by Guangzhou Haoyang Electronic Co., Ltd
(GOLDENSEA) are a series of products using ultraviolet rays to sterilize air and surfaces.
Since the metal mercury contained in the ultraviolet lamp and the wavelengths emitted by
the ultraviolet rays are harmful to the human body, we remind the user that when using
this series of products, the user must pay attention to the following:
1. Humans, animals, plants should not be present in the disinfection area while a UV
product is operating, to avoid damage caused by direct UVC irradiation.
2. Only adults who have read and understood the contents of this manual are allowed to
operate the products.
3. Do not place food or electronic devices with temperature resistance below 60
degrees Celsius in the line of sight of this series of products.
4. Never look directly at the lamp when it is active.
5. Do not use the products in a humid environment.
6. Do not place the products on an inclined or uneven surface.
7. Do not place the product on electrical products or near heat sources.
8. Do not continue to use the products when the lamp is damaged.
9. Do not use the product under the interference of strong electric fields and magnetic
fields.
10. Insufficient disinfection time or insufficient radiation will influence the effect of
disinfection.
11. If possible, the external power supply for GOLDENSEA UV products should be
installed with a qualified inline leakage protection device.
12. Ensure the surface of the lamp tube is clean before use. If dust is found on the lamp
tube, please wipe it with a clean cloth. Dirty tubes will influence sterilization effect. Do
not rinse the products directly.
13. Do not directly expose valuable silk products, leather goods, calligraphy and
paintings, collectible or important commemorative items to UV irradiation.
14. When sterilizing rooms with textile coverings and hangings (i.e. table cloth
bedspreads, curtains and etc.), keep the product at least one meter away from these
items. Prolonged exposure to UVC rays (same as occurs with direct exposure to
sunlight) may cause discoloration of the textile.
15. Cosmetics and skin care products should be covered and sealed well when a UV
product is in operation to avoid direct irradiation.
16. Unplug the product and store it in a safe place to keep out of children’s reach.
17. If the lamp needs to be replaced, refer to and follow the instructions in the user
manual.

www.goldenseauv.com
3
18. Dispose of used or broken lamps by following your local hazardous waste
management guidelines. Do not dispose of lamps with household waste.
19. If there is a technical problem with any GOLDENSEA UV product, please contact
GOLDENSEA or an official GOLDENSEA UV local distributor; Never disassemble a
product without the instruction of qualified service personnel.
20. This series of products are for air and surface sterilization uses and do not have any
medical functions. The description of this product should not be interpreted as
suggesting or promoting medical effects.
Pursuant to the above, GOLDENSEA has explained all details that users must pay
attention to when using this series of products. If users fail to use the series of products in
accordance with the guidelines or regulations laid out above and in this manual,
GOLDENSEA will not be liable for any losses, damages or consequences caused by the
user's inappropriate use.
1.1. Important Safety Warnings
This device has left the factory in perfect condition. In order to maintain this perfect
condition and to ensure safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes in this user manual.
CAUTION!
THIS PRODUCT EMITS UV RADIATION, CONTACT WITH SKIN AND EYES
MAY CAUSE DAMAGE.
CAUTION!
HIGH VOLTAGE, RISK OF SEVERE OR FATAL ELECTRIC SHOCK.
CAUTION!
ALWAYS DISCONNECT MAINS SUPPLY BEFORE REMOVING ANY
FIXTURE COVERS.
CAUTION!
TO AVOID EYES AND SKIN EXPOSURE TO UV LIGHT, IT IS FORBIDDEN
FOR ANIMALS, PLANTS AND ALL PERSONNEL TO BE PRESENT WHEN
THE UV LAMP IS ON.
CAUTION!
KEEP THIS DEVICE AWAY FROM RAINAND MOISTURE.

www.goldenseauv.com
4
UV-C RISK GROUP 3
WARNING UV-C emitted from this product.
Avoid eye and skin exposure to unshielded product.
Follow installation instructions and user manual.
Important:
Damage caused by disregarding this user manual is not subject to warranty.
The dealer and manufacturer will not accept liability for any resulting
defects or problems.
To avoid eyes and skin exposure to UV light, people, animals and plants must not be
present when the UV lamp is on.
Operation shall be performed by qualified operator to avoid damage caused by
misuse. Before operating the device, the operator must carefully go through this
manual and operation guide.
Do not irradiate valuable clothes, ornaments, calligraphy, paintings and other valuable
items with UV lamps, which will cause discoloration.
Do not put anything on the product.
If the lamp is broken, immediately turn off the power and open doors and windows for
ventilation. Broken lamps should be disposed of as toxic and hazardous waste
according to your local regulations.
Do not touch any metal parts exposed to air which is falling off or broken when the
fixture is powered on to avoid risk of electric shock.
The operator must wear anti-ultraviolet protective clothing and eyewear when
operating the device.
Keep the UV device away from children and non-professionals.
1.2. General Guidelines
1. This device is for industrial use, applications such as hotels, schools, factories,
theaters, gymnasiums, restaurants, offices, etc. Residential use is not allowed.
2. This fixture should be operated within the maximum alternating current as stated in
the technical specifications in section 2 of this manual.
3. Handle the device with care.Avoid impact and strong vibration.
4. Do not use this product in high temperature and high humidity environments.
5. Do not use the product outdoors.
6. Do not use the product when it or its plug is damaged.
7. Do not repair or clean this product when it is powered on.
8. Do not operate in areas with flammable or explosive items to avoid burns or
explosion.
9. The ambient operating temperature for the device is between -10°C to 45°C. Do not
use the device in ambient temperatures outside of this range.

www.goldenseauv.com
5
For safety reasons, please be aware that modifications to the device are prohibited
and may lead to short-circuits or fire. GOLDENSEA will not be liable for any
consequence caused by modifications to the product.
2. Features
Power Supply
•AC 100-240V~, 50/60Hz
•Power Consumption: 200W
Light Source
•Lamp:
TUV PL-L 36W/4P 1CT/25 (PHILIPS)
or
HNS L 36W 2G11 GFT36DL/2G11/SE/OF PURITEC UV-C Germicidal Low Pressure
Lamp (OSRAM)
•Extremely long Life: up to 9,000 H
Features
•Delayed start (2-min delayed start)
•Motion sensor
•Audio alarm
•Visual indicator lights
•3 disinfection time settings
•Power switch
•Control panel with touch keys
•Through wall remote control
•UVC wavelength: 253.7nm
•Radiation intensity in 200mm distance: 3530 uw/cm²
Product Type
Industrial Ultraviolet disinfection light
Weight
Net weight: 3.8 kg

www.goldenseauv.com
6
Parts List:
UV Tube
Included
Remote Control
(battery type: CR2025)
Included
UV Glasses
(protective eyewear)
Included
Reflector
Included
Floor Bracket
Included
Warning Sign
Included
Safety Cable
Optional
Tripod Bracket
Optional
Rotating Bracket
Optional
UV Strips
Optional
UV Irradiance Meter
Optional

www.goldenseauv.com
7
3. Product Overview
1）Handle
2）Hanging Hook
3）120 mins - touch key
4）60 mins - touch key
5）30 mins - touch key
6）Start - touch key
7）Power Indicator
8）Power Switch
9）Power Cable
10）Lamp Tube Safety Catch
11）Protective Grid
12）UV Tube
13）Grid Opening Tabs
14）Indicator Lights

www.goldenseauv.com
8
4. Dimensional Drawings

www.goldenseauv.com
9
5. Installation Instructions

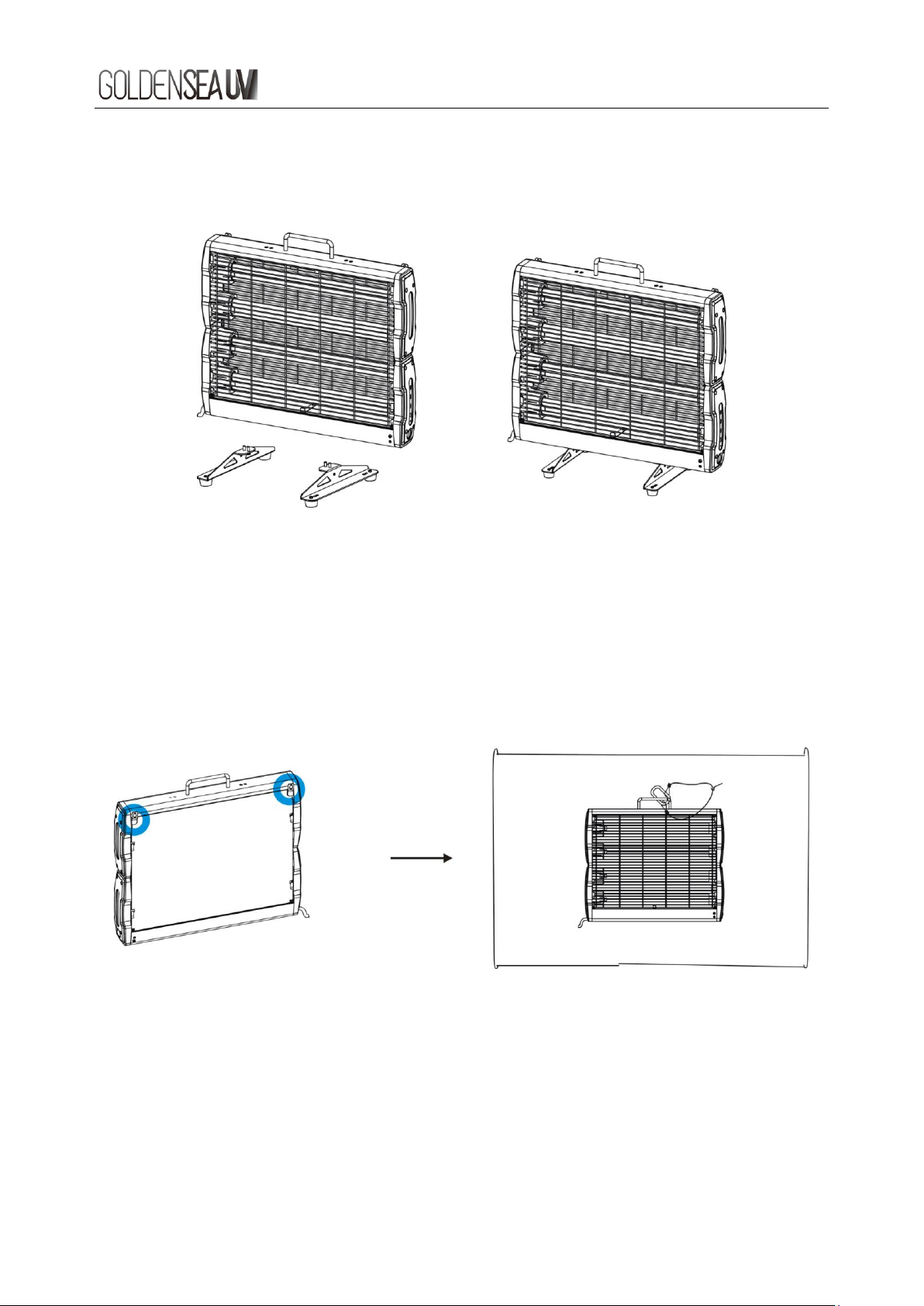

5.1. Installation of Floor Bracket
Steps:
1. Take the device and the floor brackets out of the package.
2. Align the screw holes of the floor brackets with the screw holes at the bottom of the
device. (Note: feet must face to floor as shown).
3. Fix the brackets to device with the 4 screws (M4x10mm) provided.
5.2. Wall Mounting
Steps:
1. Mount 2 screws (M4) on the wall with a distance of 422mm.
2. Mount the device onto the 2 screws using the 2 hooks of the device (as shown).
3. Attach a safety cable (not included) between the handle of device and a fixing point on
the wall.
(ATTENTION! This step is essential to prevent the device from falling off by accident
or misuse)
wall

www.goldenseauv.com
10

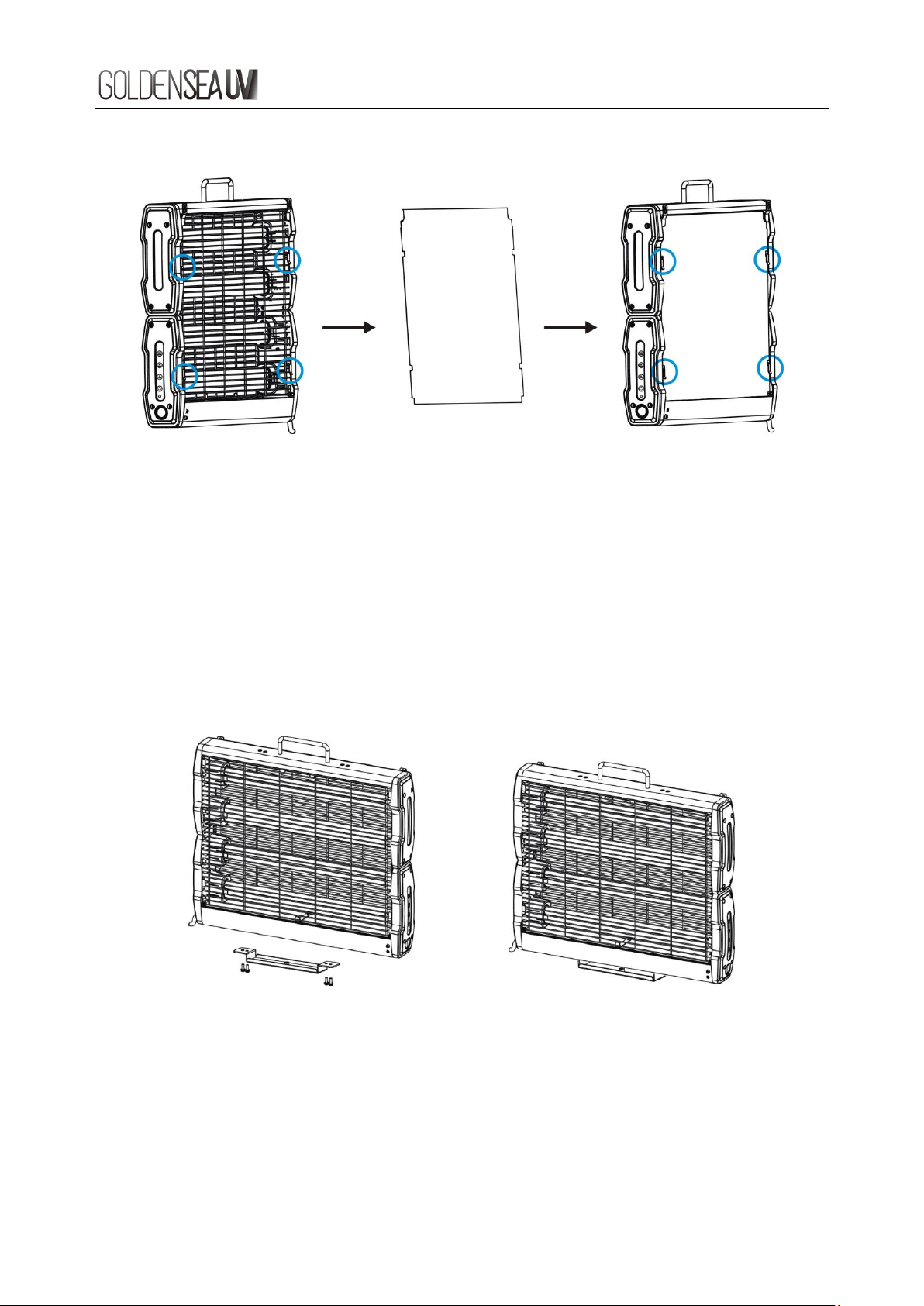

5.3. Installation of Reflector
Steps:
1. Pull up the 4 locking tabs (as shown) on the back of the device.
Install the reflector onto the back of the device. Make sure the reflective (shiny)
surface of the reflector is facing the lamp tubes. The rough side of the reflector should
be facing away from the lamp tubes.
2. Push the 4 locking tabs (as shown) down to lock the reflector into position.
5.4. Installation of Tripod Bracket (optional)
Steps:
1. Align the screw holes of the tripod bracket with the screw holes at the bottom of the
device.
2. Fix the tripod bracket to the device with 2 screws (M4x10mm).
3. Install your tripod to the tripod bracket with corresponding screws.

www.goldenseauv.com
11

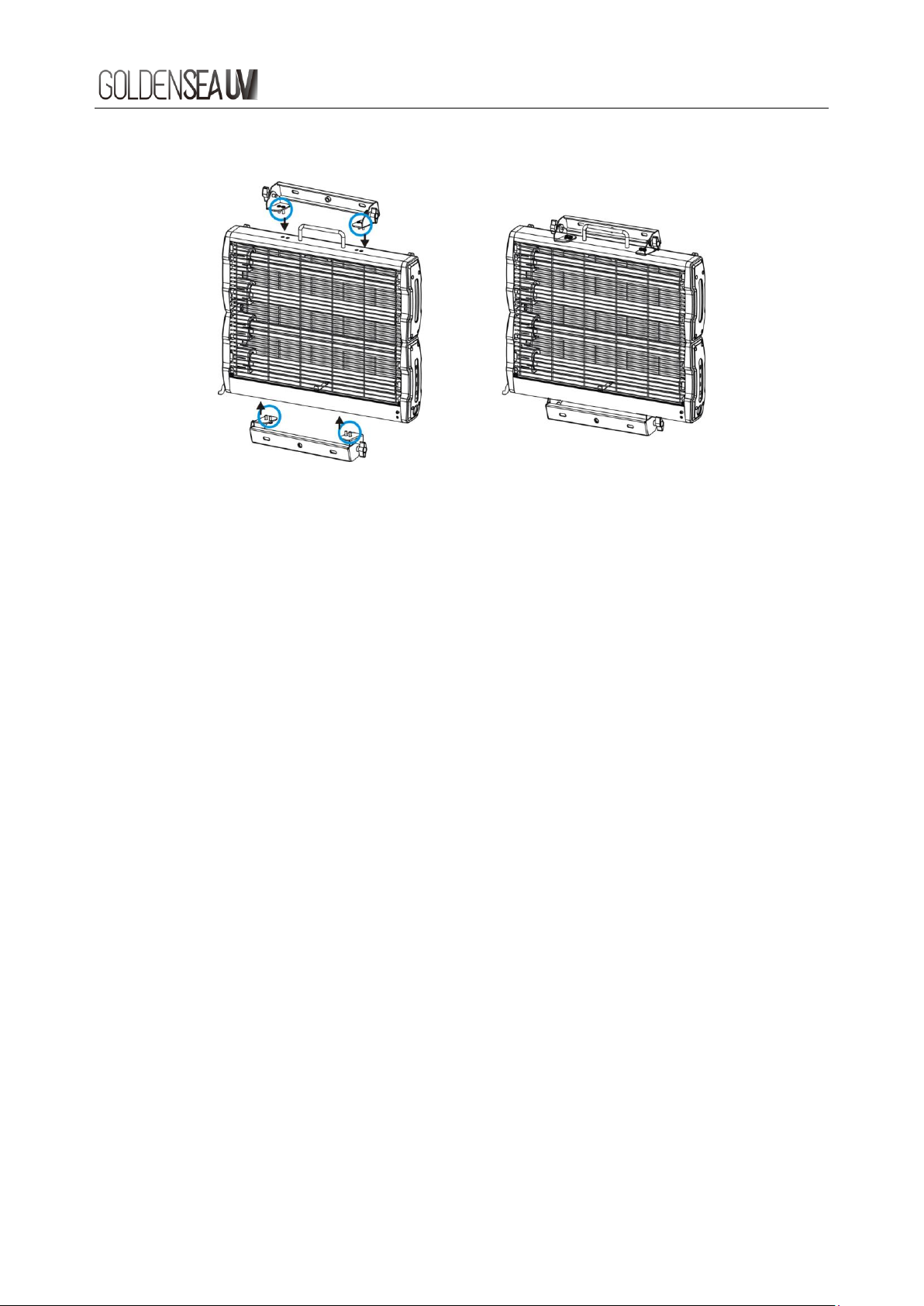

5.5. Installation of Rotating Bracket (optional)
Steps:
1. Align the screw holes of the rotating bracket with the screw holes of both top and
bottom of the device as shown.
2. Fix the rotating bracket to the device with 4 screws (M4x10mm).
6. Operation Guide
Note:

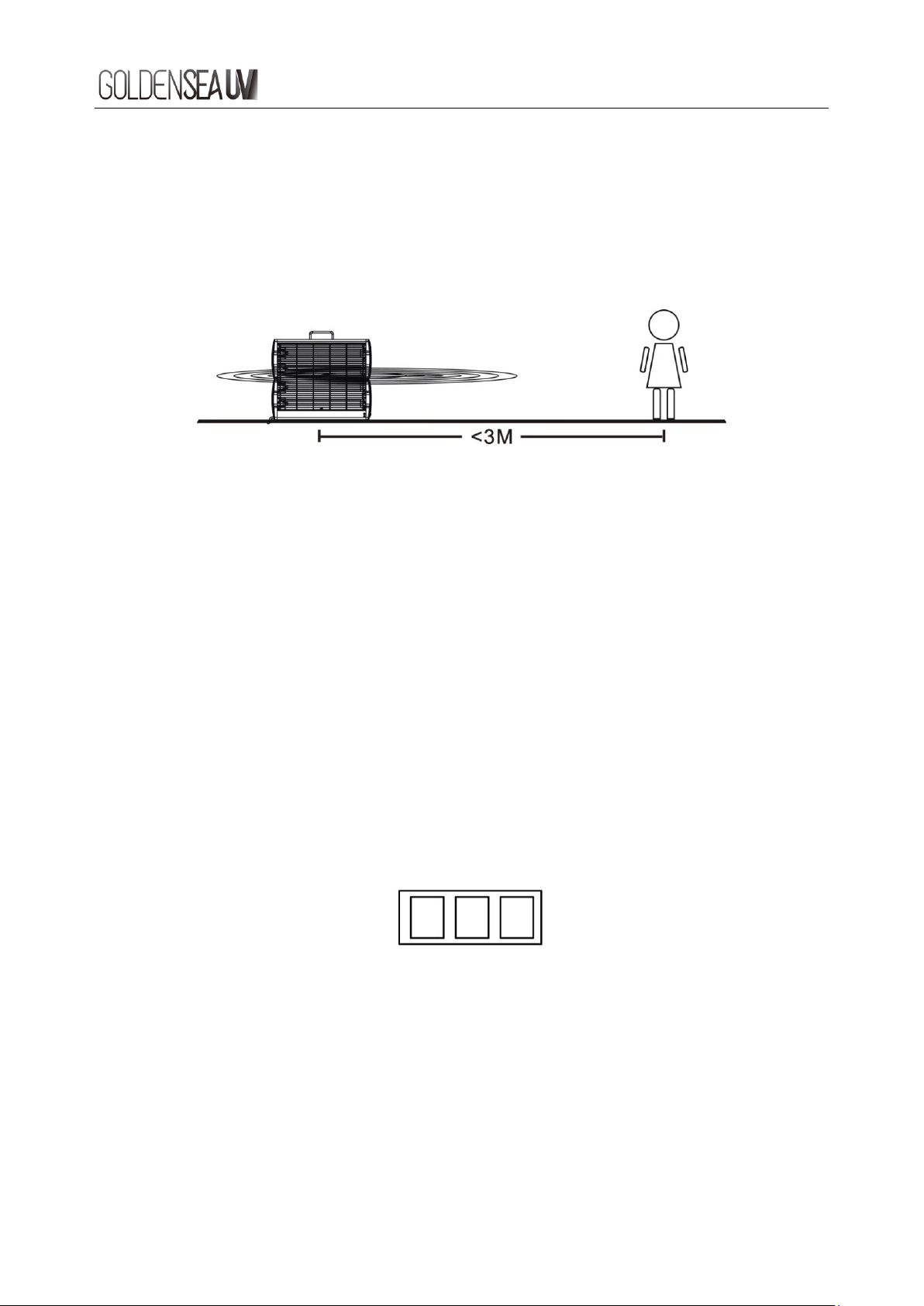

Under ideal conditions (an open area with nothing inside), the recommended disinfection
times and areas are: 30 mins/40m², 60 mins/80m²,120 mins/160m²
6.1. Preparation
1. Make sure the device is on an even surface or mounted safely to the wall.
2. Make sure NO living beings (other than the operator) are in the disinfection area
before proceeding.
3. Make sure the path to exit the disinfection area is clear before starting the device.
4. Keep in mind of the Delayed Start Time to make sure enough time to exit the
disinfection area before the device starts to emit.
5. Wear the supplied UV protective glasses before operating the device.
6. Place the supplied warning sign in a conspicuous place at the exit of disinfection area;
If there is more than one exit, then place a warning sign at each exit.
7. Take the remote control with you when exiting the disinfection area or store it in the
remote control bag.
8. Close the door of the disinfection area.
9. If there is a significant gap on the door, please make sure the gap is closed before
operating.

www.goldenseauv.com
12
6.2. Control Panel Operation
1. Connect the power cable of the device to the power socket, press the power switch
< I/O > to <I>, the green power indicator light turns on.
2. Press the <30 Min>, <60 Min> or <120 Min> button to select your desired disinfection
time, the corresponding indicator light under the button turns on.
3. Press the start button < >, then audible alarm will start beeping and red power
indicator will flash regularly for 2 minutes.
4. You must exit the disinfection area during this 2 minutes.
5. Once the countdown has ended, the UV tubes will be activated and light up, and the
red power indicator will stay on during the entire disinfection process.
6. Once the disinfection process has ended, the red indicator on the button will turn off
and the power indicator will switch to green. An audible alarm will be also beeping to
notify the user. Now it is safe to enter the disinfection area.
7. Upon entering the disinfection area, please open the windows to ventilate the
disinfected area (you may find an unusual smell as a result of disinfection process,
which is normal and harmless).
6.3 Remote Control Operation
1. Connect the power cable of the device to the power socket, press power switch <I/O>
to <I>, the green power indicator light turns on.
2. Exit the disinfection area and close the door.
3. Take the remote control and press <30'>, <60'> or <120'> button to select your
desired disinfection time, the corresponding indicator under the button turns on.
4. Press the start button < >, then audible alarm will start beeping and red power
indicator will flash regularly for 2 minutes.
5. If you are still inside the disinfection area, you must exit during this 2 minutes.
6. Once the countdown has ended, the UV tubes will be activated and light up, and the
red power indicator will stay on during the entire disinfection process.
7. Once the disinfection process has ended, the red indicator on the button will turn off
and the power indicator will switch to green. An audible alarm will be also beeping to
notify the user. Now it is safe to enter the disinfection area.
8. Upon entering the disinfection area, please open the windows to ventilate the
disinfected area (you may find an unusual smell as a result of disinfection process,
which is normal and harmless).

www.goldenseauv.com
13
6.4 Motion Detection
1. If the device detects any movement within 3m, the device will be deactivated
immediately.
Note: 3m is the measured value in an open area without the reflector; the reflector will
affect the motion detection distance. Results may differ depending on different
applications.
2. Once the disinfection process is stopped by the motion sensor, a dual audible alarm
will start beeping and the red and green power indicators will flash until the operator
restarts the device.
Note: if the device is placed inside a room and close to the corridor or an area where
people must be passing outside, the motion sensor may be triggered.
The motion sensor is very powerful and can ‘see’ through walls. Please refer to the
Best Placement document to ensure effective use of the product and minimize
outside motion interference. Different materials and thickness of walls will have an
impact of the through wall range of the motion detector, walls made of glass or wood
will not decrease the range of the motion detector.
6.5 Use of UV Strip (optional)
The UV strip is a quick test paper to test the strength of a UV product. The test paper will
change its color when it has been sufficiently irradiated.
1. Place the UV strip 50cm from the unit, facing the middle of the unit. Then start the
device and activate the UV tube, following all usual safety protocols.
2. Turn off the device after 1 minute and check the result of the UV strip.
3. UV tube is fully functional if the color of the UV strip changes from yellow to green.
4. UV tube is defected if there is no change.

www.goldenseauv.com
14
7. Replacing The UV Tube
To maintain the sterilizing efficacy, the UV tube needs to be replaced after 9,000 hours of
use.
Steps:
1. Wait for UV tube to cool down (to avoid scalding) after switching off the device.
2. Pull up the locking tabs ①on both sides of the device, and open the protective grid as
shown.
3. Remove the safety catch ②of the UV tube, move the UV tube out of its holder from
left to right ③as shown and take it out.
Note: please follow your local toxic and hazardous waste regulations for lamp
disposal.
4. Insert the new UV tube into the holder of the device and move the UV tube towards
the left until it fits into place correctly and tightly.
Note: direct contact with new UV tube should be avoided as grease from your skin
may reduce the efficiency of the UV tube. It is advised to wear protective gloves when
handling a new UV tube.
5. Fix the safety catch ②back to the UV tube holder.
6. Install the protective grid back onto the device and push down the locking tabs ①on
both sides of the device. The device is ready for use now.

www.goldenseauv.com
15
8. Troubleshooting Tips
8.1. What to do if the device doesn’t work?
1. Ensure the device is plugged into a working wall socket.
2. Ensure the plug is wired correctly and terminal well-connected.
3. If you still have issues with the device, please contact your local dealer or our
customer service for assistance.
8.2 How often should the UV tube be replaced?
1. The UV tube is the core of the product, it should be replaced after 9000 hours of use
to maintain the germicidal efficacy.
2. The UV tube is defected if it flashes, please contact your local dealer or our customer
service to order a new UV tube. For replacing the UV tube, please refer to the
instructions in this user manual.
3. After use for a period of time, it is normal to find some black spots on both sides of
the UV tube.
8.3 The Audio alarm signal and LED indicator signal for this product:
Status
Audio Alarm
Power Indicator
Standby
-
Green indicator on
Delayed
Start
Beeping for 2 minutes regularly
(frequency increase in the
countdown 10 seconds)
Red indicator flashing for 2 minutes
regularly (frequency increase in the
countdown 10 seconds)
Lamp
Strike
UV Lamp on after 15 seconds
when the beeping stops
Red indicator on after beeping stops
Emitting
(working)
Single Beeping every 10 seconds
Red indicator on
Motion
Detected
Dual beeping every 10 seconds
Red & Green indicators flashing
End of
Cycle
Triple beeping every 10 seconds
(in 30 seconds)
Green indicator on

www.goldenseauv.com
16
9. Cleaning and Maintenance
1. To ensure the device remains in good condition and does not fail prematurely,
regular maintenance, cleaning and checks are required.
2. For cleaning of the device, please use a lint-free cloth.
3. To avoid damage to the device, never use detergent or solvents.
4. Never spray insecticide towards the device, it can discolor or damaged.
5. Should you need any spare parts, please order genuine parts from your local dealer.
10. Service
For all service needs, please contact your local authorized dealer or GOLDENSEA
customer service. Our contact details are:
Email: [e-mail]
Tel: [phone]
Address: No.109 Haiyong Road, Shiji Town, Panyu Zone, Guangzhou, China. 511450
Errors and omissions for all information given in this user manual are expected.
All information is subject to change without prior notice.
