GOLDENSEA UV UVP36 User manual

QUICK START GUIDE
UVP36
WARNING! POSSIBLE RISK OF INJURY TO EYES AND SKIN.
• Hazardous optical radiation may be emitted from the light source. Do not look
at an operating lamp. It may be harmful to the eyes.
• UVC is emitted from the light source. Eye or skin irritation may result from
exposure. Use appropriate shielding.
• IR may be emitted from the light source. Do not look at operating lamp.
CAUTION!
• To avoid eyes and skin exposure to UV light, it is forbidden for animals, plants
and all personnel to be present when the UV lamp is on.
• Always disconnect mains supply before removing any fixture covers.
• Keep this device away from rain and moisture.
www.goldenseauv.com

Thank you for purchasing a GOLDENSEA UV product. This manual is a quick operation guide to get
you started. For more information, please always refer to the full version user manual provided.
Before unpacking, please check and be sure that the package is in good condition with no damage
on the carton during transportation. In the package, you will find the following:
UVP36
(with Reflector and UV Tube)
Remote Control
1. Product Information
Voltage
Power
Net Weight
Size
AC100-120V, 50/60Hz
AC220-240V, 50/60Hz
45W
0.77 kg
165x165x451.44mm
① Buzzer
② Start - touch key
③ Lock - touch key
④ 15 mins - touch key
⑤ 30 mins - touch key
⑥ 60 mins - touch key
⑦ Cap
⑧ UV Tube
⑨ Lamp Tube Safety Catch
⑩ Power Cable
2. Preparation and Notes
• Keep in mind of the following information:
Delayed Start Time
Recommended Disinfection Times/Areas
30 seconds
15mins/5m²
30mins/10m²
60mins/20m²
• Make sure the path to exit the disinfection area is clear before starting the device.
• Keep children, pets and plants away from the disinfection area before operating.
• The operator must wear anti-ultraviolet protective clothing and the UV Glasses before operating.
• The operator must leave the disinfection area and close all entrances after starting the device,
make sure the entrances are locked or safeguarded during the entire disinfection process.

• For safety reasons, the device was designed with a motion sensor: if the working device detects
any movement within 3m, it will immediately deactive and a continuous audible dual beep and
flashing red and green LED indicator lights will engage.
• The motion detector can ‘see’ through walls, the range can be affected by different materials and
thickness (metal: isolated; concrete: decreased; glass or wood: no change; reflector: increased).
• For safety reasons, the device was designed with Fall Protection Auto Power Off: when lamp
detects a movement of more than 45°, it will automatically power off.
3. Operation
• Switch on the device, unlock the product by long pressing the
Start and the Lock touch keys for 3 seconds until there is a
beep.
• On either the fixture control panel or supplied remote control:
Press the <15 mins>, <30 mins> or <60 mins> touch
key/button to select your desired disinfection time, the touch
key indicator light turns on.
Press the Start touch key/button, audible alarm starts beeping
for 30 seconds. You must exit within this 30 seconds.
• The UV tubes will light up once the beeping countdown ends.
• Once the disinfection process ends, the touch key indicator
turns off and audible alarm sounds.
• Open the doors and windows to ventilate the disinfected
area.
* If the remote control loses pairing with the device, re-do the pairing by
pressing the Start button on the remote control and switch on the device for
5 seconds.
Control panel:
Remote control:

Guangzhou Haoyang Electronic Co., Ltd.
E-mail: [e-mail]; Tel: [phone]
Addr: No.109 Haiyong Road, Shiji Town, Panyu Zone, Guangzhou, China. 511450

UVP36
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

www.goldenseauv.com
1
Thank you for purchasing a GOLDENSEA UV product. You have acquired a
powerful and versatile device. We are confident that you will be satisfied with
our excellent products and service. For your own safety, please read this user
manual carefully before installing and operating the device.
Contents
1. Manual Operation (control panel) 3
2. Remote Control Operation 3
3. Motion Sensor Operation (if the lamp with Motion Sensor) 4
4. Fall Protection Auto Power Off 4
5. Notes 5
6. Suggestion For Disinfection Time 5
7. Warnings 5
8. Product Overview 7

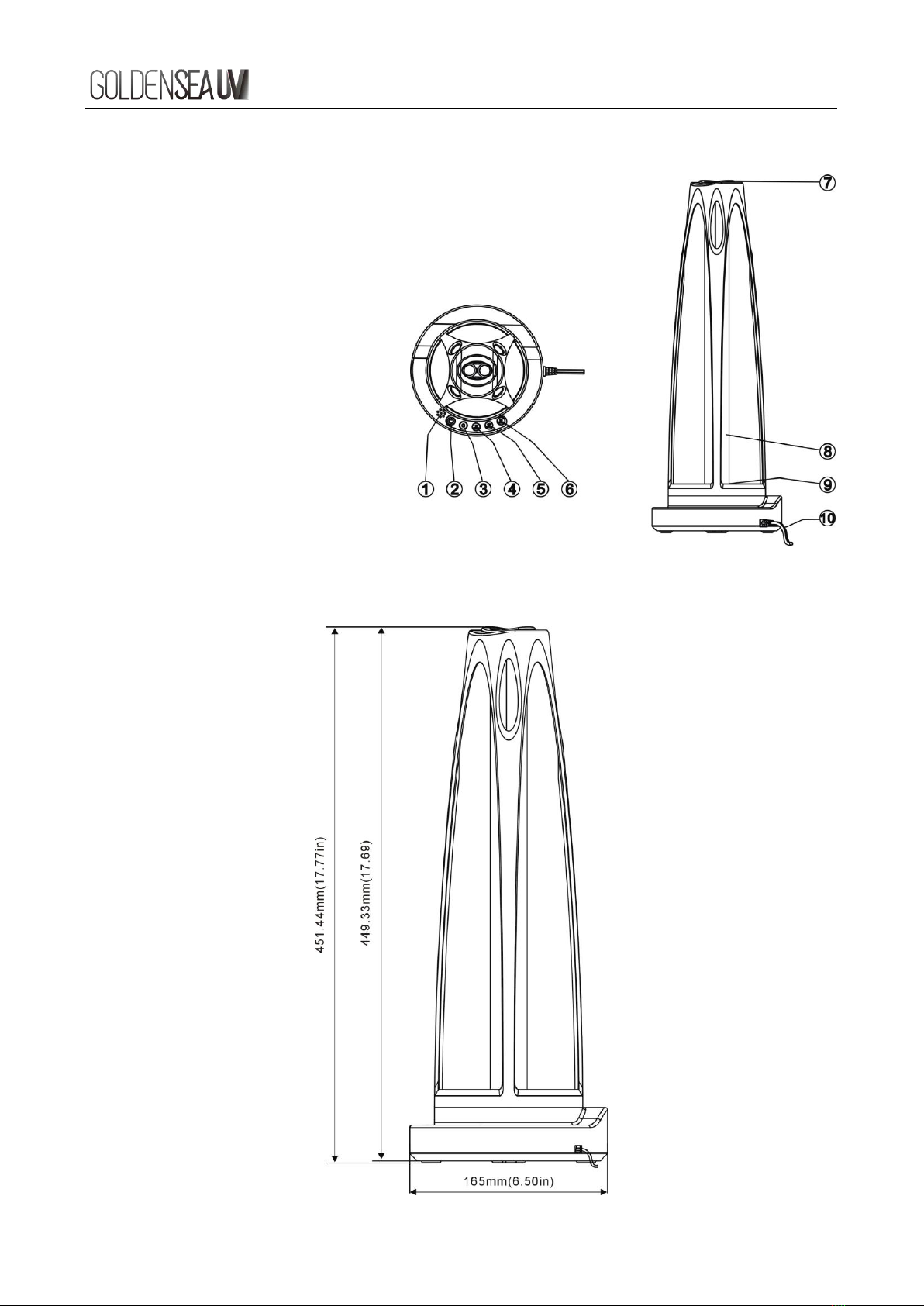

9. Dimensional Drawings 7
10.Replacing The UV Tube 8
11. Troubleshooting Tips 8
12.Features 9
13.Cleaning and Maintenance 10
14.Service 10

www.goldenseauv.com
2
Voltage Input: AC 100-120V~, 50/60Hz; AC 220-240V~, 50/60Hz Power: 45W; Product
Size: 165x165x451mm
This device is for household use, applications such as kitchen, bedroom, study, living room,
etc.. It shall only be used by adults who are capable of operating this device by following
this user manual, and keep children, pets and plants away from the disinfection area
before operating.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
a) This equipment is designed for use with germicidal UV radiation sources and UV
radiation can pose a risk of personal injury. Overexposure can result in damage to eyes and
bare skin. To reduce the risk of overexposure, the operator must wear protective clothing
and UV glasses when operating, and make sure the disinfection area is safeguarded during
the entire disinfection process.
b) Maintenance and servicing of this UV generating equipment shall be performed by
professional person. Service personnel must wear appropriate Personal Protective
Equipment (PPE) if the equipment will be in operation during the maintenance or servicing
work. Contact the equipment manufacturer for PPE recommendations and guidance.
c) When replacing lamps, replace them only with the lamps for which the equipment is
marked and intended.
d) The use of accessory not recommended by the manufacturer may cause an unsafe
condition.
e) Do not use this equipment for other than intended use.
f) People, pets, and plants should leave the areas when using the disinfection light.
g) It should be stored well to avoid accidental damage to the sterilizer and personal injury
after the sterilization is finished.

www.goldenseauv.com
3
1. Manual Operation (control panel)
1) Close all the doors and windows.
2) Plug-in and power on, unlock the product by long pressing the Start touch key < > and
the Lock touch key < > on the device for 3 seconds until there is a beep.
3) Select time setting <15 mins>, <30 mins> or <60 mins> by the Time Setting touch key,
the touch key indicator light turns on.
4) Press the Start touch key, audible alarm starts beeping regularly for 30 seconds. The
UV lamp will turn on after the 30 seconds delay when disinfection time is set.
5) Once the disinfection process ends, the touch key indicator light turns off and an
audible alarm sounds. Open the doors and windows to ventilate the disinfected area.
Warning:
Don’t look at the disinfection light directly.
People, pets and plants should leave the
area when using the disinfection light.
Ventilate for 30-40 minutes after working.
2. Remote Control Operation
1) Close all the doors and windows.
2) Plug-in and power on, unlock the product by long pressing the Start button < > on the
remote control and the Lock touch key < > on the device for 3 seconds until there is a
beep.
3) Select time setting <15 mins>, <30 mins> or <60 mins> by the Time Setting button on
the remote control, the touch key indicator light on the device turns on.
4) Press the Start button, audible alarm starts beeping regularly for 2 minutes. The UV
lamp will turn on after the 2 minutes delay when disinfection time is set.
5) Once the disinfection process ends, the touch key indicator light on the device turns off
and an audible alarm sounds. Open the doors and windows to ventilate the disinfected
area.
Note: if the remote control loses pairing with the device, re-do the pairing by pressing the
Start button on the remote control and switch on (plug-in) the device for 5 seconds. One
remote control can be matched with multiple units of the same model.

www.goldenseauv.com
4
3. Motion Sensor Operation (if the lamp with Motion Sensor)
1. Turn on the UV lamp, select the disinfection time and start, leave the room, after 2
minutes alarming (Di….Di…Di….), the UV lamps will switch on automatically, the
motion sensor will be activated.
2. The Motion sensor can ‘see’ through non-metal materials, such as wood board, plastic,
fabrics, etc. But the concrete will influence the motion sensor, and the metal board even
can stop the detecting ability. So, when the UV Lamps is working, it will turn off when it
detects that someone or something moving around within its detecting range even
outside the rooms, and it will turn on again when someone or something is left.
(detecting range: 3m in an open area without any of the above influence factors)
Note: for safety reason, the UV lamp does not work if the motion sensor is defective.
4. Fall Protection Auto Power Off

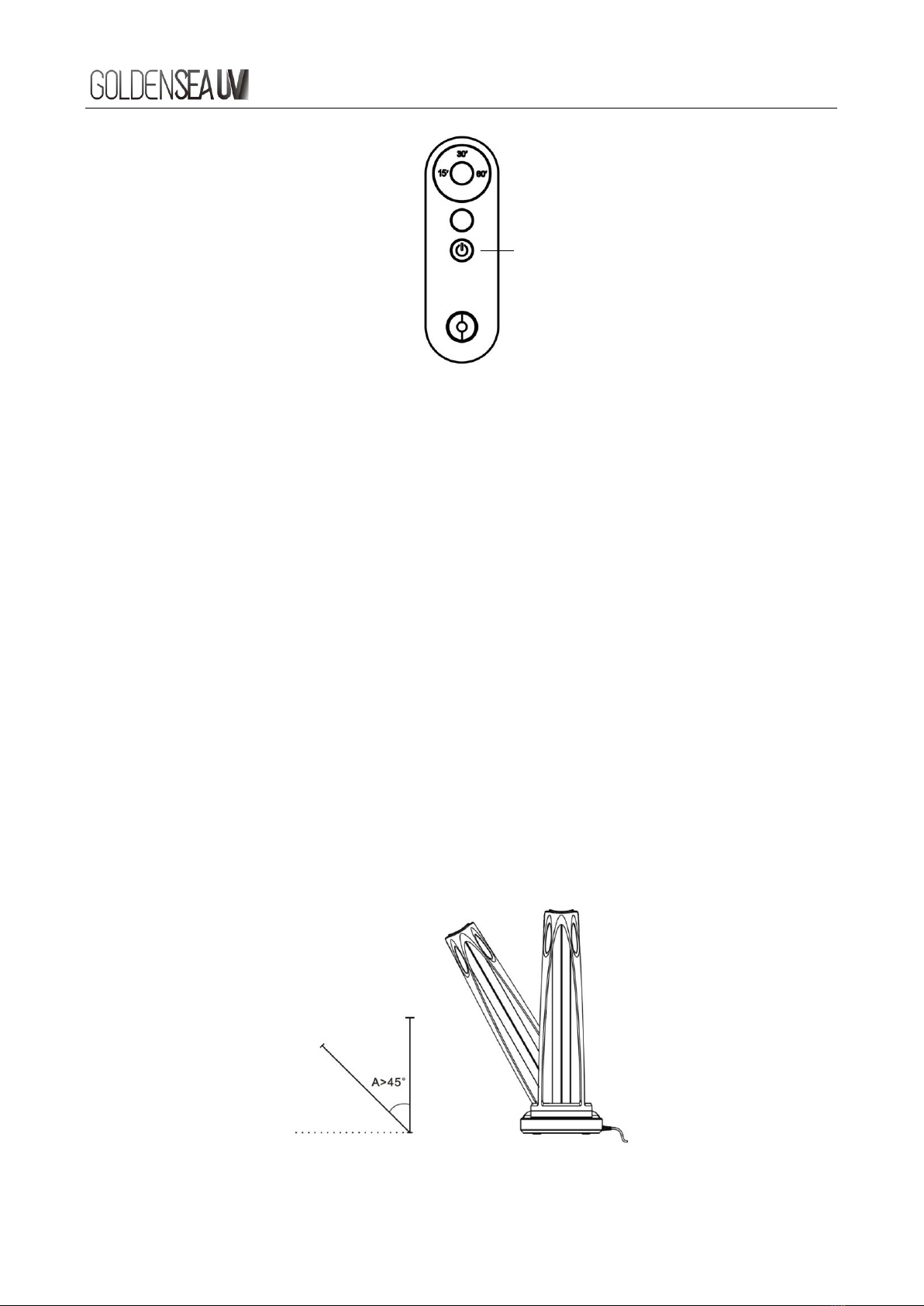

1. When a working device detects a movement of more than 45°, it will automatically
power off, thus preventing heat damage to surrounding objects, should the device fall
over by accident or misuse.
2. To make it work again after auto power off, put the device back to the normal upright
position, make sure the power plug is still well-connected to the power socket, re-start
the operation again from the beginning.
Start

www.goldenseauv.com
5
5. Notes
1. Put the UV lamp on a height of 0cm-400cm to get the best disinfection effect. Please do
not put the lamp higher than 400cm, as the Motion Sensor cannot detect perfectly.
2. The surface of the lamp should be kept clean.
3. When disinfecting the surface of an object with ultraviolet rays, the surface to be
irradiated should be directly irradiated within 1 meter of ultraviolet rays, otherwise it’s
necessary to increase the irradiation time.
4. The lamp is fragile. Please handle it with care.
5. According to the latest guideline on the diagnosis and treatment released by the
National Health Commission, the virus is sensitive to ultraviolet (UV) light and heat, so
UV radiation is a quick and effective way of disinfecting rooms against germs and
viruses.
According to the guideline, indoor spaces should be disinfected with UV light with an
intensity of over 1.5 watts per square meter. An UV lamp can disinfect objects within one
meter for at least half an hour. Longer exposure to radiation is needed when the
temperature indoors is below 20°C or above 45°C and relative humidity is over 60%. A
room should be ventilated after UV disinfection, and people are suggested to enter the
room half an hour later.
6. Suggestion For Disinfection Time
Area
Power
Disinfection Time
5m2
45W
15min
10m2
45W
30min
20m2
45W
60min
7. Warnings
The UV-C wavelength is 253.7nm, the radiation intensity in 200mm distance is 1933.4
uw/cm².
CAUTION: TO REDUCE THE RISK OF FIRE
USE ONLY _TUV PL-L, 36W,0.44A_ LAMPS
ATTENTION – RISQUE D’INCENDIE
UTILISER UNIQUEMENT LES LAMPES
_TUV PL-L, 36W,0.44A
Suitable for damp locations
CONVIENT AUX EMPLACEMENTS HUMIDES

www.goldenseauv.com
6
WARNING – RISK OF PERSONAL INJURY
Avertissement – RISQUE DE BLESSURES
CORPORELLES
THIS EQUIPMENT IS DESIGNED FOR
USE WITH GERMICIDAL LAMPS OR UV
SOURCES AND MUST BE INSTALLED
AND USED IN COMPLIANCE WITH
COMPETENT TECHNICAL DIRECTIONS
TO PREVENT THE USER'S EYE AND
BARE SKIN FROM EXPOSURE TO
HARMFUL UV OR OPTICAL RADIATION.
PEOPLE, PETS AND PLANT SHOULD
LEAVE THE AREAS WHEN USING THE
DISINFECTION LIGHT.
CET ÉQUIPEMENT EST CONÇU POUR ÊTRE
UTILISÉ AVEC DES LAMPES GERMICIDALES OU
DES SOURCES UV ET DOIT ÊTRE INSTALLÉ ET
UTILISÉ EN CONFORMITÉ AVEC LES DIRECTIVES
TECHNIQUES COMPÉTENTES POUR EMPÊCHER
L’ŒIL DE L’UTILISATEUR ET LA PEAU NUE DE
L’EXPOSITION À DES RAYONS UV OU OPTIQUE
NOCIFS. LES PERSONNES, LES ANIMAUX DE
COMPAGNIE ET LES PLANTES DEVRAIENT
QUITTER LES ZONES LORS DE L’UTILISATION DE
LA LUMIÈRE DE DÉSINFECTION.
EYE DAMAGE MAY RESULT FROM
DIRECTLY VIEWING THE LIGHT
PRODUCED BY THE LAMP IN THIS
EQUIPMENT. ALWAYS TURN OFF LAMP
BEFORE SERVICING.
LES DOMMAGES OCULAIRES PEUVENT
RÉSULTER DE L’OBSERVATION DIRECTE DE LA
LUMIÈRE PRODUITE PAR LA LAMPE DANS CET
ÉQUIPEMENT. ÉTEIGNEZ TOUJOURS LA LAMPE
AVANT L’ENTRETIEN.
UV-C RISK GROUP 3
WARNING: UV-C emitted from this
product.
Avoid eye and skin exposure to
unshielded product.
Follow installation instructions and
user manual.
GROUPE DE RISQUE UV-C 3
AVERTISSEMENT UV-C émis par ce
produit.
Évitez l’exposition des yeux et de la peau
au produit non fumé.
Suivez les instructions d’installation et le
manuel d’utilisation.
WARNING-POSSIBLE RISK OF INJURY TO EYES AND SKIN
• Hazardous optical radiation may be emitted from the light source. Do
not stare at operating lamp.May be harmful to the eyes.
• UV may be emitted from the light source. Eye or skin irritation may
result from exposure. Use appropriate shielding.
• IR may be emitted from the light source. Do not stare at operating lamp.
Avertissement：risque possible de blessures aux yeux et à la peau
• Un rayonnement optique dangereux peut être émis par la source
lumineuse. Ne pas regarder directement la lampe en fonctionnement.
Peut être très nocif pour les yeux.
• Des ultra-violets (UV) peuvent être émis par la source lumineuse. Une
irritation des yeux ou de la peau peut résulter de l'exposition. Toujours
utiliser des protections appropriées.
• Des infra-rouges (IR) peuvent être émis par la source lumineuse. Ne
pas regarder fixement la lampe en fonctionnement.
SAVE THESE INSTRUCTIONS

www.goldenseauv.com
7
8. Product Overview
9. Dimensional Drawings
1） Buzzer
2） Start - touch key
3） Lock - touch key
4） 15 mins - touch key
5） 30 mins - touch key
6） 60 mins - touch key
7） Cap
8） UV Tube
9） Lamp Tube Safety Catch
10）Power Cable

www.goldenseauv.com
8
10. Replacing The UV Tube
To maintain the sterilizing efficacy, the UV tube needs to be replaced after 9,000 hours of
use.
Steps:
1. Wait for UV tube to cool down (to avoid scalding) after switching off the device.
2. Remove the Cap ① on top of the device.
3. Remove the Safety Catch of the UV tube, move the UV tube out of its holder by pulling it
upwards ② as shown and take it out.
Note: please follow your local toxic and hazardous waste regulations for lamp disposal.
4. Insert the new UV tube into the holder of the device and push the UV tube downwards
until it fits into place correctly and tightly.
Note: direct contact with new UV tube should be avoided as grease from your skin may
reduce the efficiency of the UV tube. It is advised to wear protective gloves when
handling a new UV tube.
5. Fix the Safety Catch back to the UV tube holder.
6. Re-install the Cap onto the device. The device is now ready for use.
11. Troubleshooting Tips
11.1 What to do if the device doesn’t work?
1. Ensure the device is plugged into a working wall socket.
2. Ensure the plug is wired correctly and terminal well-connected.
3. If you still have issues with the device, please contact your local dealer or our customer
service for assistance.
11.2 How often should the UV tube be replaced?

www.goldenseauv.com
9
1. The UV tube is the core of the product, it should be replaced after 9000 hours of use to
maintain the germicidal efficacy.
2. The UV tube is defected if it flashes, please contact your local dealer or our customer
service to order a new UV tube. For replacing the UV tube, please refer to the
instructions in this user manual.
3. After use for a period of time, it is normal to find some black spots on both sides of the
UV tube.
11.3 The Audio alarm signal for this product:
Status
Audio Alarm
Standby
-
Delayed Start
Beeping for 30 seconds regularly (frequency increase in the
countdown 10 seconds)
Lamp Strike
UV Lamp on after 15 seconds when the beeping stops
Emitting (working)
Single beep
Motion Detected
Dual beeps every 10 seconds
End of Cycle
Triple beeps every 10 seconds (in 30 seconds)
Fall Protection
Quadruple beeps every 10 seconds
12. Features
Light Source
• Lamp:
TUV PL-L 36W/4P 1CT/25 (PHILIPS)
or
HNS L 36W 2G11 GFT36DL/2G11/SE/OF PURITEC UV-C Germicidal Low Pressure
Lamp (OSRAM)
• Extremely long Life: up to 9,000 H
Features
• Delayed start (30 seconds delayed start)
• Motion sensor
• Audio alarm
• Visual indicator lights(under touch keys)
• 3 disinfection time settings
• Control panel with touch keys
• Through wall remote control
• Fall protection mode

www.goldenseauv.com
10
• UVC wavelength: 253.7nm
• Radiation intensity in 200mm distance: 1933.4uw/cm²
Product Type
Household Ultraviolet disinfection light
Weight
Net weight: 0.77 kg
Accessories List:
UV Tube
Included
Remote Control
(battery type: CR2025)
Included
UV Glasses
(protective eyewear)
Optional
UV Irradiance Meter
Optional
13. Cleaning and Maintenance
1. To ensure the device remains in good condition and does not fail prematurely, regular
maintenance, cleaning and checks are required.
2. For cleaning of the device, please use a lint-free cloth.
3. To avoid damage to the device, never use detergent or solvents.
4. Never spray insecticide towards the device, it can discolor or damaged.
5. Should you need any spare parts, please order genuine parts from your local dealer.
14. Service
For all service needs, please contact your local authorized dealer or GOLDENSEA
customer service. Our contact details are:
Email: [e-mail]
Tel: [phone]
Address: No.109 Haiyong Road, Shiji Town, Panyu Zone, Guangzhou, China. 511450
Errors and omissions for all information given in this user manual are expected.
All information is subject to change without prior notice.
