Goldmedal 5552-00-000 User manual

© 2018 Gold Medal Products Co. Part No. 50004
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Humidified Merchandiser
Combo
Model No. 5552-00-000
Oven and Humidified Merchandiser Combo
(Rack and Graphic Kit sold separately)
Instruction Manual

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 2
gmpopcorn.com
Table of Contents
S FETY PREC UTIONS ............................................................................................................................. 3
INST LL TION INSTRUCTIONS .............................................................................................................. 5
Inspection of Shipment ..............................................................................................................................................5
Manual ................................................................................................................................................................................5
Model Description ........................................................................................................................................................5
Items Included with this Unit..................................................................................................................................5
Optional Rack and Graphics Kits ...........................................................................................................................6
Setup for Use General images shown for reference purposes only) ..................................................7
Install Rotisserie......................................................................................................................................................7
Apply Sign Graphics ...............................................................................................................................................7
Electrical Requirements ............................................................................................................................................8
Before You Plug In Machine .....................................................................................................................................8
OPER TING INSTRUCTIONS .................................................................................................................... 9
Controls and Their Functions .................................................................................................................................9
Operating Instructions ............................................................................................................................................ 10
Care and Cleaning ............................................................................................................................... 12
M INTEN NCE INSTRUCTIONS ............................................................................................................ 13
ORDERING SP RE P RTS....................................................................................................................... 14
Replacing Broken Glass........................................................................................................................................... 15
Cabinet Exterior – Parts Breakdown ................................................................................................................ 16
Cabinet Interior – Parts Breakdown ................................................................................................................. 18
Safety Labels................................................................................................................................................................. 19
Optional Rack and Graphics Kits – Replacement Parts ........................................................................... 20
Wiring Diagram ................................................................................................................................... 21
W RR NTY................................................................................................................................................ 22

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 3
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WA
RNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 4
gmpopcorn.com
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
Note: Improvements are always being made to Gold Medal’s equipment. This
information may not be the latest available for your purposes. It is critical that
you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any
questions about your machine operations, replacement parts, or any service
questions. Gold Medal Products Co. does not assume any liability for injury due
to careless handling and/or reckless operation of this equipment.) General images
may be used in manual for reference only.

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 5
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking reference unit Quick Start Guide), check thoroughly for any damage which may
have occurred in transit. Claims should be filed immediately with the transportation company.
The warranty does not cover damage that occurs in transit, or damage caused by abuse, or
consequential damage due to the operation of this machine, since it is beyond our control
reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1- 800)-543-0862.
Model Description
The Oven and Humidified Merchandiser Combo is a countertop base model unit without
graphics. Merchandiser cabinet is suitable for holding volatile food products holds precooked
product at serving temperature; not designed for cooking or reheating). Oven designed for
heating pizza and pretzels.
•Optional Rack and Graphic Kits sold separately), reference kits shown in Optional Rack
and Graphics section.
•Rotisserie drive motor for rack rotation Flat Rack does not rotate).
•LED lighted cabinet.
Items Included with this Unit
Instruction
Manual
Registration
Warranty Card
Thermometer
PN 8000)

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 6
gmpopcorn.com

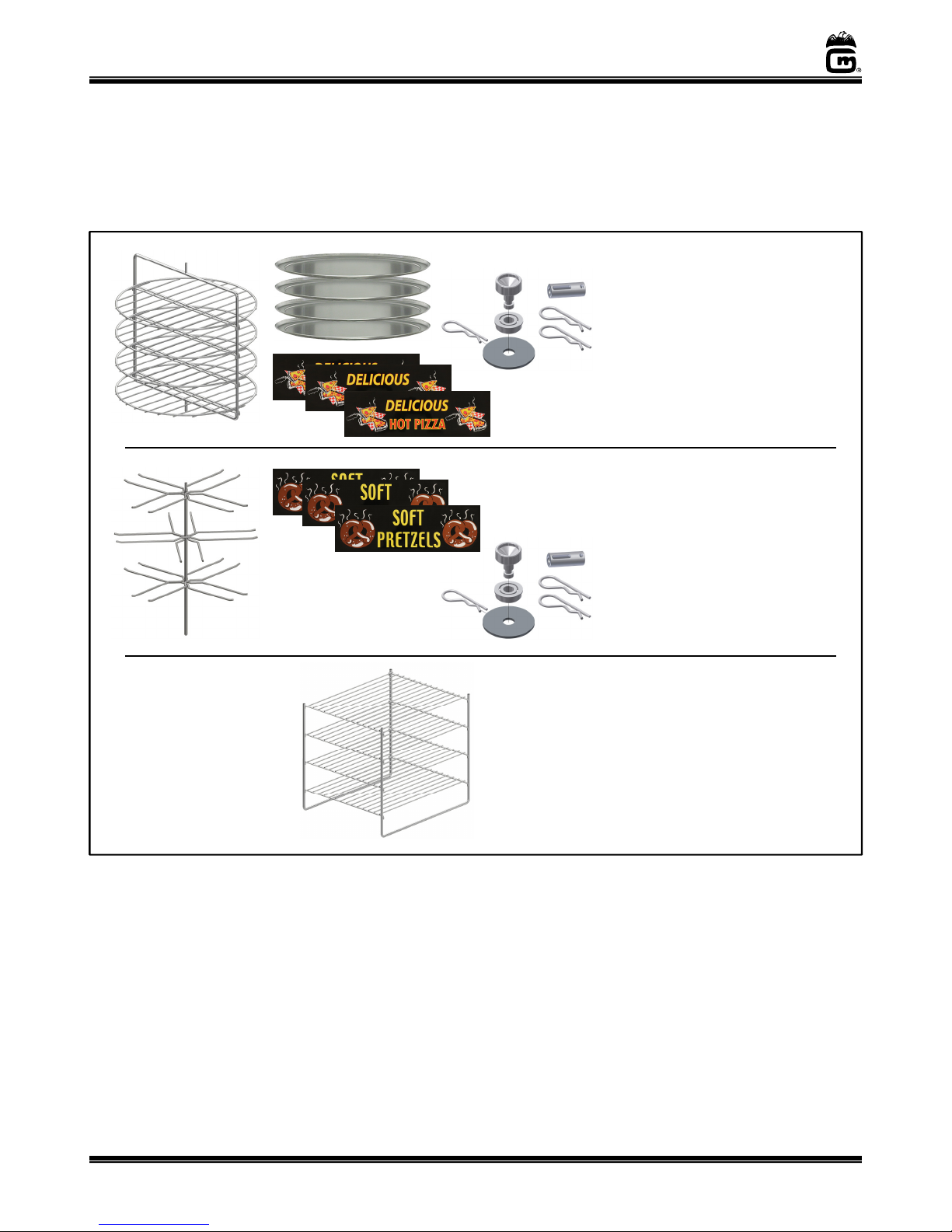

Optional Rack and Graphics Kits
The following kits are available for the Oven and Humidified Merchandiser Combo all kits sold
separately). Reference the Spare Parts Section of this manual to order individual item
replacement parts.
5552-000
Pizza Cabinet Kit for 5552)
4) 15” Pizza Pans, Small Pizza
Rotisserie and Graphics
5552-002
Pretzel Cabinet Kit for 5552)
Small Pretzel Rotisserie and
Graphics
5552-003
Flat Rack Cabinet Kit for 5552)
Small Flat Rack, no Graphics
included

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 7
gmpopcorn.com
Setup for Use General images shown for reference purposes only)
Reference Electrical Specifications to connect the unit to a power source. Unit should be cleaned prior to
use reference Care and Cleaning section of this manual).
Step 4:
Slide Drive Connector
slotted end down) onto top
of rack shaft; insert Hitch Pin.
2
3
1
Step 5: Place rack into unit;
set bottom of rack shaft into Rotator Cup, then lift Drive
Connector up onto motor shaft, and secure with hitch pin.
Step 1:
Remove all
packaging and tape. S
et
unit on a level surface.
Step
3
:
Remove Rotisserie
Support Tray and assemble Rotator
Cup as shown; reinstall Support.
Install Rotisserie
Step
2
:
Remove
Thermomete
r
from pack keep holder); insert
into holding bracket.
Step 4:
Repeat center
to bottom corner
pressure to apply
other side of sign.
pply Sign Graphics
Step 1: Peel paper
backing off Graphic
before applying
to a
clean cabinet panel.
Step 2: Hold graphic
taught and align with
top edge of unit; press
top corners to cabinet.
Step 3: Hold top center to
unit; evenly press down
and outwards from center
of sign to bottom corner.
1
2

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 8
gmpopcorn.com
Electrical Requirements
The following power supply must be provided reference unit Data Plate for Wattage requirement):
120 V~, 60 Hz
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle reference unit Data Plate for model specific Volts AC, Hertz, and Wattage
requirements). We recommend this equipment be on a dedicated and protected circuit. Failure
to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal
Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of
extension cords is not recommended due to safety concerns, and may cause sacrificed and/or
reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
1. Make sure all machine switches are OFF before plugging equipment into receptacle.
2. Make sure wall outlet can accept the grounded plugs where applicable) on the power
supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter where applicable).
5. Install unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 9
gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
Unit switches are equipped with an LED light to indicate when there is power to the switch.
Reference image of controls on next page.
Humidified Merchandiser Controls:
LIGHT SWITCH
Two position, lighted rocker switch – provides power to cabinet lights and rotisserie
door must be closed for rotisserie to function).
HE T SWITCH
Two position, lighted rocker switch – provides power to the Heat Control.
HE T CONTROL
Heat Control adjusts the temperature of the merchandiser from OFF to 170°F the
Heat Control is powered by the Heat Switch).
TEMPER TURE INDIC TOR
The Temperature Indicator displays the interior cabinet temperature.
PILOT LIGHT (for Merchandiser Heat Element)
Pilot Light ON indicates the merchandiser is heating. The light goes OFF when the
unit has reached the set temperature. The light will continue to cycle OFF/ON
during operation.
DOOR SWITCH
Momentary switch stops the rotisserie motor when the door is opened.
THERMOMETER
A Dial Thermometer is provided for measuring product temperature as needed).
Oven Controls:
TIMER SWITCH
Two position, lighted rocker switch – provides power to the Timer Control.
TIMER CONTROL
Dial control used to set the amount of time before the buzzer sounds.
OVEN HE T SWITCH
Two position, lighted rocker switch – provides power to the oven heat element.
ELEMENT PILOT LIGHT (for Oven Heat Element)
Pilot Light ON indicates the oven is heating. The light goes OFF when the oven has
reached temperature. The light will continue to cycle OFF/ON during operation.

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 10
gmpopcorn.com
Operating Instructions
Prepare Merchandiser for Operation:
1. Fill water pan with hot water to provide humidity as needed it is highly
recommended to use distilled water). DO NOT overfill the pan.
Do not allow water level to get low during operation or product may dry out.
2. Turn the Heat Switch ON.
3. Turn the Heat Control to 170°F and preheat unit approximately 2 hours. Set
temperature control to 170°F to maintain a 150°F product temperature. The proper
setting of this control depends on the temperature of the items being placed inside
and how many times the door is opened.)
For specific product safe food holding temperature, reference your local code and/or
instructions from food product manufacturer.
4. Load food products when preheat is complete.
NOTE: If loading pizza, place it in pre-heated cabinet straight from the oven.
5. Turn the Light Switch ON for cabinet lights and to activate the rotisserie Flat Rack
does not rotate).
Prepare Oven for Operation:
6. Turn the Oven Heat Switch ON.
7. Preheat oven for approximately 1/2 hour, or until the Oven Pilot Light turns OFF.
Heat Switch
Pilot Light for
Merchandiser Element
Light Switch
Temperature
Indicator
Humidified Merchandiser Controls
Oven Controls
Heat Control Heat Switch Timer
Control
Pilot Light for
Oven Element
Timer
Switch

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 11
gmpopcorn.com
8. Load product in oven.
9. Set the desired time on the Timer Control dial, then turn the Timer Switch ON. Buzzer will
sound when the allotted time has expired.
Door Momentary Switch
open door to access switch)
T
hermometer
store
in holding
bracket)
Water Pan
Oven ccess Door
Oven Drip Pan

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 12
gmpopcorn.com
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOT clean appliance with a water jet.
Always unplug the equipment before cleaning or servicing.
025_111616
WARNING
To avoid burns, DO NOT touch heated surfaces.
DO NOT place or leave objects in contact with heated surfaces.
009_092414
Good sanitation practice demands that all food preparation equipment be cleaned regularly only
use non-toxic, food grade cleaners). A clean looking, well-kept machine is one of the best ways of
advertising your product.
Follow the directions below to clean and sanitize unit each day after use.
1. Turn machine OFF, unplug unit and allow it to cool completely before attempting to
clean.
2. Clean all pans, trays/accessories racks) in order to sanitize them before each use.
3. Clean any debris from around element with a clean cloth, SLIGHTLY dampened with
hot water.
4. Clean outside of unit with a soft cloth, dampened with soap and hot water.
5. Wipe stainless steel parts with a clean cloth and cleaner designed for stainless steel,
such as Gold Medal Watchdog Stainless Cleaner Item No. 2088).
DO NOT use oven cleaners or abrasive materials as they will damage parts of machine.
6. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner Item No.
2588) is recommended.

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 13
gmpopcorn.com
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 14
gmpopcorn.com
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700
Medallion Drive, Cincinnati, Ohio 45241-4807
or place orders by phone or online:
Phone: [phone]
513) 769-7676
Fax: [phone]
513) 769-8500
E-mail: inf[email protected]
Web Page: gmpopcorn.com

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 15
gmpopcorn.com
Replacing Broken Glass
Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be
obtained from a local glass shop, always purchase tempered glass.
GL SS DIMENSIONS Height x Width x Thickness)
Front and Side Glass: 18.063” x 14.875 x .125” 3 Pieces)
1. Turn machine OFF, unplug unit and allow it to cool completely before attempting to
replace glass.
2. Carefully remove all loose pieces of broken glass.
3. Slide glass panel up under top ridge, then swing bottom of panel out and lower it away
from unit see Figures A and B below).
4. Carefully remove the rest of the broken glass and clean unit thoroughly.
5. Remove all rigid glass channels from around glass to be replaced, set channels aside
for reuse.
6. Slide rigid glass channels over exposed edges of new glass panel.
7. Carefully slide new glass panel up under top ridge, then lower it into the bottom channel.
8. Reinstall all pans for use.
Figure B –
Swing bottom of
glass panel out, then lower
it away from unit.
Figure - Slide glass panel
up under top ridge.
General images shown for glass installation reference only.

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 16
gmpopcorn.com

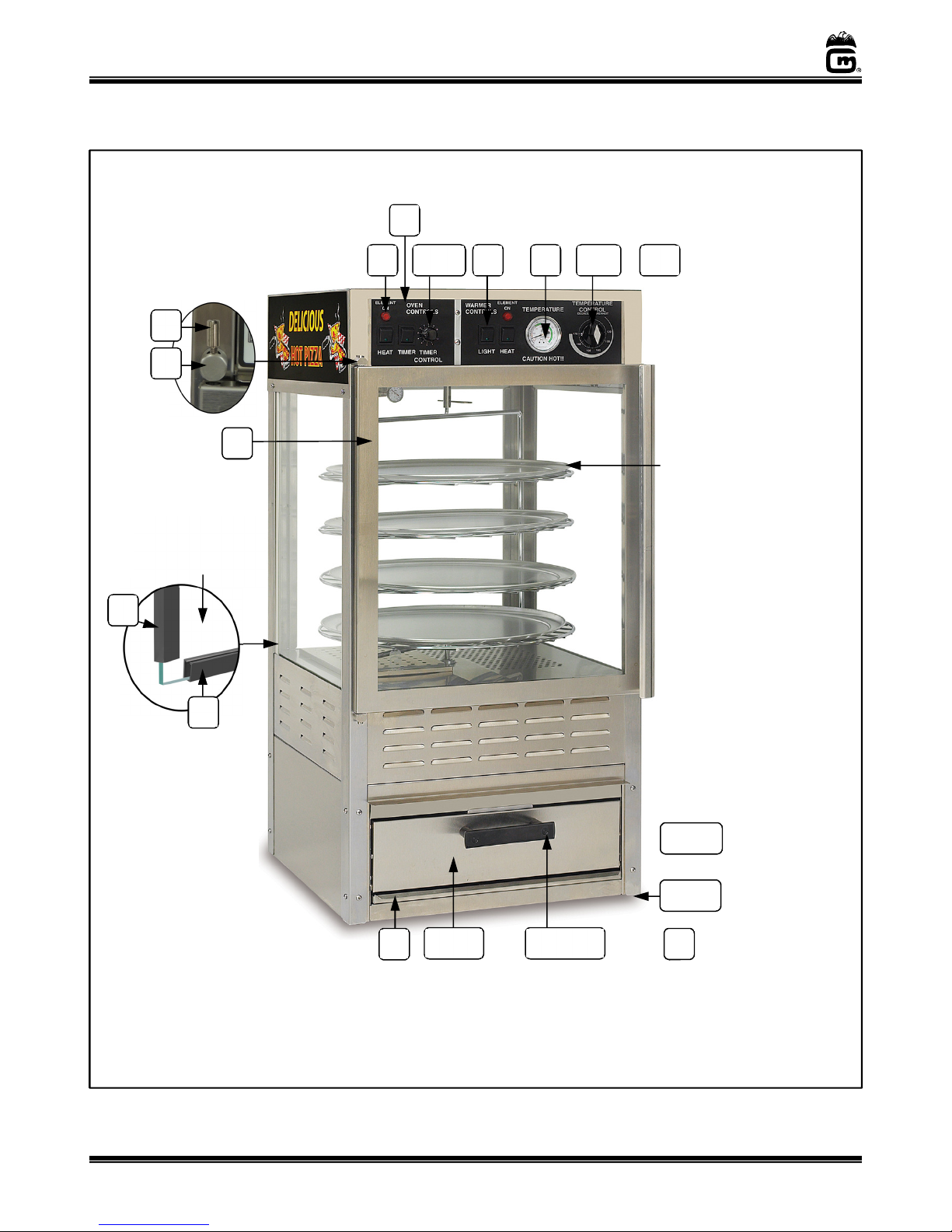

Cabinet Exterior – Parts Breakdown
General image shown for parts reference only (Rack and Graphics Kit sold separately).
14
12
13
15
For Glass Panels,
see Replacing
Glass section.
16
24, 25
Cabinet Bottom
Cover
17
18, 19 20, 21, 22
23
Foot and
Fastener
*C UTION: If supply
cord is damaged, it
must be replaced by
Gold Medal Products
Co., its service agent,
or similarly qualified
persons in order to
avoid a hazard.
26*, 27
Power Cord and
Strain Relief
5 3, 4
See Rack and Graphics
Kit parts section.
6 7, 8, 9 10
11
Dome and
Fastener
1, 2

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 17
gmpopcorn.com
Cabinet Exterior – Parts List
Item Part Description Part Number
5552-00-000
1 DOME TOP PANEL 43507
2 8-32 X 3/8 PHIL PAN HEAD fastener for Dome) 87515
3 KNOB, HEAT CONTROL 87049
4 HEAT CONTROL 42617
5 THERMOMETER control panel indicator) 42619
6 SWITCH, LIGHTED ROCKER GR 42798
7 KNOB 42880
8 TIMER, DELAY ON MAKE 42848
9 POTENTIOMETER 20K 55240
10 PILOT LIGHT-125V RED 41033
11 5552 CONTROL LABEL 43293
12 HINGE PIN 42627
13 HINGE 42628
14 DOOR ASSY includes glass) 101208
15 GLASS CHAN 18 1/16 cut to length as needed) 42651
16 GLASS CHAN 18 15/32 cut to length as needed) 42652
17 DRIP PAN 42870
18 OVEN DOOR FRONT, WELDMENT 42878
19 OVEN DOOR BACK, WELDMENT 42879
20 HANDLE 40807
21
1/4
-
20 X 1/2 HX HD SCREW
fastener for Handle)
12382
22 1/4 SPRING LOCK WASHER fastener for Handle) 12707
23 BOTTOM COVER WELDMENT 43275
24 RUBBER FEET 3/4IN HIGH 4 required) 47155
25 8-32 X 1 PH PAN M/S S.S. 12219
26* LEAD IN CORD 15A PLUG 87085
27 STRAIN RELIEF SR-7W-2 67060

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 18
gmpopcorn.com
Cabinet Interior – Parts Breakdown
18
17
16*
10
6, 8 9
7
11
1
6
2
3, 4
5
19, 20
13
12
22
23
24
21
Thermostat bulb cap thermostat)
Oven Element
Pizza Cooking Tray
Interior Oven Parts
General image shown for parts reference only (Rack and Graphics Kit sold separately).
Cabinet Element
under Bottom Pan)
15
14
Resistor, 5K
8 Watt
Dome Inte
rior Parts

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 19
gmpopcorn.com
Cabinet Interior – Parts List
Item Part Description Part Number
5552-00-000
1 PLUNGER SWITCH 40712
2 LED REPLACEMENT NO PLATE 100544
3 4-40 X 1/2 PHIL PAN MS SS 101298
4 4-40 HEX NYLON LOCKNUT SS 101299
5 ROTISSERIE DRV MOTOR 50296
6 8-32 X 3/8 PAN HD PH M/S 12389
7 PROBE KEEPER 101119
8 8-32 SERRATED FLANGE NUT 61151
9 THERMISTOR PTC SS SHEATH 101131
10 GROMMET BLACK .094 101069
11 1 IN. DIAL THERMOMETER 8000
12 POWER SUPPLY 24VDC 20W 55394
13 20W POWER SUPPLY BRACKET 55414
14 BUZZER SIGNAL 46118
15 RESISTOR, 5K 8 WATT 48612
16 ROTATOR CUP ASSEMBLY sold separately, see
Rack and Graphics Kits for reference) 101127
17 BOTTOM PAN 43488
18 600 WATT HEAT ELEMENT for Cabinet) 43287
19 PAN COVER 42621
20 1/4 X 2-1/2 DP. WATER PAN 42614
21 PIZZA COOKING TRAY rack in oven)
22 500 WATT HEAT ELEMENT for oven, 2 required) 43288
23 THERMOSTAT 392 F 87995
24 HIGH LMT THERMOSTAT 200F 79058
Safety Labels
Item Part Description Part Number
1 LABEL, CAUTION HOT 38201
2 MAIN GROUND LABEL 42375
3 WARNING LABEL CORD 68720
1
2
Unit Labels
Power Cord Label
3

Humidified Merchandiser
Combo Model No. 5552-00-000
Page 20
gmpopcorn.com

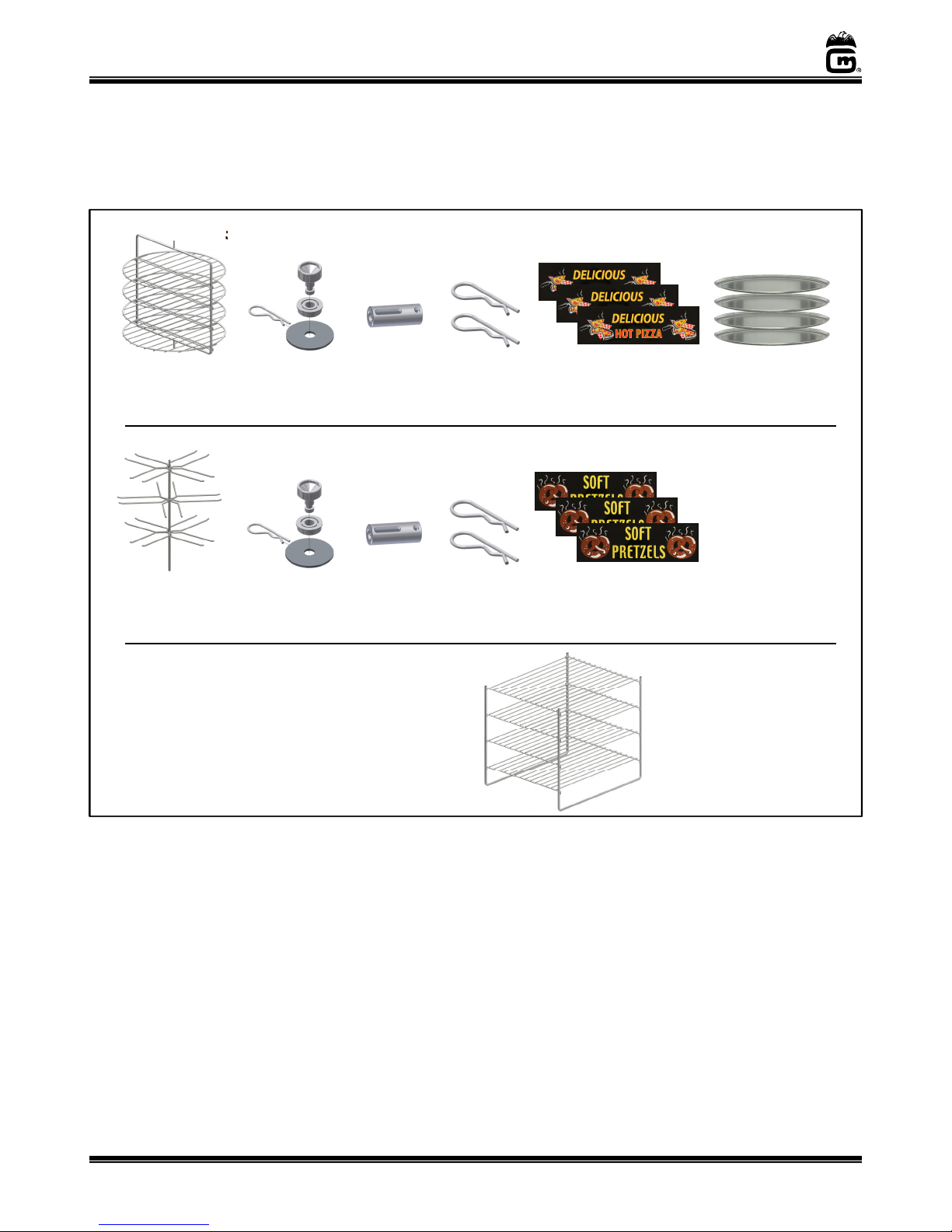

Optional Rack and Graphics Kits – Replacement Parts
Rack and Graphic Kits available for the Humidified Merchandiser Combo all kits sold separately).
For specific part replacement, reference individual item part number specify quantity needed).
Pretzel Graphics (each)
PN 101213)
Rotator Cup
ssembly
PN 101127)
Drive
Connection
PN 101130)
Hitch Pin (each)
PN 40732)
5552-000 Pizza Cabinet Kit)
Pizza Rotisserie
PN 101191)
Pizza Pan (each)
15” Pan PN 50003)
Pizza Graphics (each)
PN 101212)
5553-002 Pretzel Cabinet Kit)
Pretzel Rotisserie
PN 101192)
5552-003 Flat Rack Cabinet Kit)
Rotator Cup
ssembly
PN 101127)
Drive
Connection
PN 101130)
Hitch Pin (each)
PN 40732)
Flat Rack Kits (no Graphics provided)
