Goldmedal 2114E User manual

Part No. 79064E
Revised: March 2009
Bucket Pump With Teach-Me Timer
Instruction Manual
Models: 2114E & 2114ED
For Machines Manufactured After March 2009
Cincinnati, OH 45241 USA

2

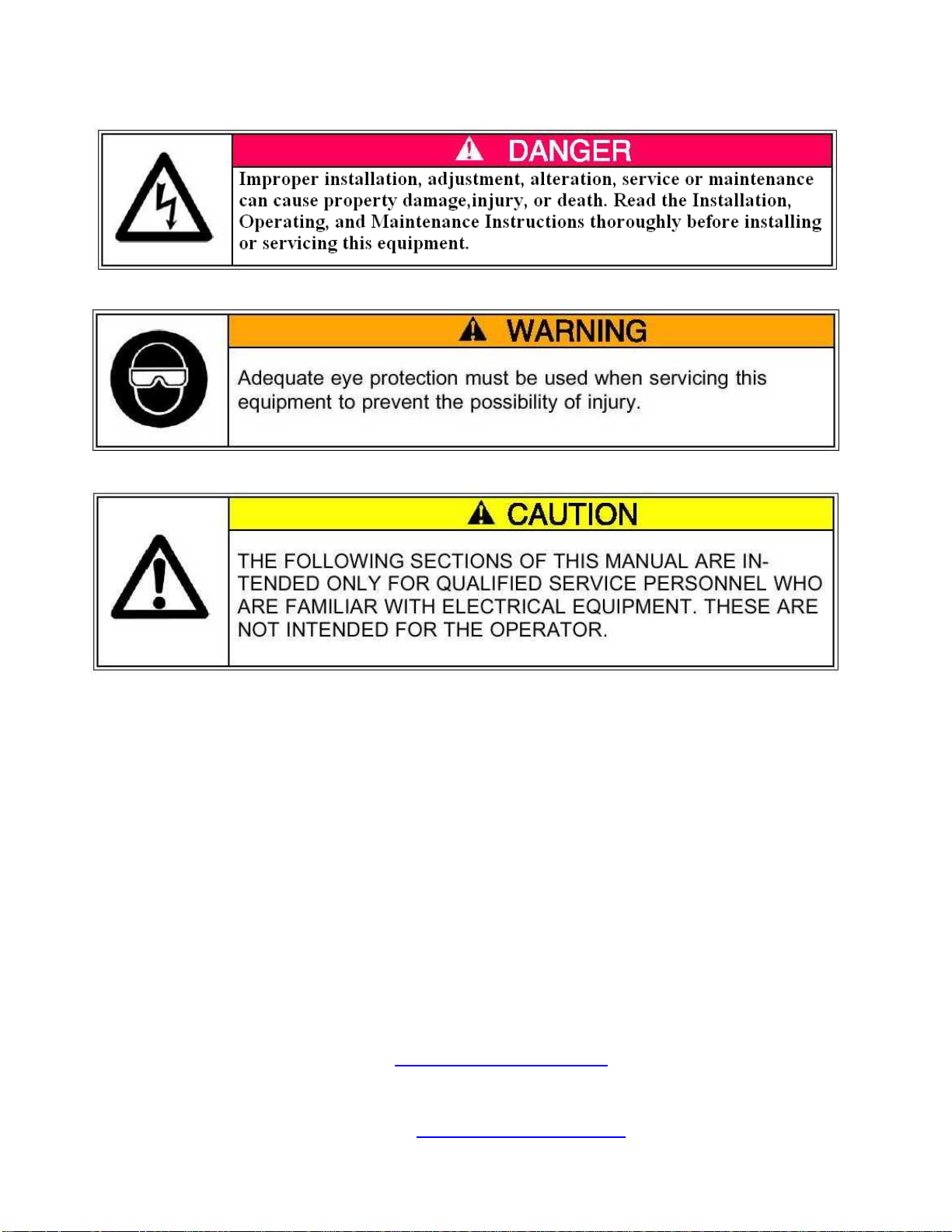

Safety Precautions

3
INTRODUCTION
This manual provides instruction for installation and operation of the Models 2114E and 2114ED –
manufactured after March of 2009.
The unit you have purchased is a quality product that should give you years of trouble-free operation if used
correctly, and properly maintained. Take a few minutes to read this instruction manual - and make sure all
users are instructed in the proper operation. The warranty does not cover damage that occurs in transit, or
damage caused by abuse or consequential damage due to the operation of this machine, since it is beyond our
control.
INSTALLATION
Checking Shipment
Carefully remove your new bucket pump from the corrugated carton. Check thoroughly for any damage, which
may have occurred during transit. Damage claims should be filed immediately with the transportation company.
ELECTRICAL REQUIREMENTS
Model number 2114E:
120 Volts / 60 Hz
Model number 2114ED:
120 Volts / 60 Hz

4
OPERATING INSTRUCTIONS
FINAL PREPARATIONS
Your new BucketPump was adjusted,inspected and tested before it left the factory, and is ready to operate with some
fineadjustment tothevolume of oil delivered to your popper (see adjustment instructions on the following page).
NOTE: We recommend pre-melting oil in the bucketwith GoldMedal’s HOT WAND, catalog #2018, before inserting
your new bucket pump to prevent the possibility of damage to the heat element.
INSTALLATION
1. Place your oil pump in a pre-melted bucket of oil.
2. Connect the plastic oil delivery tube (located in your popper) to the quick disconnect (located on your oil pump)
using the hose clamp supplied with your popcorn machine.
3. Connect the power supply cord (located under your popper) to the disconnect plug on your oil pump. NOTE:
Volume measurements should be taken from the oil delivery tube located in your existing popper above the
kettle.
HIGH HEAT
1. Turn on the “OIL SYSTEM MASTER SWITCH” located on the switch panel in your popper.
2. The High Heat Cycle is factory set at 20 minutes.
3.To start the High Heat Cycle, press the "HEAT" button.
PUMP CYCLE
1. The oil quantity is factory set at approximately 4 ounces (120 ml). You will need to set the volume of oil to
your corn charge.
2. With a measuring cup under the tube in the ceiling of the popper over the kettle, set the quantity to your desired
ratio (30%). See chartbelow.
3. Allow oil to drain completely before rechecking oil quantity.
Raw Corn Charge Oil Charge
12 Oz. (355 ml) 3.5 Oz. (103 ml)
14 Oz. (414 ml) 4 Oz. (120 ml)
16 Oz. (473 ml) 5.3 Oz. (155 ml)
20 Oz. (591 ml) 6.6 Oz. (195 ml)
28 Oz. (828 ml) 8.4 Oz. (250 ml)
32 Oz. (946 ml) 9.6 Oz. (285 ml)
36 Oz. (1065 ml) 12 Oz. (355 ml)
48 Oz. (1420 ml) 14.5 Oz. (450 ml)
52 Oz. (1538 ml) 16 Oz. (470 ml)

5
E-Z SET TIMER OPERATING INSTRUCTIONS
Program Mode:
This machine is equipped with a programmable timer for setting the amount of oil needed for popping popcorn.
To put the pump into program mode, hold the Oil Dispense push button down, while turning on the Oil System
Master switch. Continue to hold the Oil Dispense push button down for 5 seconds. The oil light will start to
blink off and on indicating that the timer is in the program mode. (See note below.) Hold a cup under the oil
line, then use the manual mode of operation to prime the oil line. After priming the oil line, use a measuring cup
and the automatic mode of operation to set the correct oil amount.
Note: If your machine is not equipped with a square, lighted rocker switch, no blinking light will be present.
1. Automatic Operation
When in the program mode press and release the oil Dispense switch to start the oil flowing. When the
correct amount of oil has been dispensed into the measuring cup push the oil Dispense switch to stop the
oil flow. The oil amount can be “topped off” by pushing the oil Dispense switch on/off as many times as
needed to finalize the oil amount. Turning the Oil System Master switch off and then back on puts the unit
in the regular mode. The unit will now dispense the “programmed” amount of oil when the oil Dispense
switch is pushed. The oil light will light only when the oil pump is on.
2. Manual Operation
When in the program mode immediately turn off the Oil System Master switch. Turning the Oil System
Master back on puts the timer in the manual mode of operation. The unit will now dispense oil only while
the oil Dispense switch is pushed.
NOTE:
The model 2114ED is a dual oil timer. Select salt popping to program the salt oil time. Select sweet popping to
program the sweet oil time.
For Flexi-Pop machines select one of the corn amounts, program and then select the second corn amount and
program.
Note: The model 2114ED CANNOT be used as a replacement for the model
2114D. See attached service bulletin, on page 11 of this manual, for further
instruction.

MAINTENANCE INSTRUCTIONS
ORDERING SPARE PARTS
1. Identify the desired part by checking it against the photos, illustrations, and/or the parts list.
2. When ordering, please include part number, part name, and quantity desired.
3. Please include your model name, serial number, and date of manufacture (located on the machine
nameplate) with your order.
4. Address all parts orders to:
Parts Department
Gold Medal Products Co.
10700 Medallion Drive
Cincinnati, Ohio 45241-4807
[phone]
[phone]
Fax: [phone]
E-mail: [email protected]
or, place orders online at:
Web Page: www.gmpopcorn.com

Bucket Pump
Models: 2114E & 2114ED
7
Parts Breakdown – Bottom View
7
1
6
5
3
4 9
2
8

Bucket Pump
Models: 2114E & 2114ED
8
Parts Breakdown – Top View
10
13
11
10
11
12

Bucket Pump
Models: 2114E & 2114ED
9
Parts Breakdown – Top View Continued
15
14 16

Bucket Pump
Models: 2114E & 2114ED
10
Parts List – Models: 2114E & 2114ED
* Denotes items not shown.
Item No. Part No. Description Quantity
1 79017 Element Retainer 1
2 79018 Clamp, Filter Screen 1
3 79023 Pump Mounting Tube 1
4 79030 Bucket Lid Assy. 1
5 79016 Filter Screen 1
6 79001 Pump Assy. 1
7 79002 Heat Element 1
8 79015 Oil Delivery Tube 1
9 76105 Thumb Screws 2
10 48732 Timer, Dual Teach - 120V 1
11 79006 Pump Motor 1
12 79004 Cinch Plug 1
13 55047 Timer, 20 Minute 1
14 41031 Switch, Oil Pump 1
15 41033 Pilot Light - 120V Red 1
16 79090 High Heat Label 1
* 79005 Pump Motor Gasket 1
* 79011 Drive Shaft 1
* 79019 Drive Shaft Bushing (Motor End) 1
* 79020 Drive Shaft Bushing (Pump End) 1
* 89087 240V Transient Filter 1

Bucket Pump
Models: 2114E & 2114ED
11
GOLD MEDAL PRODUCTS COMPANY
10700 Medallion Drive Phone: [phone]
Cincinnati, Ohio 45241-4807 Fax: [phone]
U.S.A.
FAX MESSAGE - SERVICE BULLETIN -0110
Date Issued – March 9, 2009
Model(s) Affected- 2114 & 2114D
The 2114 and 2114D bucket pumps have been replaced by the 2114E and 2114ED bucket pumps.
The 2114E & 2114ED pumps have the teach timer with a fixed 20 minute high heat timer.
The 2114E is a direct replacement for the 2114 pump. (and the 2257 pump)
The 2114ED pump used with the flexi-pop and salt/sweet model machines is not a direct replacement for the
2114D pumps. If a customer requests a 2114D pump it will have to be made; save the remaining inventory for the 2114D.
List of new/old parts; where they are used.
P/N Description 2114 2114D 2114E 2114ED
79063EX Junction Box X X
79078 Dual Timer Assy X X
79087 Decal for switches X X
79050 Decal refer to manual X X
79089 Junction Box X X
79135 Bracket, timer X X
79090 Decal for switches X X
45098 Terminal Block X X
48732 Teach timer X X
55017 Decal teach instructions X X
55047 Timer, 20 minute X X
48733 Relay SPDT X
48773 Receptacle X
79062EX Junction box cover X
79140 SS Timer X
79141 Timer socket X
79159 Timer clips X
79279EX Bracket, timer X
Wiring diagrams:
2114 B-11415S2
2114D B-14453S2
2114E B-11415S3
2114ED B-14415S4
If you have any questions, please feel free to call Technical Service at Gold Medal.

Bucket Pump
Models: 2114E & 2114ED
12
Electrical Schematic – Model 2114E

Bucket Pump
Models: 2114E & 2114ED
13
Electrical Schematic – Model 2114ED

Bucket Pump
Models: 2114E & 2114ED
14
© The text, descriptions, graphics and other material in this publication are the proprietary and
exclusive property of Gold Medal Products Company and shall not be used, copied,
reproduced, reprinted or published in any fashion, including website display, without its
express written consent.
WARRANTY
WE WARRANT to the original purchaser the Gold Medal equipment sold by us to
be free from defects in material or workmanship under normal use and service. Our
obligation under this warranty shall be limited to the repair or replacement of any
defective part for a period of six (6) months from the date of sale to the Original
Purchaser with regard to labor and two (2) years with regard to parts and does not
cover damage to the equipment caused by accident, alteration, improper use, voltage,
abuse, or failure to follow instructions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED
OR IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR
PART, INCLUDING THE IMPLIED WARRANTY OF MERCHANTIBILITY.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. We neither assume, nor authorize any other person
to assume for us, any other obligation or liability in connection with the sale of said
GOLD MEDAL equipment or any part thereof.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that
person, firm, association, or corporation who was billed by the GOLD MEDAL
PRODUCTS COMPANY, or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS COMPANY AT 1-800-
543-0862 TO DISCUSS WITH OUR SERVICE REPRESENTATIVE THE
EQUIPMENT PROBLEM, AND, IF NECESSARY, FOR INSTRUCTIONS
CONCERNING THE REPAIR OR REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
